Ferrite Core for High Frequency Transformer

Ferrite has a high permeability, making it ideal for use as a core material. It has a high resistivity as well. Eddy currents and hysteresis losses are held to a minimum as a result of this.<br><br>Ferrite is suitable for high frequency transformer core design because of its high permeability and resistivity. The only negative is that, as a ceramic, it is fragile and susceptible to cracking.

cosmoferrites121
Download Presentation

Ferrite Core for High Frequency Transformer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

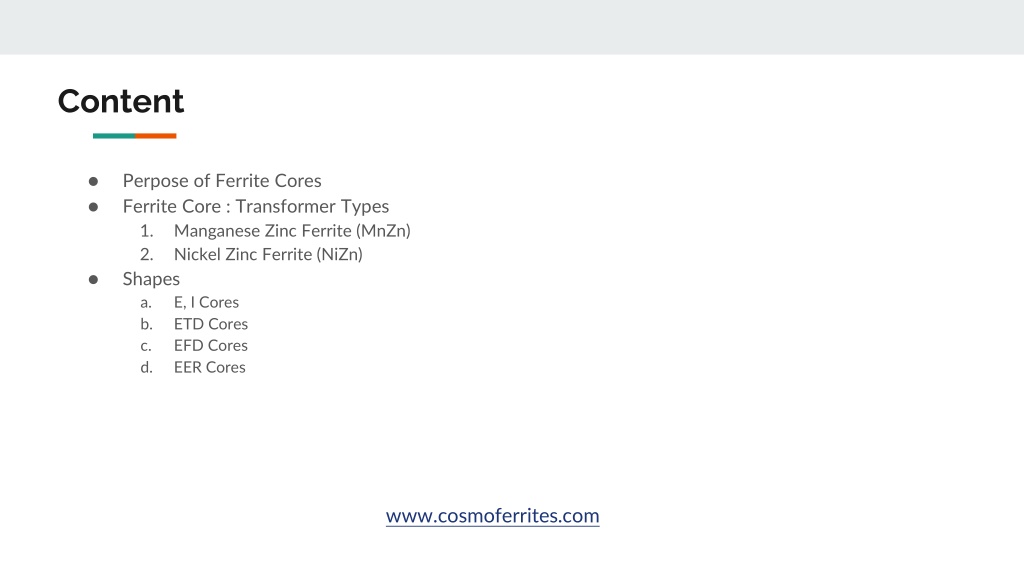

  1. Content • Perpose of Ferrite Cores • Ferrite Core : Transformer Types • Manganese Zinc Ferrite (MnZn) • Nickel Zinc Ferrite (NiZn) • Shapes • E, I Cores • ETD Cores • EFD Cores • EER Cores www.cosmoferrites.com

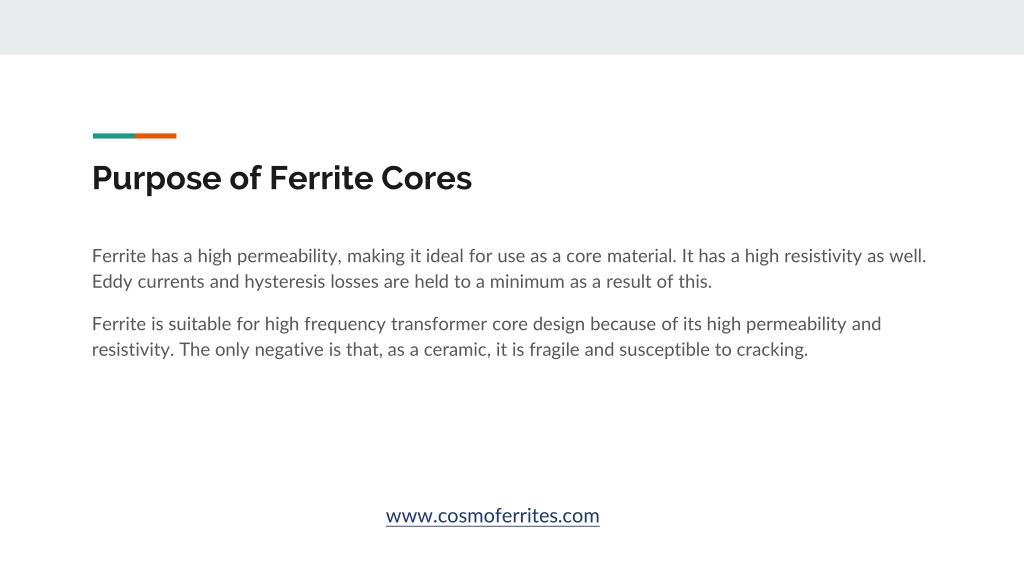

  2. Purpose of Ferrite Cores Ferrite has a high permeability, making it ideal for use as a core material. It has a high resistivity as well. Eddy currents and hysteresis losses are held to a minimum as a result of this. Ferrite is suitable for high frequency transformer core design because of its high permeability and resistivity. The only negative is that, as a ceramic, it is fragile and susceptible to cracking. www.cosmoferrites.com

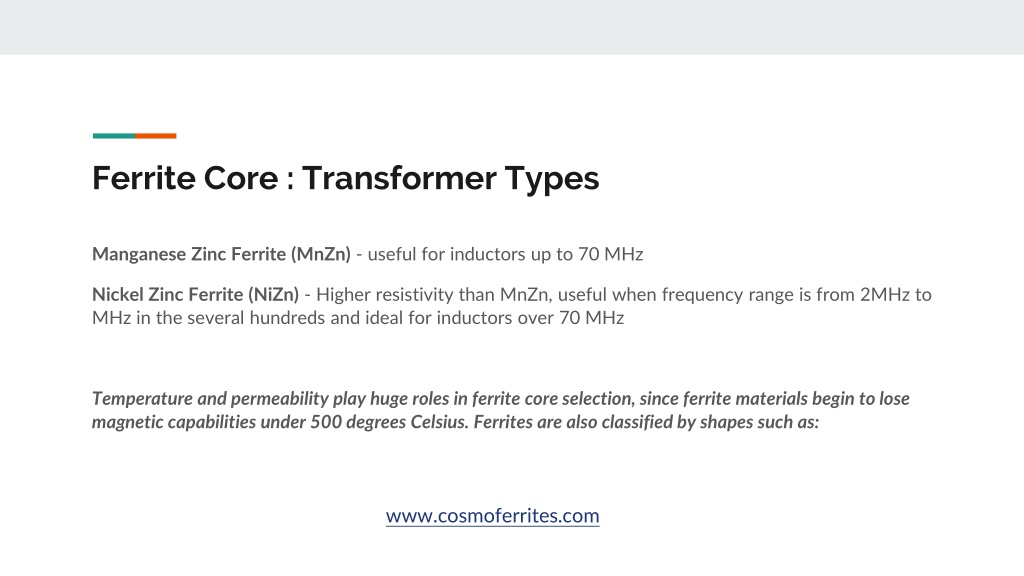

  3. Ferrite Core : Transformer Types Manganese Zinc Ferrite (MnZn) - useful for inductors up to 70 MHz Nickel Zinc Ferrite (NiZn) - Higher resistivity than MnZn, useful when frequency range is from 2MHz to MHz in the several hundreds and ideal for inductors over 70 MHz Temperature and permeability play huge roles in ferrite core selection, since ferrite materials begin to lose magnetic capabilities under 500 degrees Celsius. Ferrites are also classified by shapes such as: www.cosmoferrites.com

  4. Ferrite Shapes E, I Cores - easy to construct with simple bobbin winding, making them useful for power and telecom inductors, along with broadband, converter and inverter transformers ETD Cores - center post has minimal winding resistance, ideal for power transformers and inductors EFD Cores - made with cross-sectional areas provide utility for compact transformers EER Cores - based on a round center post, providing a shorter winding www.cosmoferrites.com

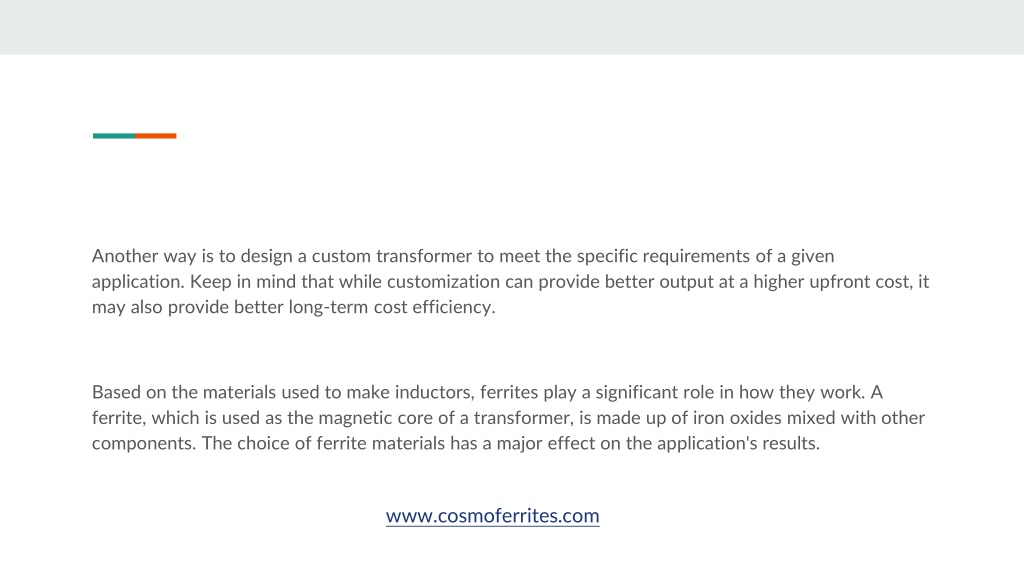

  5. Another way is to design a custom transformer to meet the specific requirements of a given application. Keep in mind that while customization can provide better output at a higher upfront cost, it may also provide better long-term cost efficiency. Based on the materials used to make inductors, ferrites play a significant role in how they work. A ferrite, which is used as the magnetic core of a transformer, is made up of iron oxides mixed with other components. The choice of ferrite materials has a major effect on the application's results. www.cosmoferrites.com

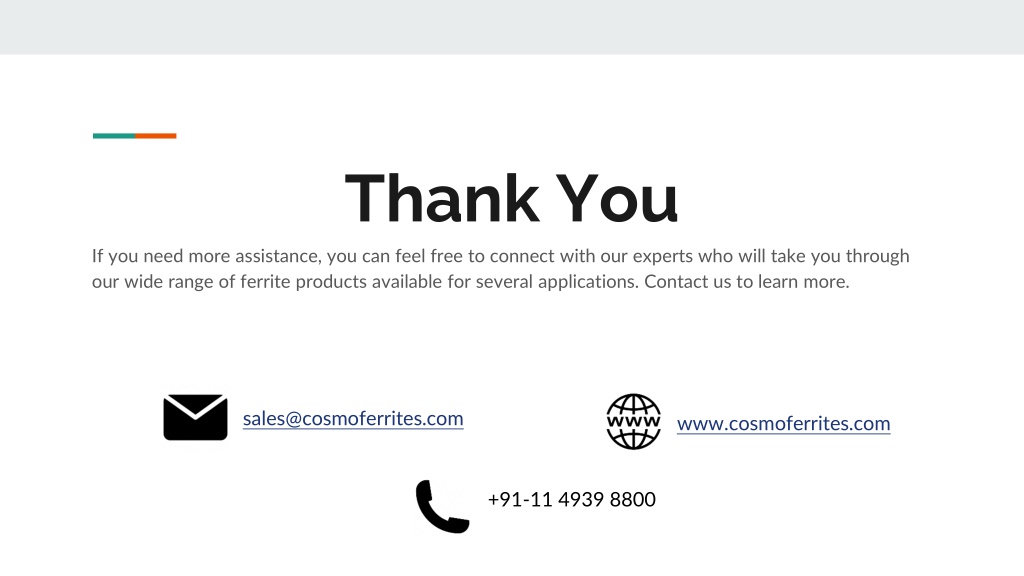

  6. Thank You If you need more assistance, you can feel free to connect with our experts who will take you through our wide range of ferrite products available for several applications. Contact us to learn more. sales@cosmoferrites.com www.cosmoferrites.com +91-11 4939 8800
