All You Need To Know About Ferrites in Broadband Transformers

2. All You Need To Know About Ferrites in BroadbandTransformers

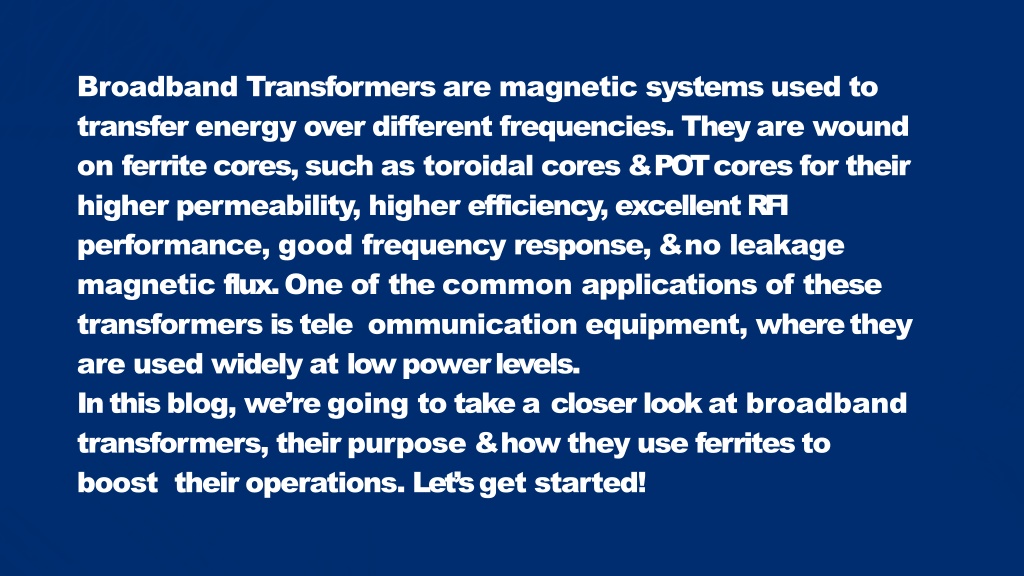

3. Broadband Transformers are magnetic systems used to transfer energy over different frequencies. They are wound on ferrite cores, such as toroidal cores & POT cores for their higher permeability, higher efficiency, excellent RFI performance, good frequency response, & no leakage magnetic flux. One of the common applications of these transformersistele ommunication equipment, wherethey are used widely at low powerlevels. In this blog, we’re going to take a closer look at broadband transformers, their purpose & how they use ferrites to boost their operations. Let’s get started!

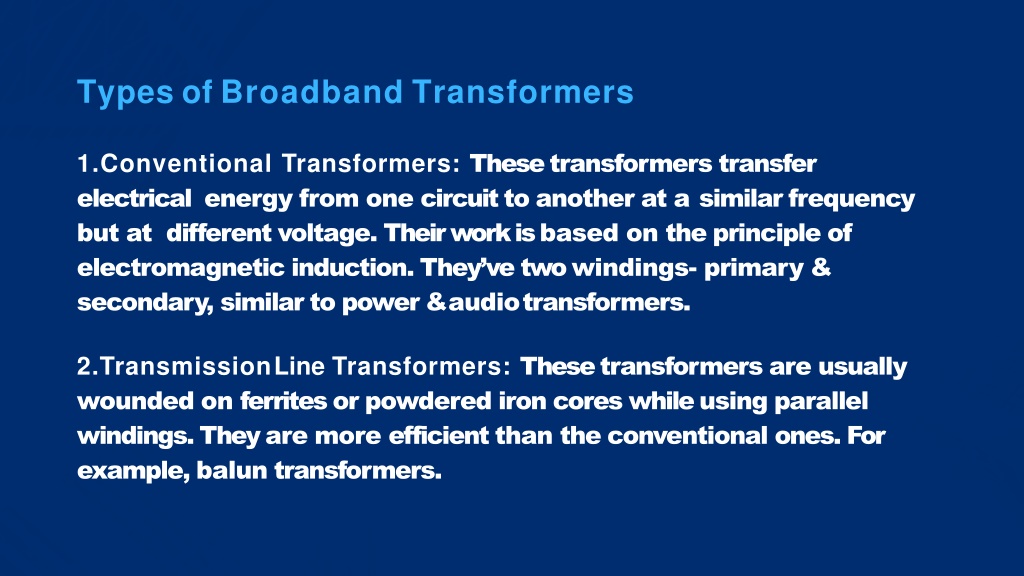

4. TypesofBroadbandTransformers Conventional Transformers: These transformers transferelectrical energy from one circuit to another at a similar frequency but at different voltage. Their work is based on the principle of electromagnetic induction. They’ve two windings- primary & secondary, similar to power & audiotransformers. TransmissionLine Transformers: These transformers are usually wounded on ferrites or powdered iron cores while using parallel windings. They are more efficient than the conventional ones. For example, baluntransformers.

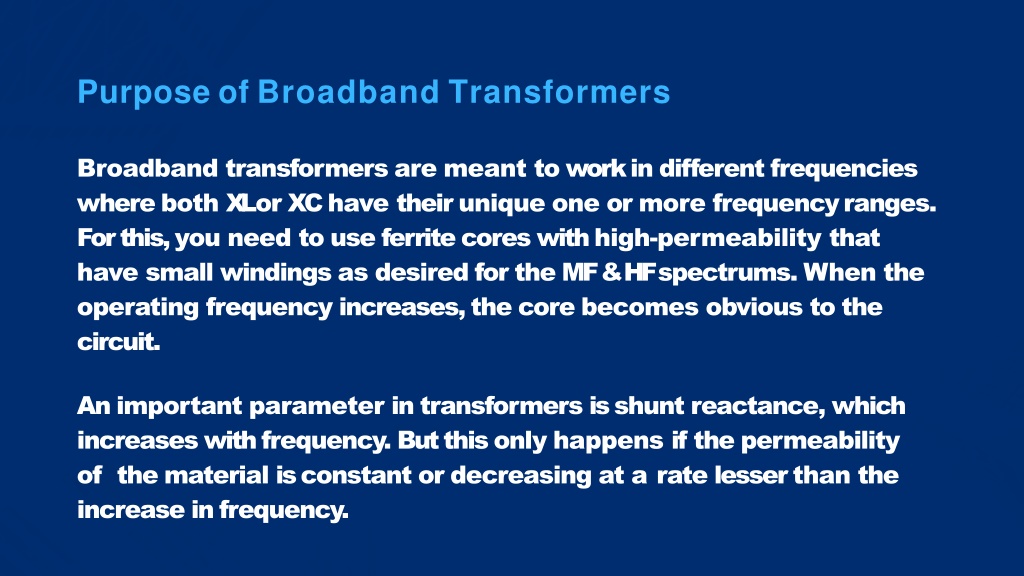

5. PurposeofBroadbandTransformers Broadband transformers are meant to work in different frequencies where both XL or XC have their unique one or more frequencyranges. For this, you need to use ferrite cores with high-permeability that have small windings as desired for the MF & HF spectrums. When the operating frequency increases, the core becomes obvious to the circuit. An important parameter in transformers is shunt reactance, which increases with frequency. But this only happens if the permeability of the material is constant or decreasing at a rate lesser than the increase infrequency.

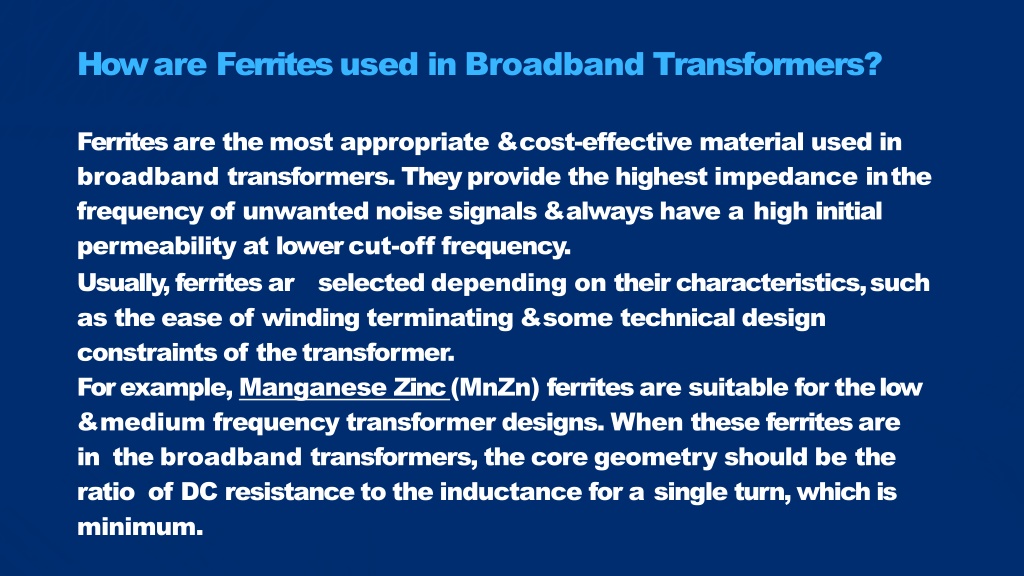

6. How are Ferrites used in BroadbandTransformers? Ferrites are the most appropriate & cost-effective material used in broadband transformers. They provide the highest impedance inthe frequency of unwanted noise signals & always have a high initial permeability at lower cut-offfrequency. Usually,ferritesar selected depending on their characteristics,such as the ease of winding terminating & some technical design constraints of thetransformer. For example, Manganese Zinc (MnZn) ferrites are suitable for thelow & medium frequency transformer designs. When these ferrites arein the broadband transformers, the core geometry should be the ratio of DC resistance to the inductance for a single turn, which is minimum.

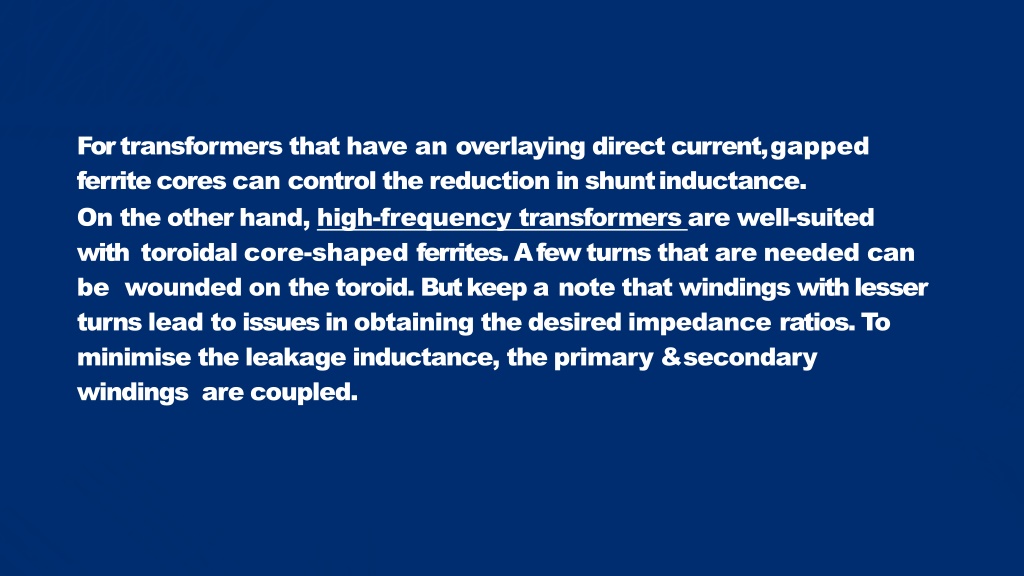

7. For transformers that have an overlaying direct current,gapped ferrite cores can control the reduction in shuntinductance. On the other hand, high-frequency transformers are well-suited with toroidal core-shaped ferrites. A few turns that are needed can be wounded on the toroid. But keep a note that windings with lesser turns lead to issues in obtaining the desired impedance ratios. To minimise the leakage inductance, the primary & secondary windings arecoupled.
