SCR/Thyrisitor

SCR/Thyrisitor. pnpn structure with 3 pn junctions. Cross-section of the pnpn structure. + V AK -. J1. J2. J3. I A = 0.

corine
Download Presentation

SCR/Thyrisitor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

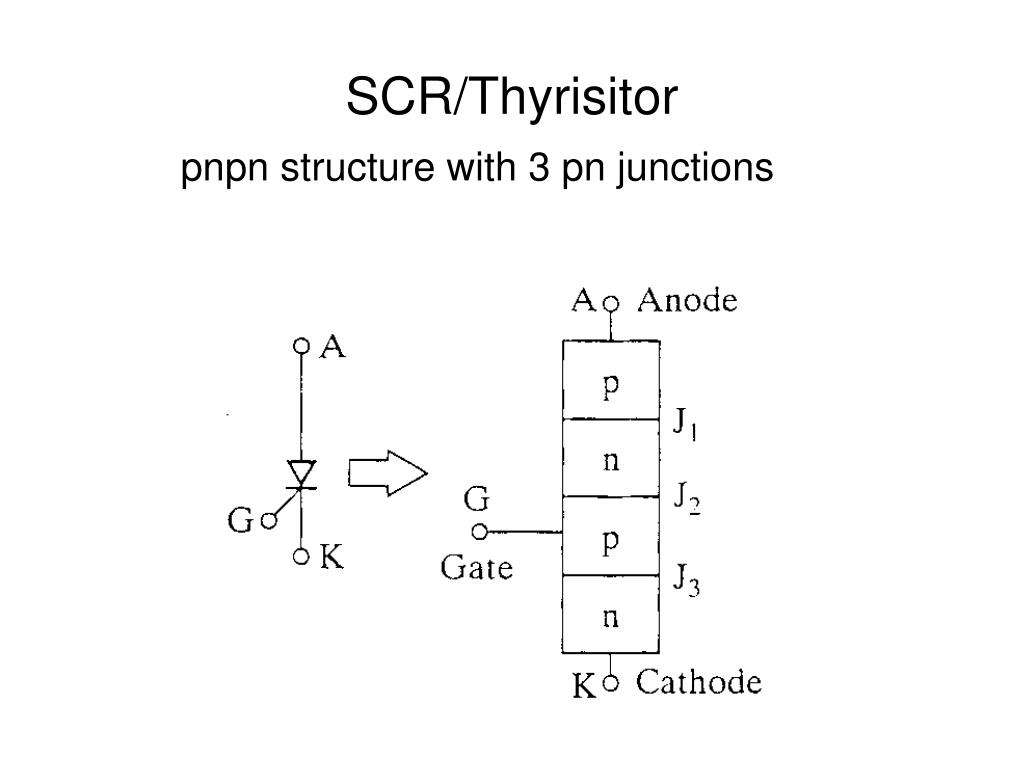

  1. SCR/Thyrisitor pnpn structure with 3 pn junctions

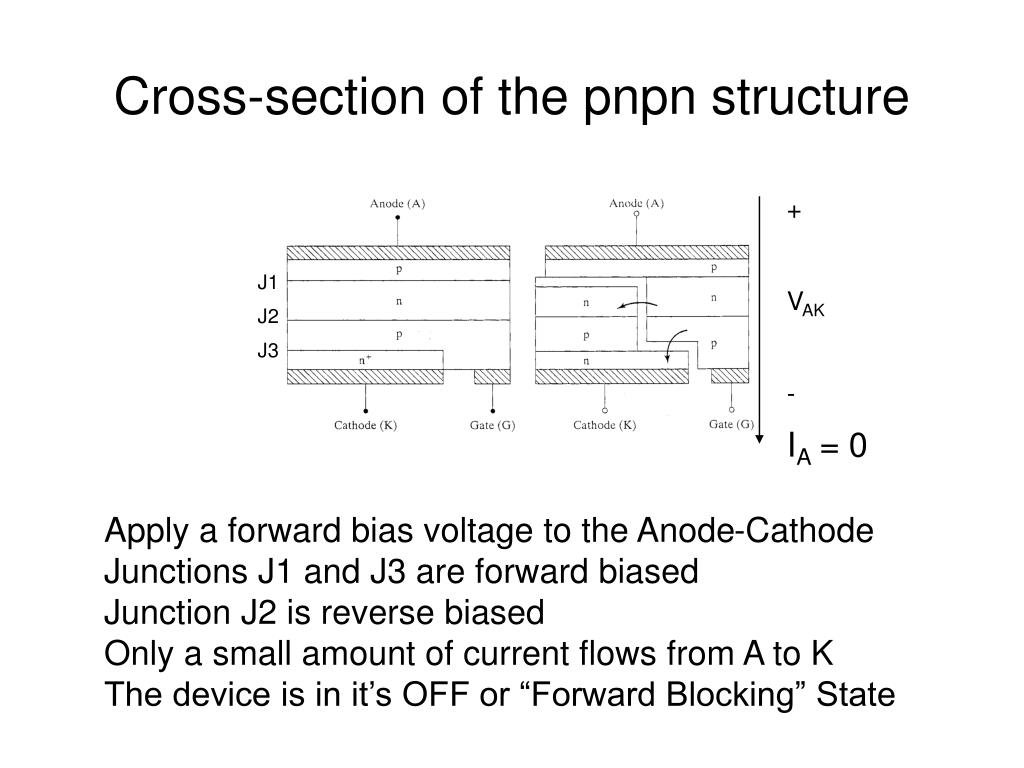

  2. Cross-section of the pnpn structure + VAK - J1 J2 J3 IA = 0 Apply a forward bias voltage to the Anode-Cathode Junctions J1 and J3 are forward biased Junction J2 is reverse biased Only a small amount of current flows from A to K The device is in it’s OFF or “Forward Blocking” State

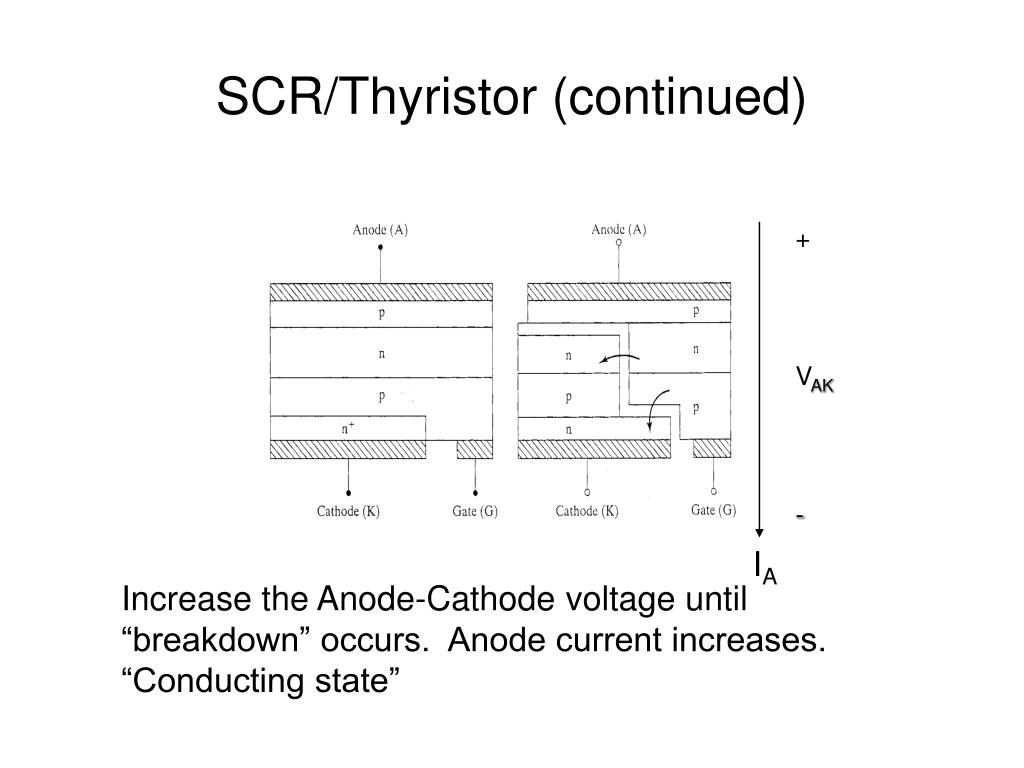

  3. SCR/Thyristor (continued) + VAK - IA Increase the Anode-Cathode voltage until “breakdown” occurs. Anode current increases. “Conducting state”

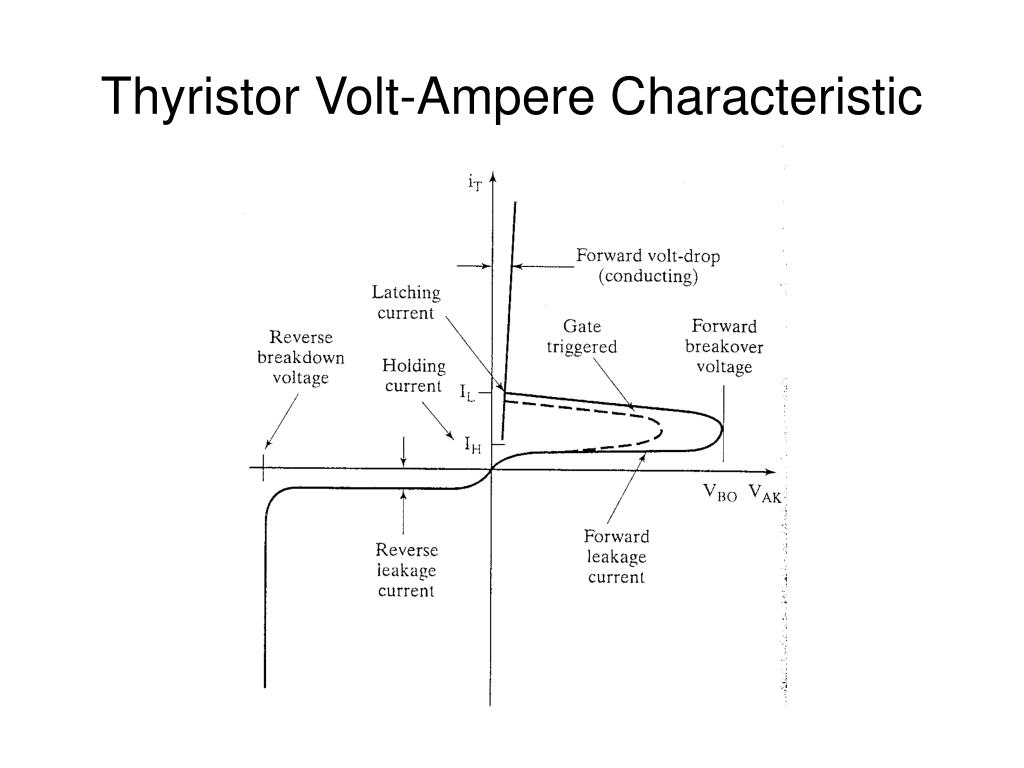

  4. Thyristor Volt-Ampere Characteristic

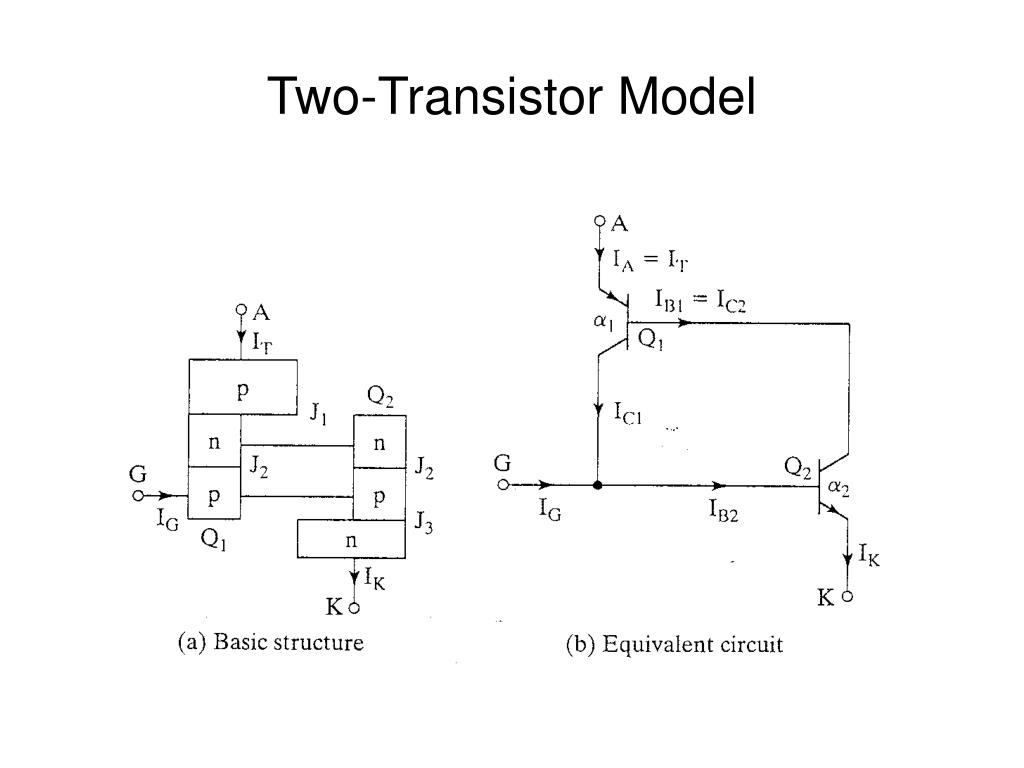

  5. Two-Transistor Model

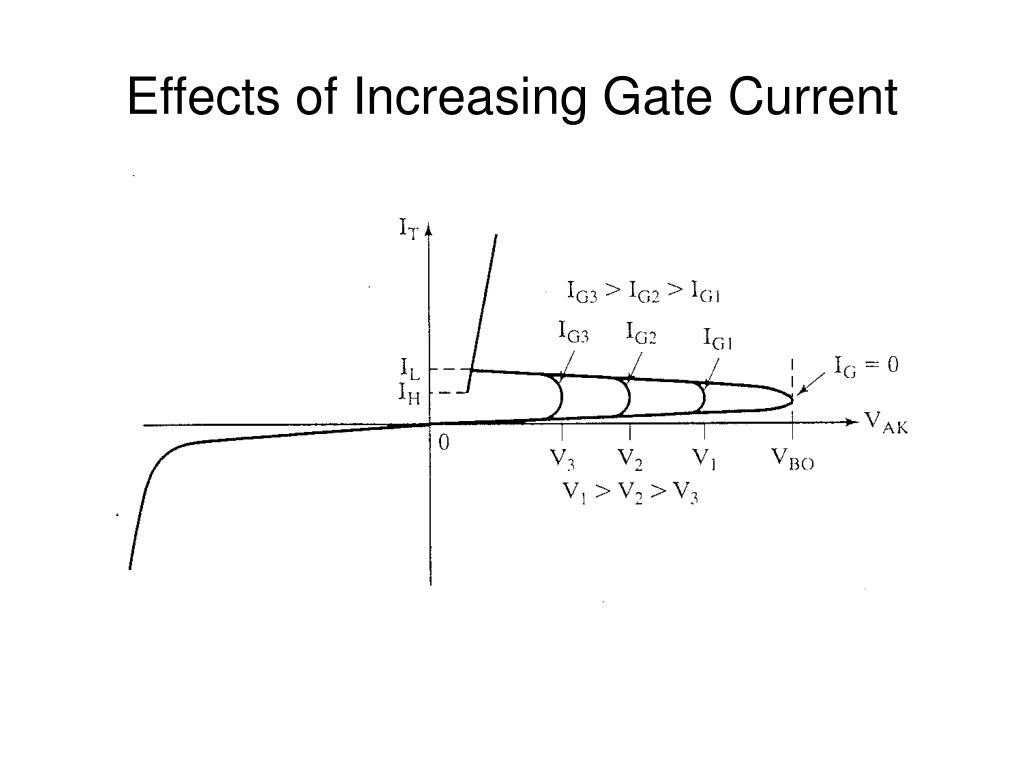

  6. Effects of Increasing Gate Current

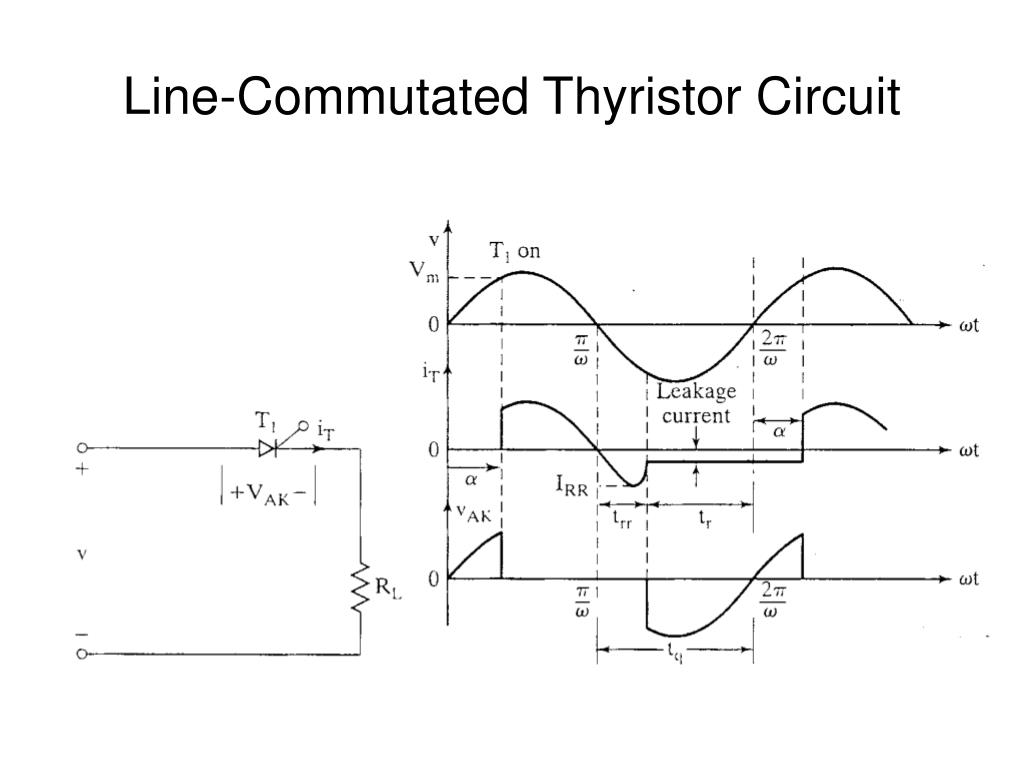

  7. Line-Commutated Thyristor Circuit

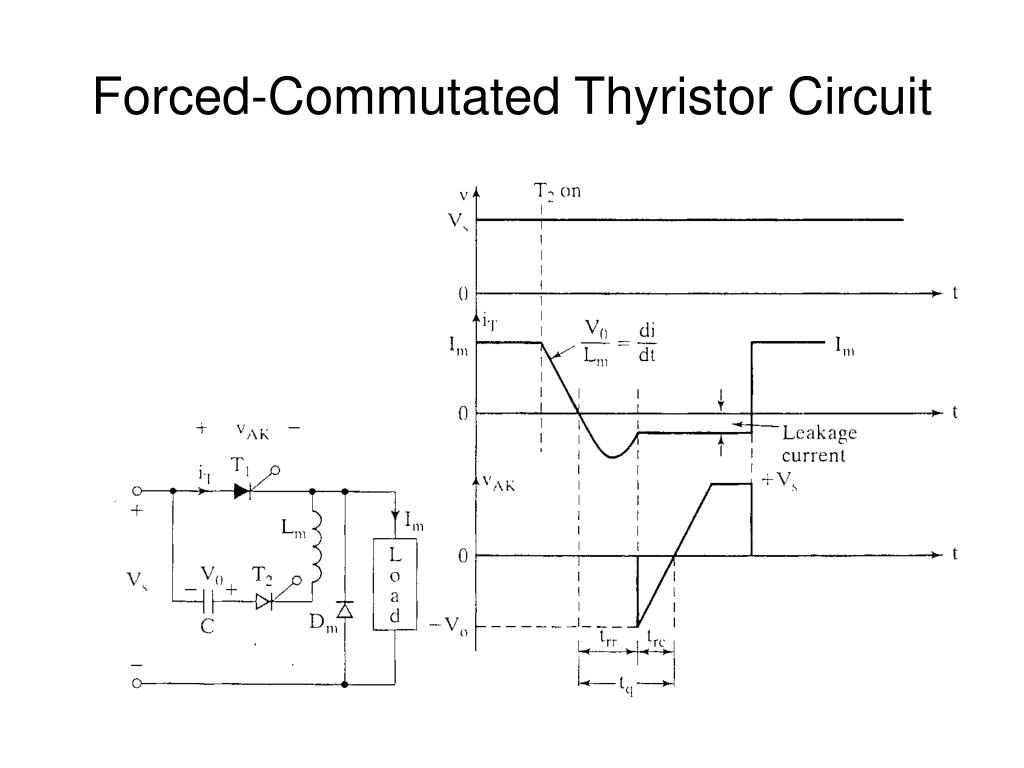

  8. Forced-Commutated Thyristor Circuit

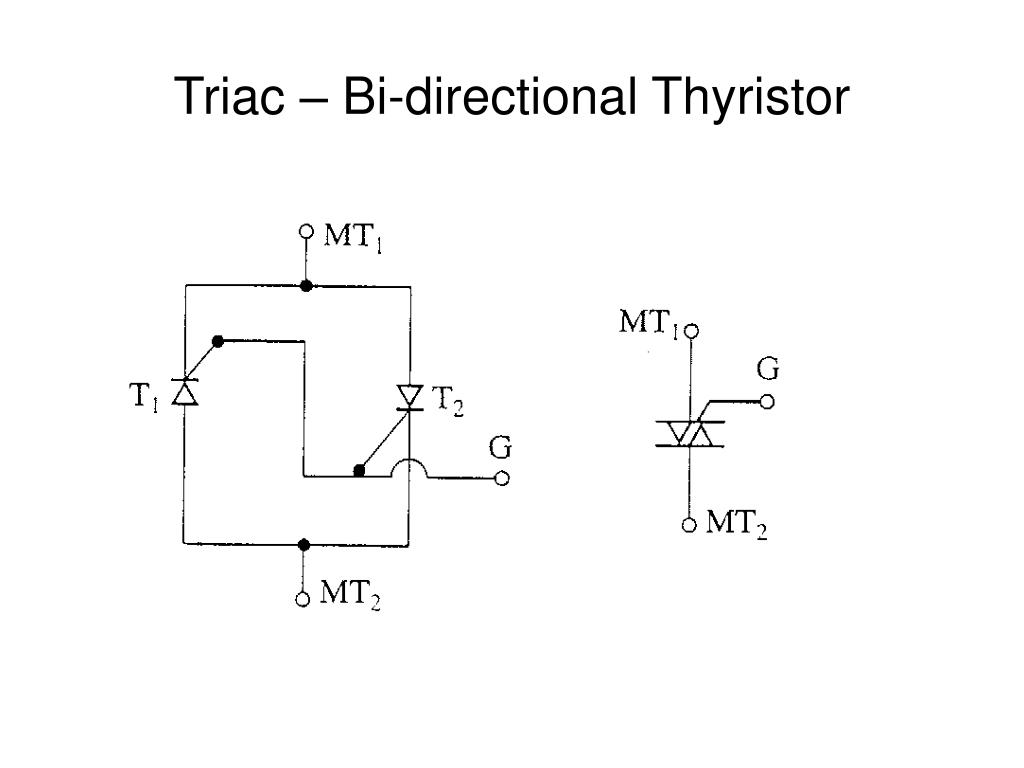

  9. Triac – Bi-directional Thyristor

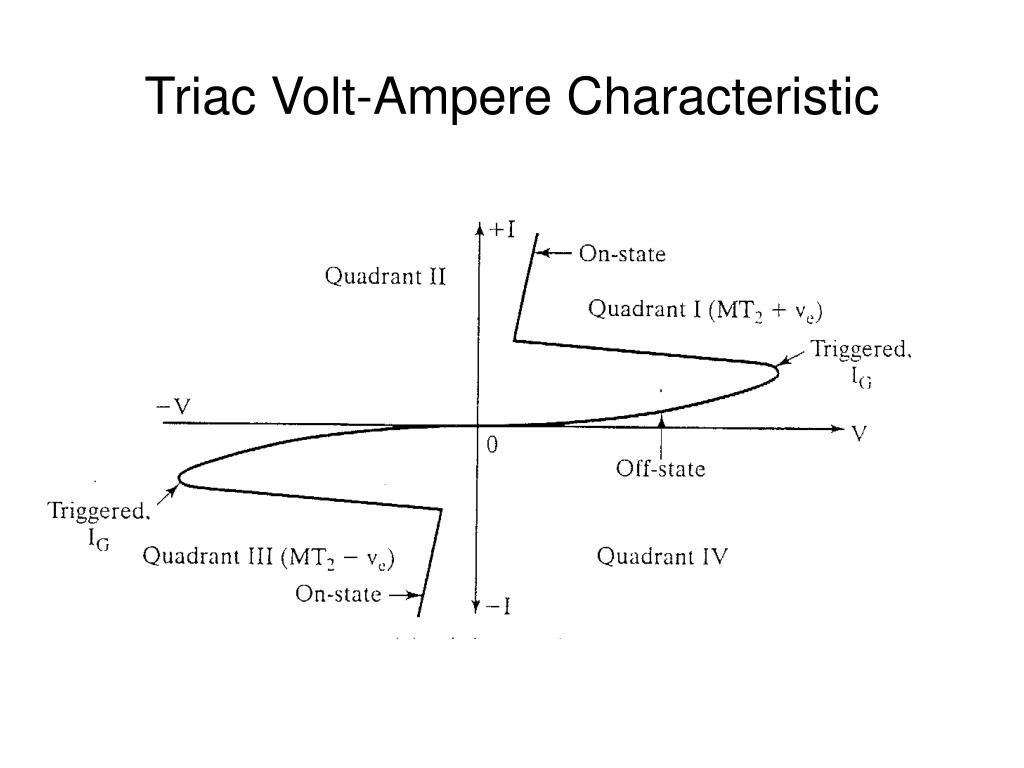

  10. Triac Volt-Ampere Characteristic
