    1. Geographic Information SystemsApplications in Natural Resource Management Chapter 3 Acquiring, Creating, and Editing GIS Databases Michael G. Wing & Pete Bettinger

    2. Chapter 3 Objectives • Methods to acquire GIS databases, particularly via the Internet • Methods to create new GIS databases • Processes to edit existing GIS databases • Types and sources of error potentially associated with GIS databases

    3. Four general cases of GIS databases at most organizations • The data necessary for project work • Don’t exist • Do exist but were created for other general uses and may not be completely suitable for your project • Do exist but were created for other specific uses and may not be completely suitable for your project • The data are in place and in good order for your project!

    4. Typically, you’ll have to acquire data • Hire a contractor to create or edit GIS data • Use a GPS or other device to capture data • Modifying an existing database • Create a new GIS database • Digitizing • Using/buying data from another organization • Downloading data from the Internet

    5. Internet acquisition • Now a standard method of making data available • Many federal and state organizations make spatial data available • The U.S. Government is the largest producer of spatial data in the world • Manual of Federal Geographic Data Products • Freedom of information act allows the public some access to data created by public agencies • Use these data to save time

    6. Oregon Data Sources • Oregon Geospatial Data Clearinghouse (OGDC) • Formerly the SSCGIS • Demonstration • OSU College of Forestry • Bureau of Land Management (BLM)* • National Forest Offices (SNF) • StreamNet* • Oregon Department of Fish and Wildlife (ODFW)* • Environmental Protection Agency (EPA)*

    7. National Data Sources • US Geological Survey (USGS)* • Bureau of Land Management (BLM)* • National Park Service (NPS)*

    8. Acquisition processes • Using an Internet browser to select and download • FTP- File Transfer Protocol • Transfer on hardware • Tape • External harddrive • CD or DVD • USB key • Floppy

    9. Creating GIS databases • We’ve covered techniques in Chapter 1 • Digitizing • Remote Sensing • Satellite imagery • LIDAR • Laser range finder • Total station • Scanning • GPS

    10. Roads Stands Reference points (with associated X and Y coordinates) Figure 3.1. Measurement reference points for the Daniel Pickett forest to enable digitizing of additional landscape features or the creation of new GIS databases.

    11. Figure 3.2. A landslide drawn on a map with a regular sharpened pencil (upper left), a marker (upper right), a sharpened pencil, yet in a sloppy manner – the landslide area is not closed (lower left), a marker, yet in a sloppy manner - the landslide area is barely closed (lower right).

    12. (a) (b) (c) Figure 3.3. A timber stand (a) in vector format, from the Brown Tract, scanned (b) or converted to a raster format using 25 m grid cells, then converted back to vector format (c) by connecting lines to the center of each grid cell.

    13. Editing GIS databases • Reasons for editing • Changing a spatial projection • Edge matching GIS databases to other databases • Generalization and transformation processes necessary to convert a GIS database to a specific format or resolution • In natural resources, updates may occur annually to keep pace with timber inventory • Growth, disturbance, harvesting

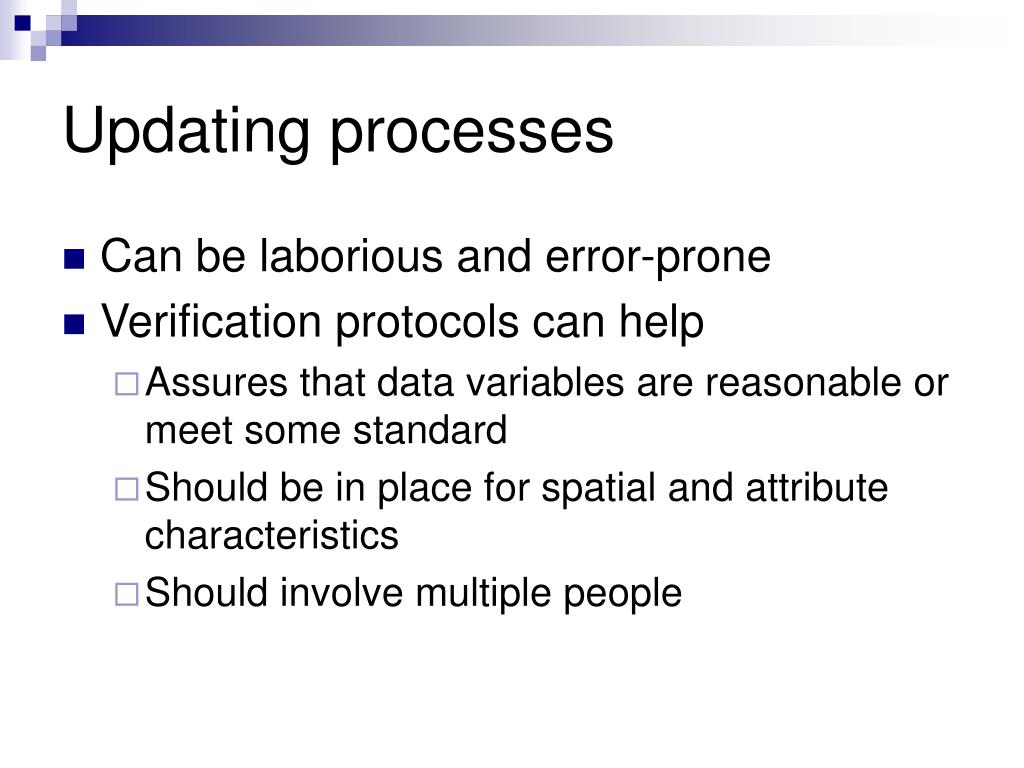

    14. Updating processes • Can be laborious and error-prone • Verification protocols can help • Assures that data variables are reasonable or meet some standard • Should be in place for spatial and attribute characteristics • Should involve multiple people

    15. Inventory forester Information systems analysts maps, data files Delineate changes to be made to inventory Check data for mistakes and omissions maps, data files Verification process #1 maps, data files Digitize changes to spatial data, encode inventory maps, data files GIS databases Check data for mistakes and omissions Verification process #2 maps, data files Integrate into GIS database GIS databases Check data for mistakes and omissions Check data for mistakes and omissions Verification process #4 Verification process #3 Figure 3.4. A generalized process for updating a forest inventory GIS database.

    16. Editing attributes • Attributes are the values used to describe landscape features in a GIS database • Fields, variables, columns, data, etc. • Attributes may need to be updated overtime • Vegetation type, basal area, age, volume (mbf) • Easy to make mistakes, particularly with major updates • Verification processes can check whether values are in the appropriate range

    17. Editing spatial position • As the locations or shapes of spatial features change, their coordinates will need to be changed within the GIS database • Editing procedures for this purpose vary widely among software products • Typically, a database is first made “editable” • The user then makes edits • Points, lines, and/or polygons moved, copied, created, or deleted • The edits are saved • Often, a time-consuming procedure

    18. Consistency in spatial position • When updating or creating new data, inconsistencies may result as the data are incorporated into existing databases

    19. Inconsistency Roads Timber stands Figure 3.5. A timber stand drawn more precisely (top) and less precisely (bottom). Note that the lines on the south and eastern portion of the figures are different. Figure 3.6. Spatial inconsistency between a timber stand GIS database and a roads GIS database.

    20. Error in GIS databases • Errors arise from many sources: • Editing, encoding, hardware, and others • Three primary sources of error in GIS data • Systematic • Human • Random

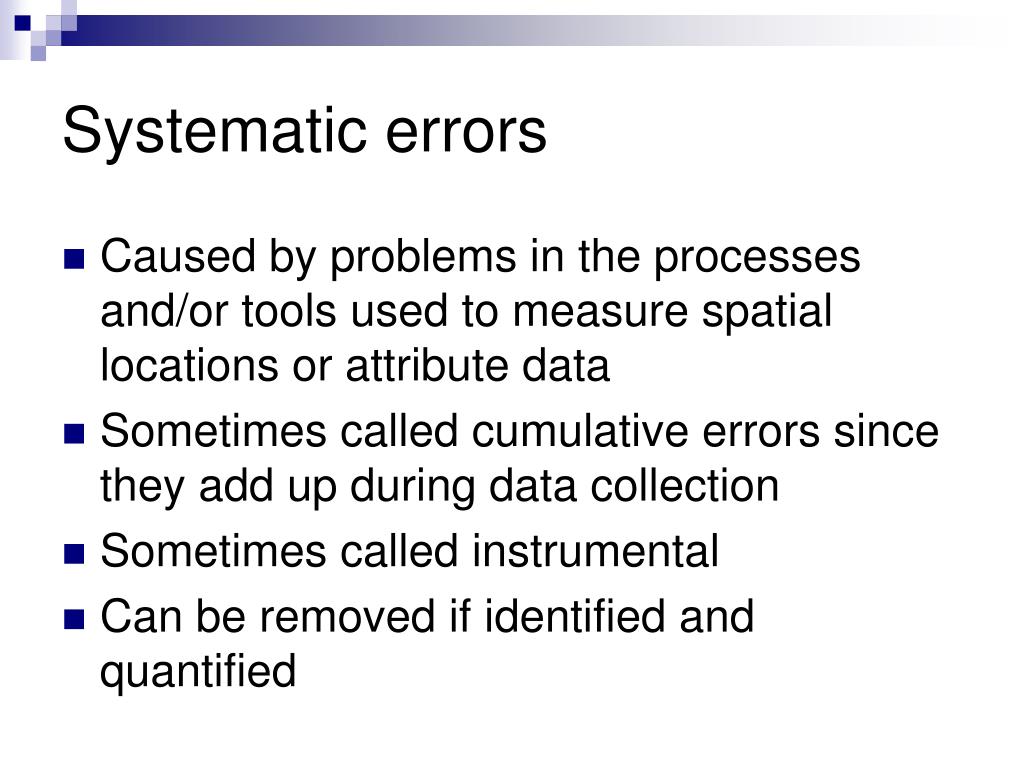

    21. Systematic errors • Caused by problems in the processes and/or tools used to measure spatial locations or attribute data • Sometimes called cumulative errors since they add up during data collection • Sometimes called instrumental • Can be removed if identified and quantified

    22. Human errors • Sometimes called gross errors or blunders • As the name suggests, these are introduced through carelessness or other inattention • Verification processes can be used to control human errors • Data collection and editing protocols can also assist in limiting human errors

    23. Random errors • An almost unavoidable by-product of measuring and describing landscape data • No matter how careful we are in data collection procedures, there will almost always be some slight variance from the true measurement • Random errors are the errors that remain after systematic and human errors have been removed

    24. Managing random errors • We assume that random errors follow a normal (Gaussian) distribution • They cluster around a mean value or center • Least squares adjustments can distribute and minimize the error among all measurements in a feature • More frequently, and especially in forestry, we assume that random errors will cancel each other out • For this reason, random errors are sometimes called compensating errors

    25. Types of errors in GIS databases • Positional errors occur when things are in the wrong place • Can result from poor registration or inaccurate coordinate input during the digitizing process • Are sometimes handled with accuracy statements: “90 percent of landscape features are within 150 meters of their true position” • A root mean square error (RMSE) is sometimes used to set or describe an accuracy standard • A RMSE assesses the error between a mapped point and its on-the-ground (true) equivalent
