forming and forging

Forming and Forging

Mrs. Jones’s

Classes

ball pean hammer description
Ball Pean Hammer Description:

Wooden handle & double sided metal head.

Flat end is used for: Forging – flattening and stretching the metal.

Round end is used for: Hammer texturing – makes little shiny dots that are small when hit lightly & larger when hit harder.

Located: metal drawer area

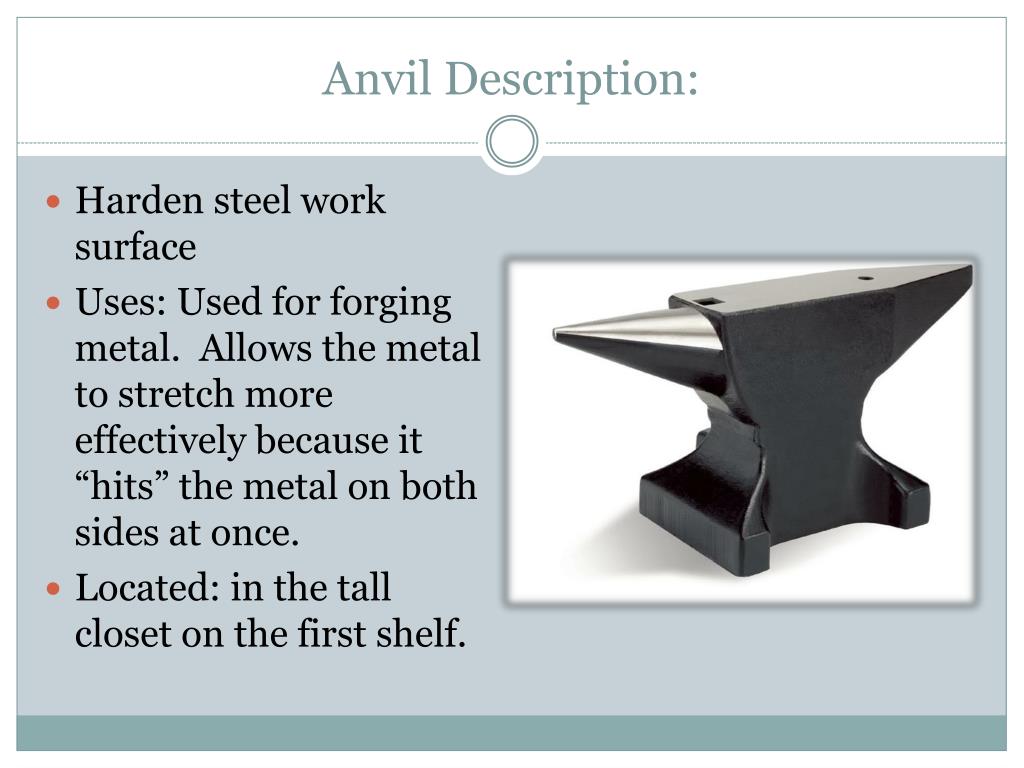

anvil description
Anvil Description:

Harden steel work surface

Uses: Used for forging metal. Allows the metal to stretch more effectively because it “hits” the metal on both sides at once.

Located: in the tall closet on the first shelf.

rawhide mallet description
Rawhide Mallet Description:

Wooden handle & rawhide head.

Uses: This tool is used to work harden metal.

Located: metal drawer area

flat nose jeweler s pliers description
Flat Nose Jeweler’s Pliers Description:

Two flat jaws and metal handles

Uses: makes flat or squared off shapes in wire.

Located: your assigned kit.

round nose jeweler s pliers description
Round Nose Jeweler’s Pliers Description:

Two round jaws and metal handles

Uses: Makes S curves or rounded shapes in wire

Located: your assigned kit.

chain nose jeweler s pliers description
Chain Nose Jeweler’s Pliers Description:

Two flat jaws that are round on the outside and metal handles

Uses: Makes C shaped curves in wire

Located: your assigned kit.

half round jeweler s pliers description
Half Round Jeweler’s Pliers Description:

One square and one round jaw and metal handles

Uses: Makes complex shapes in wire

Located: in the pliers drawer

forming jeweler s pliers description
Forming Jeweler’s Pliers Description:

One square and one round jaw and metal handles

Uses: Makes complex shapes in wire

Located: the pliers drawer.

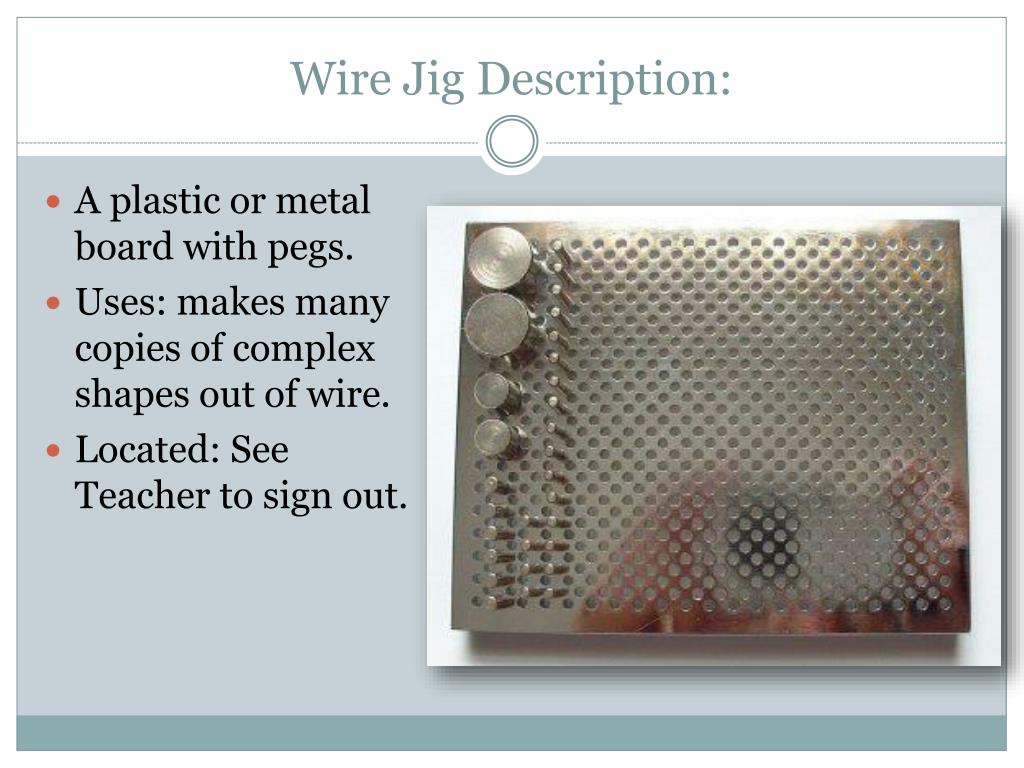

wire jig description
Wire Jig Description:

A plastic or metal board with pegs.

Uses: makes many copies of complex shapes out of wire.

Located: See Teacher to sign out.

ring mandrel description
Ring Mandrel Description:

Tapered plastic rod

Uses: Makes perfect circles or ring bands (used with a rawhide mallet) and stretches rings to make them larger (use with a ball peen hammer)

Located: in the marked metal drawer cabinet

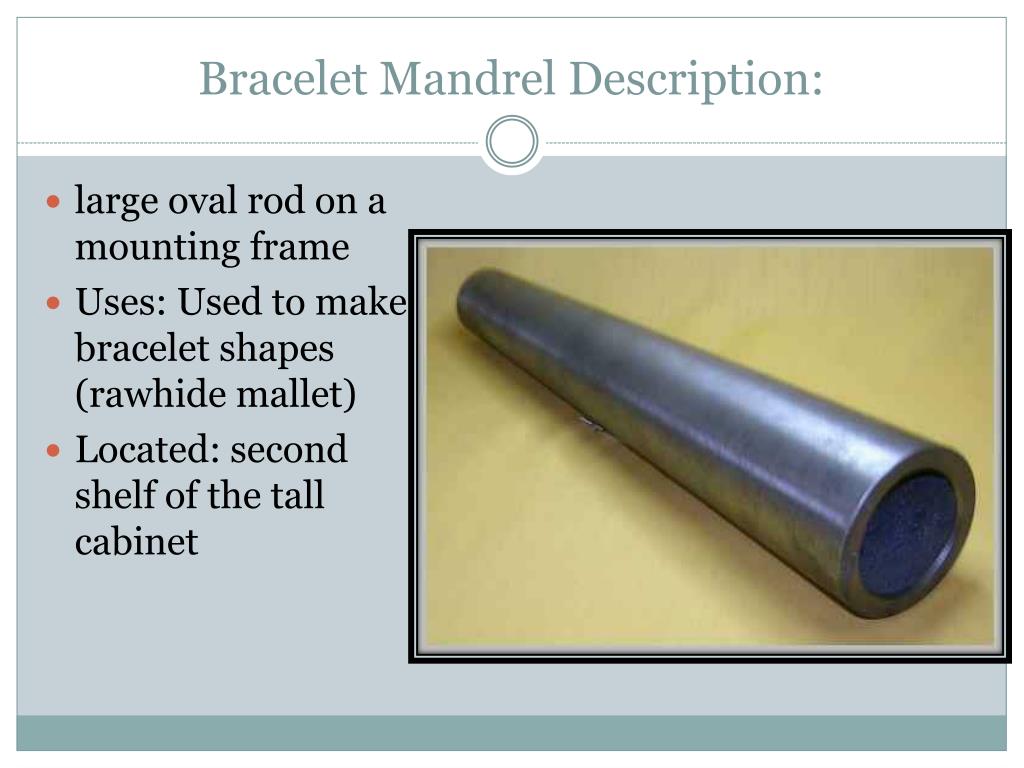

bracelet mandrel description
Bracelet Mandrel Description:

large oval rod on a mounting frame

Uses: Used to make bracelet shapes (rawhide mallet)

Located: second shelf of the tall cabinet

dappeling block punch description
Dappeling Block/Punch Description:

Harden steel metal block and hardened steel punches

Uses: makes domed metal shapes (use a regular hammer)

Located: in the tall closet on the first shelf

wire cutters description
Wire Cutters Description:

Cutting jaws and metal handles

Uses: Cuts wire

Located: in your assigned kit.

jeweler s saw description
Jeweler’s Saw Description:

C shaped frame and wooden handle

Uses: Cuts shapes out of metal

Located: Hanging in the tall closet – ask teacher for replacement blades

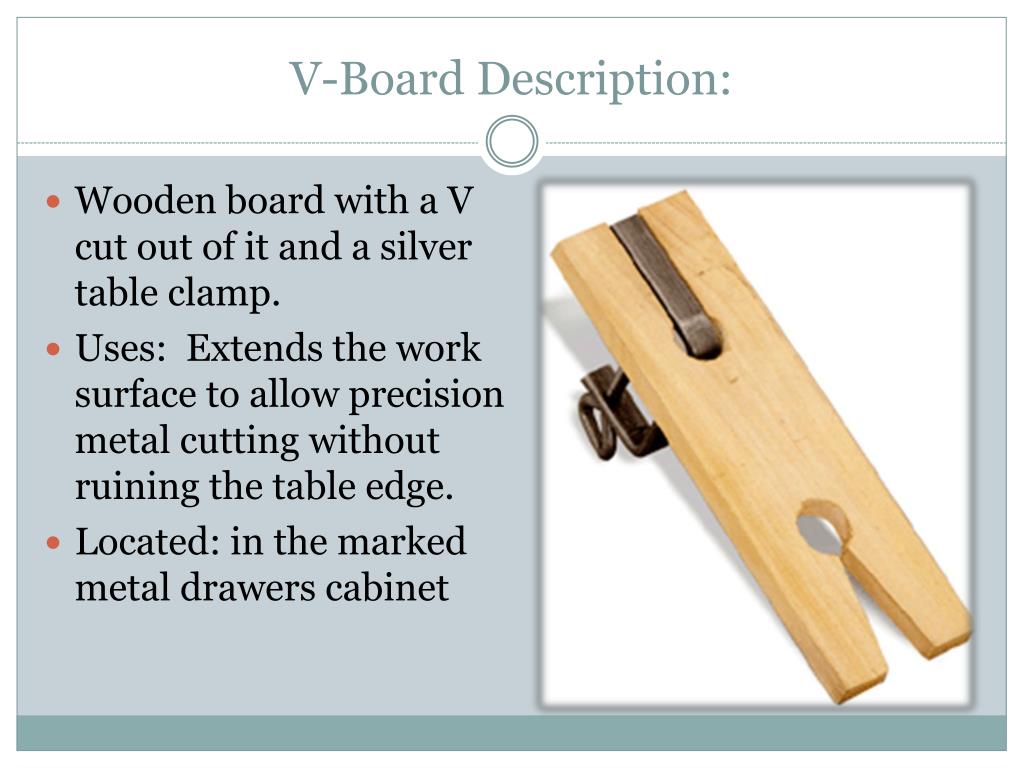

v board description
V-Board Description:

Wooden board with a V cut out of it and a silver table clamp.

Uses: Extends the work surface to allow precision metal cutting without ruining the table edge.

Located: in the marked metal drawers cabinet

ring clamp description
Ring Clamp Description:

wooded “scissors” and “doorstop”

Uses: Holds small pieces of metal so they are easier to work on

Located: in the tall closet on the second shelf

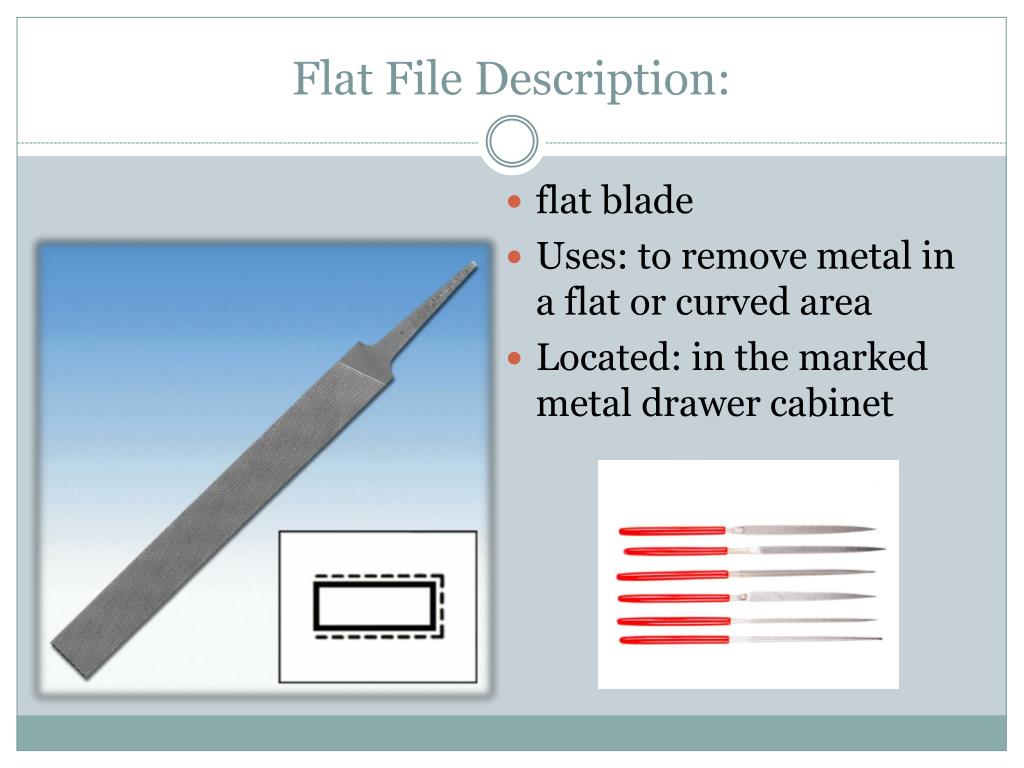

flat file description
Flat File Description:

flat blade

Uses: to remove metal in a flat or curved area

Located: in the marked metal drawer cabinet

round file description
Round File Description:

Description: circular File

Uses: To file Round areas

Located: Marked metal drawer area

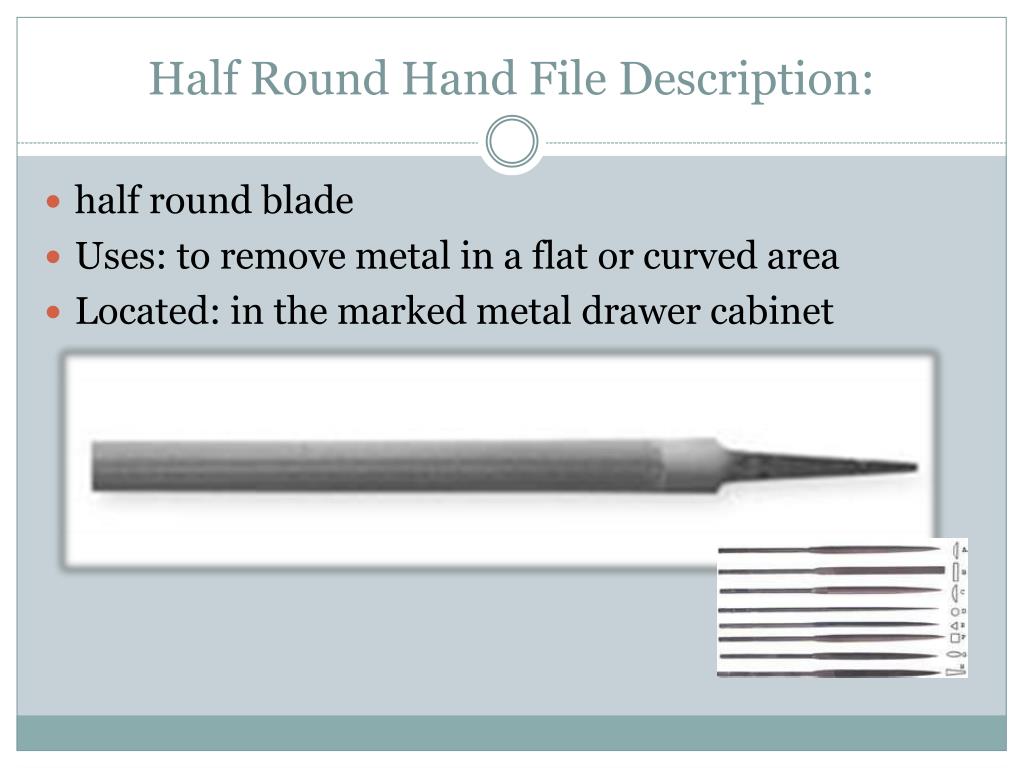

half round hand file description
Half Round Hand File Description:

half round blade

Uses: to remove metal in a flat or curved area

Located: in the marked metal drawer cabinet

jeweler s files
Jeweler’s Files

Tiny files used to remove tiny bits of metal.

Use only when a hand file doesn’t fit!

hand files
Hand Files

Large files (larger than your hand) used to remove large amounts of metal.

Use these first!

steel wool description
Steel Wool Description:

Spun metal pad

Uses: To remove scratches

Located: in marked metal drawer

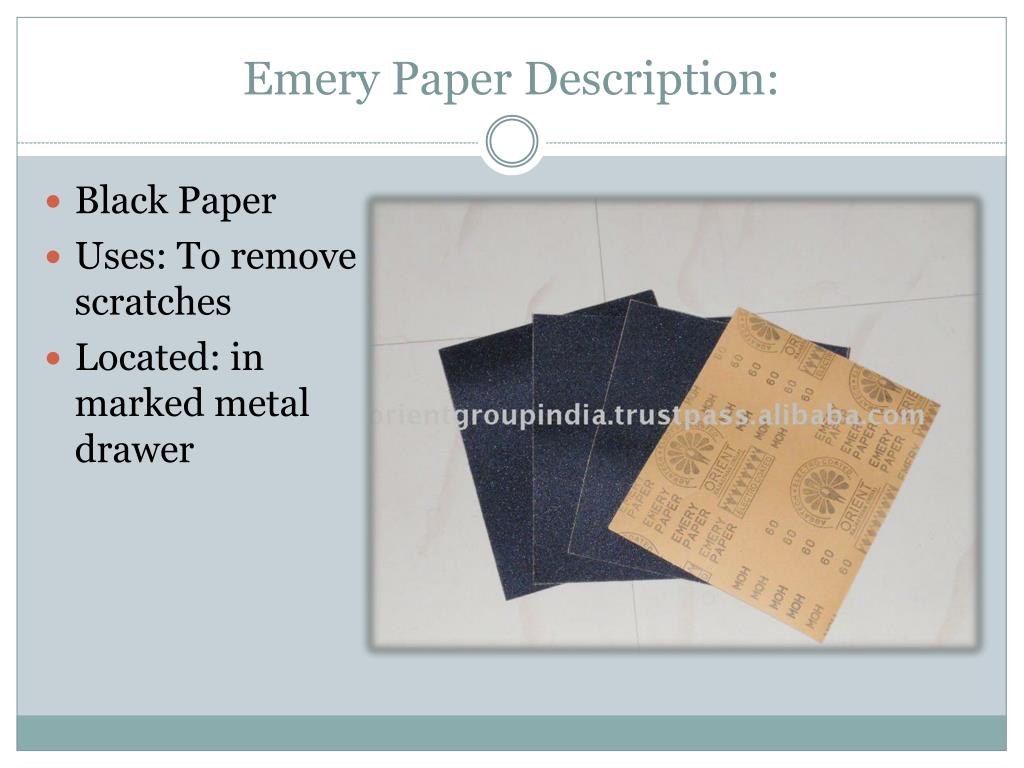

emery paper description
Emery Paper Description:

Black Paper

Uses: To remove scratches

Located: in marked metal drawer
