Anesthesia-System-MD-ANS-1004

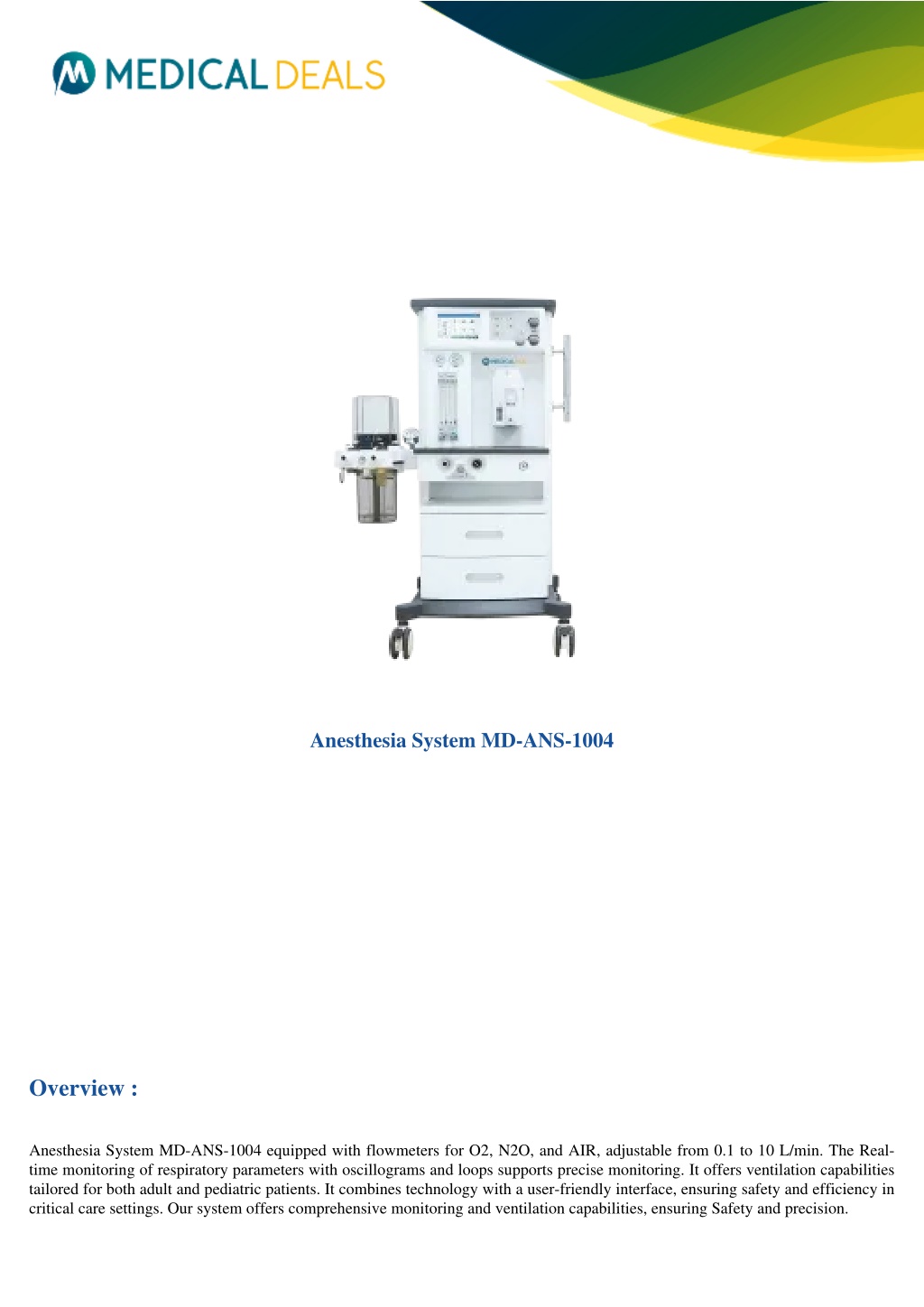

1. Anesthesia System MD-ANS-1004 Overview : Anesthesia System MD-ANS-1004 equipped with flowmeters for O2, N2O, and AIR, adjustable from 0.1 to 10 L/min. The Real- time monitoring of respiratory parameters with oscillograms and loops supports precise monitoring. It offers ventilation capabilities tailored for both adult and pediatric patients. It combines technology with a user-friendly interface, ensuring safety and efficiency in critical care settings. Our system offers comprehensive monitoring and ventilation capabilities, ensuring Safety and precision.

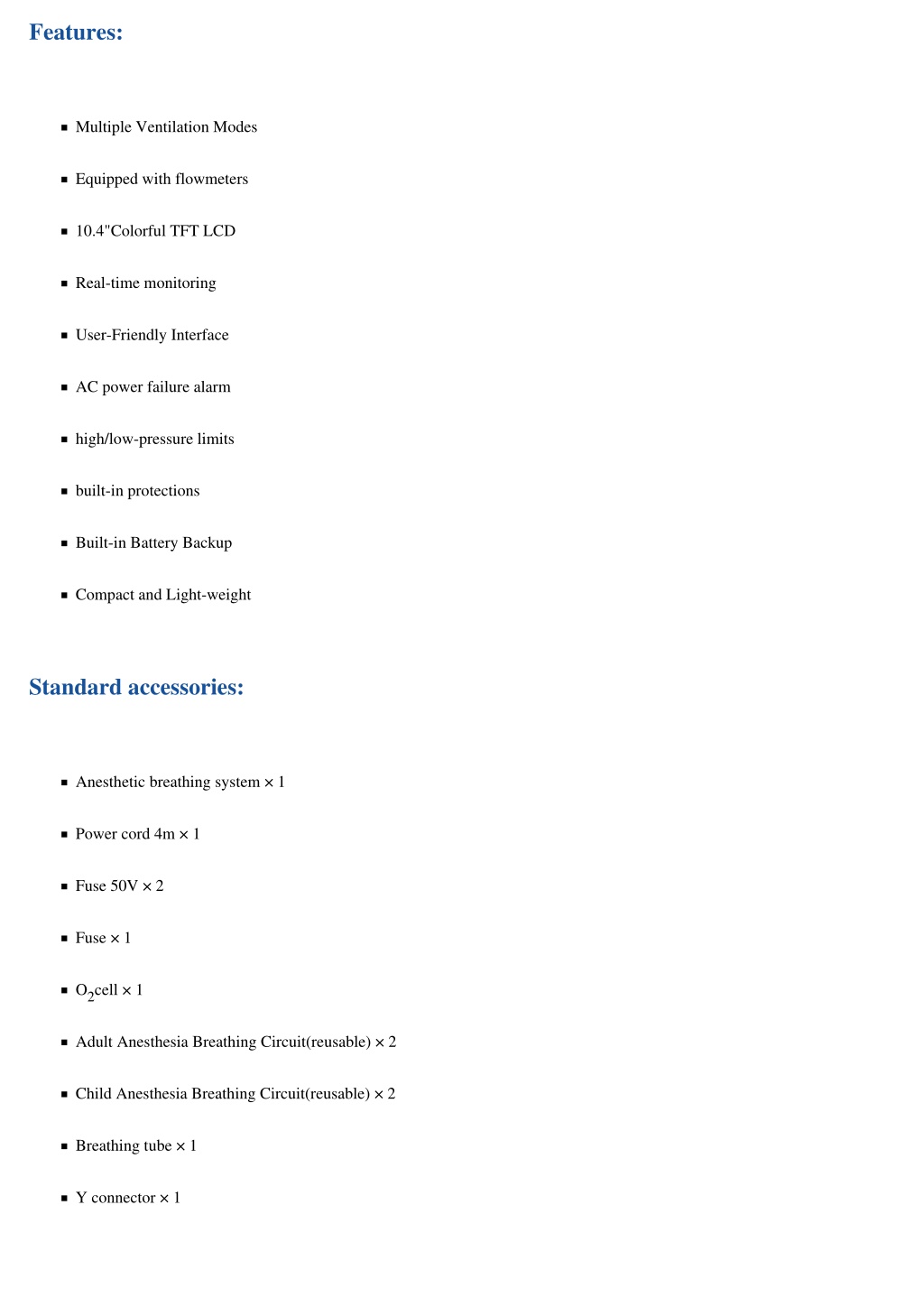

2. Features: Multiple Ventilation Modes Equipped with flowmeters 10.4"Colorful TFT LCD Real-time monitoring User-Friendly Interface AC power failure alarm high/low-pressure limits built-in protections Built-in Battery Backup Compact and Light-weight Standard accessories: Anesthetic breathing system × 1 Power cord 4m × 1 Fuse 50V × 2 Fuse × 1 O2cell × 1 Adult Anesthesia Breathing Circuit(reusable) × 2 Child Anesthesia Breathing Circuit(reusable) × 2 Breathing tube × 1 Y connector × 1

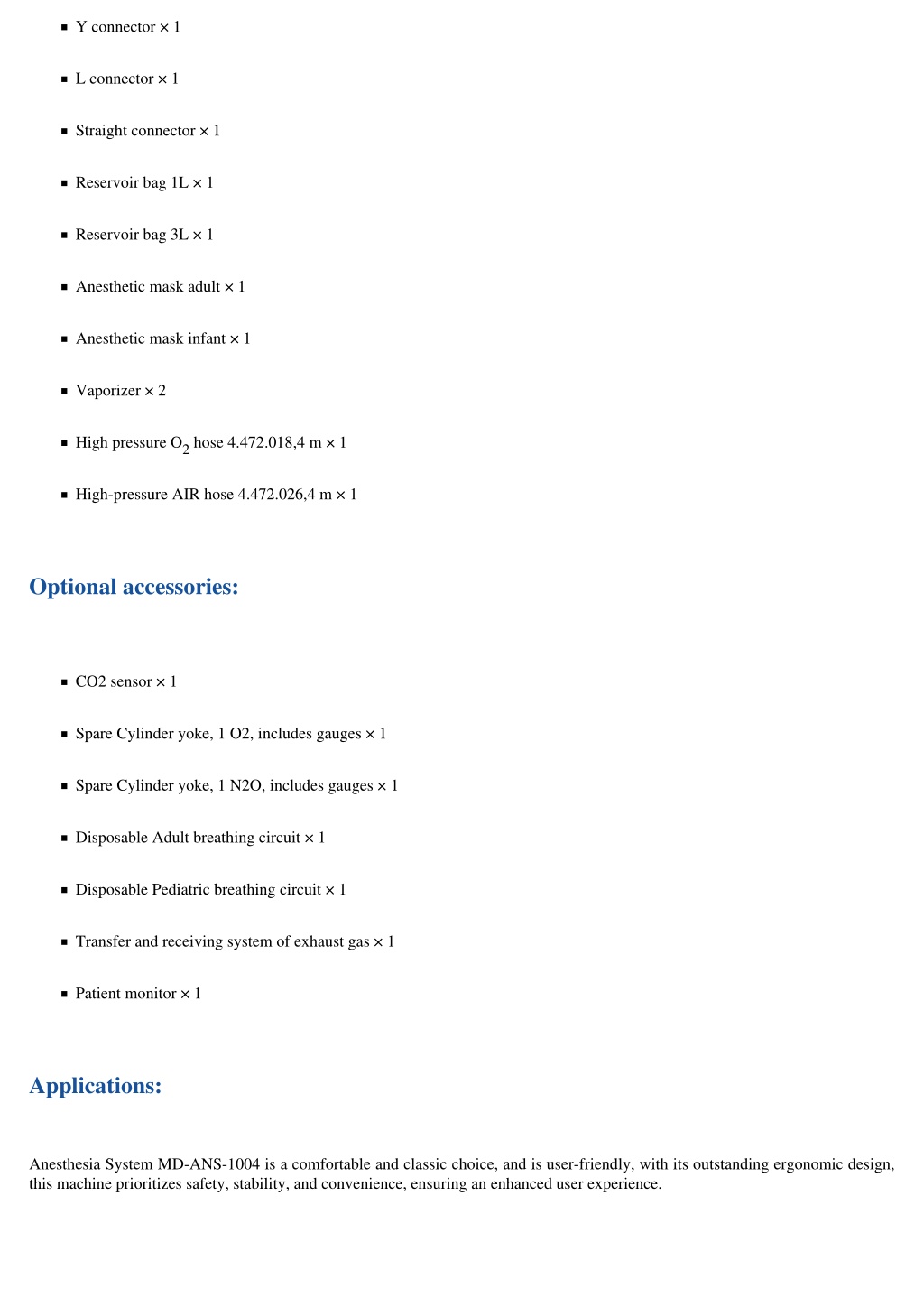

3. Y connector × 1 L connector × 1 Straight connector × 1 Reservoir bag 1L × 1 Reservoir bag 3L × 1 Anesthetic mask adult × 1 Anesthetic mask infant × 1 Vaporizer × 2 High pressure O2 hose 4.472.018,4 m × 1 High-pressure AIR hose 4.472.026,4 m × 1 Optional accessories: CO2 sensor × 1 Spare Cylinder yoke, 1 O2, includes gauges × 1 Spare Cylinder yoke, 1 N2O, includes gauges × 1 Disposable Adult breathing circuit × 1 Disposable Pediatric breathing circuit × 1 Transfer and receiving system of exhaust gas × 1 Patient monitor × 1 Applications: Anesthesia System MD-ANS-1004 is a comfortable and classic choice, and is user-friendly, with its outstanding ergonomic design, this machine prioritizes safety, stability, and convenience, ensuring an enhanced user experience.

4. Specifications : Ventilation Modes IPPV, PCV, A/C, P-SIMV, V-SIMV, PSV, PCV-VG SIGH, MANUAL Gas Source O2, N2O O2: 0 to 10 L/min; N2O: 0 to 10 L/min Flowmeter range Rapid Oxygen Supply Range 25 L/min to 75 L/min Oxygen Concentration 15 % to 100 % Tidal Volume (Vt) range 0, 20 mL to 1500 mL Frequency range 1 /min to 100 /min Inspiratory Ratio (I) 2:1 to 1:6 Inspirational time 0.2s to 6s Minute Volume (MV) 0 L/min to 100 L/min Positive End-Expiratory Pressure (PEEP) 0 cmH2O to 30 cmH2O Pressure Triggering Sensitivity (PTr) -20 cmH2O to 20 cmH2O Flow Trigger Sensitivity (FTr) 0.5 L/min to 30 L/min SIGH 0 (off) 1/100 to 5/100 Apnea Ventilation OFF, 5 s to 60 s Gas Pressure Range 280 kPa to 600 kPa Pressure Limit 20 cmH2O to 100 cmH2O Bellow 1.5L P-T (Pressure-Time), F-T (Flow-Time), V-T (Volume-Time) P-V loop (Pressure-Volume Loop) F-V (Flow-Volume Loop) F-P (Flow-Pressure Loop) ETCO2-T (ETCO2-Time) Oscillogram Types The AC power failure alarm Power failure or no connection Low voltage alarm for backup battery 10.2 ± 0.3 V No tidal volume ? 5 mL within 6 s High oxygen concentration alarm 19% to 100% Low oxygen concentration alarm 18% to 99% High airway pressure alarm 20 cmH2O to 100 cmH2O Low airway pressure alarm 0 cmH2O to 20 cmH2O

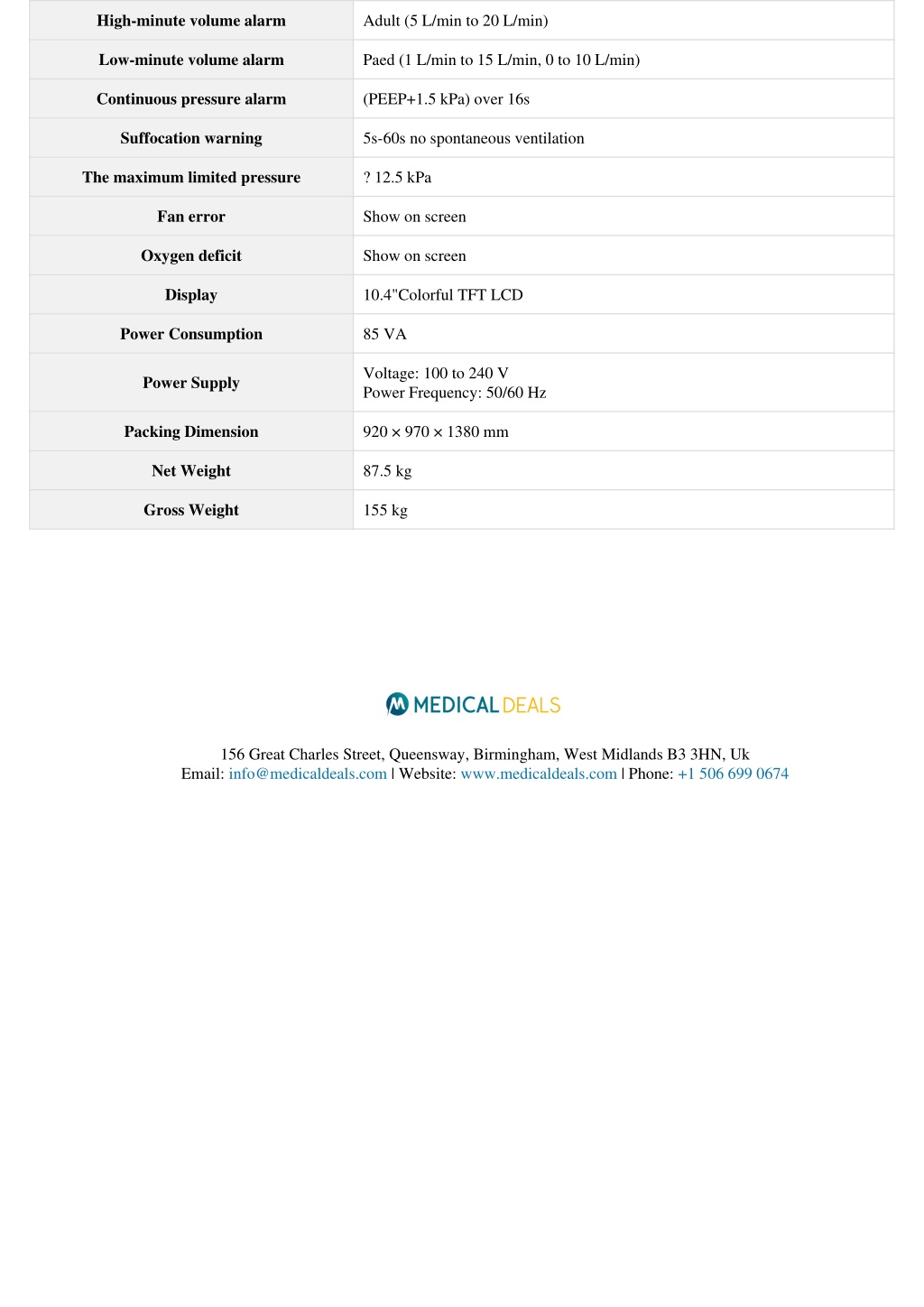

5. High-minute volume alarm Adult (5 L/min to 20 L/min) Low-minute volume alarm Paed (1 L/min to 15 L/min, 0 to 10 L/min) Continuous pressure alarm (PEEP+1.5 kPa) over 16s Suffocation warning 5s-60s no spontaneous ventilation The maximum limited pressure ? 12.5 kPa Fan error Show on screen Oxygen deficit Show on screen Display 10.4"Colorful TFT LCD Power Consumption 85 VA Voltage: 100 to 240 V Power Frequency: 50/60 Hz Power Supply Packing Dimension 920 × 970 × 1380 mm Net Weight 87.5 kg Gross Weight 155 kg 156 Great Charles Street, Queensway, Birmingham, West Midlands B3 3HN, Uk Email: info@medicaldeals.com | Website: www.medicaldeals.com | Phone: +1 506 699 0674
