  1. Computers for the Post-PC Era David Patterson University of California at Berkeley Patterson@cs.berkeley.edu UC Berkeley IRAM Group UC Berkeley ISTORE Group istore-group@cs.berkeley.edu May 2000

  2. Perspective on Post-PC Era • PostPC Era will be driven by 2 technologies: 1) “Gadgets”:Tiny Embedded or Mobile Devices • ubiquitous: in everything • e.g., successor to PDA, cell phone, wearable computers 2) Infrastructure to Support such Devices • e.g., successor to Big Fat Web Servers, Database Servers

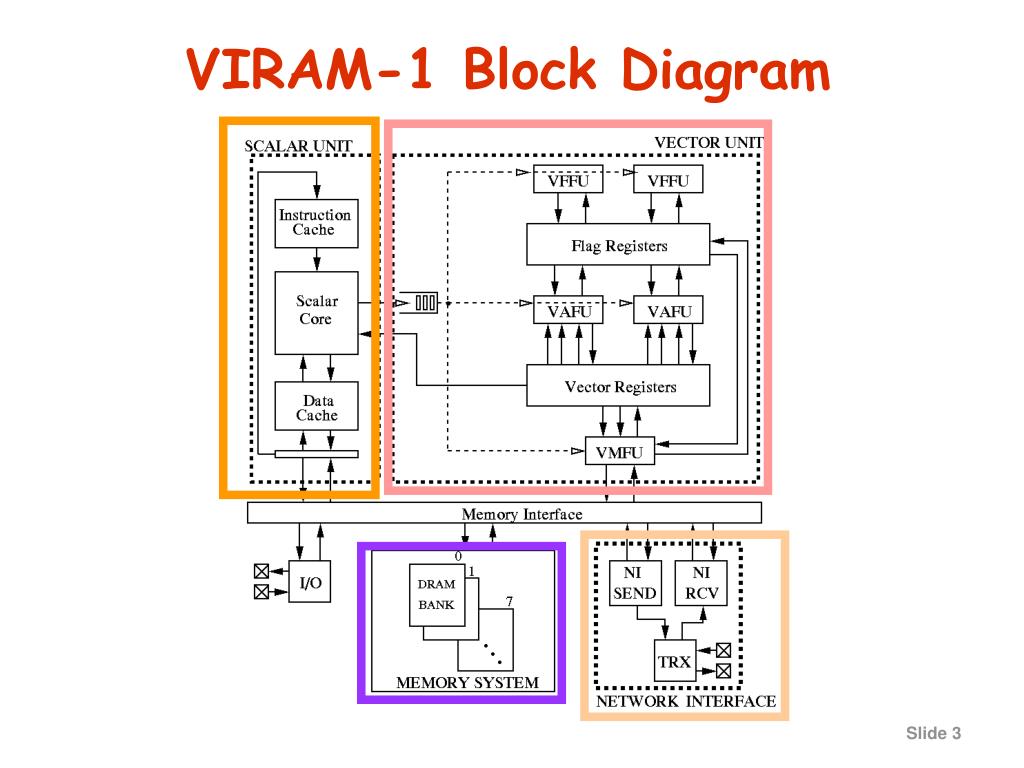

  3. VIRAM-1 Block Diagram

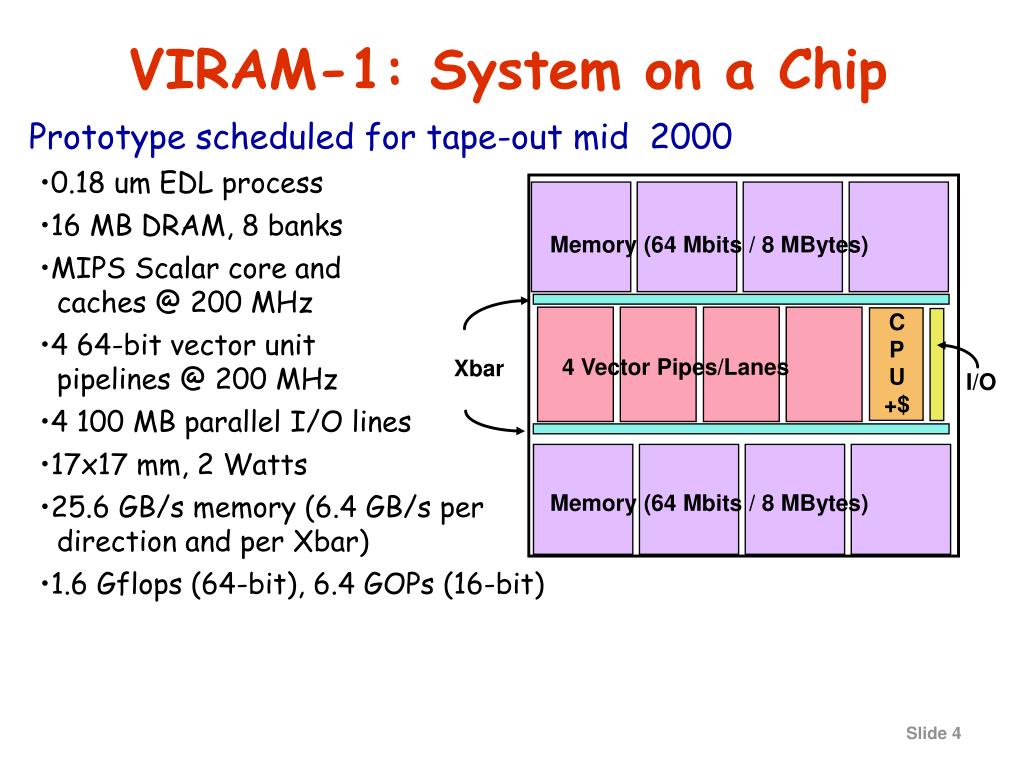

  4. C P U+$ VIRAM-1: System on a Chip • Prototype scheduled for tape-out mid 2000 • 0.18 um EDL process • 16 MB DRAM, 8 banks • MIPS Scalar core and caches @ 200 MHz • 4 64-bit vector unit pipelines @ 200 MHz • 4 100 MB parallel I/O lines • 17x17 mm, 2 Watts • 25.6 GB/s memory (6.4 GB/s per direction and per Xbar) • 1.6 Gflops (64-bit), 6.4 GOPs (16-bit) Memory(64 Mbits / 8 MBytes) 4 Vector Pipes/Lanes Xbar I/O Memory(64 Mbits / 8 MBytes)

  5. 0 1 15 0 1 16 16 16 15 Problem: General Element Permutation • Hardware for a full vector permutation instruction (128 16b elements, 256b datapath) • Datapath: 16 x 16 (x 16b) crossbar; scales by 0(N^2) • Control: 16 16-to-1 multiplexors; scales by 0(N*logN) • Other problems • Consecutive result elements not written together; time/energy wasted on wide vector register file port

  6. 0 1 15 Simple Vector Permutations • Simple steps of butterfly permutations • A register provides the butterfly radix • Separate instructions for moving elements to left/right • Sufficient semantics for • Fast reductions of vector registers (dot products) • Fast FFT/DCT kernels

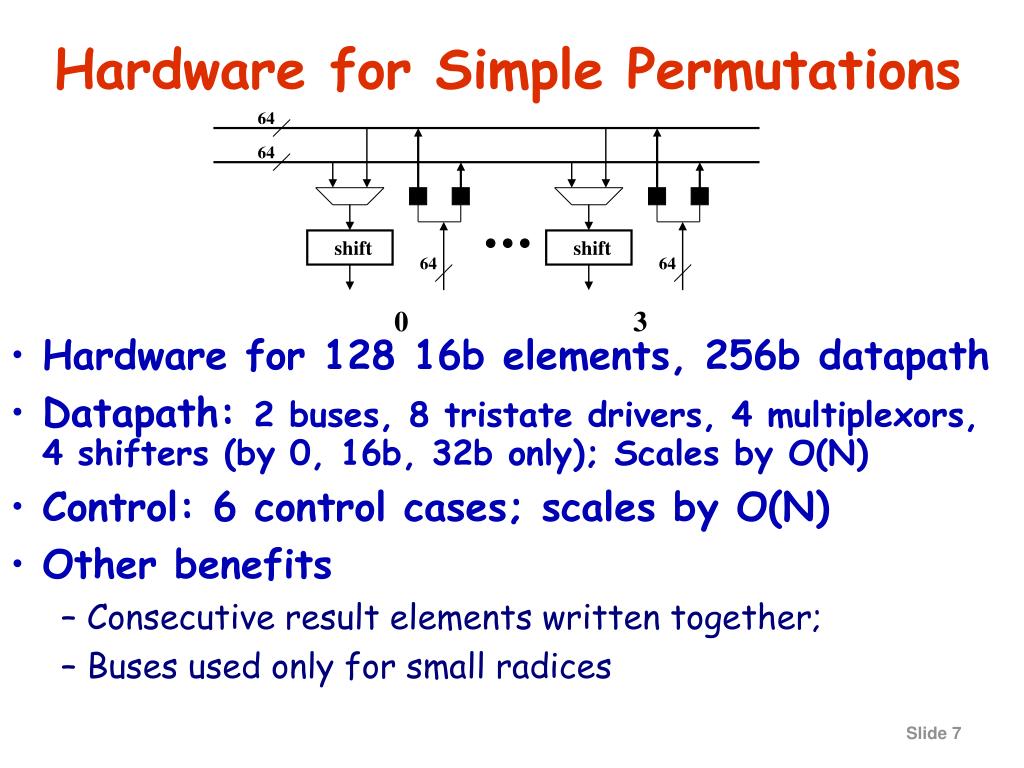

  7. 64 64 64 64 shift shift 0 3 Hardware for Simple Permutations • Hardware for 128 16b elements, 256b datapath • Datapath: 2 buses, 8 tristate drivers, 4 multiplexors, 4 shifters (by 0, 16b, 32b only); Scales by O(N) • Control: 6 control cases; scales by O(N) • Other benefits • Consecutive result elements written together; • Buses used only for small radices

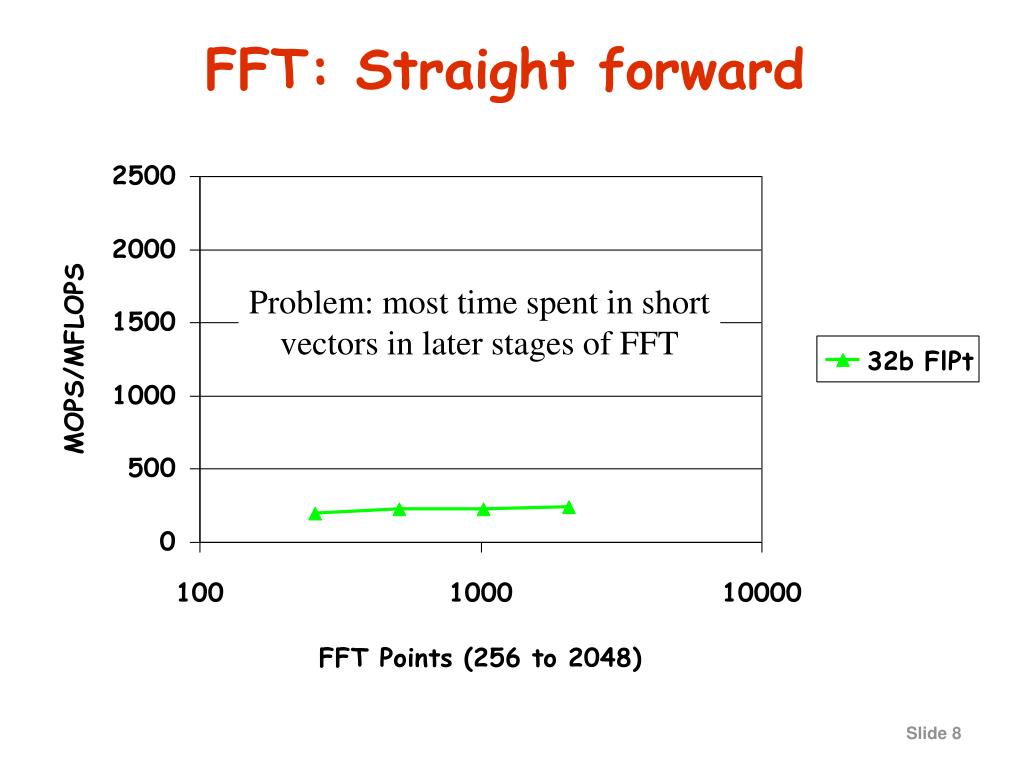

  8. FFT: Straight forward Problem: most time spent in short vectors in later stages of FFT

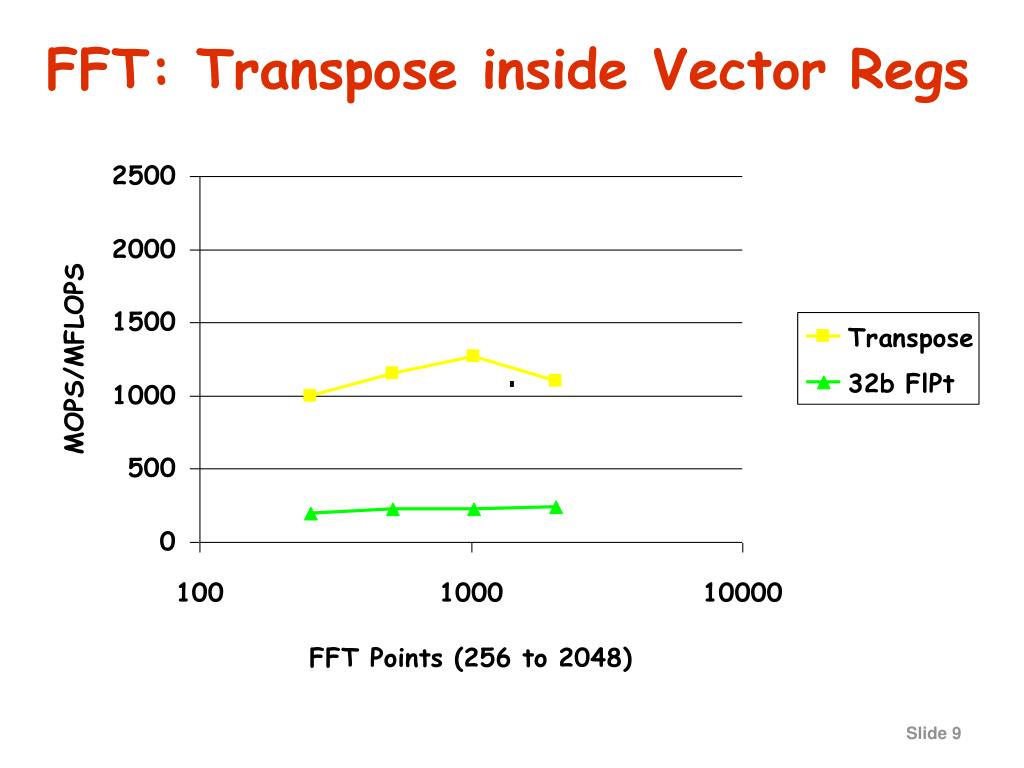

  9. FFT: Transpose inside Vector Regs

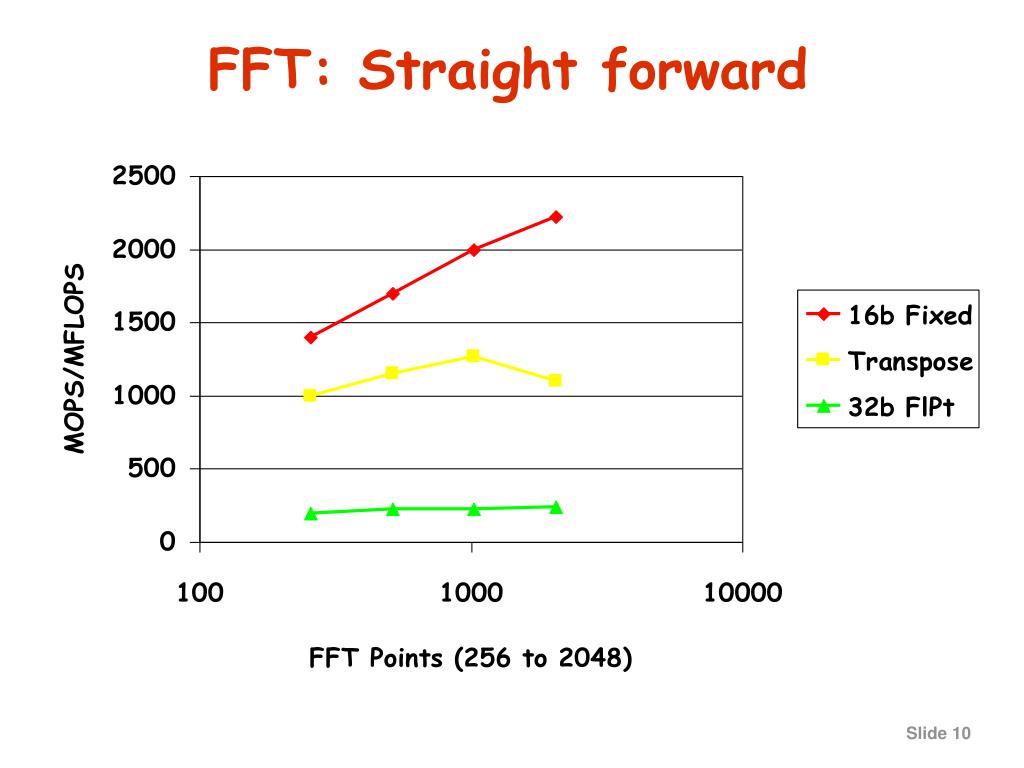

  10. FFT: Straight forward

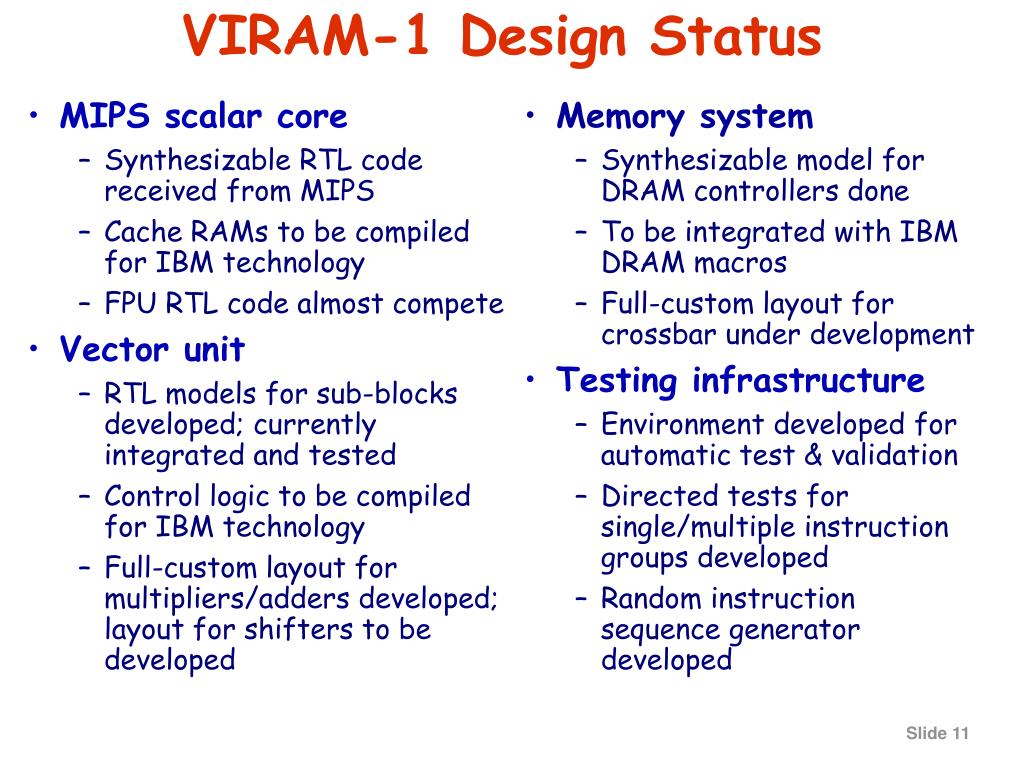

  11. MIPS scalar core Synthesizable RTL code received from MIPS Cache RAMs to be compiled for IBM technology FPU RTL code almost compete Vector unit RTL models for sub-blocks developed; currently integrated and tested Control logic to be compiled for IBM technology Full-custom layout for multipliers/adders developed; layout for shifters to be developed Memorysystem Synthesizable model for DRAM controllers done To be integrated with IBM DRAM macros Full-custom layout for crossbar under development Testing infrastructure Environment developed for automatic test & validation Directed tests for single/multiple instruction groups developed Random instruction sequence generator developed VIRAM-1 Design Status

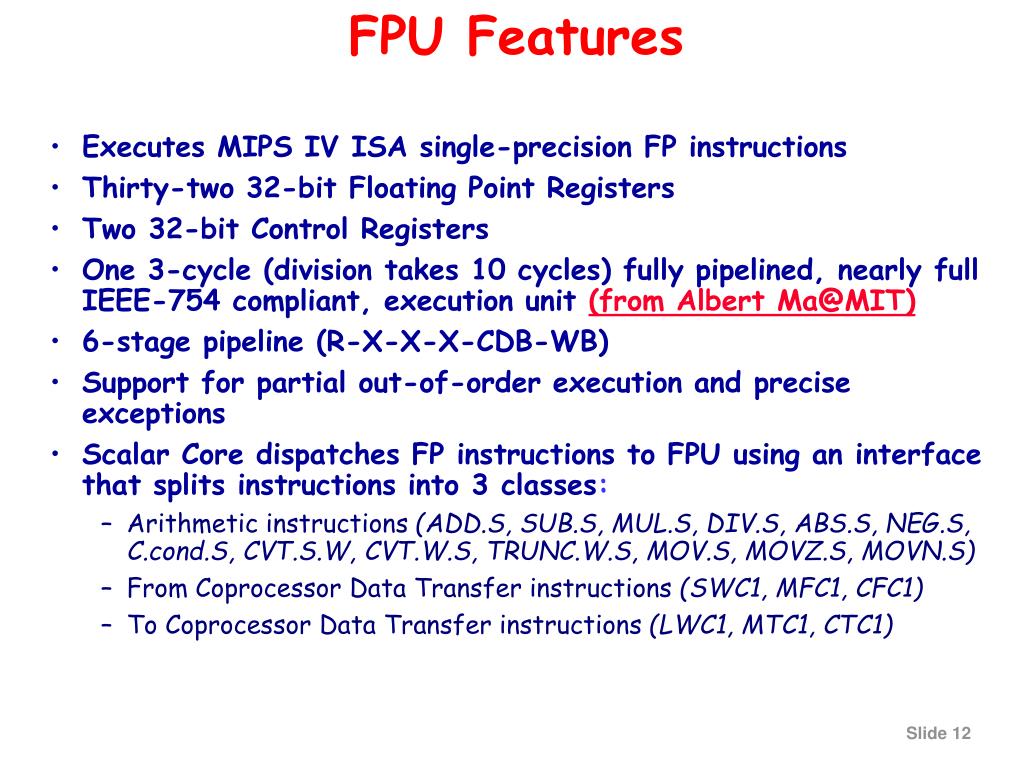

  12. FPU Features • Executes MIPS IV ISA single-precision FP instructions • Thirty-two 32-bit Floating Point Registers • Two 32-bit Control Registers • One 3-cycle (division takes 10 cycles) fully pipelined, nearly full IEEE-754 compliant, execution unit(from Albert Ma@MIT) • 6-stage pipeline (R-X-X-X-CDB-WB) • Support for partial out-of-order execution and precise exceptions • Scalar Core dispatches FP instructions to FPU using an interface that splits instructions into 3 classes: • Arithmetic instructions (ADD.S, SUB.S, MUL.S, DIV.S, ABS.S, NEG.S, C.cond.S, CVT.S.W, CVT.W.S, TRUNC.W.S, MOV.S, MOVZ.S, MOVN.S) • From Coprocessor Data Transfer instructions (SWC1, MFC1, CFC1) • To Coprocessor Data Transfer instructions (LWC1, MTC1, CTC1)

  13. FPU Architecture

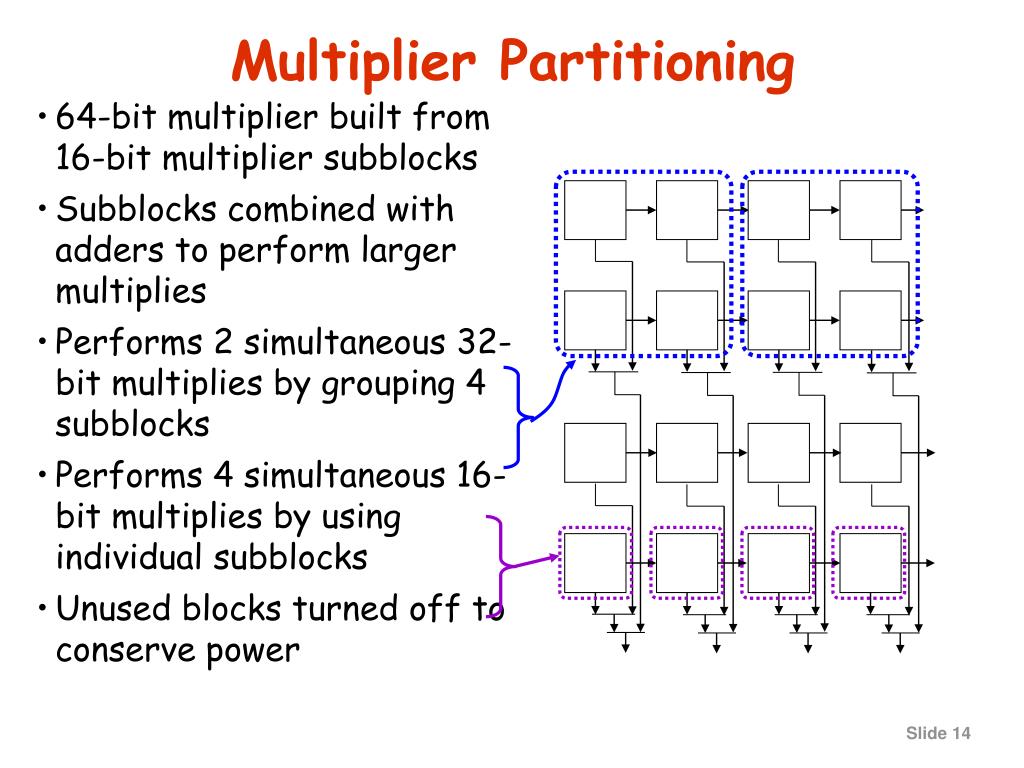

  14. Multiplier Partitioning • 64-bit multiplier built from 16-bit multiplier subblocks • Subblocks combined with adders to perform larger multiplies • Performs 2 simultaneous 32-bit multiplies by grouping 4 subblocks • Performs 4 simultaneous 16-bit multiplies by using individual subblocks • Unused blocks turned off to conserve power

  15. FPU Current Status • Current Functionality • Able to execute most instructions (all except C.cond.S, CFC1 and CTC1). • Supports precise exception semantics. • Functionality verification. • Used a random test generator that generates/kills instructions at random and compares the results from the RTL Verilog simulator against the results from an ISA Perl simulator. • What remains to be done • Instructions that use the Control Registers (C.cond.S, CFC1 and CTC1). • Exception generation. • Integrate execution pipeline with the rest of the design. • Synthesize, place and route. • Final assembly and verification of multiplier • Performance • Sustainable Throughput: 1 instruction/cycle (assuming no data hazards) • Instruction Latency: 6 cycles

  16. UC-IBM Agreement • Biggest IRAM Obstacle:Intellectual Property Agreement between University of California and IBM • Can university accept free fab costs ($2.0M to $2.5M) in return for capped non-exclusive patent licensing fees for IBM if UC files for IRAM patents? • Process started with IBM March 1999 • IBM won’t give full process info until contract • UC started negotiating seriously Jan 2000 • Agreement June 1, 2000!

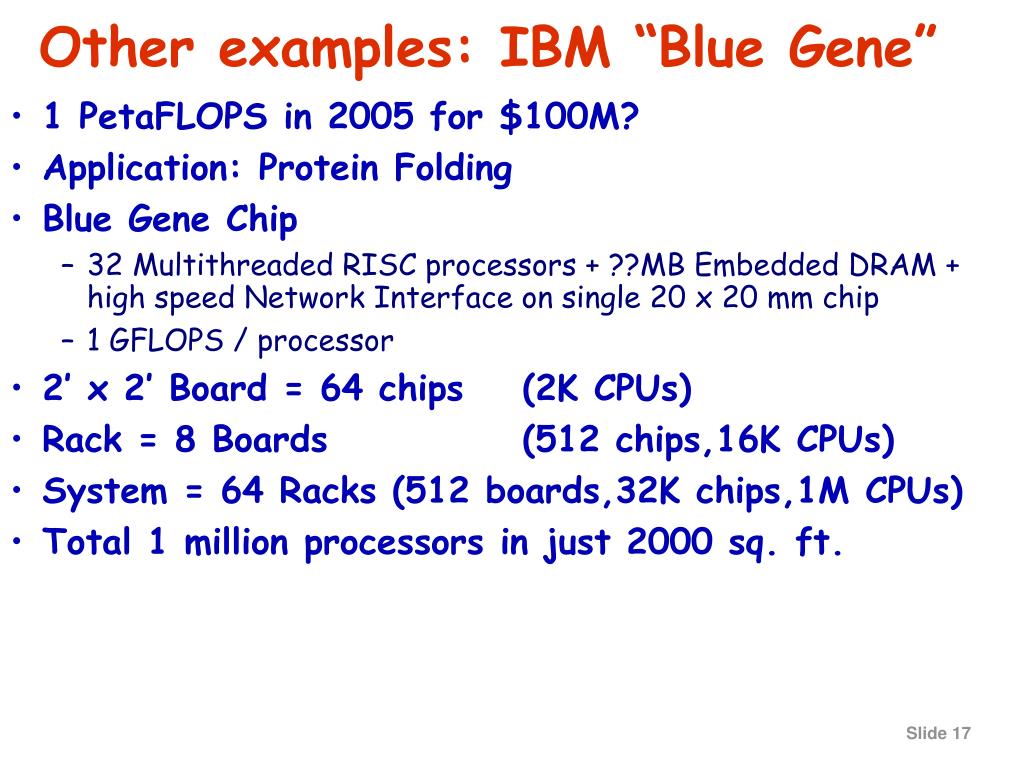

  17. Other examples: IBM “Blue Gene” • 1 PetaFLOPS in 2005 for $100M? • Application: Protein Folding • Blue Gene Chip • 32 Multithreaded RISC processors + ??MB Embedded DRAM + high speed Network Interface on single 20 x 20 mm chip • 1 GFLOPS / processor • 2’ x 2’ Board = 64 chips (2K CPUs) • Rack = 8 Boards (512 chips,16K CPUs) • System = 64 Racks (512 boards,32K chips,1M CPUs) • Total 1 million processors in just 2000 sq. ft.

  18. Other examples: Sony Playstation 2 • Emotion Engine: 6.2 GFLOPS, 75 million polygons per second (Microprocessor Report, 13:5) • Superscalar MIPS core + vector coprocessor + graphics/DRAM • Claim: “Toy Story” realism brought to games

  19. Outline 1) Example microprocessor for PostPC gadgets 2) Motivation and the ISTORE project vision • AME: Availability, Maintainability, Evolutionary growth • ISTORE’s research principles • Benchmarks for AME • Conclusions and future work

  20. Lampson: Systems Challenges • Systems that work • Meeting their specs • Always available • Adapting to changing environment • Evolving while they run • Made from unreliable components • Growing without practical limit • Credible simulations or analysis • Writing good specs • Testing • Performance • Understanding when it doesn’t matter “Computer Systems Research-Past and Future” Keynote address, 17th SOSP, Dec. 1999 Butler Lampson Microsoft

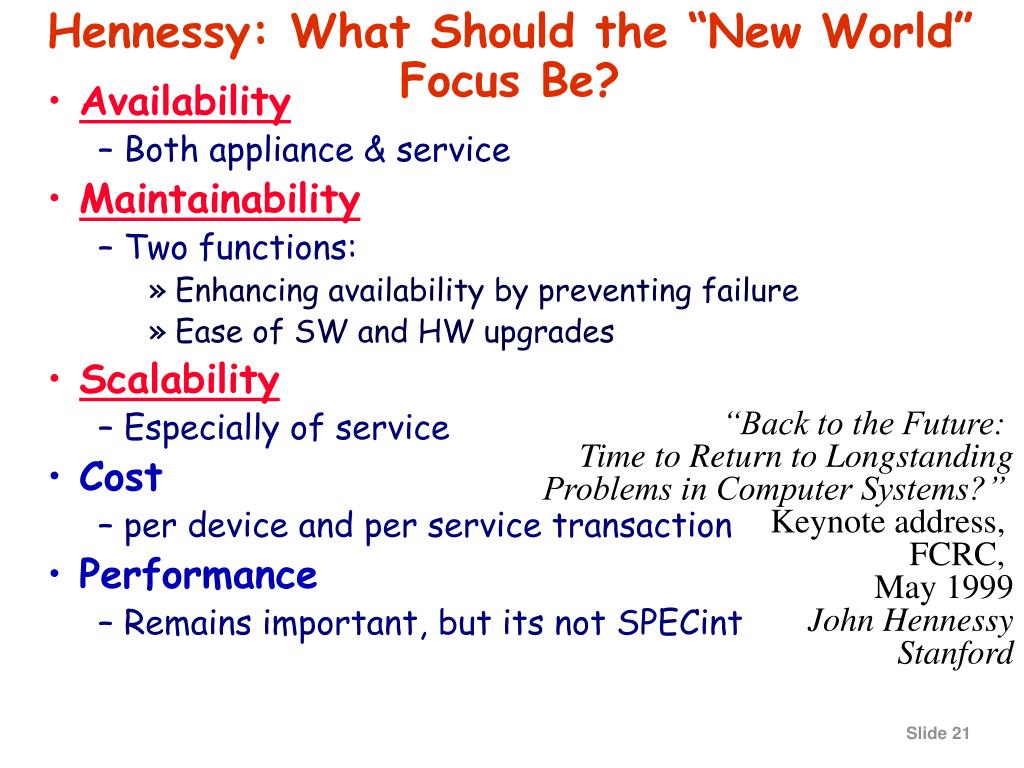

  21. Hennessy: What Should the “New World” Focus Be? • Availability • Both appliance & service • Maintainability • Two functions: • Enhancing availability by preventing failure • Ease of SW and HW upgrades • Scalability • Especially of service • Cost • per device and per service transaction • Performance • Remains important, but its not SPECint “Back to the Future: Time to Return to Longstanding Problems in Computer Systems?” Keynote address, FCRC, May 1999 John Hennessy Stanford

  22. The real scalability problems: AME • Availability • systems should continue to meet quality of service goals despite hardware and software failures • Maintainability • systems should require only minimal ongoing human administration, regardless of scale or complexity • Evolutionary Growth • systems should evolve gracefully in terms of performance, maintainability, and availability as they are grown/upgraded/expanded • These are problems at today’s scales, and will only get worse as systems grow

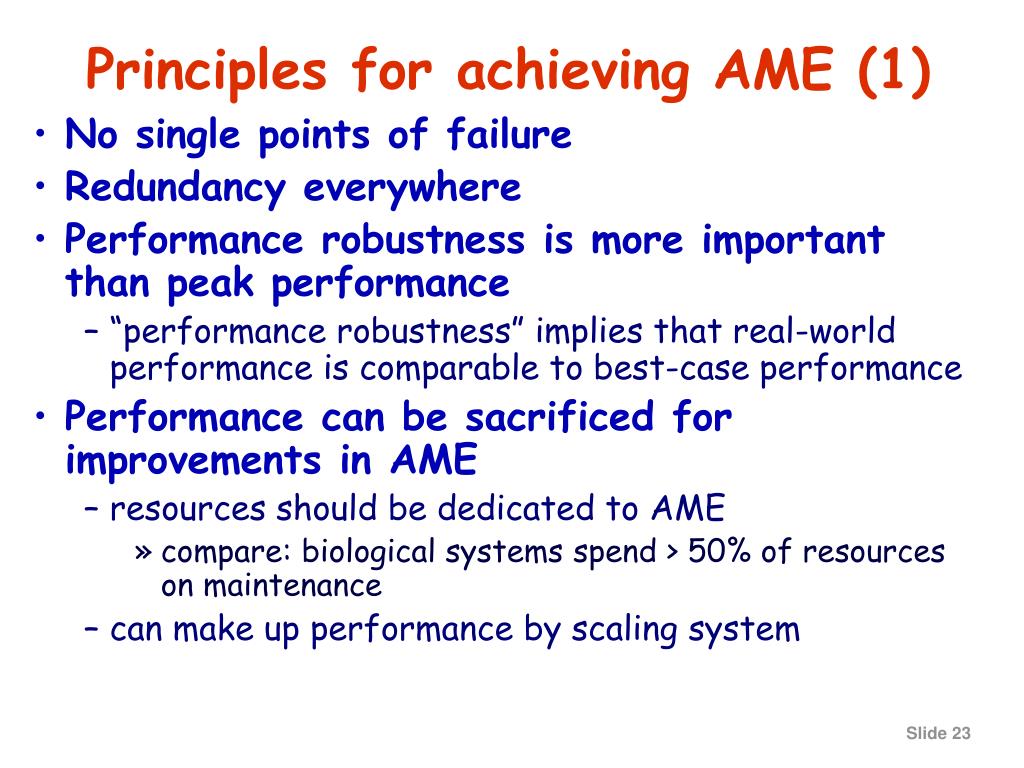

  23. Principles for achieving AME (1) • No single points of failure • Redundancy everywhere • Performance robustness is more important than peak performance • “performance robustness” implies that real-world performance is comparable to best-case performance • Performance can be sacrificed for improvements in AME • resources should be dedicated to AME • compare: biological systems spend > 50% of resources on maintenance • can make up performance by scaling system

  24. Principles for achieving AME (2) • Introspection • reactive techniques to detect and adapt to failures, workload variations, and system evolution • proactive techniques to anticipate and avert problems before they happen

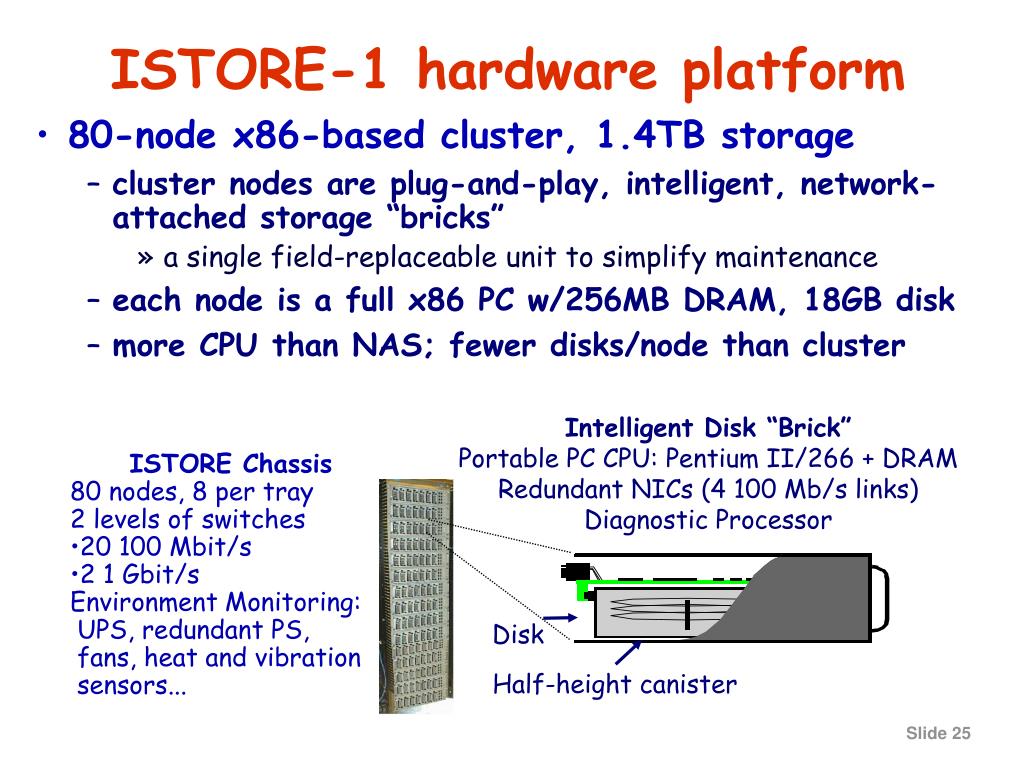

  25. Disk Half-height canister ISTORE-1 hardware platform • 80-node x86-based cluster, 1.4TB storage • cluster nodes are plug-and-play, intelligent, network-attached storage “bricks” • a single field-replaceable unit to simplify maintenance • each node is a full x86 PC w/256MB DRAM, 18GB disk • more CPU than NAS; fewer disks/node than cluster Intelligent Disk “Brick” Portable PC CPU: Pentium II/266 + DRAM Redundant NICs (4 100 Mb/s links) Diagnostic Processor • ISTORE Chassis • 80 nodes, 8 per tray • 2 levels of switches • 20 100 Mbit/s • 2 1 Gbit/s • Environment Monitoring: • UPS, redundant PS, • fans, heat and vibration sensors...

  26. ISTORE-1 Status • 10 Nodes manufactured • Boots OS • Diagnostic Processor Interface SW complete • PCB backplane: not yet designed • Finish 80 node system: Summer 2000

  27. Hardware techniques • Fully shared-nothing cluster organization • truly scalable architecture • architecture that tolerates partial failure • automatic hardware redundancy

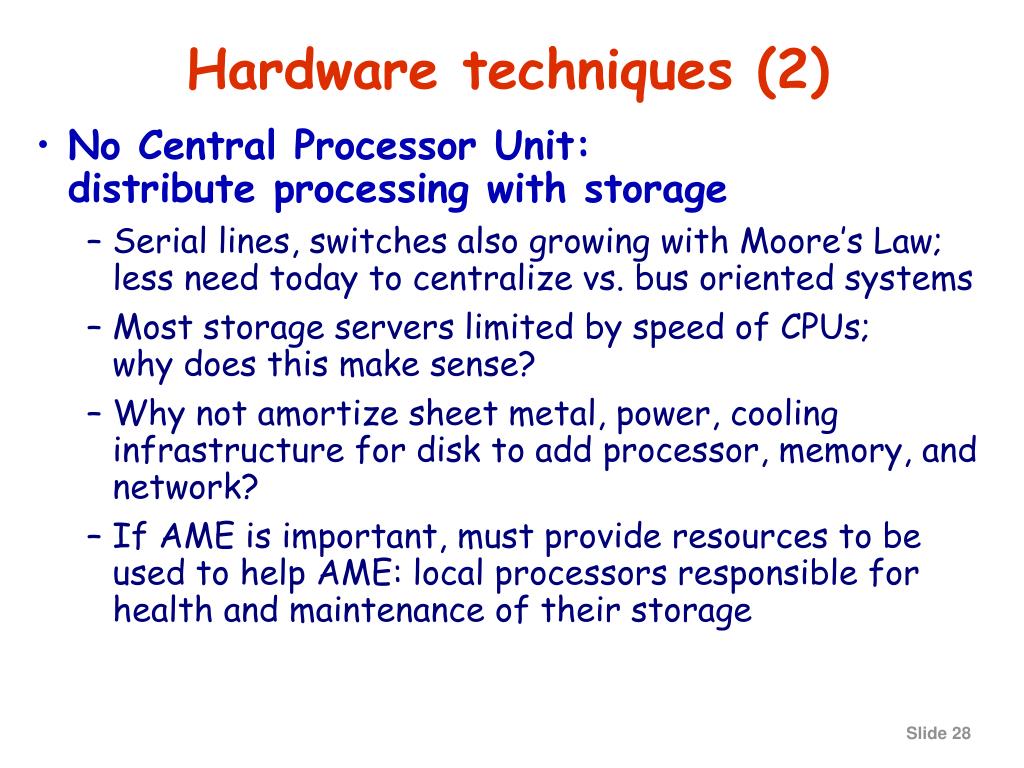

  28. Hardware techniques (2) • No Central Processor Unit: distribute processing with storage • Serial lines, switches also growing with Moore’s Law; less need today to centralize vs. bus oriented systems • Most storage servers limited by speed of CPUs; why does this make sense? • Why not amortize sheet metal, power, cooling infrastructure for disk to add processor, memory, and network? • If AME is important, must provide resources to be used to help AME: local processors responsible for health and maintenance of their storage

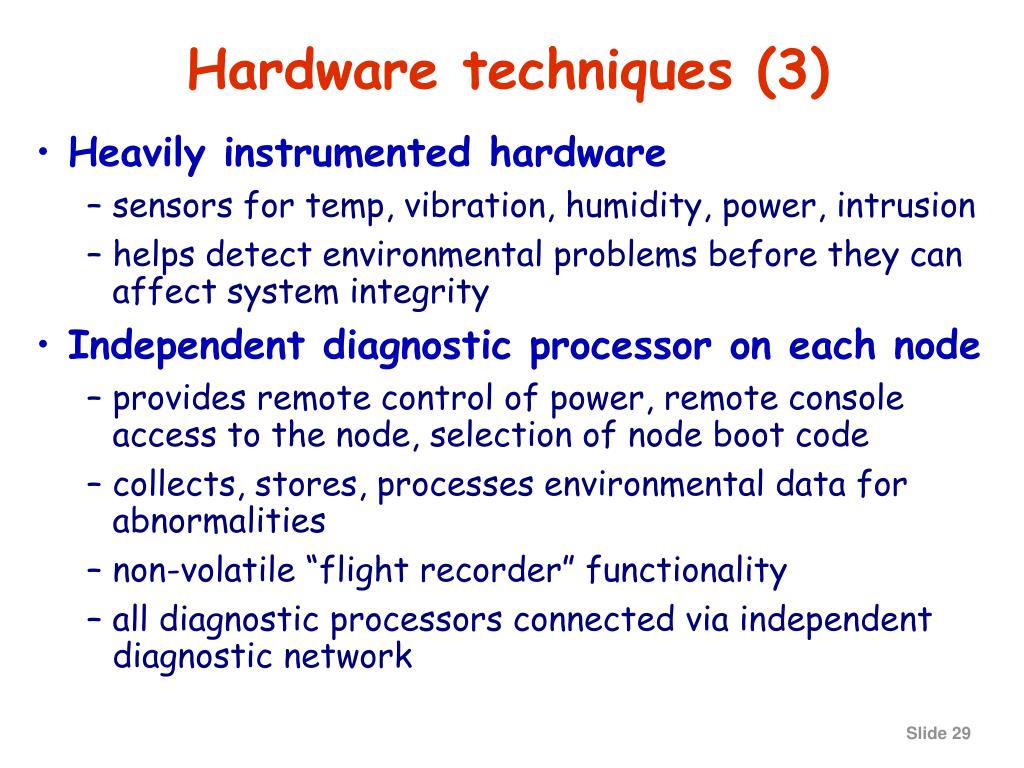

  29. Hardware techniques (3) • Heavily instrumented hardware • sensors for temp, vibration, humidity, power, intrusion • helps detect environmental problems before they can affect system integrity • Independent diagnostic processor on each node • provides remote control of power, remote console access to the node, selection of node boot code • collects, stores, processes environmental data for abnormalities • non-volatile “flight recorder” functionality • all diagnostic processors connected via independent diagnostic network

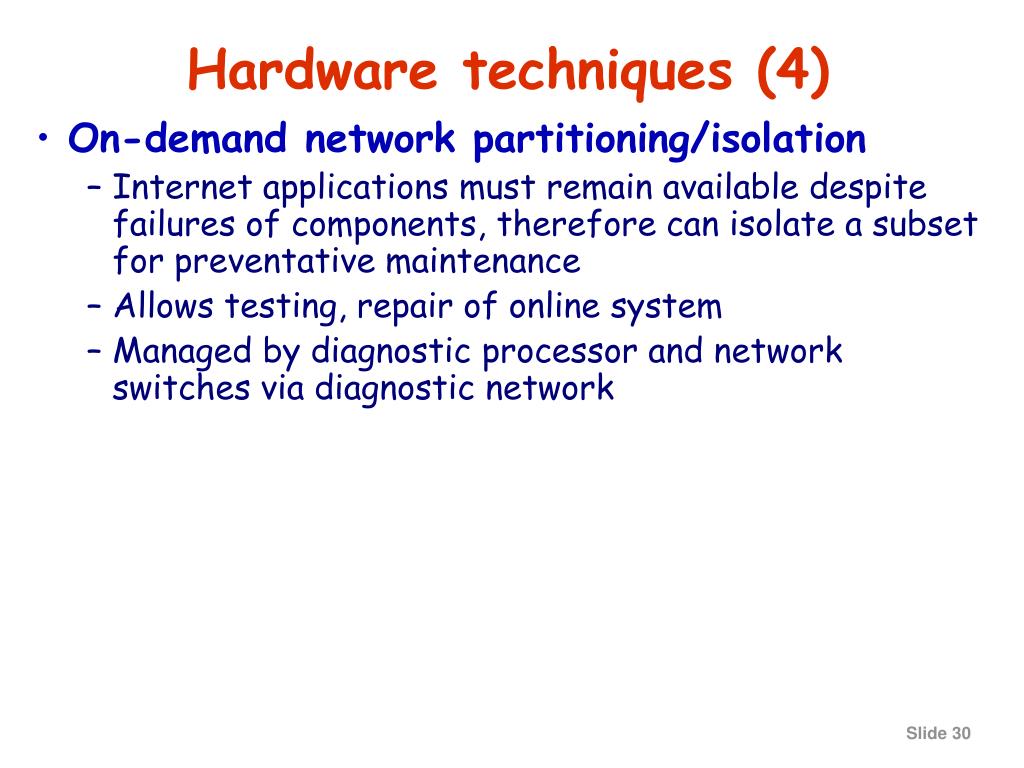

  30. Hardware techniques (4) • On-demand network partitioning/isolation • Internet applications must remain available despite failures of components, therefore can isolate a subset for preventative maintenance • Allows testing, repair of online system • Managed by diagnostic processor and network switches via diagnostic network

  31. Hardware techniques (5) • Built-in fault injection capabilities • Power control to individual node components • Injectable glitches into I/O and memory busses • Managed by diagnostic processor • Used for proactive hardware introspection • automated detection of flaky components • controlled testing of error-recovery mechanisms • Important for AME benchmarking (see next slide)

  32. “Hardware” techniques (6) • Benchmarking • One reason for 1000X processor performance was ability to measure (vs. debate) which is better • e.g., Which most important to improve: clock rate, clocks per instruction, or instructions executed? • Need AME benchmarks “what gets measured gets done” “benchmarks shape a field” “quantification brings rigor”

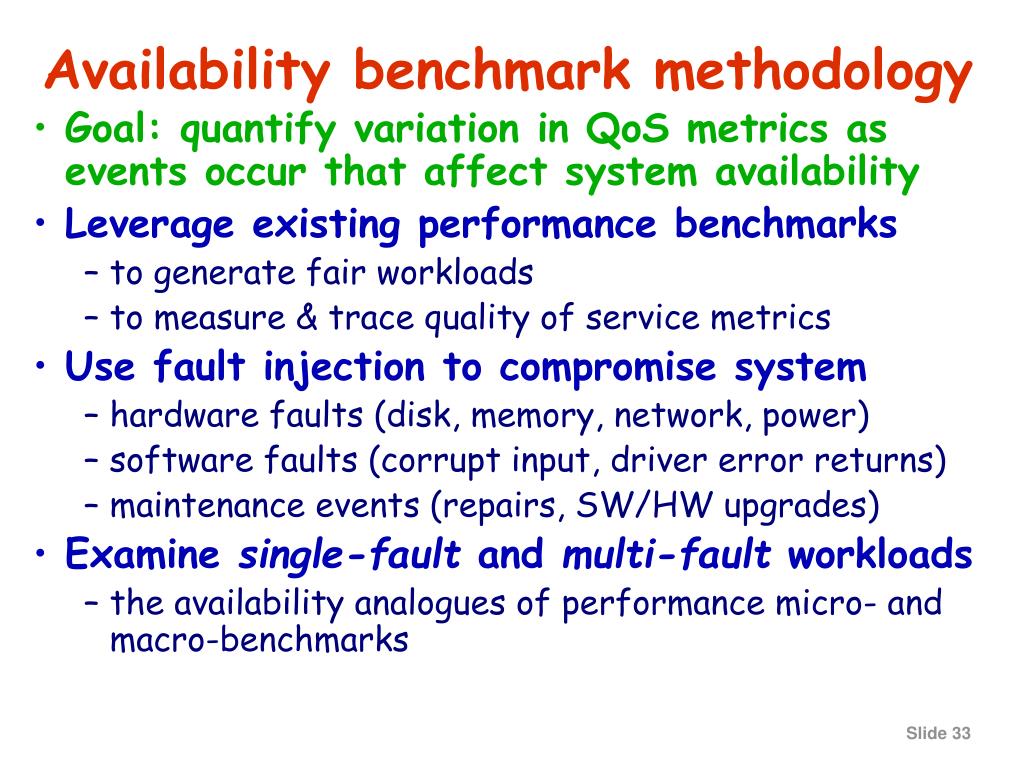

  33. Availability benchmark methodology • Goal: quantify variation in QoS metrics as events occur that affect system availability • Leverage existing performance benchmarks • to generate fair workloads • to measure & trace quality of service metrics • Use fault injection to compromise system • hardware faults (disk, memory, network, power) • software faults (corrupt input, driver error returns) • maintenance events (repairs, SW/HW upgrades) • Examine single-fault and multi-fault workloads • the availability analogues of performance micro- and macro-benchmarks

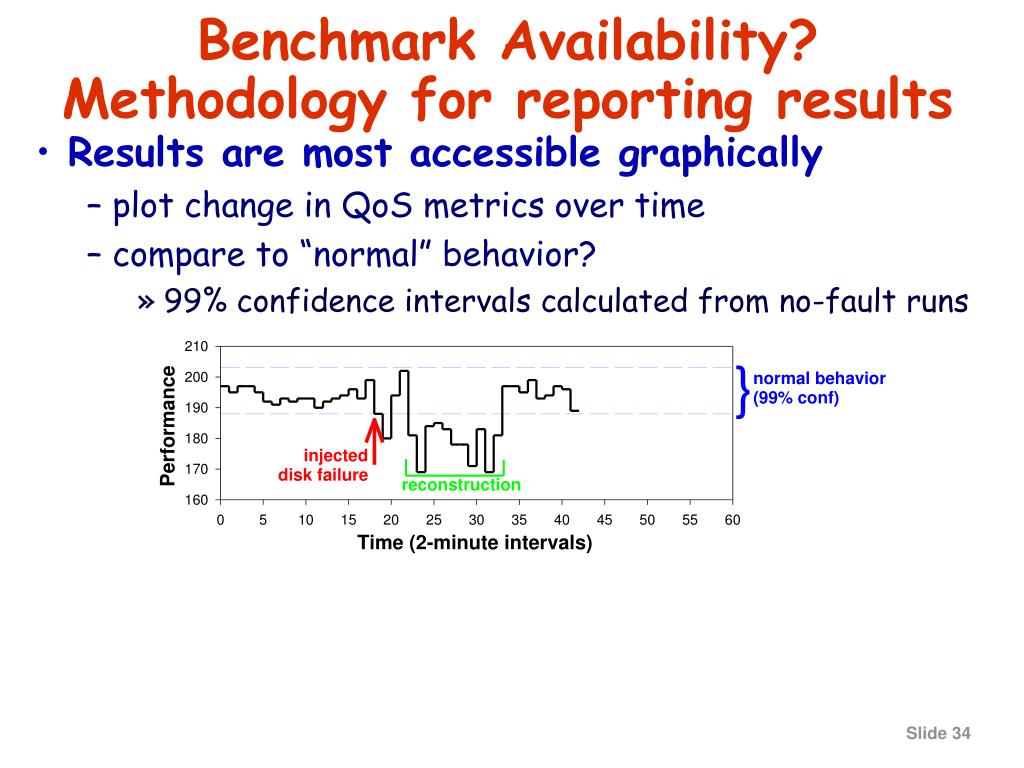

  34. Benchmark Availability?Methodology for reporting results • Results are most accessible graphically • plot change in QoS metrics over time • compare to “normal” behavior? • 99% confidence intervals calculated from no-fault runs

  35. Example results: multiple-faults Windows 2000/IIS Linux/ Apache • Windows reconstructs ~3x faster than Linux • Windows reconstruction noticeably affects application performance, while Linux reconstruction does not

  36. Conclusions (1): ISTORE • Availability, Maintainability, and Evolutionary growth are key challenges for server systems • more important even than performance • ISTORE is investigating ways to bring AME to large-scale, storage-intensive servers • via clusters of network-attached, computationally-enhanced storage nodes running distributed code • via hardware and software introspection • we are currently performing application studies to investigate and compare techniques • Availability benchmarks a powerful tool? • revealed undocumented design decisions affecting SW RAID availability on Linux and Windows 2000

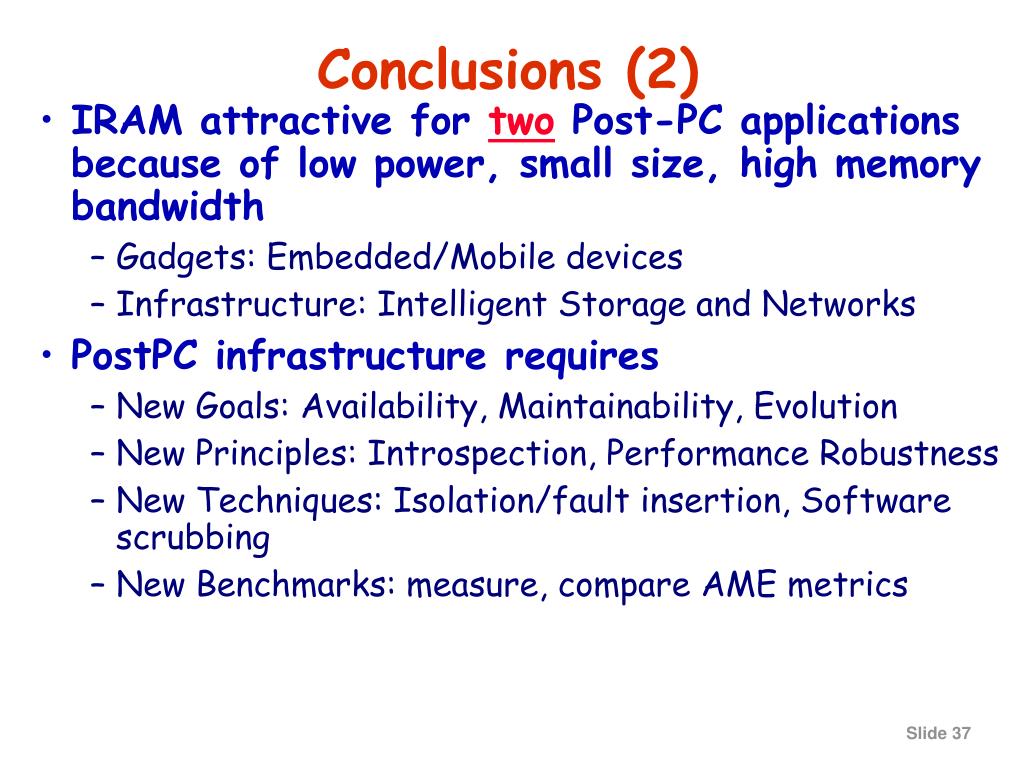

  37. Conclusions (2) • IRAM attractive for two Post-PC applications because of low power, small size, high memory bandwidth • Gadgets: Embedded/Mobile devices • Infrastructure: Intelligent Storage and Networks • PostPC infrastructure requires • New Goals: Availability, Maintainability, Evolution • New Principles: Introspection, Performance Robustness • New Techniques: Isolation/fault insertion, Software scrubbing • New Benchmarks: measure, compare AME metrics
