    1. Jaipur Terminal Fire of 29.10.2009 By SK Roy, GM(HSE),CO Indian Oil Corporation Limited Presentation on 1

    2. Flixborough (1974) Explosion/ Fire 28 Fatalities, 36 Injuries Plant virtually demolished

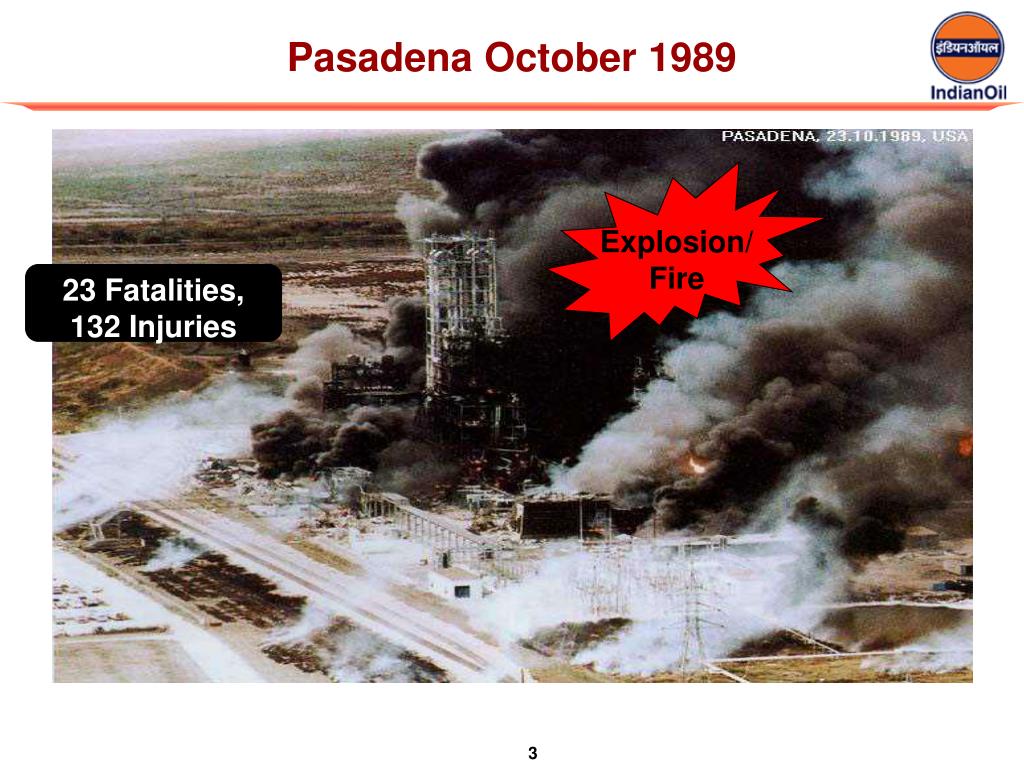

    3. Pasadena October 1989 Explosion/ Fire 23 Fatalities, 132 Injuries

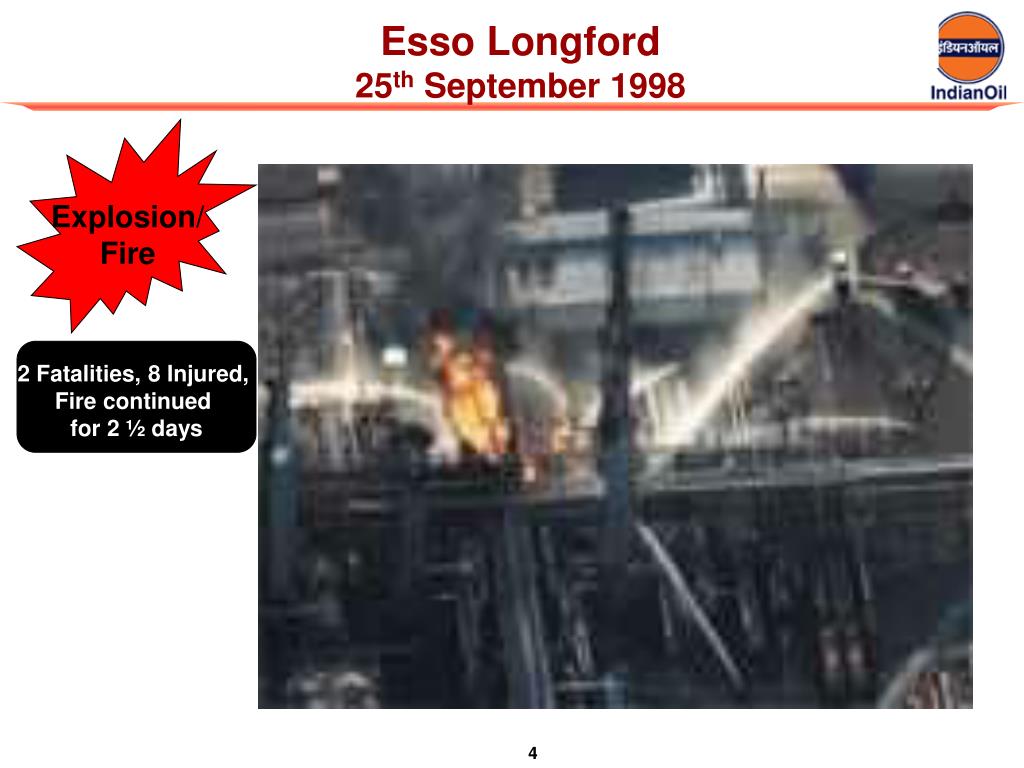

    4. Esso Longford 25th September 1998 Explosion/ Fire 2 Fatalities, 8 Injured, Fire continued for 2 ½ days

    5. Toulouse 21st September 2001 Explosion/ Fire 31 Fatalities, 2442 injuries Created 50 m dia crater more than 10 metre deep

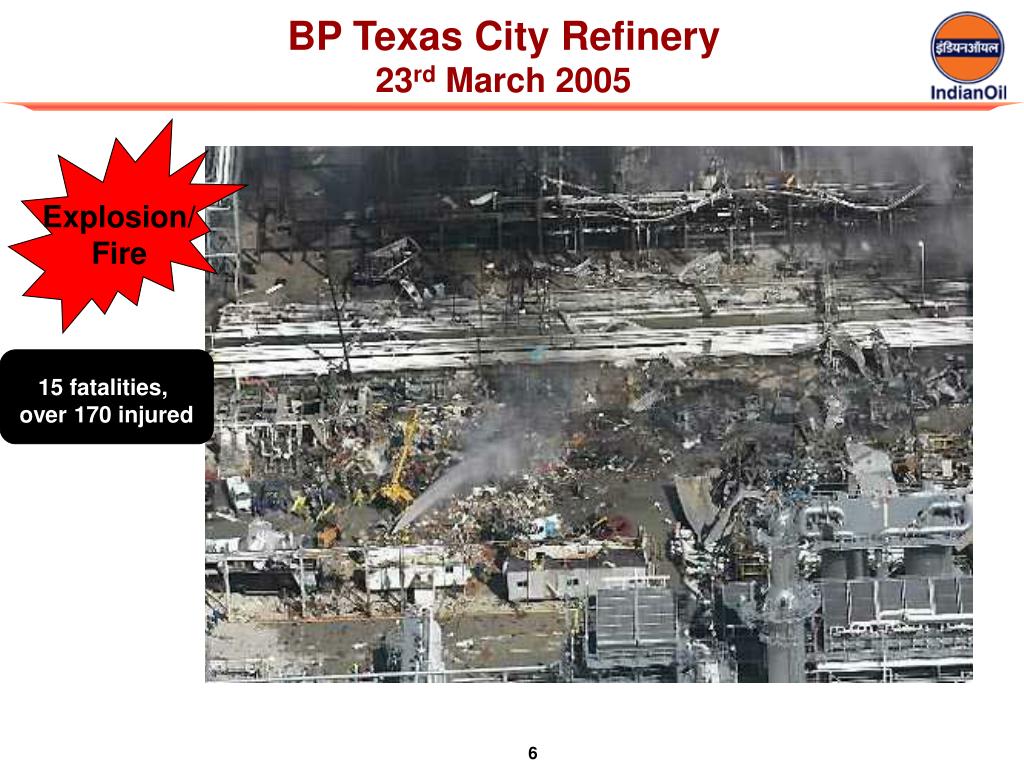

    6. BP Texas City Refinery 23rd March 2005 Explosion/ Fire 15 fatalities, over 170 injured

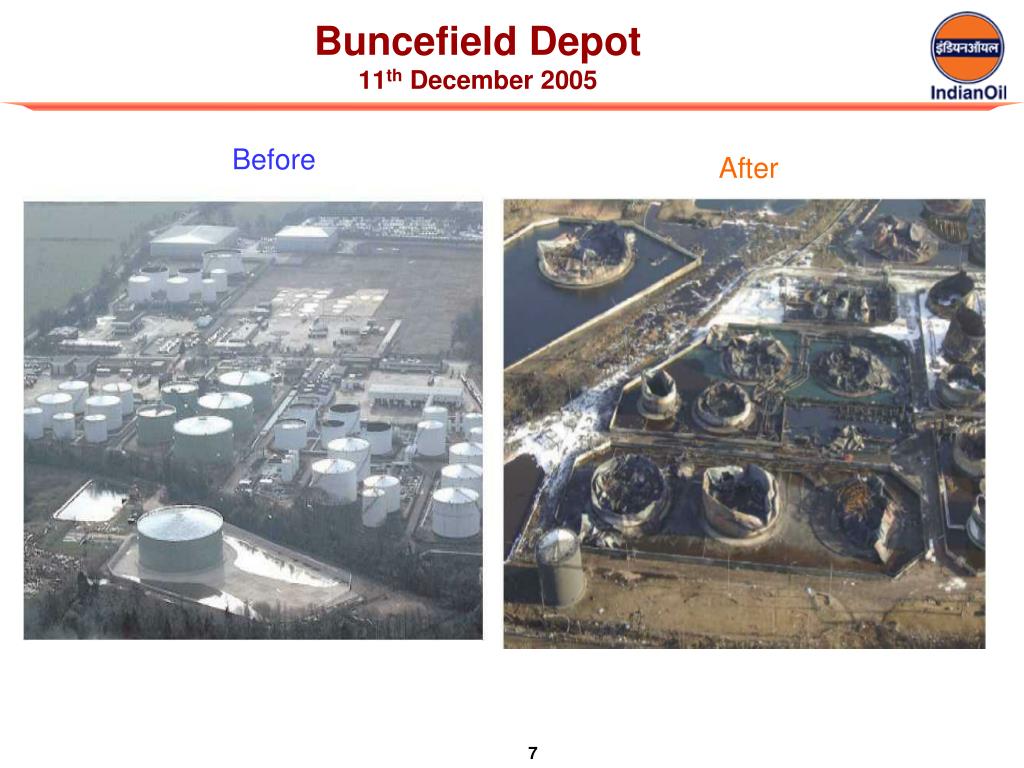

    7. Buncefield Depot11th December 2005 Before After

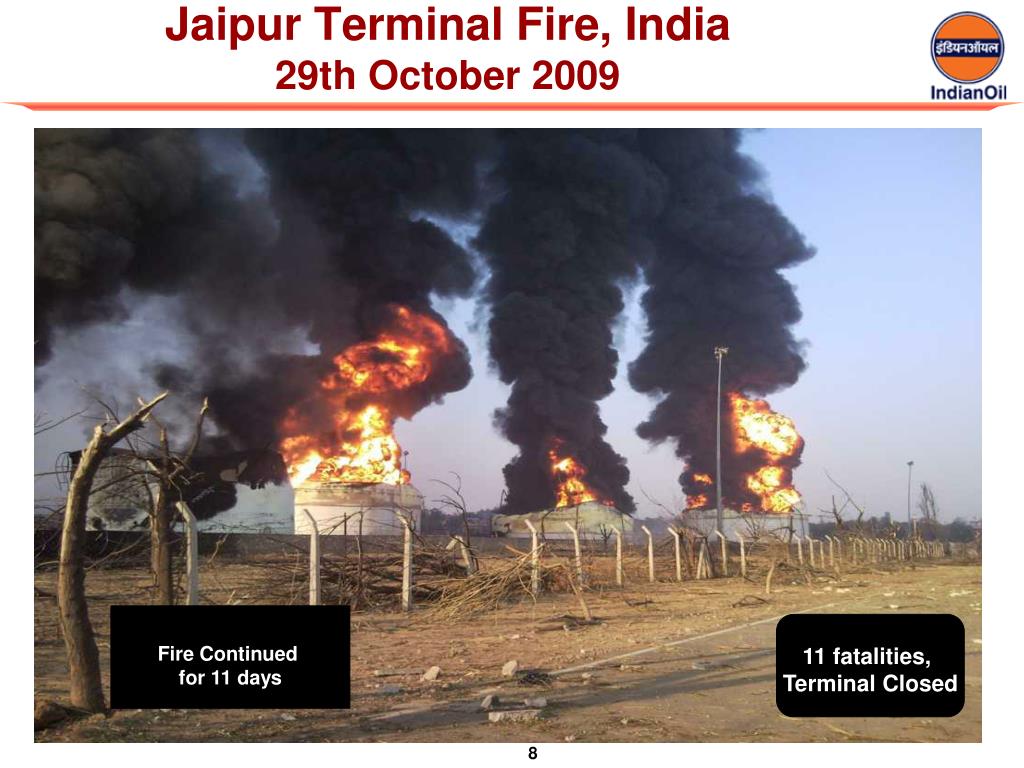

    8. Jaipur Terminal Fire, India29th October 2009 Fire Continued for 11 days 11 fatalities, Terminal Closed

    9. Safety at Jaipur Terminal

    10. Fire Scene at Jaipur Terminal

    11. Fire on Diesel Tanks

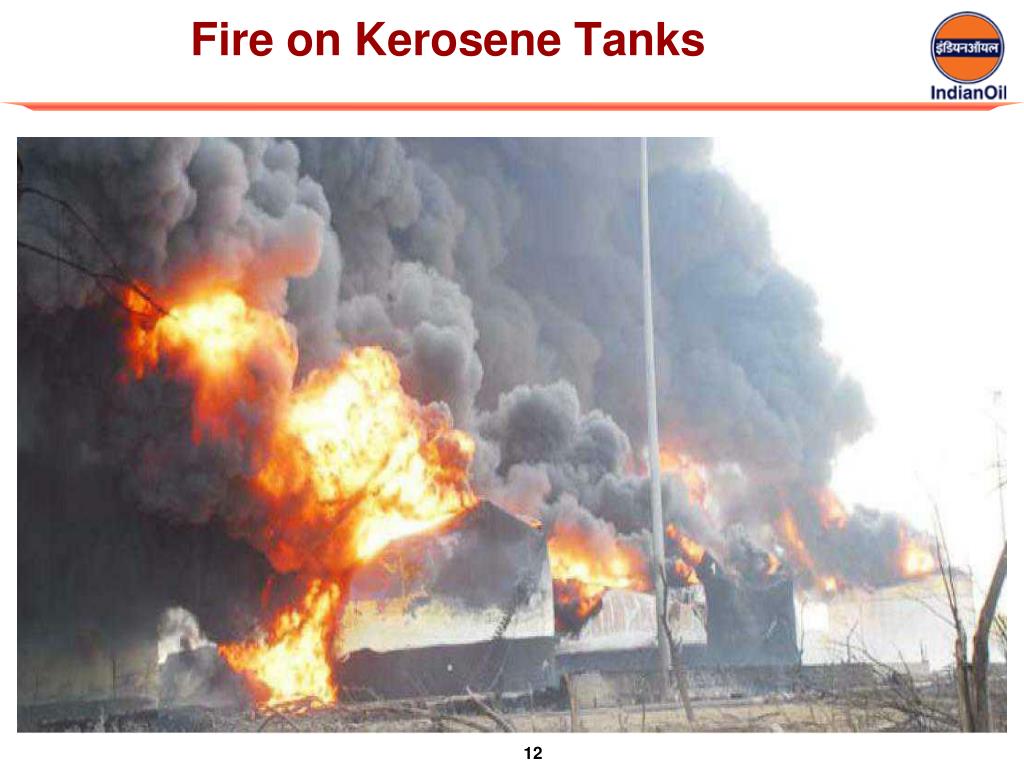

    12. Fire on Kerosene Tanks

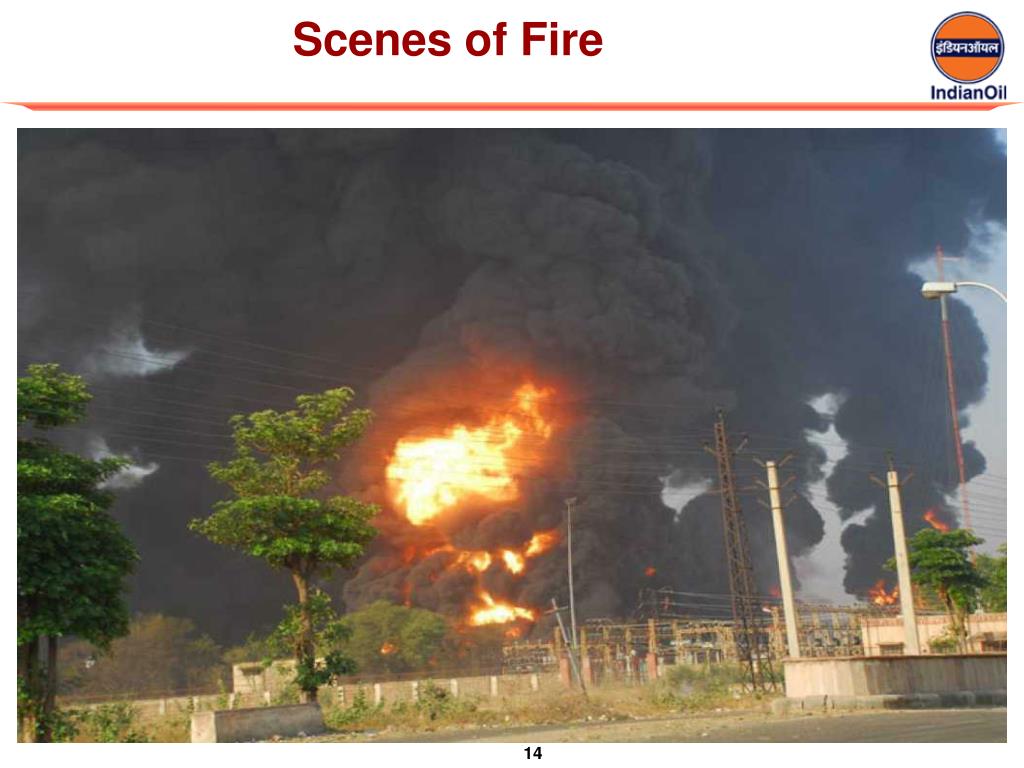

    13. Scenes of Fire

    14. Scenes of Fire

    15. Kerosene tank & MS tanks(Behind)

    16. Scene of Fire

    17. View of all 11 tanks

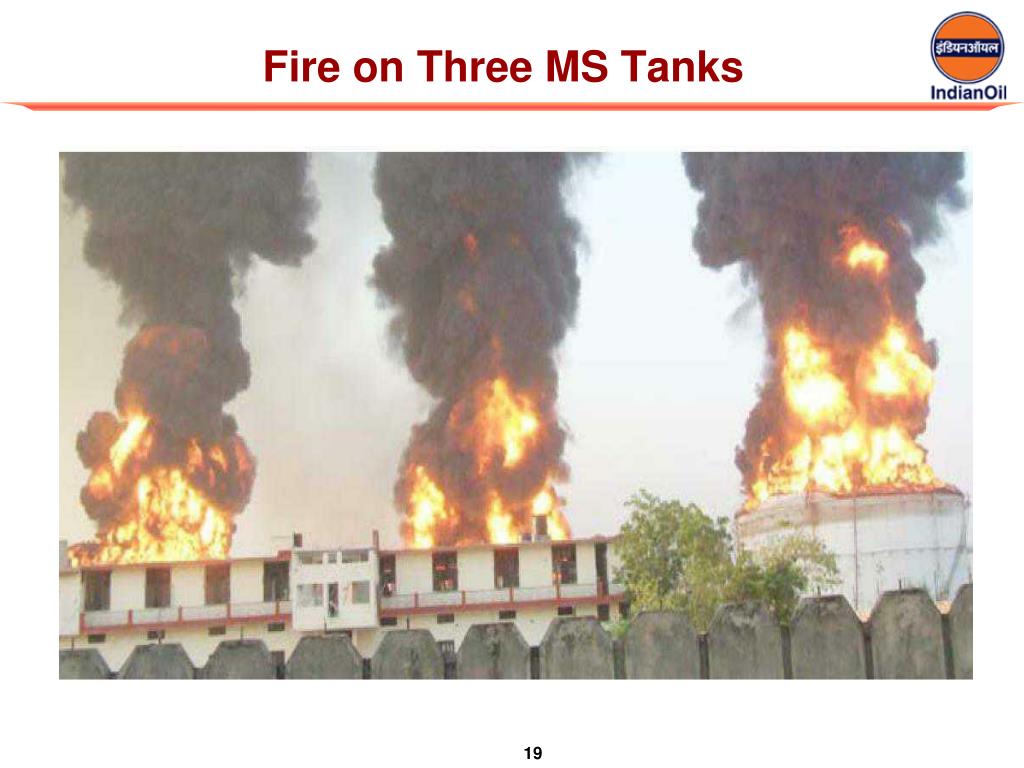

    18. Fire on Three MS Tanks

    19. Fire on Three MS Tanks

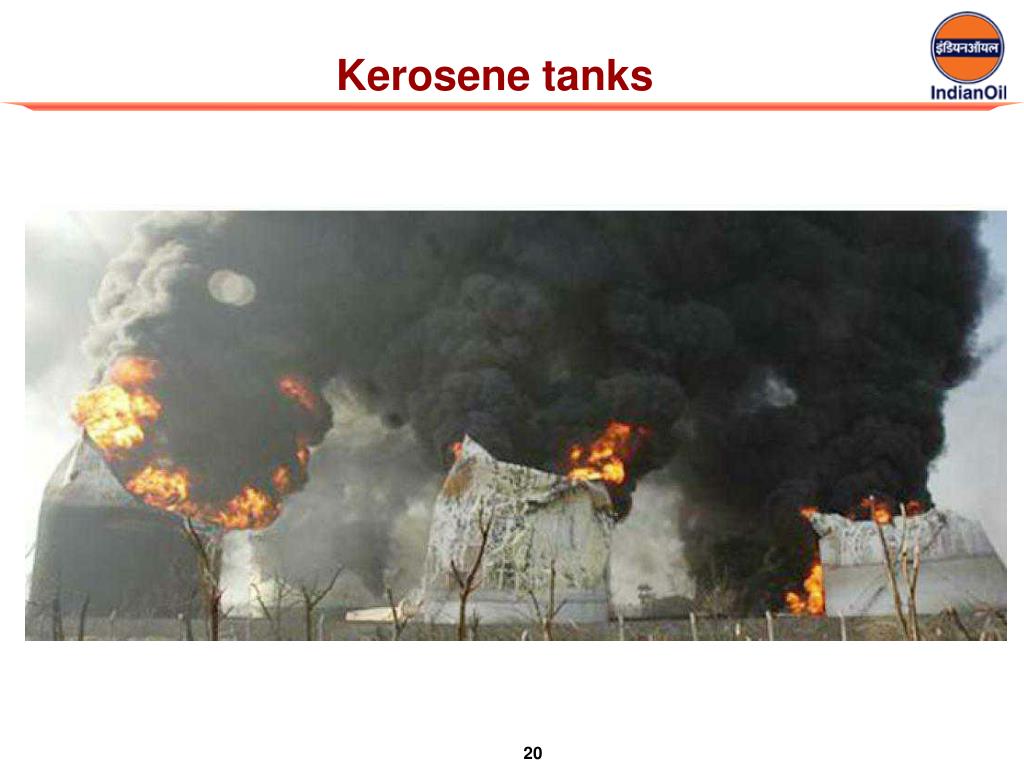

    20. Kerosene tanks

    21. MS Tank collapsed

    22. HSD Tanks on 2rd day

    23. Over pressurised Lube oil Drums near tanks in Fire Many Exploded

    24. Near by population on Run

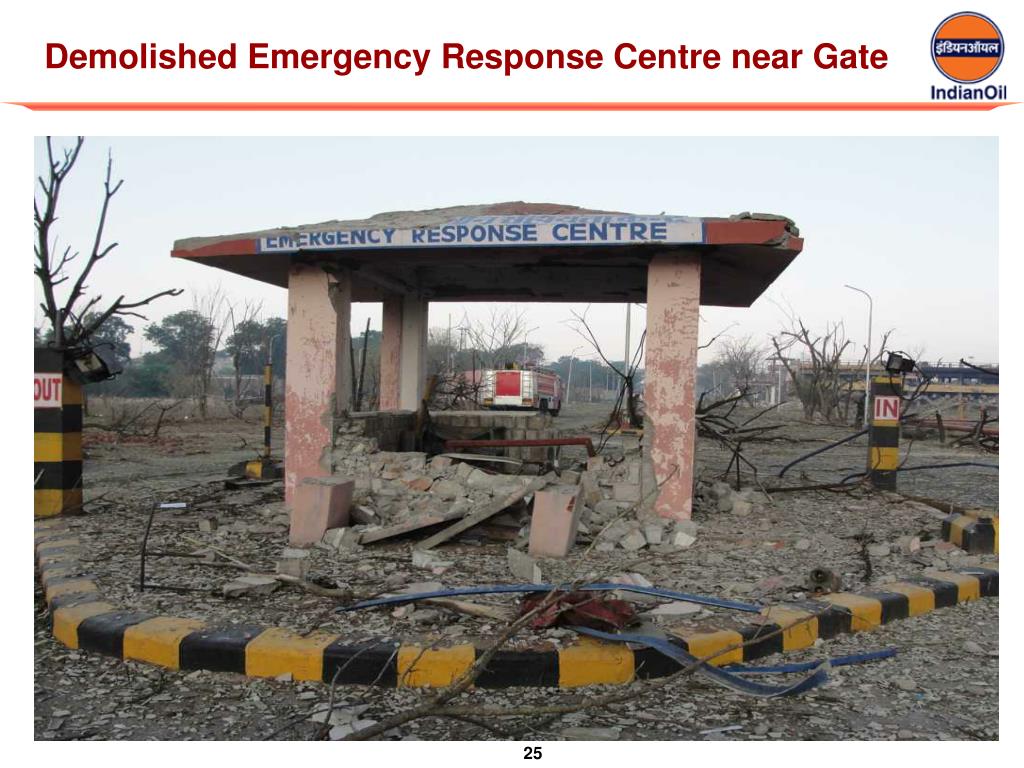

    25. Demolished Emergency Response Centre near Gate

    26. Control Room & Maint. Building

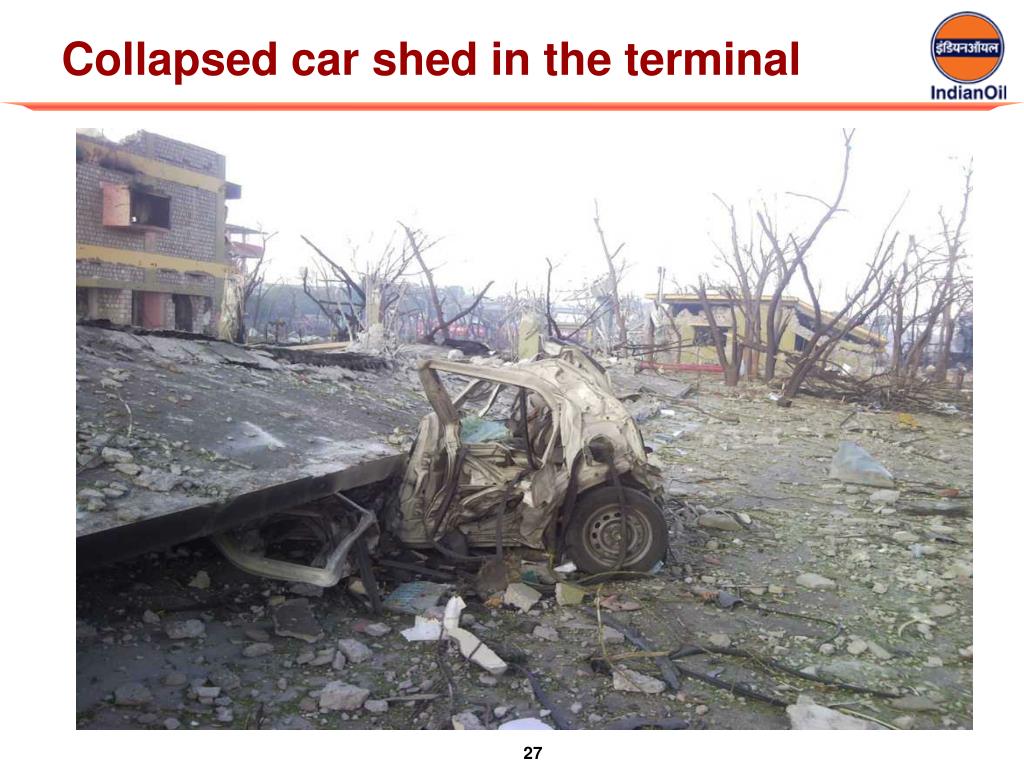

    27. Collapsed car shed in the terminal

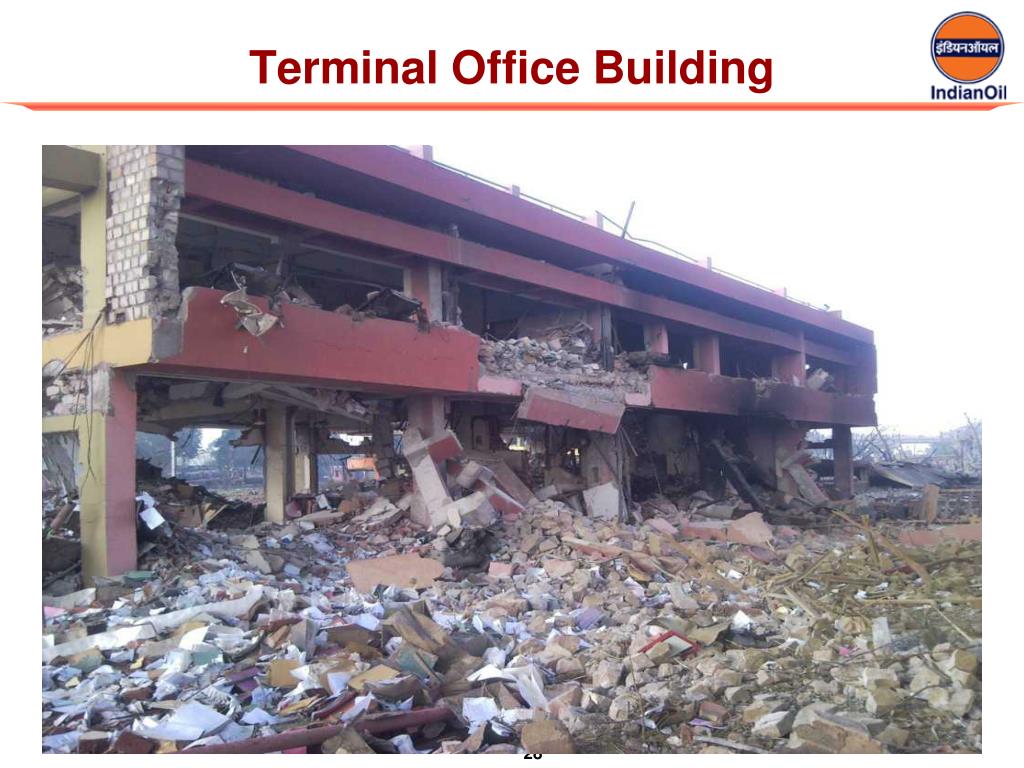

    28. Terminal Office Building

    29. Fire water Pump House

    30. Demolished Smoking Booth near Boundary Wall

    31. Extent of Damage

    32. Tank Truck Loading Gantry

    33. Terminal Pumping Station

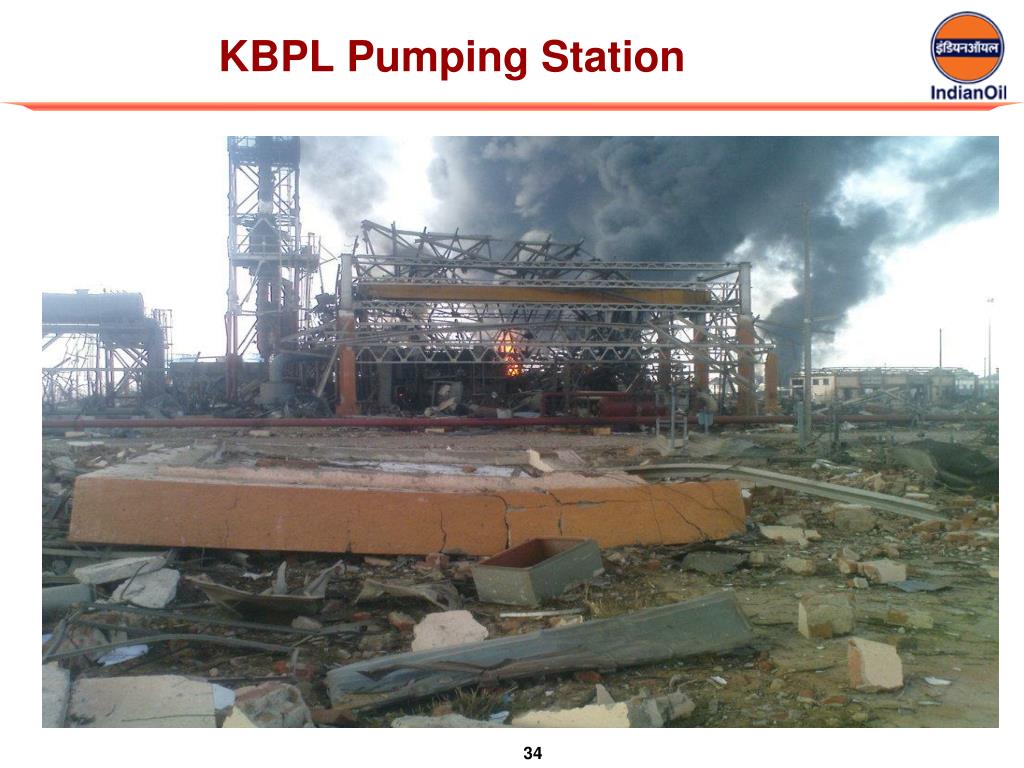

    34. KBPL Pumping Station

    35. Ruptured pipelines

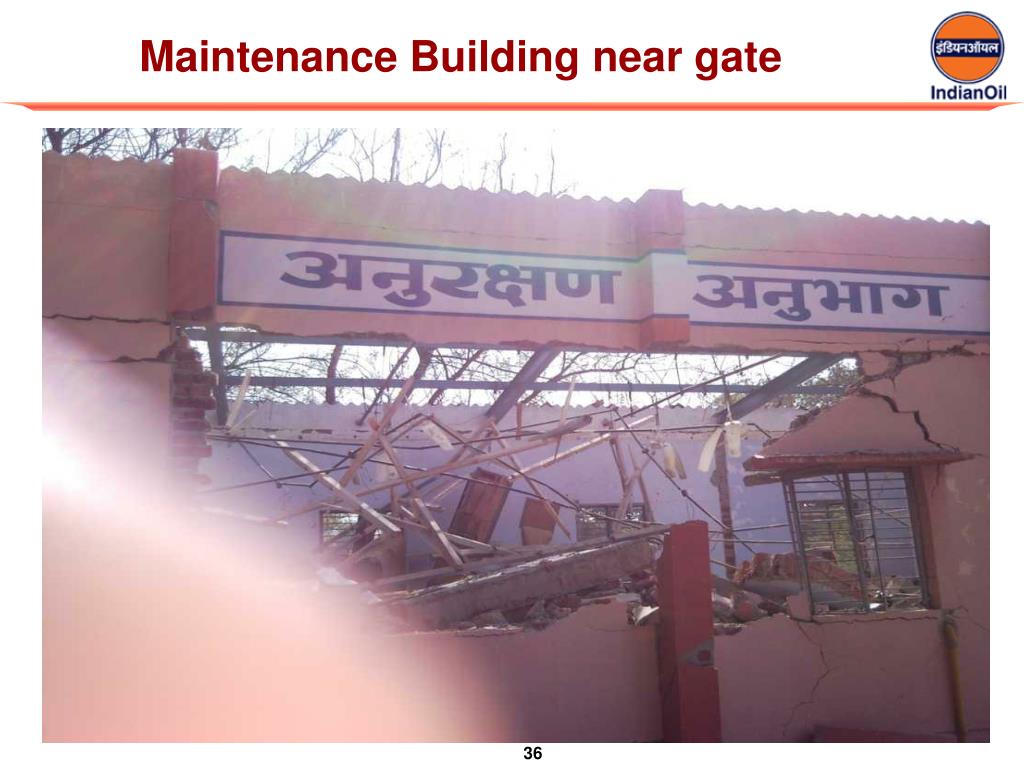

    36. Maintenance Building near gate

    37. Damage to Vehicles

    38. Business Continuity Centre

    39. Overturned Fire Monitor.

    40. Damage at nearby car Showroom

    41. Damage at nearby car Showroom

    42. Pictorial Depiction of the Incident

    43. Plot Plan EMERGENCY GATE KEROSENE TANKS HSD TANKS MS TANKS SECURITY GATE C/R KBPL P/H FWPH GENUS PH LUBE WAREHOUSE PIPELINE INSTALLATION FW TANKS STORE CANTEEN MS TANKS S/S DG TTL ADMIN BCC SECURITY GATE C/R EXCHANGE PIT NTS

    44. PLT Line up FROM PIPELINE DIVISION OMC TANK DYKE INLET LINE DIP: 11.86 M DRAIN VALVE TANK 401A DISCHARGE LINE NTS

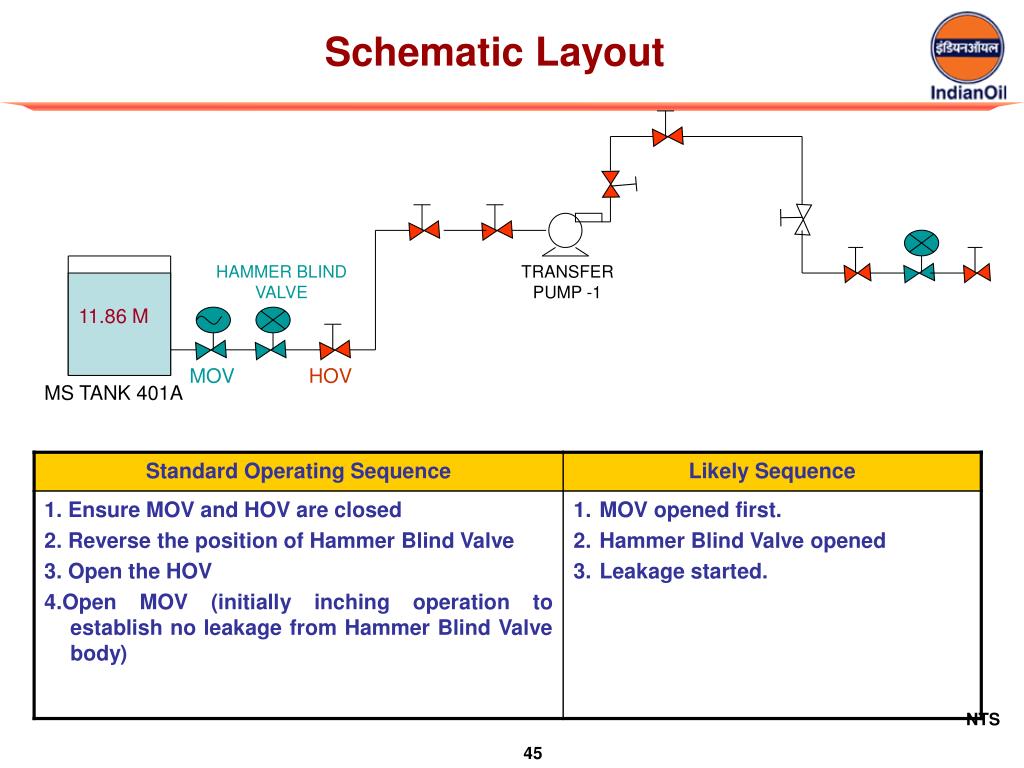

    45. Schematic Layout HAMMER BLIND VALVE TRANSFER PUMP -1 11.86 M MOV HOV MS TANK 401A NTS

    46. Schematic of Valves on Tank Discharge Line N A Tank wall 40 cm 80 cm MOV MOV 310 cm 160 cm 205 cm PLATFORM 90 cm 160 cm Hammer Blind Hammer Blind 10” 12” 90cm HOV HOV PLT/TLF P/L MS Tank A NTS

    47. Source of MS Leak

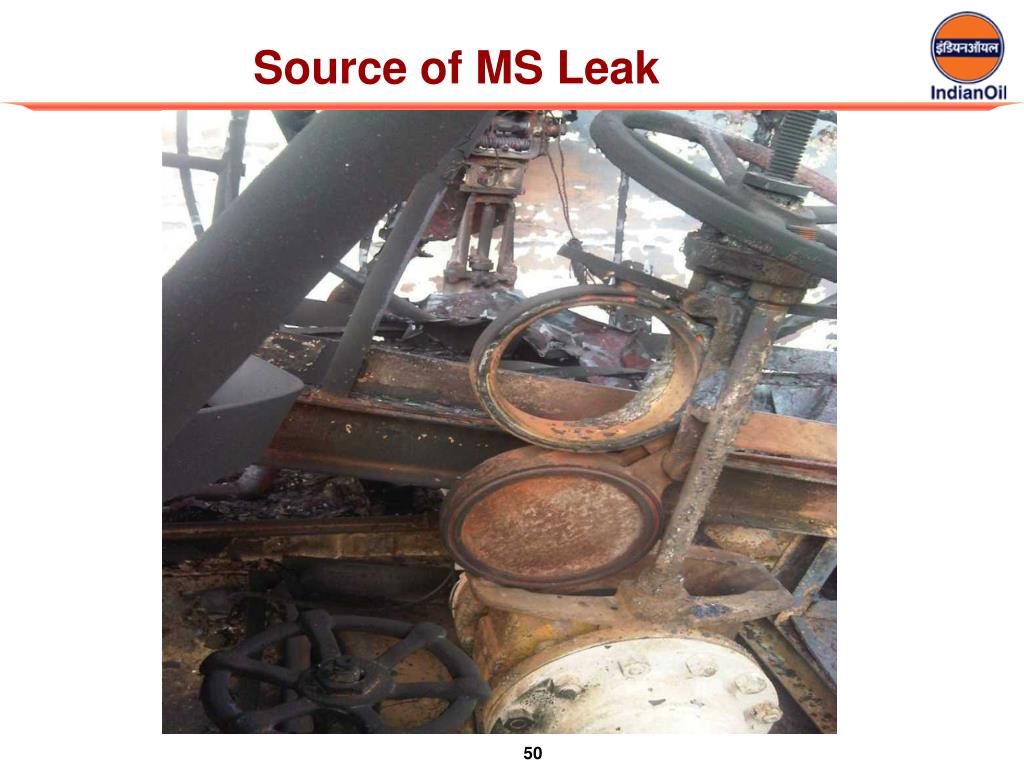

    48. MOV on Discharge Line

    49. Hammer Blind and HOV on Discharge Line

    50. Source of MS Leak
