Biological functions of proteins
Biological Functions of Proteins

  • Facilitate biochemical reactions

  • Structural support

  • Storage and Transport

  • Immune protection

  • Generate movement

  • Transmission of nerve impulses

  • Control growth and differentiation

Key properties of proteins
Key Properties of Proteins

  • Linear polymers of amino acids

  • Contains a wide range of functional groups

  • Forms complex assemblies of more than one polypeptide chain

  • Versatile structure – some are rigid while others are flexible

Globular and fibrous proteins
Globular and Fibrous Proteins

  • Globular protein

    • Usually water soluble, compact, roughly spherical

    • Hydrophobic interior, hydrophilic surface

    • Globular proteins include enzymes,carrier and regulatory proteins

  • Fibrous protein

    • Provide mechanical support

    • Often assembled into large cables or threads

    • α-Keratins: major components of hair and nails

    • Collagen: major component of tendons, skin, bones and teeth

General structure of proteins
General Structure of Proteins

  • Twenty common a-amino acids have carboxyl and amino groups bonded to the α-carbon atom

  • A hydrogen atom and a side chain (R) are also attached to the α-carbon atom


  • Under normal cellular conditions amino acids are zwitterions (dipolar ions):

    Amino group = -NH3+

    Carboxyl group = -COO-

Stereochemistry of amino acids
Stereochemistry of amino acids

  • 19 of the 20 common amino acids have a chiral a-carbon atom (Gly does not)

  • Threonine and isoleucine have 2 chiral carbons each (4 possible stereoisomers each)

  • Mirror image pairs of amino acids are designated L (levo) and D (dextro)

  • Proteins are assembled from L-amino acids (a few D-amino acids occur in nature)

Amino acid side chains
Amino acid side chains

  • Nine non-polar aa

  • Six polar uncharged aa

  • Five charged aa

    • Three basic aa

    • Two acidic aa

  • Two aa with sulfur groups

  • Four ring-forming aa

    • Three have aromatic rings


  • Relative hydrophobicity of the amino acid

  • The larger the hydropathy, the greater the tendency of an amino acid to prefer a hydrophobic environment

  • Hydropathyaffects protein folding: hydrophobic side chains tend to be in the interiorhydrophilic residues tend to be on the surface

Isoelectric point
Isoelectric point

  • pH at which the amino acid bears zero net charge

Polymer of amino acid
Polymer of amino acid

  • Peptide bond - linkage between amino acids is a secondary amide bond

  • Formed by condensation of the α-carboxyl of one amino acid with the α-amino of another amino acid (loss of H2O molecule)

Trans and cis configuration of peptide bond
Trans and Cis configuration of peptide bond

  • Usually in the trans configuration

Dihedral angle of proteins
Dihedral angle of proteins

  • The phi angle is the angle around the -N-Cα- bond

  • The psi angle is the angle around the -Cα-C- bond

  • The omega angle is the angle around the -C1-N- bond (i.e. the peptide bond)

Primary structure
Primary structure

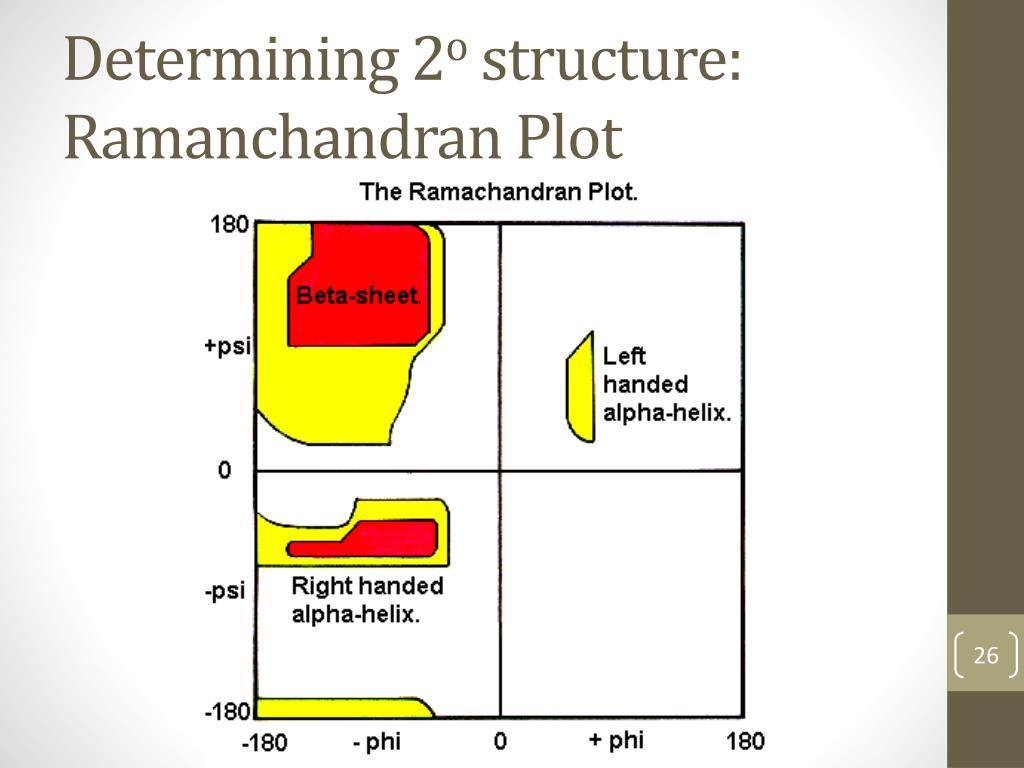

Determining 2 o structure ramanchandran plot
Determining 2o structure: Ramanchandran Plot

Supersecondary structure motifs
Supersecondary structure: Motifs

  • Secondary structures often group together to form a specific geometric arrangements known as motifs

  • Since motifs contain more than one secondary structural element, these are referred to as super secondary structures


  • stable, independently folding, compact structural units within a protein, formed by segments of the polypeptide chain, with relative independent structure and function distinguishable from other regions and stabilized through the same kind of linkages than the tertiary level

  • Often each domain has a separate function to perform for the protein, such as:

    • Bind a small ligand

    • Spanning the plasma membrane (transmembraneproteins)

    • Contain the catalytic site (enzymes)

    • DNA-binding (in transcription factors)

    • Providing a surface to bind specifically to another protein

    • In some (but not all) cases, each domain in a protein is encoded by a separate exon in the gene encoding that protein.

Tertiary structure
Tertiary Structure

  • Forces holding the tertiary (and higher order) structure together

    • Salt bridge

    • Covalent bond (disulfide bridges)

    • Hydrophobic interaction

    • Hydrogen bonding
