early tectonic ideas
Early Tectonic Ideas
  • Herodotus of Halicarnassos(484 BC-ca. 425 BC), now part of Turkey, observed seashells in the hills of Egypt and concluded that they had lain beneath the sea.
  • Predecessors Anaximander and Xenophanes are quoted as making similar statements.
  • Thus the first aspect of tectonics to be noted was vertical motion.

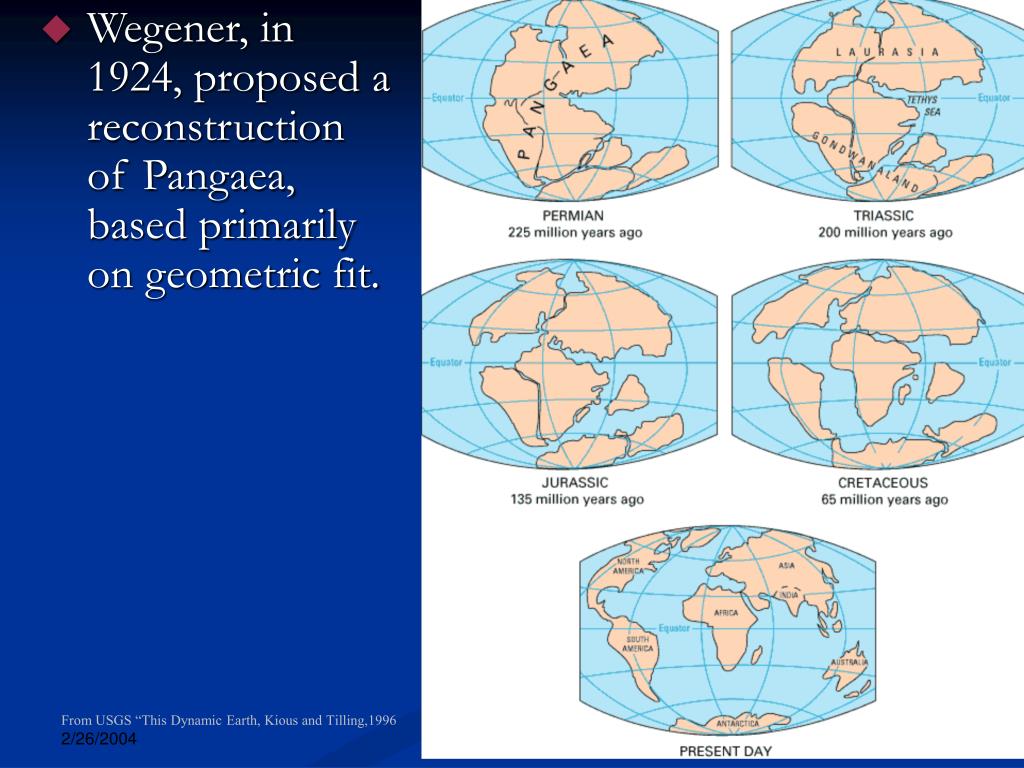

Wegener, in 1924, proposed a reconstruction of Pangaea, based primarily on geometric fit.

From USGS “This Dynamic Earth, Kious and Tilling,1996


Smith and Hallam, 1970, generated fits which were consistent with structural and paleontological data.

sequence of key ideas

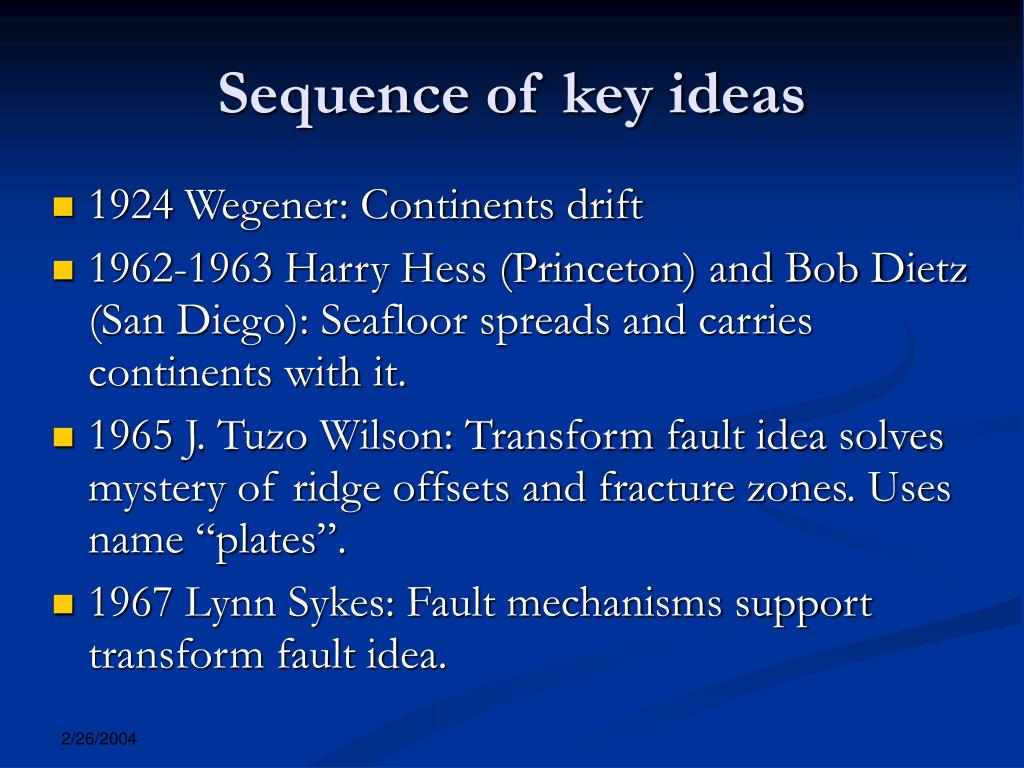

Sequence of key ideas
  • 1924 Wegener: Continents drift
  • 1962-1963 Harry Hess (Princeton) and Bob Dietz (San Diego): Seafloor spreads and carries continents with it.
  • 1965 J. Tuzo Wilson: Transform fault idea solves mystery of ridge offsets and fracture zones. Uses name “plates”.
  • 1967 Lynn Sykes: Fault mechanisms support transform fault idea.

The signs left on continental cratons by plate tectonic activity are not as clear as we see when we have todays maps of the ocean basins before us.The remains of unsubducted fragments of oceanic lithosphere are stuck onto the edges of continents and represent many cycles of basin openings and closing (Wilson cycles). These were not so easy to interpret.

Key Theoretical Advance:Transform faults1965- J. Tuzo Wilson, A new class of faults and their bearing on Continental Drift
  • This explained: Segmentation of Mid-Atlantic Ridge,
  • Long linear features (Fracture Zones) in Pacific described by Menard
Seismic Proof:1967 Lynn Sykes, Mechanism of Earthquakes and Nature of Faulting on the Mid-Oceanic Ridges

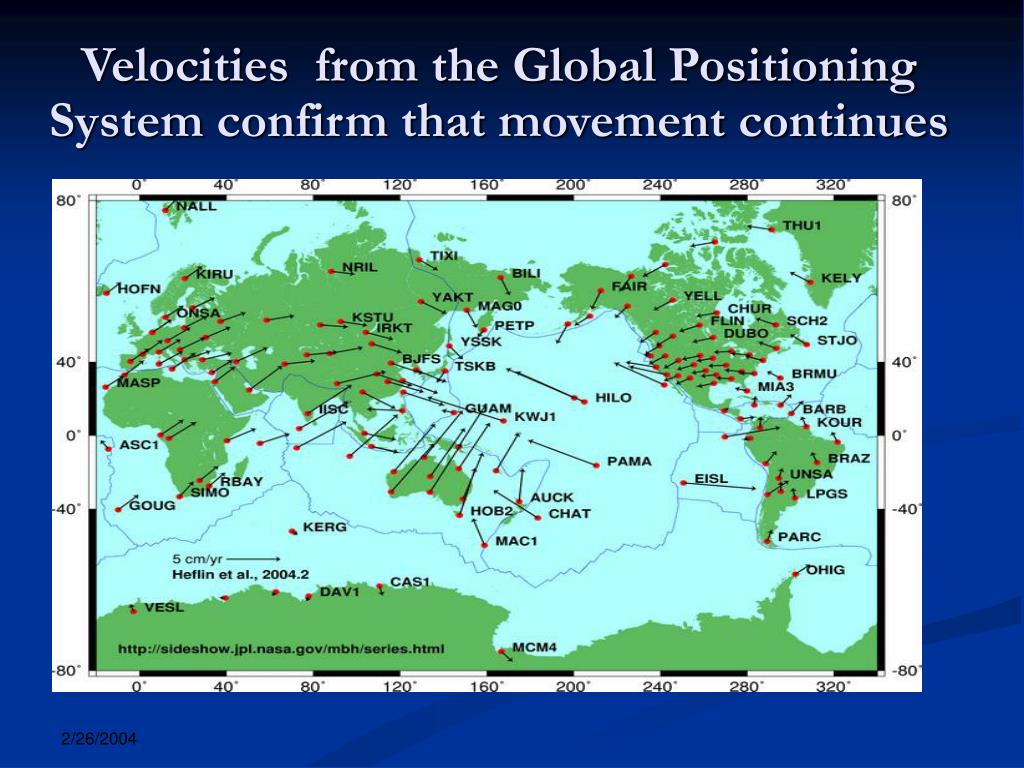

  • Provided real-time evidence for Plate Tectonics in addition to historic evidence from continent shapes and magnetic anomaly paterns.

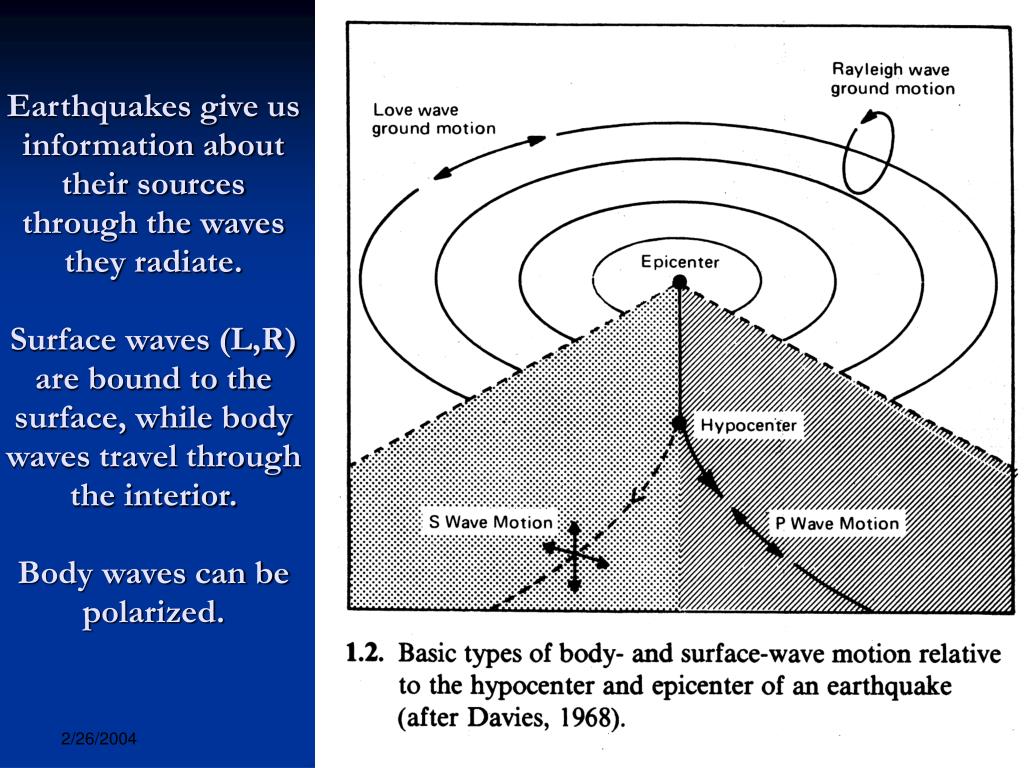

Earthquakes give us information about their sources through the waves they radiate.Surface waves (L,R) are bound to the surface, while body waves travel through the interior.Body waves can be polarized.

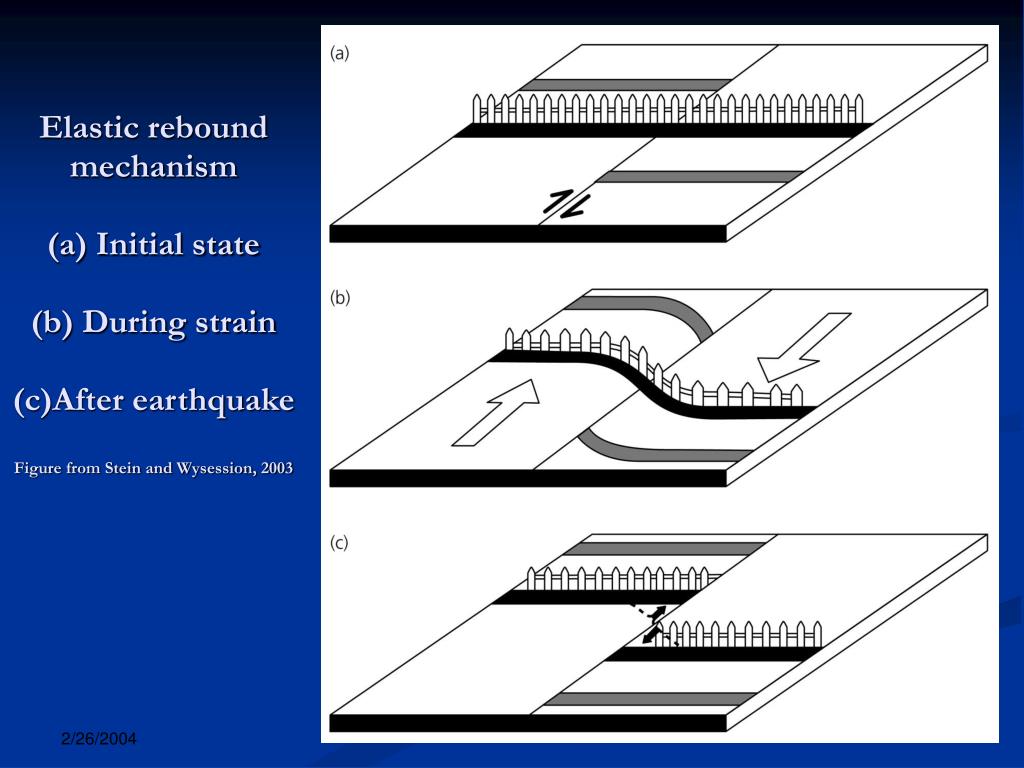

Elastic rebound mechanism(a) Initial state(b) During strain(c)After earthquakeFigure from Stein and Wysession, 2003

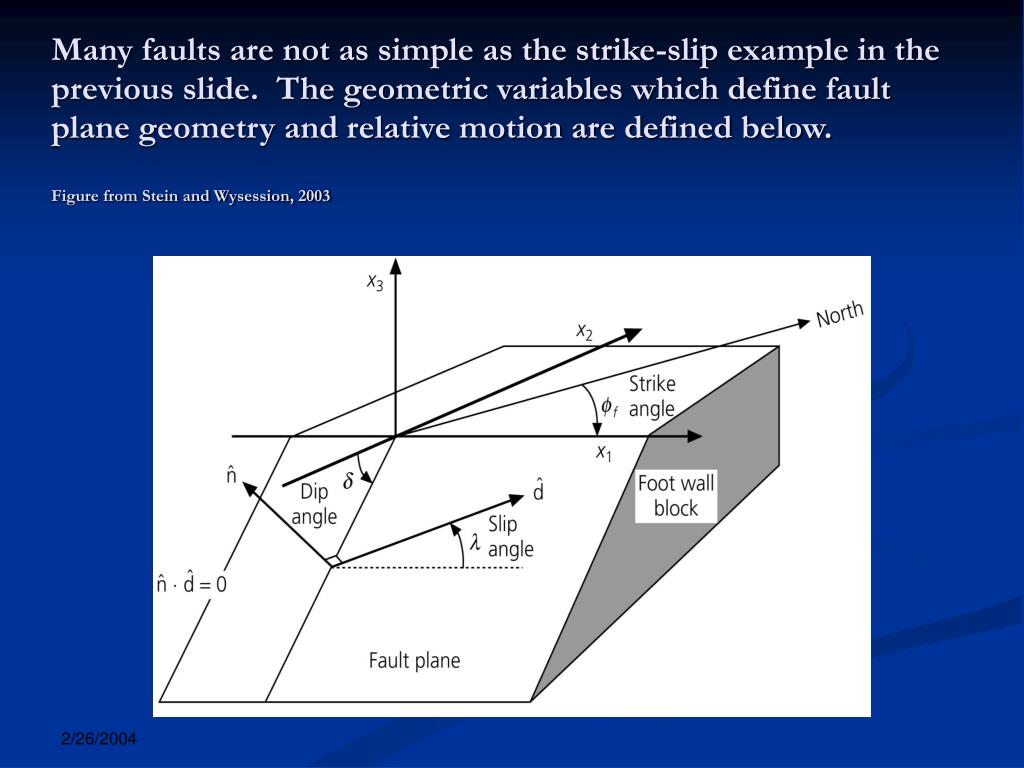

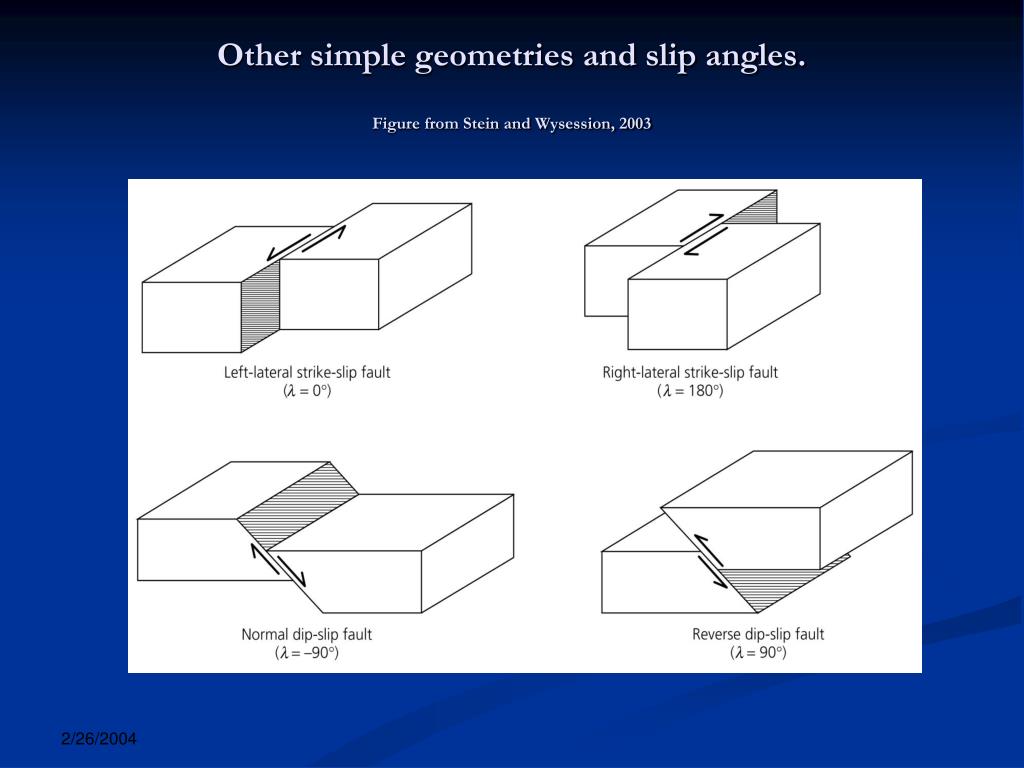

Many faults are not as simple as the strike-slip example in the previous slide. The geometric variables which define fault plane geometry and relative motion are defined below.Figure from Stein and Wysession, 2003

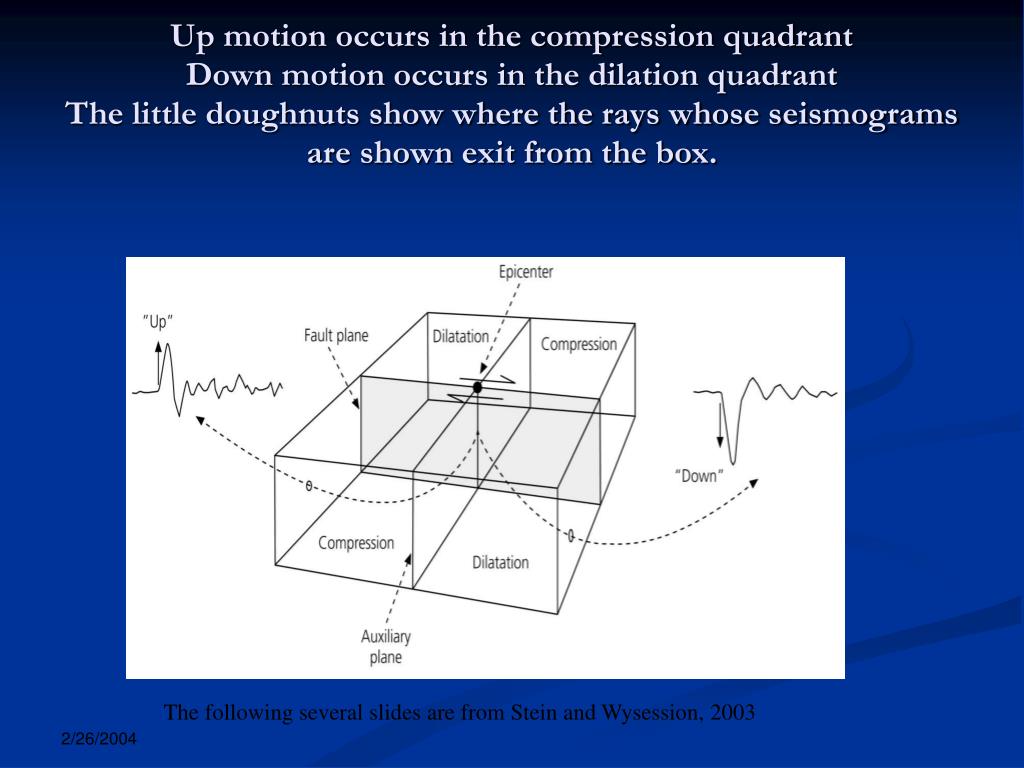

Up motion occurs in the compression quadrantDown motion occurs in the dilation quadrantThe little doughnuts show where the rays whose seismograms are shown exit from the box.

The following several slides are from Stein and Wysession, 2003

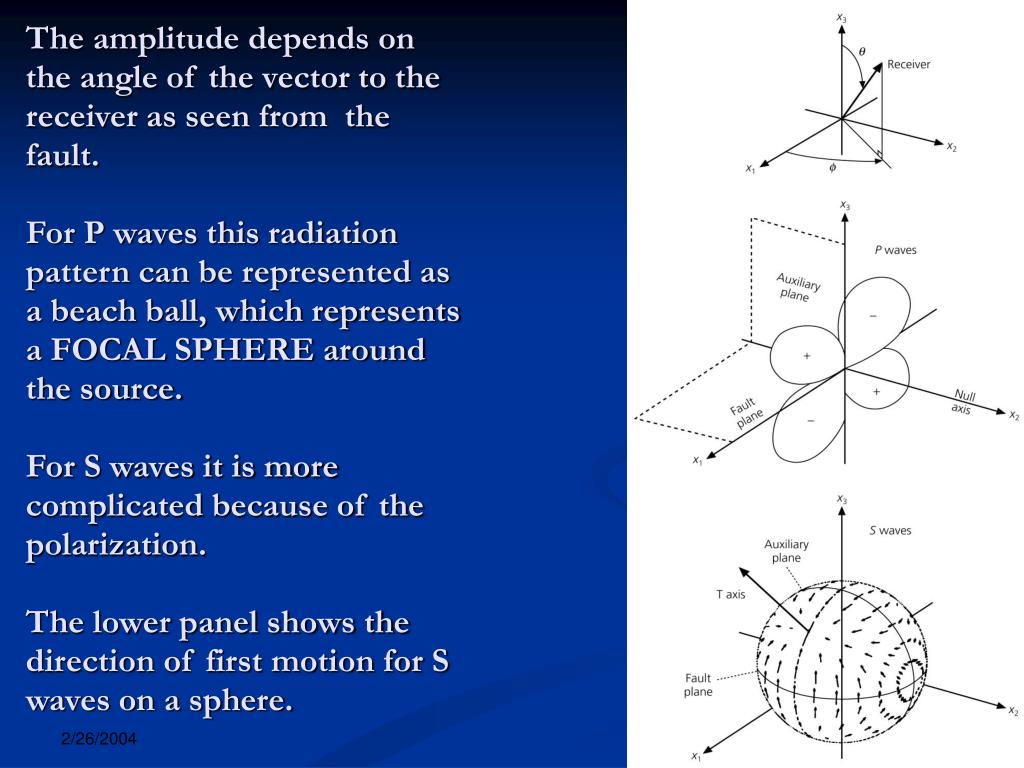

The amplitude depends on the angle of the vector to the receiver as seen from the fault.For P waves this radiation pattern can be represented as a beach ball, which represents a FOCAL SPHERE around the source.For S waves it is more complicated because of the polarization.The lower panel shows the direction of first motion for S waves on a sphere.

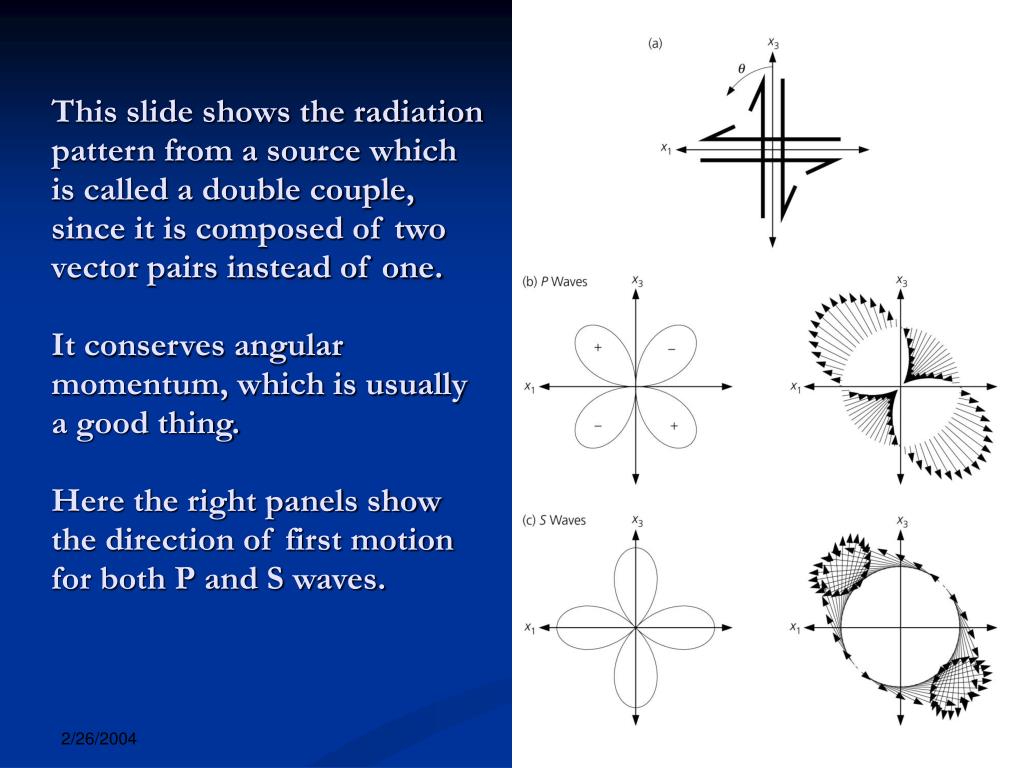

This slide shows the radiation pattern from a source which is called a double couple, since it is composed of two vector pairs instead of one.It conserves angular momentum, which is usually a good thing.Here the right panels show the direction of first motion for both P and S waves.

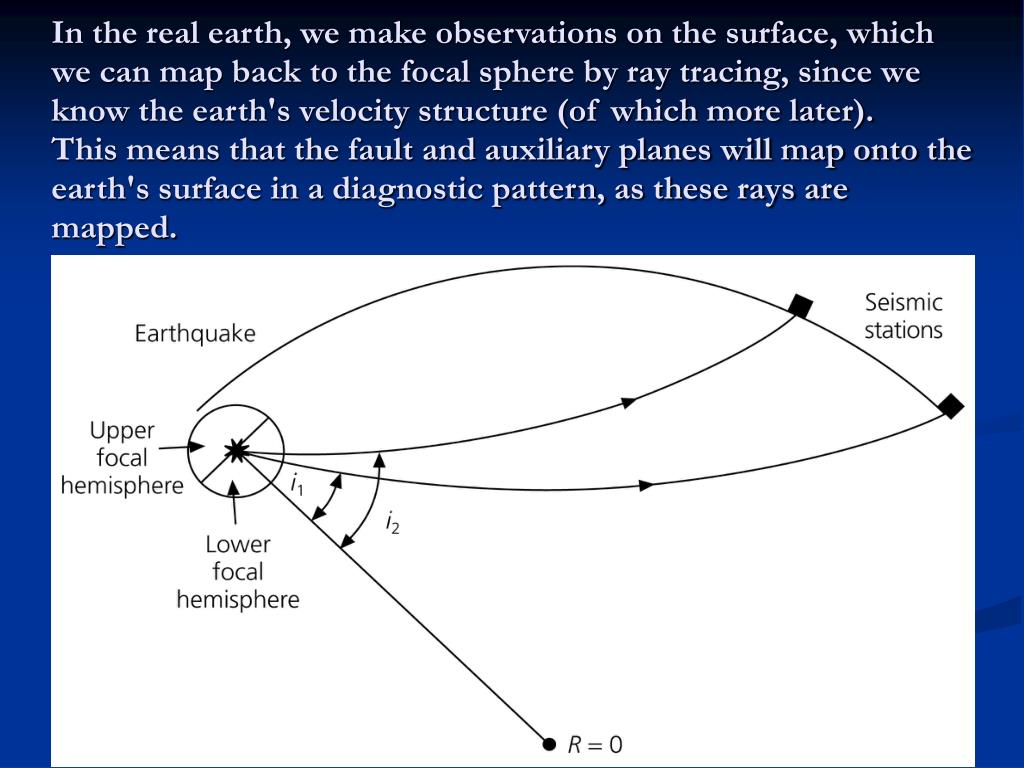

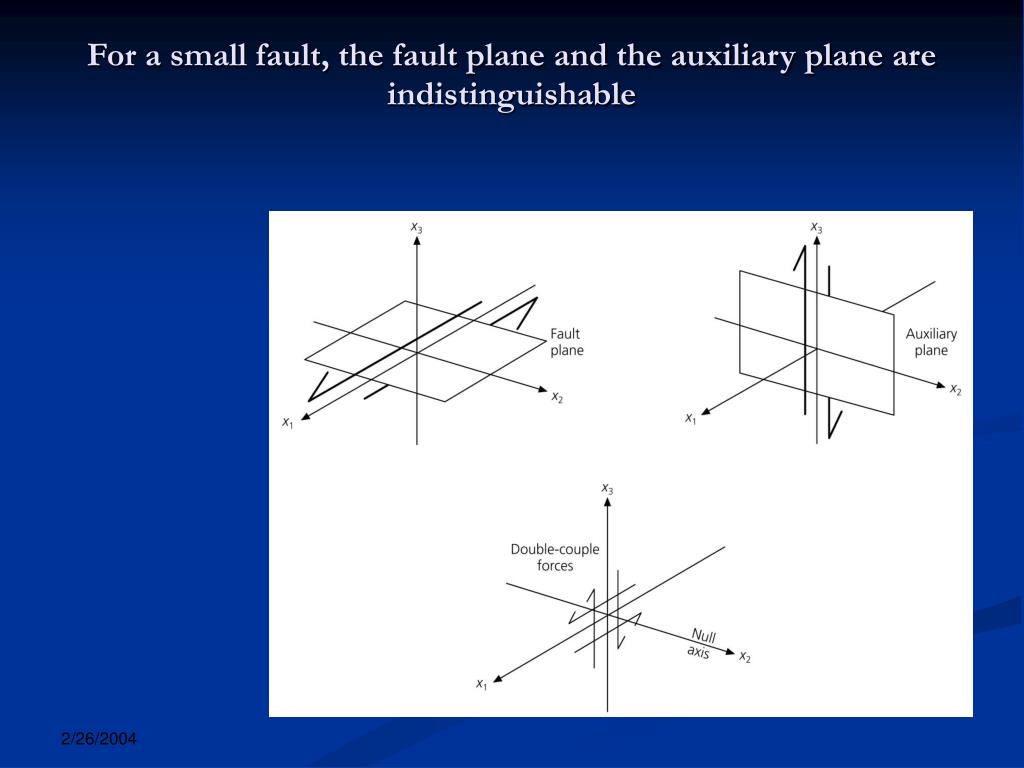

In the real earth, we make observations on the surface, which we can map back to the focal sphere by ray tracing, since we know the earth's velocity structure (of which more later).This means that the fault and auxiliary planes will map onto the earth's surface in a diagnostic pattern, as these rays are mapped.

one of sykes plots from mar transform faults
One of Sykes plots from MARtransform faults
  • Black dots indicate compressional first motion
  • Open circles indicate dilatational motion

Projections are ways of displaying all or part of the surface of the spherical (or more complicated) earth on a flat surface, such as a piece of paper.Useful properties of projections are that they be(1) conformal, that is, that for small areas, angles are preserved. So a right angle on the earth's surface is represented as a right angle on the map.(2) equal-area. So areas are conserved.Unfortunately, we cannot have both simultaneously.

a more fanciful description
A more fanciful description


Six Books of Optics, useful for philosophers and mathematicians alike

François d'Aiguillon, 1613

Figure by Peter Paul Rubens

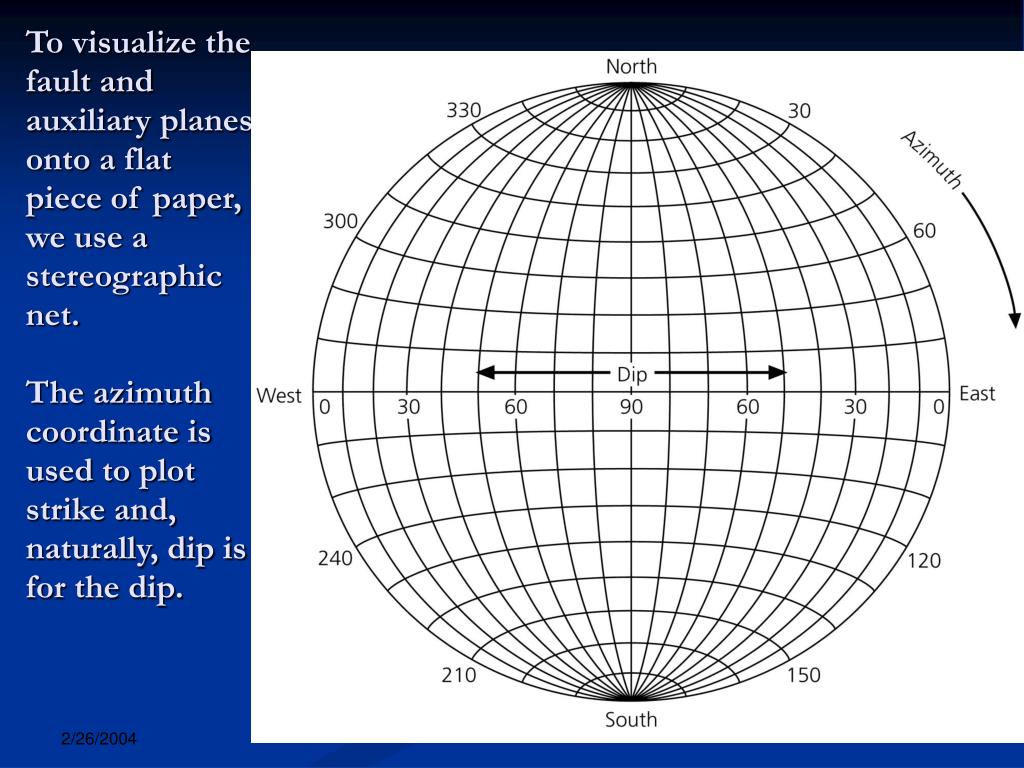

To visualize the fault and auxiliary planes onto a flat piece of paper, we use a stereographic net.The azimuth coordinate is used to plot strike and, naturally, dip is for the dip.

Here are three fault planes mapped onto the lower hemisphere.All NS striking planes will be meridians.

To plot a plane normal (perpendicular) to plane A, rotate the net until A is on a meridian.The pole for plane A will be 90 degrees from its “equator”. All planes through this pole will be normal to plane A.Then any meridian in a rotated net, if it passes through the pole of A, will be normal to A.


Plotting PointsThe direction a ray leaves the focus is defined by its azimuth from north, and its dip (measured from horizontal) or its takeoff angle, measured from vertical.To plot a ray on the focal sphere, use its dip to plot it on the equator of the net. This would be correct if the azimuth were east (090), then rotate the point as shown here. This not the same as following the meridian.


The compressional area of the P radiation pattern is, by convention, shown as black.The direction of motion on the fault depends on which plane is the fault plane.Choose a fault plane, then imagine standing in the white area. Then follow the directions of Darth Vader and “come to the dark side”*. You will then be following the motion of the earth on that side of the fault.

* Noted by Vince Cronin

Here are beachball representations of some faults with combinations of dip-slip and strike-slip behavior.

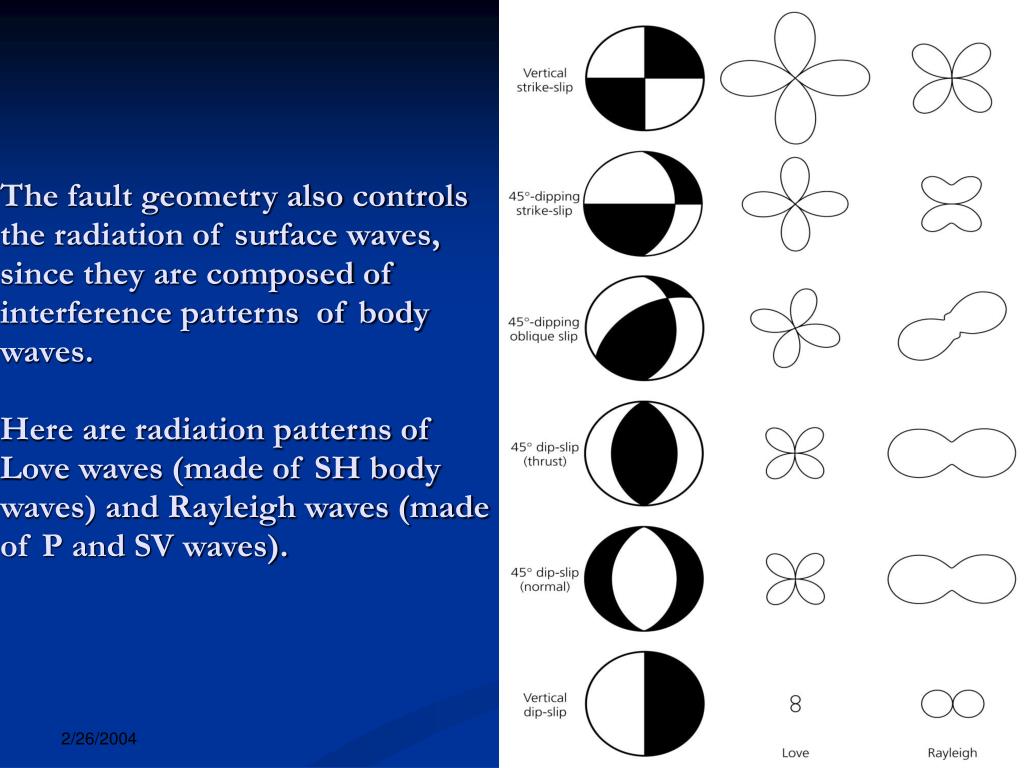

The fault geometry also controls the radiation of surface waves, since they are composed of interference patterns of body waves.Here are radiation patterns of Love waves (made of SH body waves) and Rayleigh waves (made of P and SV waves).


The classical method for finding focal mechanisms is to assemble seismograms which observe a quake and trace their rays back to the focal sphere, plotting the points as filled circles if the first motion is dilational (down) and solid if up (compressional). By examination, two planes are fit dividing the compressional and dilational quadrants. Needless to say, the results of this process are do not always define planes uniquely.Now mechanisms are usually derived using moment tensor inversion, about which more later.

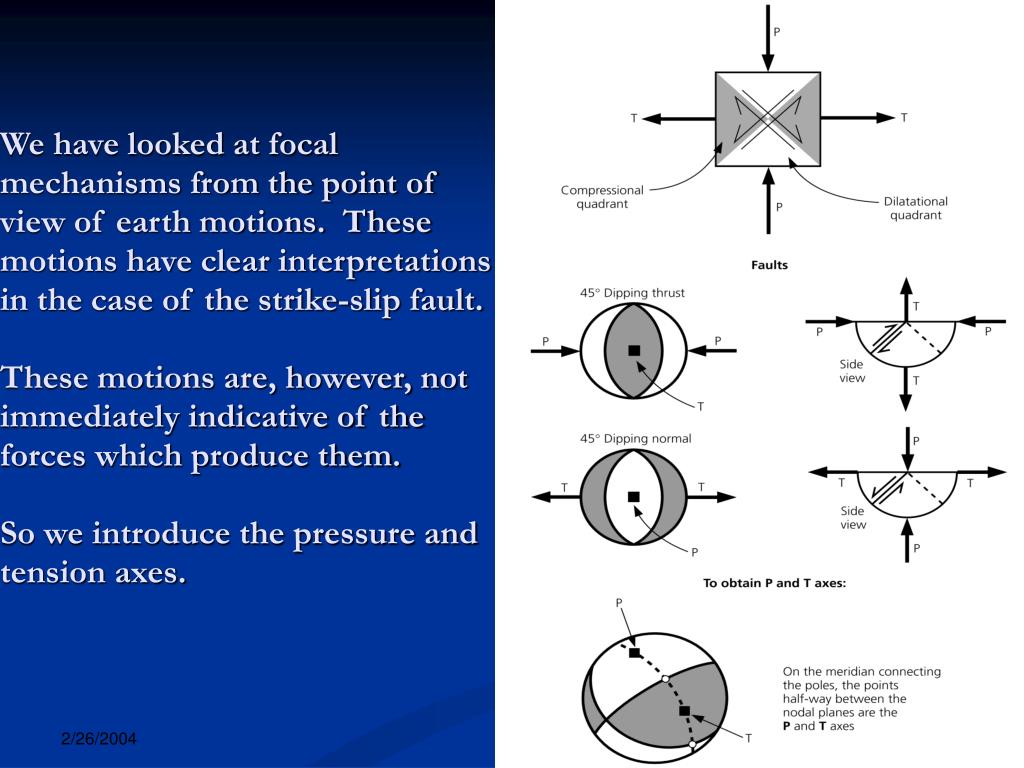

We have looked at focal mechanisms from the point of view of earth motions. These motions have clear interpretations in the case of the strike-slip fault.These motions are, however, not immediately indicative of the forces which produce them.So we introduce the pressure and tension axes.
