Did you know…. …that our turbochargers increase engine output by more than 300% …that the TCA88 delivers an air amount over 200 tons per hour, equivalent to the volume of 5,400 TEU containers …that the compressor wheel has an outer diameter speed of approx. 560 m/s , equivalent to 2,000 km/h

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Did you know…


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
    Presentation Transcript
    1. Did you know… …that our turbochargers increase engine output by more than 300% …that the TCA88 delivers an air amount over 200 tons per hour,equivalent to the volume of 5,400 TEU containers …that the compressor wheel has an outer diameter speed of approx. 560 m/s, equivalent to 2,000 km/h …that the compressor wheel - could it roll on the road - would make themarathon distance (42 km) in about 1¼ minutes …that during maximum rotor speed, on each single turbine bladepulls a force of 900 kN, equivalent to a mass of 2 fully loaded trucks

    2. Turbocharger Basic Facts Didyouknow... ...that a TCA88 turbochargerisabletodeliver an airamountof well over200,000 m³ per hour, correspondingtothevolumeof6,000 TEUcontainers

    3. Turbocharger Basic Facts Didyouknow... ...thatathighrotorspeeds a forceof900 kNispullingateachturbine blade of a TCA88 turbocharger, equivalenttothemassoftwofullyloadedtrucks

    4. Turbocharger Basic Facts Didyouknow... ...thatthecircumferentialspeedofthecompressorwheelattheouterdiametercomescloseto2,000 km/h - equivalanttothespeedof a supersonicjet

    5. Turbocharger Basic Facts Didyouknow... ...thatthecircumferentialspeedof a compressorwheelisalmost2,000 km/h andcouldit roll on theroad – itwouldmakethemarathondistance(42 km) in about1¼ minutes

    6. Turbocharger Basic Facts Didyouknow... ...thattheturbineshaftof a TCA88 transfersupto8,000 kW, equivalenttotheoutputof a Diesel engineatthesize of a 5S50MC-C

    7. Turbocharger Basic Facts Didyouknow... ...that a TCA88 turbochargerisabletodeliver an airamount of well over200,000 m³ per hour, correspondingtothevolumeof 6,000 TEUcontainers

    8. Turbocharger Basic Facts Didyouknow... ...thatathighrotorspeeds a forceof900 kNispulling ateachturbine blade of a TCA88 turbocharger, equivalent tothemassoftwofullyloadedtrucks

    9. Turbocharger Basic Facts Didyouknow... ...thatthecircumferentialspeedofthecompressorwheelat theouterdiametercomescloseto2,000 km/h andcouldit roll on theroadwouldmakethemarathondistanceof 42 km in 1 min 15 sec

    10. Did you know... ... that the circumferential speed of a compressor wheel is almost 2,000 km/h. => Could it roll on train tracks it would make the Shin-Nozomiconnection Tokyo-Hakatain 35 minutes instead of 4hrs 55min

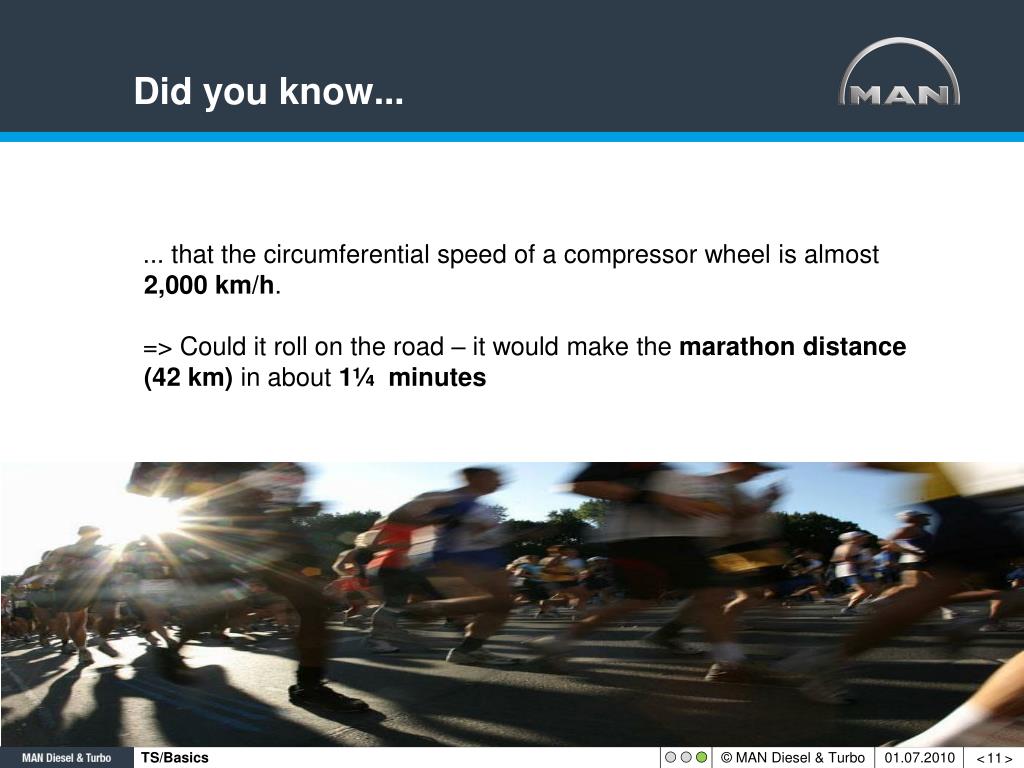

    11. Did you know... ... that the circumferential speed of a compressor wheel is almost 2,000 km/h. => Could it roll on the road – it would make the marathon distance (42 km) in about 1¼ minutes

    12. Did you know... ... that the circumferential speed of a compressor wheel is almost 2,000 km/h. => Could it roll on train tracks it would make the Maglev connection between Shanghai Pudong International Airport and Shanghai City in 55 seconds

    13. Did you know... ... that a TCA88 turbocharger is able to deliver an air amount of 200,000 m³/hr => Corresponding to the volume of the Imabari-Kokusai-Hotel

    14. Applications 5L16/24 475 kW 1 x NR12/S Four Stroke 12V48/6014,400 kW1 x TCA77-4 Two Stroke 7S50MC-C21,800 kW 1 x TCA77-2 12K90MC-C54,800 kW 3 x NA70/T9

    15. Applications Ships Jo Sequoia37,600 dwt7S50MC-C1 x TCA77-2 Power Barge Guatemala132.3 MW 7 x 18V48/60 14 x NA48/S Stationary Power Plants “Choloma”, Honduras265 MW14 x 18V48/60 with TCA 88-4

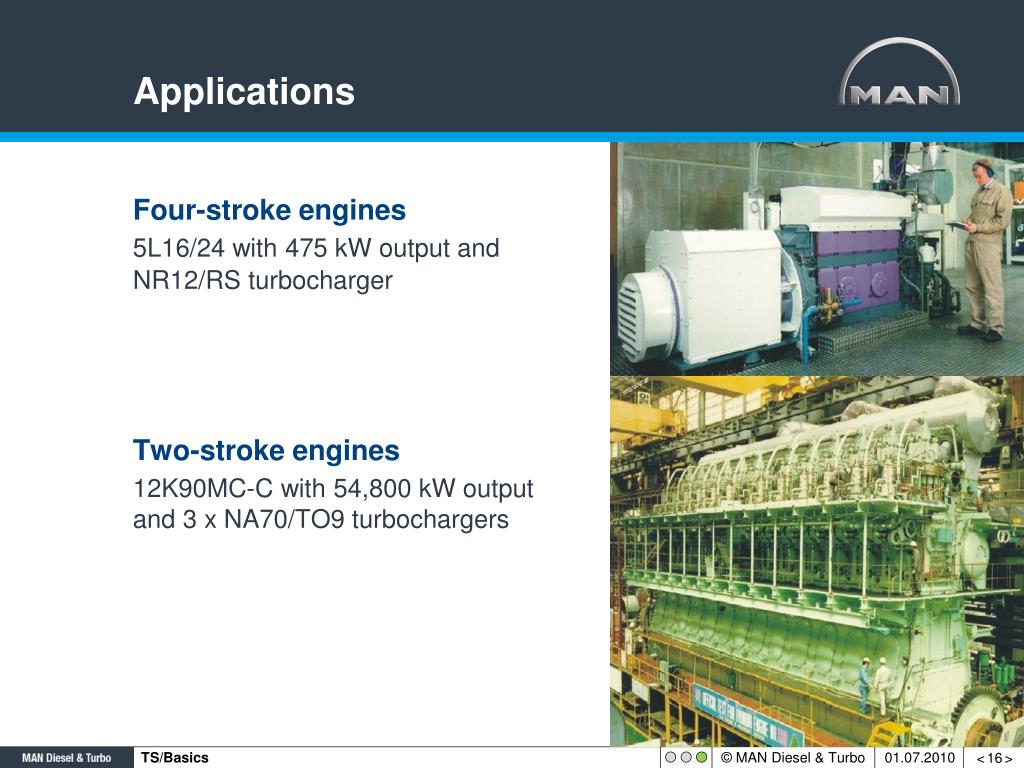

    16. Applications Four-stroke engines 5L16/24 with 475 kWoutputand NR12/RS turbocharger Two-stroke engines 12K90MC-Cwith 54,800 kWoutputand 3 x NA70/TO9 turbochargers

    17. Applications Diesel engines 60 MW power plant for HI Cement, Philippineswith 5 x 9L58/64 and 5 x NA57/TO9 turbochargers Gas engines 9 MW gas power plant in Masnedoe, Denmarkwith 6 x 28/32 SI gas enginesand 6 x NR20/S turbochargers

    18. Applications Stationary Power Plants 61 MA Power Plant „Fort George“, Mauritius with 2 x 9K80MC-S enginesandturbocompoundsystem (TCS) with 4 x NA70/TO9 turbochargersand 2 x PTG26 power turbines Ships Maersk Durban, out of a seriesof 10x 5,000 TEU containervesselswith 9K90MC-C and 3 x TCA77-20 turbochargerseach

    19. Applications Power Barge 132.3 MW power bargefor Guatemala with 7 x 18V48/60 with 14 x NA48/S turbochargers

    20. Applications Four-strokeengines Application on MAN Diesel 4-stroke engine 12V48/60B with TCA77-4 Two-stroke engines • Application on MAN B&W 2-stroke diesel engine7S50MC-C with TCA77-2

    21. Applications TCA Chemical Tanker Jo Sequoia First TCA turbochargerputintooperation on 7S50MC-C engine on board 37,600 dwtchemicaltanker Jo Sequoia in January 2003

    22. Applications TCA Choloma, Honduras: Largest 4-Stroke Power Plant in the World 14 x 18V48/60 engineswith TCA88 turbochargersand a total outputof 265 MW

    23. Applications MAN Diesel Engine Family Medium speed 4-stroke engines of MAN Diesel, Augsburg Medium speed 4-stroke engines of MAN Diesel, Holeby Medium speed 4-stroke engines of MAN Diesel, Alpha, Frederikshavn Medium speed 4-stroke engines of MAN Diesel S.A., France (former: S.E.M.T. Pielstick S.A.) Medium and fast speed 4-stroke Diesel engines of MAN Diesel Ltd., England (Mirrlees, Ruston, Paxman) Low speed 2-stroke engines of MAN Diesel, Copenhagen

    24. Applications Engine Builders Outside the MAN Diesel Group Caterpillar MaK, Germany Dresser Rand, USA Fairbanks Morse Engine Division (Coltec), USA GE Jenbacher, Austria Deutz MWM, Germany Niigata, Japan Daihatsu, Japan SKL, Germany Wartsila NSD, Finland Wartsila NSD, Switzerland

    25. Applications PBST Engine Builders Outside the MAN Diesel Group ABC, Belgium BEZ Motorya.s., Czech Republic Cummins Ltd., England Deutz AG, Germany GE Jenbacher, Austria Guascor S.A., Spain HCP, Poland PDM Pervomaisk, Ukraine SKL Motor GmbH, Germany TMZ Ekaterinburg, Russia VDM Balakovo, Russia
