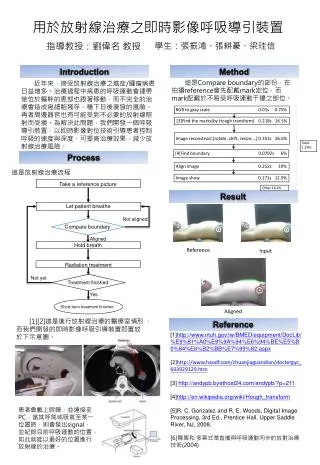

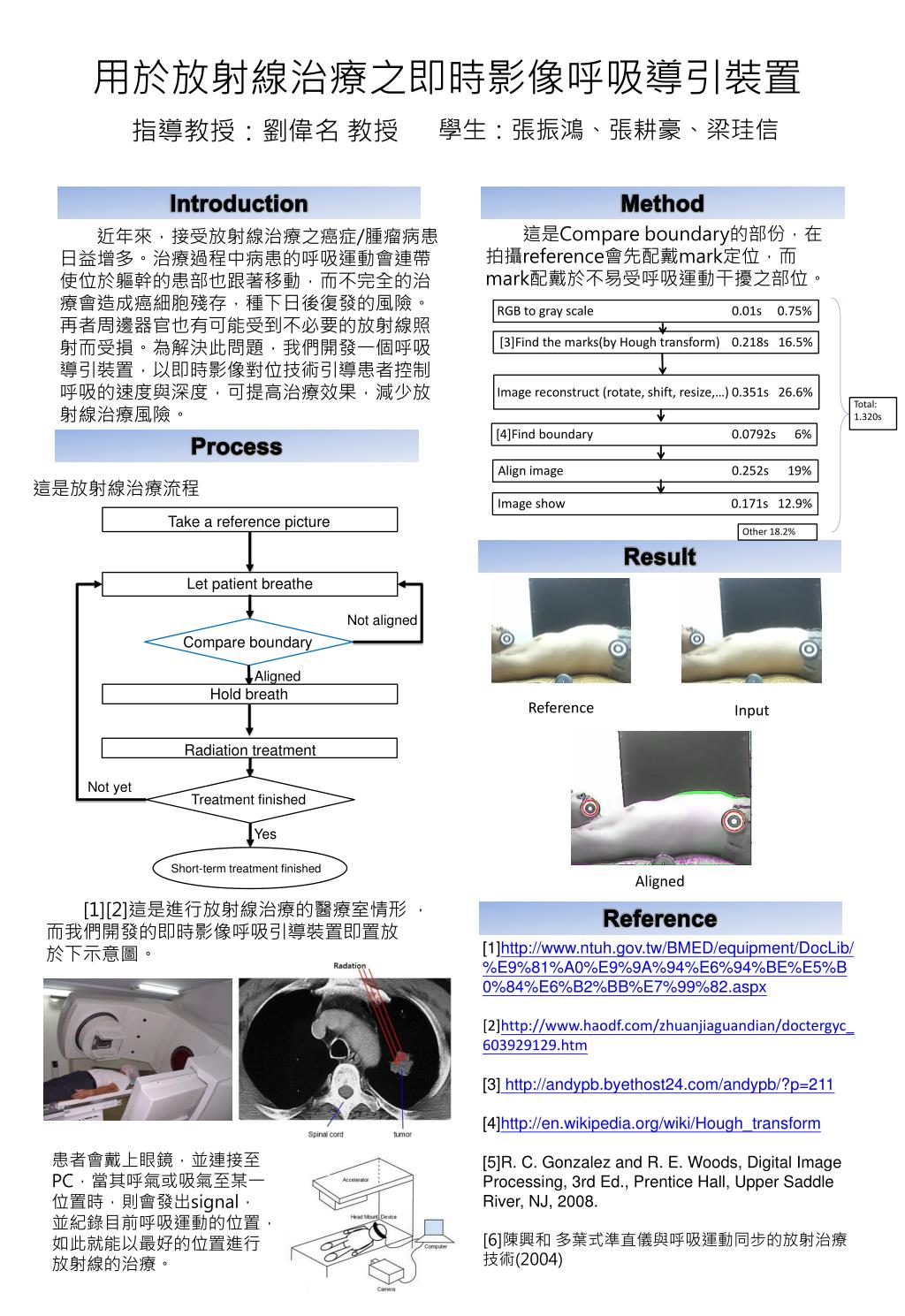

slide1

指導教授:劉偉名 教授

學生:張振鴻、張耕豪、梁珪信

Introduction

Method

  這是Compare boundary的部份,在拍攝reference會先配戴mark定位,而mark配戴於不易受呼吸運動干擾之部位。

近年來,接受放射線治療之癌症/腫瘤病患日益增多。治療過程中病患的呼吸運動會連帶使位於軀幹的患部也跟著移動,而不完全的治療會造成癌細胞殘存,種下日後復發的風險。再者周邊器官也有可能受到不必要的放射線照射而受損。為解決此問題,我們開發一個呼吸導引裝置,以即時影像對位技術引導患者控制呼吸的速度與深度,可提高治療效果,減少放射線治療風險。

Take a reference picture

Let patient breathe

Not aligned

Compare boundary

用於放射線治療之即時影像呼吸導引裝置

Aligned

Process

Hold breath

[1][2]這是進行放射線治療的醫療室情形 ,而我們開發的即時影像呼吸引導裝置即置放於下示意圖。

Radiation treatment

Not yet

Result

Treatment finished

Yes

Short-term treatment finished

Reference

Input

RGB to gray scale

0.01s 0.75%

[3]Find the marks(by Hough transform)

患者會戴上眼鏡,並連接至PC,當其呼氣或吸氣至某一位置時,則會發出signal,並紀錄目前呼吸運動的位置,如此就能以最好的位置進行放射線的治療。

0.218s 16.5%

Image reconstruct (rotate, shift, resize,…)

0.351s 26.6%

[4]Find boundary

0.0792s 6%

Aligned

Align image

Image show

Other 18.2%

Total:

1.320s

0.252s 19%

這是放射線治療流程

0.171s 12.9%

Reference

[1]http://www.ntuh.gov.tw/BMED/equipment/DocLib/%E9%81%A0%E9%9A%94%E6%94%BE%E5%B0%84%E6%B2%BB%E7%99%82.aspx

[2]http://www.haodf.com/zhuanjiaguandian/doctergyc_603929129.htm

[3]http://andypb.byethost24.com/andypb/?p=211

[4]http://en.wikipedia.org/wiki/Hough_transform

[5]R. C. Gonzalez and R. E. Woods, Digital Image Processing, 3rd Ed., Prentice Hall, Upper Saddle River, NJ, 2008.

[6]陳興和 多葉式準直儀與呼吸運動同步的放射治療技術(2004)
