  1. Open WorkshopIdentifying policy and regulatory issuesNext Generation Networks22 June 2005Centre Albert BorschetteBrussels The NGN Global Regulatory Ecosystem Anthony M Rutkowski Vice President for Regulatory Affairs and Standards Dulles VA USA tel: +1 703.948.4305 mailto:trutkowski@verisign.com

  2. Next Generation Networks Nationwide and Worldwide Open IP-enabled Public Network Infrastructure for Communications, Commerce and Content for Always-On, Nomadic People and Objects Each attribute creates regulatory challenges

  3. NGN – Long-Term Network Convergence Perspective 1970 1980 1990 2000 Public Switched Telecommunication Network (PSTN) Intelligent Network Internet (IN) NGNs Commercial Mobile Radio Systems Open Systems Interconnection Internet (OSI) private quasi-public IP Internet (IP) Was never designed as public infrastructure

  4. NGN – Near-Term Network Convergence Perspective Intelligent Infrastructure is the key enabler

  5. NGN Industry Standards Ecosystem* Broadparticipation GSC ITU-T GlobalNGNFramework IETF Routing Applications GSC9 WTSA GSC10 General Security O&M SG11 Internet Transport SG04 NGNMFG ATIS SG13 SG03 NGN* Focus Group SG19 NGNFramework CableLabs SG02 NGN Focus Group SG17 WAE FG MWS FG SG09 SG15 SG16 VoIP FG W3C OPTXS(T1X1) WTSCT1P1 PTSC(T1S1) TMOC(T1M1) 3GPP DSL Forum DMTF OBF NIIF INC ECMA TeleManagementForum PGC SA5 SA1 JWG SA4 SA2 SA3 ETSI OMA NGNOSS IPDR 3GPP2 TIA MESA OSS/J STF NGN TSG-X TSG-S TISPAN TR-8.8 CPWG TR-41 OASIS WG8 TSG-A TSG-C TR-45 3GPP2 OP TR-45.6 WG7 TR-34.1.7 WG1 TR-45.2 WG6 Parlay RosettaNet WG2 PM WG3 WG5 AT-D PAM WG4 LI NGN@home CCUI CBC EPCglobal * Forums as of June 2005

  6. Broad Global Industry NGN Participation and Support: why • Pragmatically meeting real needs today • IP-enabled public product standards • Global interoperability and markets • Secure, stable infrastructure • Compatibility with existing network infrastructures • Common regulatory requirements • Engaging all relevant standards bodies • Identifying existing useable standards • New standards and administrative practices adopted only as necessary • Focused on “open” unbundled service modules and capability sets • Staged in multiple “releases” over time • Standards participants primarily other industry players – worldwide, regionally, and nationally

  7. NGN Policy-Legal-Regulatory Ecosystem CommonGlobalActivity Germany France RegTP BfV ART Justice ITU ConventionInt’l Telecom Regs Commission of the European Community UK Netherlands Parliament HomeOffice EZ Justice OFCOM CIOT Infso JHA PP2006 [WCIT] i2010 USA Canada CybercrimeConventionSignatories &Justice Ministers APEC-TEL NSTAC FCC IndustryCanada PSECP DHS NGN reg NGN WG NANC DOJ DOC DOS eSecTG Other multilateral and bilateral agreements CITEL Australia Many Others PCC.I ACA Parliament WGSC WGANTS

  8. Basic NGN regulatory considerations • Responsibility for national public infrastructure rests with designated governmental authorities and coordinated through intergovernmental treaties and mechanisms • National public infrastructures have special properties – the public and the nation depend on these infrastructures • All governments impose capability requirements on public infrastructures • Global service innovation and marketplace competition are necessary • Pervasive vulnerabilities are potentially emerging in the public communications network infrastructure and not well understood • Factors • Rapid introduction of new technologies, especially platforms not designed for public infrastructure use • Open public communication network infrastructure • Nomadic users and providers • Uncontrolled access devices and capabilities • Growing cybercrime and potential terrorism actions

  9. NGN common regulatory requirements worldwide • National Security and Critical Infrastructure Protection • network attack mitigation • public safety emergency and law enforcement/national security assistance • priority access during or after disasters • priority service provisioning and restoration • analysis and reporting of network metrics and outages • Legal System Requirements • cybercrime mitigation • digital rights management • fraud detection and management • juridical evidentiary and forensics • Consumer Requirements • consumer emergency calls (E112/E911) including location of caller • consumer protection and privacy (Do Not Call; SPAM) • authenticated caller or sender identification • disability assistance • Operations Requirements • roaming and service provider coordination • default service and routing options • intercarrier compensation • transaction accounting • Competition Requirements • number portability • service interoperability • unbundling • directory access Each of these capabilities is the subject of a requirements proceeding in multiple jurisdictions

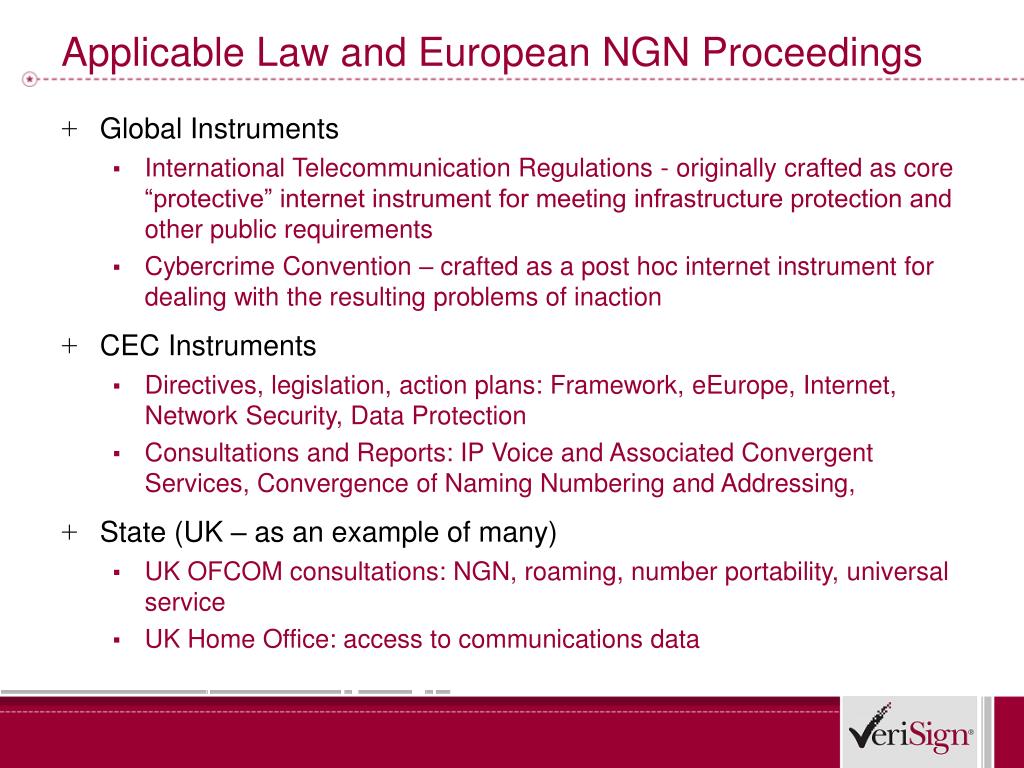

  10. Applicable Law and European NGN Proceedings • Global Instruments • International Telecommunication Regulations - originally crafted as core “protective” internet instrument for meeting infrastructure protection and other public requirements • Cybercrime Convention – crafted as a post hoc internet instrument for dealing with the resulting problems of inaction • CEC Instruments • Directives, legislation, action plans: Framework, eEurope, Internet, Network Security, Data Protection • Consultations and Reports: IP Voice and Associated Convergent Services, Convergence of Naming Numbering and Addressing, • State (UK – as an example of many) • UK OFCOM consultations: NGN, roaming, number portability, universal service • UK Home Office: access to communications data

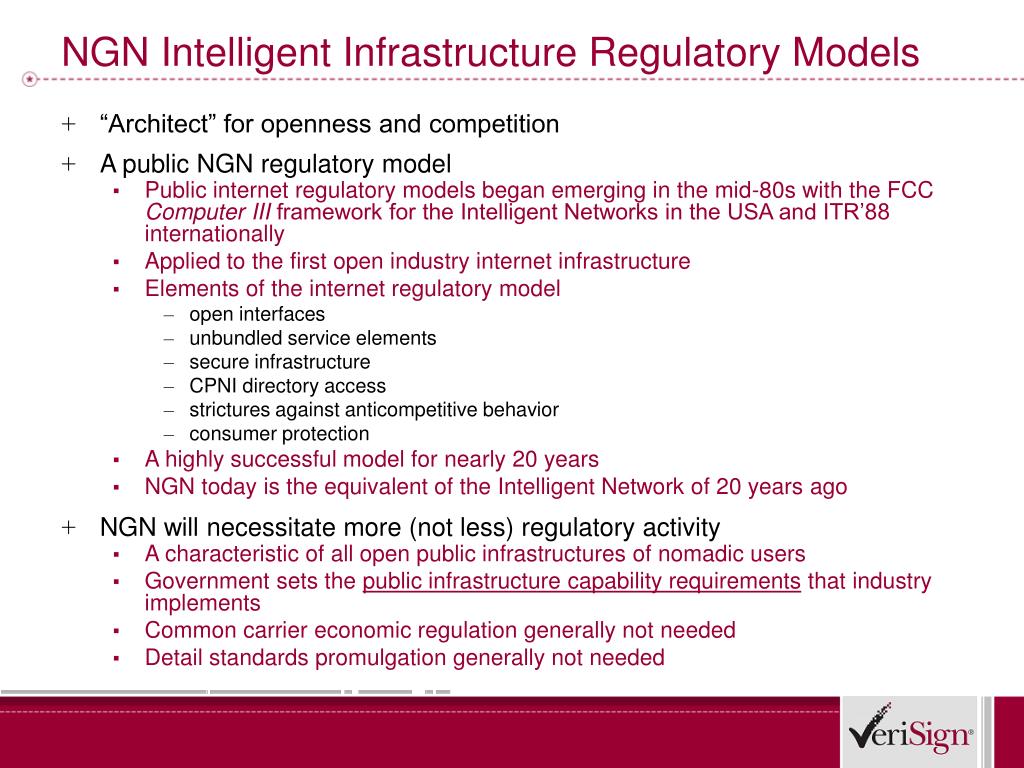

  11. NGN Intelligent Infrastructure Regulatory Models • “Architect” for openness and competition • A public NGN regulatory model • Public internet regulatory models began emerging in the mid-80s with the FCC Computer III framework for the Intelligent Networks in the USA and ITR’88 internationally • Applied to the first open industry internet infrastructure • Elements of the internet regulatory model • open interfaces • unbundled service elements • secure infrastructure • CPNI directory access • strictures against anticompetitive behavior • consumer protection • A highly successful model for nearly 20 years • NGN today is the equivalent of the Intelligent Network of 20 years ago • NGN will necessitate more (not less) regulatory activity • A characteristic of all open public infrastructures of nomadic users • Government sets the public infrastructure capability requirements that industry implements • Common carrier economic regulation generally not needed • Detail standards promulgation generally not needed

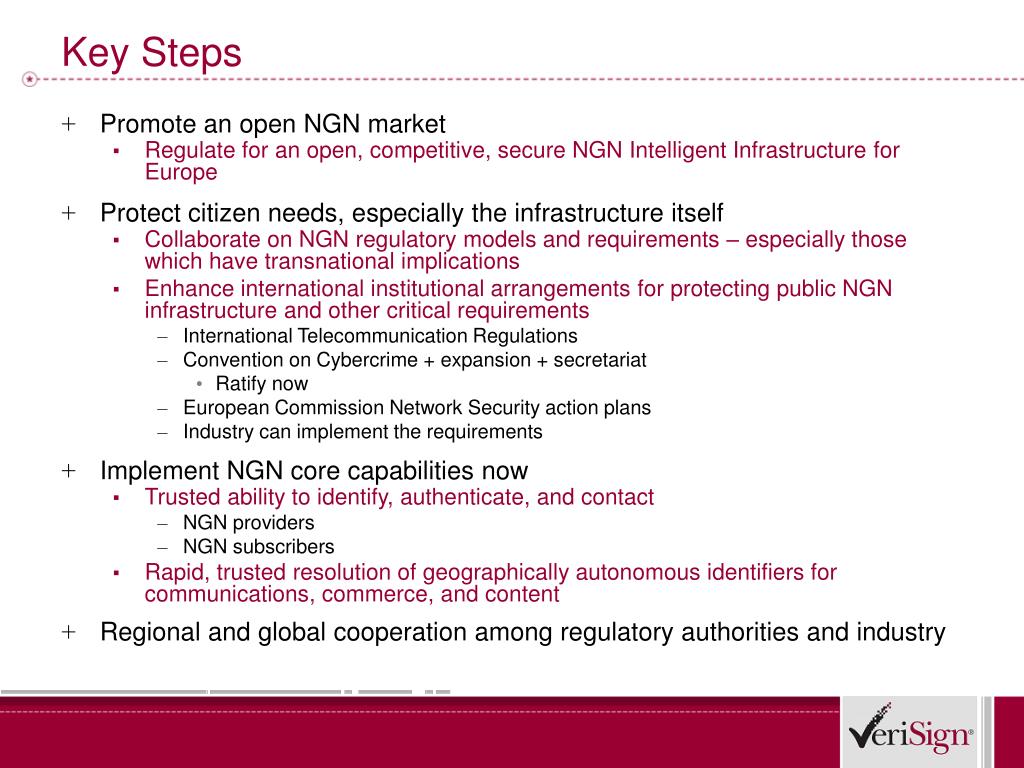

  12. Key Steps • Promote an open NGN market • Regulate for an open, competitive, secure NGN Intelligent Infrastructure for Europe • Protect citizen needs, especially the infrastructure itself • Collaborate on NGN regulatory models and requirements – especially those which have transnational implications • Enhance international institutional arrangements for protecting public NGN infrastructure and other critical requirements • International Telecommunication Regulations • Convention on Cybercrime + expansion + secretariat • Ratify now • European Commission Network Security action plans • Industry can implement the requirements • Implement NGN core capabilities now • Trusted ability to identify, authenticate, and contact • NGN providers • NGN subscribers • Rapid, trusted resolution of geographically autonomous identifiers for communications, commerce, and content • Regional and global cooperation among regulatory authorities and industry

  13. ANNEX

  14. Multi-media services Basic services Advanced services Real-time Conversational Voice services Instant messaging (IM) Push to talk over NGN (PoN) Point to Point interactive multimedia services Collaborative interactive communication services Group Messaging – Instant messaging, deferred messaging Messaging services such as SMS, MMS, etc. Content delivery services Push-based services Broadcast/Multicast Services Hosted and transit services for enterprises (IP Centrex, etc.) Information services Presence and general notification services 3GPP Rel 6 and 3GPP2 Rel A OSA-based services PSTN/ISDN Emulation services General aspects for PSTN/ISDN Emulation Terminals for PSTN/ISDN Emulation Target services for PSTN/ISDN Emulation PSTN/ISDN Simulation services General aspects for PSTN/ISDN Simulation Terminals for PSTN/ISDN Simulation Target services for PSTN/ISDN Simulation Internet access NGN core peer-to-peer applications Other services Data retrieval applications: such as tele-software. Data communication services: such as data file transfer, electronic mailbox and web browsing Online applications (online sales for consumers, e-commerce, online procurement for commercials) Sensor Network services Remote control/tele-action services, such as home applications control, telemetry, alarms etc. Over-the-Network (OTN) Device Management Public Services Aspects Lawful Intercept Malicious call trace User identity presentation and privacy Emergency Communications Users with disabilities Carrier selection Number portability Service delivery under specific country or local conditions Customer Manageable IP Service Service Stratum capabilities Session handling Open service environment User Profile Device Profile Service enablers PSTN/ISDN emulation support Public service aspects Accounting, Charging and Billing Service Policy Management Transport Stratum capabilities Media resource management Mobility management Connectivity handling Access Transport capabilities Numbering, naming, and addressing incl. resolution and interworking QoS-based Resource and Traffic Management Basic OAM Transport Policy management Interoperability and Interworking Identification, authentication and authorization Identification Authentication Authorization Security and Privacy Management aspects Service management aspects Transport management aspects NGN Technical Product Ecosystem (ITU-T) Identified Services * Release 1 Capability Set ** Primarily focus on Intelligent Infrastructure Source: FGNGN-OD-00141.R1, amended by 00142, 29 Apr 2005

  15. Draft Reference materials – framework documents (ITU-T) ITU Documents (Geneva, April 2005) Primarily focus on Intelligent Infrastructure

  16. Draft Reference materials - framework documents (ETSI-TISPAN part 1) Primarily focus on Intelligent Infrastructure

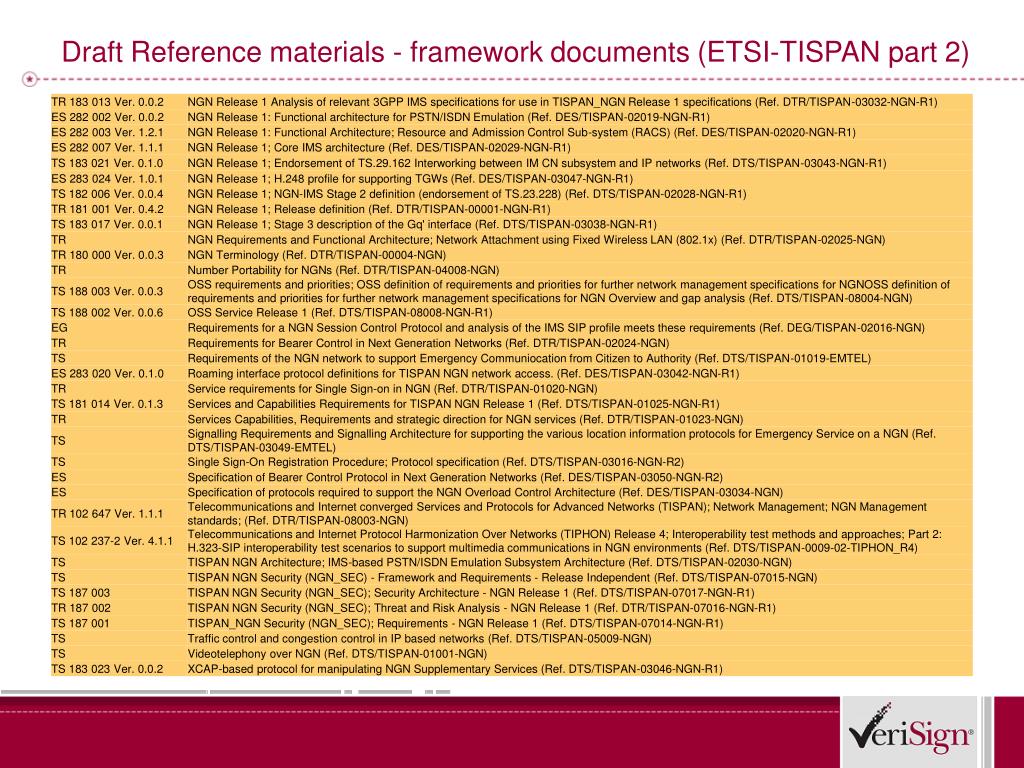

  17. Draft Reference materials - framework documents (ETSI-TISPAN part 2)
