  1. Mapping MARC to FRBR

  2. Functional Analysis of the MARC 21 Bibliographic and Holdings Formats Prepared for the Network Development and MARC Standards Office Library of Congress by Tom Delsey February 2002 www.loc.gov/marc/marc-functional-analysis/home.html

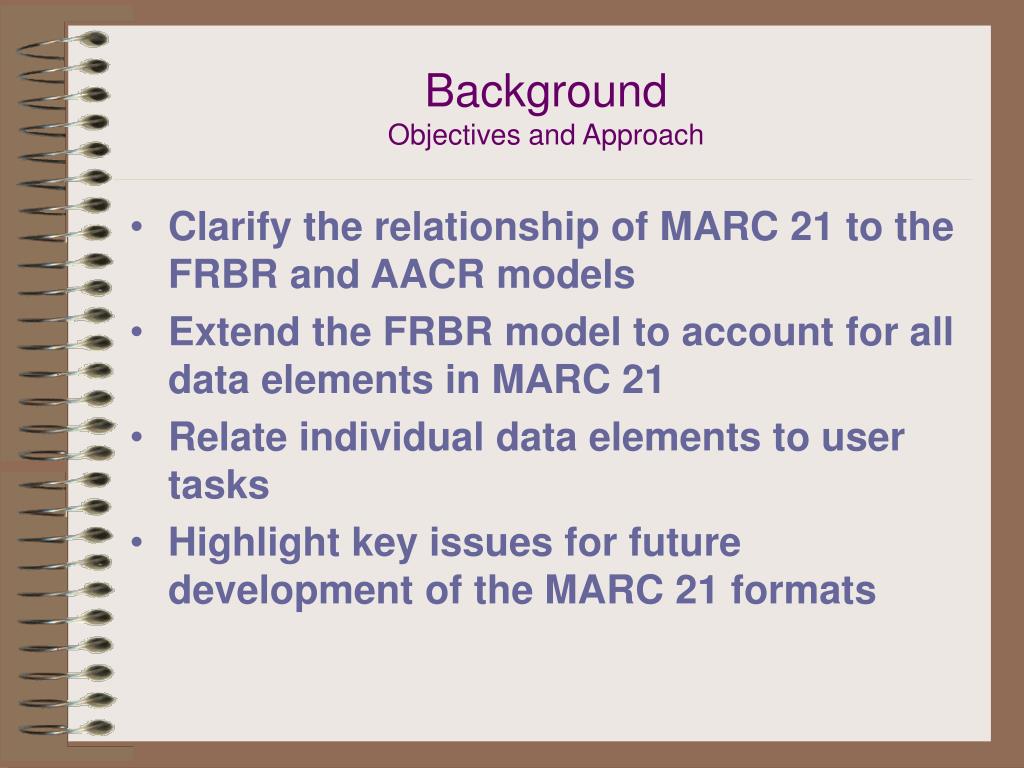

  3. BackgroundObjectives and Approach • Clarify the relationship of MARC 21 to the FRBR and AACR models • Extend the FRBR model to account for all data elements in MARC 21 • Relate individual data elements to user tasks • Highlight key issues for future development of the MARC 21 formats

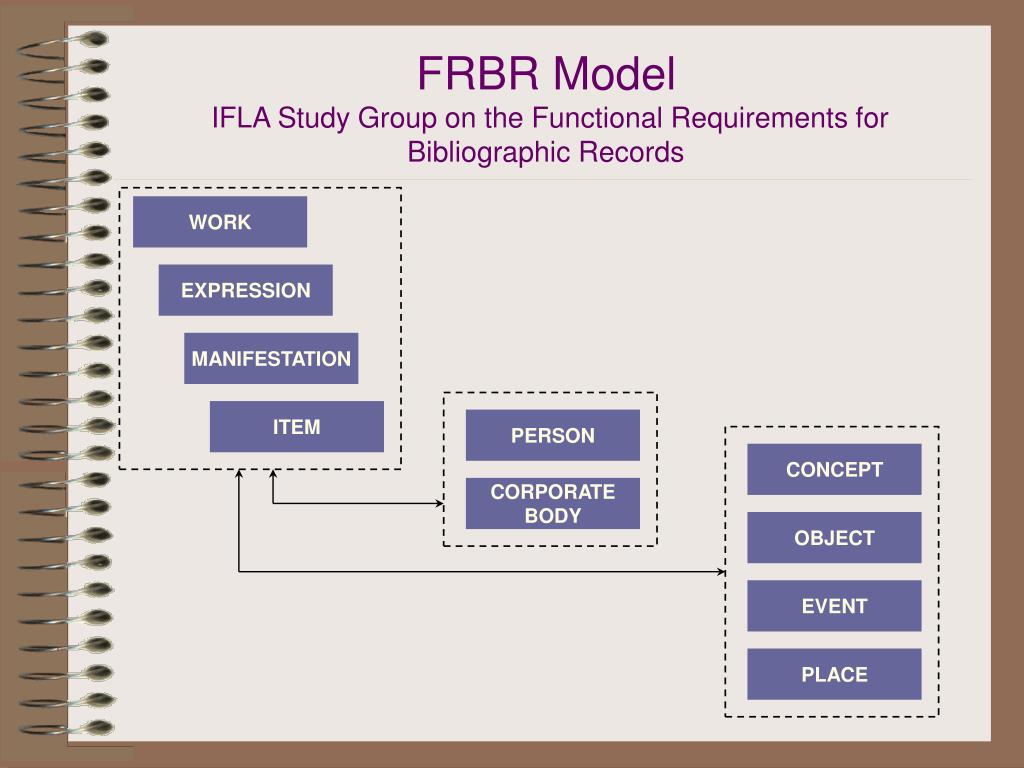

  4. WORK EXPRESSION MANIFESTATION ITEM PERSON CONCEPT CORPORATE BODY OBJECT EVENT PLACE FRBR Model IFLA Study Group on the Functional Requirements for Bibliographic Records

  5. Extending the FRBR ModelAdditional attributes defined for FRBR entities WORK EXPRESSION MANIFESTATION ITEM PERSON CONCEPT CORPORATE BODY OBJECT EVENT PLACE

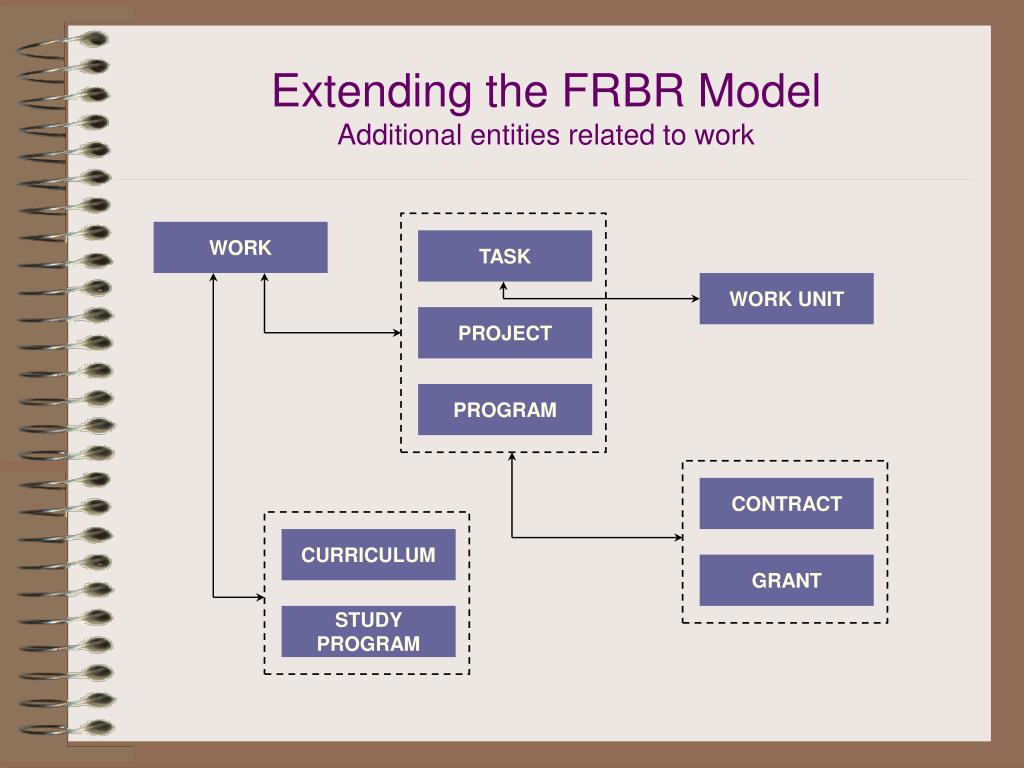

  6. Extending the FRBR ModelAdditional entities related to work WORK TASK WORK UNIT PROJECT PROGRAM CONTRACT CURRICULUM GRANT STUDY PROGRAM

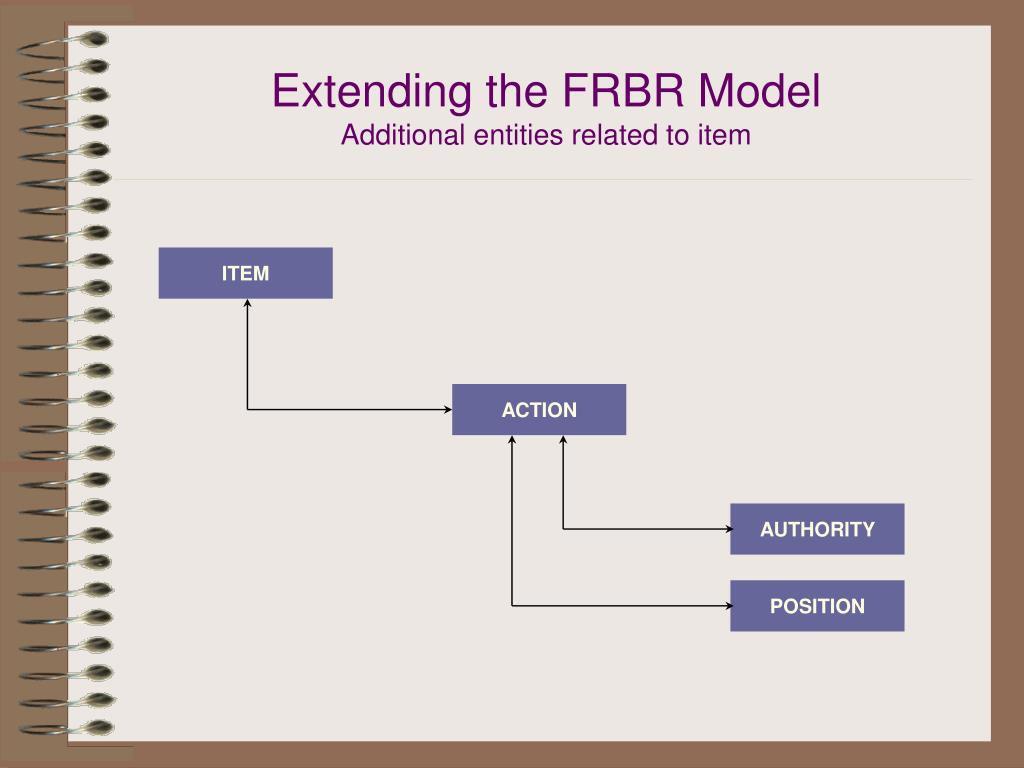

  7. Extending the FRBR ModelAdditional entities related to item ITEM ACTION AUTHORITY POSITION

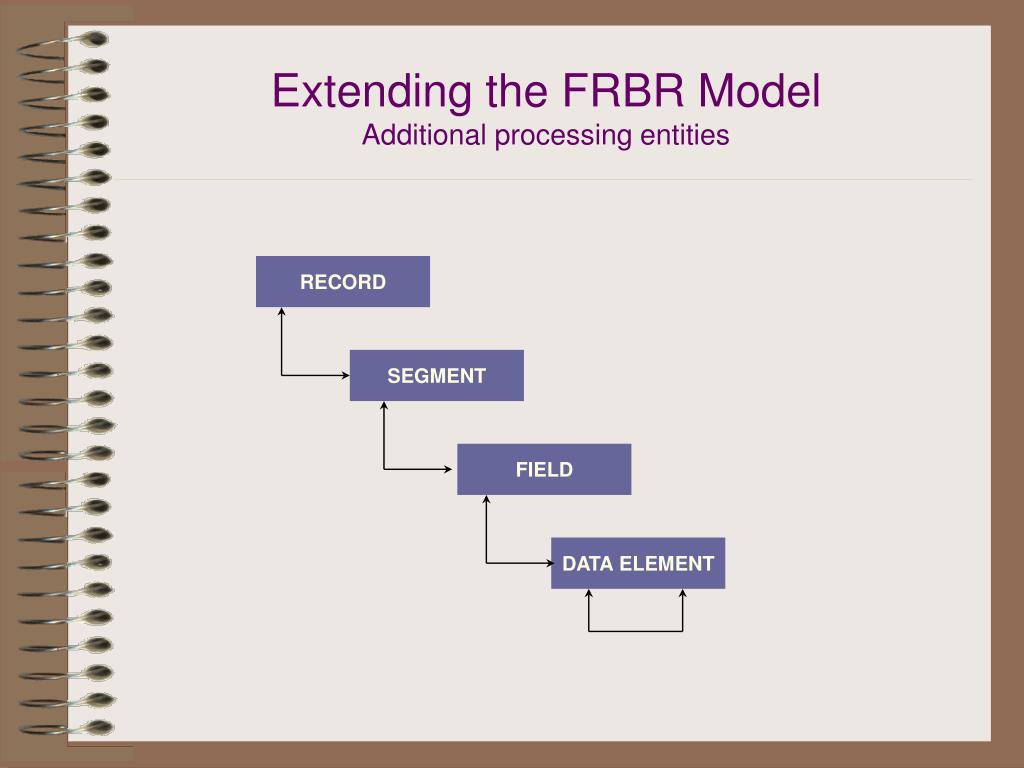

  8. Extending the FRBR ModelAdditional processing entities RECORD SEGMENT FIELD DATA ELEMENT

  9. Statistical SummaryMARC data elements mapped to entity attributes defined in FRBR 1XX/6XX/7XX/8XX 240-245 5XX, 76X-78X 006/008 034/047/048 WORK 286 1XX/6XX/7XX/8XX 254/255/256, 342/343, 5XX, 76X-78X 006/007/008, 034/041 EXPRESSION 156 0XX 210-247, 250/257/260/270 300/340/362 5XX, 76X-78X 006/007/008 044/046 85X-87X MANIFESTATION 528 0XX, 5XX, 85X-87X 76 ITEM

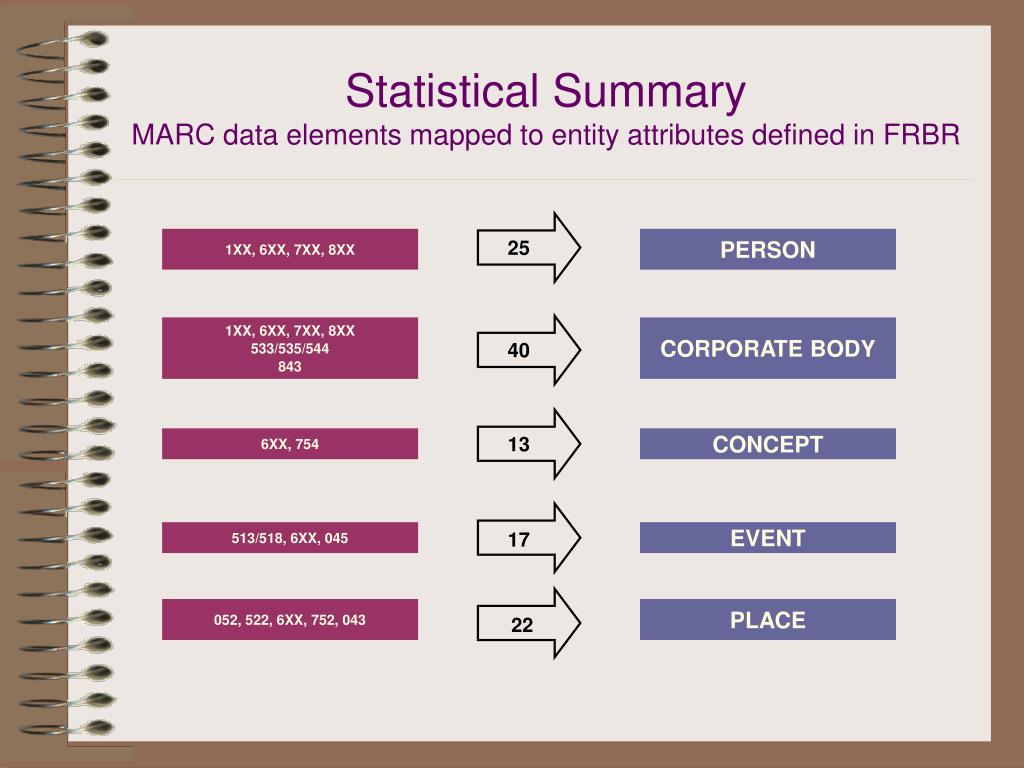

  10. Statistical SummaryMARC data elements mapped to entity attributes defined in FRBR 1XX, 6XX, 7XX, 8XX PERSON 25 1XX, 6XX, 7XX, 8XX 533/535/544 843 CORPORATE BODY 40 6XX, 754 13 CONCEPT 513/518, 6XX, 045 EVENT 17 052, 522, 6XX, 752, 043 PLACE 22

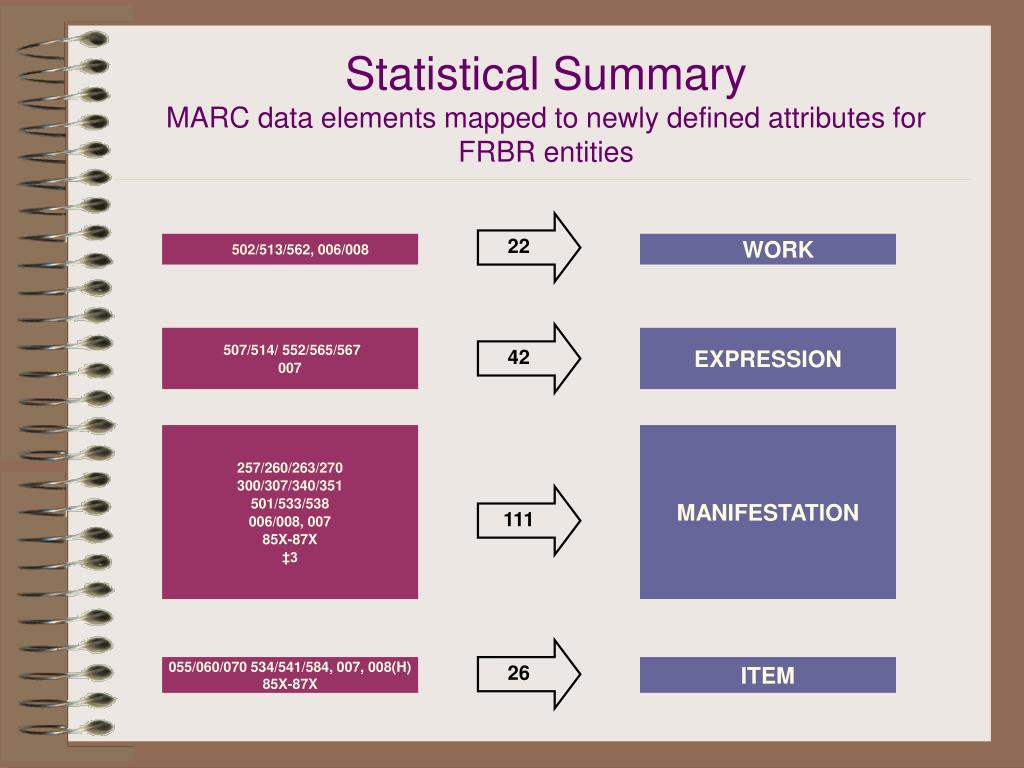

  11. Statistical SummaryMARC data elements mapped to newly defined attributes for FRBR entities 22 502/513/562, 006/008 WORK 507/514/ 552/565/567 007 EXPRESSION 42 257/260/263/270 300/307/340/351 501/533/538 006/008, 007 85X-87X ‡3 MANIFESTATION 111 055/060/070 534/541/584, 007, 008(H) 85X-87X 26 ITEM

  12. Statistical SummaryMARC data elements mapped to newly defined attributes for FRBR entities 2 545 PERSON 8 535/544/545 CORPORATE BODY 033 EVENT 3

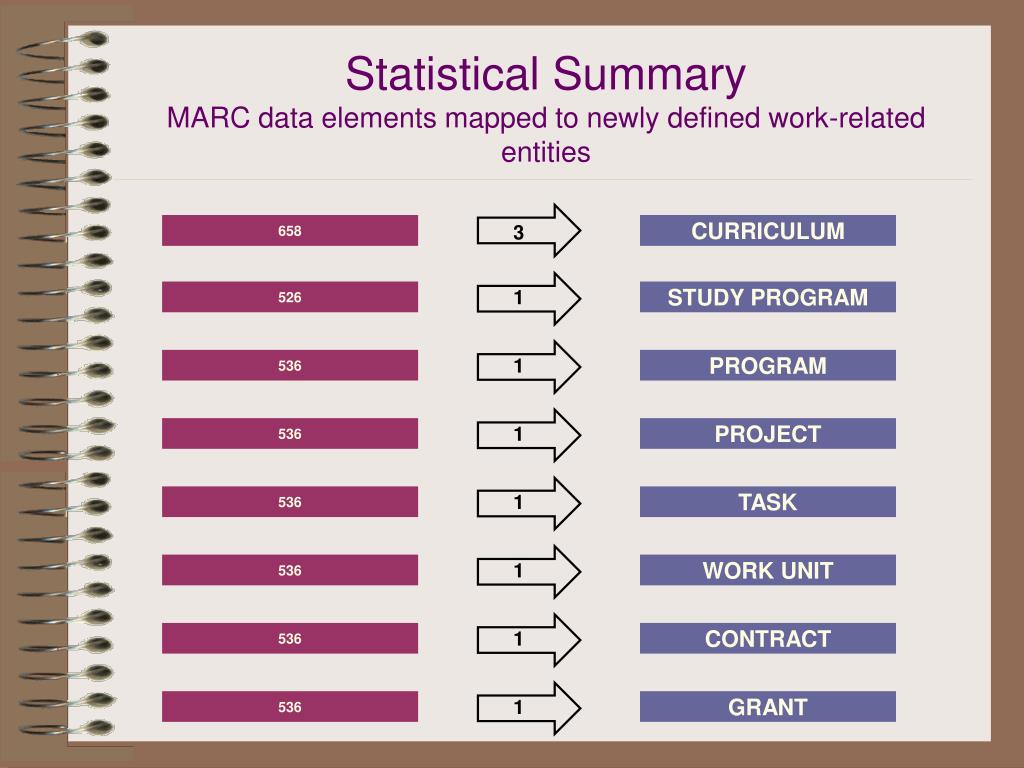

  13. Statistical SummaryMARC data elements mapped to newly defined work-related entities 658 CURRICULUM 3 526 1 STUDY PROGRAM 536 1 PROGRAM 536 1 PROJECT 536 1 TASK 536 1 WORK UNIT 536 1 CONTRACT 536 1 GRANT

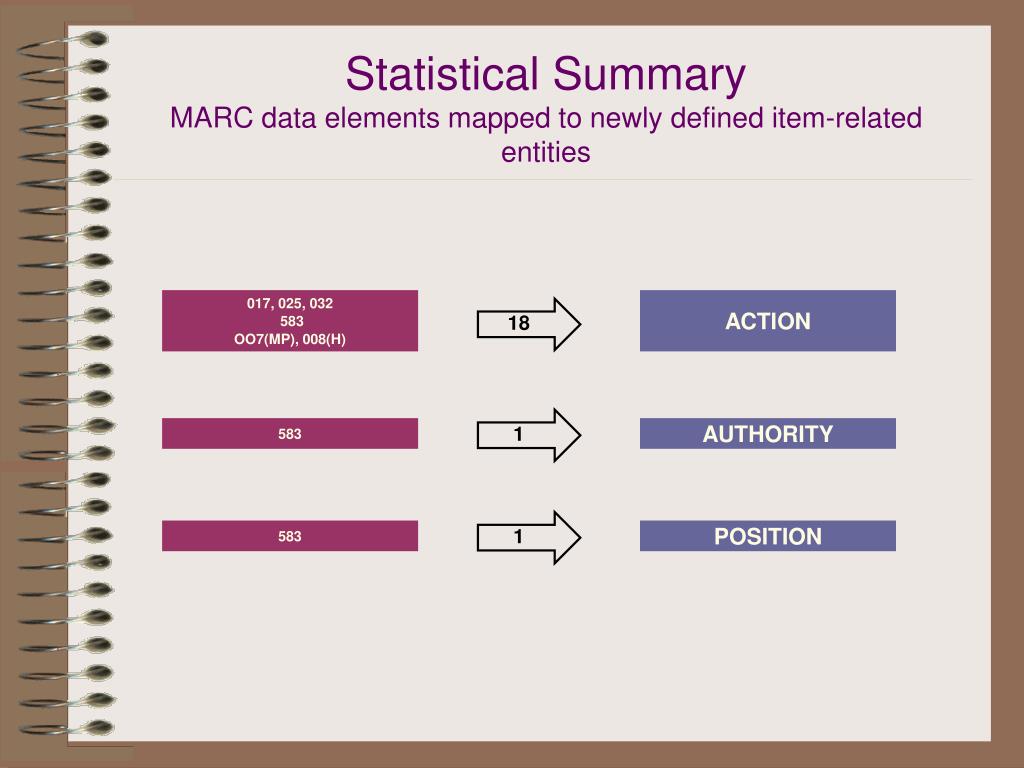

  14. Statistical SummaryMARC data elements mapped to newly defined item-related entities 017, 025, 032 583 OO7(MP), 008(H) ACTION 18 583 1 AUTHORITY 583 1 POSITION

  15. Statistical SummaryMARC data elements mapped to processing entities Leader 00X 0XX 1XX/2XX/3XX/4XX/5XX/6XX/7XX/8XX 92 RECORD 180 SEGMENT 235 FIELD 151 DATA ELEMENT

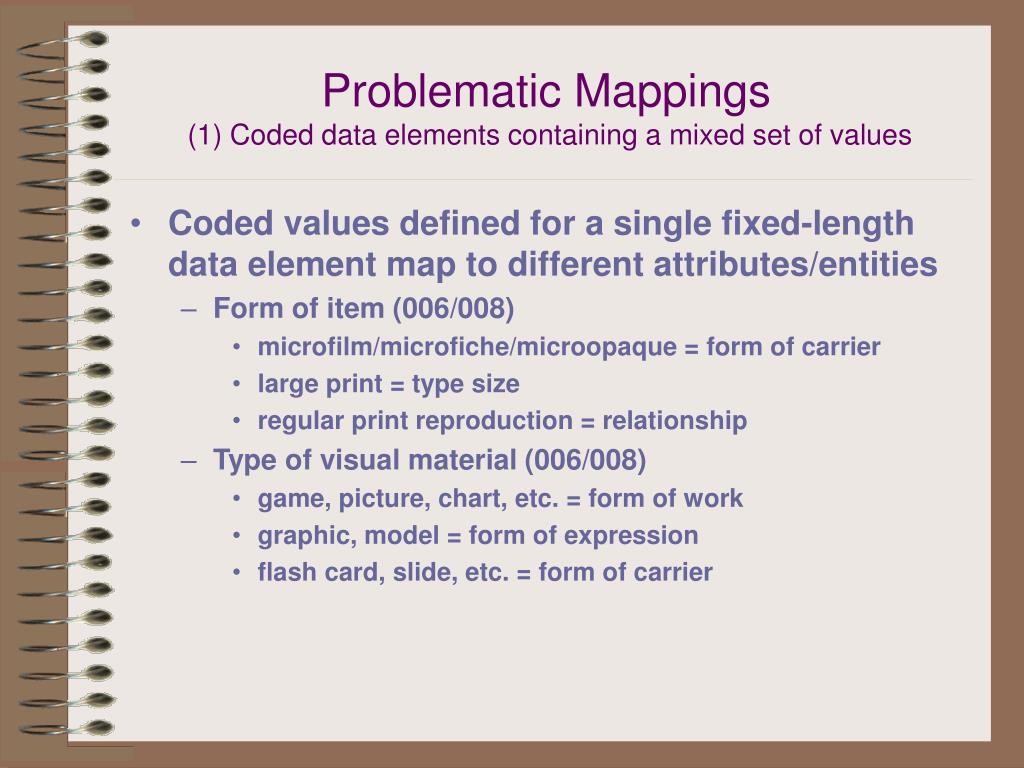

  16. Problematic Mappings (1) Coded data elements containing a mixed set of values • Coded values defined for a single fixed-length data element map to different attributes/entities • Form of item (006/008) • microfilm/microfiche/microopaque = form of carrier • large print = type size • regular print reproduction = relationship • Type of visual material (006/008) • game, picture, chart, etc. = form of work • graphic, model = form of expression • flash card, slide, etc. = form of carrier

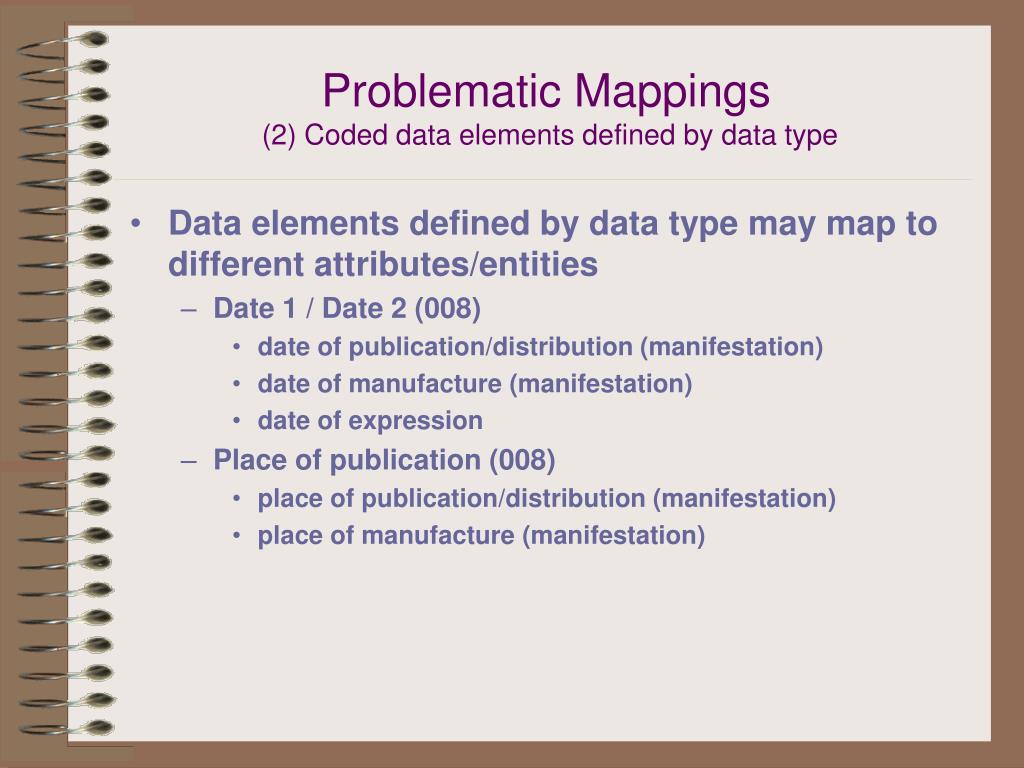

  17. Problematic Mappings (2) Coded data elements defined by data type • Data elements defined by data type may map to different attributes/entities • Date 1 / Date 2 (008) • date of publication/distribution (manifestation) • date of manufacture (manifestation) • date of expression • Place of publication (008) • place of publication/distribution (manifestation) • place of manufacture (manifestation)

  18. Problematic Mappings (3) Variable data elements defined by function/form • Subfields defined by function or form may map to different attributes/entities • Linking entry fields (760-787) • ‡a (main entry) = person/corporate body/work • Subject added entry – topical (650) • ‡a (topical term) = concept/object/event/place

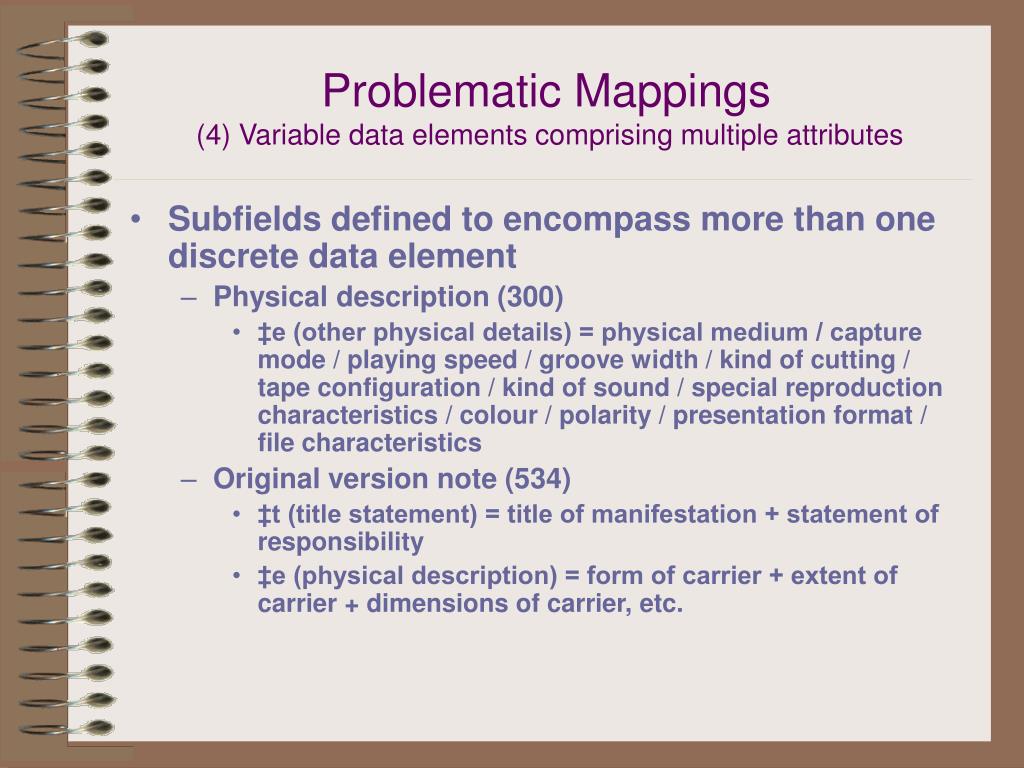

  19. Problematic Mappings (4) Variable data elements comprising multiple attributes • Subfields defined to encompass more than one discrete data element • Physical description (300) • ‡e (other physical details) = physical medium / capture mode / playing speed / groove width / kind of cutting / tape configuration / kind of sound / special reproduction characteristics / colour / polarity / presentation format / file characteristics • Original version note (534) • ‡t (title statement) = title of manifestation + statement of responsibility • ‡e (physical description) = form of carrier + extent of carrier + dimensions of carrier, etc.

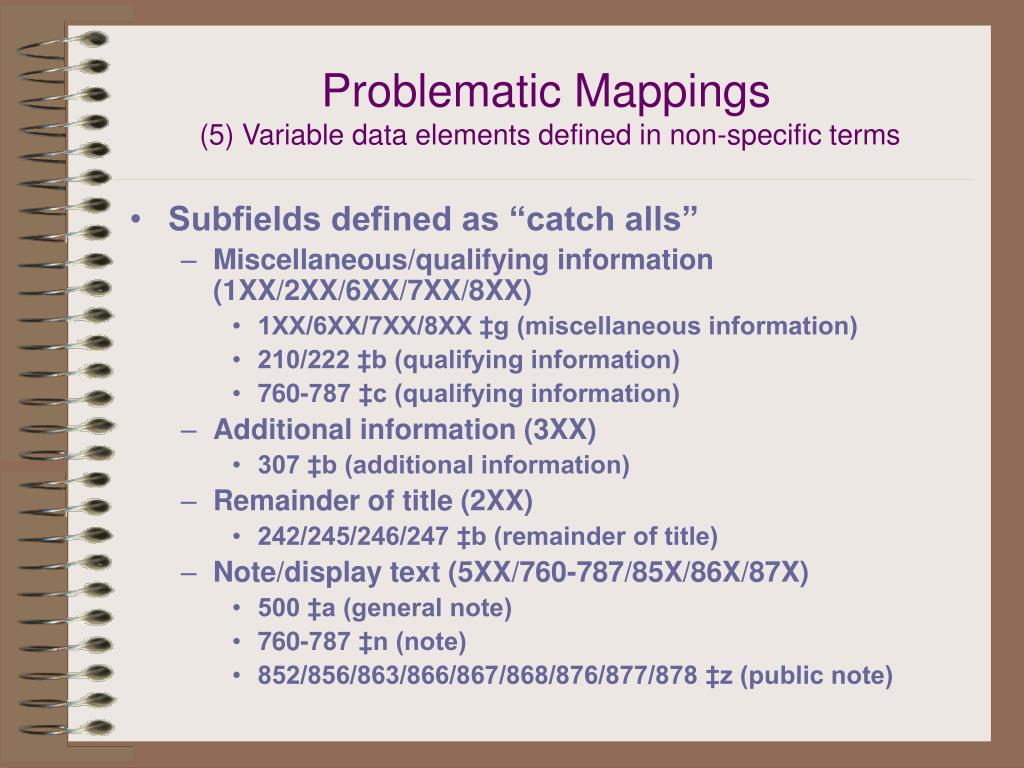

  20. Problematic Mappings (5) Variable data elements defined in non-specific terms • Subfields defined as “catch alls” • Miscellaneous/qualifying information (1XX/2XX/6XX/7XX/8XX) • 1XX/6XX/7XX/8XX ‡g (miscellaneous information) • 210/222 ‡b (qualifying information) • 760-787 ‡c (qualifying information) • Additional information (3XX) • 307 ‡b (additional information) • Remainder of title (2XX) • 242/245/246/247 ‡b (remainder of title) • Note/display text (5XX/760-787/85X/86X/87X) • 500 ‡a (general note) • 760-787 ‡n (note) • 852/856/863/866/867/868/876/877/878 ‡z (public note)

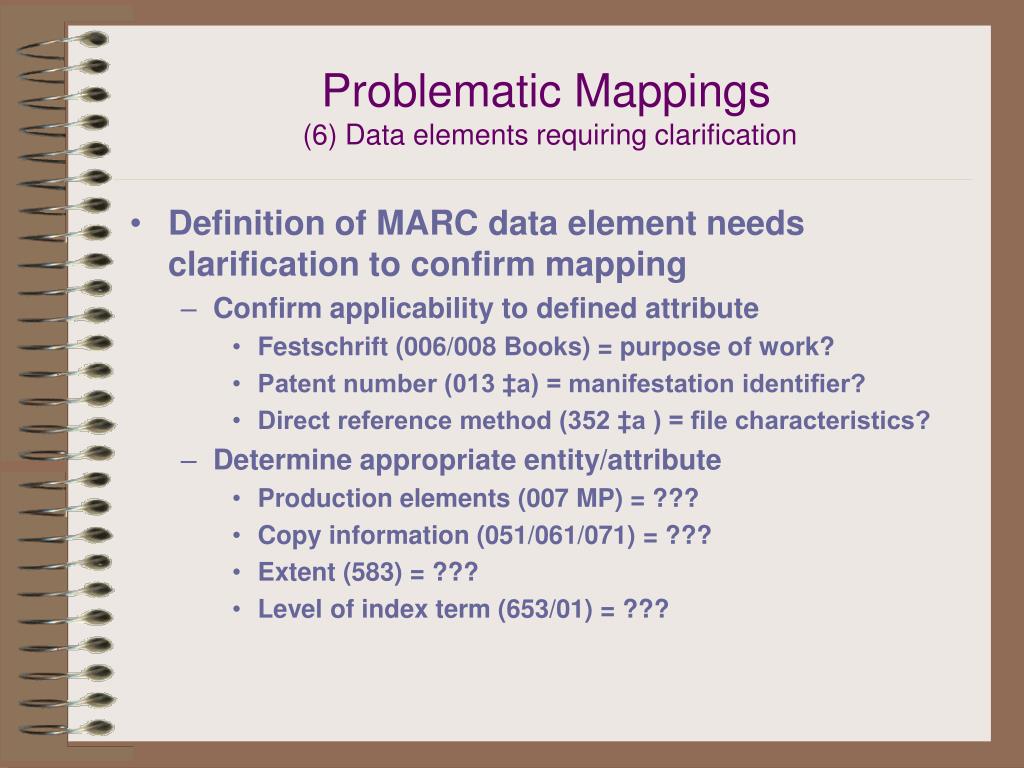

  21. Problematic Mappings (6) Data elements requiring clarification • Definition of MARC data element needs clarification to confirm mapping • Confirm applicability to defined attribute • Festschrift (006/008 Books) = purpose of work? • Patent number (013 ‡a) = manifestation identifier? • Direct reference method (352 ‡a ) = file characteristics? • Determine appropriate entity/attribute • Production elements (007 MP) = ??? • Copy information (051/061/071) = ??? • Extent (583) = ??? • Level of index term (653/01) = ???

  22. EXPRESSION 1 MANIFESTATION 1 ITEM 1 MANIFESTATION 2 ITEM 2 EXPRESSION 2 MANIFESTATION 3 ITEM 3 MANIFESTATION 4 ITEM 4 Hierarchical Displays Multiple versions of the same work WORK

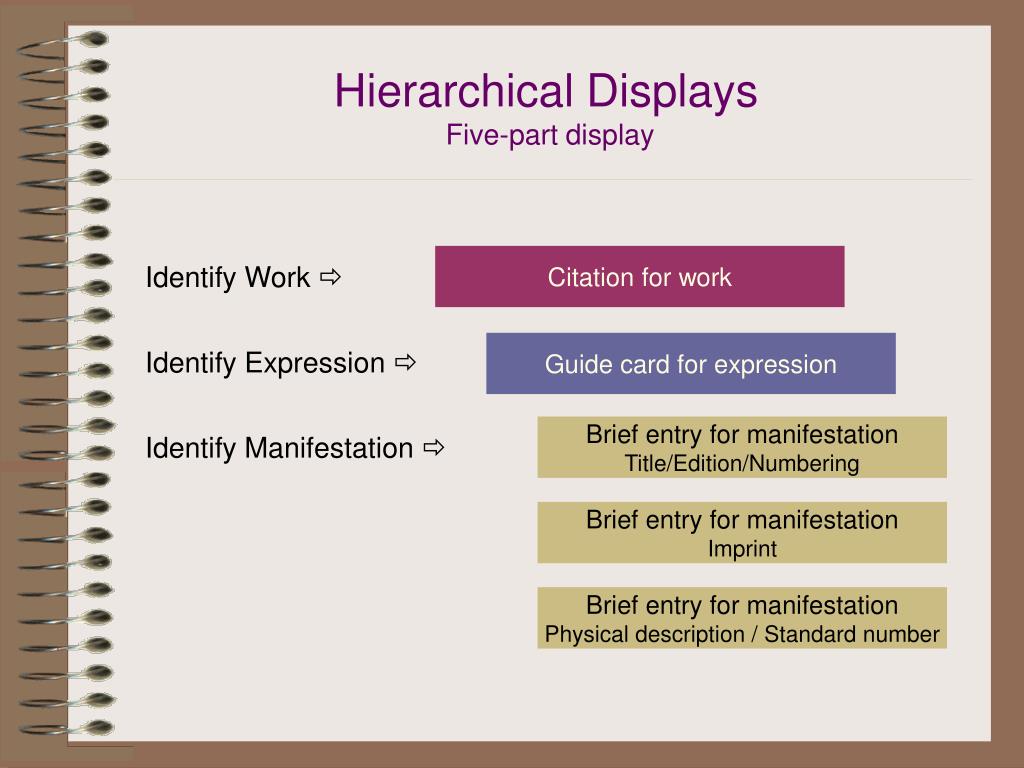

  23. Hierarchical Displays Five-part display Citation for work Identify Work  Guide card for expression Identify Expression  Brief entry for manifestation Title/Edition/Numbering Identify Manifestation  Brief entry for manifestation Imprint Brief entry for manifestation Physical description / Standard number

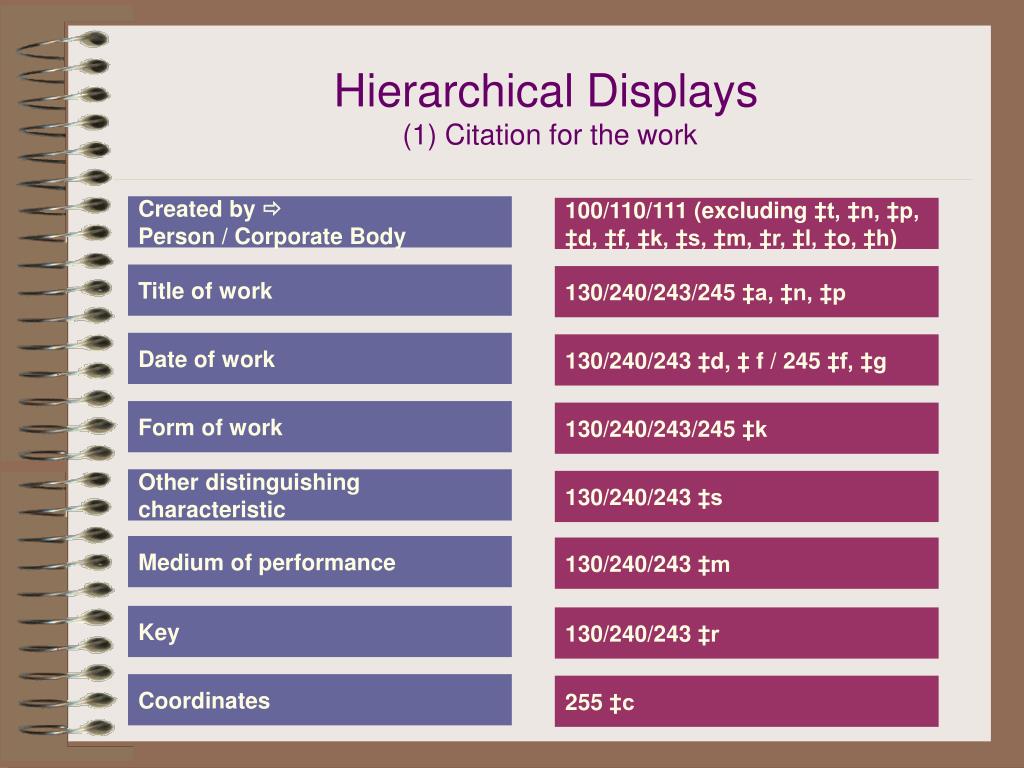

  24. Hierarchical Displays (1) Citation for the work Created by  Person / Corporate Body 100/110/111 (excluding ‡t, ‡n, ‡p, ‡d, ‡f, ‡k, ‡s, ‡m, ‡r, ‡l, ‡o, ‡h) Title of work 130/240/243/245 ‡a, ‡n, ‡p Date of work 130/240/243 ‡d, ‡ f / 245 ‡f, ‡g Form of work 130/240/243/245 ‡k Other distinguishing characteristic 130/240/243 ‡s Medium of performance 130/240/243 ‡m Key 130/240/243 ‡r Coordinates 255 ‡c

  25. Hierarchical Displays (2) Guide card for the expression Form of expression Leader c. p. 06 Language of expression 130/240/243 ‡l / 008 c.p. 35-37 Other distinguishing characteristic 130/240/243 ‡o / 245 ‡s Type of score 254 ‡a Scale 255 ‡a

  26. Hierarchical Displays (3) Brief entry for the manifestation – title/edition/numbering Title of manifestation 245/242 ‡a, ‡n, ‡p Statement of responsibility 245/242 ‡c Edition/issue designation 250 ‡a, ‡b Numbering 362 ‡a

  27. Hierarchical Displays (4) Brief entry for the manifestation – imprint Publisher/distributor 260 ‡b Publisher/distributor 260 ‡a Date of publication/distribution 260 ‡c Date of publication/distribution 260 ‡c

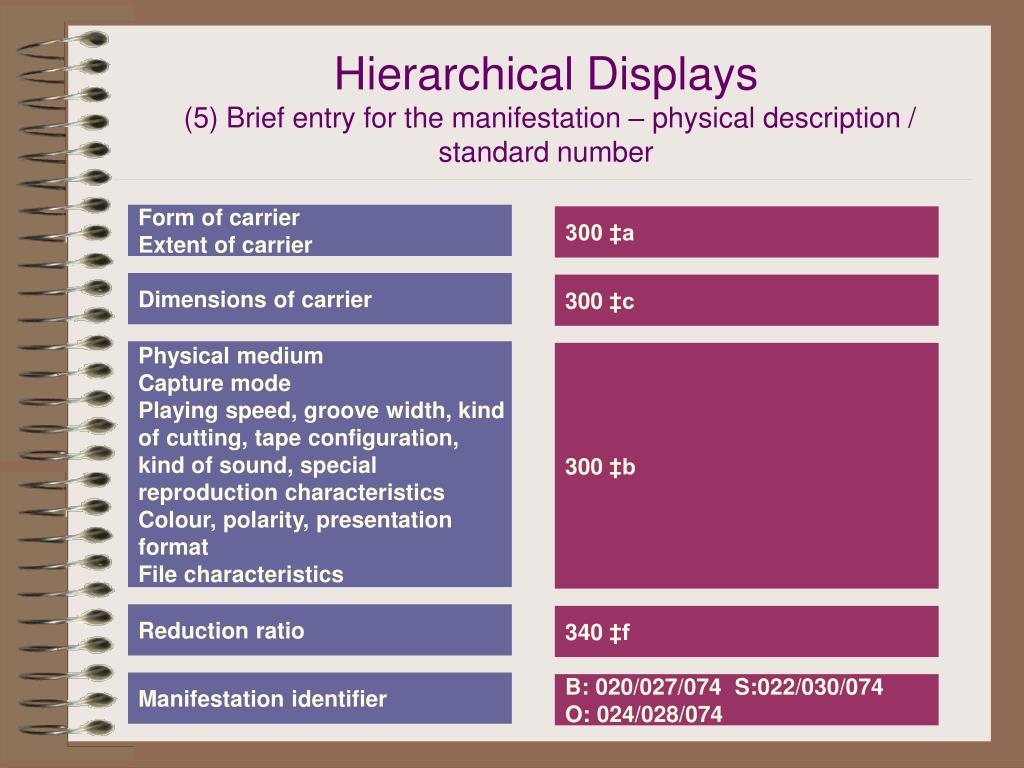

  28. Hierarchical Displays (5) Brief entry for the manifestation – physical description / standard number Form of carrier Extent of carrier 300 ‡a Dimensions of carrier 300 ‡c Physical medium Capture mode Playing speed, groove width, kind of cutting, tape configuration, kind of sound, special reproduction characteristics Colour, polarity, presentation format File characteristics 300 ‡b Reduction ratio 340 ‡f Manifestation identifier B: 020/027/074 S:022/030/074 O: 024/028/074

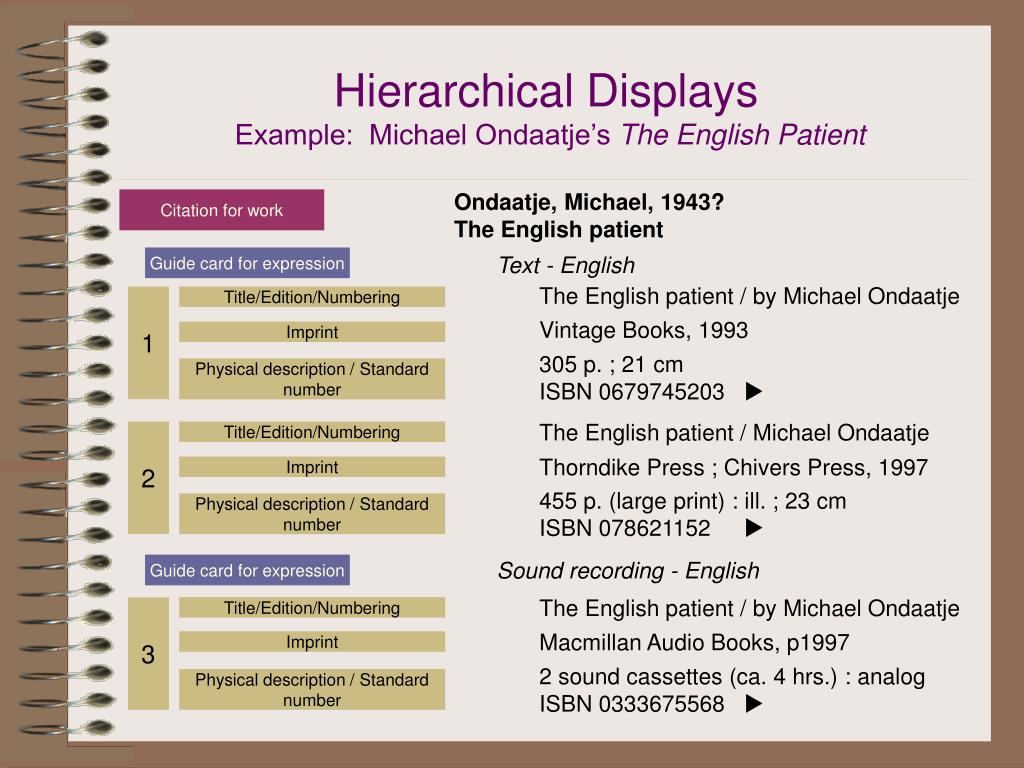

  29. Ondaatje, Michael, 1943? The English patient Citation for work Guide card for expression Text - English The English patient / Michael Ondaatje 2 Title/Edition/Numbering Thorndike Press ; Chivers Press, 1997 Imprint 455 p. (large print) : ill. ; 23 cm ISBN 078621152  Physical description / Standard number The English patient / by Michael Ondaatje 1 Title/Edition/Numbering Vintage Books, 1993 Imprint 305 p. ; 21 cm ISBN 0679745203  Physical description / Standard number Guide card for expression Sound recording - English The English patient / by Michael Ondaatje Title/Edition/Numbering 3 Macmillan Audio Books, p1997 Imprint 2 sound cassettes (ca. 4 hrs.) : analog ISBN 0333675568  Physical description / Standard number Hierarchical Displays Example: Michael Ondaatje’s The English Patient

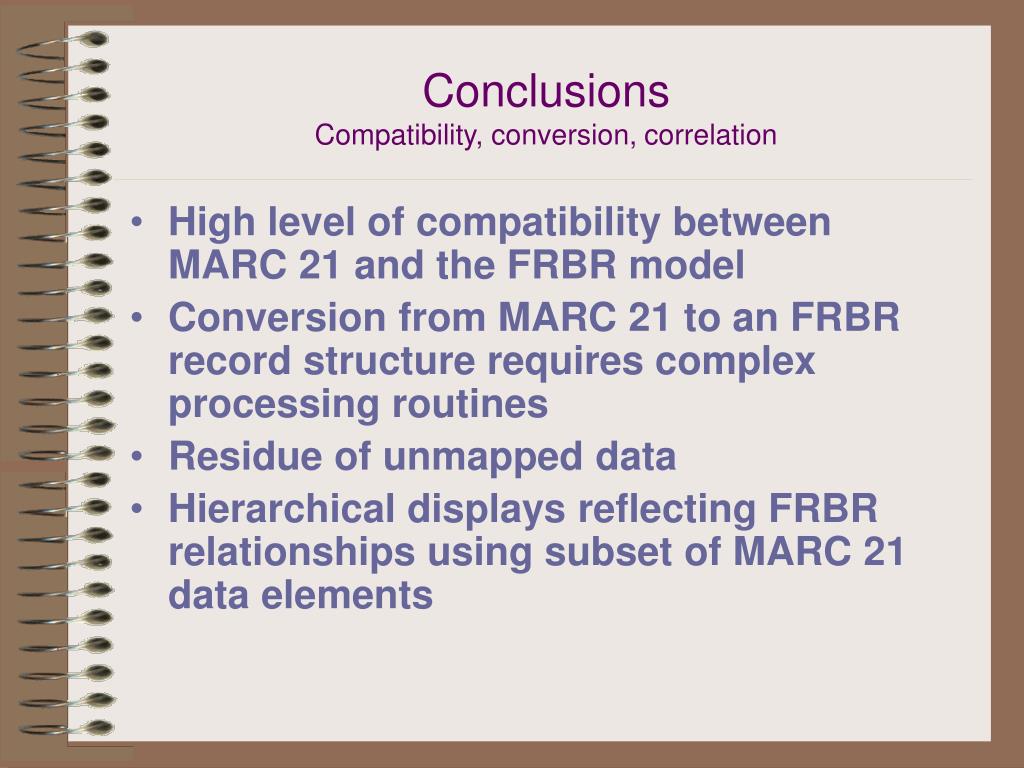

  30. ConclusionsCompatibility, conversion, correlation • High level of compatibility between MARC 21 and the FRBR model • Conversion from MARC 21 to an FRBR record structure requires complex processing routines • Residue of unmapped data • Hierarchical displays reflecting FRBR relationships using subset of MARC 21 data elements
