MRCF / LP Sizing

MRCF (Mars Rocket Construction Facility): Oversized mobile tent Mass: 0.38 mt Stowed Volume: 21.5 m^3 Power: 0.0 kWe Aluminum poles & nylon mass included Mobile system so rocket can be constructed on the launch pad. LP (Launch Pad): Launch gantry only MLV Mass Lifted: 1000 mt

cody
Download Presentation

MRCF / LP Sizing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

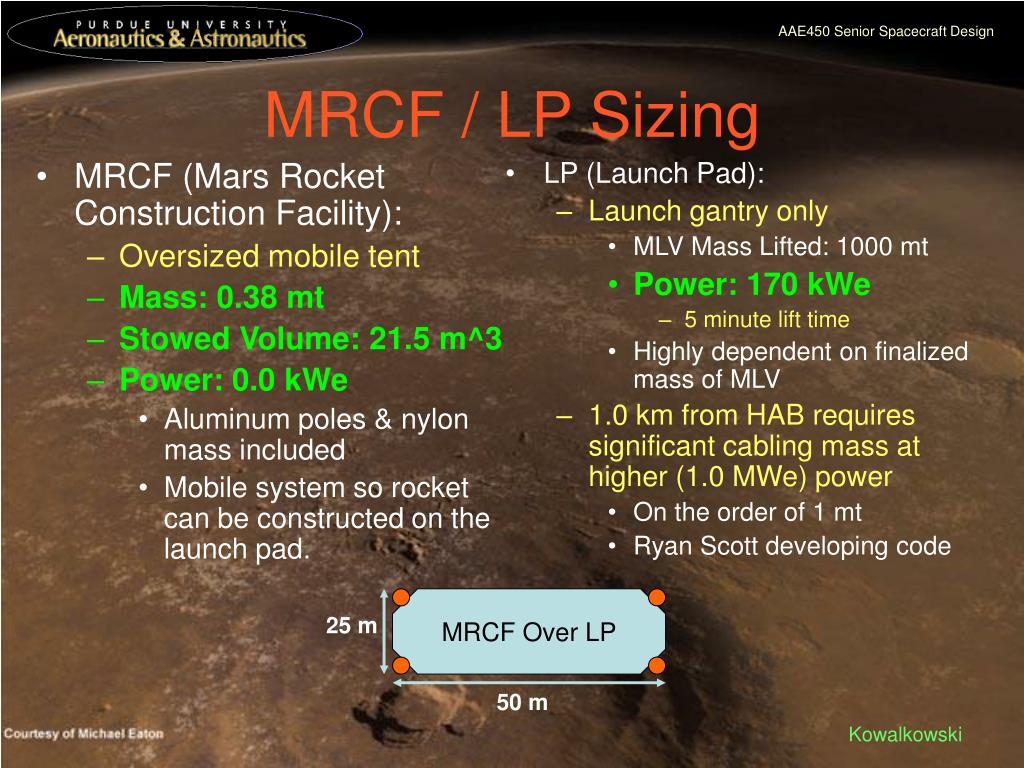

  1. MRCF (Mars Rocket Construction Facility): Oversizedmobiletent Mass: 0.38 mt Stowed Volume: 21.5 m^3 Power: 0.0 kWe Aluminum poles & nylon mass included Mobile system so rocket can be constructed on the launch pad. LP (Launch Pad): Launch gantry only MLV Mass Lifted: 1000 mt Power: 170 kWe 5 minute lift time Highly dependent on finalized mass of MLV 1.0 km from HAB requires significant cabling mass at higher (1.0 MWe) power On the order of 1 mt Ryan Scott developing code MRCF Over LP 25 m 50 m MRCF / LP Sizing Kowalkowski
