    Presentation Transcript

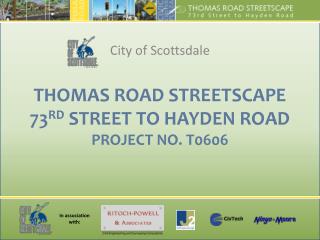

    1. THOMAS ROAD STREETSCAPE73RD STREET TO HAYDEN ROADPROJECT NO. T0606 City of Scottsdale

    2. PURPOSE • Provide connectivity and improved safety for bicyclists and pedestrians • Enhance aesthetics by providing landscaping and public art components

    3. PROPOSED IMPROVEMENTS • Two 11’ Travel Lanes in Each Direction • 14’ Raised Landscaped Median • 4’ Bike Lane in Each Direction • 6’ Landscape Buffer & 8’ Detached Concrete Sidewalk • 18’ Minimum Frontage Road with 6’ Landscape Buffer • ADA Compliance Throughout Corridor to Include Ramps and Driveways • New City Bus Shelters • Utility Relocations

    4. ROADWAY SECTIONS

    5. ROADWAY SECTIONS

    6. ROADWAY SECTIONS

    7. SAFETY • Thomas Road is in the Top 10% of High Collision Roadway Segments out of 275 Segments • Miller Road to Hayden Road has a Collision Rate of 5 Collisions per Million Vehicle Miles. (City Average is 1.28)

    8. SAFETY • Thomas Road Signalized Intersections are in the Top 20 Collision Locations in the City out of 300 Signalized Intersections • Collision Rates for Signalized Intersections are over 1.15 Collisions per Million Vehicles (Cty Average is 0.53)

    9. SAFETY • Raised Medians for Access Control • Dedicated Left Turn Lanes • Dedicated Bike Lanes • Landscape Buffer Between Pedestrian and Roadway Traffic • Street/Pedestrian Lighting • Guardrail and Bridge Updates

    10. LANDSCAPE • Desert Oasis Theme • Seating Nodes • Rain Water Harvesting • Green Screen Options • Median & Buffer Area Landscaping • Public Art Component

    11. PEDESTRIAN LIGHTING • Option 1: Pedestrian Street Lights Throughout the Corridor from 73rd Street to Hayden Road • Option 2: Pedestrian Street Lights at Specific Areas • 73rd Street to Civic Center Plaza • Miller Road Intersection • Indian Bend Wash to Hayden Road

    12. PEDESTRIAN LIGHTING

    13. THOMAS ROAD STREETSCAPE73RD STREET TO HAYDEN ROADPROJECT NO. T0606 City of Scottsdale
