第七章三维观察

第七章三维观察. 观察流水线 观察坐标 投影 观察体和一般投影变换 裁减 三维观察函数. 观察流水线. 从建模坐标到设备坐标 模型坐标 模型变换 世界坐标 观察变换 观察坐标 投影变换 投影坐标 规范化裁剪 规范化坐标 视口变换 设备坐标. 投影与显示. consider a problem to find the correspondences of P i in other range images, O j and O k.

clove
Download Presentation

第七章三维观察

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

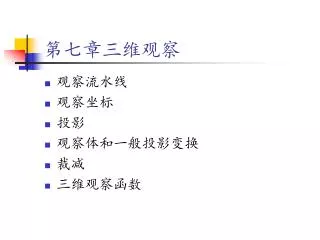

  1. 第七章三维观察 • 观察流水线 • 观察坐标 • 投影 • 观察体和一般投影变换 • 裁减 • 三维观察函数

  2. 观察流水线 • 从建模坐标到设备坐标 模型坐标 模型变换 世界坐标 观察变换 观察坐标 投影变换 投影坐标 规范化裁剪 规范化坐标 视口变换 设备坐标

  3. 投影与显示 • consider a problem to find the correspondences of Pi in other range images, Ojand Ok Epipolar geometry of a multi-view system

  4. 投影与显示 • A visual hull point

  5. 观察坐标 • 右手系 yw yw N xw zw zw xw N 观察方向(1,0,0) (1,0,1)

  6. 投影 • 平行投影 • 透视投影

  7. 观察体和一般投影变换 • 观察平面上的窗口描述 yv xv (xwmax,ywmax) 观察平面 投影窗口 (xwmin,ywmin) zv

  8. 裁减 • 正交平行投影，观察体矩形平行六面体 y x z 观察体

  9. OpenGL三维观察函数 • OpenGL观测变换函数 • 观察模式 • glMatrixMode (GL_MODELVIEW); • 观察参数 • gluLookAt(x0,y0,z0,xref,yref,zref,Vx,Vy,Vz); • OpenGL正交投影函数 • 模式glMatrixMode(GL_PROJECTION); • 参数glOrtho(xwmin,xwmax,ywmin,ywmax,dnear,dfar);
