# Relational Algebra &amp; SQL

Relational Algebra &amp; SQL. Query Formulation Exercise. Exercise 4: Relational Algebra and SQL. Given relational schema: Frequent ( D, P ) Serves ( P, B ) Likes ( D, B ) Attributes: P (pub), B (beer), D (drinker) The pubs that serve a beer that Jefferson likes.

## Relational Algebra &amp; SQL

An Image/Link below is provided (as is) to download presentation Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

### Presentation Transcript

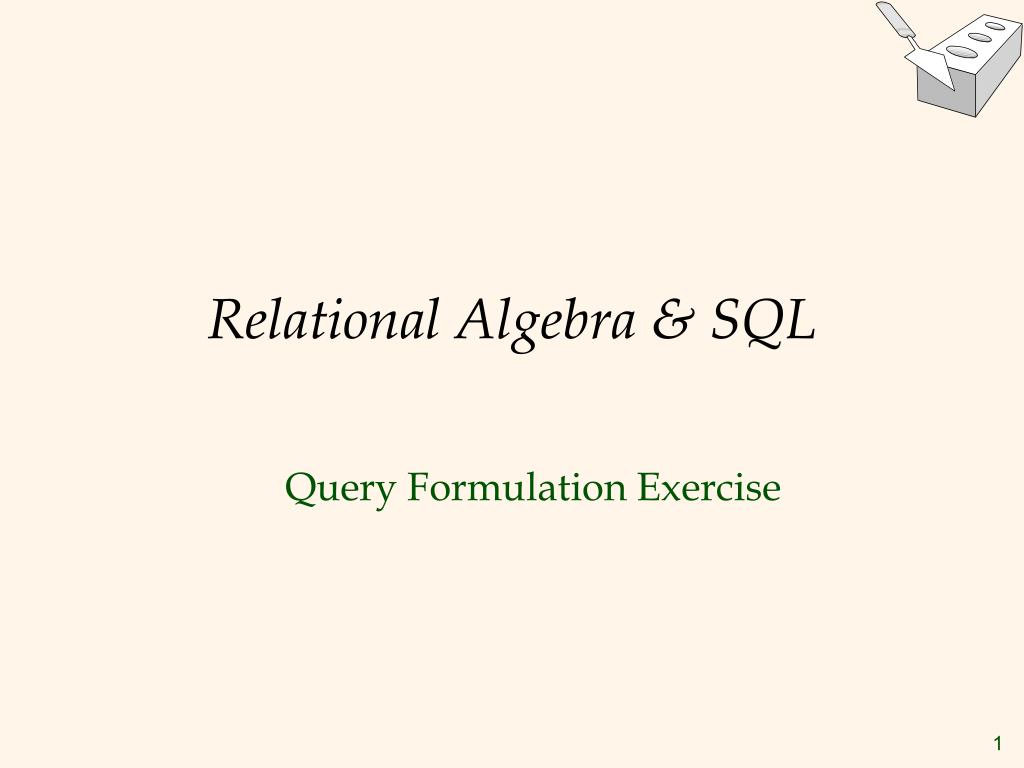

1. Relational Algebra & SQL Query Formulation Exercise

2. Exercise 4: Relational Algebra and SQL Given relational schema: Frequent (D, P) Serves (P, B) Likes (D, B) Attributes: P (pub), B (beer), D (drinker) • The pubs that serve a beer that Jefferson likes. • Drinkers that frequent at least one pub that serves “Bud” or “Becks”. • Drinkers that frequent only pubs that serve some beer they like • Drinkers that frequent only pubs that serve no beer they like.

3. 1) Algebra • Solution 1: • Solution 2: • Solution 3: • Solution 4:

4. 2) SQL SELECT p FROM S, L WHERE S.b=L.b AND L.d=‘Jefferson’ • Solution 1: • Solution 2: SELECT d FROM F WHERE F.p in (SELECT p FROM S WHERE b IN (‘Bud”, ‘Becks’))

5. 2) SQL SELECT d FROM F EXCEPT SELECT d FROM (SELECT* FROM F EXCEPT SELECT d,p FROM S, L WHERE S.b = L.b) • Solution 3:

6. 2) SQL SELECT d FROM F EXCEPT SELECT d FROM (SELECT* FROM F INTERSECT SELECT d,p FROM S, L WHERE S.b = L.b) • Solution 4:

7. 2) SQL SELECT d FROM F WHERE (SELECT COUNT (DISTINCT p) FROM S, L WHERE F.p=S.p AND S.b=L.b AND L.d=F.d) = 0 • Solution 4 (alternative solution):
