Pairwise Sequence Alignment

1. Pairwise Sequence Alignment Misha Kapushesky Slides: Stuart M. Brown, Fourie Joubert, NYU St. Petersburg Russia 2010

2. Protein Evolution “For many protein sequences, evolutionary history can be traced back 1-2 billion years” -William Pearson • When we align sequences, we assume that they share a common ancestor • They are then homologous • Protein fold is much more conserved than protein sequence • DNA sequences tend to be less informative than protein sequences

3. Definition • Homology: related by descent • Homologous sequence positions  ATTGCGC ATTGCGC ATTGCGC  AT-CCGC ATTGCGC  ATCCGC C

4. Orthologous and paralogous • Orthologous sequences differ because they are found in different species (a speciation event) • Paralogous sequences differ due to a gene duplication event • Sequences may be both orthologous and paralogous

5. Pairwise Alignment • The alignment of two sequences (DNA or protein) is a relatively straightforward computational problem. • There are lots of possible alignments. • Two sequences can always be aligned. • Sequence alignments have to be scored. • Often there is more than one solution with the same score.

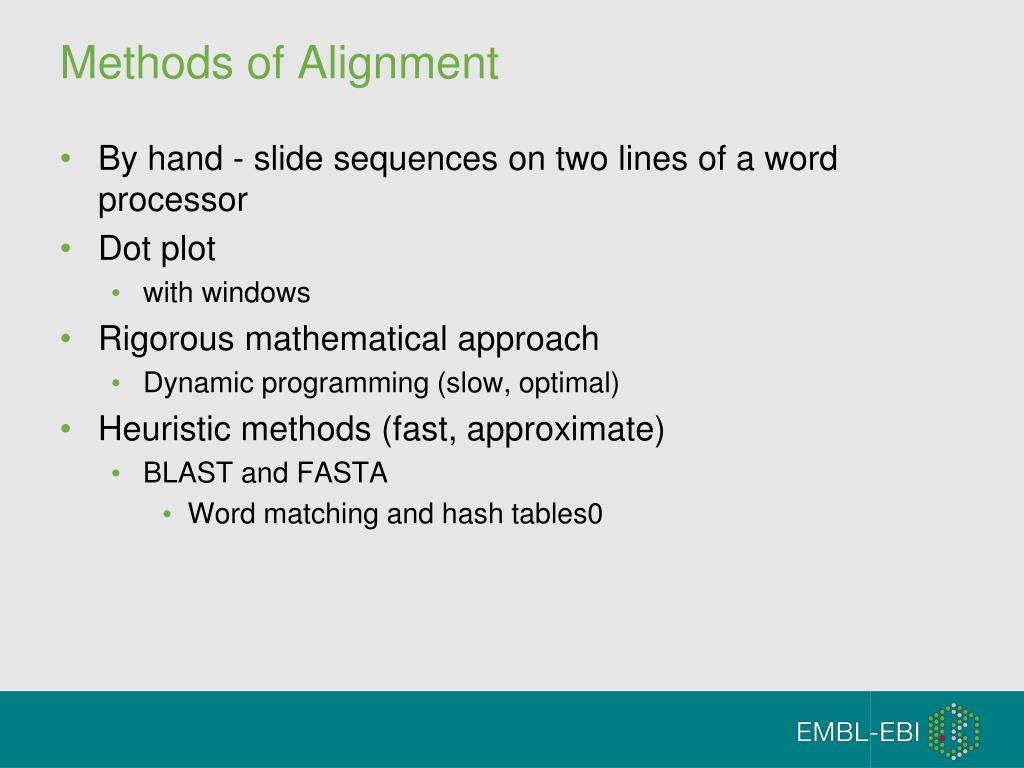

6. Methods of Alignment • By hand - slide sequences on two lines of a word processor • Dot plot • with windows • Rigorous mathematical approach • Dynamic programming (slow, optimal) • Heuristic methods (fast, approximate) • BLAST and FASTA • Word matching and hash tables0

7. Align by Hand GATCGCCTA_TTACGTCCTGGAC <-- --> AGGCATACGTA_GCCCTTTCGC You still need some kind of scoring system to find the best alignment

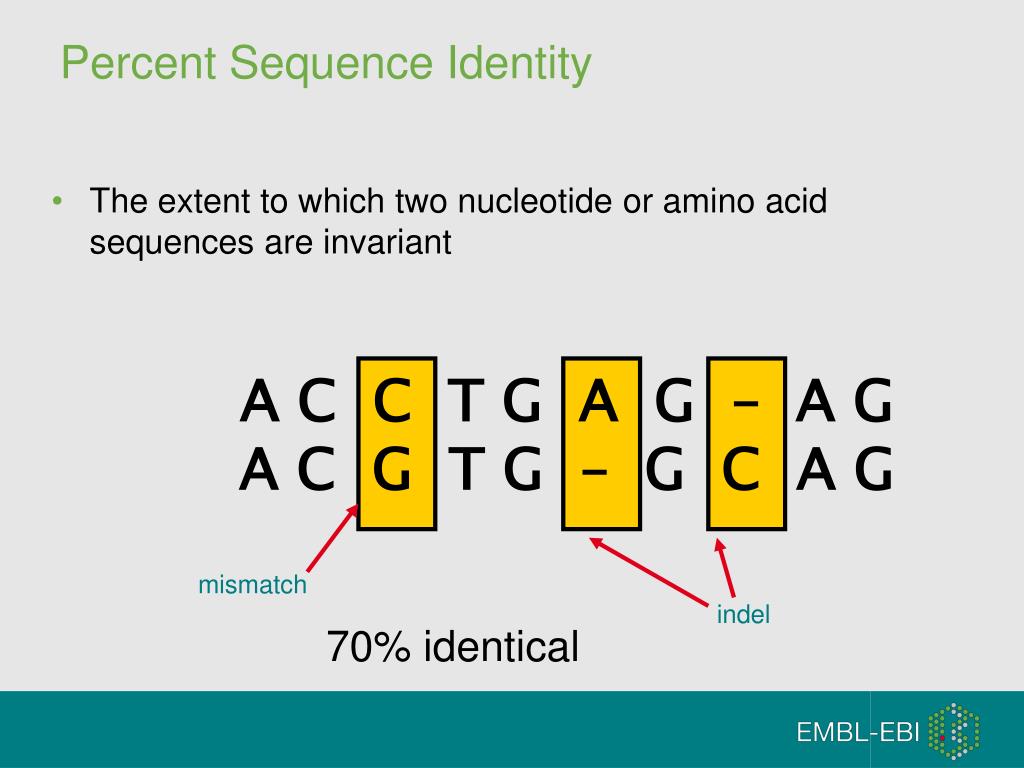

8. Percent Sequence Identity • The extent to which two nucleotide or amino acid sequences are invariant A C C T G A G – A G A C G T G – G C A G mismatch indel 70% identical

9. Dotplot: A dotplot gives an overview of all possible alignments A   T   T   C  A   C  A   T   A    T A C A T T A C G T A C Sequence 2 Sequence 1

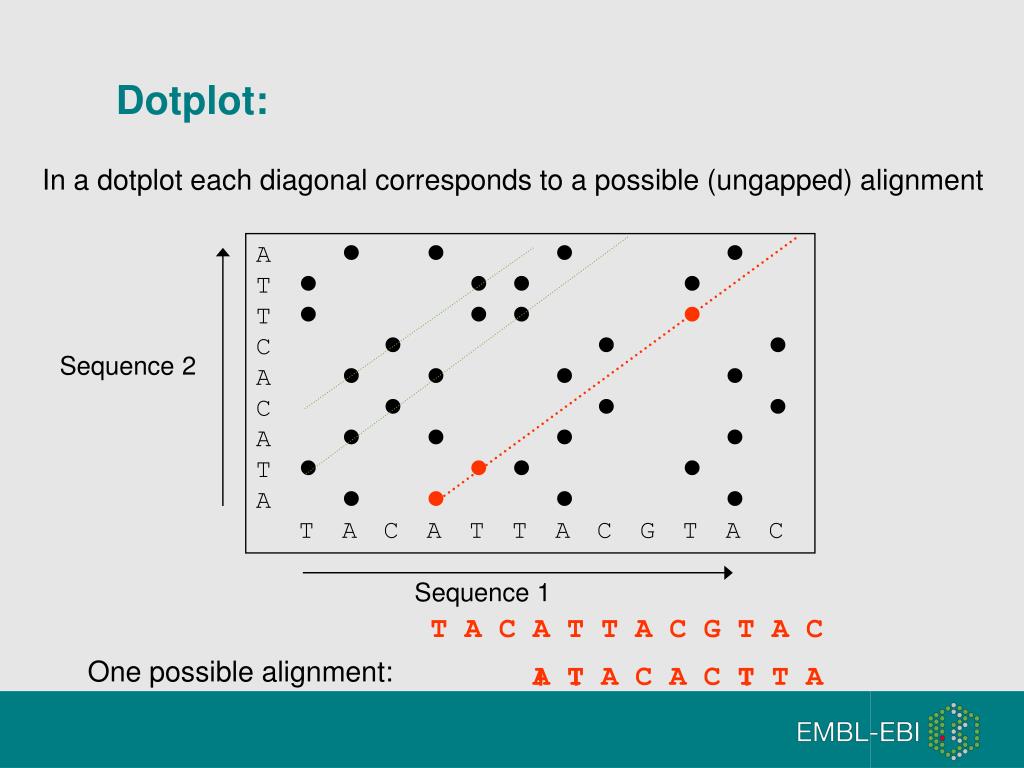

10. Dotplot: In a dotplot each diagonal corresponds to a possible (ungapped) alignment A   T   T   C  A   C  A   T   A    T A C A T T A C G T A C Sequence 2 Sequence 1 T A C A T T A C G T A C A T A C A C T T A One possible alignment:

11. Insertions / Deletions in a Dotplot T A C T G T C A T T A C T G T T C A T Sequence 2 Sequence 1 T A C T G-T C A T | | | | | | | | | T A C T G T T C A T

12. Dotplot(Window = 130 / Stringency = 9) Hemoglobin-chain Hemoglobin -chain

13. Word Size Algorithm T A C G G T A T G A C A G T A T C Word Size = 3 C T A T G A C A T A C G G T A T G T A C G G T A T G A C A G T A T C T A C G G T A T G A C A G T A T C T A C G G T A T G A C A G T A T C 

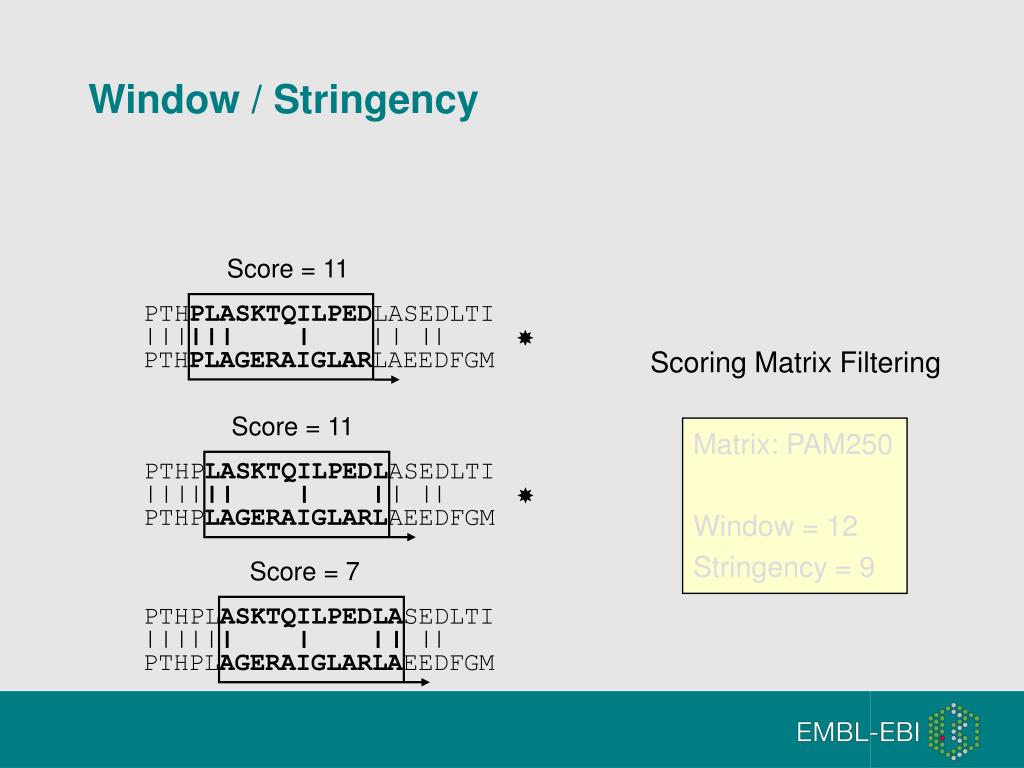

14. Window / Stringency Score = 11 PTHPLASKTQILPEDLASEDLTI  PTHPLAGERAIGLARLAEEDFGM Scoring Matrix Filtering Score = 11 Matrix: PAM250 Window = 12 Stringency = 9 PTHPLASKTQILPEDLASEDLTI  PTHPLAGERAIGLARLAEEDFGM Score = 7 PTHPLASKTQILPEDLASEDLTI PTHPLAGERAIGLARLAEEDFGM

15. Dotplot(Window = 18 / Stringency = 10) Hemoglobin-chain Hemoglobin -chain

16. Considerations • The window/stringency method is more sensitive than the wordsize • method (ambiguities are permitted). • The smaller the window, the larger the weight of statistical • (unspecific) matches. • With large windows the sensitivity for short sequences is reduced. • Insertions/deletions are not treated explicitly.

17. Alignment methods • Rigorous algorithms = Dynamic Programming • Needleman-Wunsch (global) • Smith-Waterman (local) • Heuristic algorithms (faster but approximate) • BLAST • FASTA

18. The Rocks game • N rocks, 2 piles, 2 players • Player can • Remove 1 rock from either pile • Remove 1 rock from each pile • Last to remove a rock wins • Assume 10 rocks in each pile – winning strategy?

19. Dynamic Programming

20. Basic principles of dynamic programming • - Creation of an alignment path matrix • - Stepwise calculation of score values • - Backtracking (evaluation of the optimal path)

21. Dynamic Programming • Dynamic Programming is a very general programming technique. • It is applicable when a large search space can be structured into a succession of stages, such that: • the initial stage contains trivial solutions to sub-problems • each partial solution in a later stage can be calculated by recurring a fixed number of partial solutions in an earlier stage • the final stage contains the overall solution

22. Creation of an alignment path matrix Idea:Build up an optimal alignment using previous solutions for optimal alignments of smaller subsequences • Construct matrix F indexed by i and j (one index for each sequence) • F(i,j) is the score of the best alignment between the initial segment x1...iof x up to xiand the initial segment y1...jof y up to yj • Build F(i,j) recursively beginning with F(0,0) = 0

24. Creation of an alignment path matrix • If F(i-1,j-1), F(i-1,j) and F(i,j-1) are known we can calculate F(i,j) • Three possibilities: • xiand yj are aligned, F(i,j) = F(i-1,j-1) + s(xi ,yj) • xi is aligned to a gap, F(i,j) = F(i-1,j) - d • yjis aligned to a gap, F(i,j) = F(i,j-1) - d • The best score up to (i,j) will be the largest of the three options

25. E E Backtracking H E A G A W G H E E 0 -8 -16 -24 -32 -40 -48 -56 -64 -72 -80 P -8 -2 -9 -17 -25 -33 -42 -49 -57 -65 -73 A -16 -10 -3 -4 -12 -20 -28 -36 -44 -52 -60 W -24 -18 -11 -6 -7 -15 -5 -13 -21 -29 -37 H -32 -14 -18 -13 -8 -9 -13 -7 -3 -11 -19 E -40 -22 -8 -16 -16 -9 -12 -15 -7 3 -5 A -48 -30 -16 -3 -11 -11 -12 -12 -15 -5 2 E -56 -38 -24 -11 -6 -12 -14 -15 -12 -9 1 0 -8 -16 -17 -25 -20 -5 -13 -3 3 -5 1 H - E - A P G - G - H H E E - A A A W W Optimal global alignment:

26. Global vs. Local Alignments • Global alignment algorithms start at the beginning of two sequences and add gaps to each until the end of one is reached. • Local alignment algorithms finds the region (or regions) of highest similarity between two sequences and build the alignment outward from there.

28. Global Alignment Two closely related sequences: needle (Needleman & Wunsch)creates an end-to-end alignment.

29. Global Alignment Two sequences sharing several regions of local similarity: 1 AGGATTGGAATGCTCAGAAGCAGCTAAAGCGTGTATGCAGGATTGGAATTAAAGAGGAGGTAGACCG.... 67 |||||||||||||| | | | |||| || | | | || 1 AGGATTGGAATGCTAGGCTTGATTGCCTACCTGTAGCCACATCAGAAGCACTAAAGCGTCAGCGAGACCG 70

30. Global Alignment (Needleman-Wunsch) • The the Needleman-Wunsch algorithm creates a global alignment over the length of both sequences (needle) • Global algorithms are often not effective for highly diverged sequences - do not reflect the biological reality that two sequences may only share limited regions of conserved sequence. • Sometimes two sequences may be derived from ancient recombination events where only a single functional domain is shared. • Global methods are useful when you want to force two sequences to align over their entire length

31. Local Alignment (Smith-Waterman) • Local alignment • Identify the most similar sub-region shared between two sequences • Smith-Waterman • EMBOSS: water

32. Parameters of Sequence Alignment • Scoring Systems: • Each symbol pairing is assigned a numerical value, based on a symbol comparison table. • Gap Penalties: • Opening: The cost to introduce a gap • Extension: The cost to elongate a gap

33. actaccagttcatttgatacttctcaaa taccattaccgtgttaactgaaaggacttaaagact DNA Scoring Systems -very simple Sequence 1 Sequence 2 A G C T A1 0 0 0 G 0 1 0 0 C 0 0 1 0 T 0 0 0 1 Match: 1 Mismatch: 0 Score = 5

34. Protein Scoring Systems Sequence 1 Sequence 2 PTHPLASKTQILPEDLASEDLTI PTHPLAGERAIGLARLAEEDFGM C S T P A G N D. . C 9 S -1 4 T -1 1 5 P -3 -1 -1 7 A 0 1 0 -1 4 G -3 0 -2 -2 0 6 N -3 1 0 -2 -2 0 5 D -3 0 -1 -1 -2 -1 1 6 . . C S T P A G N D. . C 9 S -1 4 T -1 1 5 P -3 -1 -1 7 A 0 1 0 -1 4 G -3 0 -2 -2 0 6 N -3 1 0 -2 -2 0 5 D -3 0 -1 -1 -2 -1 1 6 . . Scoring matrix T:G = -2 T:T = 5 Score = 48

35. Protein Scoring Systems • Amino acids have different biochemical and physical properties • that influence their relative replaceability in evolution. tiny P aliphatic C small S+S G G I A S V C N SH L D T hydrophobic Y M K E Q F W H R positive aromatic polar charged

36. Protein Scoring Systems • Scoring matrices reflect: • # of mutations to convert one to another • chemical similarity • – observed mutation frequencies • – the probability of occurrence of each amino acid • Widely used scoring matrices: • PAM • BLOSUM

37. PAM matrices • Family of matrices PAM 80, PAM 120, PAM 250 • The number with a PAM matrix represents the evolutionary distance between the sequences on which the matrix is based • Greater numbers denote greater distances

38. PAM (Percent Accepted Mutations) matrices • The numbers of replacements were used to compute a so-called • PAM-1 matrix. • The PAM-1 matrix reflects an average change of 1% of all amino • acid positions. PAM matrices for larger evolutionary distances can • be extrapolated from the PAM-1 matrix. • PAM250 = 250 mutations per 100 residues. • Greater numbers mean bigger evolutionary distance

39. PAM (Percent Accepted Mutations) matrices • Derived from global alignments of protein families . Family members • share at least 85% identity (Dayhoff et al., 1978). • Construction of phylogenetic tree and ancestral sequences of • each protein family • Computation of number of replacements for each pair of amino acids

40. C W W -8 17 PAM 250 A R N D C Q E G H I L K M F P S T W Y V B Z A 2 -2 0 0 -2 0 0 1 -1 -1 -2 -1 -1 -3 1 1 1 -6 -3 0 2 1 R -2 6 0 -1 -4 1 -1 -3 2 -2 -3 3 0 -4 0 0 -1 2 -4 -2 1 2 N 0 0 2 2 -4 1 1 0 2 -2 -3 1 -2 -3 0 1 0 -4 -2 -2 4 3 D 0 -1 2 4 -5 2 3 1 1 -2 -4 0 -3 -6 -1 0 0 -7 -4 -2 5 4 C -2 -4 -4 -5 12 -5 -5 -3 -3 -2 -6 -5 -5 -4 -3 0 -2 -8 0 -2 -3 -4 Q 0 1 1 2 -5 4 2 -1 3 -2 -2 1 -1 -5 0 -1 -1 -5 -4 -2 3 5 E 0 -1 1 3 -5 2 4 0 1 -2 -3 0 -2 -5 -1 0 0 -7 -4 -2 4 5 G 1 -3 0 1 -3 -1 0 5 -2 -3 -4 -2 -3 -5 0 1 0 -7 -5 -1 2 1 H -1 2 2 1 -3 3 1 -2 6 -2 -2 0 -2 -2 0 -1 -1 -3 0 -2 3 3 I -1 -2 -2 -2 -2 -2 -2 -3 -2 5 2 -2 2 1 -2 -1 0 -5 -1 4 -1 -1 L -2 -3 -3 -4 -6 -2 -3 -4 -2 2 6 -3 4 2 -3 -3 -2 -2 -1 2 -2 -1 K -1 3 1 0 -5 1 0 -2 0 -2 -3 5 0 -5 -1 0 0 -3 -4 -2 2 2 M -1 0 -2 -3 -5 -1 -2 -3 -2 2 4 0 6 0 -2 -2 -1 -4 -2 2 -1 0 F -3 -4 -3 -6 -4 -5 -5 -5 -2 1 2 -5 0 9 -5 -3 -3 0 7 -1 -3 -4 P 1 0 0 -1 -3 0 -1 0 0 -2 -3 -1 -2 -5 6 1 0 -6 -5 -1 1 1 S 1 0 1 0 0 -1 0 1 -1 -1 -3 0 -2 -3 1 2 1 -2 -3 -1 2 1 T 1 -1 0 0 -2 -1 0 0 -1 0 -2 0 -1 -3 0 1 3 -5 -3 0 2 1 W -6 2 -4 -7 -8 -5 -7 -7 -3 -5 -2 -3 -4 0 -6 -2 -5 17 0 -6 -4 -4 Y -3 -4 -2 -4 0 -4 -4 -5 0 -1 -1 -4 -2 7 -5 -3 -3 0 10 -2 -2 -3 V 0 -2 -2 -2 -2 -2 -2 -1 -2 4 2 -2 2 -1 -1 -1 0 -6 -2 4 0 0 B 2 1 4 5 -3 3 4 2 3 -1 -2 2 -1 -3 1 2 2 -4 -2 0 6 5 Z 1 2 3 4 -4 5 5 1 3 -1 -1 2 0 -4 1 1 1 -4 -3 0 5 6

41. PAM - limitations • Based on only one original dataset • Examines proteins with few differences (85% identity) • Based mainly on small globular proteins so the matrix is biased

42. BLOSUM matrices • Different BLOSUMn matrices are calculated independently from BLOCKS (ungapped local alignments) • BLOSUMn is based on a cluster of BLOCKS of sequences that share at least n percent identity • BLOSUM62 represents closer sequences than BLOSUM45

43. BLOSUM (Blocks Substitution Matrix) • Derived from alignments of domains of distantly related • proteins (Henikoff & Henikoff,1992). • Occurrences of each amino acid pair • in each column of each block alignment • is counted. • The numbers derived from all blocks were • used to compute the BLOSUM matrices. A A C E C A A C E C A - C = 4 A - E = 2 C - E = 2 A - A = 1 C - C = 1

44. The Blosum50 Scoring Matrix

45. BLOSUM (Blocks Substitution Matrix) • Sequences within blocks are clustered according to their level of identity. • Clusters are counted as a single sequence. • Different BLOSUM matrices differ in the percentage of sequence identity • used in clustering. • The number in the matrix name (e.g. 62 in BLOSUM62) refers to the • percentage of sequence identity used to build the matrix. • Greater numbers mean smaller evolutionary distance.

46. PAM Vs. BLOSUM PAM100 = BLOSUM90 PAM120 = BLOSUM80 PAM160 = BLOSUM60 PAM200 = BLOSUM52 PAM250 = BLOSUM45 More distant sequences • BLOSUM62 for general use • BLOSUM80 for close relations • BLOSUM45 for distant relations • PAM120 for general use • PAM60 for close relations • PAM250 for distant relations

47. TIPS on choosing a scoring matrix • Generally, BLOSUM matrices perform better than PAM matrices • for local similarity searches (Henikoff & Henikoff, 1993). • When comparing closelyrelatedproteins one should use lower • PAMor higher BLOSUM matrices, for distantlyrelatedproteins • higher PAM or lower BLOSUM matrices. • For database searching the commonly used matrix is BLOSUM62.

48. Scoring Insertions and Deletions A T G T A A T G C A T A T G T G G A A T G A A T G T - - A A T G C A T A T G T G G A A T G A insertion / deletion The creation of a gap is penalized with a negative score value.

49. Why Gap Penalties? Gaps not permitted Score: 0 1 GTGATAGACACAGACCGGTGGCATTGTGG 29 ||| | | ||| | || || | 1 GTGTCGGGAAGAGATAACTCCGATGGTTG 29 Match = 5 Mismatch = -4 Gaps allowed but not penalized Score: 88 1 GTG.ATAG.ACACAGA..CCGGT..GGCATTGTGG 29 ||| || | | | ||| || | | || || | 1 GTGTAT.GGA.AGAGATACC..TCCG..ATGGTTG 29

50. Why Gap Penalties? • The optimal alignment of two similar sequences is usually that which • maximizes the number of matches and • minimizes the number of gaps. • There is a tradeoff between these two • - adding gaps reduces mismatches • Permitting the insertion of arbitrarily many gaps can lead to high scoring alignments of non-homologous sequences. • Penalizing gaps forces alignments to have relatively few gaps.
