    1. Chapter 18 Frame Relay

    2. Figure 18-1 Frame Relay versus Pure Mesh T-Line Network

    3. Figure 18-2 Fixed-Rate versus Bursty Data

    4. Figure 18-3 X.25 Traffic

    5. Figure 18-4 Frame Relay Traffic

    6. Figure 18-5 Frame Relay Network

    7. Figure 18-6 DLCIs

    8. Figure 18-7 PVC DLCIs

    9. Figure 18-8 SVC Setup and Release

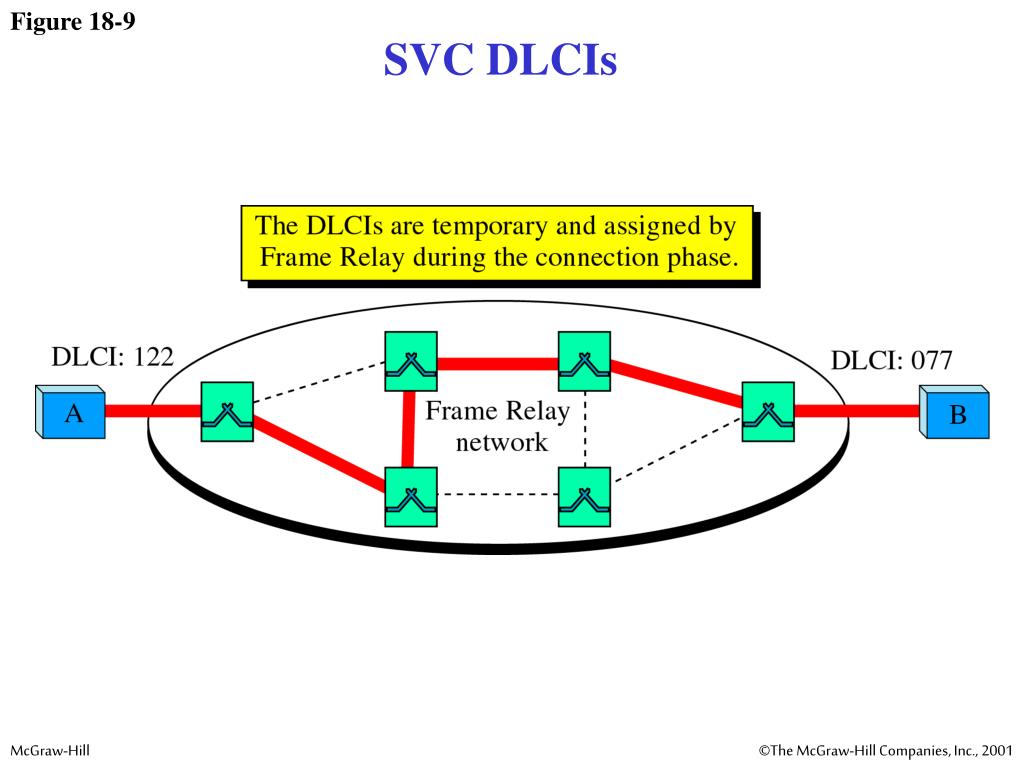

    10. Figure 18-9 SVC DLCIs

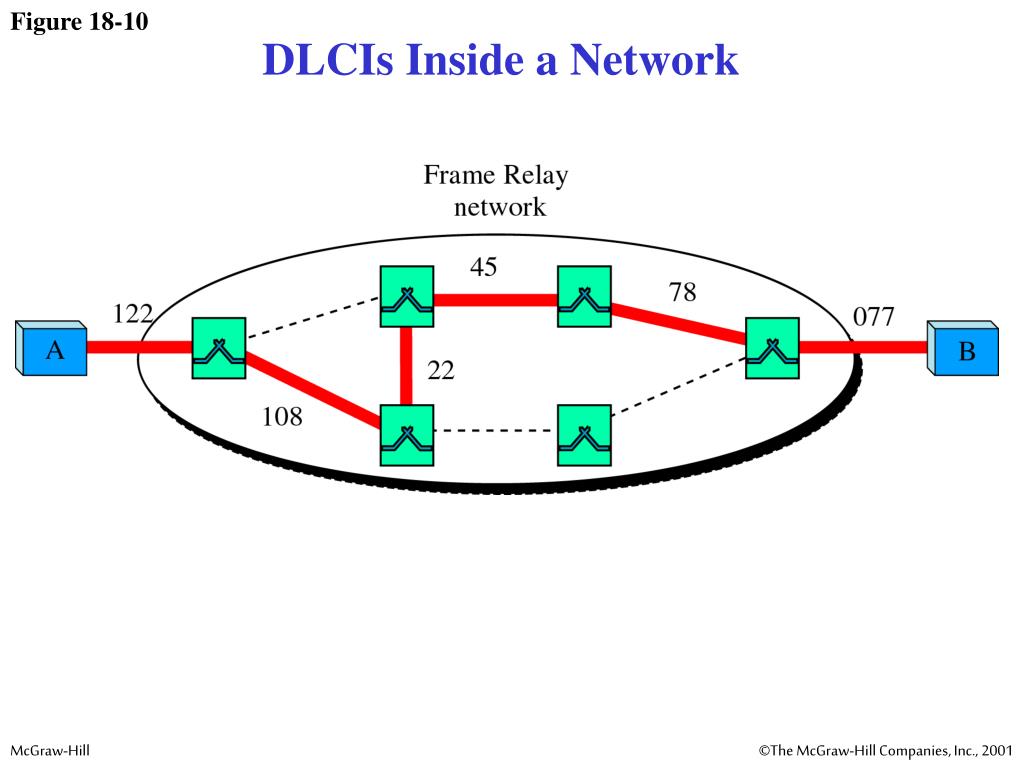

    11. Figure 18-10 DLCIs Inside a Network

    12. Figure 18-11 Frame Relay Switch

    13. Figure 18-12 Frame Relay Layers

    14. Figure 18-13 Comparing Layers in Frame Relay and X.25

    15. Figure 18-14 Frame Relay Frame

    16. Figure 18-15 BECN

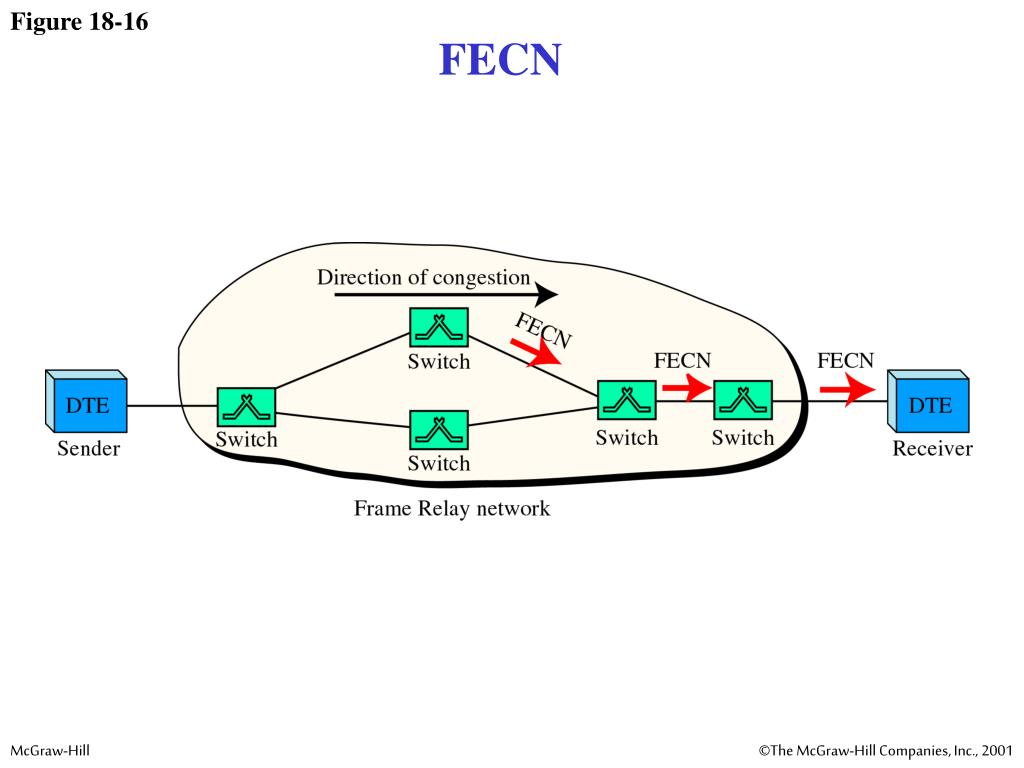

    17. Figure 18-16 FECN

    18. Figure 18-17 Four Cases of Congestion

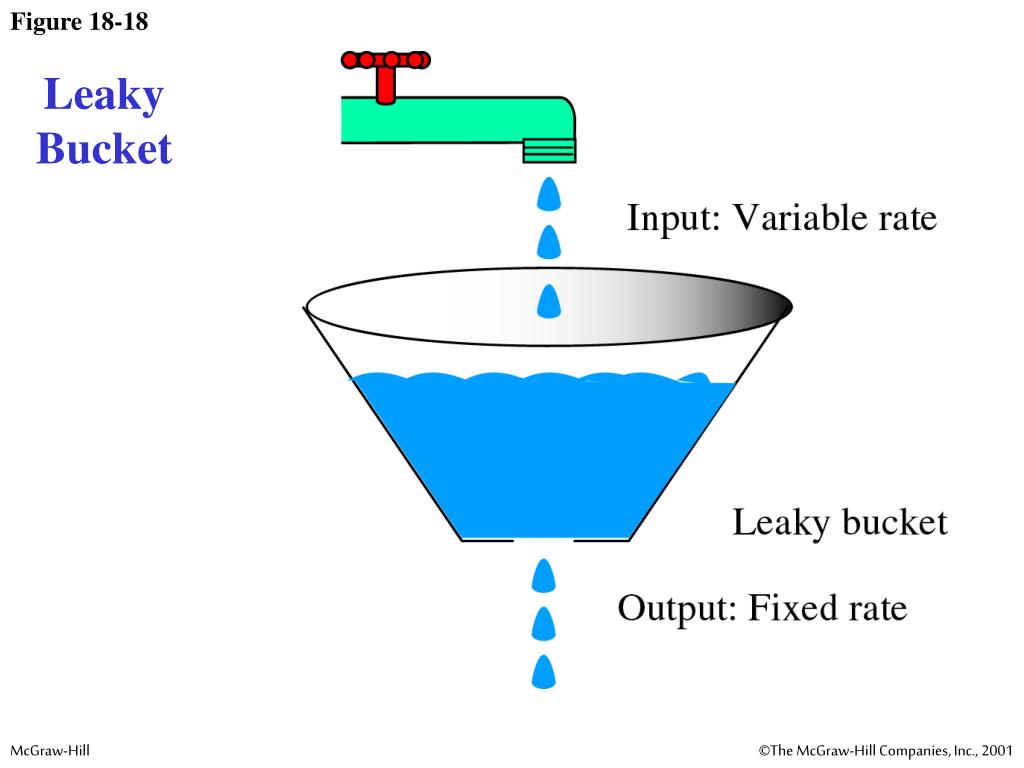

    19. Figure 18-18 Leaky Bucket

    20. Figure 18-19 A Switch Controlling the Output Rate

    21. Figure 18-20 Flowchart for Leaky Bucket Algorithm

    22. Figure 18-21 Example of Leaky Bucket Algorithm

    23. Figure 18-22 Relationship between Traffic Control Attributes

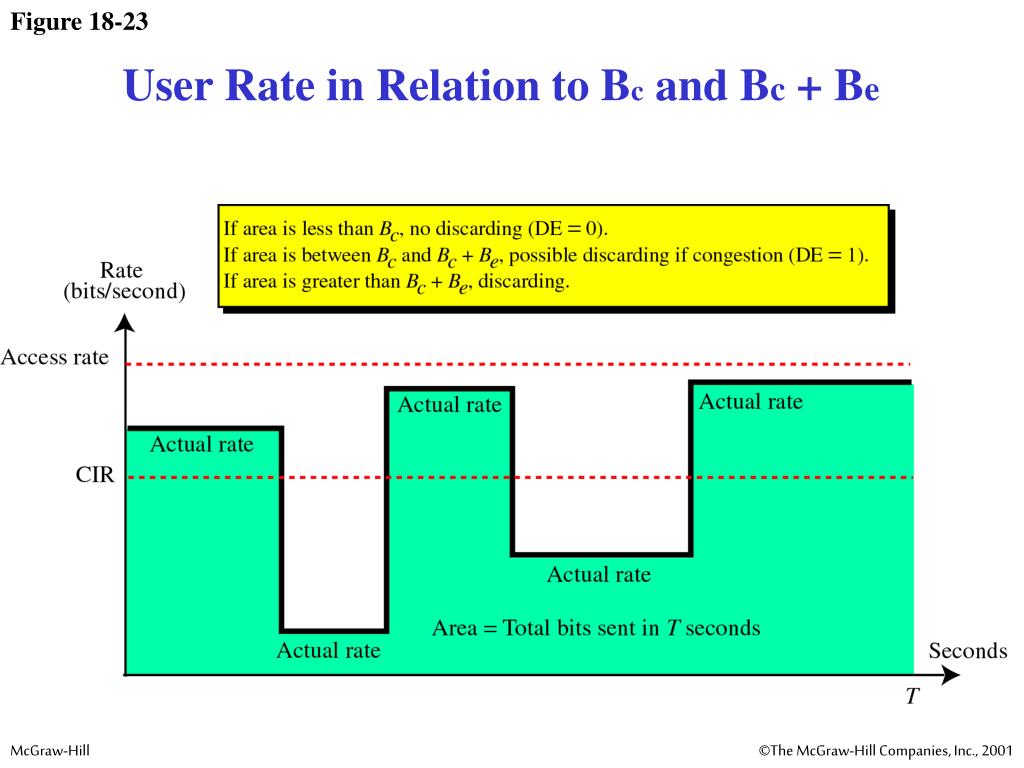

    24. Figure 18-23 User Rate in Relation to Bc and Bc + Be

    25. Figure 18-24 Three Address Formats

    26. Figure 18-25 FRAD
