  1. Binary Arithmetic

  2. Everything a computer does is based on mathematical equations • But computers can only carry out simple functions • So the equations have to worked out in terms of what the computer is capable of • Therefore very complicated functions are broken down into a step by step process by a program Why?

  3. The program executes each step (instruction) • Solutions to even relatively simple problems can take many thousands of steps • But because the computer can execute millions of instructions per second the results seem almost instantaneous • Binary arithmetic is the beating heart of every computer system Binary Arithmetic

  4. As in normal maths computer need to be able to work with negative numbers • Signed binary numbers have the MSB to indicate whether the number is positive or negative • Unsigned binary numbers are presumed to be positive • When the MSB = 1 then the number = negative • When the MSB = 0 th……………………… = positive Signed or unsigned

  5. Operand = a number upon which an arithmetic function operates (e.g. x + y = z x,y are the operands) • Augend = the number in an addition operation to which another number is added • Addend = the number in and addition operation that is added to another • Sum = the result of an addition operation • Carry = A digit that is carried over to the next most significant position if the sum of digits is too large to be expressed as a single digit Key terms for Addition

  6. 0 + 0 = 00 • 1 + 0 = 01 • 1 + 1 = 10 (110 + 110 = 210) • 1 + 1 + 1 = 11 Sum bit Carry bit Addition rules

  7. Lets apply the rules of addition

  8. 10010 = 18 • 1010 = 10 • 11100 = 16 + 8 + 4 + 0 + 0 = 28 • Now write 28 in hex • Calculate 1010011 + 11100 Check your work

  9. Difference = The result of the subtraction operation • Minuend = The number in a subtraction operation from which another number is subtracted • Subtrahend = the opposite of minuend • Borrow = a digit brought back from a more significant position when the subtrahend digit is larger than the minuend digit Binary subtraction

  10. 0 – 0 = 0 • 1 – 0 = 1 • 1 – 1 = 0 • 10 – 1 = 1 Binary Subtraction rules

  11. Lets apply the rules of binary subtraction

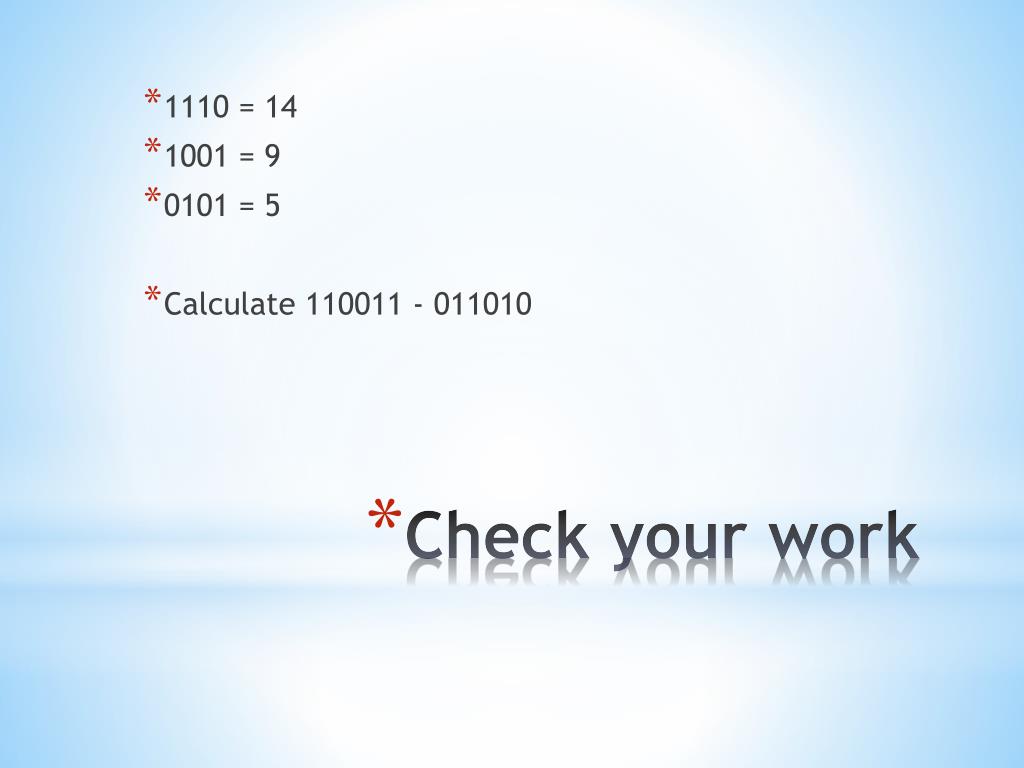

  12. 1110 = 14 • 1001 = 9 • 0101 = 5 • Calculate 110011 - 011010 Check your work
