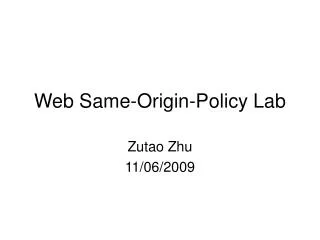

  1. Web Same-Origin-Policy Lab Zutao Zhu 11/06/2009

  2. Outline • Background • Setting • SOP

  3. Background • Document Object Model (DOM) • Cookie • XMLHttpRequest • HTML • LiveHTTPHeaders extension for Firefox

  4. DOM • The Document Object Model (DOM) is a cross-platform and language-independent convention for representing and interacting with objects in HTML, XHTML and XML documents. – from wiki

  5. Cookie • Cookies are placeholders for server-provided data in the web browser typically used to track sessions. • Eachcookie is a key-value pair such as "color=green" and may have some optional attributes. • Web applications can create a cookie in the web browser using the set-cookie header in the HTTPresponse.

  6. Cookie (cont.) • After cookies are created, web browsers attach the cookies in all the subsequent requests to theweb application. • In a JavaScript program,All the cookies in the web application can be referenced using document.cookie object. • In cookie-based session-managementschemes, web applications store the session identifier in a cookie in the web browser.

  7. Use Live HTTP Header (tools)

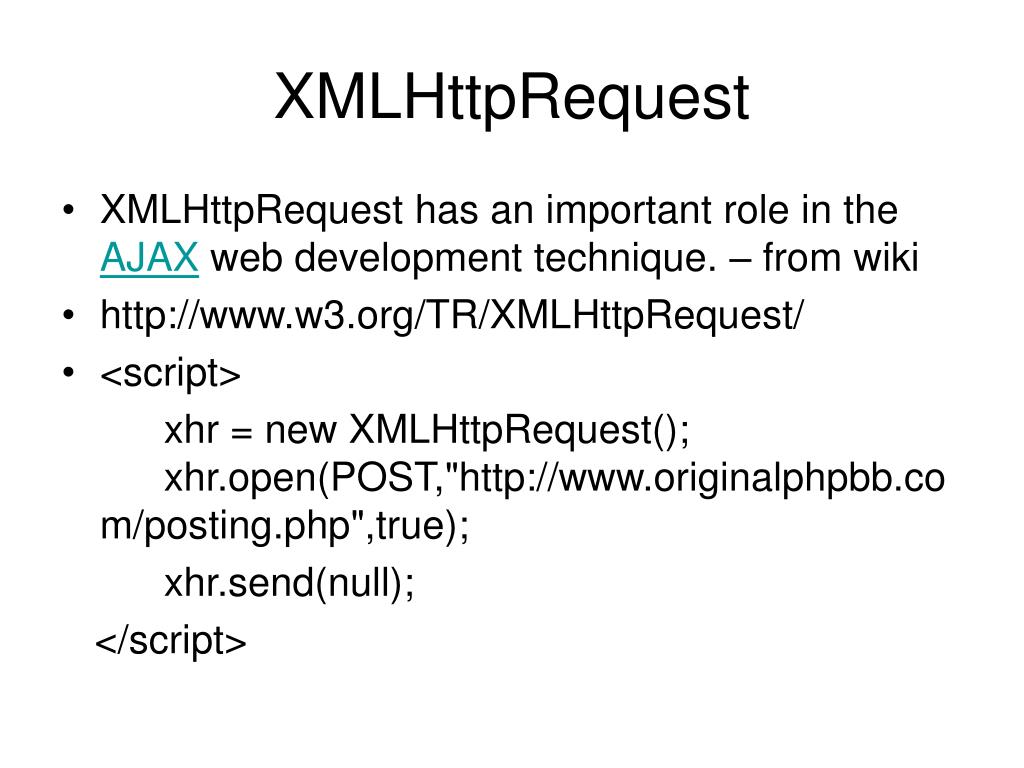

  8. XMLHttpRequest • XMLHttpRequest has an important role in the AJAX web development technique. – from wiki • http://www.w3.org/TR/XMLHttpRequest/ • <script> xhr = new XMLHttpRequest(); xhr.open(POST,"http://www.originalphpbb.com/posting.php",true); xhr.send(null); </script>

  9. HTML • http://www.w3schools.com/TAGS/tag_a.asp • frame • iframe • img • a

  10. LiveHTTPHeaders • Observe the post request • Observe the response • Observe the cookie

  11. Setting • about:config in address bar of Firefox

  12. SOP • Origin: <protocol, domain, port> • Protocol: http://, file://, ftp://, etc. • Domain: microsoft.com, google.com, etc. • Port: 80, 8080, 21, 3128, etc. • The SOP identifies each web site using its origin, and creates a context for each origin. • For each origin, the webbrowser creates a context and stores the resources of the web application from the origin in the context. • JavaScript programs from one origin are not allowed to access resources from another origin.

  13. Examples • checks against the URL "http://www.example.com/dir/page.html". -- from wiki

  14. Resources for SOP • Cookie • History • URL • Contents • Etc.

  15. URL • When in URL bar, I input some cross domain web page, can you use “forward” and “backward”? • Is the URL showing?

  16. Tags do not honor SOP • Find out by yourself!

  17. Reference • http://wikipedia.org/ • http://www.w3.org/TR/2008/WD-XMLHttpRequest2-20080930/ • http://getfirebug.com/
