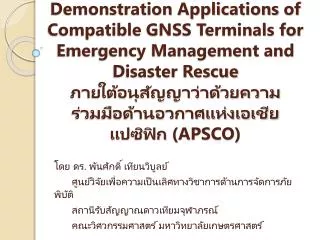

  1. ภาพรวมของโครงการ Development and Demonstration Applications of Compatible GNSS Terminals for Emergency Management and Disaster Rescueภายใต้อนุสัญญาว่าด้วยความร่วมมือด้านอวกาศแห่งเอเชียแปซิฟิก (APSCO) โดย ดร. พันศักดิ์ เทียนวิบูลย์ ศูนย์วิจัยเพื่อความเป็นเลิศทางวิชาการด้านการจัดการภัยพิบัติ สถานีรับสัญญาณดาวเทียมจุฬาภรณ์ คณะวิศวกรรมศาสตร์ มหาวิทยาลัยเกษตรศาสตร์

  2. เนื้อหาการนำเสนอ • ภาพรวมของโครงการ • แนวทางการดำเนินการของโครงการ • สถานะของโครงการ • รายละเอียดของโครงการ • รายละเอียดการเข้าร่วมโครงการ • ผลประโยชน์ที่จะได้จากการเข้าร่วมโครงการ

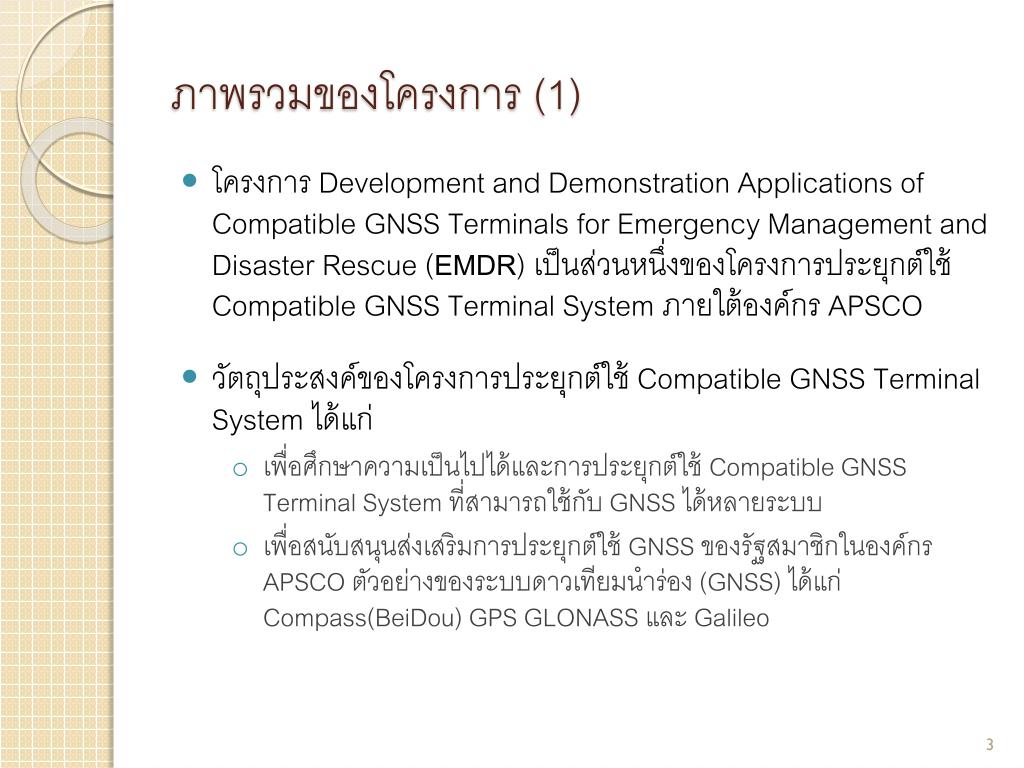

  3. ภาพรวมของโครงการ (1) • โครงการ Development and Demonstration Applications of Compatible GNSS Terminals for Emergency Management and Disaster Rescue (EMDR) เป็นส่วนหนึ่งของโครงการประยุกต์ใช้Compatible GNSS Terminal System ภายใต้องค์กร APSCO • วัตถุประสงค์ของโครงการประยุกต์ใช้ Compatible GNSS Terminal System ได้แก่ • เพื่อศึกษาความเป็นไปได้และการประยุกต์ใช้ Compatible GNSS Terminal System ที่สามารถใช้กับ GNSS ได้หลายระบบ • เพื่อสนับสนุนส่งเสริมการประยุกต์ใช้ GNSS ของรัฐสมาชิกในองค์กร APSCO ตัวอย่างของระบบดาวเทียมนำร่อง (GNSS) ได้แก่ Compass(BeiDou) GPS GLONASS และ Galileo

  4. ภาพรวมของโครงการ (2) • วัตถุประสงค์ของโครงการ EMDR • พัฒนา Series ของ Terminals สำหรับ Disaster and Emergency Management บนพื้นฐานของการใช้ GNSS หลายระบบ • ดำเนินการสาธิตการประยุกต์ใช้Terminals เพื่อตรวจสอบ Functionality • ส่งเสริมการฝึกอบรมบุคลากรและเทคโนโลยี การแลกเปลี่ยนทางอุตสาหกรรมและวัฒนธรรมระหว่างรัฐสมาชิกในองค์กร APSCO ประเทศในภูมิภาคเอเชียตะวันออกเฉียงใต้ และประเทศในภูมิภาคเอเชีย-แปซิฟิก • ผลักดันผลประโยชน์ทางเศรษฐกิจและสังคมอย่างมีนัยยะสำคัญสำหรับรัฐสมาชิกในองค์กร APSCO และคุณภาพชีวิตของผู้คนในประเทศเหล่านี้

  5. ภาพรวมของโครงการ (3) • โครงการนี้มีแผนที่จะ • พัฒนา Series ของ Compatible GNSS based Terminals สำหรับ Disaster Mitigation and Emergency Management หรือ DMEMTerminals ได้แก่ • Terminals สำหรับ Emergency Management and Disaster Rescue (EMDR) • Terminals สำหรับ Maritime Vessels Distress Alarm with Search and Rescue (MVDASR) • Terminals สำหรับ Ocean Disaster Information Collection Terminal based on the Buoy (ODIC) • สร้าง Application Demonstration Systems สำหรับ Terminals และส่งเสริมความสำเร็จในการประยุกต์ใช้ในระดับภูมิภาค • ยกระดับความสามารถและเทคโนโลยีในการตอบสนองต่อภัยพิบัติในระดับภูมิภาค

  6. แนวทางการดำเนินการของโครงการ (1) • การวิจัยรูปแบบการประยุกต์ใช้ Compatible GNSS Terminals สำหรับ Emergency Management and Disaster Rescue ในระดับภูมิภาคบนพื้นฐานของการใช้ GNSS หลายระบบ • โดยมุ่งเน้นที่พื้นที่ของรัฐสมาชิกในองค์กร APSCO และพื้นที่ใกล้เคียง • ทำการวิจัยการประยุกต์ใช้ Compatible GNSS Terminals สำหรับการจัดการภาวะฉุกเฉินและการวิเคราะห์สภาพแวดล้อมในระดับภูมิภาคของการช่วยเหลือในภัยพิบัติ โดยการผสมผสานทรัพยากรทางบุคลากรและเทคโนโลยีของหน่วยงานในสาขาต่างๆ เข้าด้วยกัน • ค้นหารูปแบบการประยุกต์ใช้อย่างกว้างขวางและเหมาะสมของ Compatible GNSS Terminals ในการจัดการภาวะฉุกเฉินและการช่วยเหลือในภัยพิบัติในระดับภูมิภาค

  7. DMEM terminals EMDR terminals MVDASR terminals ODIC terminals Phase I แนวทางการดำเนินการของโครงการ (2) • การออกแบบและพัฒนา Terminals สำหรับ Emergency Management and Disaster Rescue • ออกแบบและพัฒนา Series ของ Compatible GNSS based Terminals บนพื้นฐานของผลการวิจัยรูปแบบการประยุกต์ใช้และการพิจารณาสถานะการพัฒนาระบบ GNSS และความต้องการในการปรยุกต์ใช้งาน • ใน Phase แรกของโครงการนี้จะเป็นการพัฒนา Terminals สำหรับ EMDR

  8. แนวทางการดำเนินการของโครงการ (3) • การออกแบบและพัฒนา Terminals สำหรับ Emergency Management and Disaster Rescue (ต่อ) • สำหรับการพัฒนาในส่วนของ EMDR กุญแจสำคัญทางเทคโนโลยีที่จะถูกดำเนินการได้แก่ • multi-level emergency communications security technology, • emergency navigation terminal technology in complex environment, • emergency rescue personnel monitoring and dispatching technology and disaster rescue route guidance technology, • comprehensive application technology of image-based and vector-based maps for disaster reduction, • interface protocols between mobile EMDR terminals and the disaster reduction applications, • application modes of EMDR in variety of environment, • miniaturization and low-power design for EMDR terminals, • integrated collection and reporting technology of on-site information, and etc.

  9. แนวทางการดำเนินการของโครงการ (4) • การออกแบบและพัฒนา Terminals สำหรับ Emergency Management and Disaster Rescue (ต่อ) • EMDRควรจะมี Function พื้นฐานและ Function เสริม ดังต่อไปนี้ • compatible GNSS satellite positioning and navigation function, • embedded GIS function ( supporting raster and vector map data), • UMTS/GPRS communications and data transmission function, • on-site surveys and disaster information collection capabilities, • disaster emergency command and dispatch capabilities for disaster relief, delivery and emergency rescue, • one-key alarm function to send alarm to the Alarm Center,

  10. แนวทางการดำเนินการของโครงการ (5) • การออกแบบและพัฒนา Terminals สำหรับ Emergency Management and Disaster Rescue (ต่อ) • Function หลักของ EMDRTerminals ได้แก่ • Disaster information collection function ได้แก่ การรวบรวมข้อมูลในรูปแบบต่างๆ เช่น ภาพ เสียง วีดีโอ ฯลฯ โดยใช้ embedded GIS module และส่งข้อมูลภัยพิบัติไปยังศูนย์บัญชาการโดยใช้เครือข่ายมือถือ (UMTS/GPRS network) • Disaster emergency command and dispatch function ได้แก่ การจัดหาข้อมูล route query,dynamic route plan และ real-time positioning and navigation และส่งข้อมูลฉุกเฉินไปยังศูนย์บัญชาการ เพื่อศูนย์บรรเทาภัยพิบัติฉุกเฉินสามารถหาที่ตั้งของทีมช่วยเหลือได้ในรูปแบบ real-time และบรรลุถึง on-site dual-way interaction ระหว่างสถานที่ที่เกิดภัยพิบัติและศูนย์บัญชาการเพื่อให้เกิดประสิทธิภาพต่อการออกคำสั่งและการ dispatch เพื่อบรรเทาภัยพิบัติ

  11. GNSS BD Service Center for Intelligent Navigation, Search & Rescue Communication facilities Location, rescue Public information platform for location-based services Scheduling, warning, service information Integrated monitoring & management center Rescue dispatch service platform แนวทางการดำเนินการของโครงการ (6) • การออกแบบและพัฒนา Terminals สำหรับ Emergency Management and Disaster Rescue (ต่อ) • System Architecture Digital disaster mitigation and emergency management system architecture

  12. Multimedia data acquisition Satellite setting Satellite position Satellite navigation Location data selection Attribute data editing Data input and output Data display and review Data editing Spatial analysis and query GSM/GPRS function Service setting Communi-cation function Data transfer-ring Embedded GIS function Satellite position function Mobile communication function Mobile data collection function Emergency rescue system handset software Emergency project management function Online data communication function Raster files Vector files Other files แนวทางการดำเนินการของโครงการ (7) • Embedded Software System ใน EMDR Terminal ประกอบด้วย (1) GIS modules(2) Satellite Positioning and Navigation Modules (3) Mobile Communication Module (4) Data Modules (5) Application Modules EMDR Software System

  13. แนวทางการดำเนินการของโครงการ (8) • โครงสร้างของระบบสำหรับ EMDR Terminals ที่จะถูกออกแบบและพัฒนาในโครงการนี้ประกอบไปด้วย EMDR Terminals และ Communication Server รูปที่แสดงไม่เกี่ยวกับอุปกรณ์ของจริง โครงสร้างของระบบที่ใช้กับ EMDR Terminals การเชื่อมต่อสัญญาณ ระหว่าง EMDR Terminals และ Communication Server นั้นจะถูกดำเนิน การผ่านโครงข่ายของระบบ โทรศัพท์มือถือ (Mobile Network) ซึ่งโครงข่าย นี้ไม่ได้เป็นส่วนหนึ่งของ การออกแบบระบบใน โครงการนี้ EMDR Terminals Communication Server

  14. GPS Compass (BeiDou) High-Level Mobile Network Low-Level Position Data Hierarchy Monitor Center Terminals แนวทางการดำเนินการของโครงการ (9) • การสร้าง Application Demonstration Systemsสำหรับ Emergency Management and Disaster Rescue • ระบบจะถูกสาธิตในสถานที่ที่มีภัยพิบัติร้ายแรงทางธรรมชาติโดยเลือกจากรัฐสมาชิกฯ ที่เข้าร่วมโครงการ • EMDR Application Demonstration System จะประกอบด้วย Hierarchy Monitor Center โดยใช้ Public Service Platform และ EMDR Terminals Application Demonstration System

  15. แนวทางการดำเนินการของโครงการ (10) • การส่งเสริมและการฝึกอบรมการประยุกต์ใช้ในด้าน Emergency Management and Disaster Rescue • มีการจัดกิจกรรม EMDR Application Demonstration และ Technology Communication • มีการจัดให้มีกลไกความร่วมมือในระดับ Bilateral หรือ Multilateral ภารใต้องค์กร APSCO • มีการจัดหลักสูตรฝึกอบรมทางด้านเทคโนโลยีและการประยุกต์ใช้ GNSS(โดยเฉพาะในส่วนของ EMDR) สำหรับนักวิจัยและวิศวกรของรัฐสมาชิกฯ ที่เกี่ยวข้องกับ GNSS เพื่อส่งเสริมความสามารถทางเทคโนโลยีและการประยุกต์ใช้ GNSS ขององค์กรAPSCO

  16. แนวทางการดำเนินการของโครงการ (11) • Main Technical Indicator ของ Terminal • Support short message communication of Compass; • Output GNSS data format :NMEA0183,RTCM input; • Positioning accuracy: • GPS Single-point positioning: <6m • RTCM-IN: <1m • Carrier post-processing: <0.5m • Support overlay of raster and vector map data; • Positioning accuracy for rescue: • < 2km (rescuing signal using only local user terminals(LUT)without any navigation information); • for most areas: horizontal <20m; velocity accuracy:0.1m/s • for key areas: horizontal <10m(using GNSS receiver such as Compass ); • Positioning probability: 99%(confidence level:95%)

  17. แนวทางการดำเนินการของโครงการ (12) • Main Technical Indicator ของ Terminal (ต่อ) • Real-time performance of searching and rescuing: responding time for search and rescue of local user terminal is less than 5 minutes; • Cold start < 1s; hot start < 35s; • Temperature of working environment: -10℃~ +55℃; environment humidity: 95% without condensation; • IP65 standard, resist drop impact of 1.5m; • Oil and long-time Isolation proof; • Power supply: lithium battery, > 2500mAh , >10 hours (standard mode); • Mean time between faults (MTBF) ≥5000 hours, mean time to repair (MTTR) ≤0.5 hours; • MiniSD support (size ≥1G).

  18. สถานะของโครงการ • สถานะของโครงการ: การดำเนินงานในระยะที่ 1 (Phase I)EMDR Terminals • ประเทศผู้นำโครงการ: สาธารณรัฐประชาชนจีน • ประเทศที่เข้าร่วมโครงการ: สาธารณรัฐอิสลามปากีสถาน สาธารณรัฐอิสลามอิหร่าน สาธารณรัฐประชาชนบังคลาเทศ และ ประเทศไทย • เวลาในการดำเนินการในระยะที่ 1: 783 วัน • จำนวนงบประมาณทั้งหมดในระยะที่ 1: 0.92 million USD (ได้รวมงบประมาณสำหรับค่าบริหารโครงการจำนวน 50,000 USD ของ APSCO แล้ว)

  19. รายละเอียดของโครงการ (1) • โครงสร้างการแบ่งงานในรูปแบบ Work Packages (Work Breakdown Structure) ของโครงการนี้ • รัฐสมาชิกฯ ทุกประเทศที่เข้าร่วมจะมีส่วนร่วมในงานส่วนของการสาธิต (WP5000) และการฝึกอบรม (WP6000)

  20. รายละเอียดของโครงการ (2) • โครงสร้างของงานวิศวกรรมระบบ

  21. รายละเอียดของโครงการ (3) • โครงสร้างของงาน Terminal R&D

  22. รายละเอียดของโครงการ (4) • รายละเอียดของ Work Packages • WP1000 Project Management • WP1100 Project Control: Project Control and Coordination • Project Planning, Project Monitoring, Project Scheduling Management, Project Quality Management, Project Cost Management, Project Resources Management, Project Change Management, Project Communication Management, Project Risk Management, Project Overviews • WP1200 Meeting and Reviews • Organize technical and administrative meetings • Technical meetings, Administrative meetings • Reviews for project milestones and vital achievements • Terminal developed, Software developed, Application demonstration, Project mid-term review, Project eventual period review

  23. รายละเอียดของโครงการ (5) • รายละเอียดของ Work Packages (ต่อ) • WP2000 System Engineering • WP2100 System Requirement • WP2110 Terminal Requirement Analysis • Terminal requirement investigation for disaster rescue in Asia/Pacific region and local area • Terminal relevant technologies needed in Disaster and Emergency Management (DEM), global and local situation of DEM and emergent requirements of terminal tech in DEM (by China), • Present situation of DEM and terminal technology requirement analysis for DEM in Pakistan/Iran/Bangladesh/Thailand • Terminal requirement analysis, including technical and business aspects • Specific terminal requirement and application business aspects analysis for disaster and emergency of different types in China/Pakistan/Iran/Bangladesh/Thailand

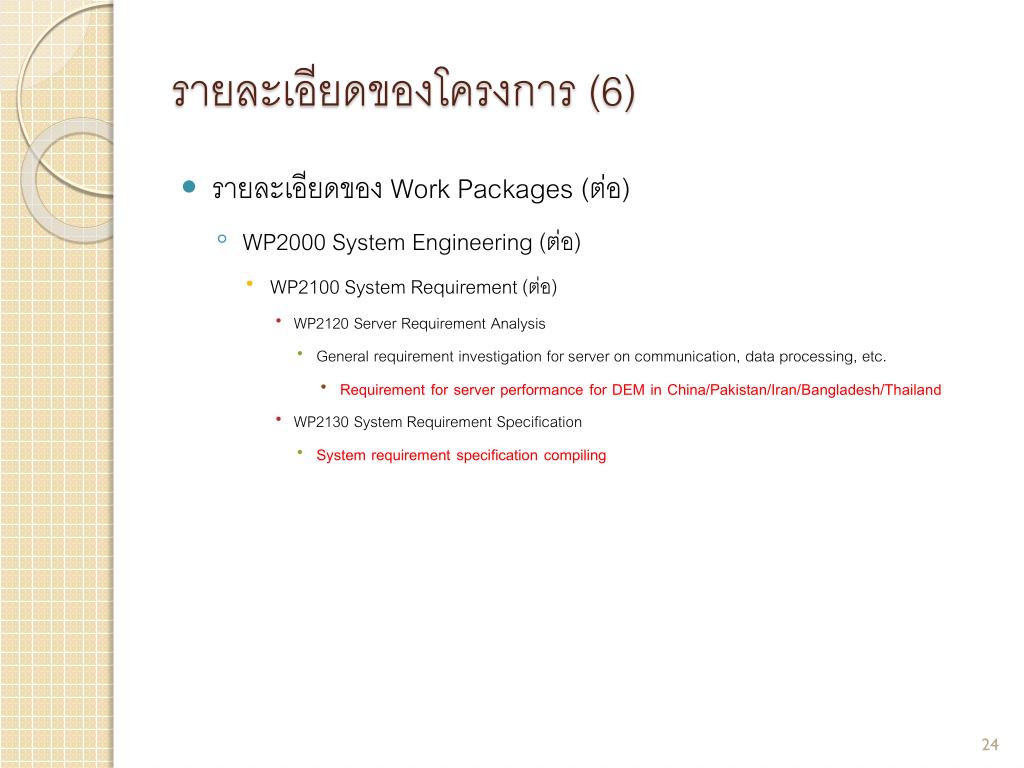

  24. รายละเอียดของโครงการ (6) • รายละเอียดของ Work Packages (ต่อ) • WP2000 System Engineering (ต่อ) • WP2100 System Requirement (ต่อ) • WP2120 Server Requirement Analysis • General requirement investigation for server on communication, data processing, etc. • Requirement for server performance for DEM in China/Pakistan/Iran/Bangladesh/Thailand • WP2130 System Requirement Specification • System requirement specification compiling

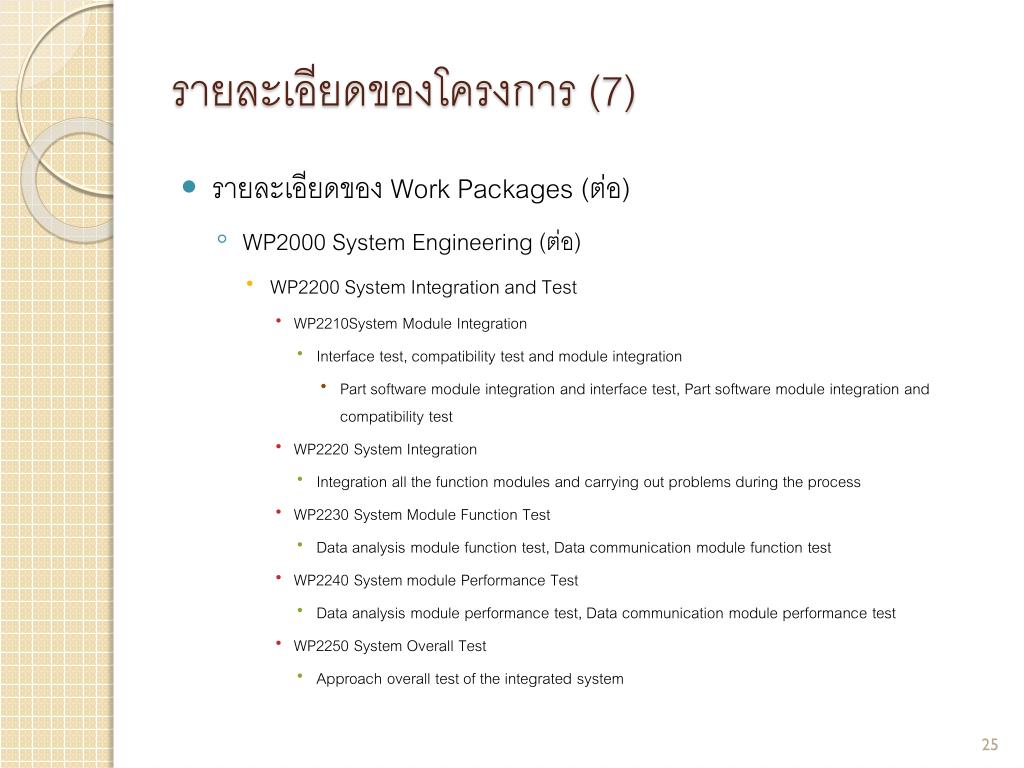

  25. รายละเอียดของโครงการ (7) • รายละเอียดของ Work Packages (ต่อ) • WP2000 System Engineering (ต่อ) • WP2200 System Integration and Test • WP2210System Module Integration • Interface test, compatibility test and module integration • Part software module integration and interface test, Part software module integration and compatibility test • WP2220 System Integration • Integration all the function modules and carrying out problems during the process • WP2230 System Module Function Test • Data analysis module function test, Data communication module function test • WP2240 System module Performance Test • Data analysis module performance test, Data communication module performance test • WP2250 System Overall Test • Approach overall test of the integrated system

  26. รายละเอียดของโครงการ (8) • รายละเอียดของ Work Packages (ต่อ) • WP2000 System Engineering (ต่อ) • WP2300 Interface Control and Coordinate • WP2310 System Module Interface Definition • Part function module interface definition of data analysis and interface definition of data communication module (by China) • Part function module interface definition of data analysis (by Pakistan/Iran/Bangladesh/Thailand) • WP2320 System Final Interface Define Specification • WP2330 Interface Coordinate

  27. รายละเอียดของโครงการ (9) • รายละเอียดของ Work Packages (ต่อ) • WP3000 Terminal R&D • WP3100 Software design and development • WP3110 Software function design • Login function design, including authorization setting and methods for using logging in • Group (which means those participate in disaster rescue) information management function design • Task information management function design • Fundamental map (revealing and manipulation) function design • Spatial information analysis (buffer search, spatial statistics, route analysis, etc.) function design • Data collecting function design • Data transportation function design • Scheduling function design

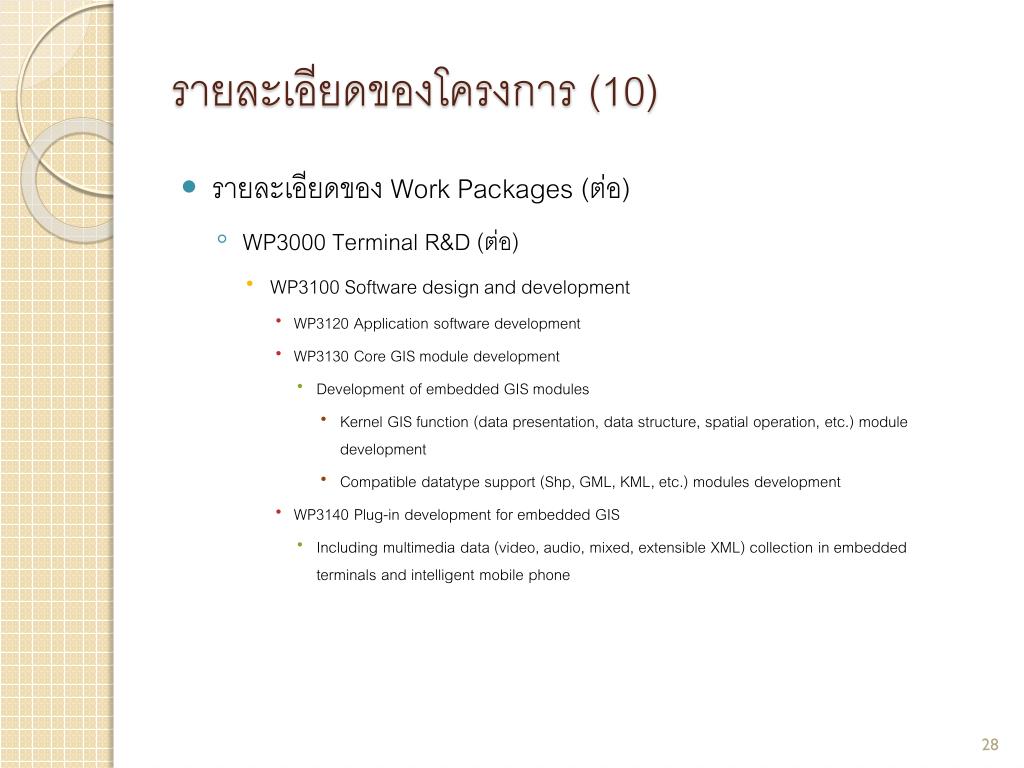

  28. รายละเอียดของโครงการ (10) • รายละเอียดของ Work Packages (ต่อ) • WP3000 Terminal R&D (ต่อ) • WP3100 Software design and development • WP3120 Application software development • WP3130 Core GIS module development • Development of embedded GIS modules • Kernel GIS function (data presentation, data structure, spatial operation, etc.) module development • Compatible datatype support (Shp, GML, KML, etc.) modules development • WP3140 Plug-in development for embedded GIS • Including multimedia data (video, audio, mixed, extensible XML) collection in embedded terminals and intelligent mobile phone

  29. รายละเอียดของโครงการ (11) • รายละเอียดของ Work Packages (ต่อ) • WP3000 Terminal R&D (ต่อ) • WP3200 Hardware design and development • WP3210 Industrial design • WP3220 PCB design and development • WP3230 Prototype terminal test and production • WP3300 Unit test • WP3310 Software test • WP3320 Hardware test • WP3330 Integration test • WP4000 Communication Server • WP4100 Software Design and Development • WP4200 Hardware Design and Development • WP4300 Unit Test

  30. รายละเอียดของโครงการ (12) • รายละเอียดของ Work Packages (ต่อ) • WP5000 Demonstration • WP5100 Scenario Define • Simulation scenario setting , including disaster types, happening place/time/area, level, components of participants, etc. • Real scenario (which means most information of the accident are unknown), aiming to demonstrate the availability of project results • WP5200 Demonstration Liaison • WP5300 Demonstration Deployment • Server deployment, Software deployment, Participant setting, Terminals deployment (China will attend all works in all countries while others just in their own county) • WP5400 Result Assessment • Disaster management and rescue result assessment, System efficiency assessment, System deficiency assessment, Loss assessment • WP5500 Market Development Plan

  31. รายละเอียดของโครงการ (13) • รายละเอียดของ Work Packages (ต่อ) • WP6000 Training • WP6100 Technical Training • WP6200 Operation Training

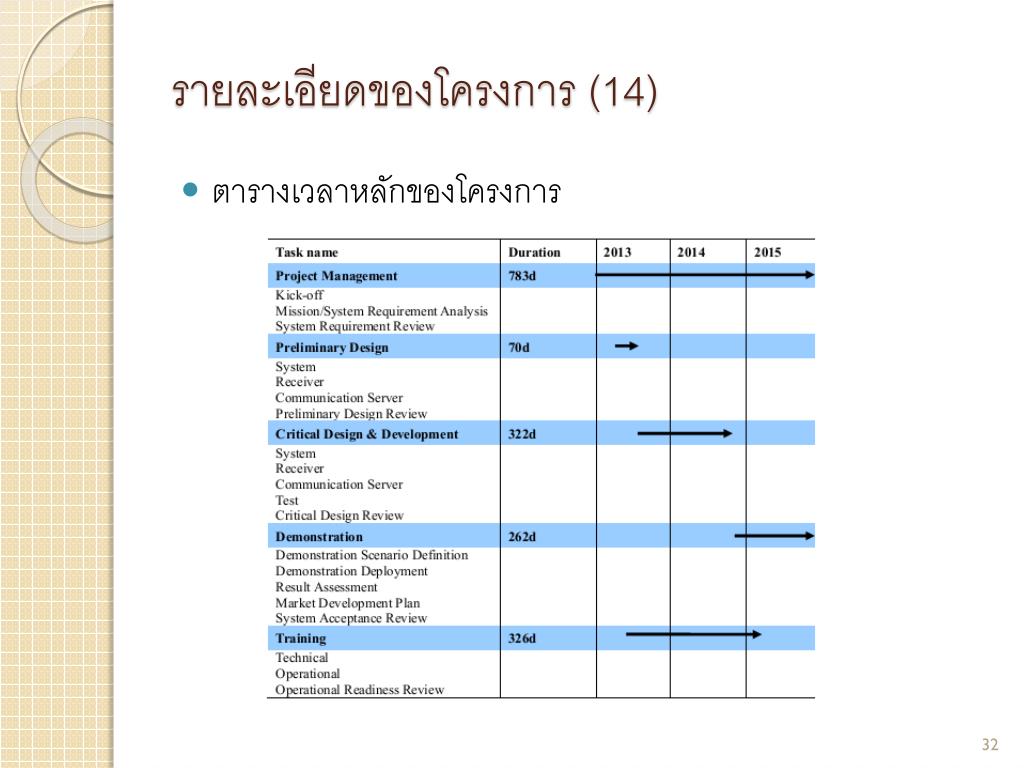

  32. รายละเอียดของโครงการ (14) • ตารางเวลาหลักของโครงการ

  33. รายละเอียดของโครงการ (15) • รายละเอียดการดำเนินการของโครงการ

  34. รายละเอียดการเข้าร่วมโครงการ (1) • ได้มีการพิจารณาในเบื้องต้นสำหรับการแบ่งงานและความรับผิดชอบของรัฐสมาชิกฯ ที่เข้าร่วมโครงการ ดังนี้

  35. รายละเอียดการเข้าร่วมโครงการ (2)

  36. รายละเอียดการเข้าร่วมโครงการ (3) • ในรายละเอียดของ Work Packages ประเทศไทยได้ถูกจัดให้เข้าร่วมในส่วนงานดังต่อไปนี้ • งานบริหารจัดการโครงการ (WP1000, WP1100 และ WP 1200) • งานวิศวกรรมระบบในส่วนของความต้องการของระบบและในส่วนของการประสานงานและควบคุมการ Interface(WP2000, WP2100, WP2110, WP2120, WP2130, WP2300, WP2310 และ WP2330) • งานสาธิตการประยุกต์ใช้งาน (WP5000, WP5100, WP5200, WP5300, WP5400 และ WP5500) • งานฝึกอบรม (WP6000 และ WP6200) • อย่างไรก็ตามยังมีความเป็นไปได้ที่ประเทศไทยสามารถเข้าร่วมในส่วนงาน (Work Packages) อื่นๆ นอกเหนือจากที่กำหนดไว้ข้างต้น แต่จะต้องตัดสินใจก่อนการประชุม Programme Management Board (PMB) ในวันที่ 17-19 มกราคม พ.ศ. 2556

  37. ผลประโยชน์ที่จะได้จากการเข้าร่วมโครงการ(1)ผลประโยชน์ที่จะได้จากการเข้าร่วมโครงการ(1) • ส่งเสริมและพัฒนาความรู้ ประสบการณ์ และความสามารถของบุคลากรภายในประเทศ จากการเข้าไปมีส่วนร่วมในส่วนงานต่างๆ ของโครงการ • ส่งเสริมและพัฒนาการประยุกต์ใช้เทคโนโลยีดาวเทียมนำร่อง (GNSS) และระบบภูมิสารสนเทศ (GIS) ภายในประเทศ • ส่งเสริมและพัฒนาระบบการจัดการภาวะฉุกเฉินและช่วยเหลือภัยพิบัติภายในประเทศ • ส่งเสริมและพัฒนาความสัมพันธ์ระหว่างประเทศกับประเทศสมาชิก APSCO โดยเฉพาะกับประเทศสาธารณรัฐประชาชนจีนซึ่งเป็นประเทศผู้นำโครงการ

  38. ผลประโยชน์ที่จะได้จากการเข้าร่วมโครงการ(2)ผลประโยชน์ที่จะได้จากการเข้าร่วมโครงการ(2) • หากระบบที่พัฒนาในโครงการประสบความสำเร็จในการนำมาใช้งาน • ทาง APSCO อาจจัดทำการผลิตโดยการจ้างบริษัทหรือองค์กรที่เหมาะสม • หากประเทศไทยมีความสนใจก็สามารถจัดหาได้ โดยที่จะได้ระบบที่ตรงกับความต้องการ (เนื่องจากมีส่วนร่วมในการกำหนดความต้องการระบบ) และมีราคาที่เหมาะสม (เนื่องจากประเทศไทยเป็นหนึ่งในรัฐสมาชิกฯ ที่เข้าร่วมโครงการของ APSCO) • นอกจากนี้ผลกำไรการจากขายระบบก็จะมีการแบ่งปันในรัฐสมาชิกฯ ที่เข้าร่วมโครงการตามสัดส่วนของค่าใช้จ่ายในการสนับสนุนโครงการ
