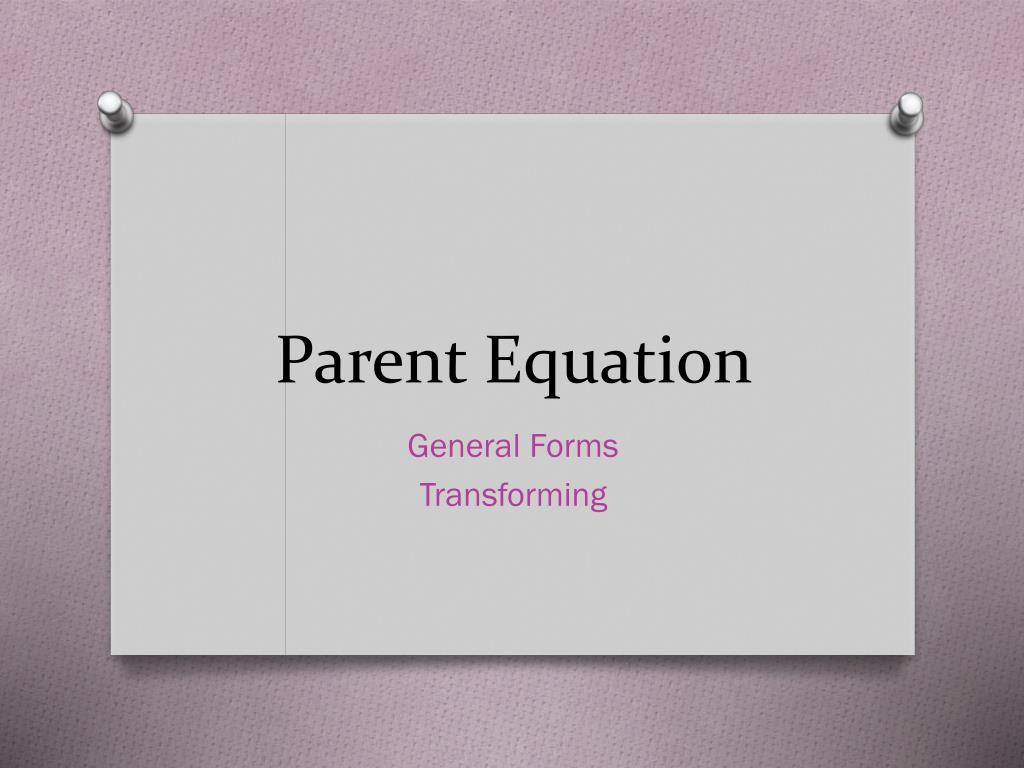

  1. Parent Equation General Forms Transforming

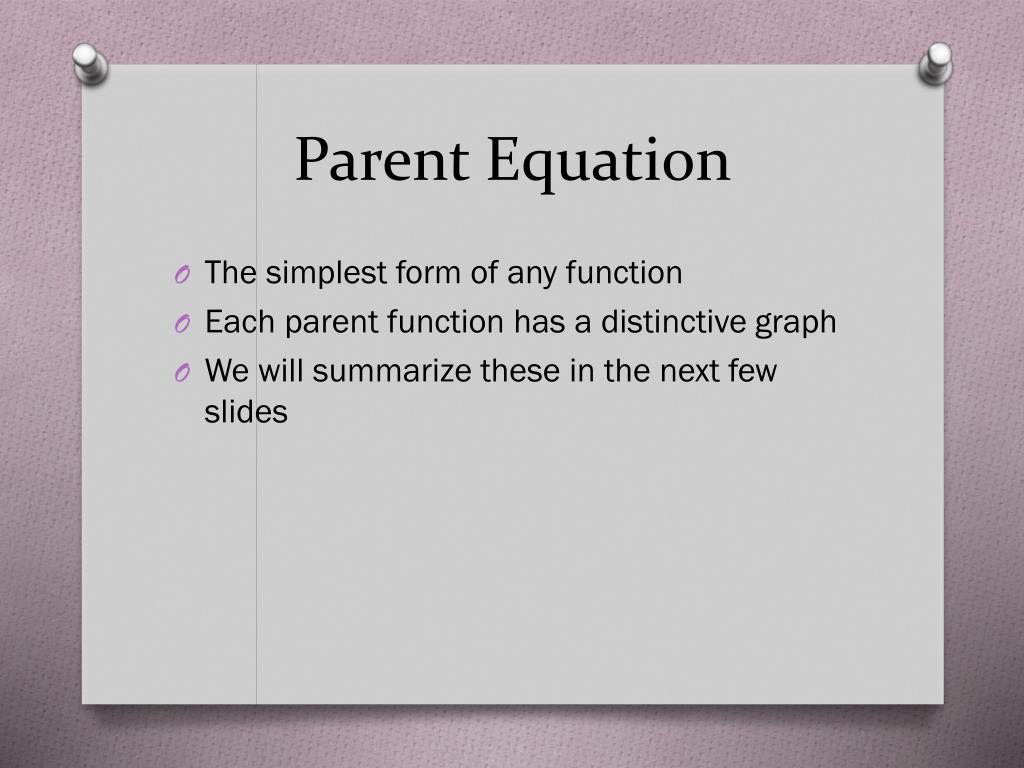

  2. Parent Equation • The simplest form of any function • Each parent function has a distinctive graph • We will summarize these in the next few slides

  3. Constant • f(x)=a; where a is any number

  4. Linear • f(x)=x

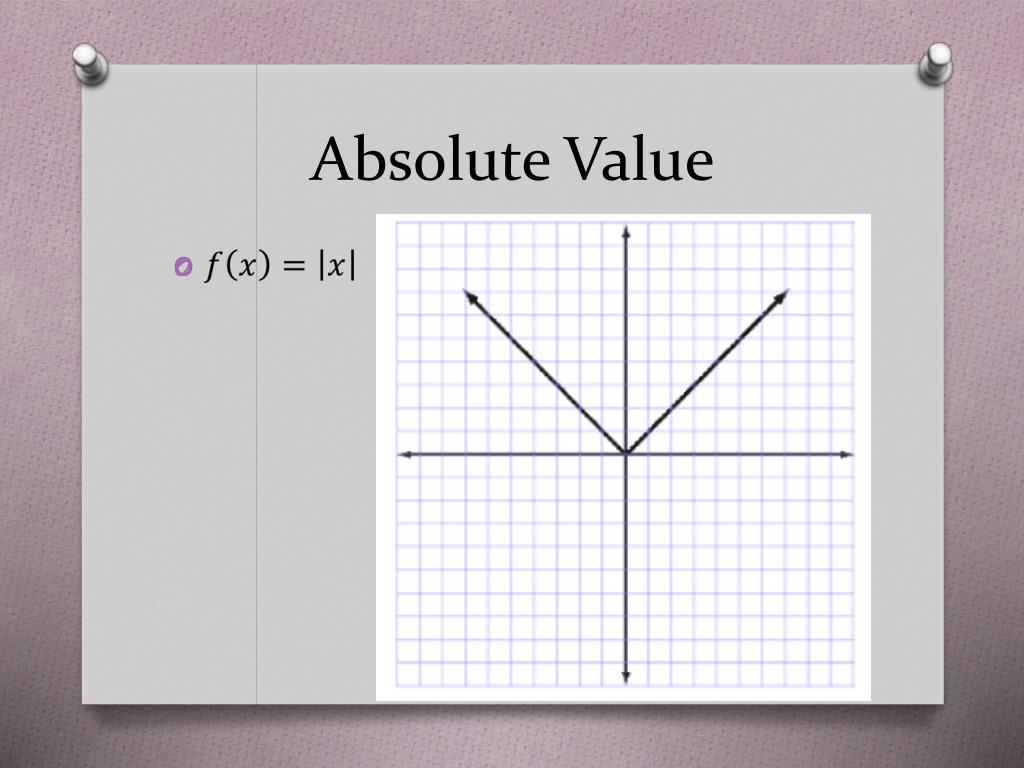

  5. Absolute Value

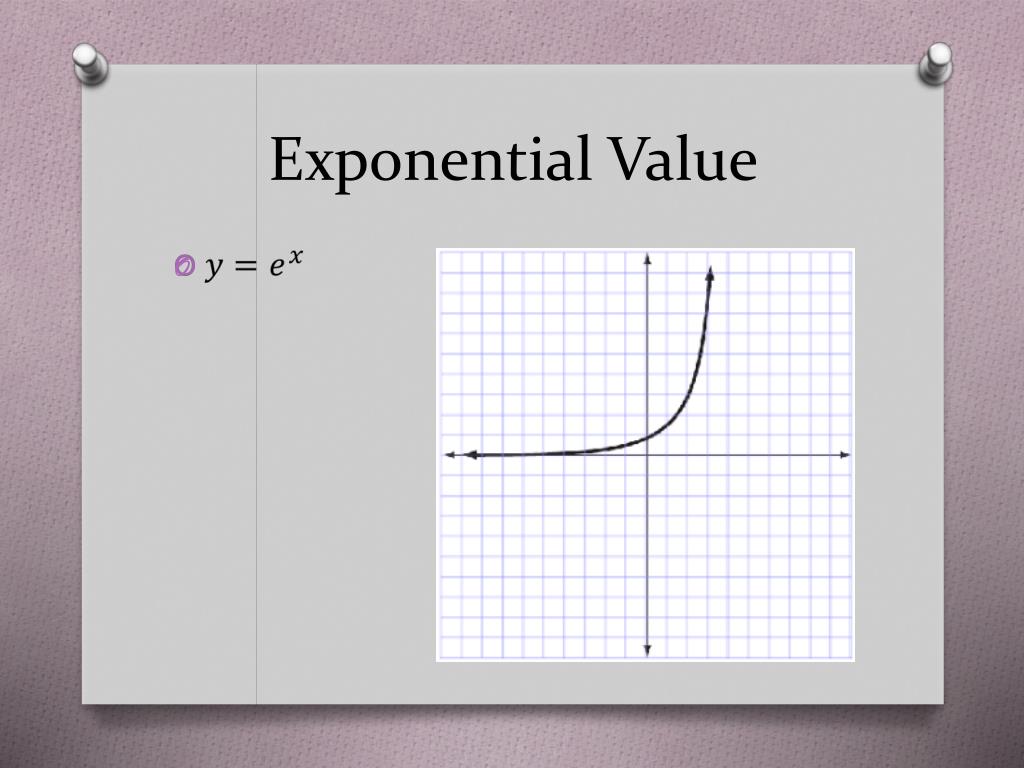

  6. Exponential Value

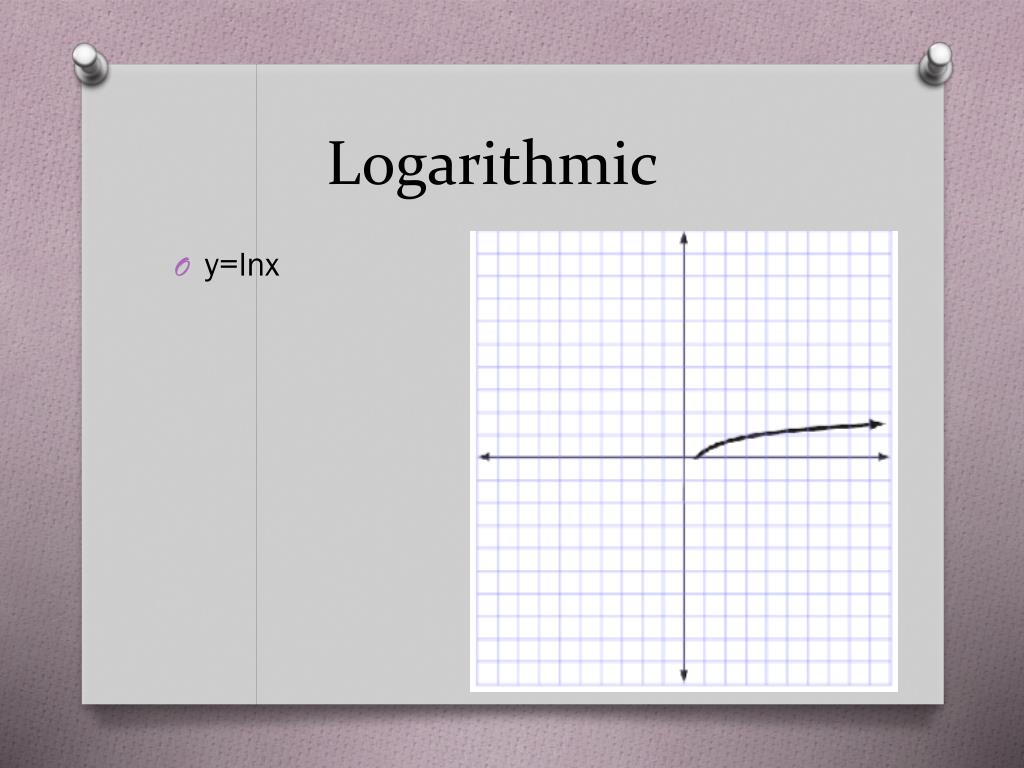

  7. Logarithmic • y=lnx

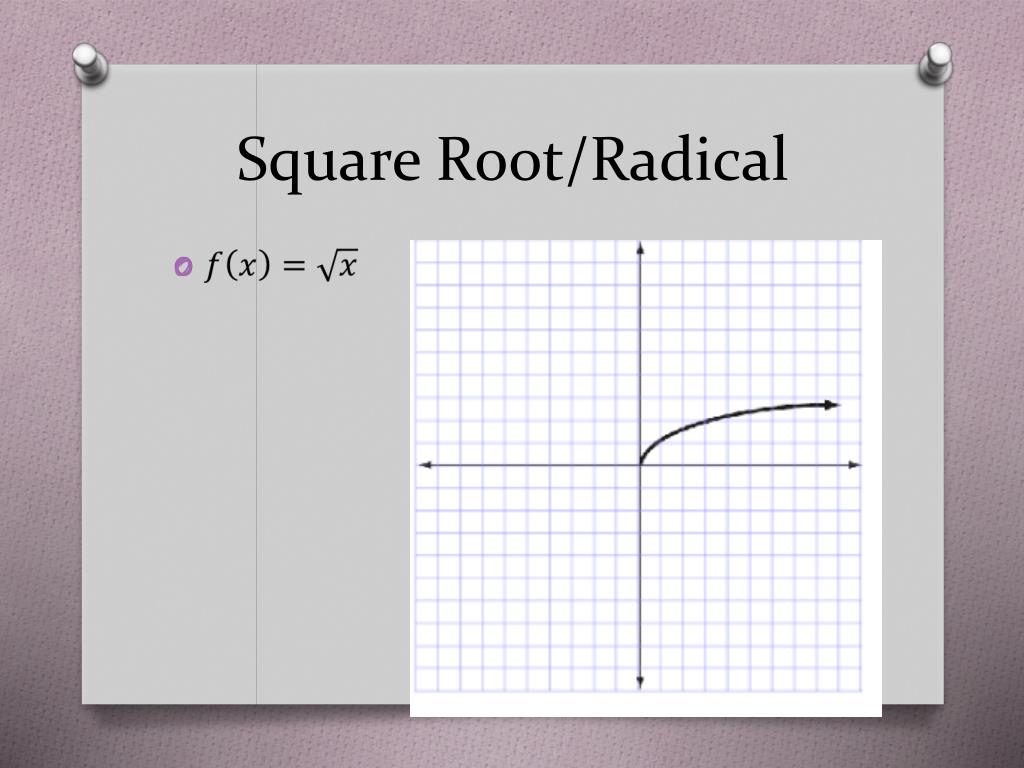

  8. Square Root/Radical

  9. Cube Root

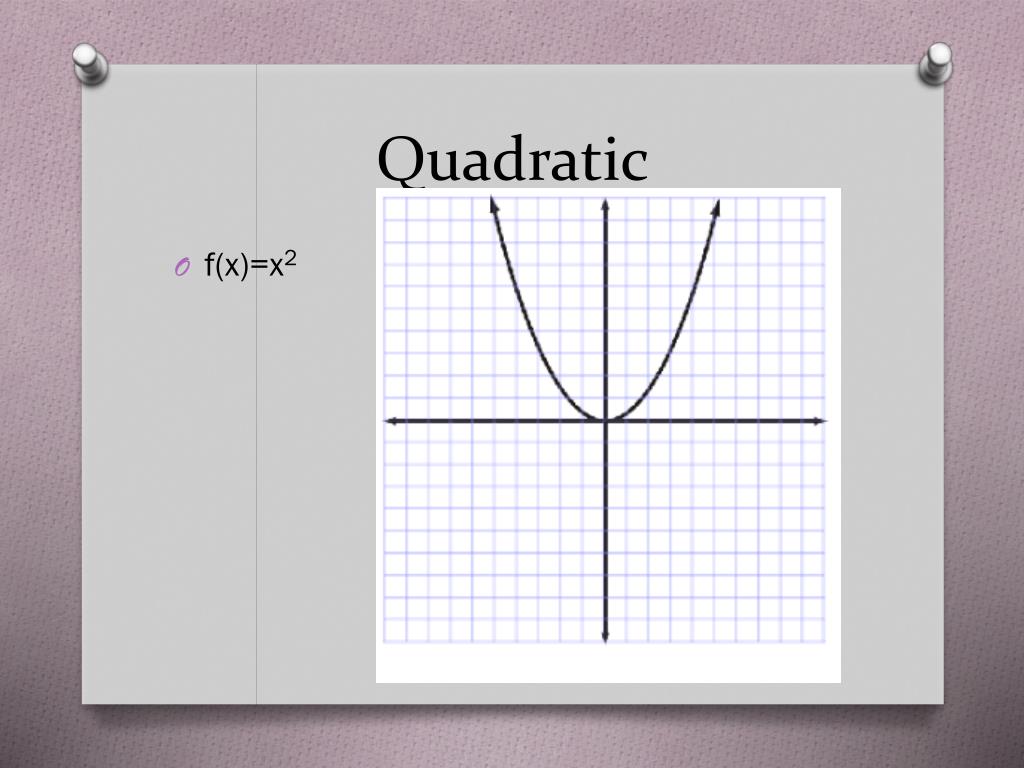

  10. Quadratic • f(x)=x2

  11. Cubic • f(x)=x3

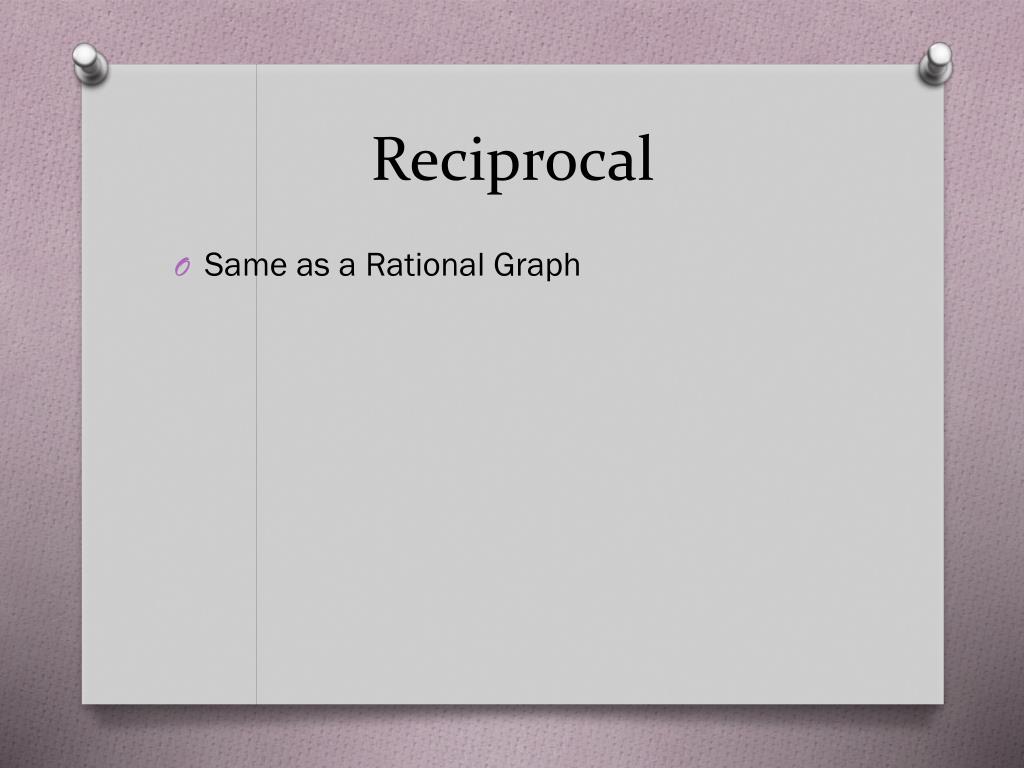

  12. Reciprocal • Same as a Rational Graph

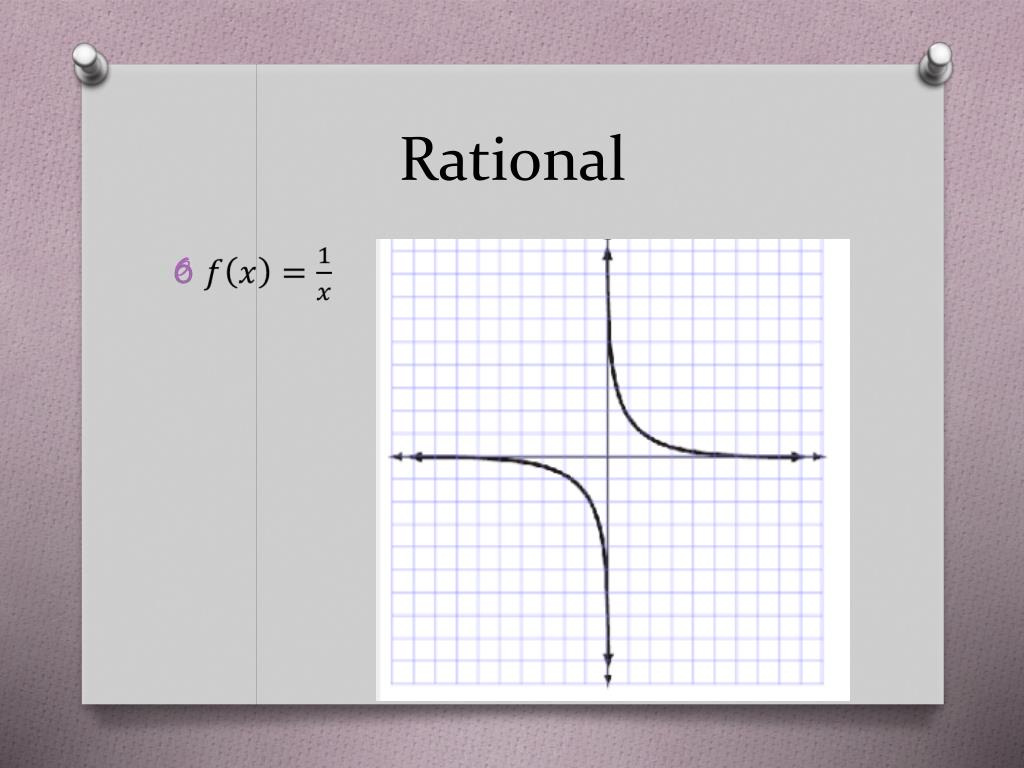

  13. Rational

  14. Sine • y=sinx

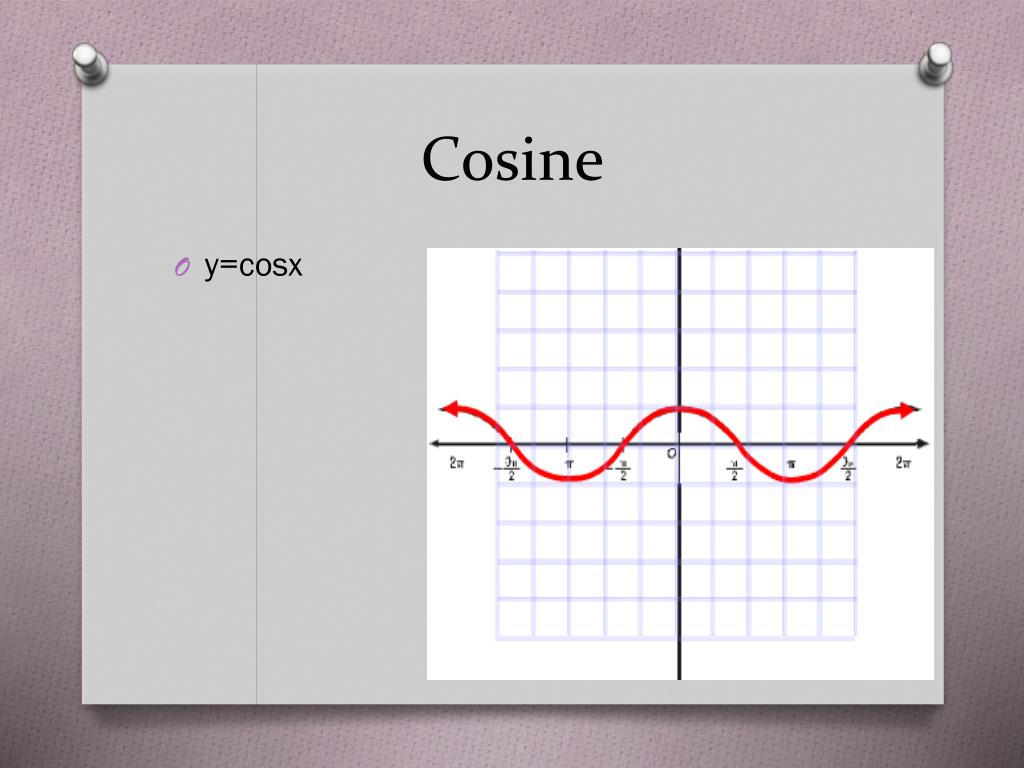

  15. Cosine • y=cosx

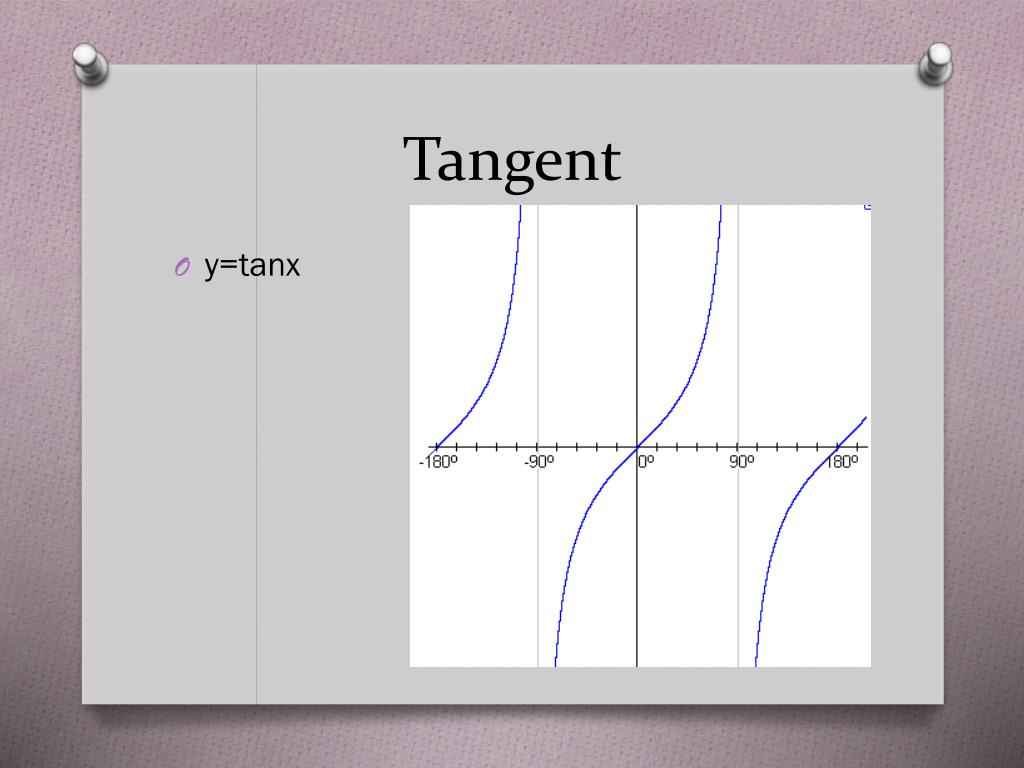

  16. Tangent • y=tanx

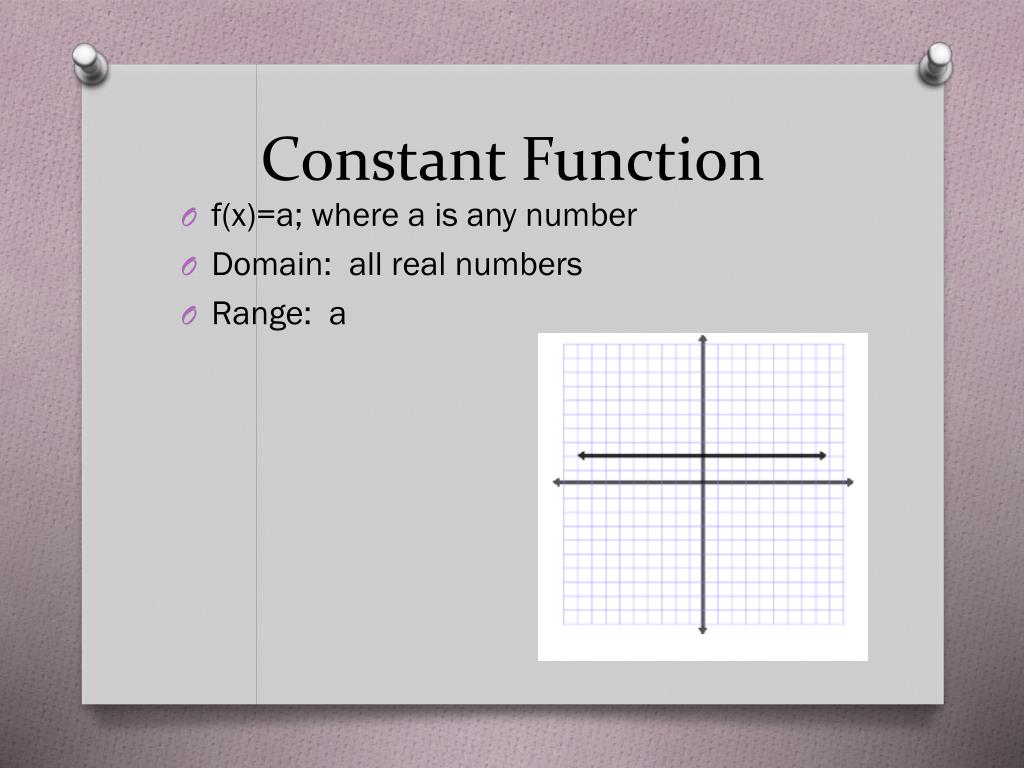

  17. Constant Function • f(x)=a; where a is any number • Domain: all real numbers • Range: a

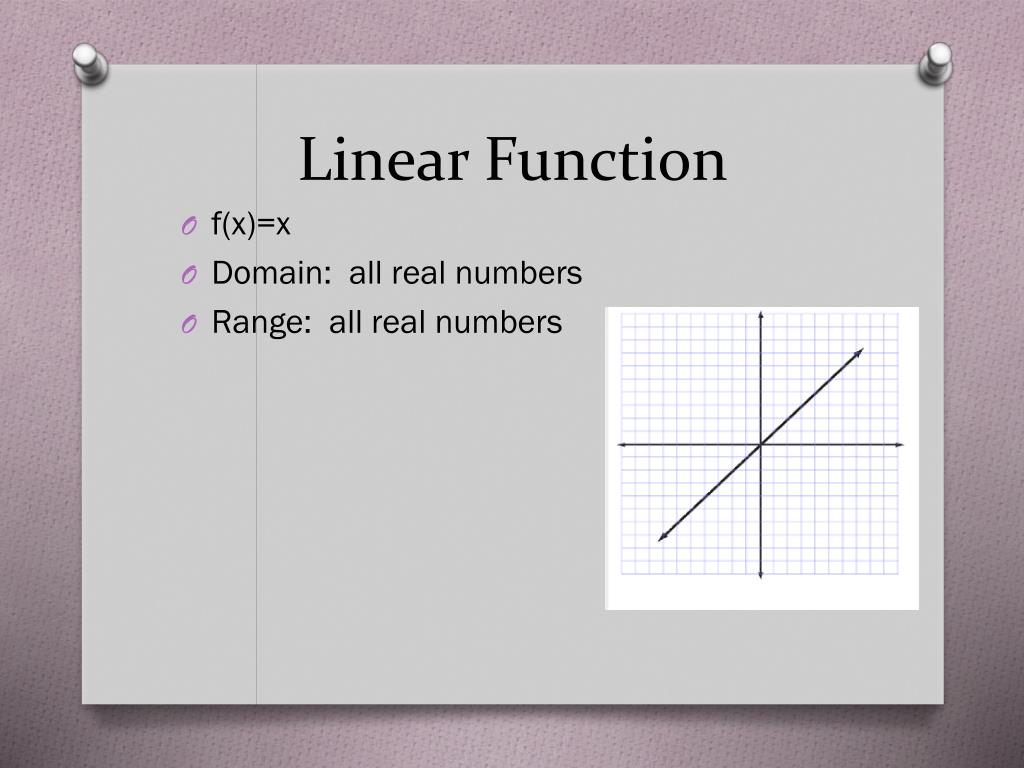

  18. Linear Function • f(x)=x • Domain: all real numbers • Range: all real numbers

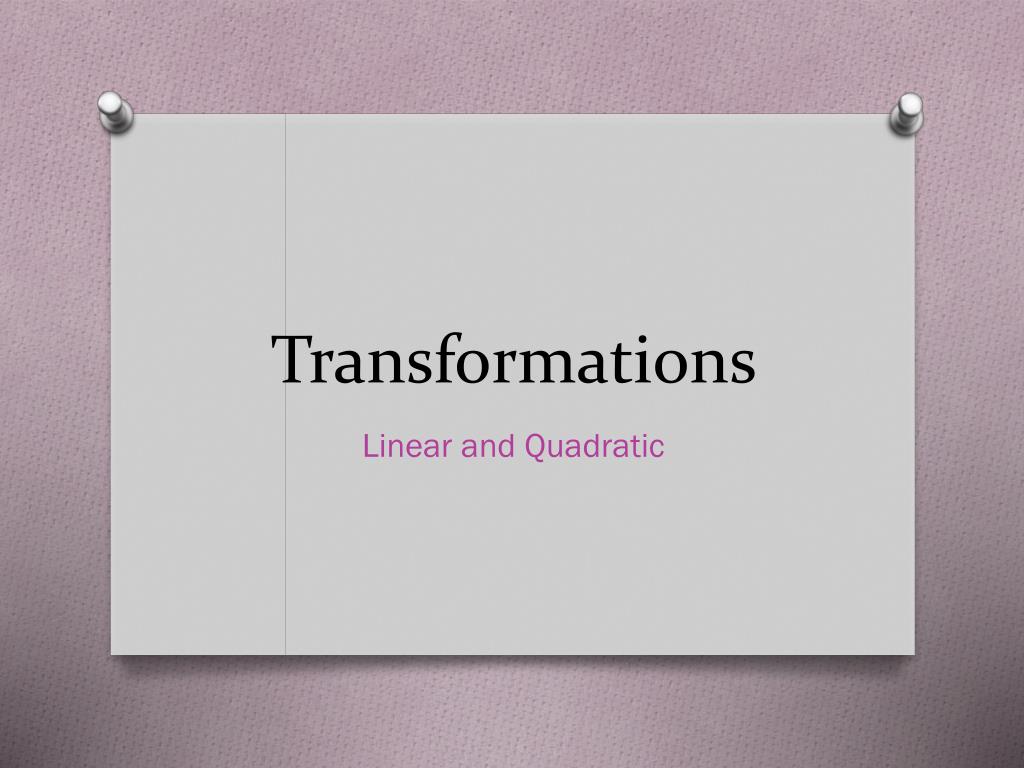

  19. Transformations Linear and Quadratic

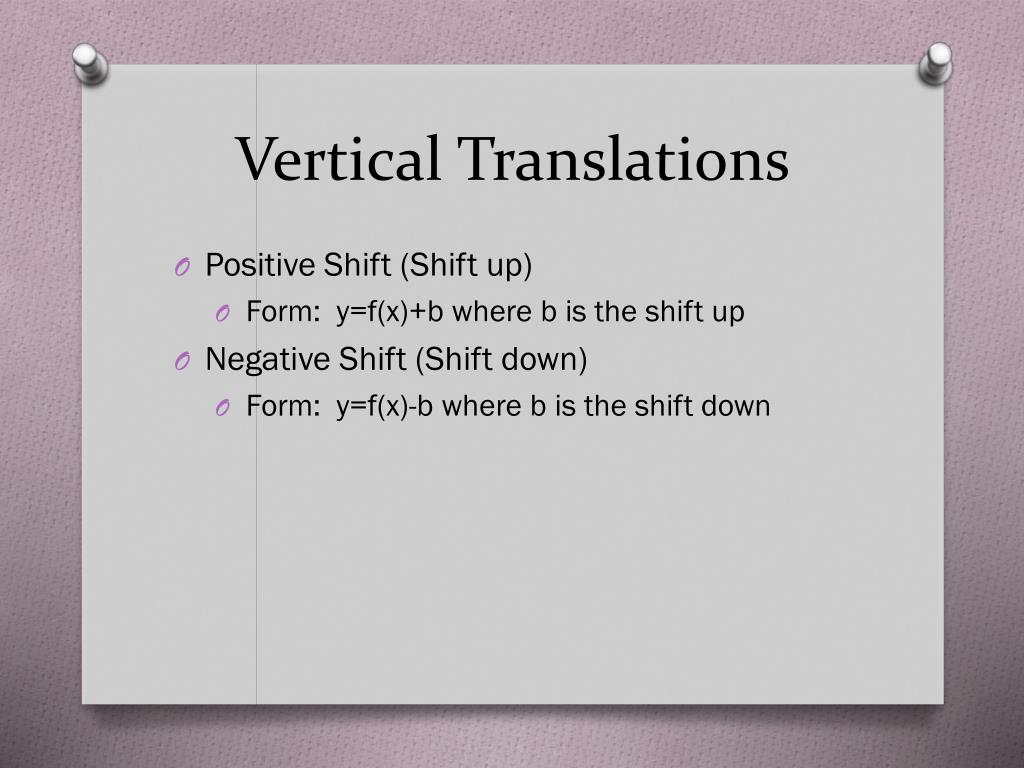

  20. Vertical Translations • Positive Shift (Shift up) • Form: y=f(x)+b where b is the shift up • Negative Shift (Shift down) • Form: y=f(x)-b where b is the shift down

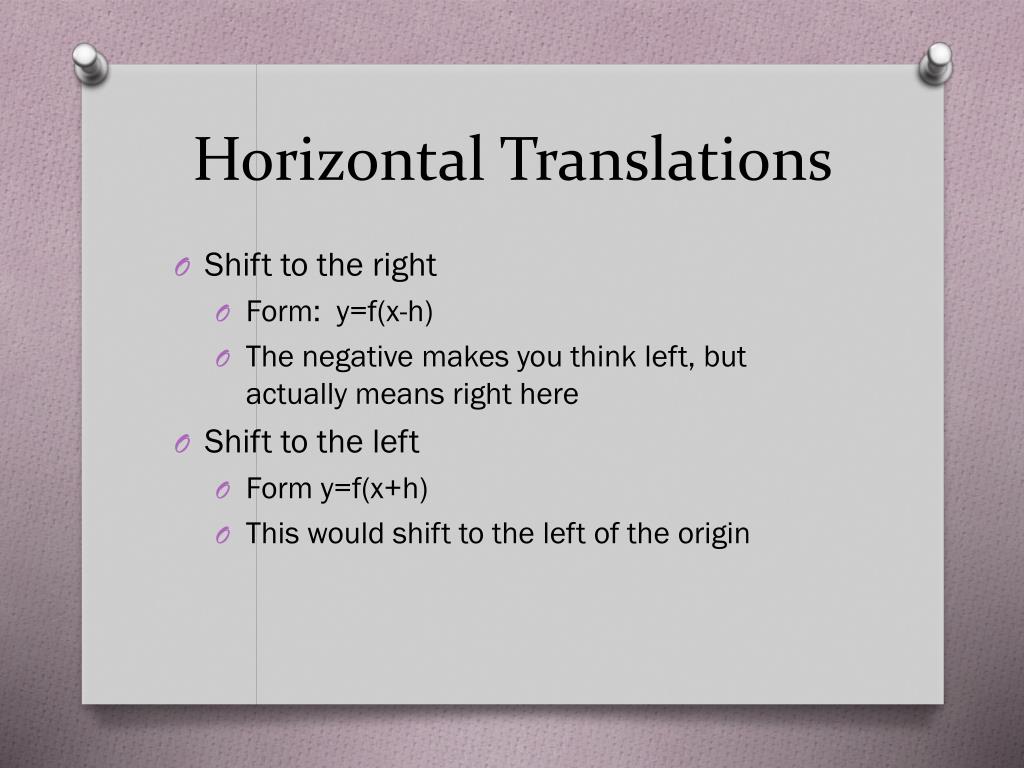

  21. Horizontal Translations • Shift to the right • Form: y=f(x-h) • The negative makes you think left, but actually means right here • Shift to the left • Form y=f(x+h) • This would shift to the left of the origin

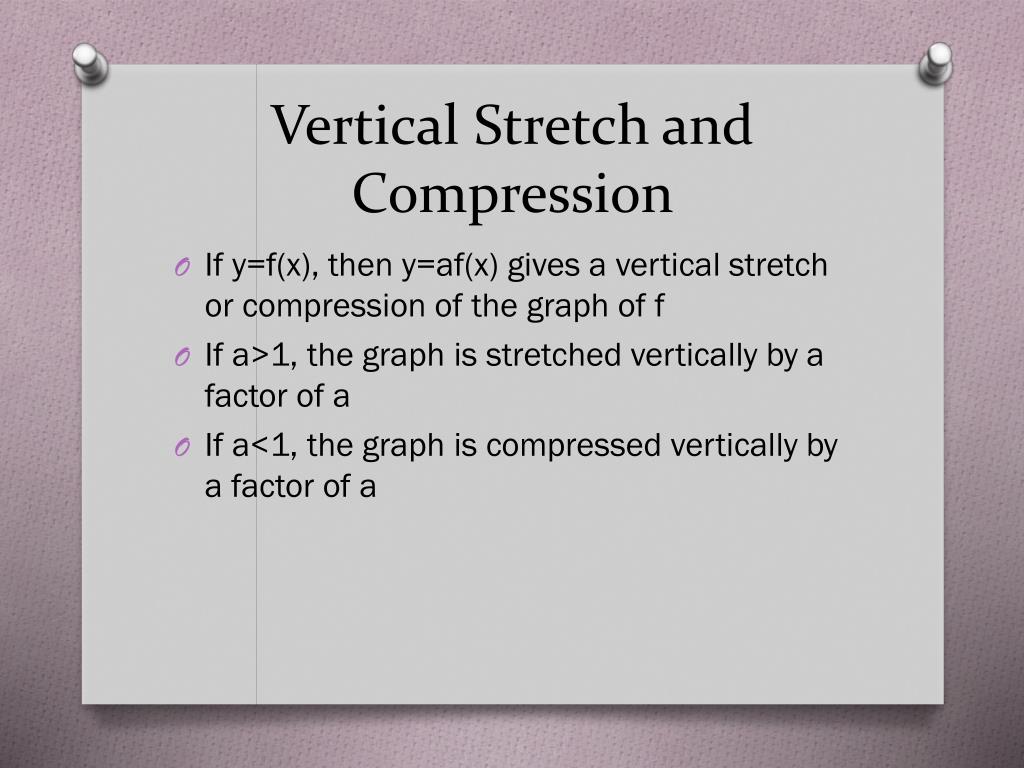

  22. Vertical Stretch and Compression • If y=f(x), then y=af(x) gives a vertical stretch or compression of the graph of f • If a>1, the graph is stretched vertically by a factor of a • If a<1, the graph is compressed vertically by a factor of a

  23. Horizontal Stretch and Compression • If y=f(x),then y=f(bx) gives a horizontal stretch or compression of the graph of f • If b>1, the graph is compressed horizontally by a factor of 1/b • If b<1, the graph is stretched horizontally by a factor of 1/b

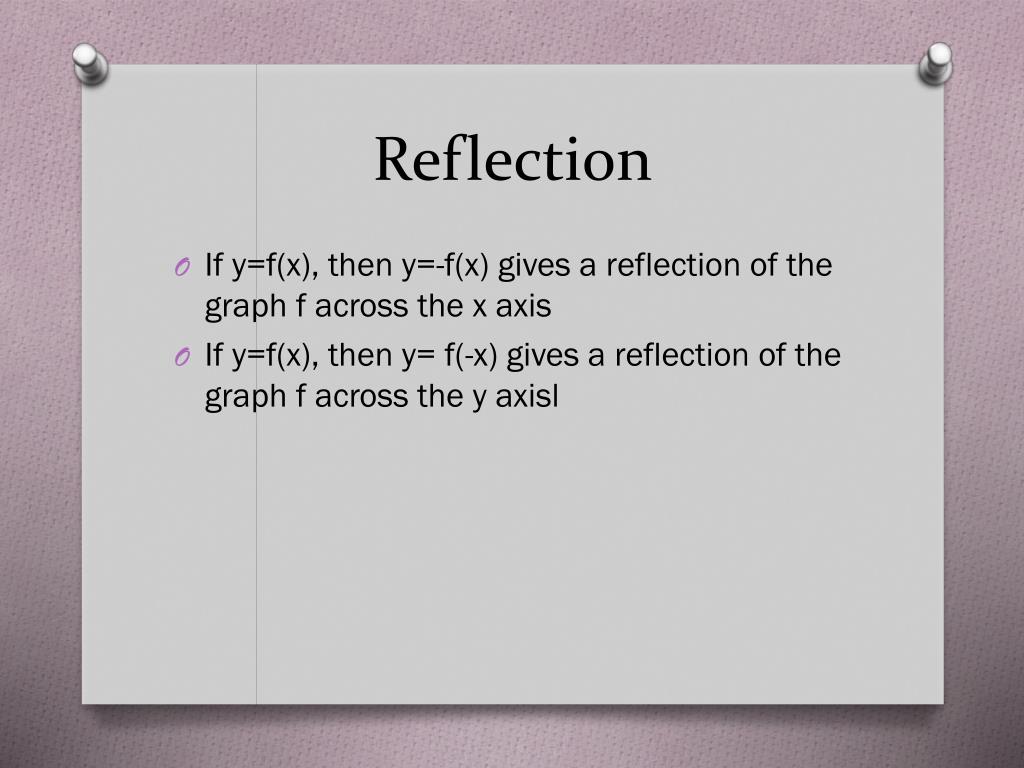

  24. Reflection • If y=f(x), then y=-f(x) gives a reflection of the graph f across the x axis • If y=f(x), then y= f(-x) gives a reflection of the graph f across the y axisl
