  1. DPH 400 SE Operator Phone

  2. D-Link DPH 400SE DPH-400SE is a full-feature Operator telephone that provides voice communication over the same data network that your computer uses. This phone functions not only much like a traditional phone , allowing to place and receive calls, and enjoy other features that traditional phone has, but also it owns many data services features which you could not expect from a traditional telephone.

  3. Basic Features • Supports 5 SIP Lines • Supports 5 External console(EDM) modules • DPH 400 EDM module supports 26 DSS keys • Supports SIP 2.0 (RFC3261) and correlative RFCs •   Support IAX2 (Optional) •   SIP supports 5 SIP servers, and backup SIP servers. Can connect to these SIP servers at the same time. •    Voice Codec:G.711A/u, G.7231 high/low, G.729a/b, G.722,G.726,iLBC,AMR-NB,AMR-WB •   Support Voice Gain Setting, VAD, CNG •    Support jitter buffer •    Full duplex hands-free speakerphone •   SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call •   DTMF Relay:support inband, SIP info, RFC2833 •    Support customized music rings •    Support STUN •   Support SMS based on SIP •    Volume(hand free/handset/headset/ring) adjustment •    Professional Speaker/handset HD Voice • Ergonomic handset(acoustical cochlea) • Supports L2TP VPN

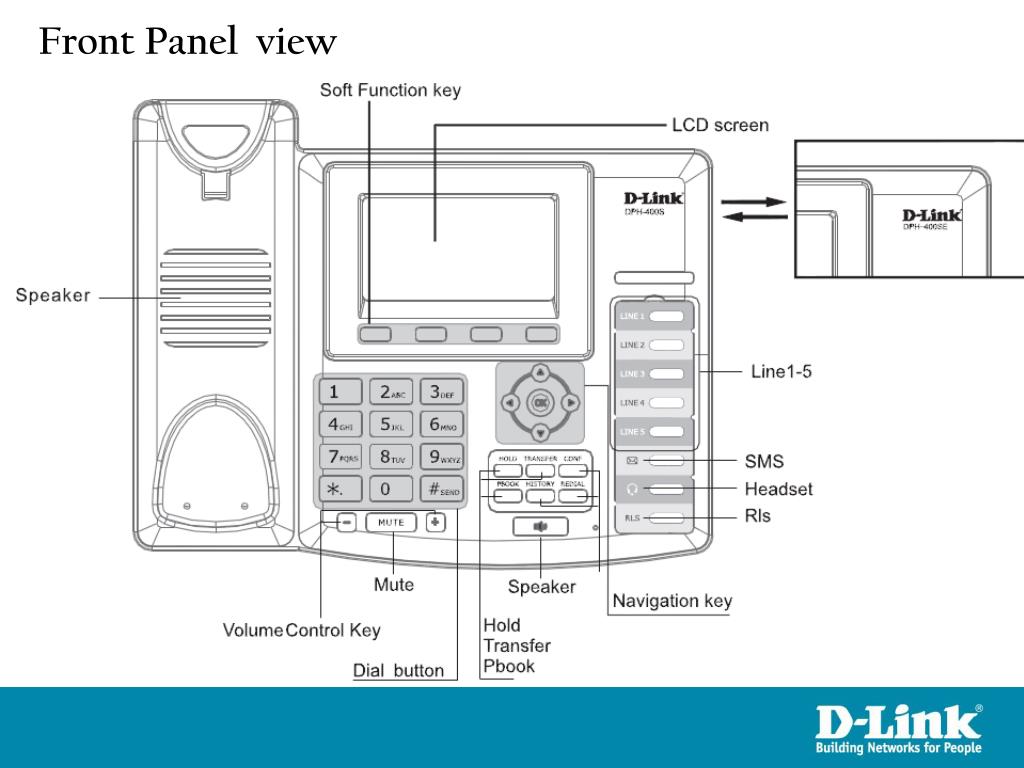

  4. Front Panel view

  5. Rear Panel view
