AGS & Booster Modifications for RSVP

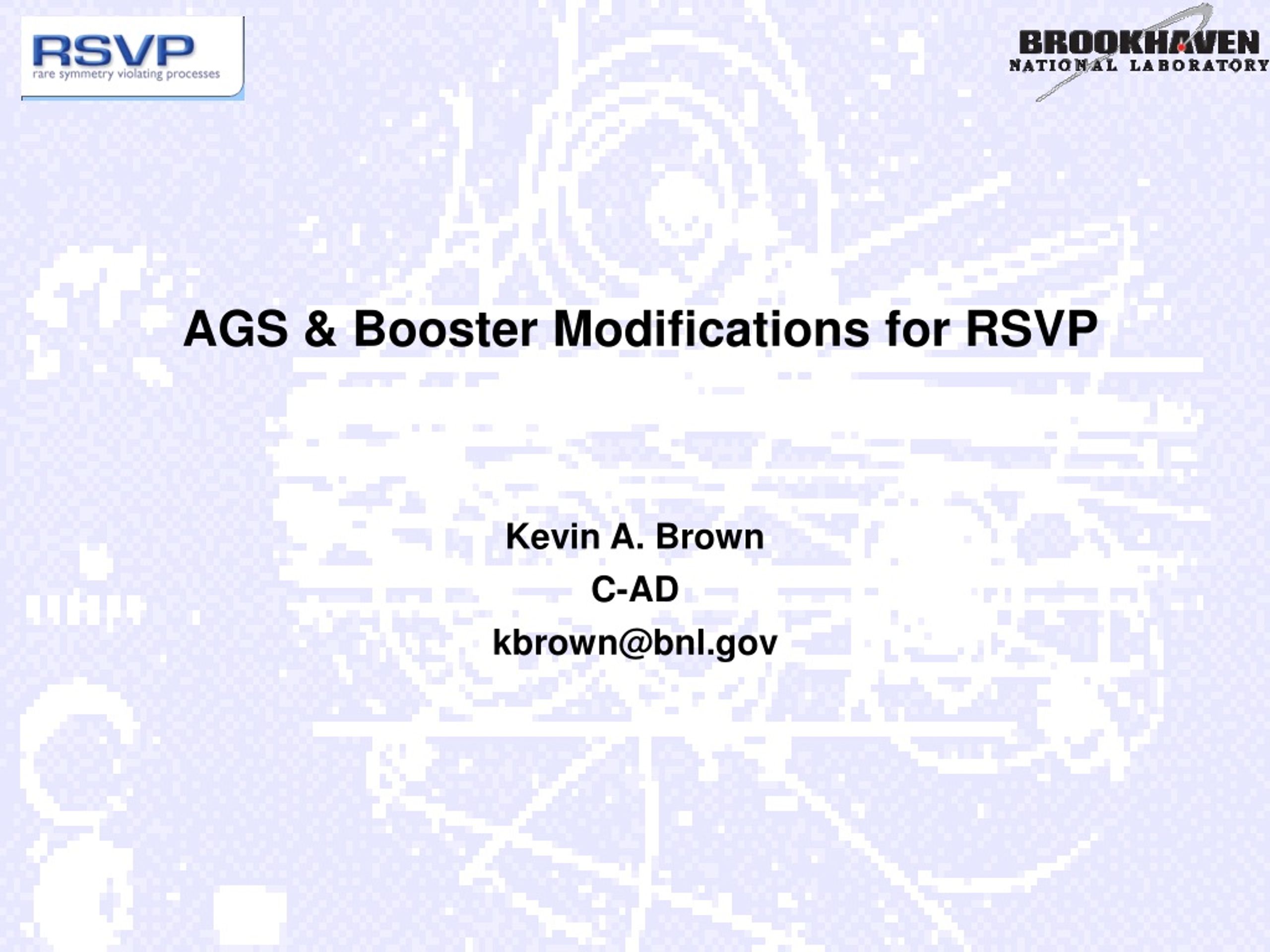

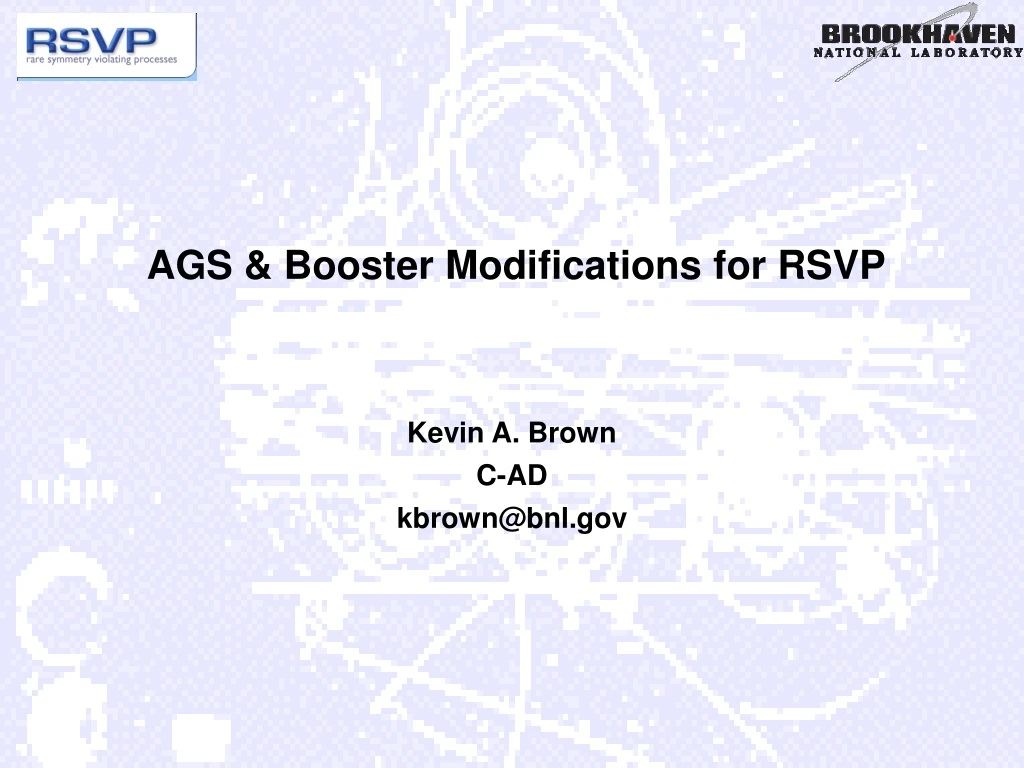

1. AGS & Booster Modifications for RSVP Kevin A. Brown C-AD kbrown@bnl.gov

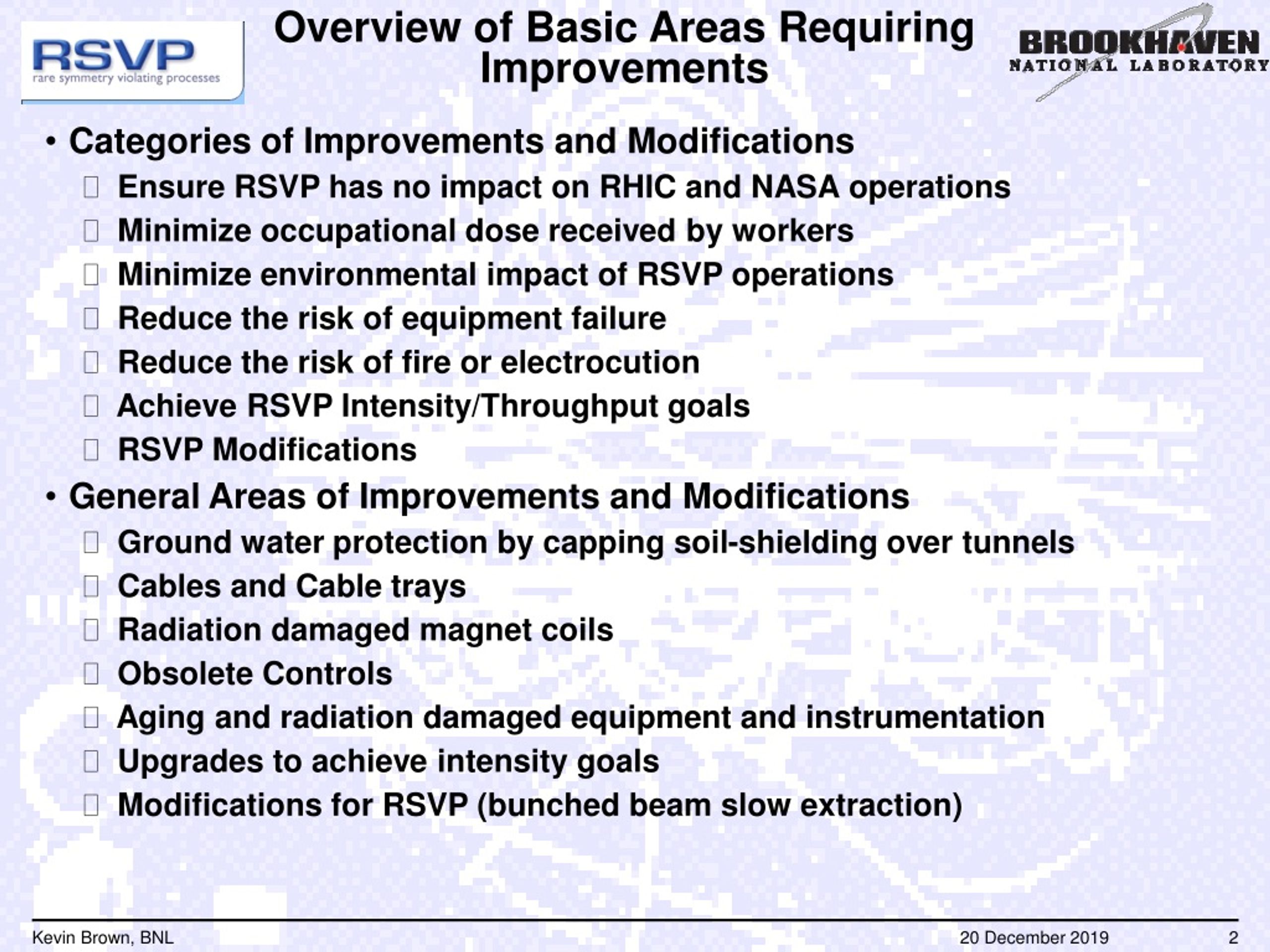

2. Overview of Basic Areas Requiring Improvements • Categories of Improvements and Modifications • Ensure RSVP has no impact on RHIC and NASA operations • Minimize occupational dose received by workers • Minimize environmental impact of RSVP operations • Reduce the risk of equipment failure • Reduce the risk of fire or electrocution • Achieve RSVP Intensity/Throughput goals • RSVP Modifications • General Areas of Improvements and Modifications • Ground water protection by capping soil-shielding over tunnels • Cables and Cable trays • Radiation damaged magnet coils • Obsolete Controls • Aging and radiation damaged equipment and instrumentation • Upgrades to achieve intensity goals • Modifications for RSVP (bunched beam slow extraction) Kevin Brown, BNL

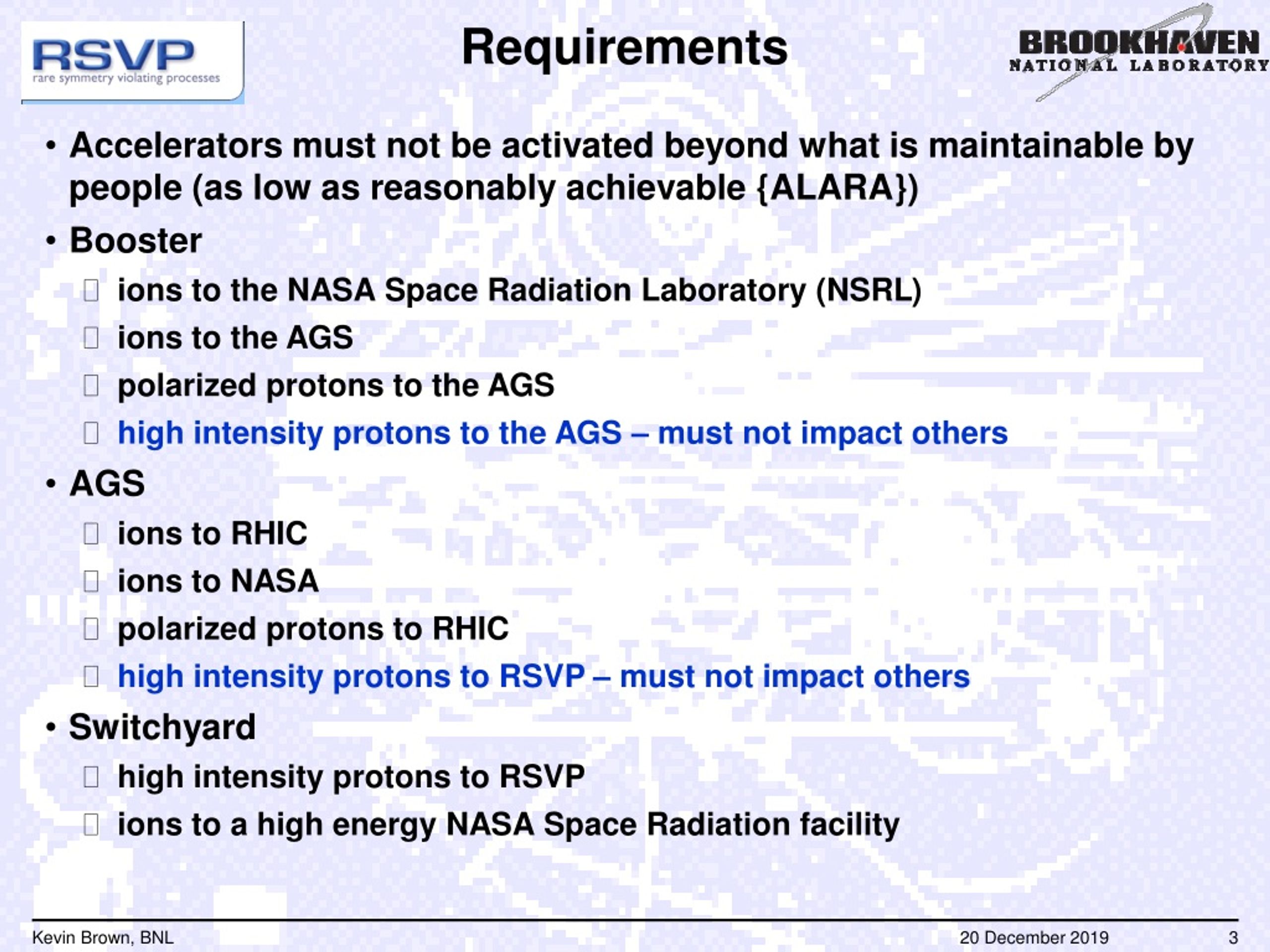

3. Requirements • Accelerators must not be activated beyond what is maintainable by people (as low as reasonably achievable {ALARA}) • Booster • ions to the NASA Space Radiation Laboratory (NSRL) • ions to the AGS • polarized protons to the AGS • high intensity protons to the AGS – must not impact others • AGS • ions to RHIC • ions to NASA • polarized protons to RHIC • high intensity protons to RSVP – must not impact others • Switchyard • high intensity protons to RSVP • ions to a high energy NASA Space Radiation facility Kevin Brown, BNL

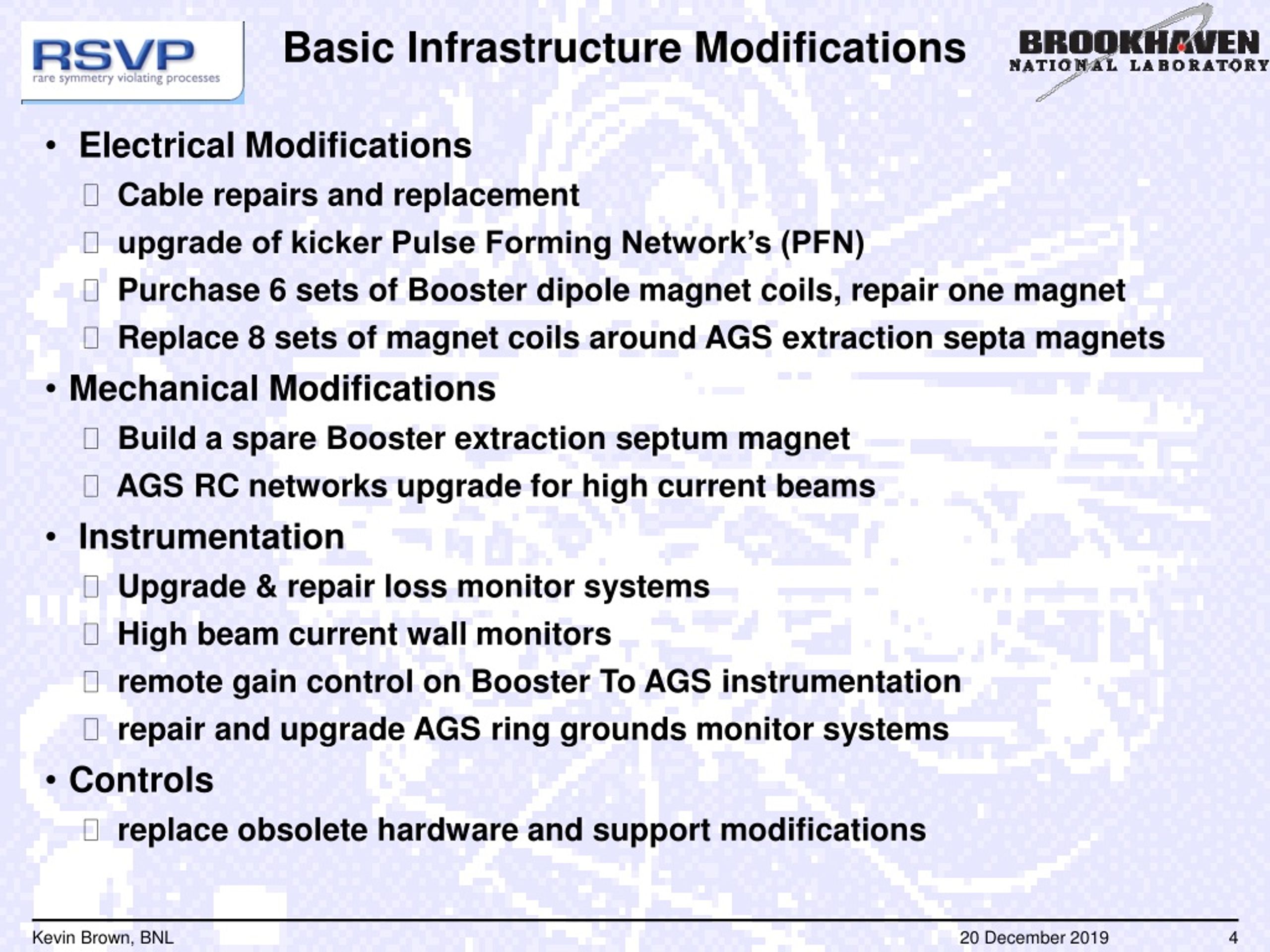

4. Basic Infrastructure Modifications • Electrical Modifications • Cable repairs and replacement • upgrade of kicker Pulse Forming Network’s (PFN) • Purchase 6 sets of Booster dipole magnet coils, repair one magnet • Replace 8 sets of magnet coils around AGS extraction septa magnets • Mechanical Modifications • Build a spare Booster extraction septum magnet • AGS RC networks upgrade for high current beams • Instrumentation • Upgrade & repair loss monitor systems • High beam current wall monitors • remote gain control on Booster To AGS instrumentation • repair and upgrade AGS ring grounds monitor systems • Controls • replace obsolete hardware and support modifications Kevin Brown, BNL

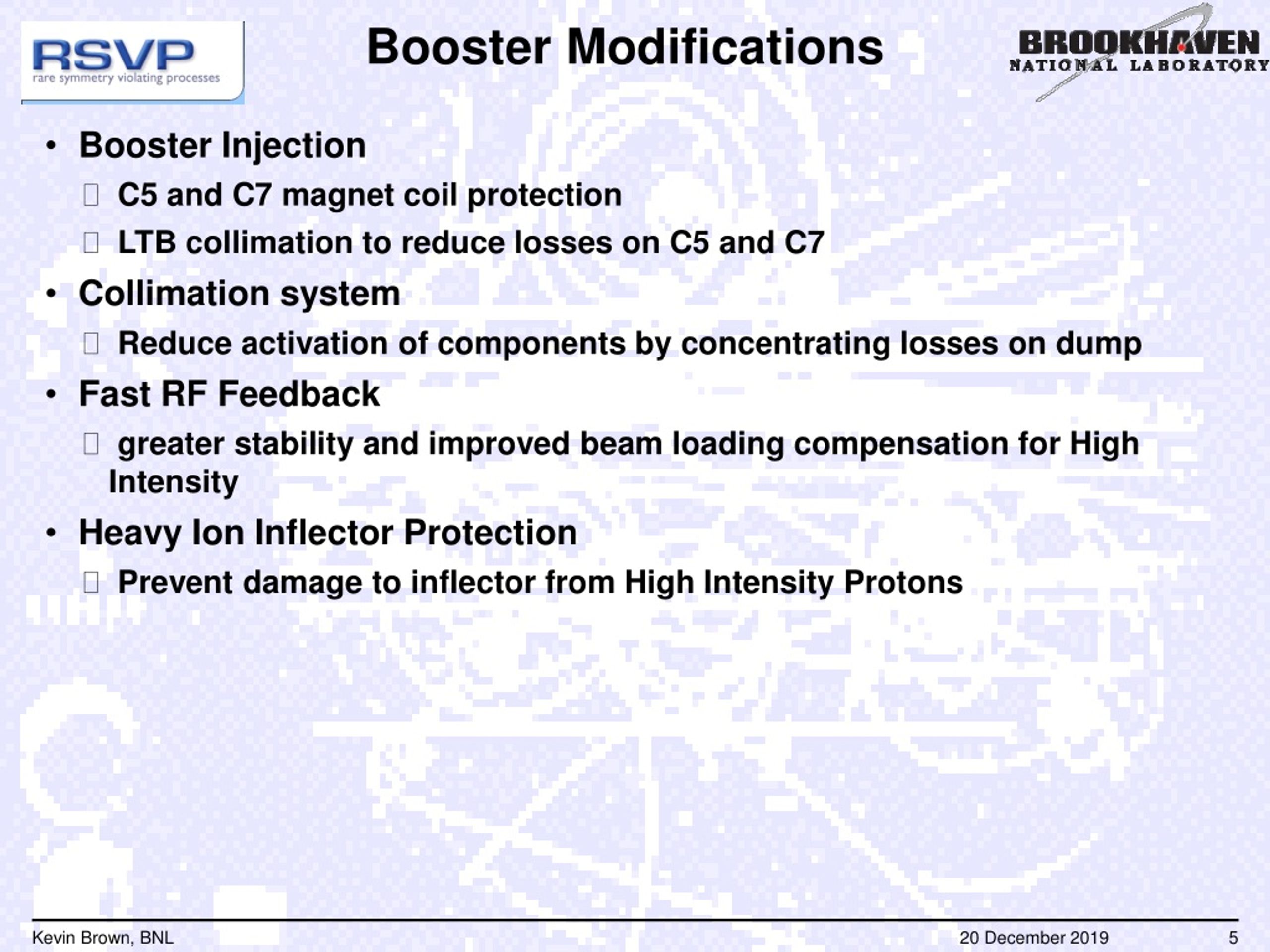

5. Booster Modifications • Booster Injection • C5 and C7 magnet coil protection • LTB collimation to reduce losses on C5 and C7 • Collimation system • Reduce activation of components by concentrating losses on dump • Fast RF Feedback • greater stability and improved beam loading compensation for High Intensity • Heavy Ion Inflector Protection • Prevent damage to inflector from High Intensity Protons Kevin Brown, BNL

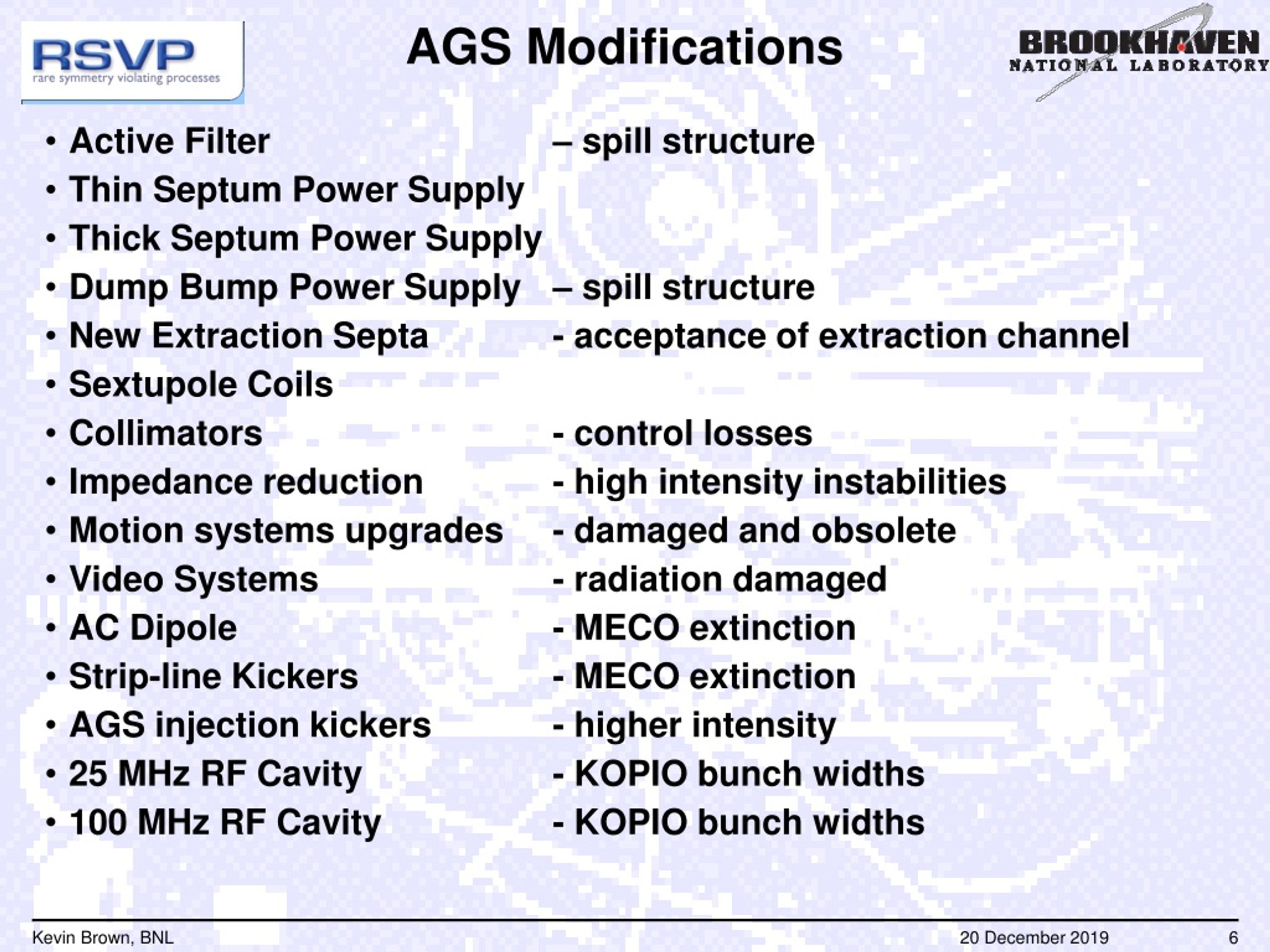

6. AGS Modifications • Active Filter – spill structure • Thin Septum Power Supply • Thick Septum Power Supply • Dump Bump Power Supply – spill structure • New Extraction Septa - acceptance of extraction channel • Sextupole Coils • Collimators - control losses • Impedance reduction - high intensity instabilities • Motion systems upgrades - damaged and obsolete • Video Systems - radiation damaged • AC Dipole - MECO extinction • Strip-line Kickers - MECO extinction • AGS injection kickers - higher intensity • 25 MHz RF Cavity - KOPIO bunch widths • 100 MHz RF Cavity - KOPIO bunch widths Kevin Brown, BNL

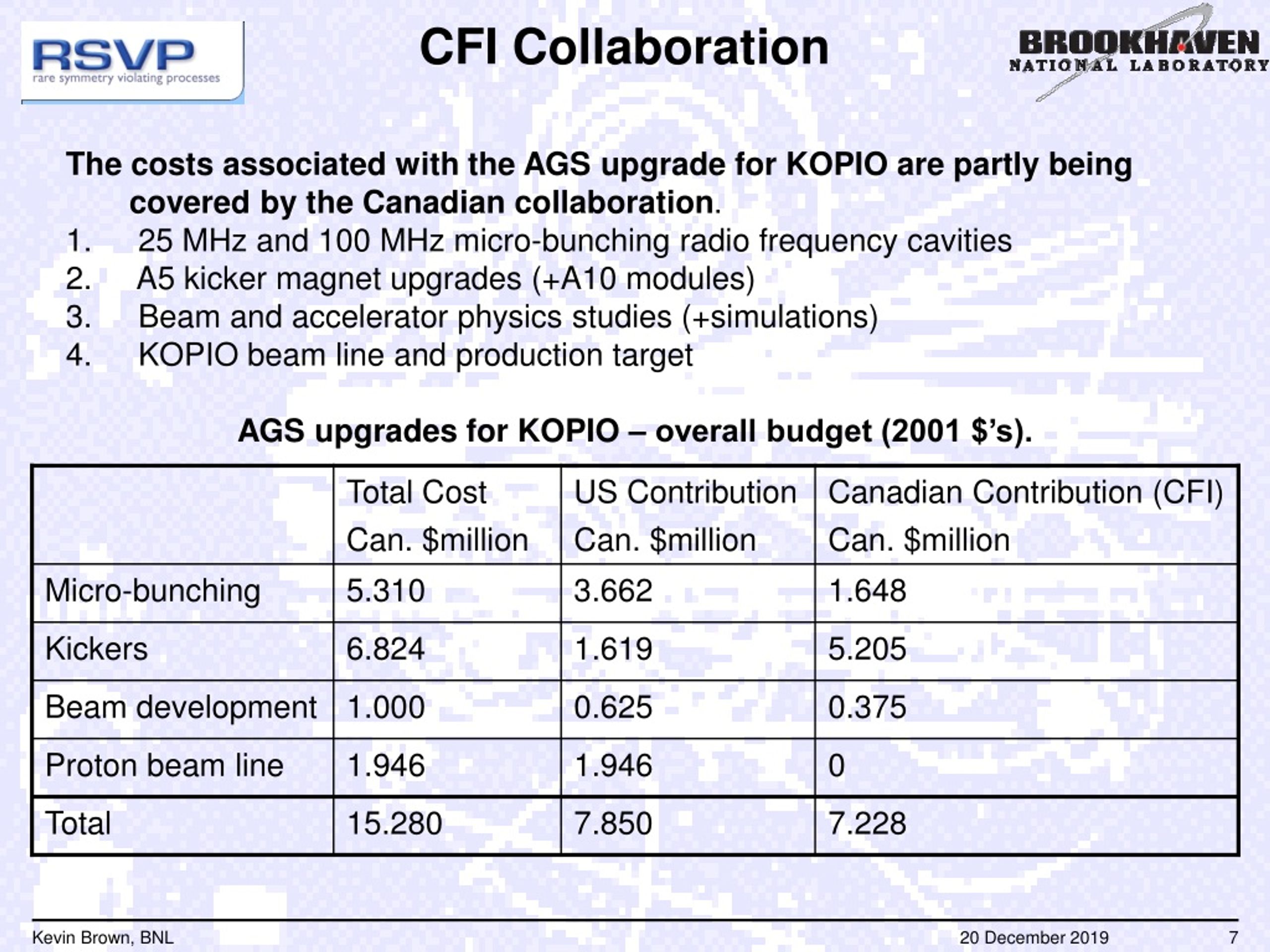

7. CFI Collaboration • The costs associated with the AGS upgrade for KOPIO are partly being covered by the Canadian collaboration. • 25 MHz and 100 MHz micro-bunching radio frequency cavities • A5 kicker magnet upgrades (+A10 modules) • Beam and accelerator physics studies (+simulations) • KOPIO beam line and production target • AGS upgrades for KOPIO – overall budget (2001 $’s). Kevin Brown, BNL

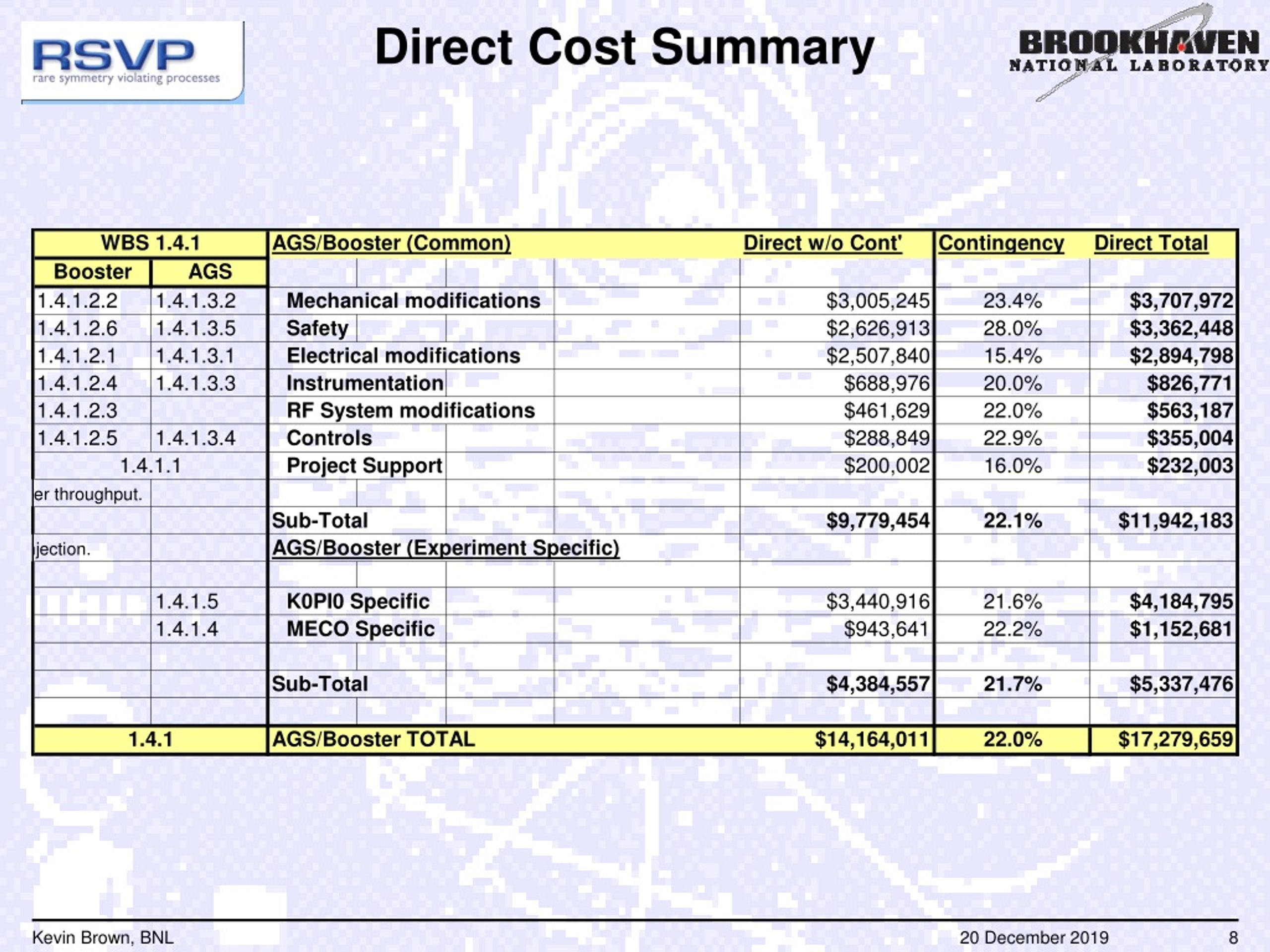

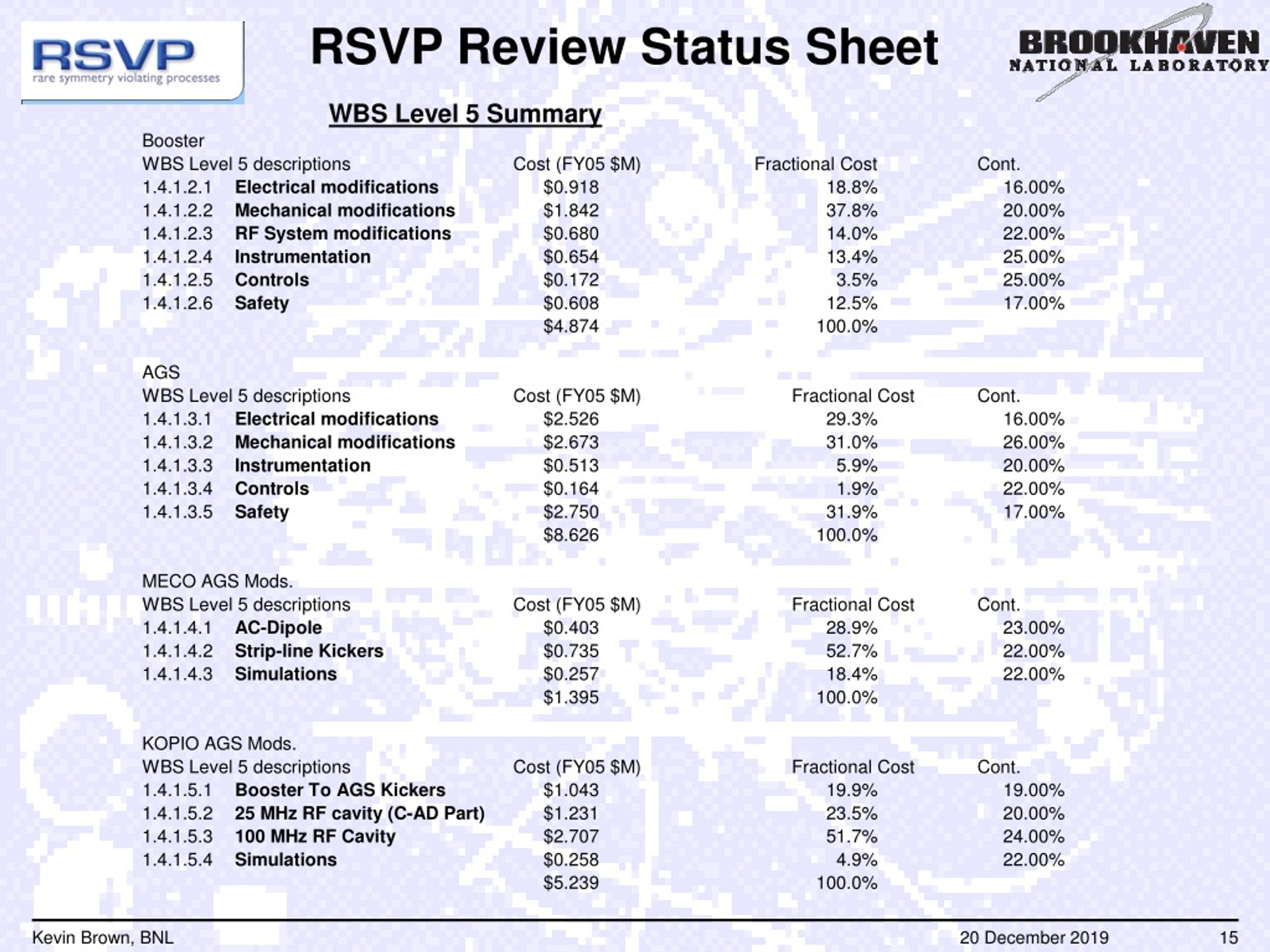

8. Direct Cost Summary Kevin Brown, BNL

9. RSVP Review Status Sheet Kevin Brown, BNL

10. RSVP Review Status Sheet Kevin Brown, BNL

11. RSVP Review Status Sheet Kevin Brown, BNL

12. RSVP Review Status Sheet Kevin Brown, BNL

13. RSVP Review Status Sheet Kevin Brown, BNL

14. RSVP Review Status Sheet Kevin Brown, BNL

15. RSVP Review Status Sheet Kevin Brown, BNL
