  1. 大型多重支撐深開挖數值模擬技術之研究─以台北101深開挖為例Three-Dimensional Numerical Simulation Techniques in Large Scale Multi-Strutted Deep Excavation─ A Case History of Taipei 101 Deep Excavation 論文指導教授:林德貴 博士 論文口試學生:周彥妤

  2. 內容大綱 Here comes your footer  Page 2

  3. 研究動機與目的 Here comes your footer  Page 3

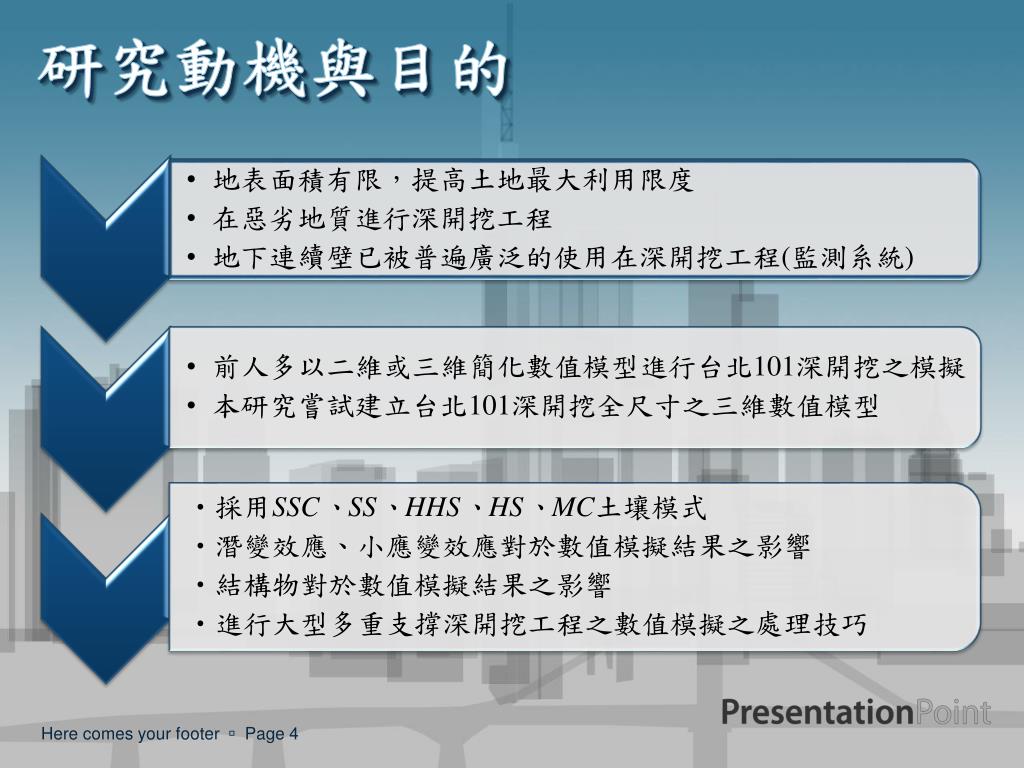

  4. 研究動機與目的 Here comes your footer  Page 4

  5. 文獻回顧 Here comes your footer  Page 5

  6. 文獻回顧 Here comes your footer  Page 6

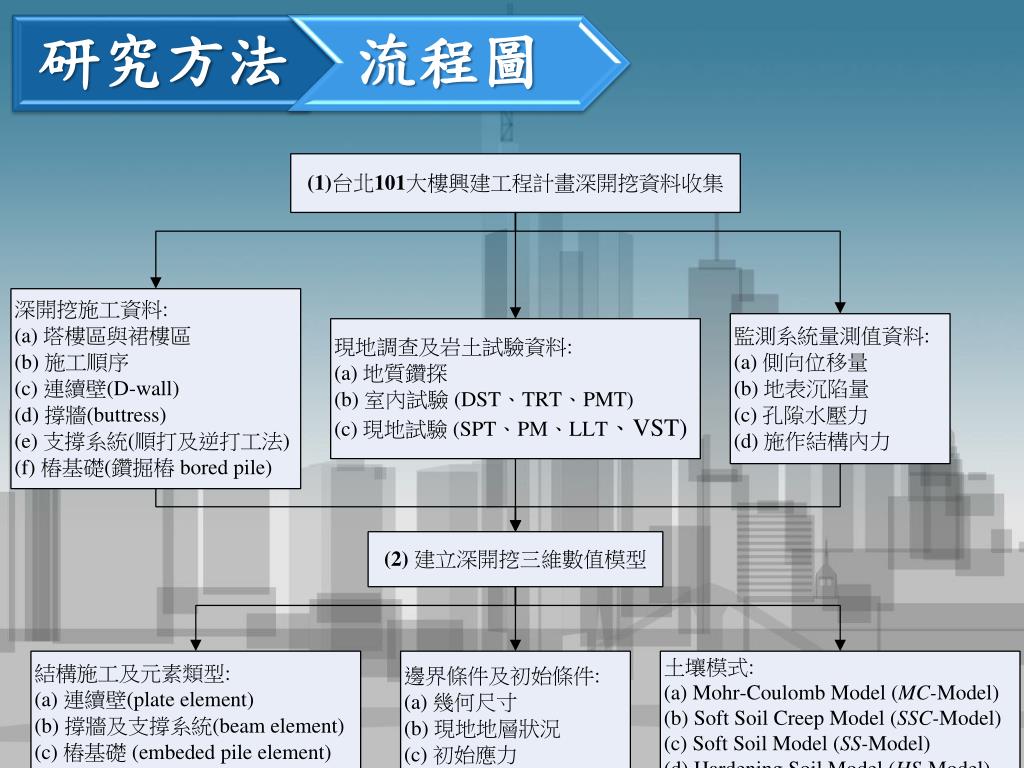

  7. 研究方法 Here comes your footer  Page 7

  8. 研究方法 Here comes your footer  Page 8

  9. Here comes your footer  Page 9

  10. Here comes your footer  Page 10

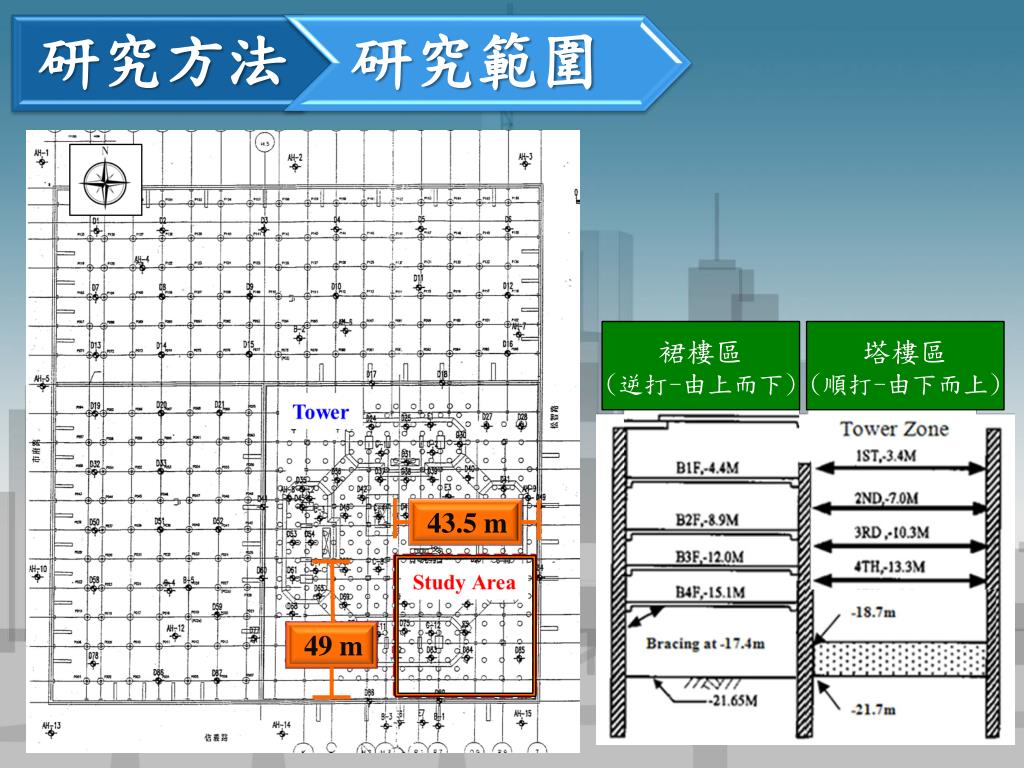

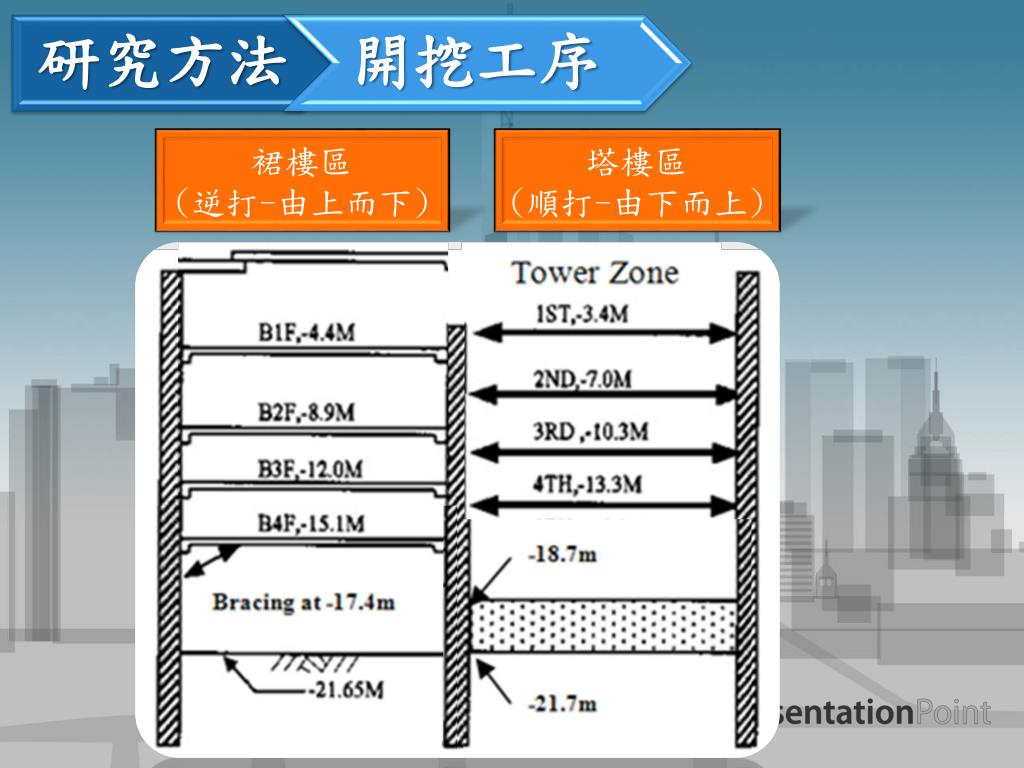

  11. 裙樓區 (逆打-由上而下) 塔樓區 (順打-由下而上) 43.5 m 49 m

  12. 裙樓區 (逆打-由上而下) 塔樓區 (順打-由下而上)

  13. 縱向鋼支柱: H4001321 1st 橫向鋼支撐:H3501219 2nd~6th 橫向鋼支撐:H4001321 樁基礎:-21.7~ -75.9 m (平均長度48.8m) 撐牆-A1(-55 m) 撐牆-A2(40 m) 連續壁-A(40、55 m) 撐牆-A1(-55 m) Here comes your footer  Page 13

  14. 傾斜管:SI3 沉陷監測點:S14 壓力計:EP1 Here comes your footer  Page 14

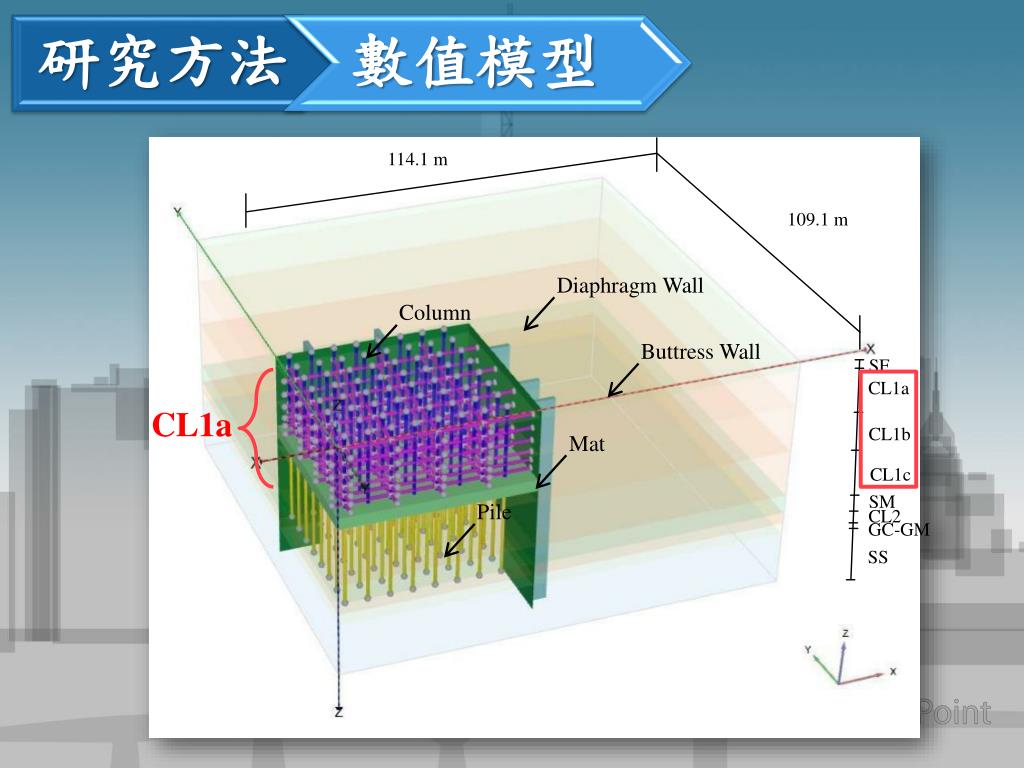

  15. CL1a

  16. Here comes your footer  Page 16

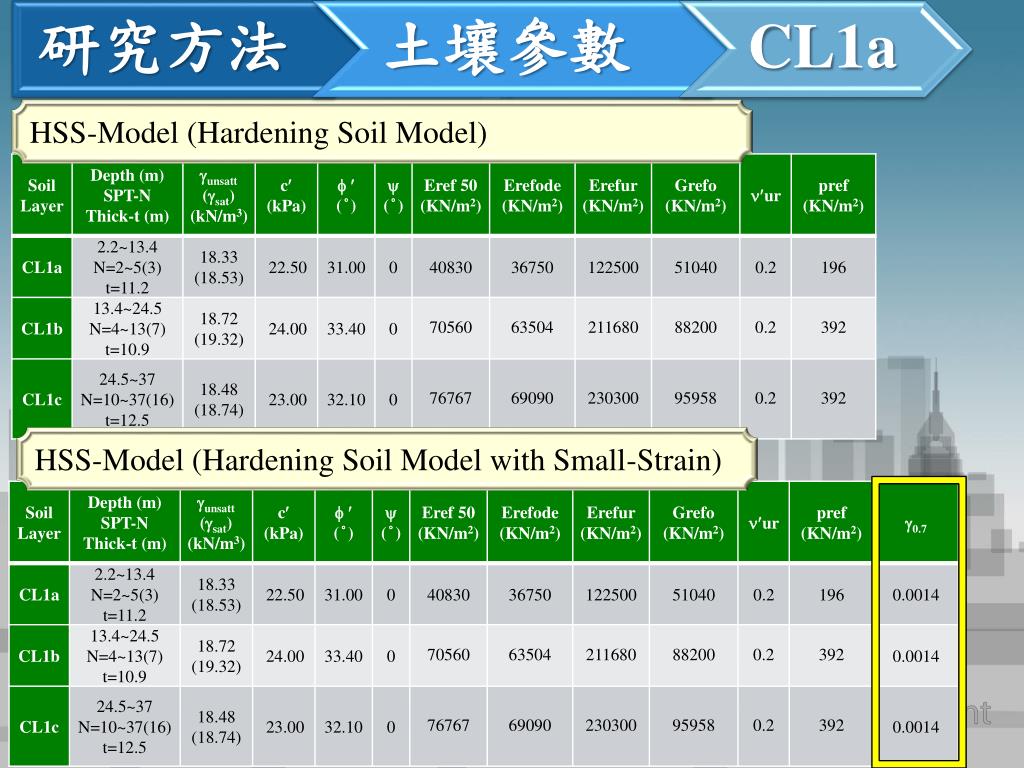

  17. SS-Model (Soft Soil Model) SSC-Model (Soft Soil Creep Model) Here comes your footer  Page 17

  18. HSS-Model (Hardening Soil Model) HSS-Model (Hardening Soil Model with Small-Strain) Here comes your footer  Page 18

  19. MC-Model (Mohr-Coulomb Model) Here comes your footer  Page 19

  20. Here comes your footer  Page 20

  21. Here comes your footer  Page 21

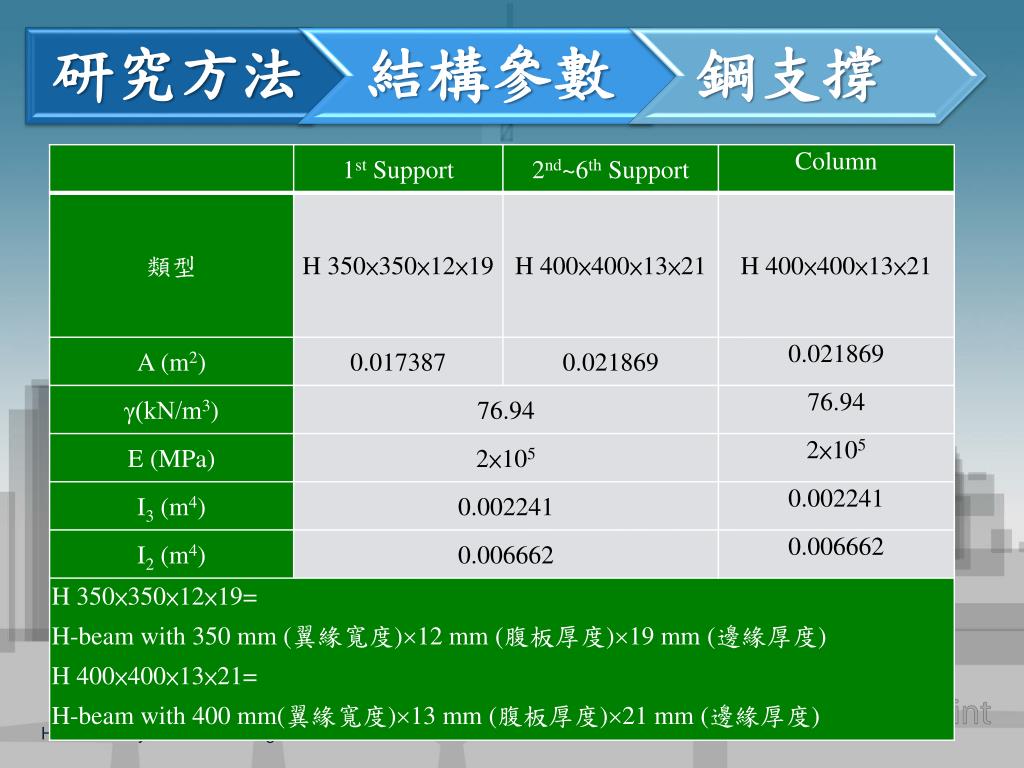

  22. Here comes your footer  Page 22

  23. 結果與討論 Here comes your footer  Page 25

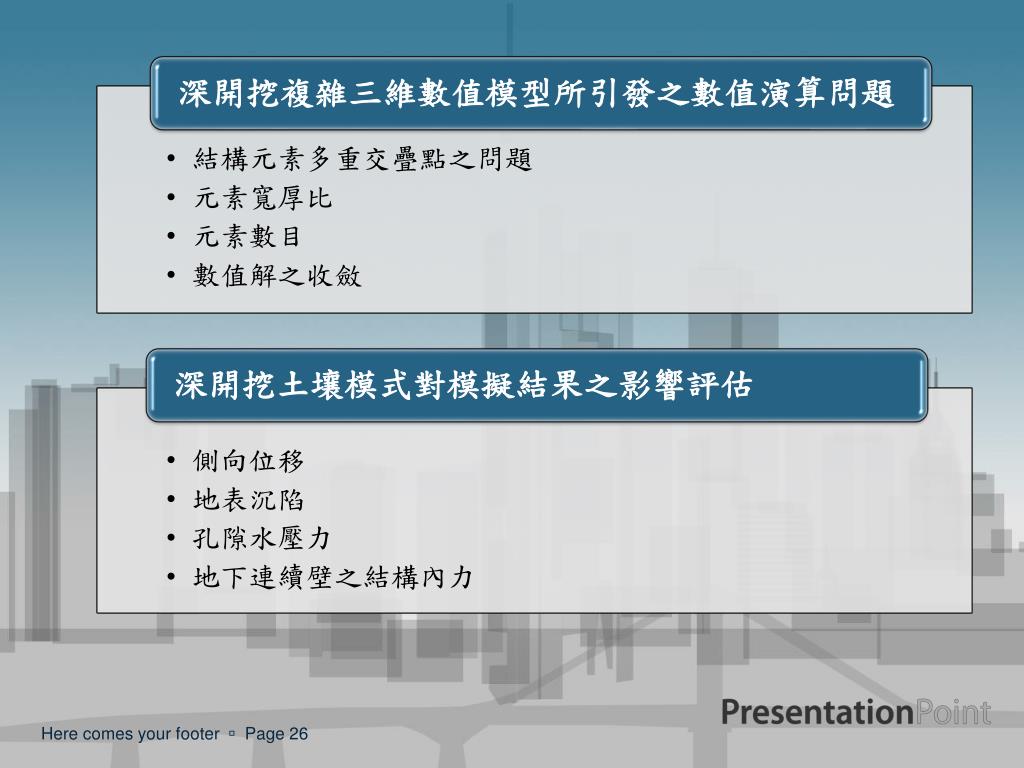

  24. Here comes your footer  Page 26

  25. Here comes your footer  Page 27

  26. Here comes your footer  Page 28

  27. Here comes your footer  Page 29

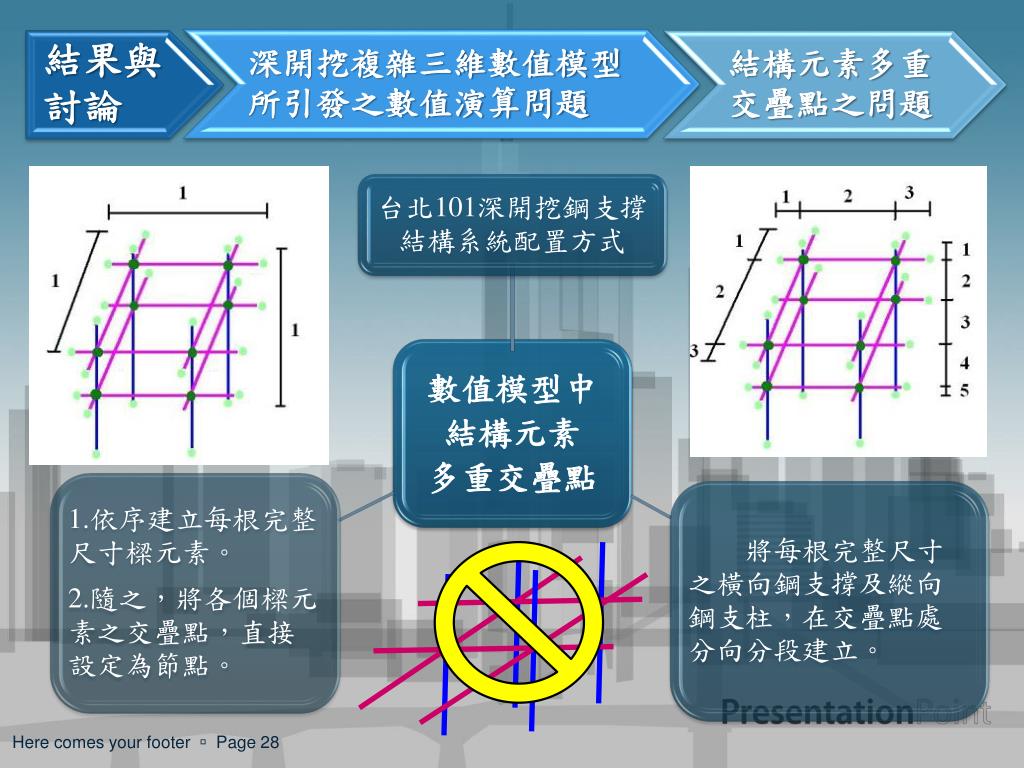

  28. 將原始數值模型 予以簡化 Here comes your footer  Page 30

  29. Here comes your footer  Page 31

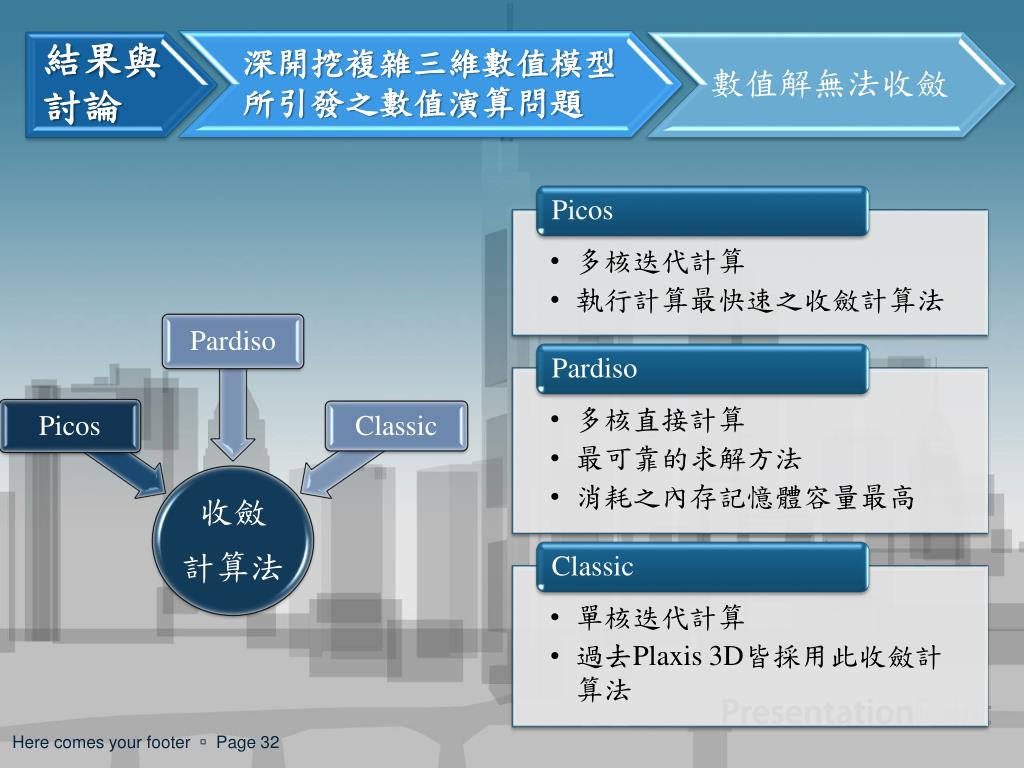

  30. Here comes your footer  Page 32

  31. Here comes your footer  Page 33

  32. Here comes your footer  Page 34

  33. Here comes your footer  Page 35

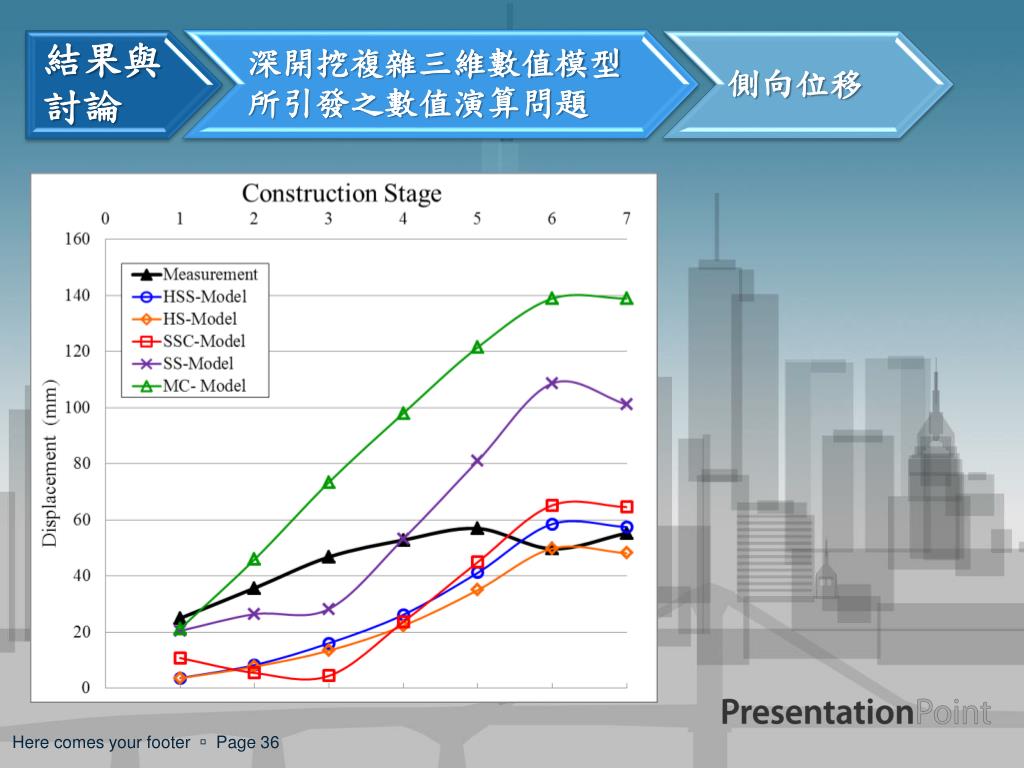

  34. Here comes your footer  Page 36

  35. Here comes your footer  Page 37

  36. Here comes your footer  Page 38

  37. Here comes your footer  Page 39

  38. Here comes your footer  Page 40

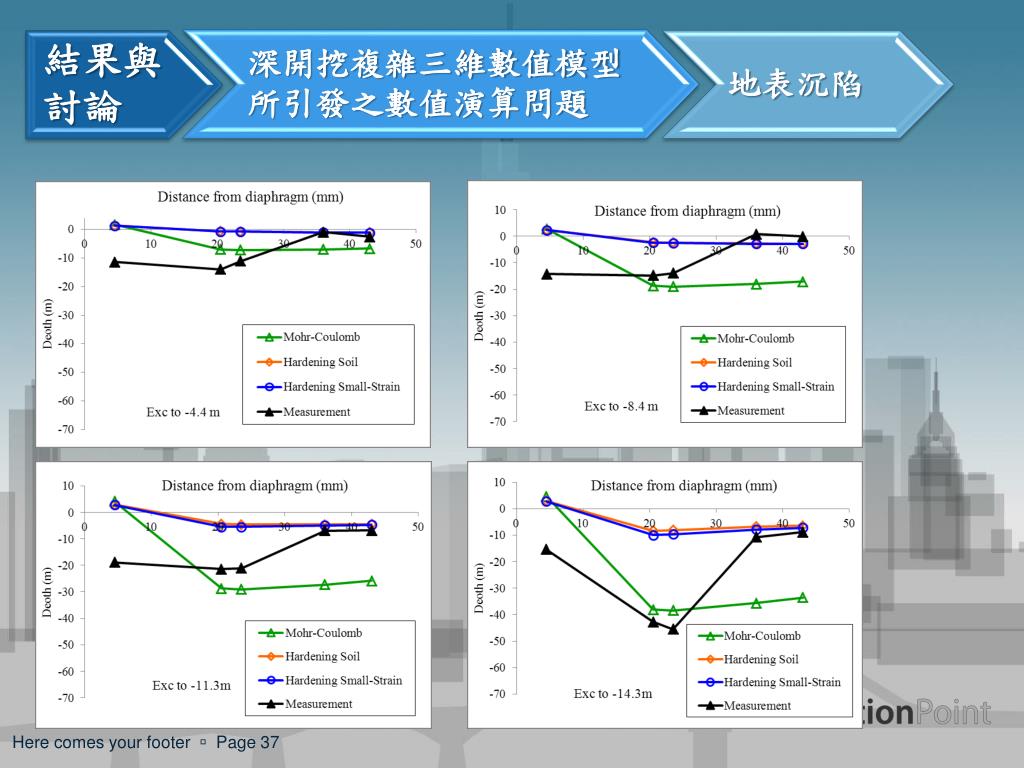

  39. Here comes your footer  Page 41

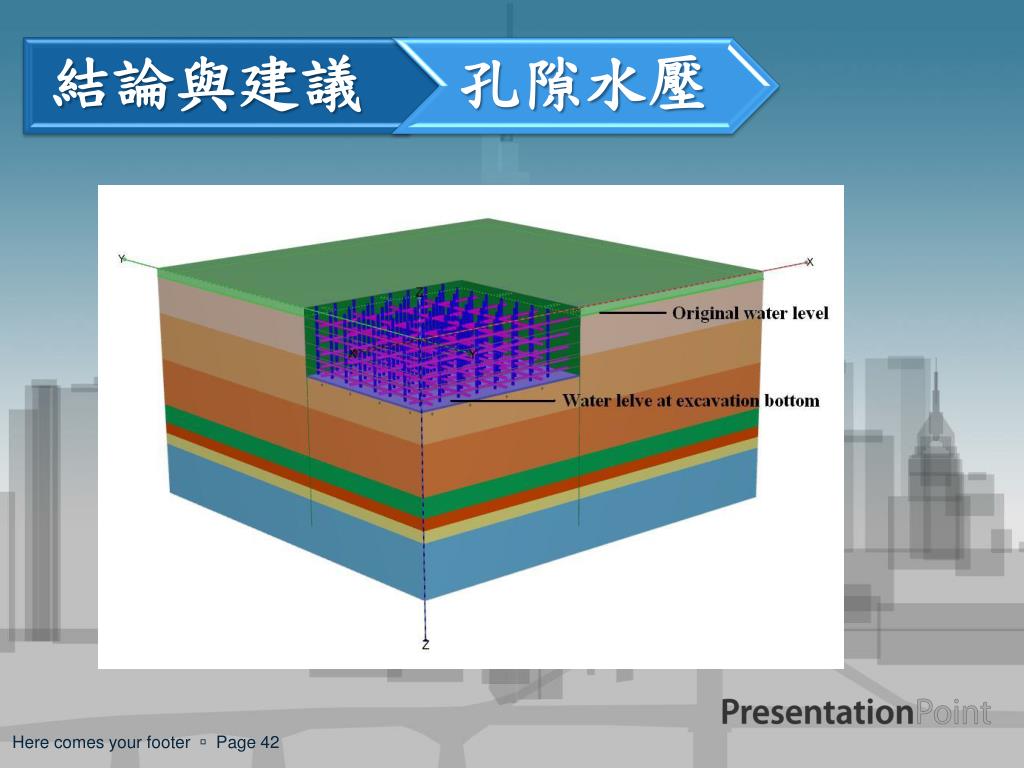

  40. Here comes your footer  Page 42

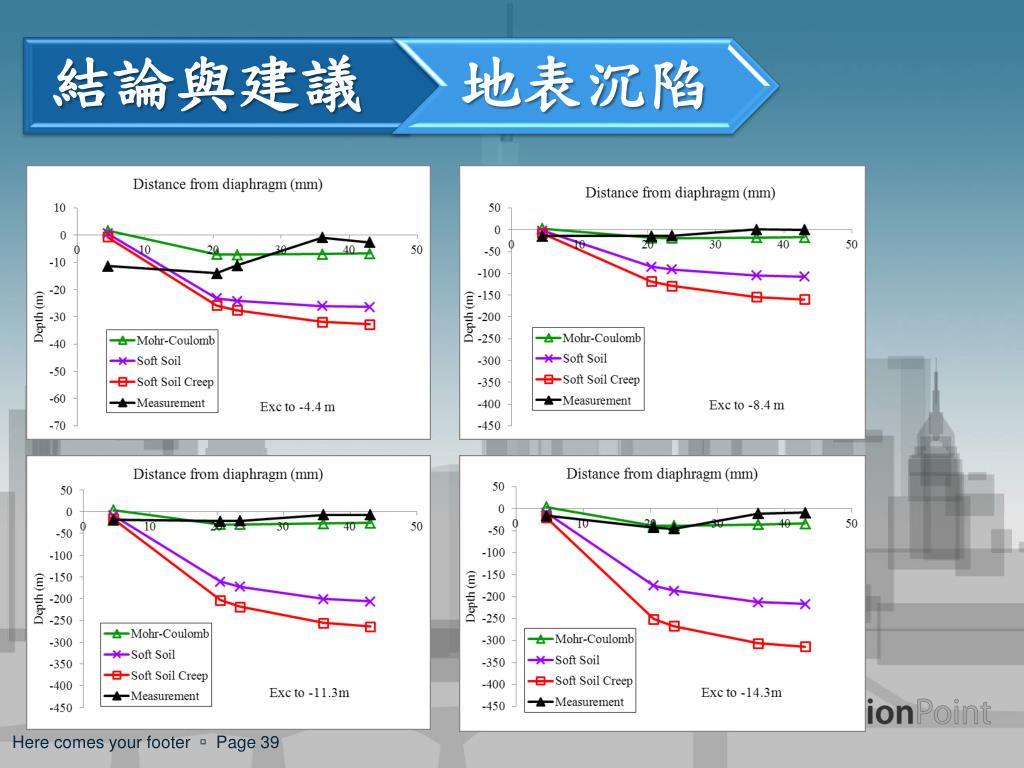

  41. Here comes your footer  Page 43

  42. Here comes your footer  Page 44

  43. Here comes your footer  Page 45

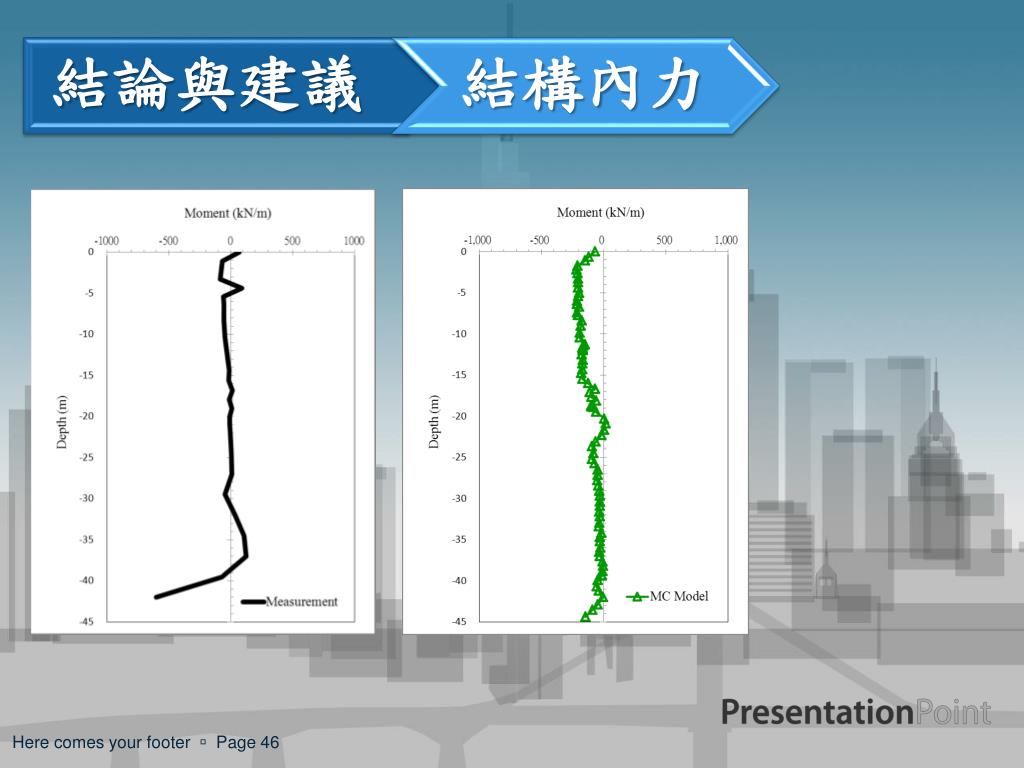

  44. Here comes your footer  Page 46

  45. Here comes your footer  Page 47

  46. Here comes your footer  Page 48

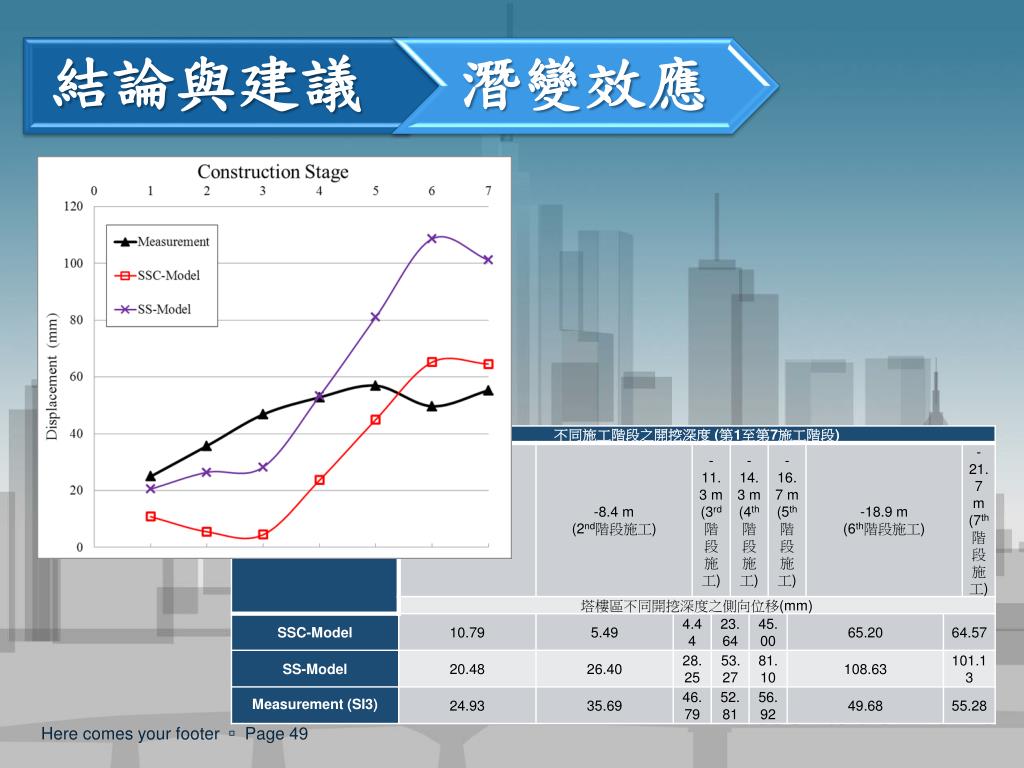

  47. Here comes your footer  Page 49

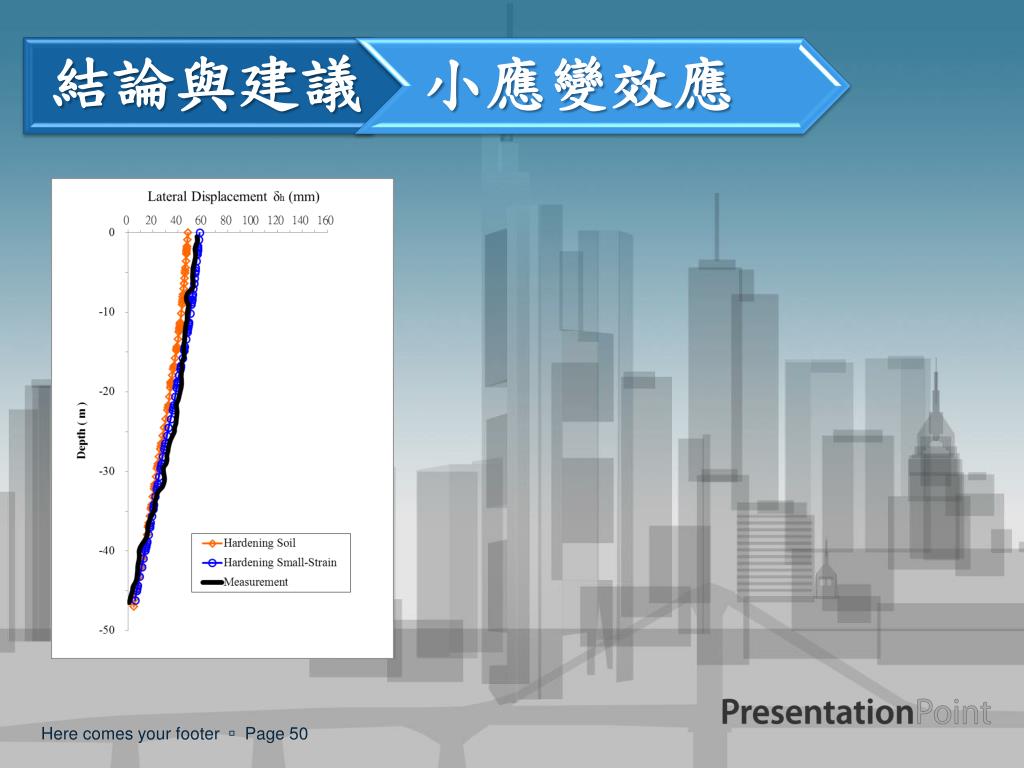

  48. Here comes your footer  Page 50
