Controlled Atmosphere Vibrating Magnetometer for Precise Magnetic Measurements

This device enables controlled environment magnetic measurements using vibrating magnetometry. Operates in Argon, with adjustable fields and temperatures. Easily customizable profiles for experiments. Labview program included. Results saved and accessible for analysis.

clarke-forbes
Download Presentation

Controlled Atmosphere Vibrating Magnetometer for Precise Magnetic Measurements

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

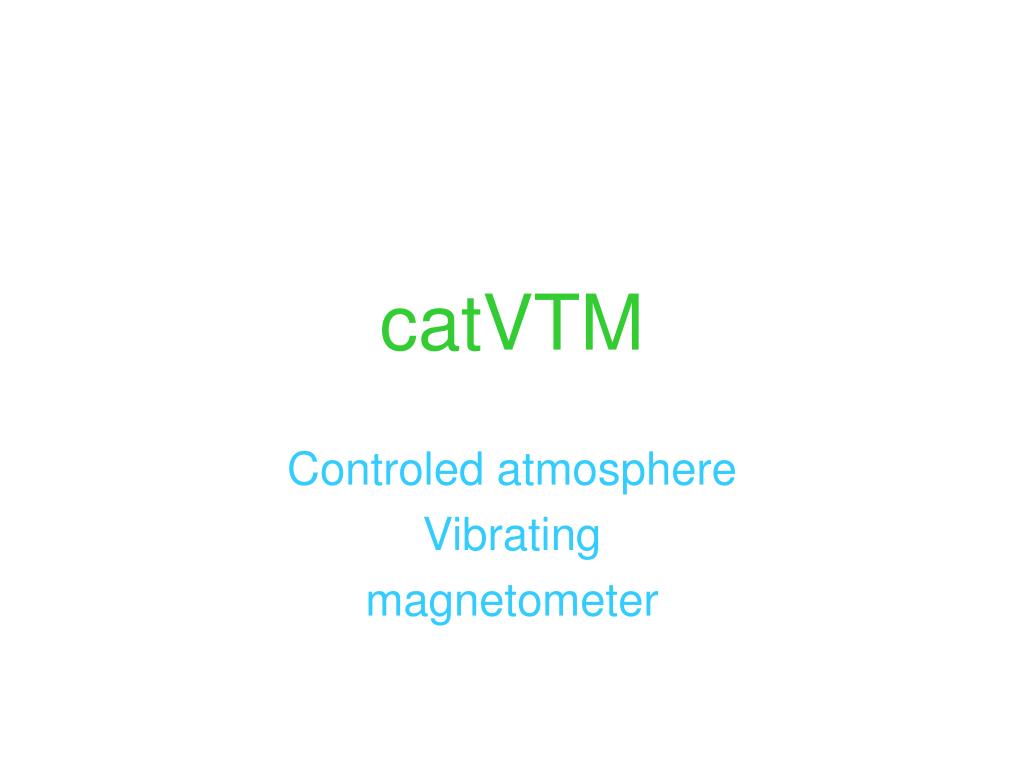

  1. catVTM Controled atmosphere Vibrating magnetometer

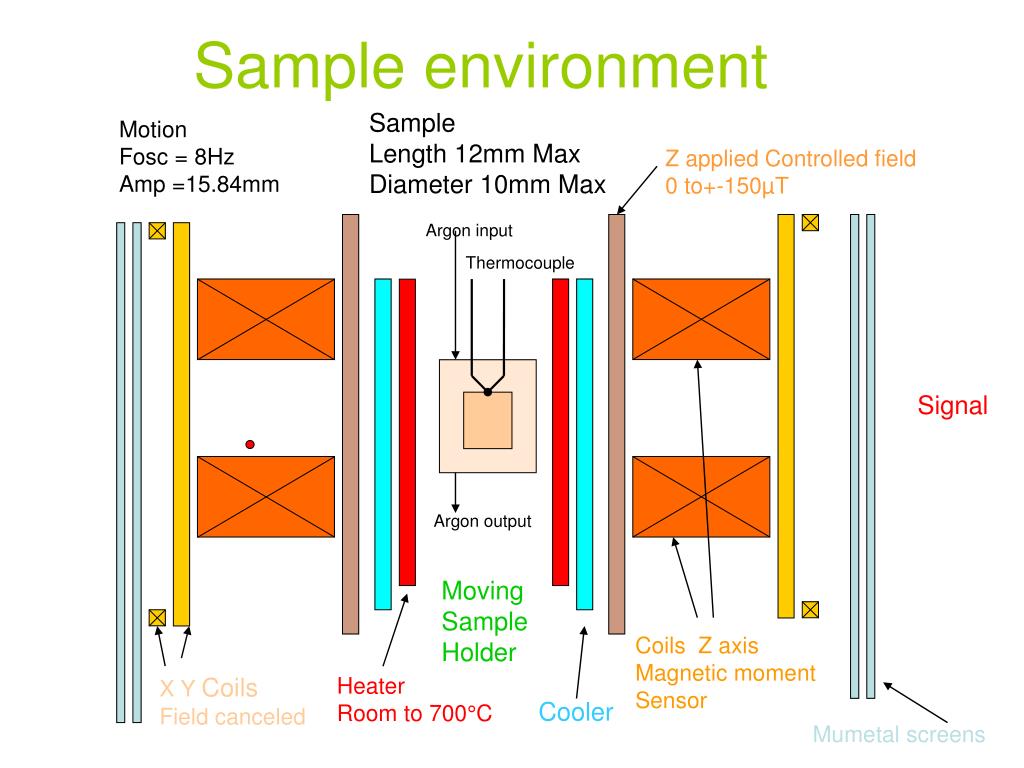

  2. Sample environment Argon output Sample Length 12mm Max Diameter 10mm Max Motion Fosc = 8Hz Amp =15.84mm Z applied Controlled field 0 to+-150µT Argon input Thermocouple Signal Moving Sample Holder Coils Z axis Magnetic moment Sensor X Y Coils Field canceled Heater Room to 700°C Cooler Mumetal screens

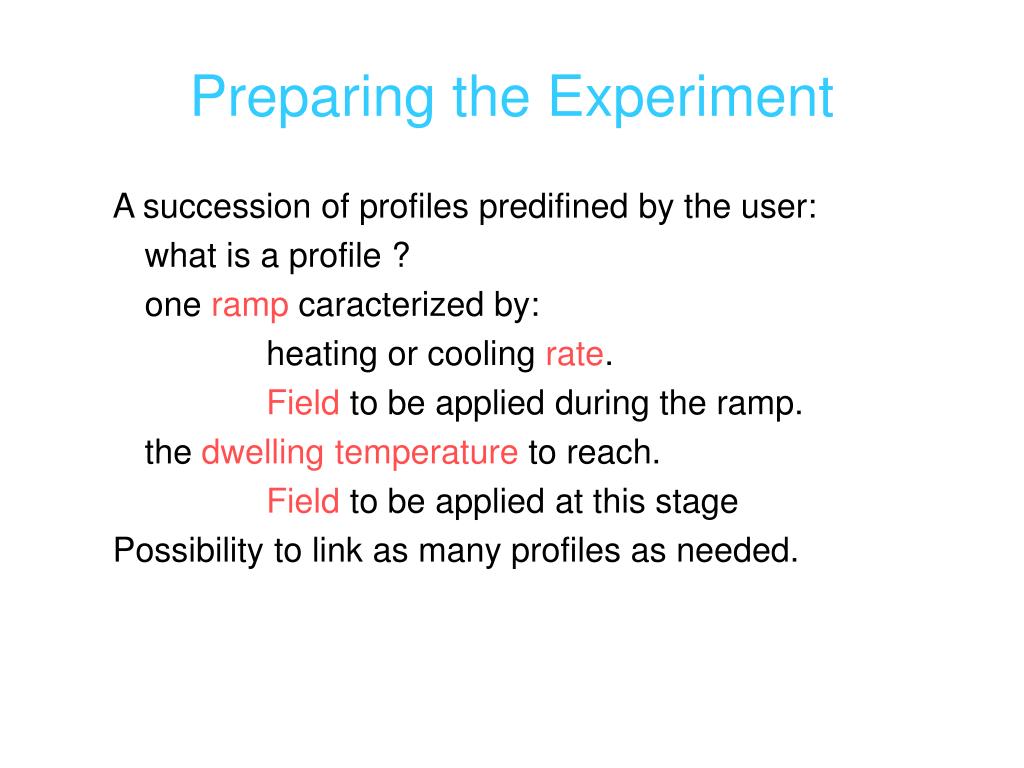

  3. Preparing the Experiment A succession of profiles predifined by the user: what is a profile ? one ramp caracterized by: heating or cooling rate. Field to be applied during the ramp. the dwelling temperature to reach. Field to be applied at this stage Possibility to link as many profiles as needed.

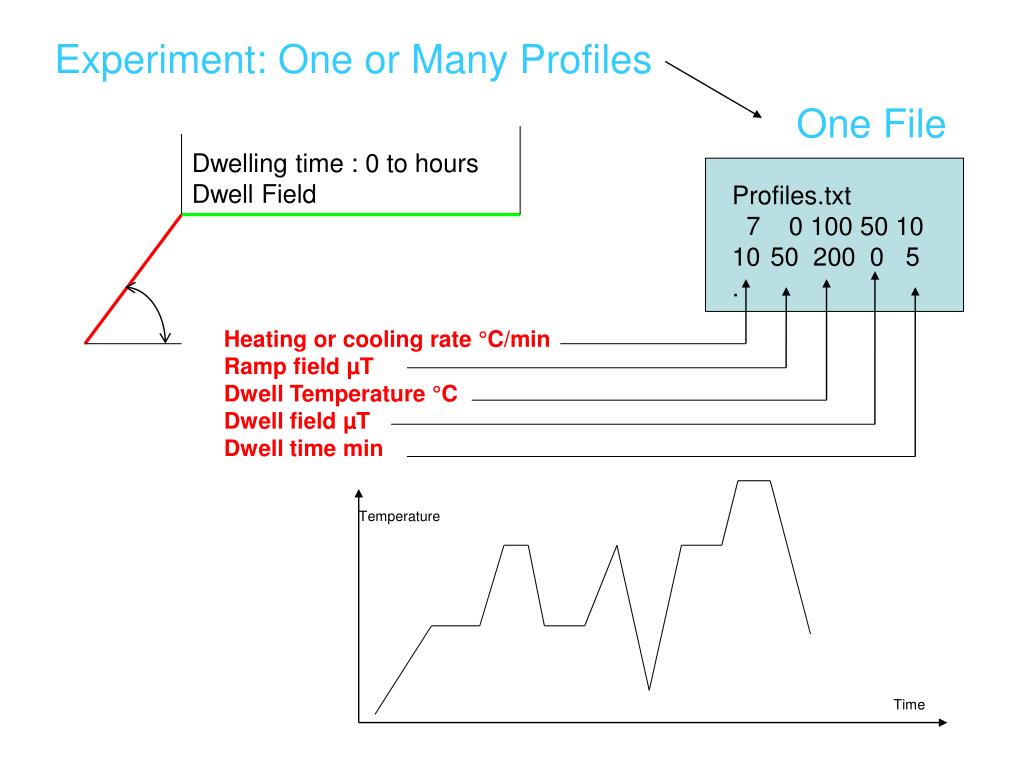

  4. Dwelling time : 0 to hours Dwell Field • Profiles.txt • 7 0 100 50 10 • 50 200 0 5 • . Experiment: One or Many Profiles One File Heating or cooling rate °C/min Ramp field µT Dwell Temperature °C Dwell field µT Dwell time min Temperature Time

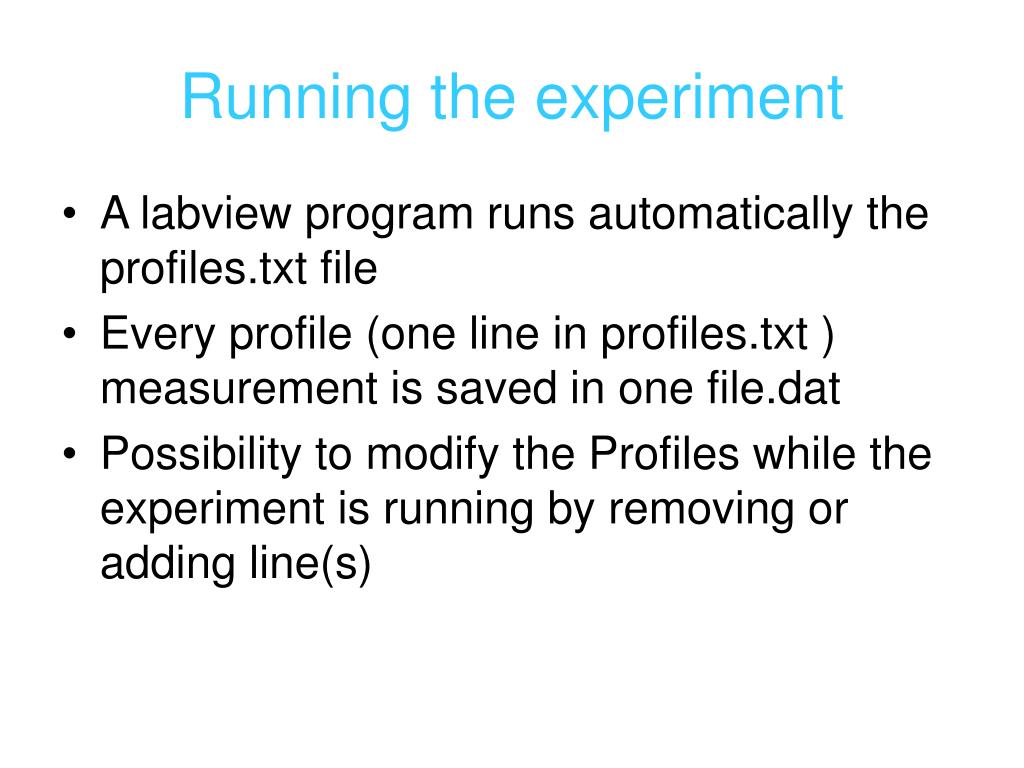

  5. Running the experiment • A labview program runs automatically the profiles.txt file • Every profile (one line in profiles.txt ) measurement is saved in one file.dat • Possibility to modify the Profiles while the experiment is running by removing or adding line(s)

  6. Results:
