Audible (Accessible?) Pedestrian Signals

Audible (Accessible?) Pedestrian Signals. MTC Arterial Operations Committee Meeting September 9, 2008. Outline. Why Install APS? APS Implementation Guidelines Available APS and Cost Discussion. It’s the Law.

clarke-chan
Download Presentation

Audible (Accessible?) Pedestrian Signals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Audible (Accessible?) Pedestrian Signals MTC Arterial Operations Committee Meeting September 9, 2008

  2. Outline • Why Install APS? • APS Implementation Guidelines • Available APS and Cost • Discussion

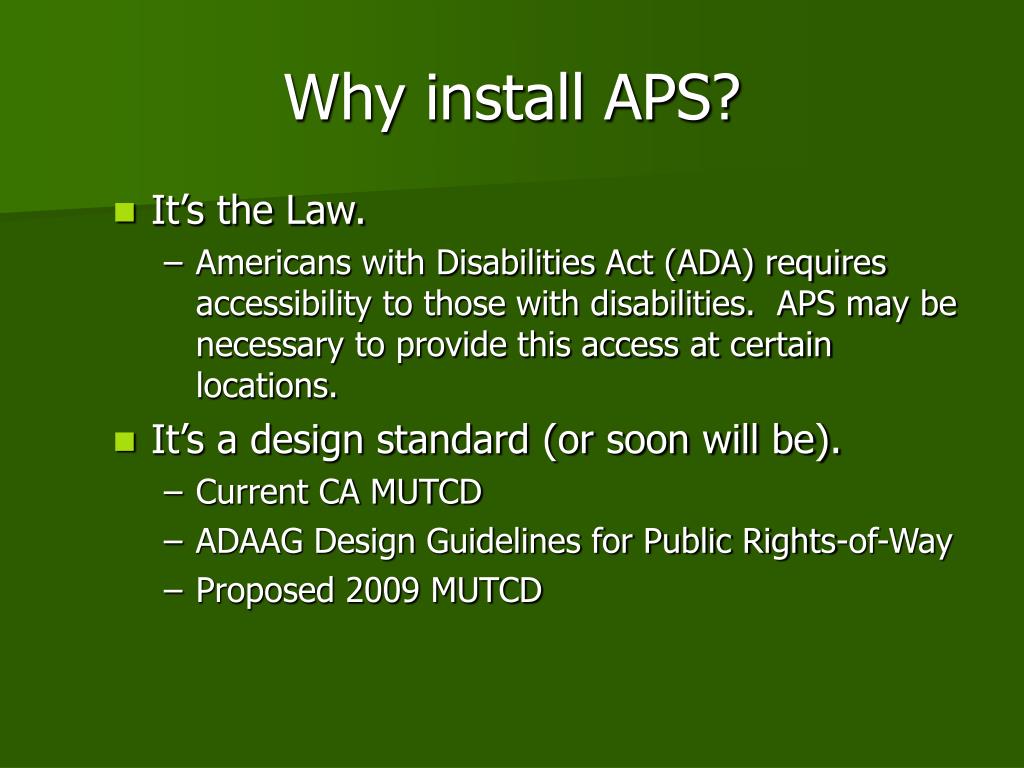

  3. It’s the Law. Americans with Disabilities Act (ADA) requires accessibility to those with disabilities. APS may be necessary to provide this access at certain locations. It’s a design standard (or soon will be). Current CA MUTCD ADAAG Design Guidelines for Public Rights-of-Way Proposed 2009 MUTCD Why install APS?

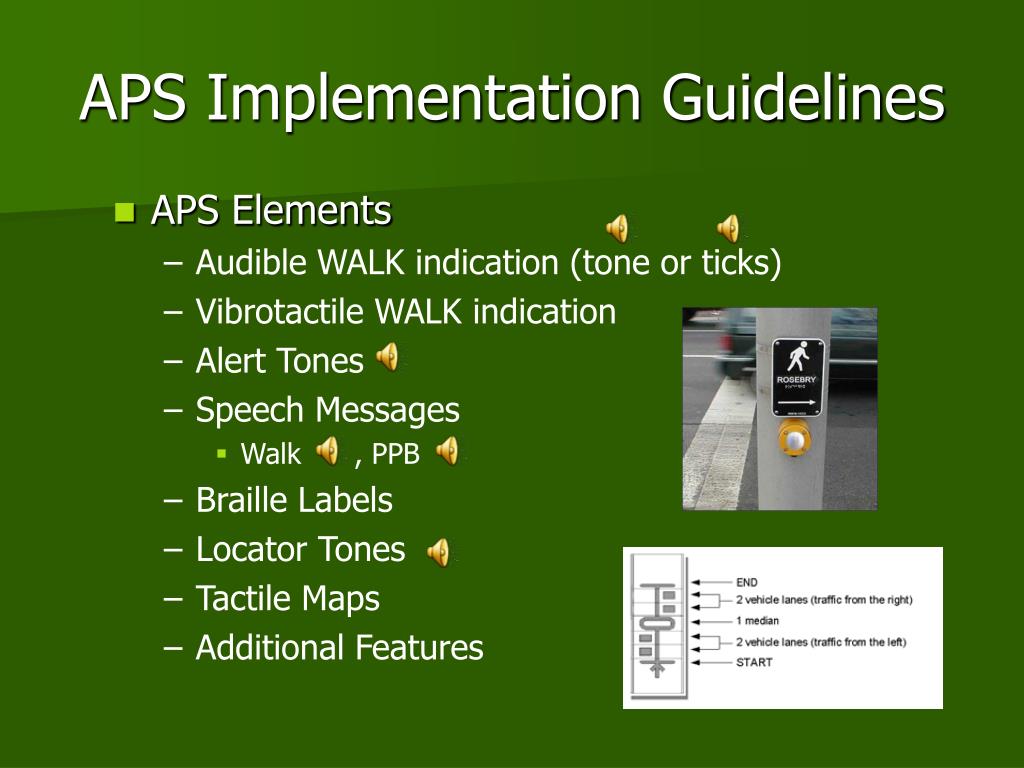

  4. APS Elements Audible WALK indication (tone or ticks) Vibrotactile WALK indication Alert Tones Speech Messages Walk , PPB Braille Labels Locator Tones Tactile Maps Additional Features APS Implementation Guidelines

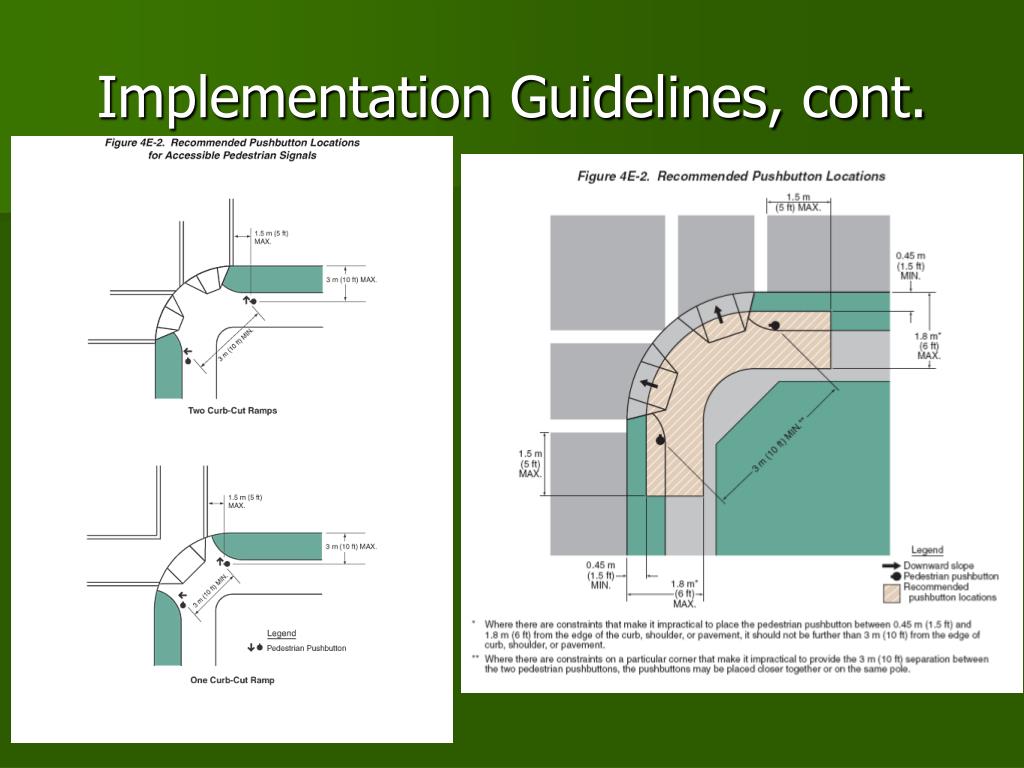

  5. Implementation Guidelines, cont.

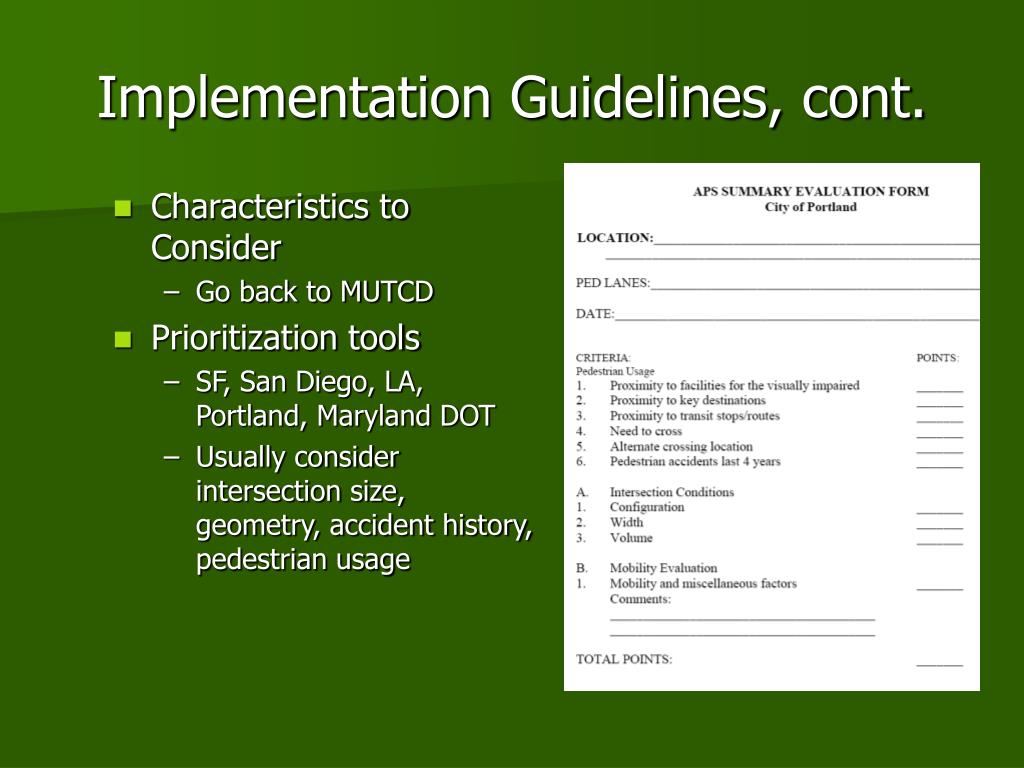

  6. Characteristics to Consider Go back to MUTCD Prioritization tools SF, San Diego, LA, Portland, Maryland DOT Usually consider intersection size, geometry, accident history, pedestrian usage Implementation Guidelines, cont.

  7. Ped Head – mounted (Cuckoo / Chirp-Chirp) Approx $1000 per intersection Pushbutton-integrated APS (most common APS in USA) Approx $7000 per intersection Vibrotactile Only Receiver – based APS APS Availability and Costs

  8. Who Uses It?

  9. Discussion
