Special Parallelograms

m 1 = 62, m 2 = 62, m 3 = 56. m 1 = 90, m 2 = 20, m 3 = 20, m 4 = 70. Special Parallelograms. Lesson 6-4. Lesson Quiz. 1. The diagonals of a rectangle have lengths 4 + 2 x and 6 x – 20. Find x and the length of each diagonal.

claral
Download Presentation

Special Parallelograms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

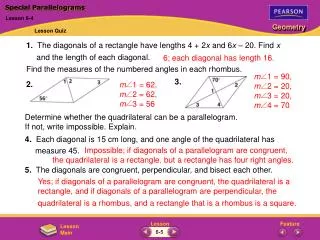

  1. m 1 = 62, m 2 = 62, m 3 = 56 m 1 = 90, m 2 = 20, m 3 = 20, m 4 = 70 Special Parallelograms Lesson 6-4 Lesson Quiz 1. The diagonals of a rectangle have lengths 4 + 2x and 6x – 20. Find x and the length of each diagonal. 6; each diagonal has length 16. Find the measures of the numbered angles in each rhombus. 3. 2. Determine whether the quadrilateral can be a parallelogram. If not, write impossible. Explain. 4. Each diagonal is 15 cm long, and one angle of the quadrilateral has measure 45. 5. The diagonals are congruent, perpendicular, and bisect each other. Impossible; if diagonals of a parallelogram are congruent, the quadrilateral is a rectangle, but a rectangle has four right angles. Yes; if diagonals of a parallelogram are congruent, the quadrilateral is a rectangle, and if diagonals of a parallelogram are perpendicular, the quadrilateral is a rhombus, and a rectangle that is a rhombus is a square. 6-5

  2. Trapezoids and Kites Lesson 6-5 Notes The parallel sides of a trapezoid are its bases. The nonparallel sides are its legs.Two angles that share a base of a trapezoid are base angles of the trapezoid. 6-5

  3. Trapezoids and Kites Lesson 6-5 Notes 6-5

  4. Trapezoids and Kites Lesson 6-5 Notes 6-5

  5. Trapezoids and Kites Lesson 6-5 Notes 6-5

  6. Trapezoids and Kites Lesson 6-5 Notes 6-5

  7. mX + mW = 180 Two angles that share a leg of a trapezoid are supplementary. 156 + mW = 180 Substitute. mW = 24 Subtract 156 from each side. Trapezoids and Kites Lesson 6-5 Additional Examples Finding Angle Measures in Trapezoids XYZW is an isosceles trapezoid, and mX = 156. Find mY, mZ, and mW. Because the base angles of an isosceles trapezoid are congruent, mY = mX = 156 and mZ = mW = 24. Quick Check 6-5

  8. Trapezoid ABDC is part of an isosceles triangle whose vertex angle is at the center of the spider web. Because there are 6 adjacent congruent vertex angles at the center of the web, together forming a straight angle, each vertex angle measures , or 30. 180 6 Trapezoids and Kites Lesson 6-5 Additional Examples Real-World Connection Half of a spider’s web is shown below, formed by layers of congruent isosceles trapezoids. Find the measures of the angles in ABDC. By the Triangle Angle-Sum Theorem, mA + mB + 30 = 180, so mA + mB = 150. Because ABDC is part of an isosceles triangle, mA = mB, so 2mA = 150 and mA = mB = 75. 6-5

  9. Another way to find the measure of each acute angle is to divide the difference of 180 and the measure of the vertex angle by 2: 180 – 30 2 = 75 Because the bases of a trapezoid are parallel, the two angles that share a leg are supplementary, so m C = m D = 180 – 75 = 105. Trapezoids and Kites Lesson 6-5 Additional Examples (continued) Quick Check 6-5

  10. Diagonals of a kite are perpendicular. m 2 = 90 RU = RS Definition of a kite m 1 = 72 Isosceles Triangle Theorem m 3 + mRDU + 72 = 180 Triangle Angle–Sum Theorem m RDU = 90 Diagonals of a kite are perpendicular. m 3 + 90 + 72 = 180 Substitute. m 3 + 162 = 180 Simplify. m 3 = 18 Subtract 162 from each side. Trapezoids and Kites Lesson 6-5 Additional Examples Finding Angle Measures in Kites Quick Check Find m 1, m 2, and m 3 in the kite. 6-5

  11. m B = 45, m C = m D = 135 Trapezoids and Kites Lesson 6-5 Lesson Quiz Use isosceles trapezoid ABCD for Exercises 1 and 2. 1. If m A = 45, find m B, m C, and m D. 2. If AC = 3x – 16 and BD = 10x – 86, find x. 10 Use kite GHIJ for Exercises 3–6. 3. Find m 1. 4. Find m 2. 5. Find m 3. 6. Find m 4. 90 9 81 40 6-5

  12. Trapezoids and Kites Lesson 6-5 Check Skills You’ll Need (For help, go to Lesson 6-1.) Find the values of the variables. Then find the lengths of the sides. 3. 1. 2. Check Skills You’ll Need 6-5

  13. Trapezoids and Kites Lesson 6-5 Check Skills You’ll Need (For help, go to Lesson 6-1.) Solutions 1.a – 1.4 = 2a – 7. Solve for a to get a = 5.6. Substitute 5.6 for a in the expression a – 1.4: 5.6 – 1.4 = 4.2. The lengths of the sides are 4.5, 4.2, 4.2, and 4.5. 2. 4y + 6 = 7y – 3. Solve for y to get y = 3. Substitute 3 for y in the expression 4y + 6: 4(3) + 6 = 18. Substitute 3 for y in the expression 5y + 1.4: 5(3) + 1.4 = 16.4. The lengths of the sides are 18, 4.8, 18, and 16.4. 3.n = 3m and n + 6 = 7m – 14. Substitute 3m for n in n + 6 = 7m – 14: 3m + 6 = 7m – 14. Solve for m to get m = 5. Substitute 5 for m in n = 3m to get n = 15. Substitute 5 for m in 7m – 14: 7(5) – 14 = 21. The lengths of the sides are 15, 15, 21, and 21. 6-5
