lloyd rutledge cwi amsterdam
Lloyd Rutledge

CWI, Amsterdam

Finding the Story — Generating Large-Scale Document Structure in Semantics-to-Hypermedia Transformation
the topia project

Topia project

partners:

Telematica Instituut

Technische Universiteit

Eindhoven

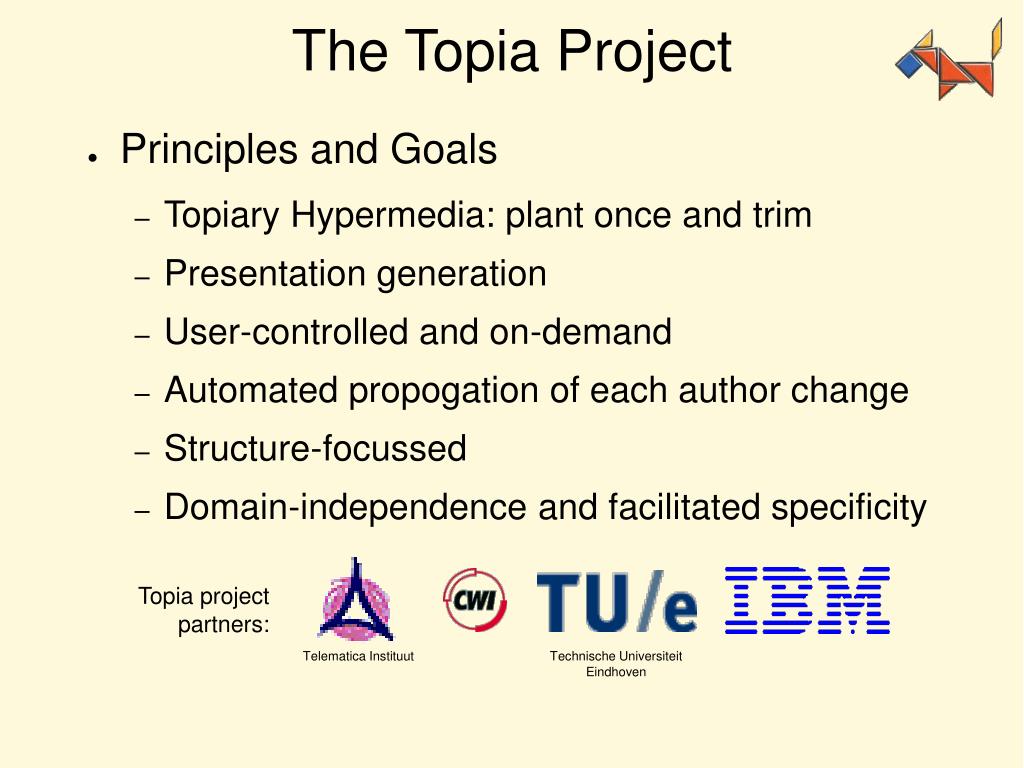

The Topia Project
  • Principles and Goals
    • Topiary Hypermedia: plant once and trim
    • Presentation generation
    • User-controlled and on-demand
    • Automated propogation of each author change
    • Structure-focussed
    • Domain-independence and facilitated specificity
slide3

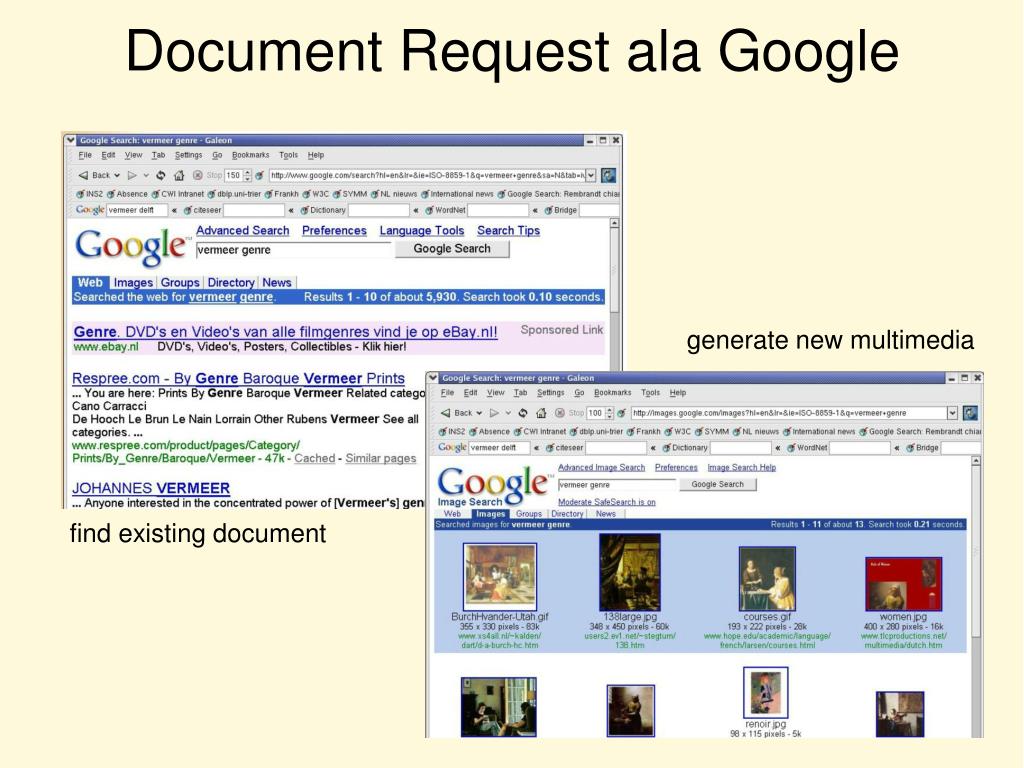

Document Request ala Google

generate new multimedia

find existing document

slide5

structure

the engineer

content

topic

search

retrieval

document

the archivist

the user

style

the stylist

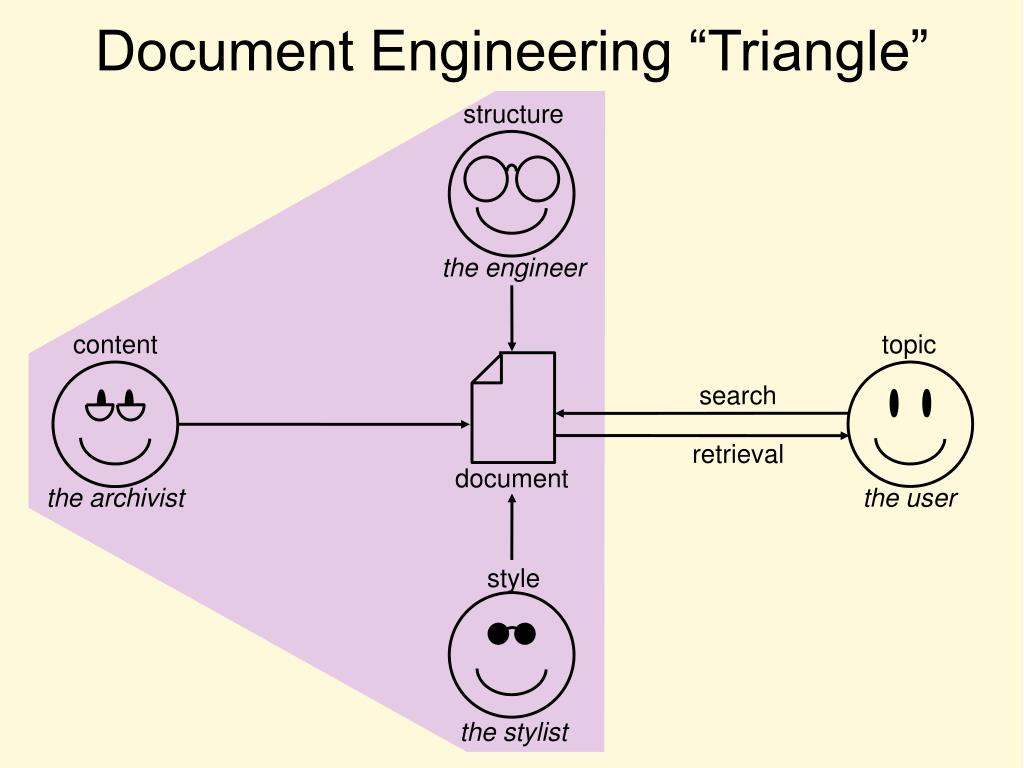

Document Engineering “Triangle”

slide6

the past 10 years

paper author

Web author

find

surf

read

read

universally

applicable

choose style

by the end of this talk

select/control

search database

universally

applicable

generated

presentation creator

presentation

select/control

select/control

Document Engineering History

the past 5000 years

the past 5 years

post/archive

browse results

select archive

enter query

slide7

picks

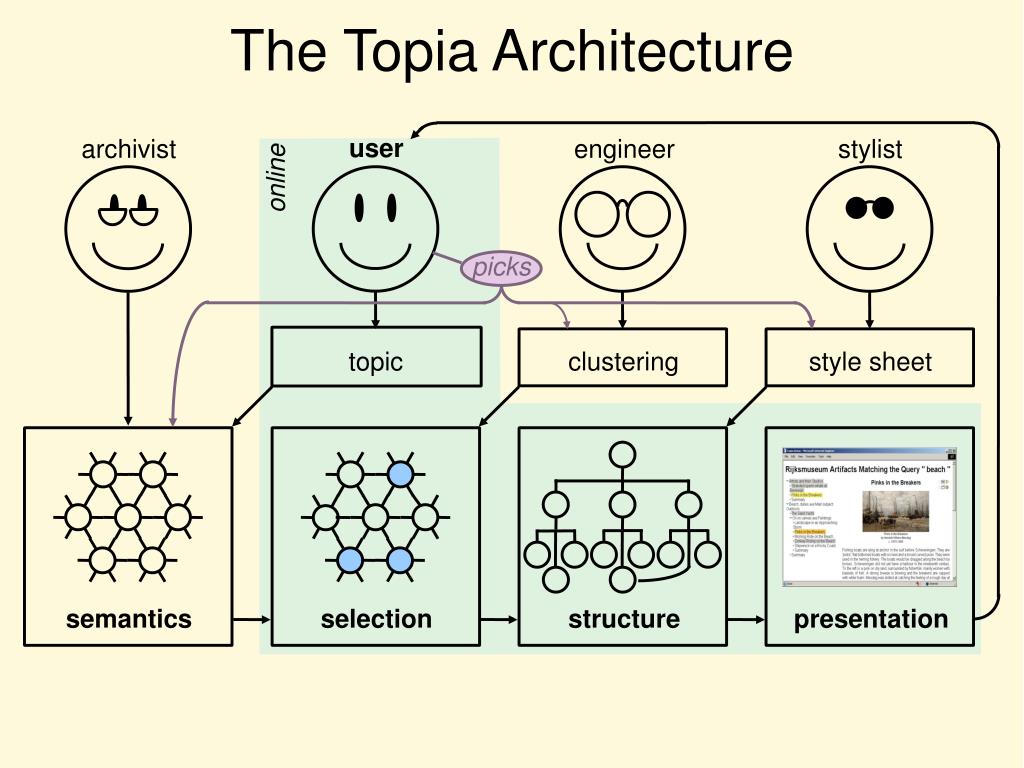

The Topia Architecture

user

archivist

engineer

stylist

online

topic

clustering

style sheet

semantics

selection

structure

presentation

slide8

Principles

  • User Control
    • pick expert – set options – become author
  • Cross-applicability
    • each expert’s contribution applies to any from the others
  • Show what and why
    • why archivist selected content for user request
    • why engineer put concept where it is in structure
    • why stylist picked each media for its concept
slide9

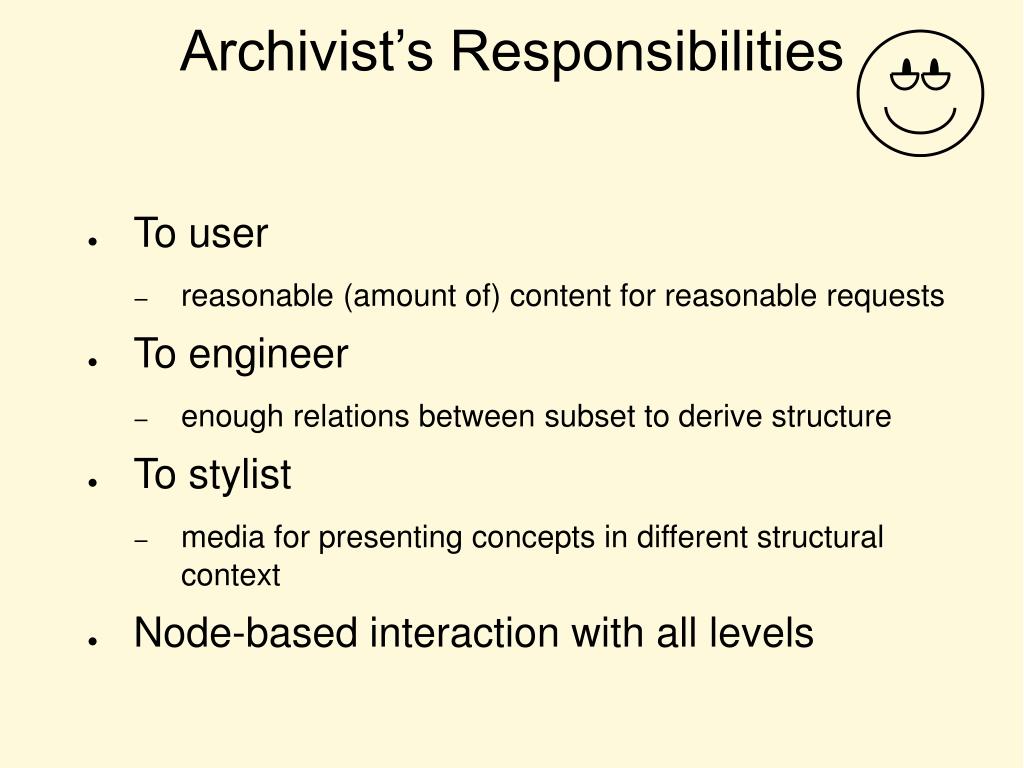

Archivist’s Responsibilities

  • To user
    • reasonable (amount of) content for reasonable requests
  • To engineer
    • enough relations between subset to derive structure
  • To stylist
    • media for presenting concepts in different structural context
  • Node-based interaction with all levels
slide10

text

#

concept type

concept

media

concept

<rdfs:label>

property type

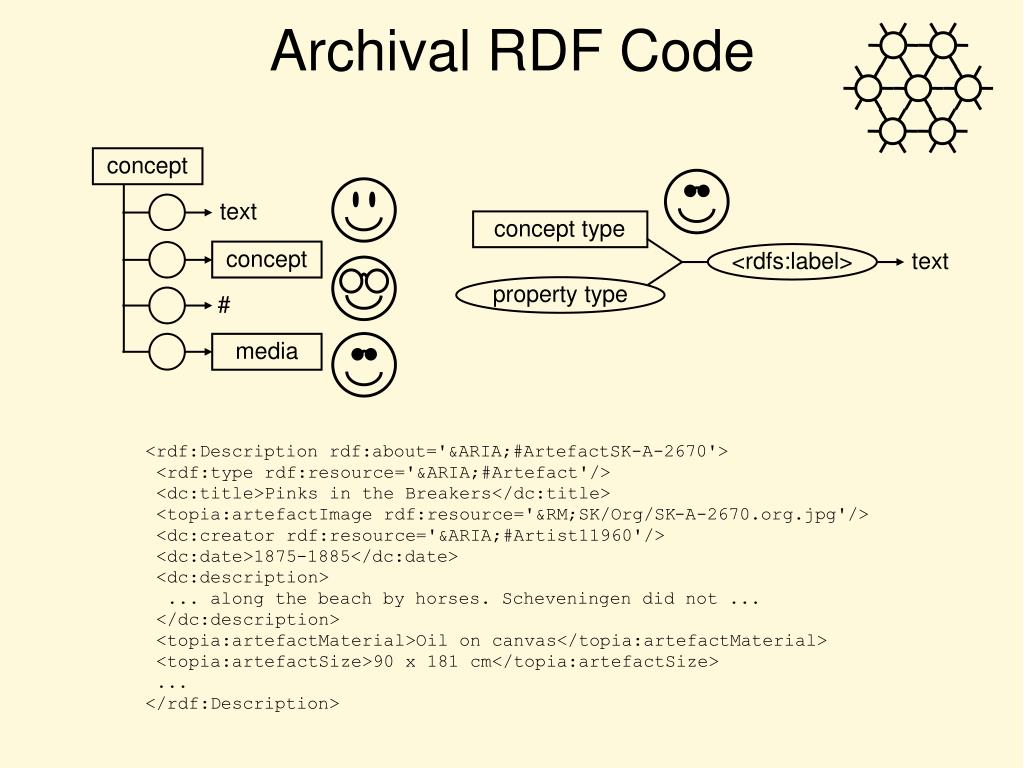

Archival RDF Code

text

<rdf:Description rdf:about='&ARIA;#ArtefactSK-A-2670'>

<rdf:type rdf:resource='&ARIA;#Artefact'/>

<dc:title>Pinks in the Breakers</dc:title>

<topia:artefactImage rdf:resource='&RM;SK/Org/SK-A-2670.org.jpg'/>

<dc:creator rdf:resource='&ARIA;#Artist11960'/>

<dc:date>1875-1885</dc:date>

<dc:description>

... along the beach by horses. Scheveningen did not ...

</dc:description>

<topia:artefactMaterial>Oil on canvas</topia:artefactMaterial>

<topia:artefactSize>90 x 181 cm</topia:artefactSize>

...

</rdf:Description>

slide13

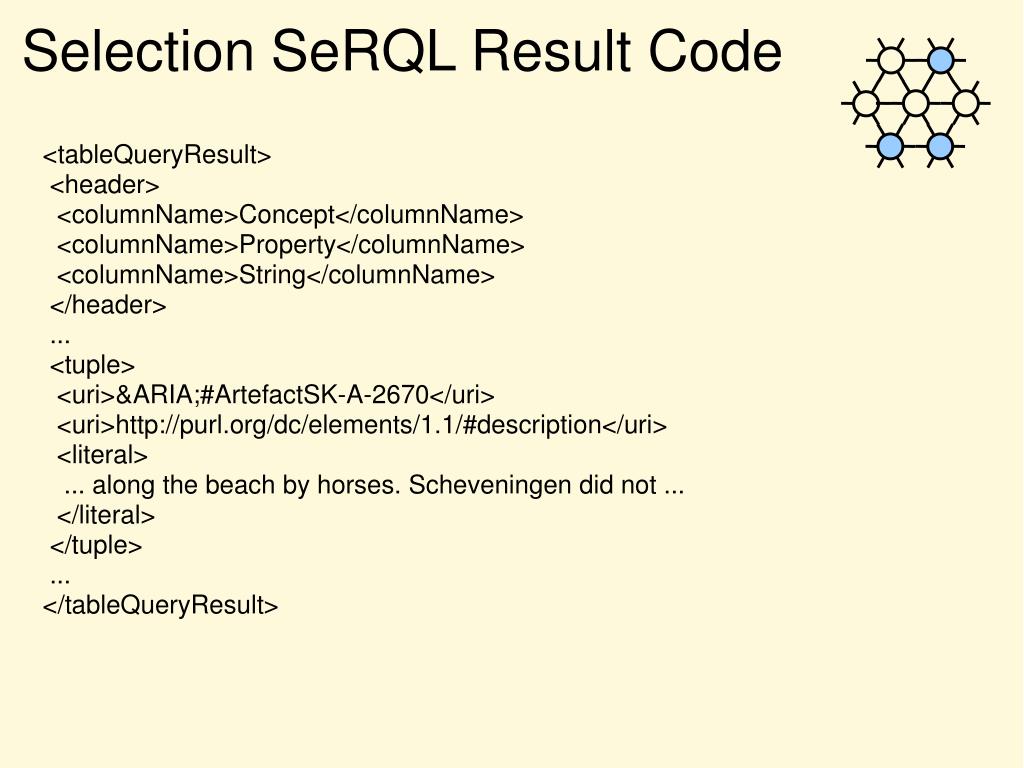

Selection SeRQL Result Code

<tableQueryResult>

<header>

<columnName>Concept</columnName>

<columnName>Property</columnName>

<columnName>String</columnName>

</header>

...

<tuple>

<uri>&ARIA;#ArtefactSK-A-2670</uri>

<uri>http://purl.org/dc/elements/1.1/#description</uri>

<literal>

... along the beach by horses. Scheveningen did not ...

</literal>

</tuple>

...

</tableQueryResult>

slide14

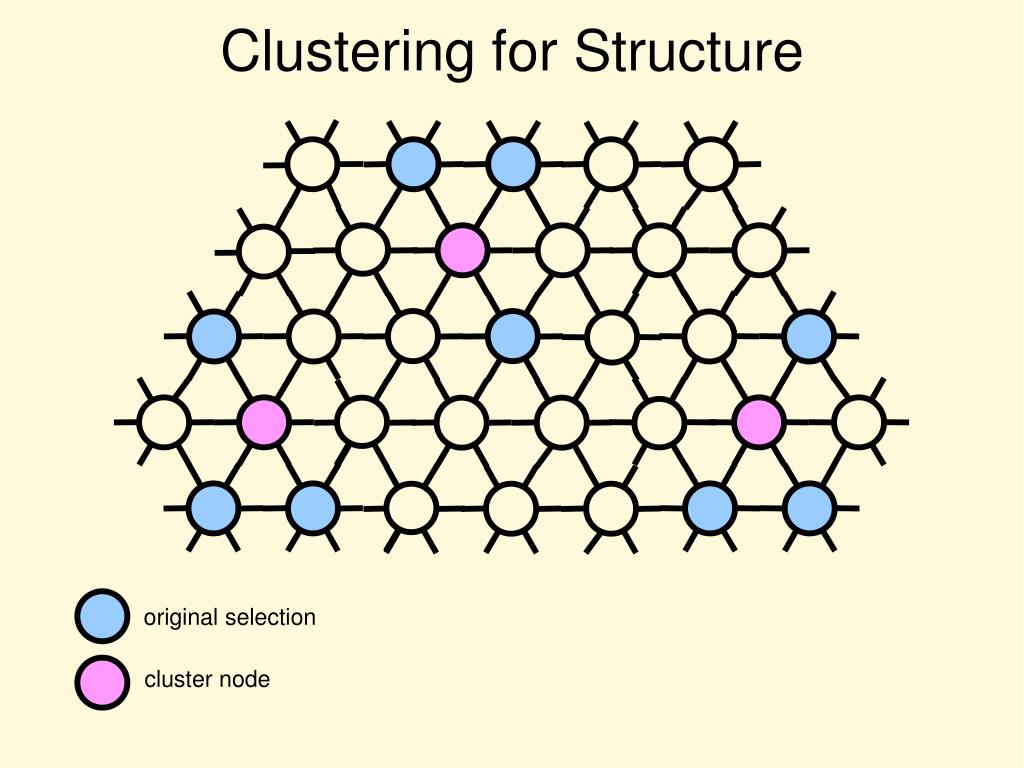

Clustering for Structure

original selection

cluster node

slide15

sequence

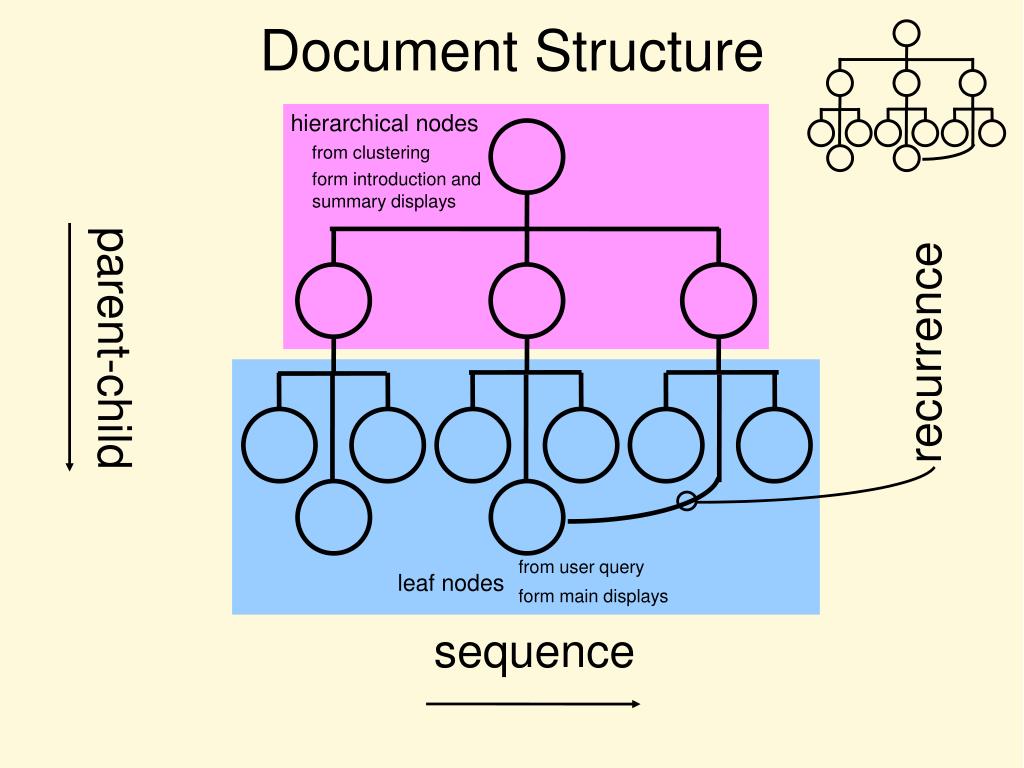

Document Structure

hierarchical nodes

from clustering

form introduction and summary displays

recurrence

parent-child

from user query

leaf nodes

form main displays

slide16

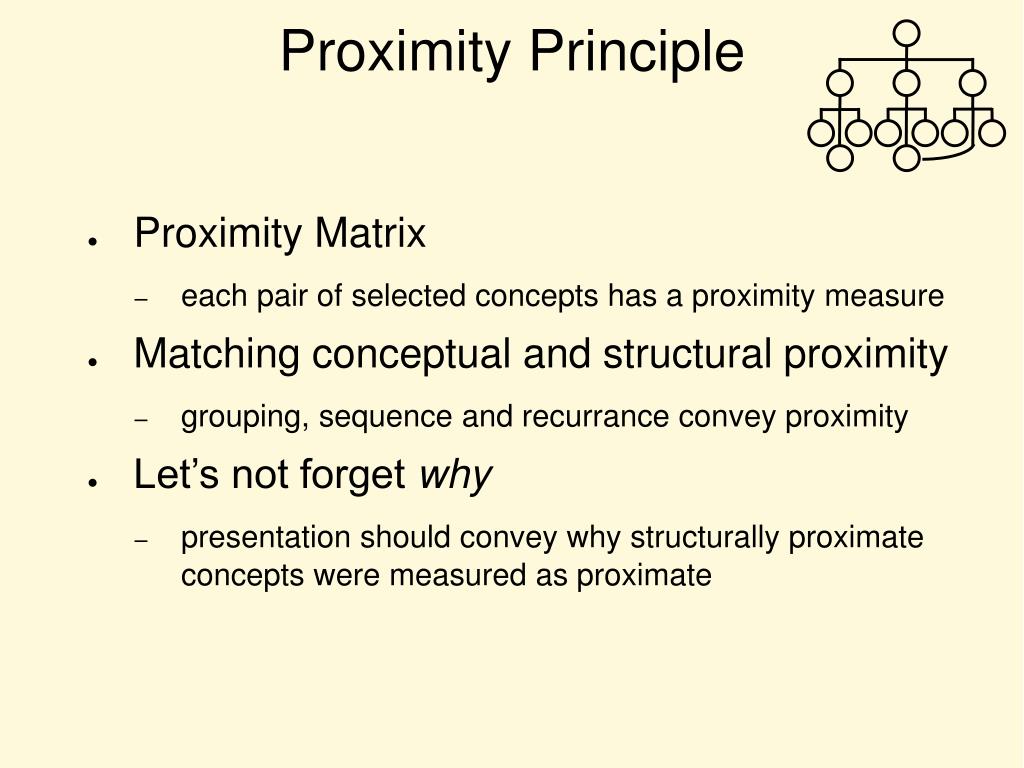

Proximity Principle

  • Proximity Matrix
    • each pair of selected concepts has a proximity measure
  • Matching conceptual and structural proximity
    • grouping, sequence and recurrance convey proximity
  • Let’s not forget why
    • presentation should convey why structurally proximate concepts were measured as proximate
slide19

Beyond Lattices

  • Inferred properties to beef up the link metrics
    • we use art genre sub-class inheritence
    • rules provided by archivist as domain-specific
  • Relational clustering
    • property (ie lattice) functional subset of relational
    • Can infer relations just like properties
  • Axial (numeric) clustering
    • creates virtual group nodes, without RDF resource
slide20

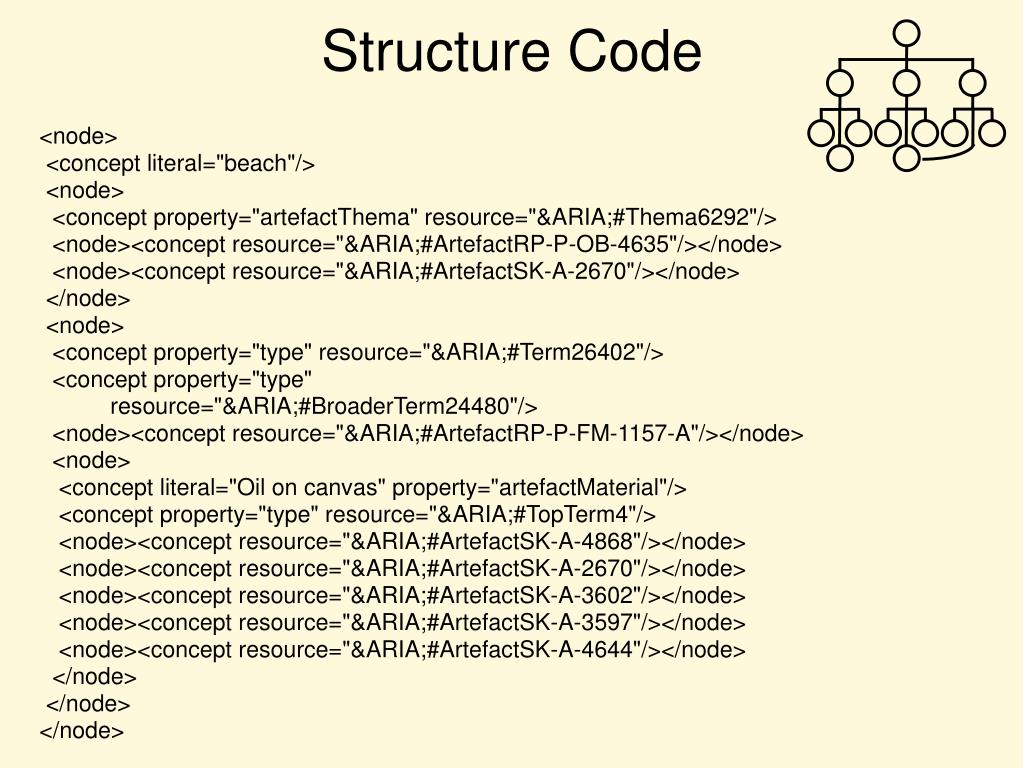

Structure Code

<node>

<concept literal="beach"/>

<node>

<concept property="artefactThema" resource="&ARIA;#Thema6292"/>

<node><concept resource="&ARIA;#ArtefactRP-P-OB-4635"/></node>

<node><concept resource="&ARIA;#ArtefactSK-A-2670"/></node>

</node>

<node>

<concept property="type" resource="&ARIA;#Term26402"/>

<concept property="type"

resource="&ARIA;#BroaderTerm24480"/>

<node><concept resource="&ARIA;#ArtefactRP-P-FM-1157-A"/></node>

<node>

<concept literal="Oil on canvas" property="artefactMaterial"/>

<concept property="type" resource="&ARIA;#TopTerm4"/>

<node><concept resource="&ARIA;#ArtefactSK-A-4868"/></node>

<node><concept resource="&ARIA;#ArtefactSK-A-2670"/></node>

<node><concept resource="&ARIA;#ArtefactSK-A-3602"/></node>

<node><concept resource="&ARIA;#ArtefactSK-A-3597"/></node>

<node><concept resource="&ARIA;#ArtefactSK-A-4644"/></node>

</node>

</node>

</node>

slide22

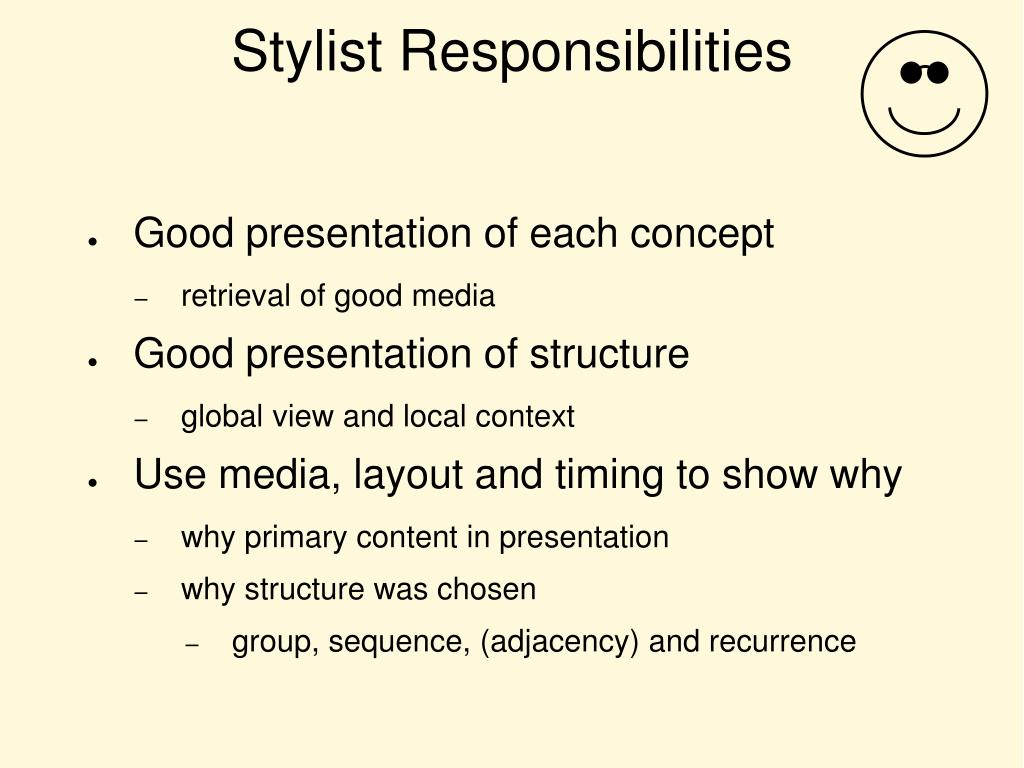

Stylist Responsibilities

  • Good presentation of each concept
    • retrieval of good media
  • Good presentation of structure
    • global view and local context
  • Use media, layout and timing to show why
    • why primary content in presentation
    • why structure was chosen
      • group, sequence, (adjacency) and recurrence
slide23

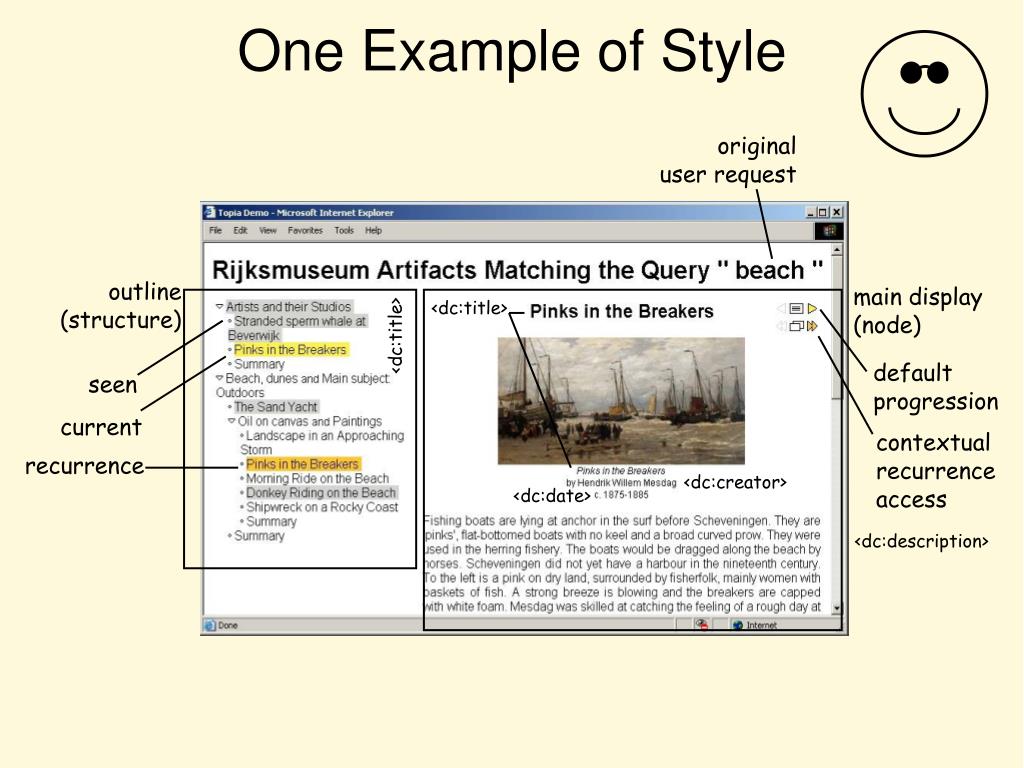

One Example of Style

original

user request

outline

(structure)

main display

(node)

<dc:title>

<dc:title>

default

progression

seen

current

contextual

recurrence

access

recurrence

<dc:creator>

<dc:date>

<dc:description>

slide24

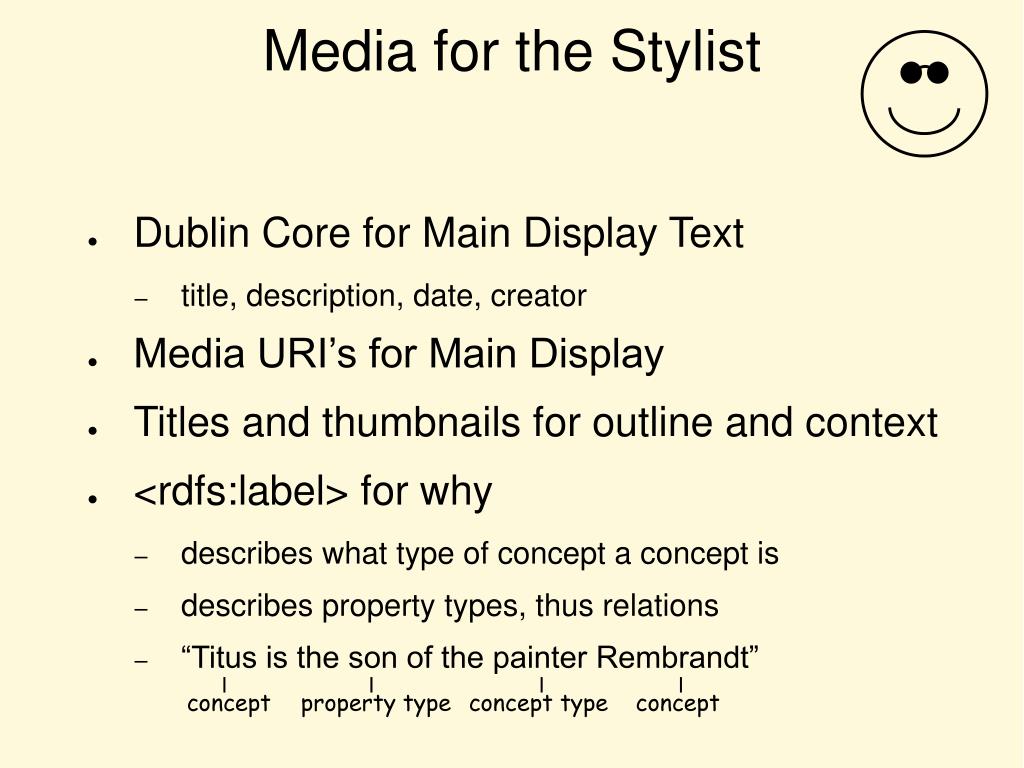

Media for the Stylist

  • Dublin Core for Main Display Text
    • title, description, date, creator
  • Media URI’s for Main Display
  • Titles and thumbnails for outline and context
  • <rdfs:label> for why
    • describes what type of concept a concept is
    • describes property types, thus relations
    • “Titus is the son of the painter Rembrandt”

concept

property type

concept type

concept

slide25

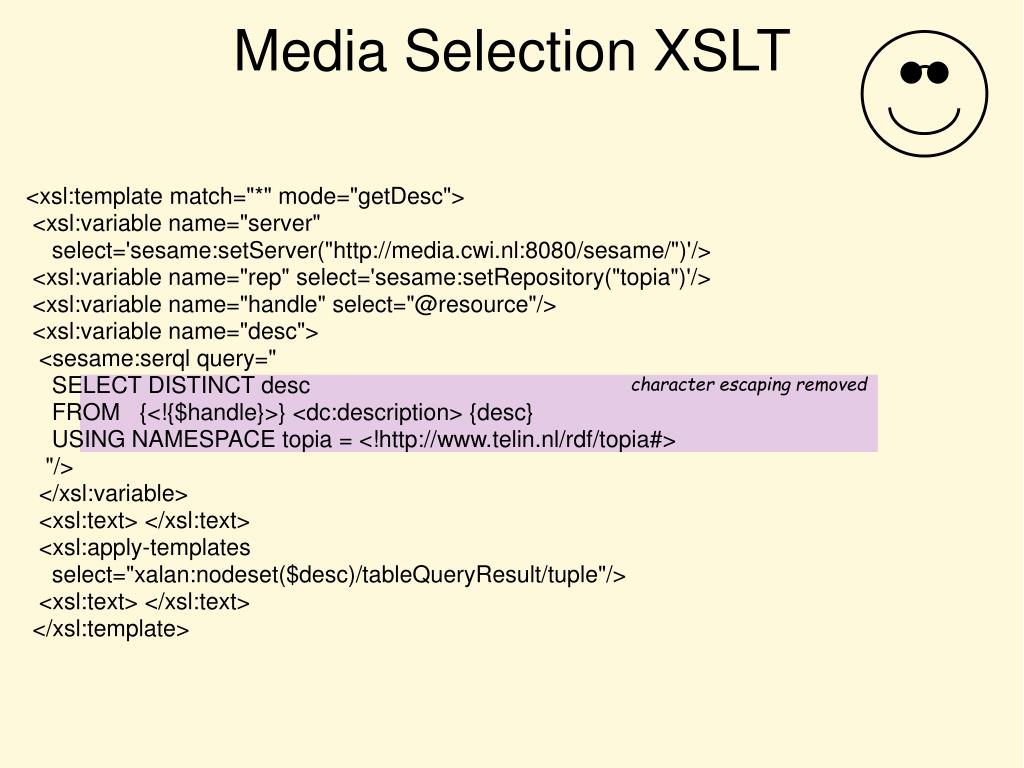

Media Selection XSLT

<xsl:template match="*" mode="getDesc">

<xsl:variable name="server"

select='sesame:setServer("http://media.cwi.nl:8080/sesame/")'/>

<xsl:variable name="rep" select='sesame:setRepository("topia")'/>

<xsl:variable name="handle" select="@resource"/>

<xsl:variable name="desc">

<sesame:serql query="

SELECT DISTINCT desc

FROM {<!{$handle}>} <dc:description> {desc}

USING NAMESPACE topia = <!http://www.telin.nl/rdf/topia#>

"/>

</xsl:variable>

<xsl:text> </xsl:text>

<xsl:apply-templates

select="xalan:nodeset($desc)/tableQueryResult/tuple"/>

<xsl:text> </xsl:text>

</xsl:template>

character escaping removed

slide30

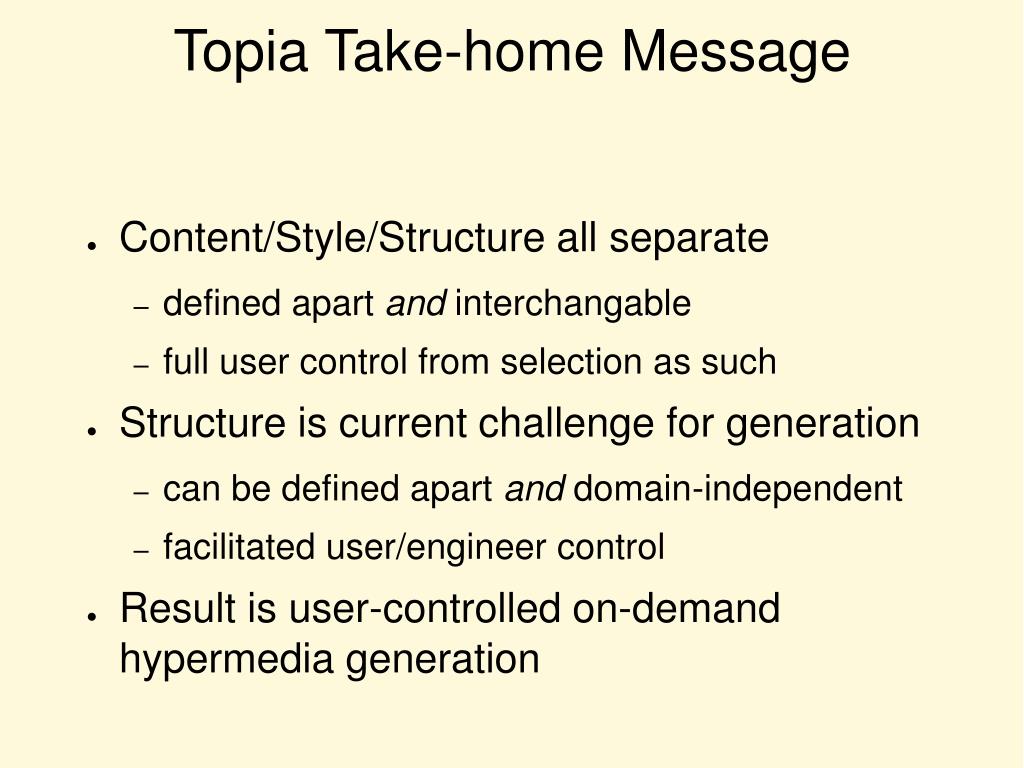

Topia Take-home Message

  • Content/Style/Structure all separate
    • defined apart and interchangable
    • full user control from selection as such
  • Structure is current challenge for generation
    • can be defined apart and domain-independent
    • facilitated user/engineer control
  • Result is user-controlled on-demand hypermedia generation
