trigonometry

Trigonometry

Review of Pythagorean Theorem

Sine, Cosine, & Tangent Functions

Laws of Cosines & Sines

pythagorean theorem
Pythagorean Theorem

Relationship among the

lengths of sides.

  • c^2 = a^2 + b^2
  • a^2 = c^2 - b^2
  • b^2 = c^2 - a^2

Side a

Side c

Side b

right triangles in trigonometry
Right triangles in Trigonometry
  • The letters a, b, and c are lengths of sides.
  • The Letter A is the measure of an angle.

A Right Triangle

c

a

A

b

trig functions and the right
Trig functions and the right /\
  • Sine (A) = opposite side / Hypotenuse
  • Cosine (A) = adjacent side / Hypotenuse
  • Tangent (A) = opposite side / adjacent side

Trig function values are the

ratios of the lengths of sides.

c

Sin A = Side a / Side c

Cos A = Side b / Side c

Tan A = Side a / Side b

a

A

b

trig questions

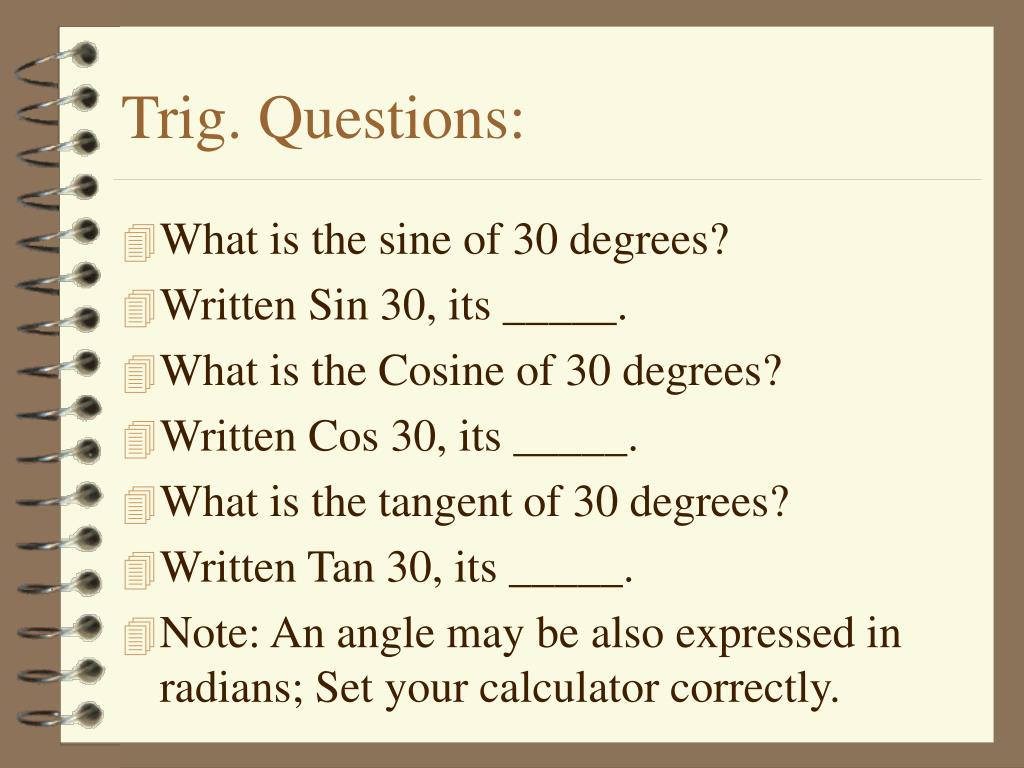

Trig. Questions:
  • What is the sine of 30 degrees?
  • Written Sin 30, its _____.
  • What is the Cosine of 30 degrees?
  • Written Cos 30, its _____.
  • What is the tangent of 30 degrees?
  • Written Tan 30, its _____.
  • Note: An angle may be also expressed in radians; Set your calculator correctly.
more trig questions
More Trig Questions
  • What is the Inverse Sin (0.5000)?
  • Use 2nd function key for Inverse.
  • What is the Inverse Cos (0.8660)?
  • Use 2nd function key for Inverse.
  • What is the Inverse Tan (0.5774)?
  • Use 2nd function key for Inverse.
how to remember the functions

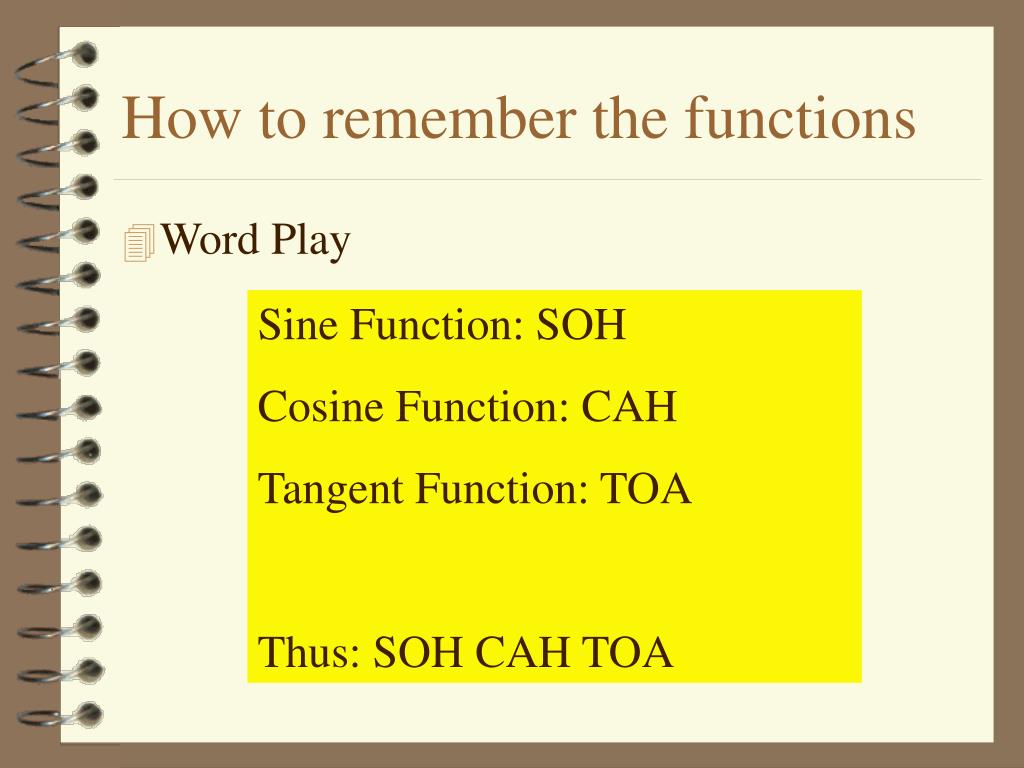

How to remember the functions
  • Word Play

Sine Function: SOH

Cosine Function: CAH

Tangent Function: TOA

Thus: SOH CAH TOA

an example trig problem
An example Trig problem:
  • Imagine a right triangle having an angle of 30 degrees. The other non-right angle would be 60 degrees. The 30 degree and the 60 degree angles would be called complementary angles. Let the hypotenuse equal 10 m. Calculate the length of the opposite and adjacent sides.
  • Well how are you going to do it?
calculating the hypotenuse
Calculating the hypotenuse.

Sin 30 degrees = opp / hyp

Opp = hyp * Sin 30 degrees

opp = 10 m * Sin 30 deg

Opp = 5.0 m

Adj = 8.66 m

Cos 30 degrees = adj / hyp

Adj = hyp * cos 30 degrees

Adj = 10 m * Cos 30 deg

Hyp

10 m

30 degrees

trigonometry tables
Trigonometry Tables
  • Many people have figured out the right angle trig function values and published them in table form. Often these tables can be seen in the backs of trigonometry textbooks, physics textbooks, and engineering textbooks. Calculators now have these function built on to them too.
  • Go To www.google.com and look for trigonometry tables or check a textbook.
law of cosines

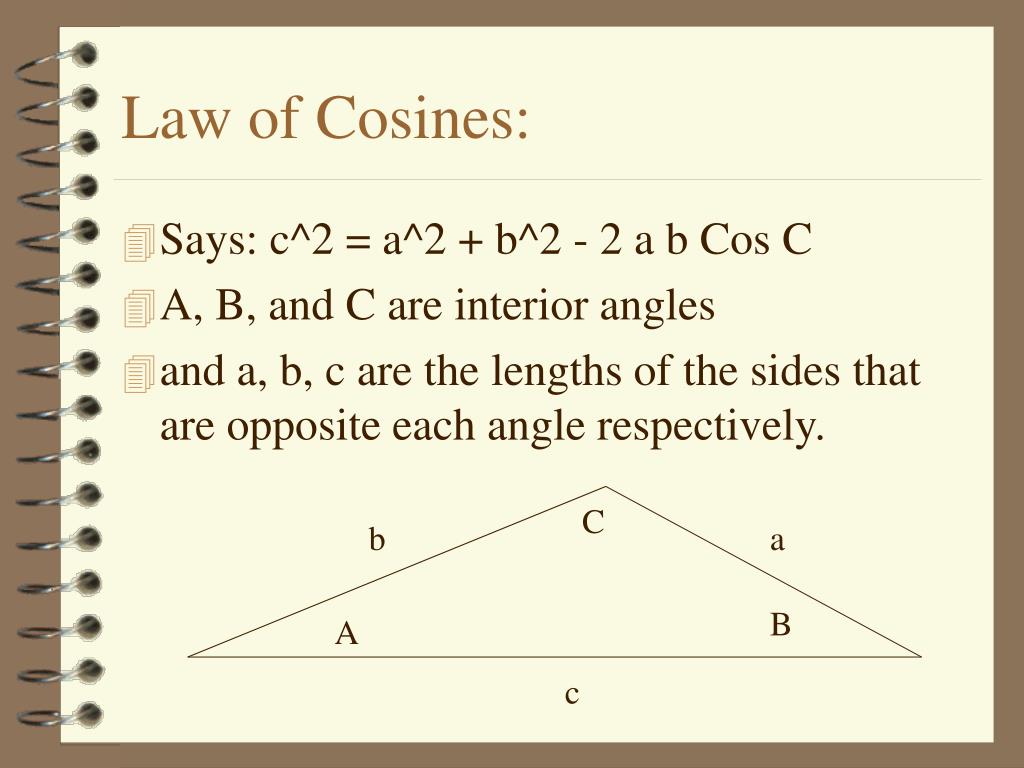

Law of Cosines:
  • Says: c^2 = a^2 + b^2 - 2 a b Cos C
  • A, B, and C are interior angles
  • and a, b, c are the lengths of the sides that are opposite each angle respectively.

C

b

a

B

A

c

law of sines

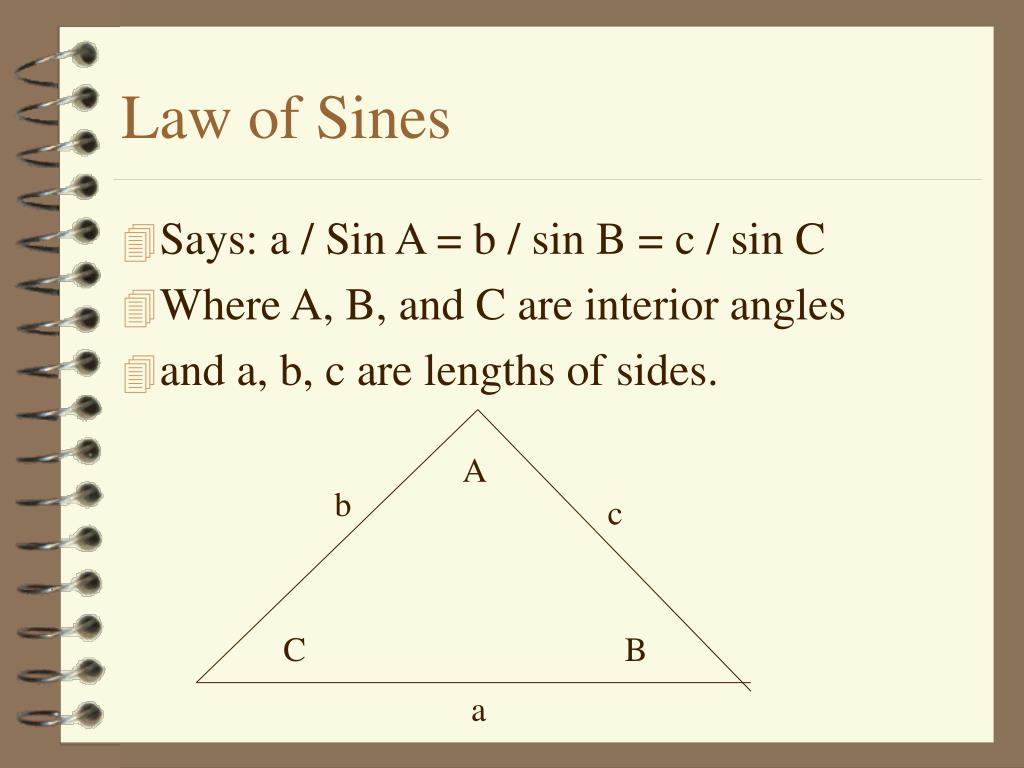

Law of Sines
  • Says: a / Sin A = b / sin B = c / sin C
  • Where A, B, and C are interior angles
  • and a, b, c are lengths of sides.

A

b

c

C

B

a
