other applications of dependence

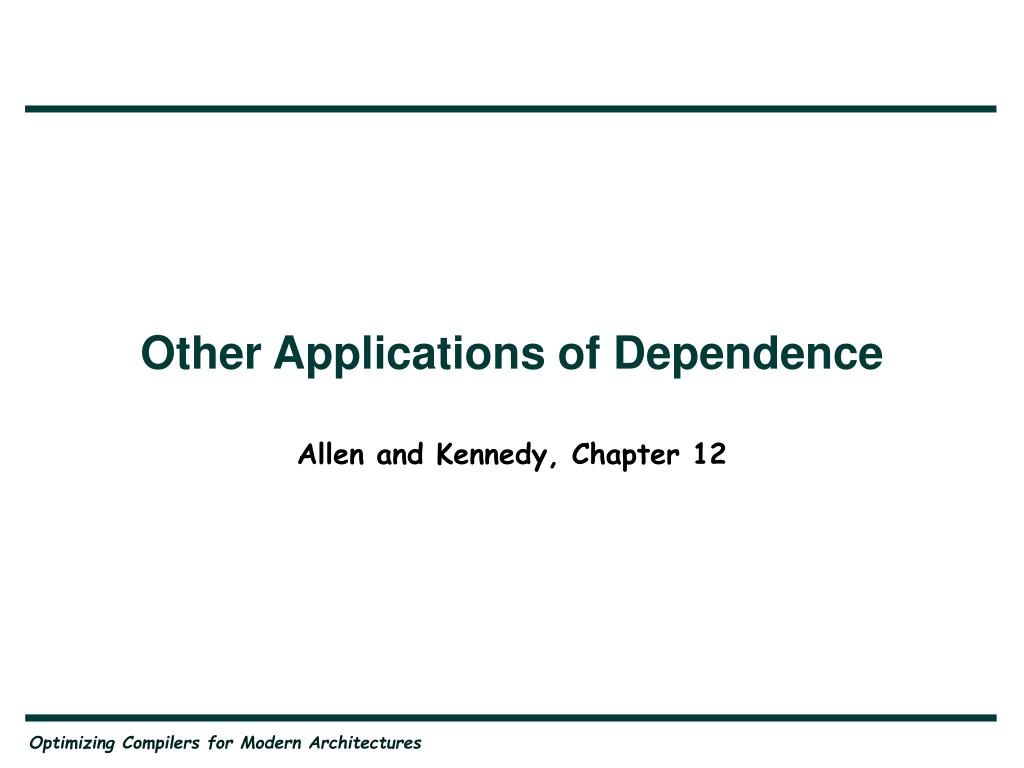

Other Applications of Dependence

Allen and Kennedy, Chapter 12

overview
Overview
  • So far, we’ve discussed dependence analysis in Fortran
  • Dependence analysis can be applied to any language and translation context where arrays and loops are useful
  • Application to C and C++
  • Application to hardware design
problems of c

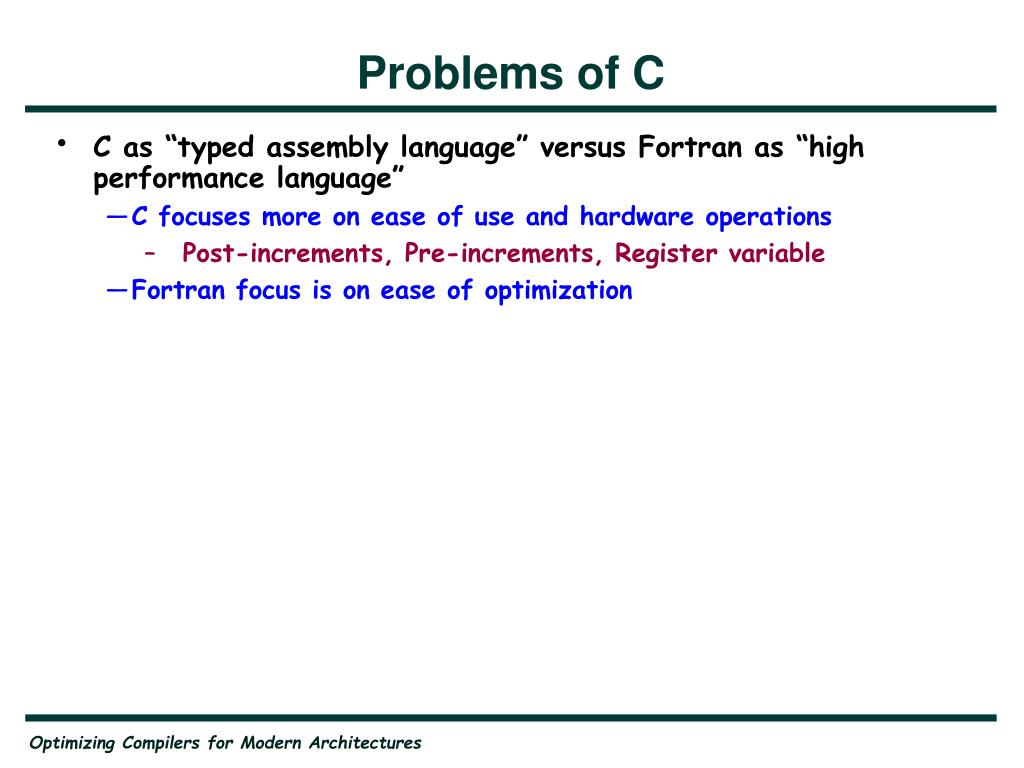

Problems of C
  • C as “typed assembly language” versus Fortran as “high performance language”
    • C focuses more on ease of use and hardware operations
      • Post-increments, Pre-increments, Register variable
    • Fortran focus is on ease of optimization
problems of c1

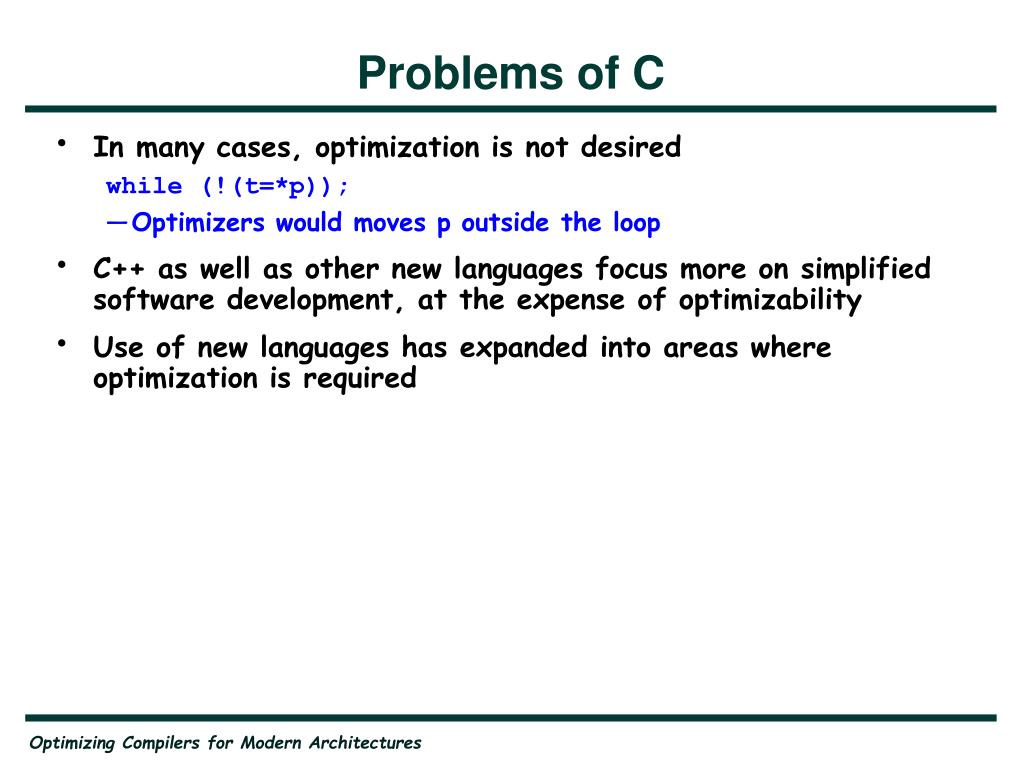

Problems of C
  • In many cases, optimization is not desired

while (!(t=*p));

    • Optimizers would moves p outside the loop
  • C++ as well as other new languages focus more on simplified software development, at the expense of optimizability
  • Use of new languages has expanded into areas where optimization is required
problems of c2

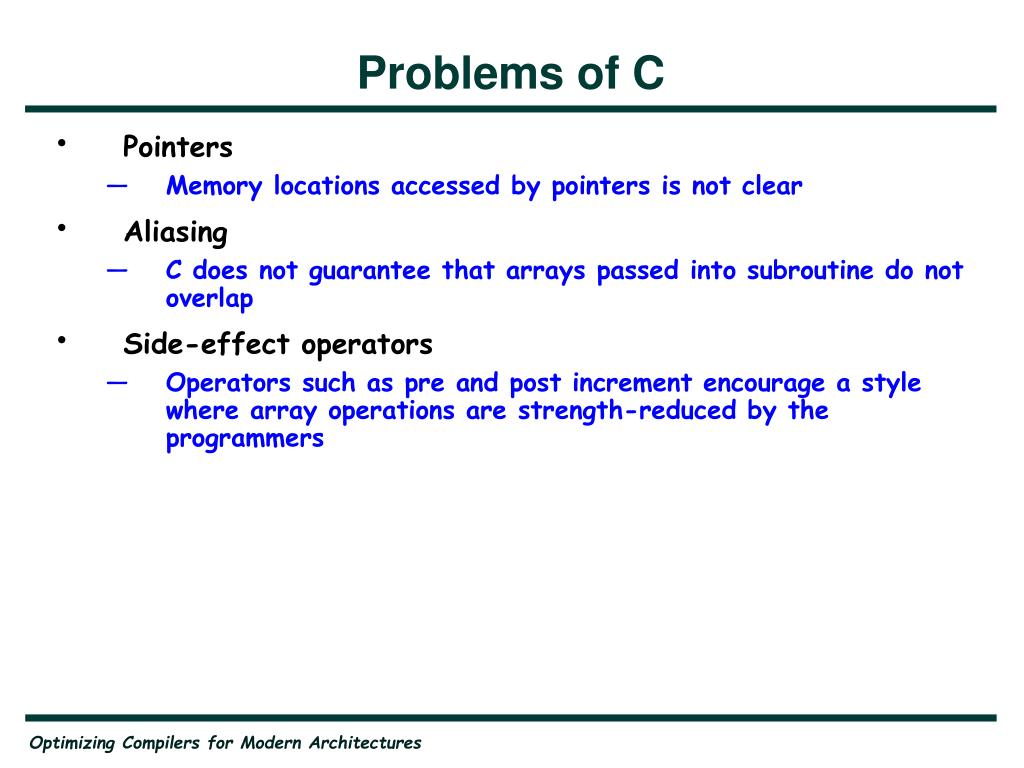

Problems of C
  • Pointers
    • Memory locations accessed by pointers is not clear
  • Aliasing
    • C does not guarantee that arrays passed into subroutine do not overlap
  • Side-effect operators
    • Operators such as pre and post increment encourage a style where array operations are strength-reduced by the programmers
problems of c3

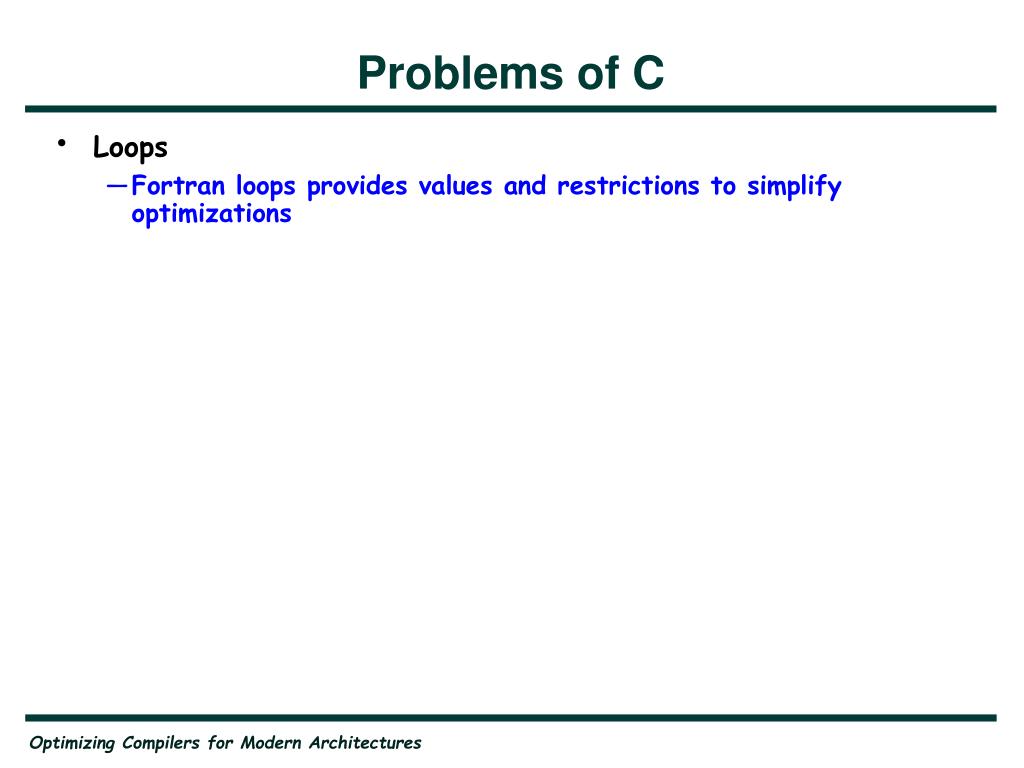

Problems of C
  • Loops
    • Fortran loops provides values and restrictions to simplify optimizations
pointers

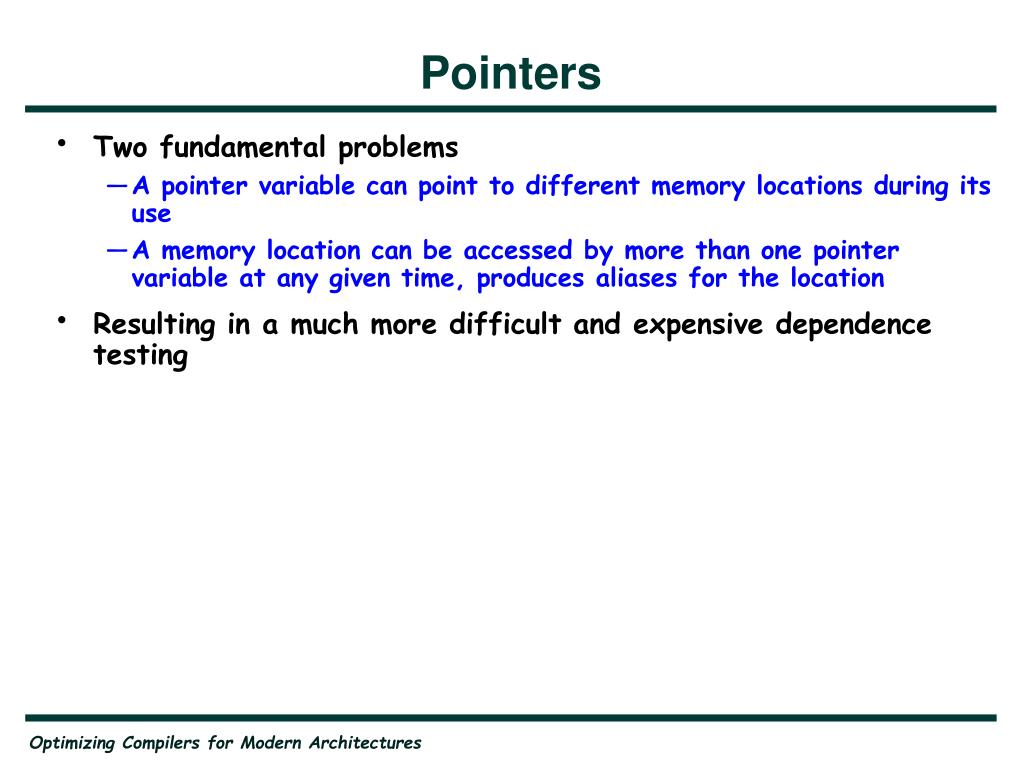

Pointers
  • Two fundamental problems
    • A pointer variable can point to different memory locations during its use
    • A memory location can be accessed by more than one pointer variable at any given time, produces aliases for the location
  • Resulting in a much more difficult and expensive dependence testing
pointers1

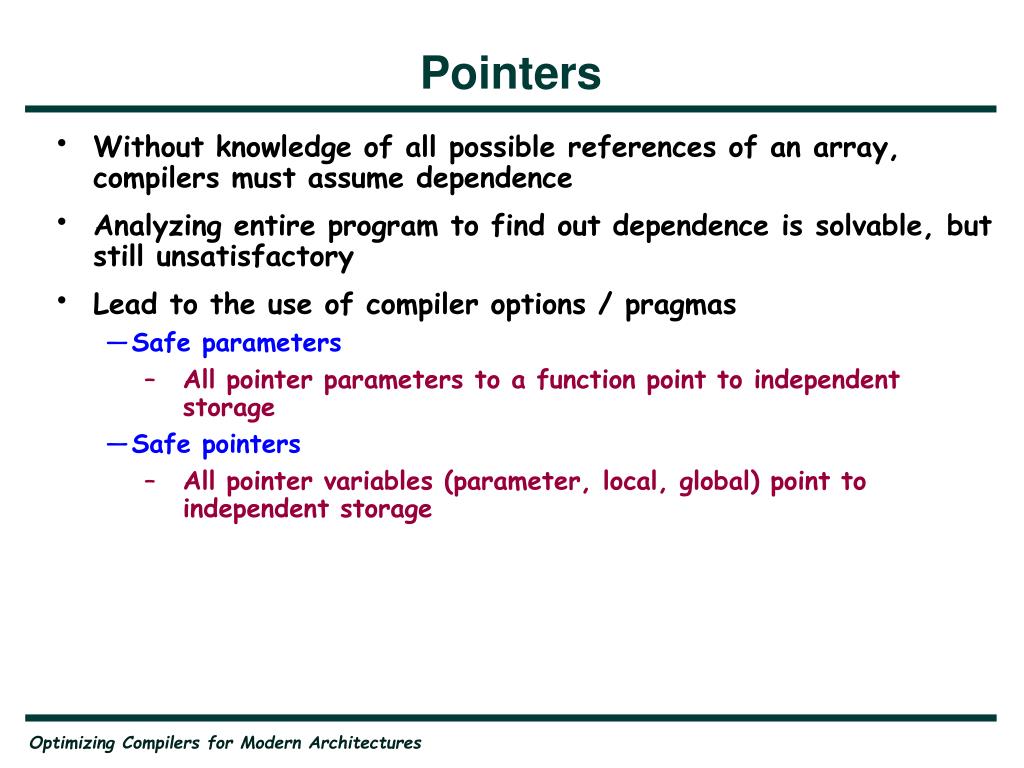

Pointers
  • Without knowledge of all possible references of an array, compilers must assume dependence
  • Analyzing entire program to find out dependence is solvable, but still unsatisfactory
  • Lead to the use of compiler options / pragmas
    • Safe parameters
      • All pointer parameters to a function point to independent storage
    • Safe pointers
      • All pointer variables (parameter, local, global) point to independent storage
naming and structures

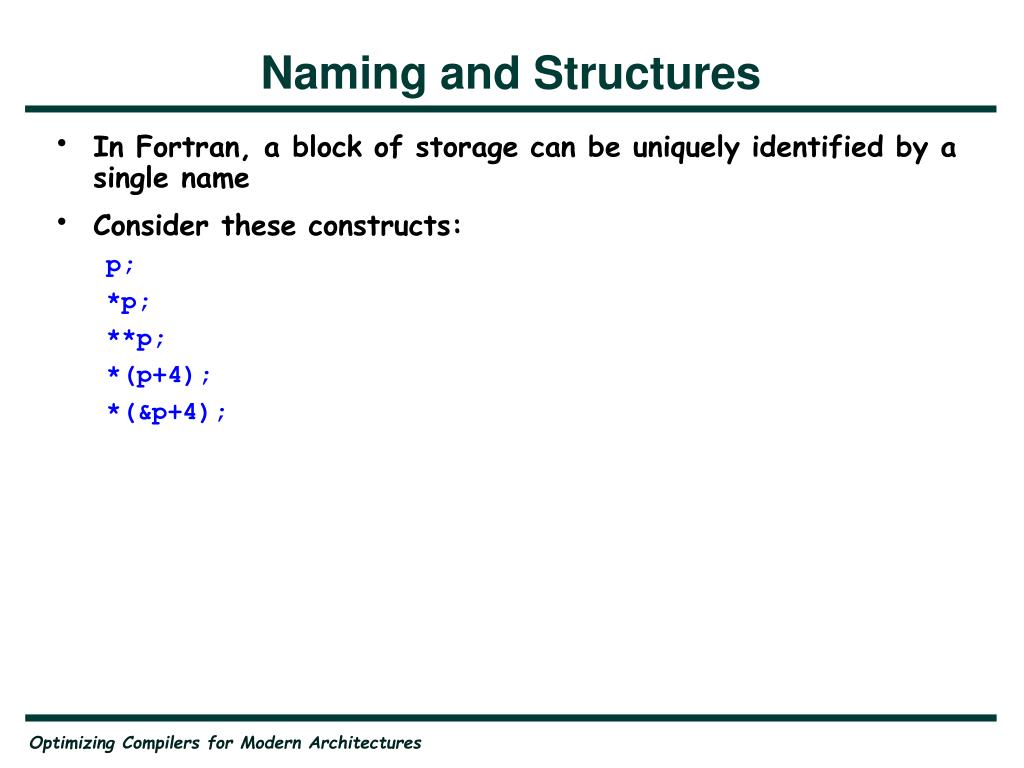

Naming and Structures
  • In Fortran, a block of storage can be uniquely identified by a single name
  • Consider these constructs:

p;

*p;

**p;

*(p+4);

*(&p+4);

naming and structures1

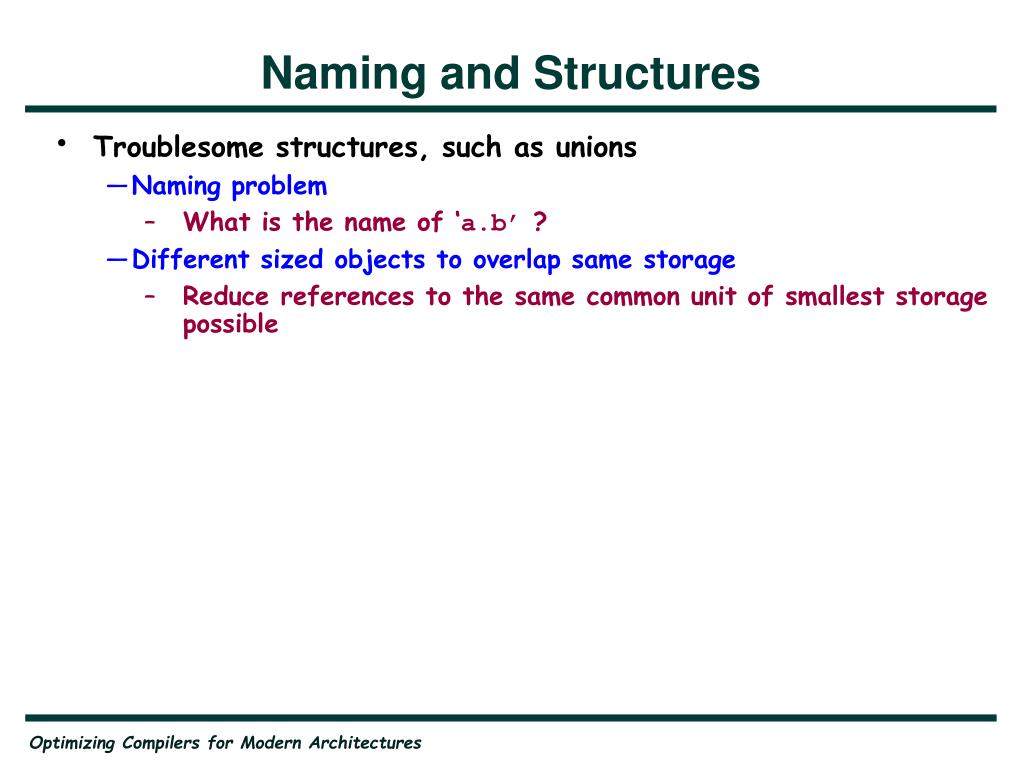

Naming and Structures
  • Troublesome structures, such as unions
    • Naming problem
      • What is the name of ‘a.b’ ?
    • Different sized objects to overlap same storage
      • Reduce references to the same common unit of smallest storage possible
loops
Loops
  • Lack of constraints in C
    • Jumping into loop body is permitted
    • Induction variable (if there’s any) can be modified in the body of the loop
    • Loop increment value may also be changed
    • Conditions controlling the initiation, increment, and termination of the loop have no constraints on their form
loops1

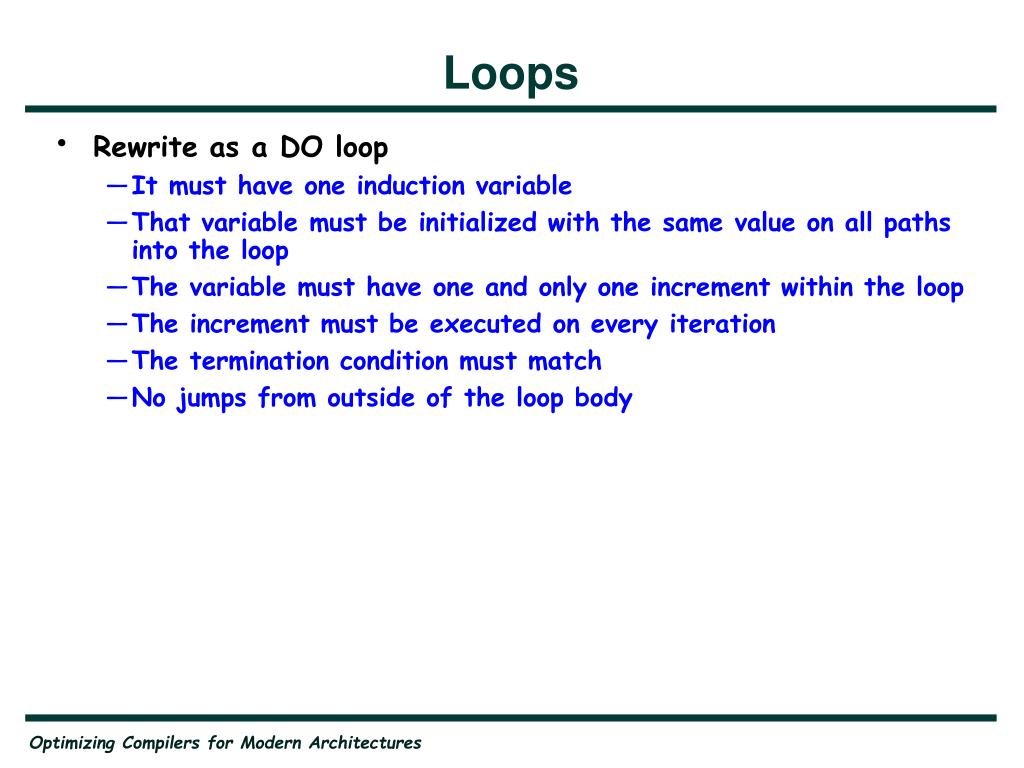

Loops
  • Rewrite as a DO loop
    • It must have one induction variable
    • That variable must be initialized with the same value on all paths into the loop
    • The variable must have one and only one increment within the loop
    • The increment must be executed on every iteration
    • The termination condition must match
    • No jumps from outside of the loop body
scoping and statics
Scoping and Statics
  • Create unique symbols for variables with same name but different scopes
  • Static variables
    • Which procedures have access to the variable can be determined from the scope information
    • If it contains an address, then the content of that address can be modified by any other procedures
problematic c dialects
Problematic C Dialects
  • Use of pointers rather than arrays
  • Use of side effect operators
    • Complicates the work of optimizers
    • Need to be removed
  • Use of address and dereference operators
problematic c dialects1
Problematic C Dialects
  • Requires enhancements in some transformations
    • Constant propagation
      • Treat address operators as constants and propagate them where is essential
      • Replace generic pointer inside a dereference with actual address
    • Expression simplification and recognition
      • Need stronger recognition within expression where variable is actually the ‘base variable’
problematic c dialects2

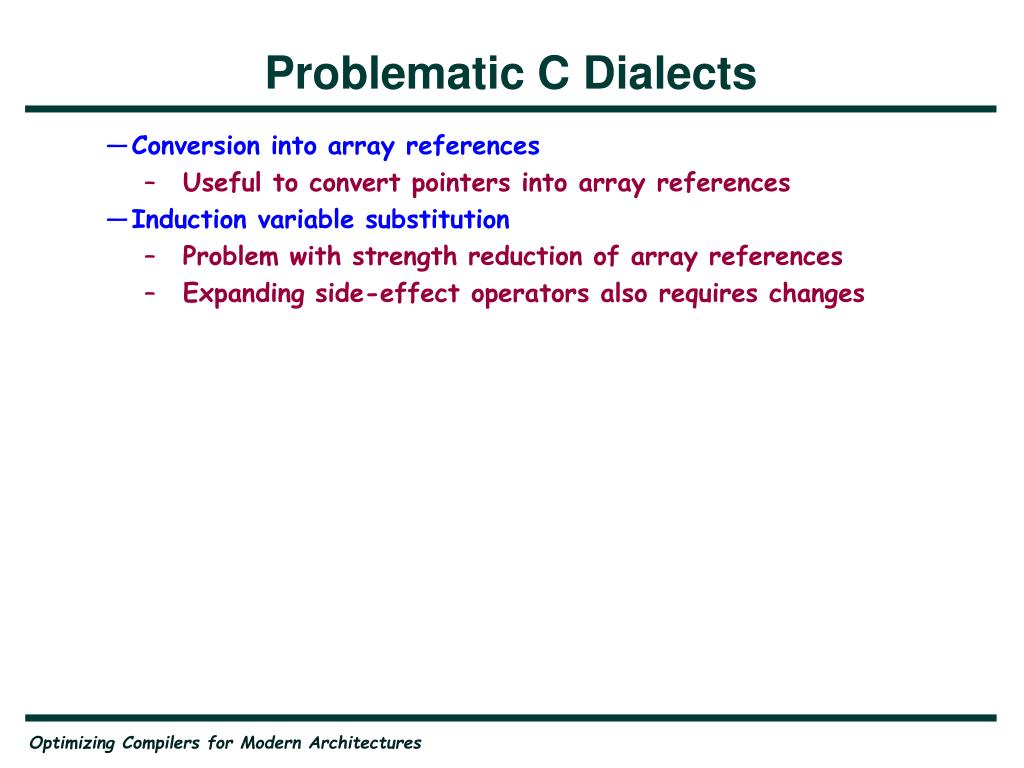

Problematic C Dialects
  • Conversion into array references
    • Useful to convert pointers into array references
  • Induction variable substitution
    • Problem with strength reduction of array references
    • Expanding side-effect operators also requires changes
c miscellaneous
C Miscellaneous
  • Volatile variables
    • Functions with these variables are best left without optimization
  • Setjmp and Longjmp
    • Commonly used for error handling
    • Storing and loading current state of computation which is complex when optimization is performed and variables are allocated to registers
    • No optimization
c miscellaneous1
C Miscellaneous
  • Varags and stdargs
    • Variable number of arguments
    • No optimization
hardware design overview

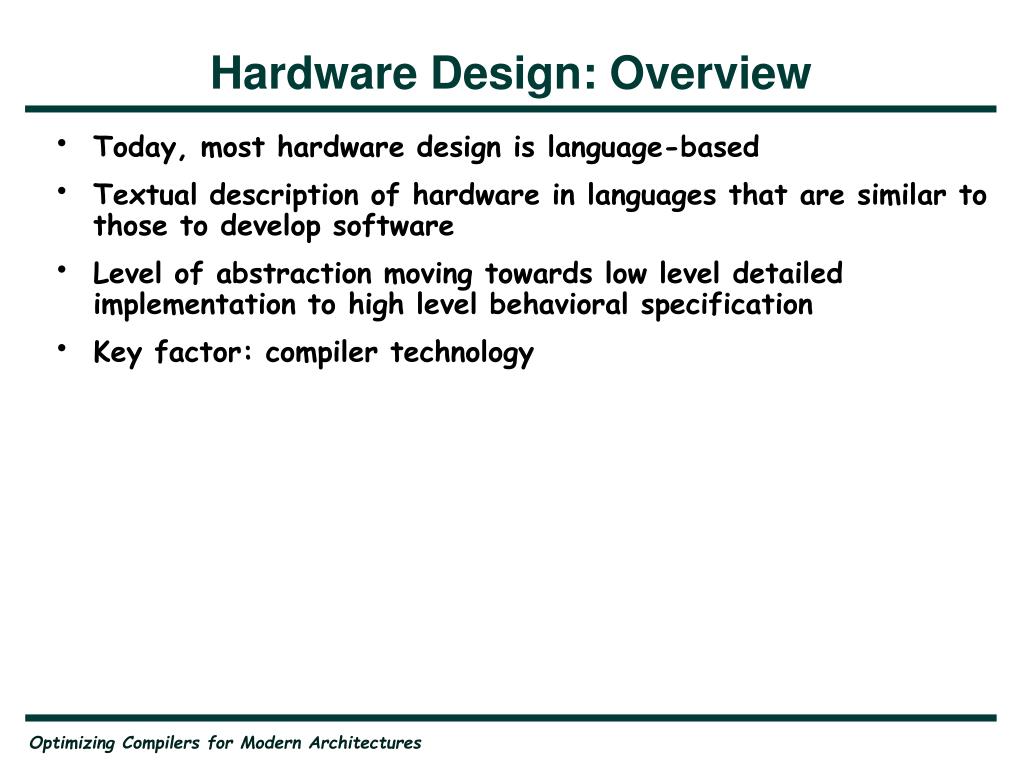

Hardware Design: Overview
  • Today, most hardware design is language-based
  • Textual description of hardware in languages that are similar to those to develop software
  • Level of abstraction moving towards low level detailed implementation to high level behavioral specification
  • Key factor: compiler technology
hardware design overview1

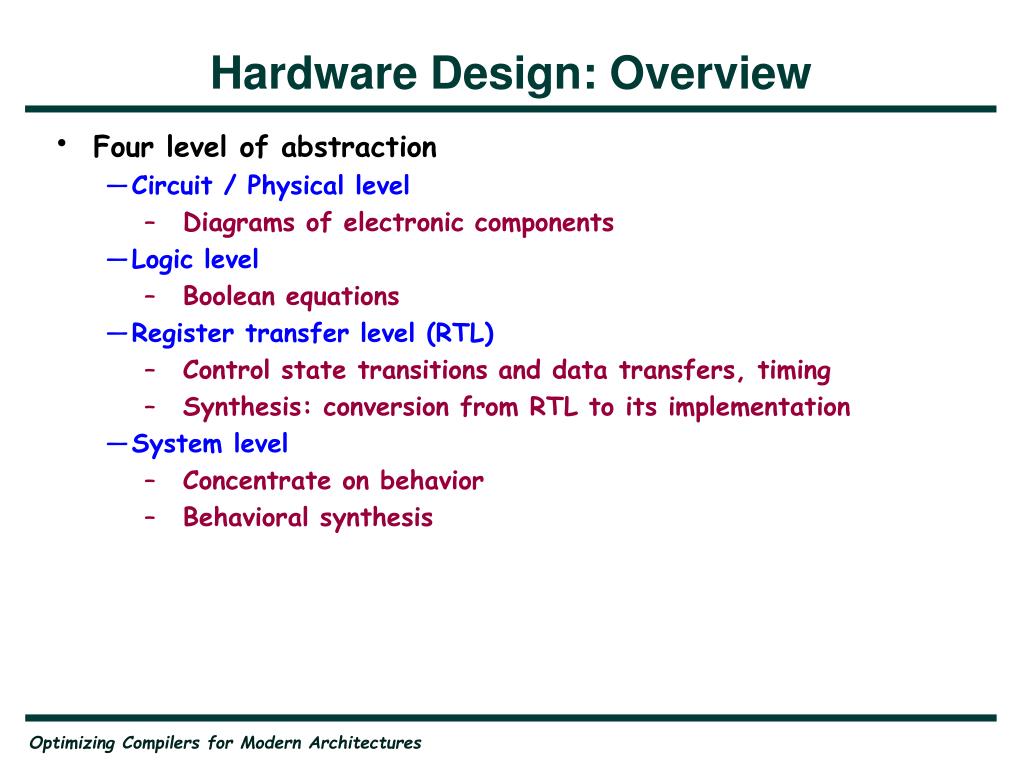

Hardware Design: Overview
  • Four level of abstraction
    • Circuit / Physical level
      • Diagrams of electronic components
    • Logic level
      • Boolean equations
    • Register transfer level (RTL)
      • Control state transitions and data transfers, timing
      • Synthesis: conversion from RTL to its implementation
    • System level
      • Concentrate on behavior
      • Behavioral synthesis
hardware design

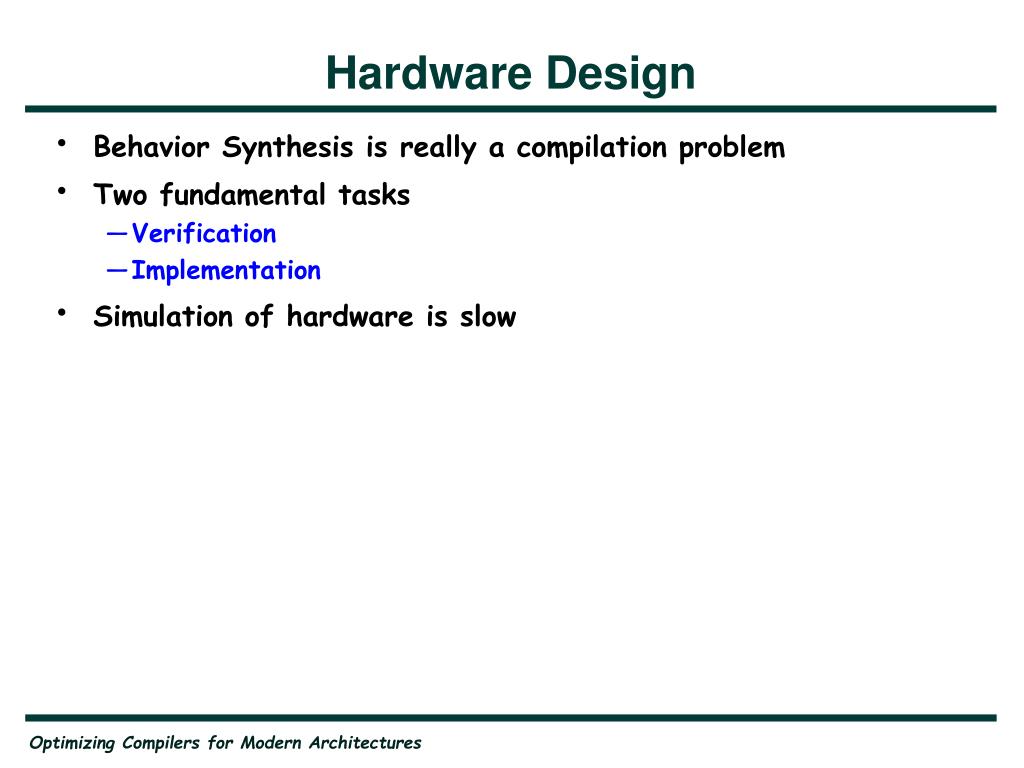

Hardware Design
  • Behavior Synthesis is really a compilation problem
  • Two fundamental tasks
    • Verification
    • Implementation
  • Simulation of hardware is slow
hardware description languages

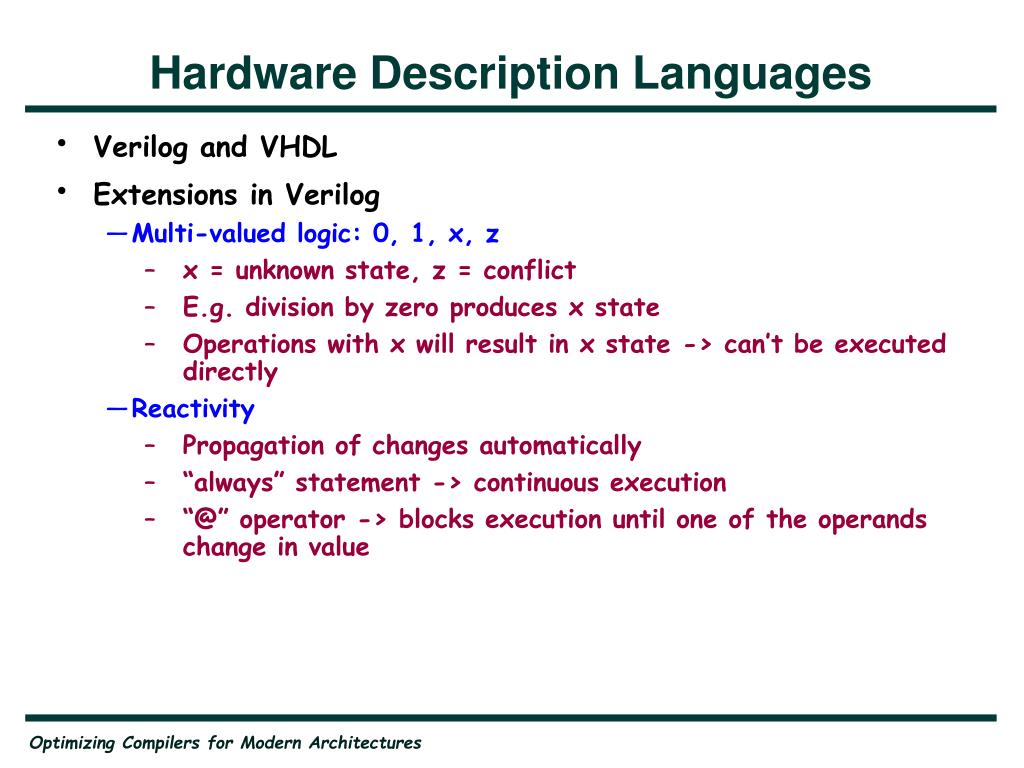

Hardware Description Languages
  • Verilog and VHDL
  • Extensions in Verilog
    • Multi-valued logic: 0, 1, x, z
      • x = unknown state, z = conflict
      • E.g. division by zero produces x state
      • Operations with x will result in x state -> can’t be executed directly
    • Reactivity
      • Propagation of changes automatically
      • “always” statement -> continuous execution
      • “@” operator -> blocks execution until one of the operands change in value
verilog

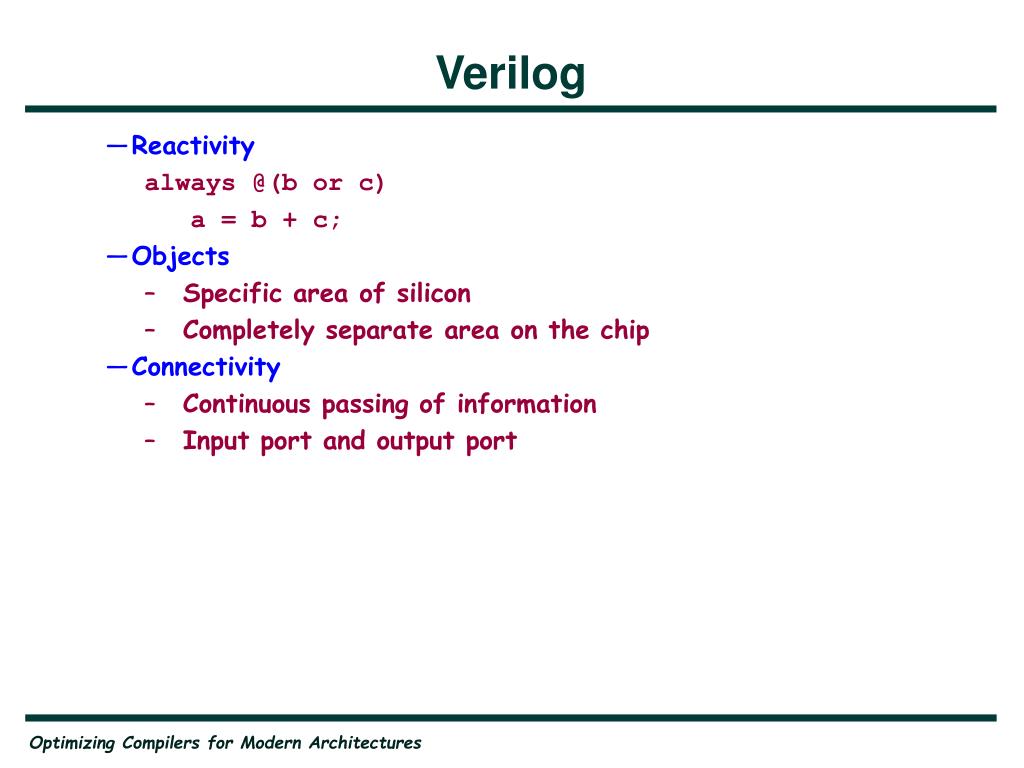

Verilog
  • Reactivity

always @(b or c)

a = b + c;

  • Objects
    • Specific area of silicon
    • Completely separate area on the chip
  • Connectivity
    • Continuous passing of information
    • Input port and output port
verilog1
Verilog
  • Connectivity

module add(a,b,c)

output a;

input b, c;

integer a, b, c;

always @(b or c)

a = b + c;

endmodule

verilog2
Verilog
  • Instantiation
    • Verilog only allows static instantiation

integer x, y, z;

add adder1(x,y,z);

  • Vector operations
    • Viewing other data structures as vector of scalars
verilog3
Verilog
  • Advantages
    • No aliasing
    • Restriction of form of subscripts
    • Entire hardware design given to compilers at one time
verilog4
Verilog
  • Disadvantages
    • Non-procedural continuation semantics
    • Lack of loops
      • Loops are implicitly represented by always blocks and the scheduler
    • Size
optimizing simulation
Optimizing simulation
  • Philosophy
    • Increases level of abstraction
    • Opts for less details
  • Inlining modules
    • HDLs have two properties that make module inlining simpler
      • Whole design is reachable at one time
      • Recursion is not permitted
optimizing simulation1
Optimizing simulation
  • Execution ordering
    • The order in which the statement is executed can have a dramatic effect on the efficiency
    • Fast in hardware, but not in software
    • Grouping increases performance
    • Execute blocks in topological order based on the dependence graph of individual array elements
      • No memory overhead
dynamic versus static scheduling

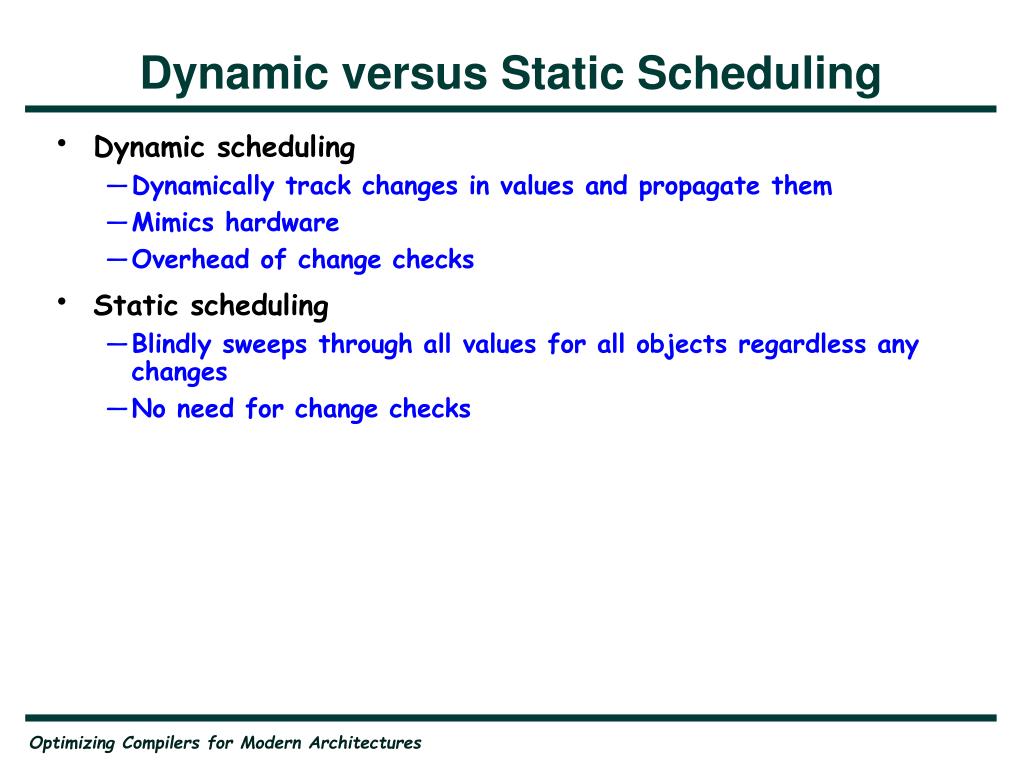

Dynamic versus Static Scheduling
  • Dynamic scheduling
    • Dynamically track changes in values and propagate them
    • Mimics hardware
    • Overhead of change checks
  • Static scheduling
    • Blindly sweeps through all values for all objects regardless any changes
    • No need for change checks
dynamic versus static scheduling1

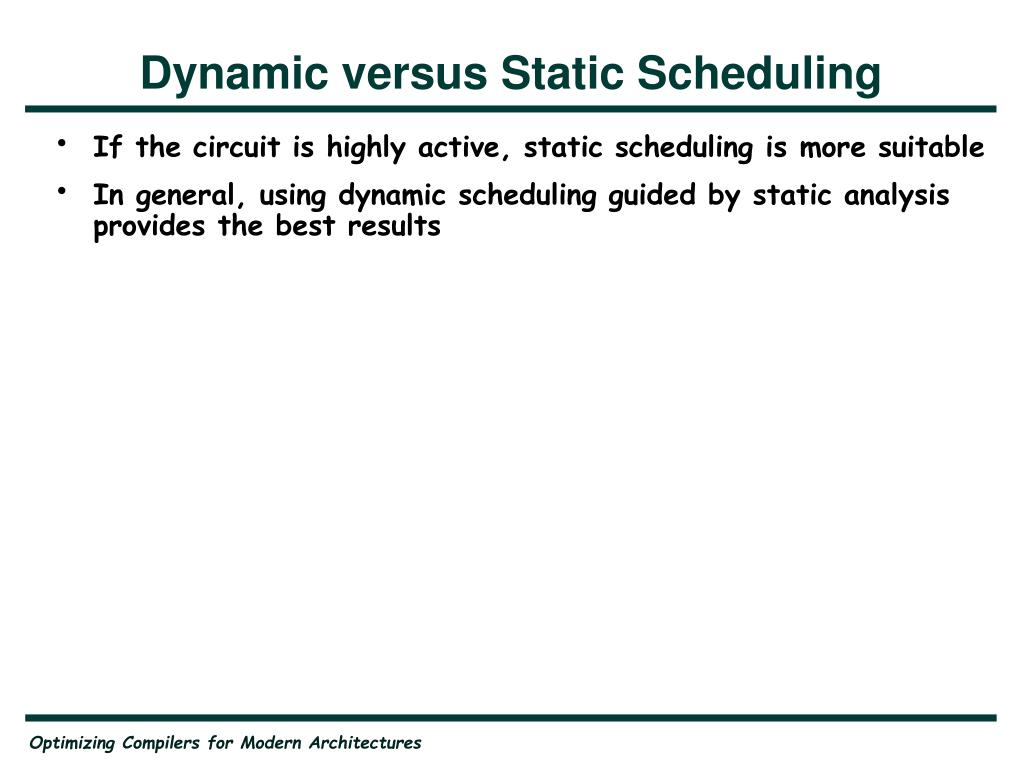

Dynamic versus Static Scheduling
  • If the circuit is highly active, static scheduling is more suitable
  • In general, using dynamic scheduling guided by static analysis provides the best results
fusing always blocks

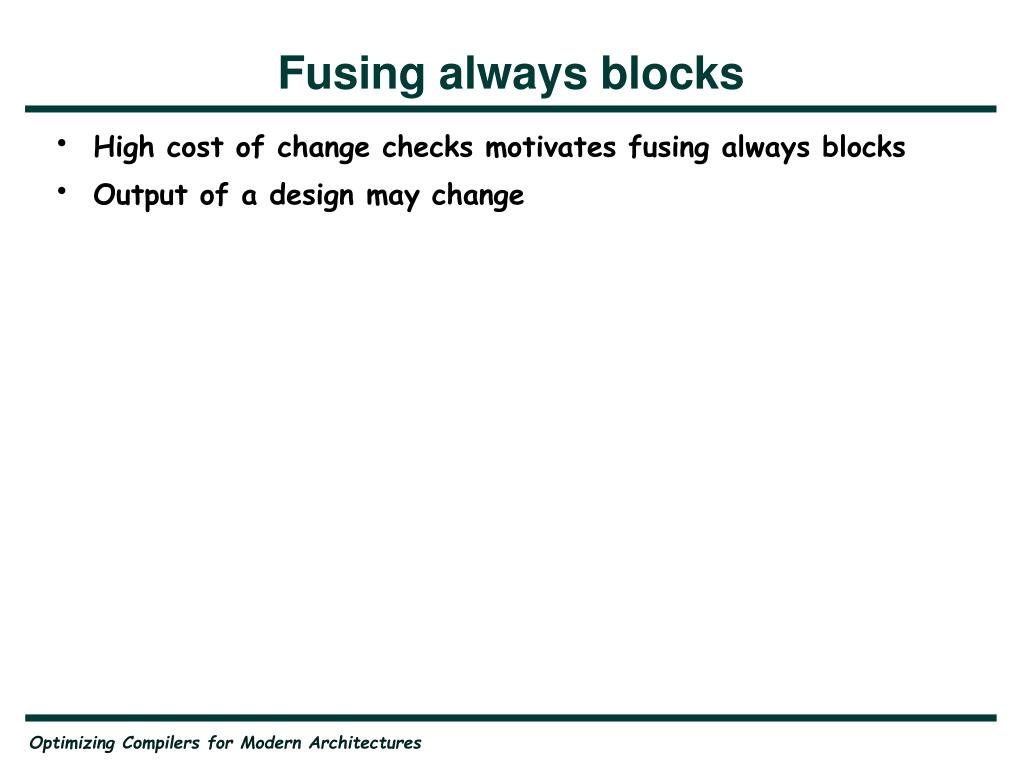

Fusing always blocks
  • High cost of change checks motivates fusing always blocks
  • Output of a design may change
vectorizing always block
Vectorizing always block
  • Regrouping low level operations back together to bring higher lever abstractions
  • Vectorizing the bit operations
two state versus four state

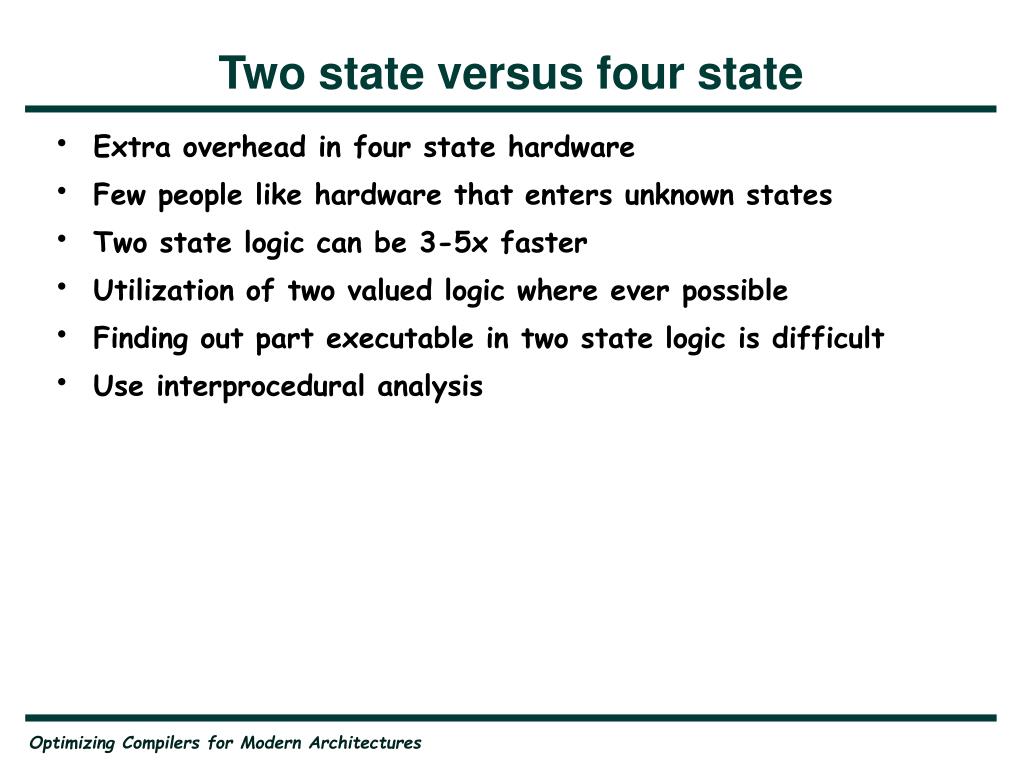

Two state versus four state
  • Extra overhead in four state hardware
  • Few people like hardware that enters unknown states
  • Two state logic can be 3-5x faster
  • Utilization of two valued logic where ever possible
  • Finding out part executable in two state logic is difficult
  • Use interprocedural analysis
two state versus four state1

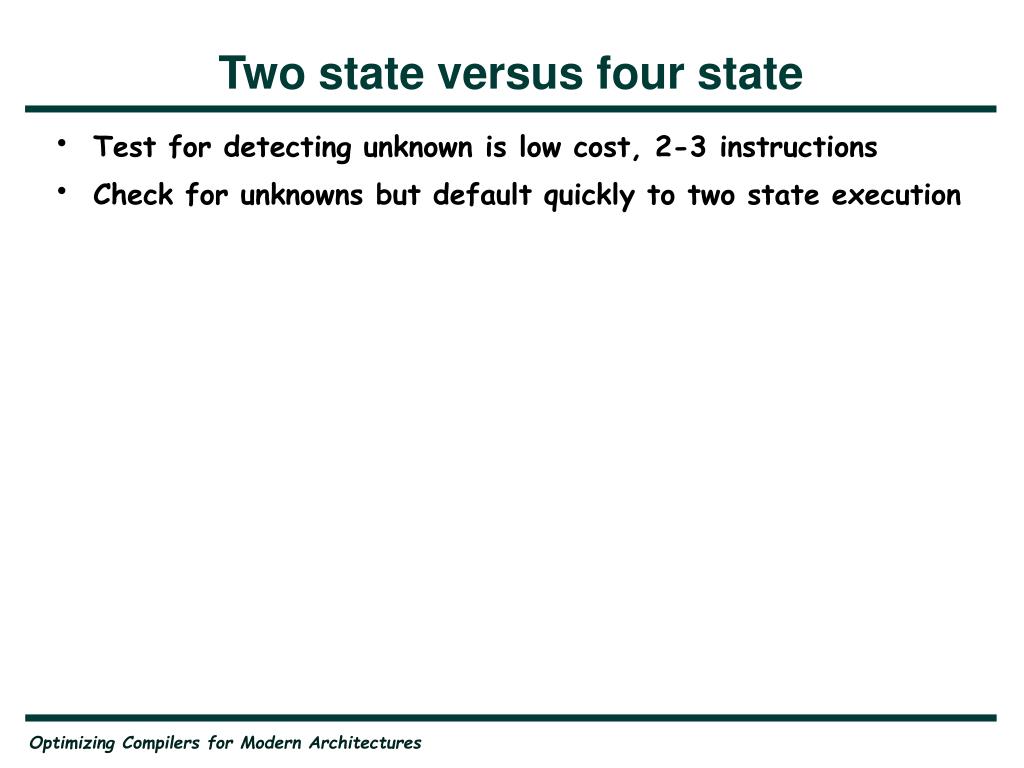

Two state versus four state
  • Test for detecting unknown is low cost, 2-3 instructions
  • Check for unknowns but default quickly to two state execution
rewriting block conditions

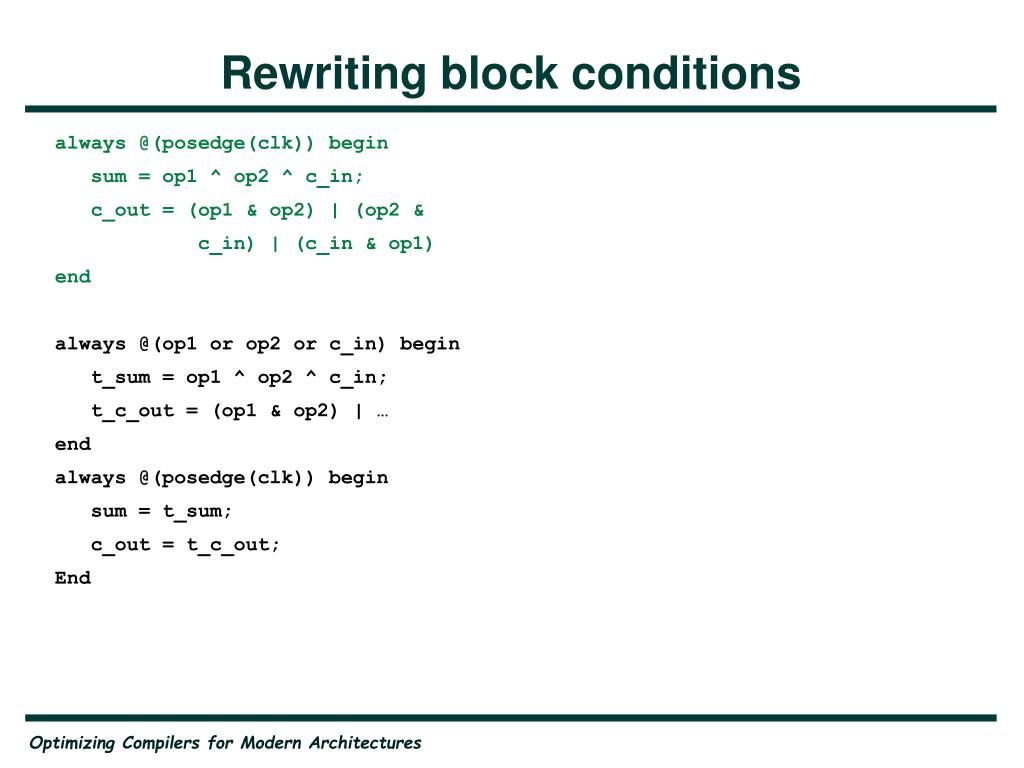

Rewriting block conditions

always @(posedge(clk)) begin

sum = op1 ^ op2 ^ c_in;

c_out = (op1 & op2) | (op2 &

c_in) | (c_in & op1)

end

always @(op1 or op2 or c_in) begin

t_sum = op1 ^ op2 ^ c_in;

t_c_out = (op1 & op2) | …

end

always @(posedge(clk)) begin

sum = t_sum;

c_out = t_c_out;

End

basic optimizations

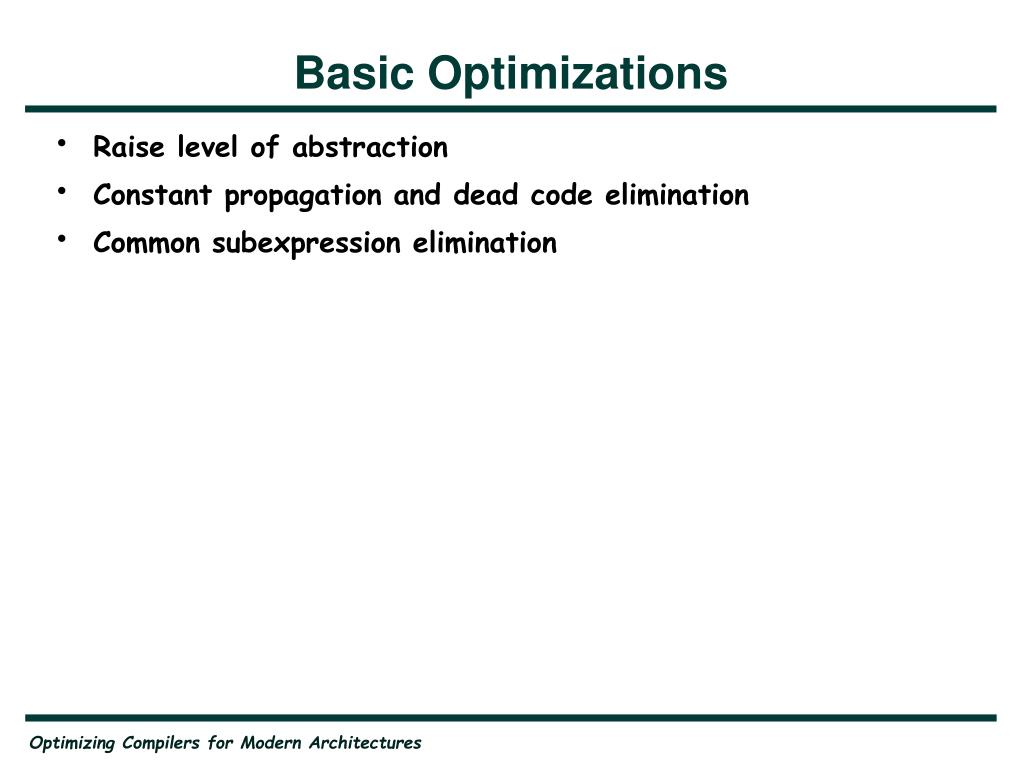

Basic Optimizations
  • Raise level of abstraction
  • Constant propagation and dead code elimination
  • Common subexpression elimination
synthesis optimization

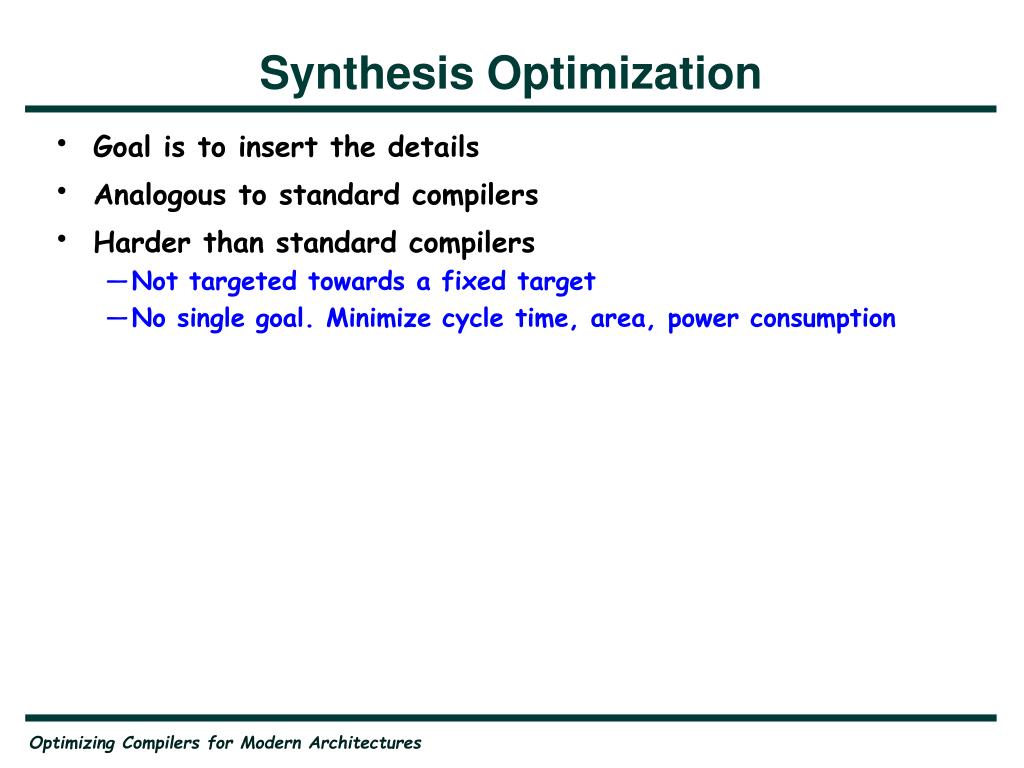

Synthesis Optimization
  • Goal is to insert the details
  • Analogous to standard compilers
  • Harder than standard compilers
    • Not targeted towards a fixed target
    • No single goal. Minimize cycle time, area, power consumption
basic framework

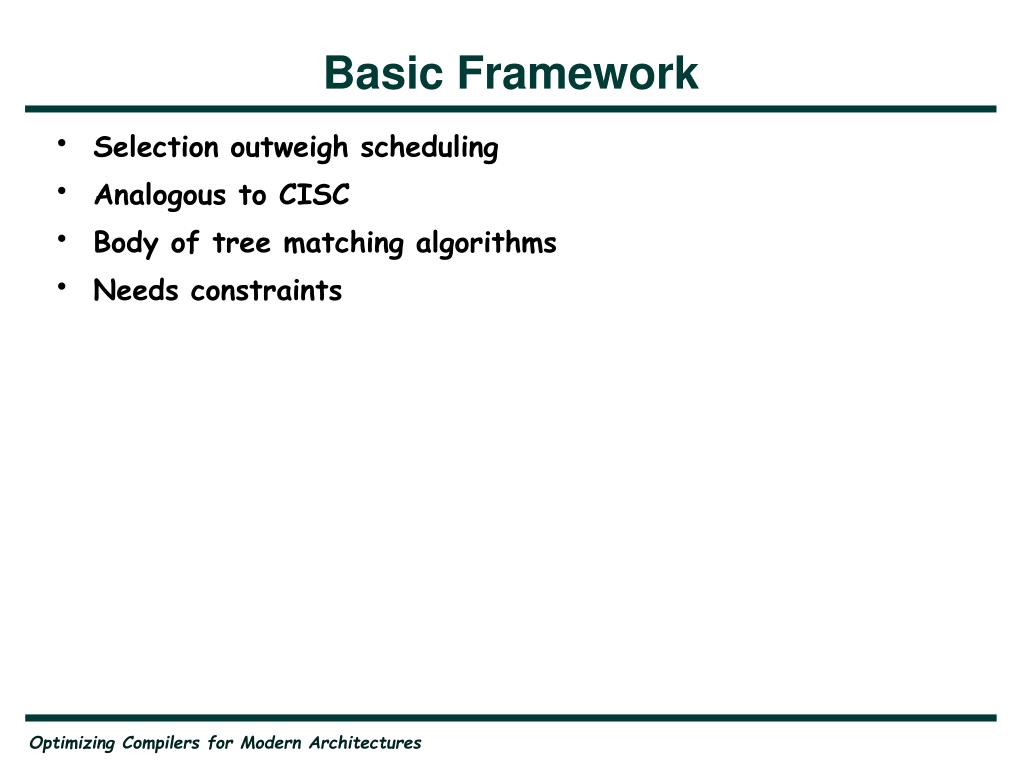

Basic Framework
  • Selection outweigh scheduling
  • Analogous to CISC
  • Body of tree matching algorithms
  • Needs constraints
loop transformations

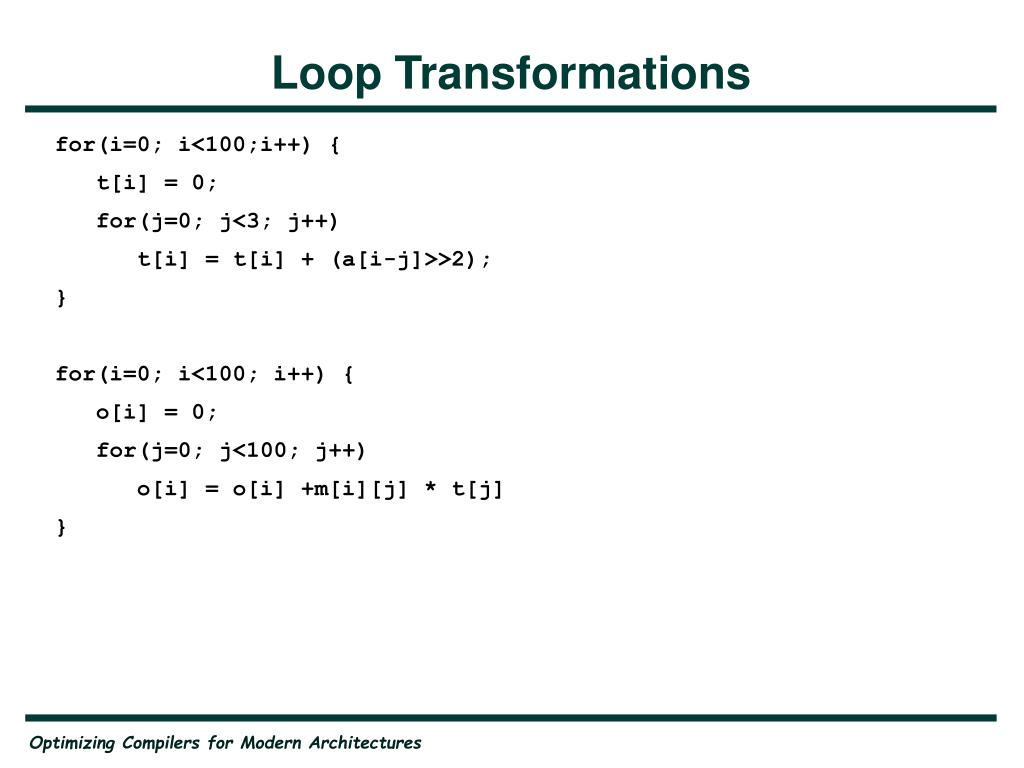

Loop Transformations

for(i=0; i<100;i++) {

t[i] = 0;

for(j=0; j<3; j++)

t[i] = t[i] + (a[i-j]>>2);

}

for(i=0; i<100; i++) {

o[i] = 0;

for(j=0; j<100; j++)

o[i] = o[i] +m[i][j] * t[j]

}

loop transformations1

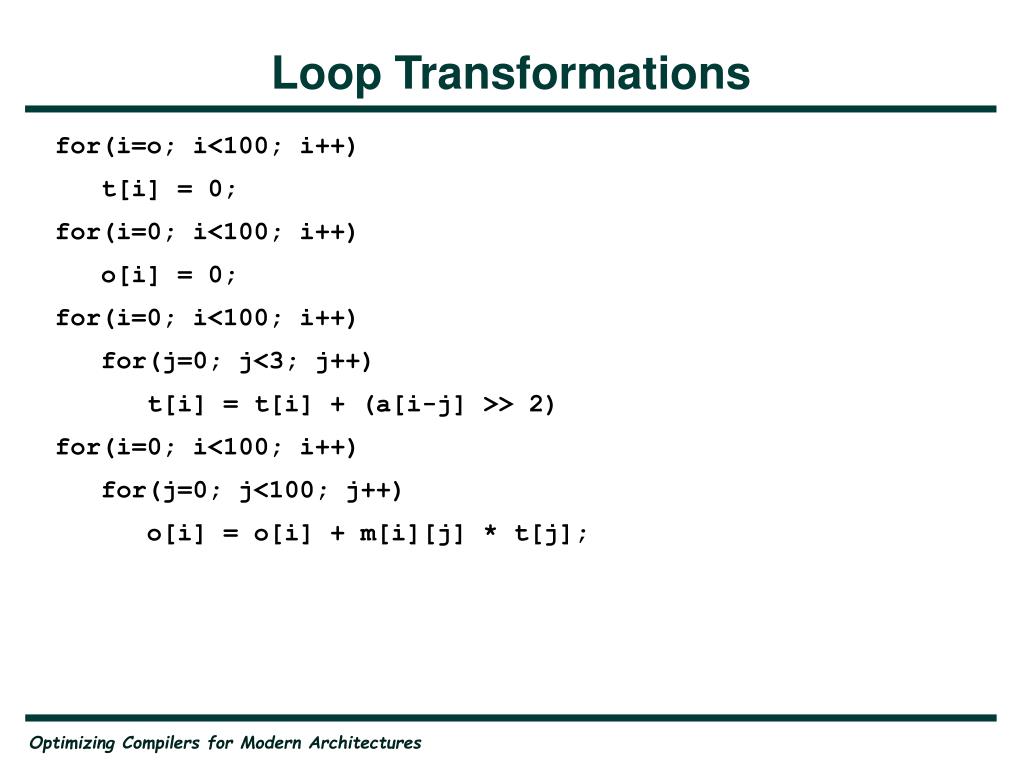

Loop Transformations

for(i=o; i<100; i++)

t[i] = 0;

for(i=0; i<100; i++)

o[i] = 0;

for(i=0; i<100; i++)

for(j=0; j<3; j++)

t[i] = t[i] + (a[i-j] >> 2)

for(i=0; i<100; i++)

for(j=0; j<100; j++)

o[i] = o[i] + m[i][j] * t[j];

loop transformations2
Loop Transformations

for(i=0; i<100; i++)

o[i] = 0;

for(i=0; i<100; i++)

t[i] = 0;

for(j=0; j<3; j++)

t[i] = t[i] + (a[i-j] >> 2);

for(j=0; j<100; j++)

o[j] = o[j] + m[j][i] * t[i];

loop transformation

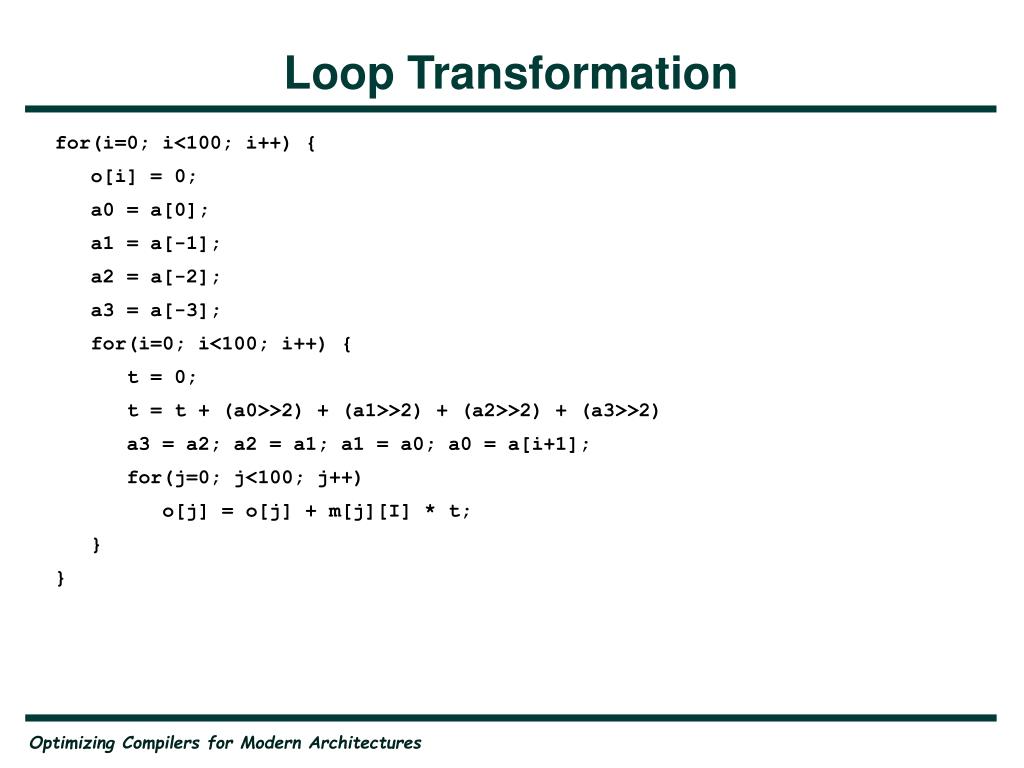

Loop Transformation

for(i=0; i<100; i++) {

o[i] = 0;

a0 = a[0];

a1 = a[-1];

a2 = a[-2];

a3 = a[-3];

for(i=0; i<100; i++) {

t = 0;

t = t + (a0>>2) + (a1>>2) + (a2>>2) + (a3>>2)

a3 = a2; a2 = a1; a1 = a0; a0 = a[i+1];

for(j=0; j<100; j++)

o[j] = o[j] + m[j][I] * t;

}

}

control and data flow
Control and Data Flow
  • Von Neumann architecture
    • Data movement among memory and registers
    • Control flow encapsulated in the program counter and effected with branches
  • Synthesized hardware
    • Data movement among functional units
    • Control flow is which functional unit should be active on what data at which time steps
control and data flow1

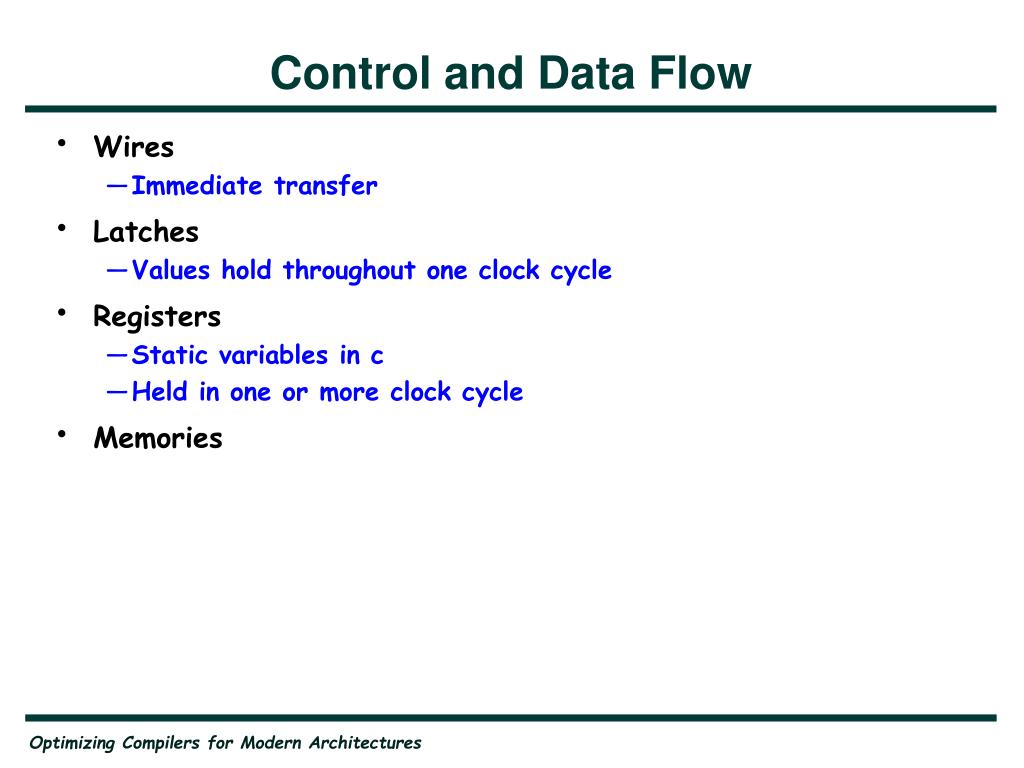

Control and Data Flow
  • Wires
    • Immediate transfer
  • Latches
    • Values hold throughout one clock cycle
  • Registers
    • Static variables in c
    • Held in one or more clock cycle
  • Memories
memory reduction

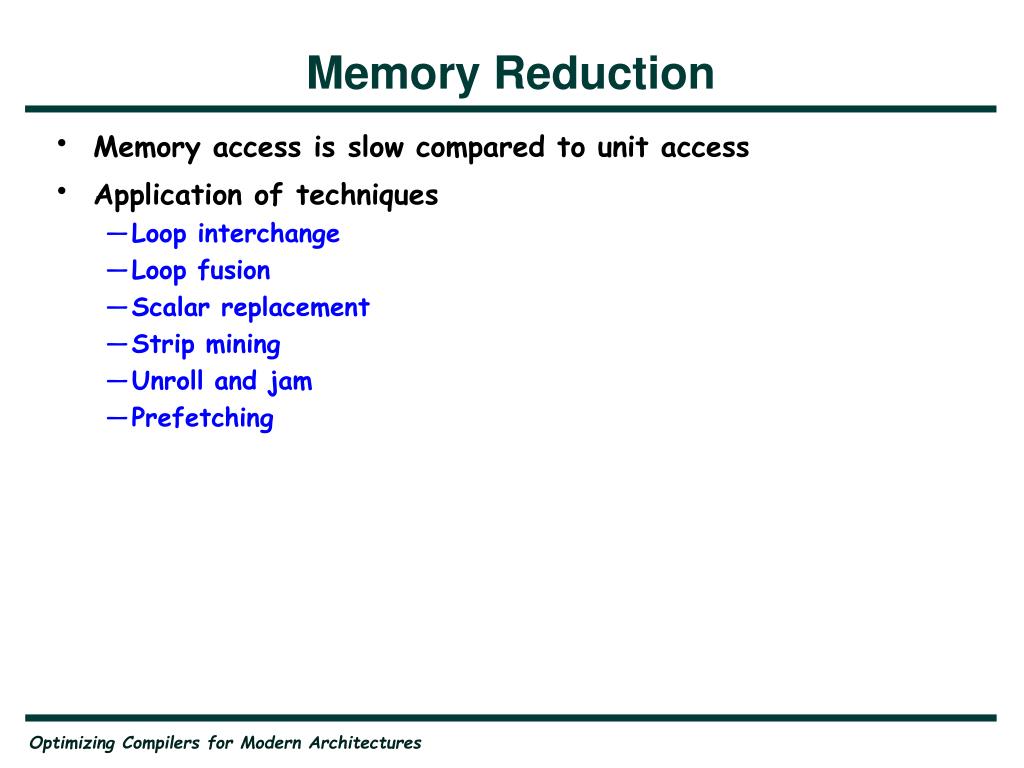

Memory Reduction
  • Memory access is slow compared to unit access
  • Application of techniques
    • Loop interchange
    • Loop fusion
    • Scalar replacement
    • Strip mining
    • Unroll and jam
    • Prefetching
summary
Summary
  • Not limited to Fortran
  • Have other applications
  • Early stage of research
