  1. Magnetic Depth Profiling of Al2O3/Fe/Si Structure using NG-1 Cold Neutron Reflectometer NCNR Summer School 2006 – Purple Group Hassan Raza, Preeti Sejwal, Hailiang Zhang, Jeffrey Gagliaro, Claire Pizzey, Mohan Babu Boggara

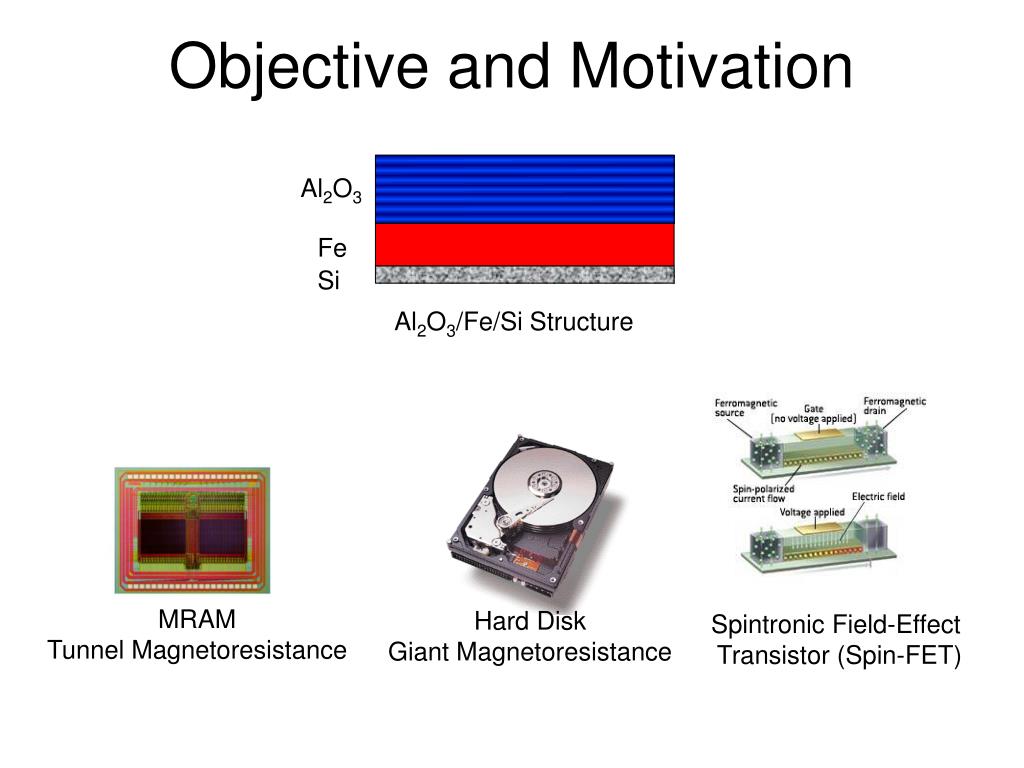

  2. Al2O3 Fe Si Al2O3/Fe/Si Structure MRAM Tunnel Magnetoresistance Hard Disk Giant Magnetoresistance Spintronic Field-Effect Transistor (Spin-FET) Objective and Motivation

  3. Neutron Reflectivity Specular: θout = θin Q = (4π/λ) sin θout λ = neutron wavelength (4.75 Å) • Measure reflected intensity as function of Q where Q ≈ 0.01 - 0.2 Å-1 (θ ≈ 0.1 – 3 deg) • Model data to obtain structural and magnetic density profile as a function of depth (upto 1µm)

  4. H NSF Incident Neutrons (+ +) (+ -) SF (- +) (- -) NSF Qz Unpolarized Neutron Scattering I  |b(z)|2 NSF (Non-Spin Flip) probes Moment || Field (H) INSF |b(z) ± M||(z)|2 H M M|| M Neutron Interaction with Magnetic Field

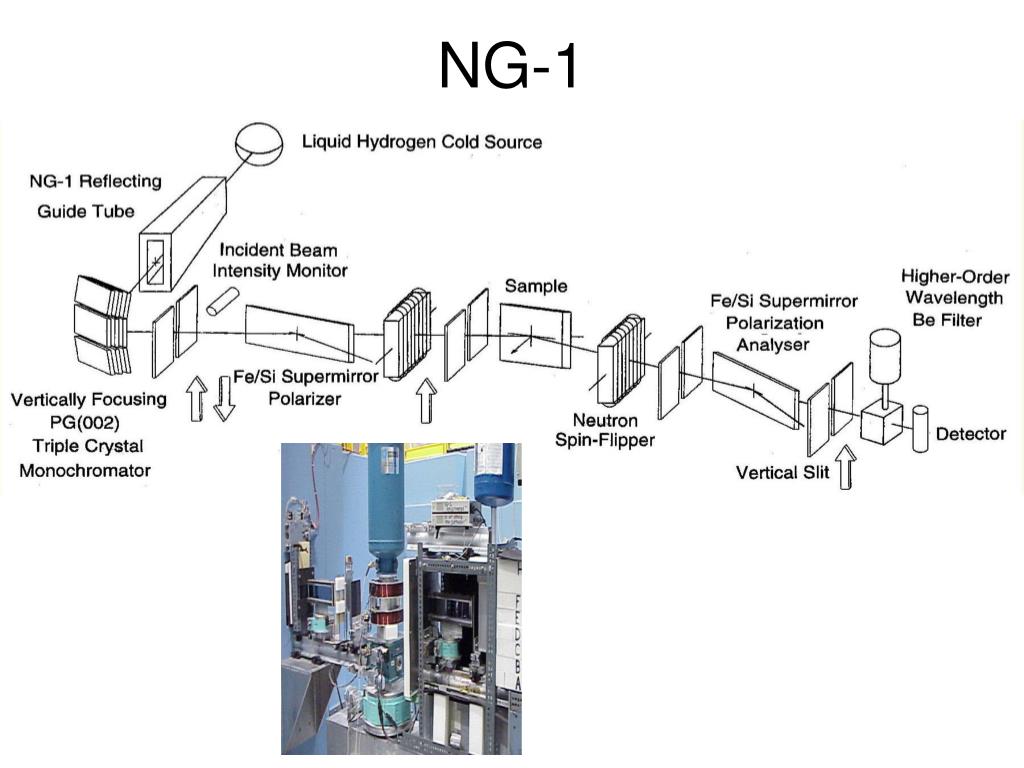

  5. NG-1

  6. Polarizer and Flipper (+/−) Detector Polarizer and Flipper (+/−) Slit 4 θ θ2 Slit 3 Sample Detector I Specular Scan θ2 = 2θ Log I Slit Scan θ2 = 0 Rocking Curve θ fixed, θ2 varying I θ Fixed slits Q Z Log I Background Scan θ2 ≠ 2θ Q Z Repeat each curve for: −+ −− B= A= +− D= ++ C= Q Z Data Reduction White Beam Monochromator Slit 1 Slit 2

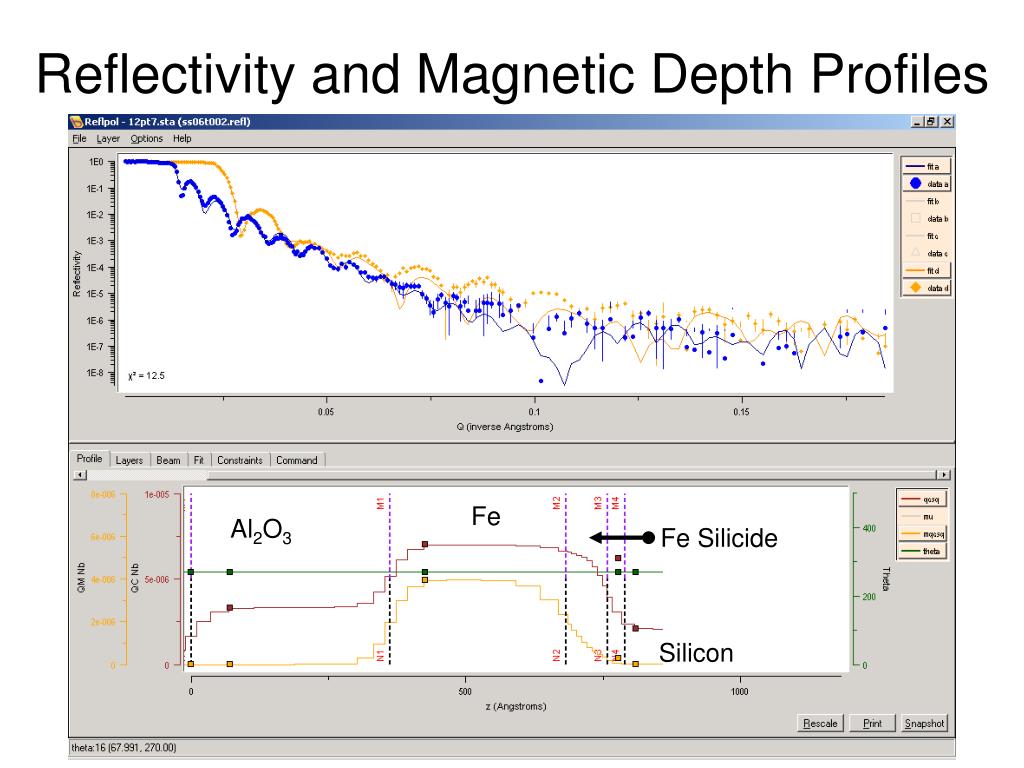

  7. Reflectivity and Magnetic Depth Profiles Fe Al2O3 Fe Silicide Silicon

  8. Al2O3 Fe Mystery Layer Si Neutron SLD QM, Å-2 Thickness Roughness Magnetic SLD QM, Å-2 3.3e-6 362Å 70Å 0 7e-6 319Å 63Å 3.9e-6 6.2e-6 76Å 95Å 2.9e-7 2.1e-6 30Å 50Å 0 Structure Identified  Al2O3 Fe ? Si Mystery layer is iron silicide.

  9. Acknowledgements Thanks to Julie and Chuck Thanks to organizers and instructors for a very wonderful summer school 
