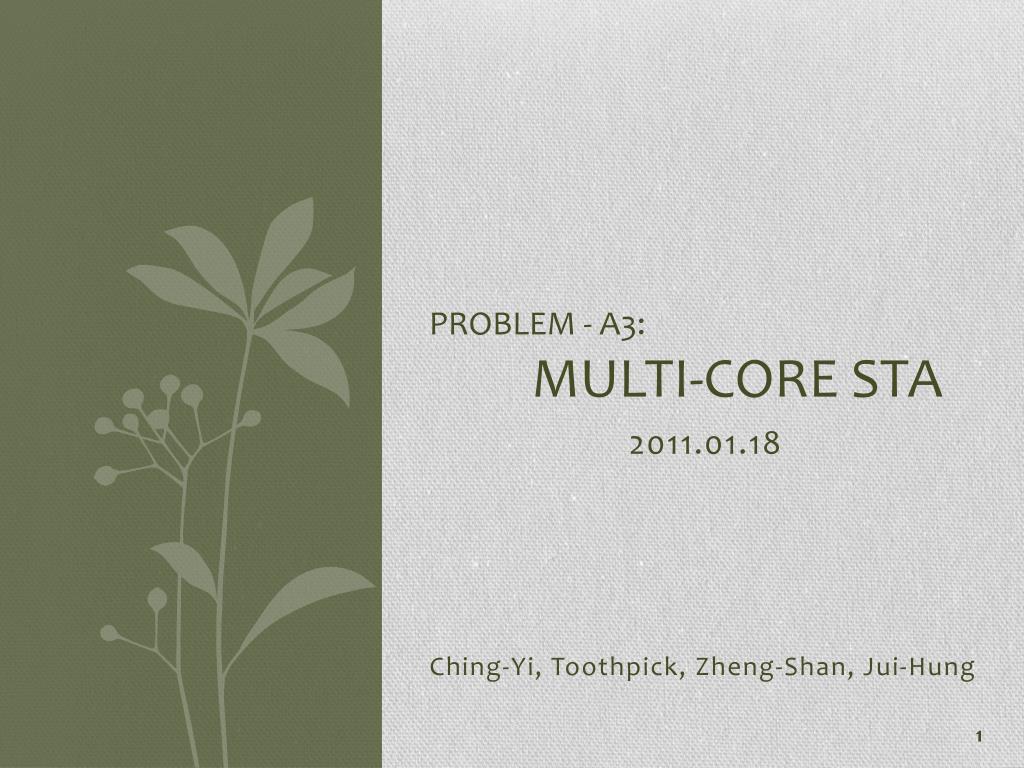

Problem - A3: Multi-Core STA

2011.01.18

Ching-Yi, Toothpick, Zheng-Shan, Jui-Hung

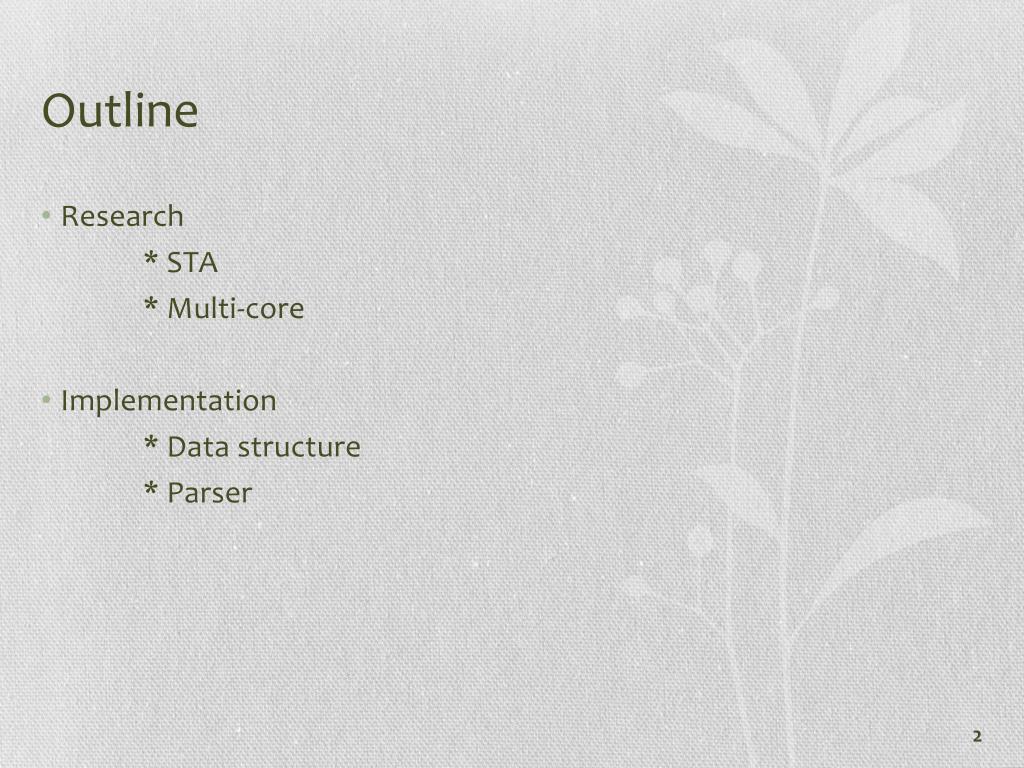

Outline
• Research

* STA

* Multi-core

• Implementation

* Data structure

* Parser

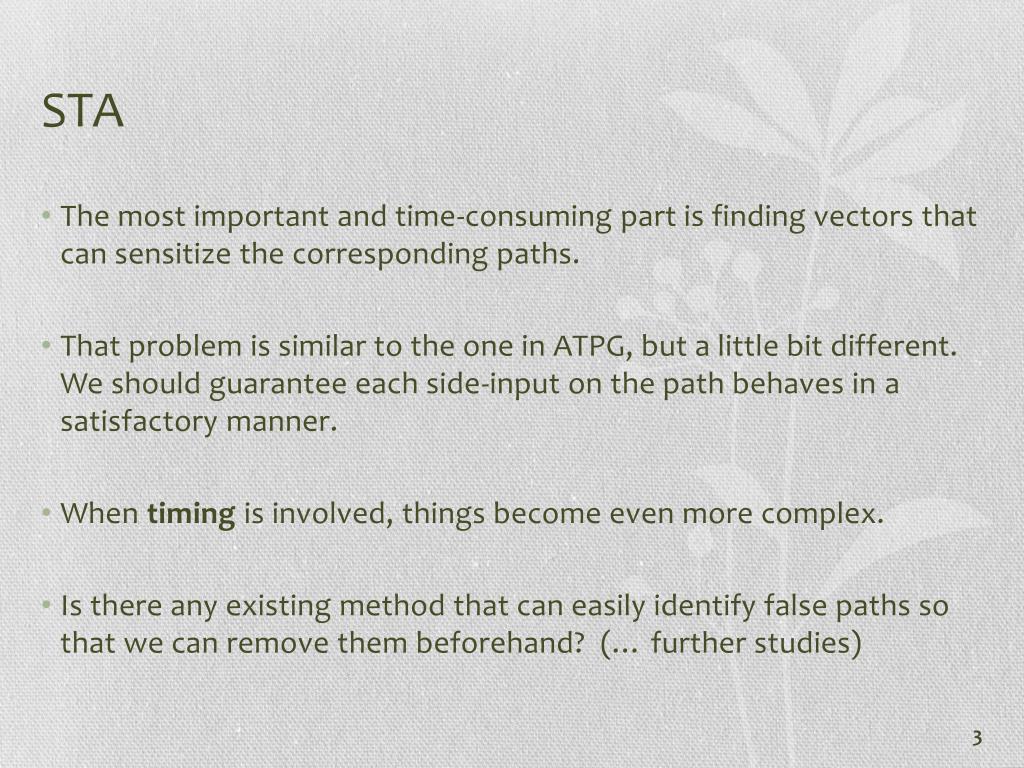

STA
• The most important and time-consuming part is finding vectors that can sensitize the corresponding paths.
• That problem is similar to the one in ATPG, but a little bit different. We should guarantee each side-input on the path behaves in a satisfactory manner.
• When timing is involved, things become even more complex.
• Is there any existing method that can easily identify false paths so that we can remove them beforehand? (… further studies)

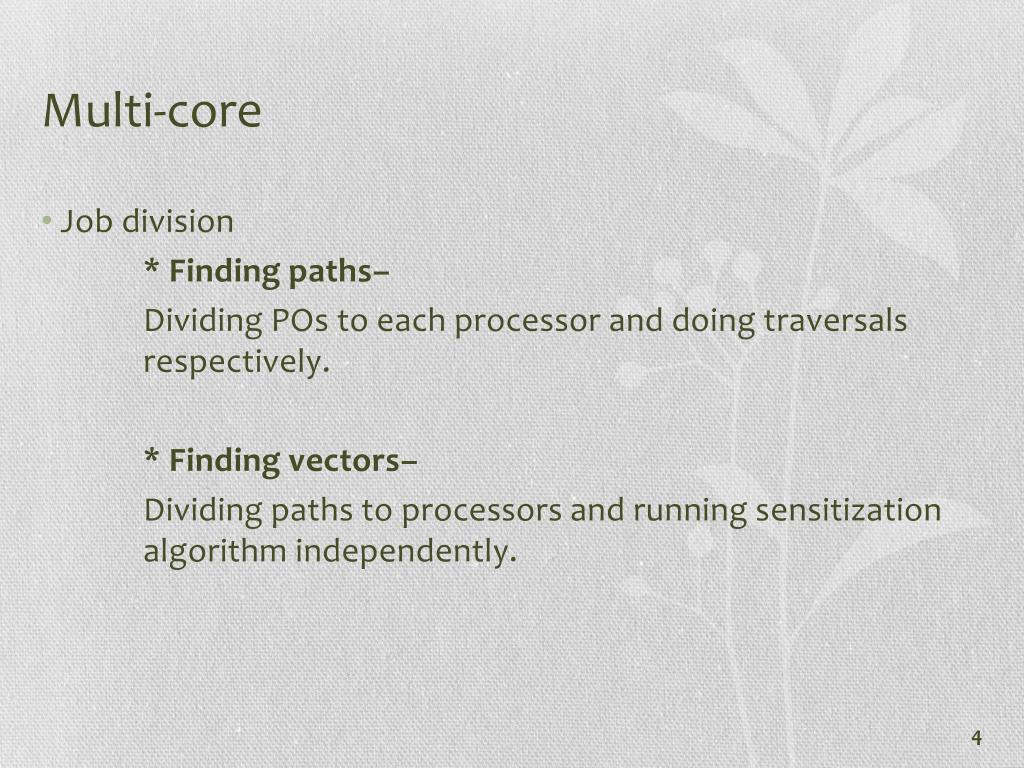

Multi-core
• Job division

* Finding paths–

Dividing POs to each processor and doing traversals respectively.

* Finding vectors–

Dividing paths to processors and running sensitization algorithm independently.

Implementation
• Data structure

* Gate–

gate name, input pins, output pins, etc.

* Path–

slack, starting PI, ending PO, passing pins, etc.

• Parser

Different from last time, the name of the pins and the name of each gate should be kept.

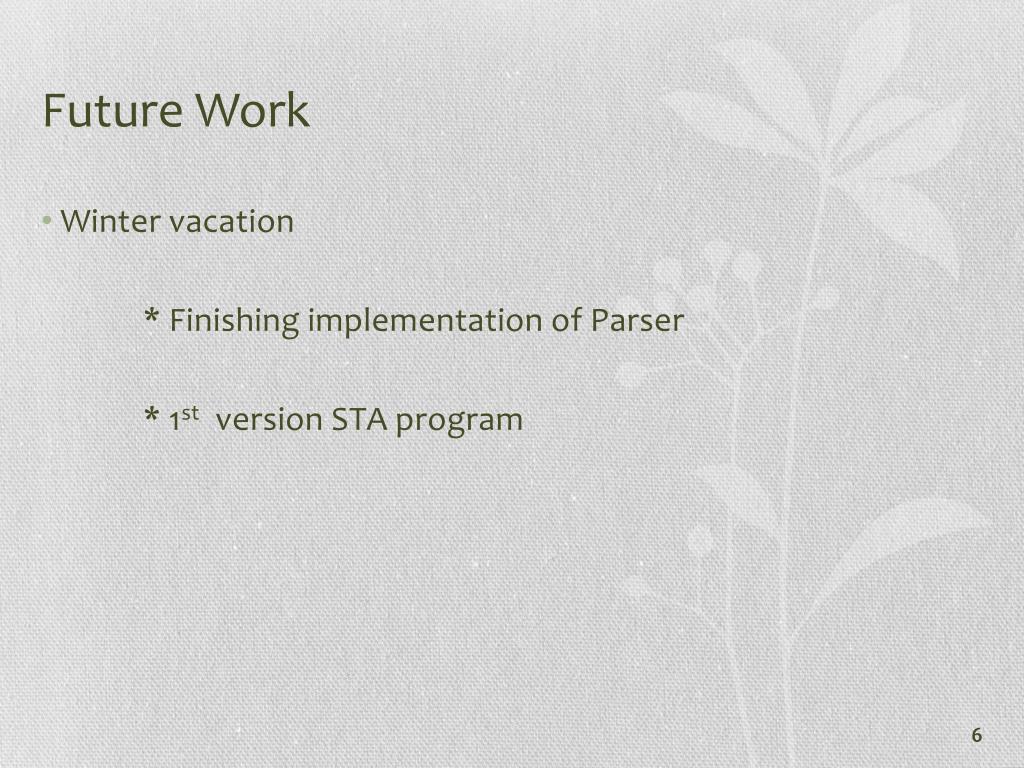

Future Work
• Winter vacation

* Finishing implementation of Parser

* 1st version STA program
