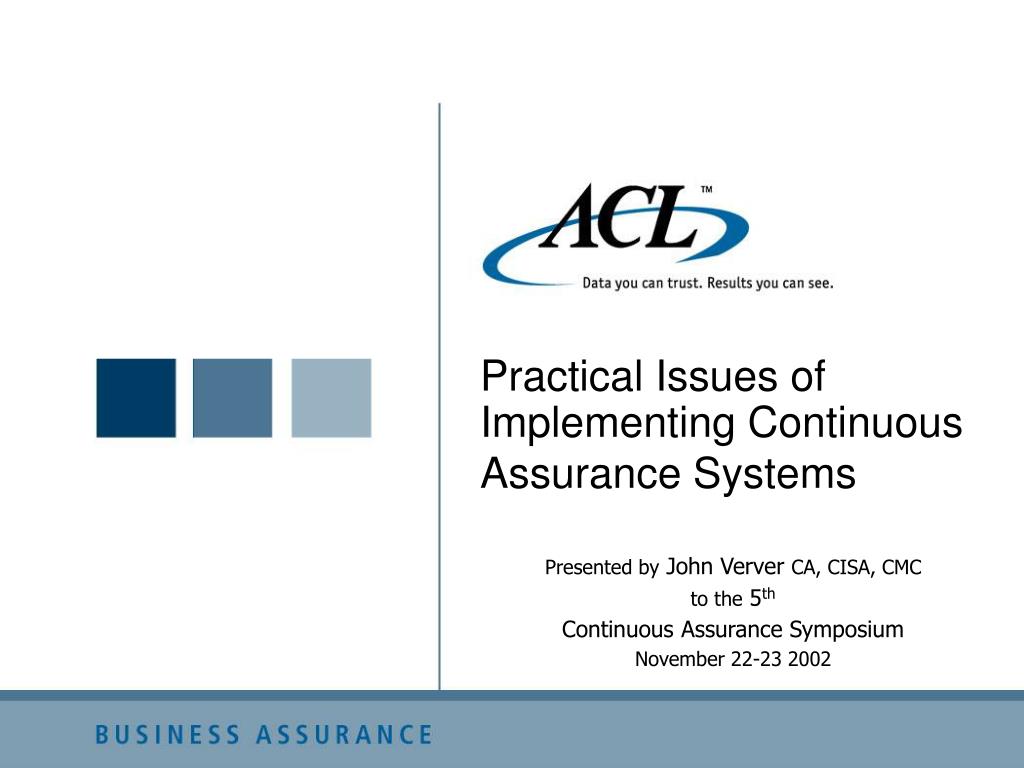

  1. Practical Issues of Implementing Continuous Assurance Systems Presented by John Verver CA, CISA, CMC to the 5th Continuous Assurance Symposium November 22-23 2002

  2. Implementing Continuous Assurance Systems • Status of use of continuous assurance implementations. • What is meant by “continuous”? • The practical issues of integrating continuous auditing/monitoring procedures to the data and the underlying application. • Defining the control parameters to be tested. • Setting the thresholds for reporting and priorities for notifications. • Softwarefunctionality required to support continuous monitoring

  3. Continuous Assurance Systems Status of continuous assurance implementations within the ACL user base: • ACL user base includes over 150,000 licensed users: • The Final 4 • 89 of the Fortune 100 • 44% of the Global 500 • 30+ national governments and virtually all US state governments • Very few organizations have fully embedded and automated continuous auditing/monitoring applications • Most “Continuous Monitoring applications” are simply series of automated data analysis tests that are run on a regular basis, and are manually initiated - not true continuous applications e.g: • Detecting indicators of fraud • Identifying duplicate and other overpayments

  4. Continuous Assurance Systems “Continuous” Assurance Applications: • Automated analyses that test transactional data against defined control parameters/rules • Generally independent of the underlying business application system • Run automatically on a daily / weekly basis – (occasionally more frequently) • Automatically generate exception reports / alerts • Detective more than preventative

  5. Continuous Assurance Systems Most common application areas among ACL user base: General business process: • Purchase / Payments cycle • Vendor fraud • Expense claims Industry-specific • Money laundering, anti-terrorist legislation • Insurance claims • Medicare/Medicaid compliance

  6. Continuous Monitoring Application Payments system Continuous Monitoring system Independent, comprehensive series of control tests

  7. Continuous Assurance Systems Why are they needed?: • Confirmation that controls built into application systems are operating effectively • Make up for lack of controls in application systems

  8. Continuous Assurance Systems Getting to the data: • Direct access vs extract • Direct access to mainframe / server data usually preferable • Data extract may be preferable to minimise processing impact • Define the “data slice” • Decide on the point at which to take the slice (Time-based? Process-based? – depends on underlying application system and timing of CA process) • Ensure that all transactions are captured since the last test process

  9. Continuous Assurance Systems Money-laundering application DDA Files (DB/2) Control parameters defined within ACL “rules-engine” Adjust alert sensitivity Processing log Customer names, Account Master Daily Account History ACL for Windows Client ACL for OS/390 Client Server Reports and alerts Distributed by e-mail File of suspect transactions ACL daily extract / monitoring process launched by JCL and Windows Schedulers Lower Priority reports Additional analysis by ACL of suspect transactions High priority alerts

  10. Continuous Assurance Systems Establishing the control parameters: • Identify specific control exposures • Identify indicators of risk • Use transactional analysis to determine if conditions exist for which no controls designed/risks indentified • Define specific control parameters / tests • Establish sensitivity thresholds for reporting and alerts • “Scoring/weighting” of events dependent upon combination of control parameters that are failed and indicators of risk

  11. Continuous Assurance Systems ACL functionality that supports Continuous Assurance applications: • Analytical and inquiry processes that support audit and control procedures • Direct data access e.g. • ACL OS/390 Client Server • Direct Link for SAP R/3 • ODBC-compliant databases • NOTIFY – e-mail notification of reports and alerts • Complete logging of processes • Definition of control parameters (“rules-engine”) • Development of interactive and automated applications

  12. Example of interface for tuning monitoring parameters Note: This amount can be modified from the parameters menu.

  13. Example of interface for tuning monitoring parameters

  14. Example of ACL Notify command
