Application Notes for PLC Testing with ET 91 Level Test Set

Application Notes for PLC Testing with ET 91 Level Test Set. Pilot Level Measurement on RF Test Point. Pilot Level Measurement on Line Test Point. Automatic Master Slave Tone Channel Test. Measurements in Special Tracking Mode. Quick Frequency Response Test with MTTS.

cian
Download Presentation

Application Notes for PLC Testing with ET 91 Level Test Set

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. ApplicationNotesforPLCTestingwithET 91LevelTestSet Pilot Level Measurement on RF Test Point Pilot Level Measurement on Line Test Point Automatic Master Slave ToneChannel Test Measurements in Special Tracking Mode Quick Frequency Response Test with MTTS Automatic Master Slave Cable Test To learn more click on note! ELEKTR NIKA

  2. Pilot Level Measurement on RF Test Point ELEKTR NIKA

  3. Pilot Level Measurement on Line Test Point ELEKTR NIKA

  4. Automatic ToneChannel Test in Master Slave Mode ▼ Click hereto see detailed results ELEKTR NIKA

  5. Test Result of Automatic Tone Channel Test All the test results are available also in numeric formand they can be transferred to PC via USB interface. ELEKTR NIKA

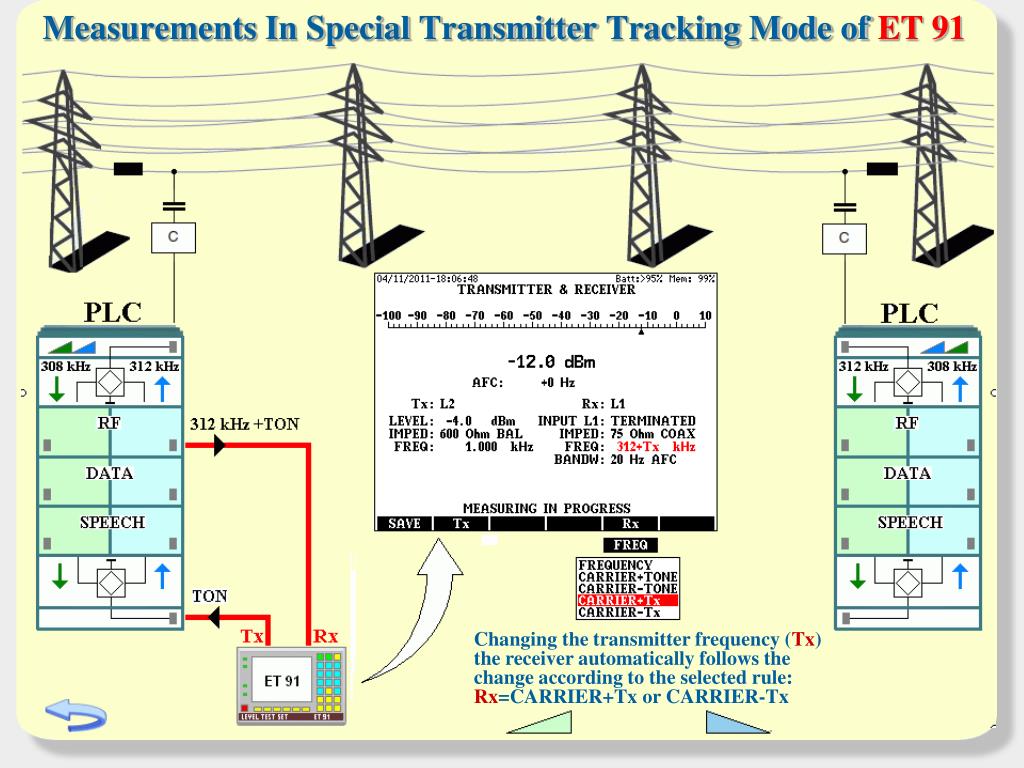

  6. Measurements In Special TransmitterTracking Mode ofET 91 Changing the transmitter frequency (Tx) the receiver automatically follows the change according to the selected rule: Rx=CARRIER+Tx or CARRIER-Tx

  7. Quick Frequency Response Test ofET 91 in MTTS Mode

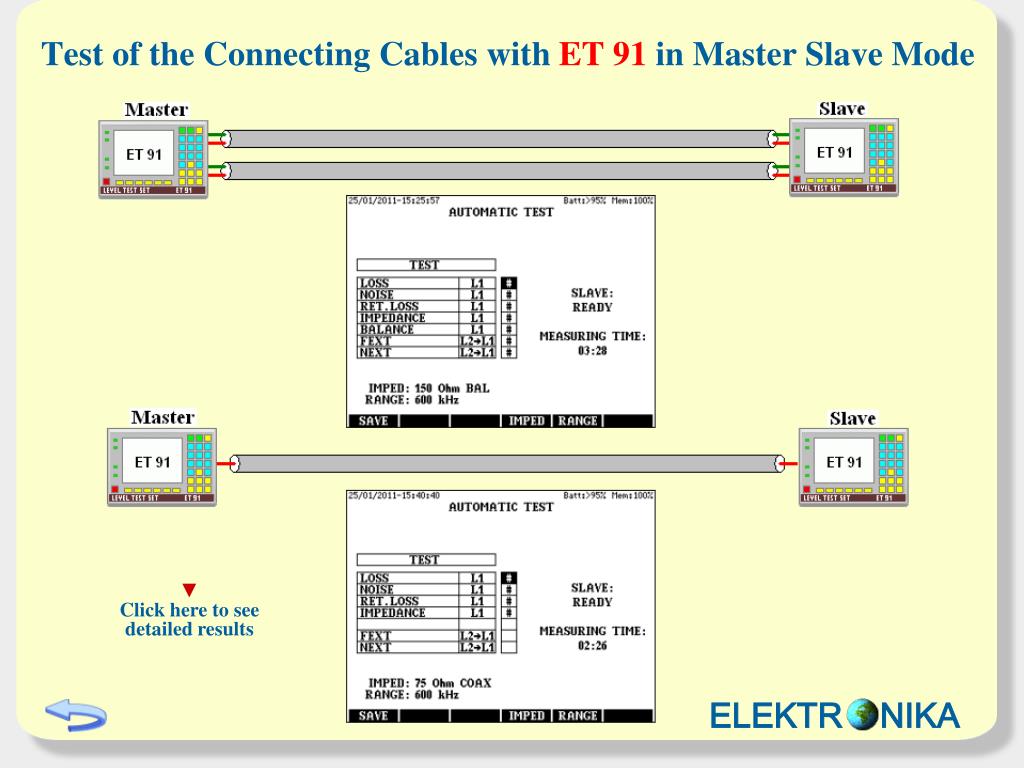

  8. Test of the Connecting Cables withET 91 in Master Slave Mode ▼ Click hereto see detailed results ELEKTR NIKA

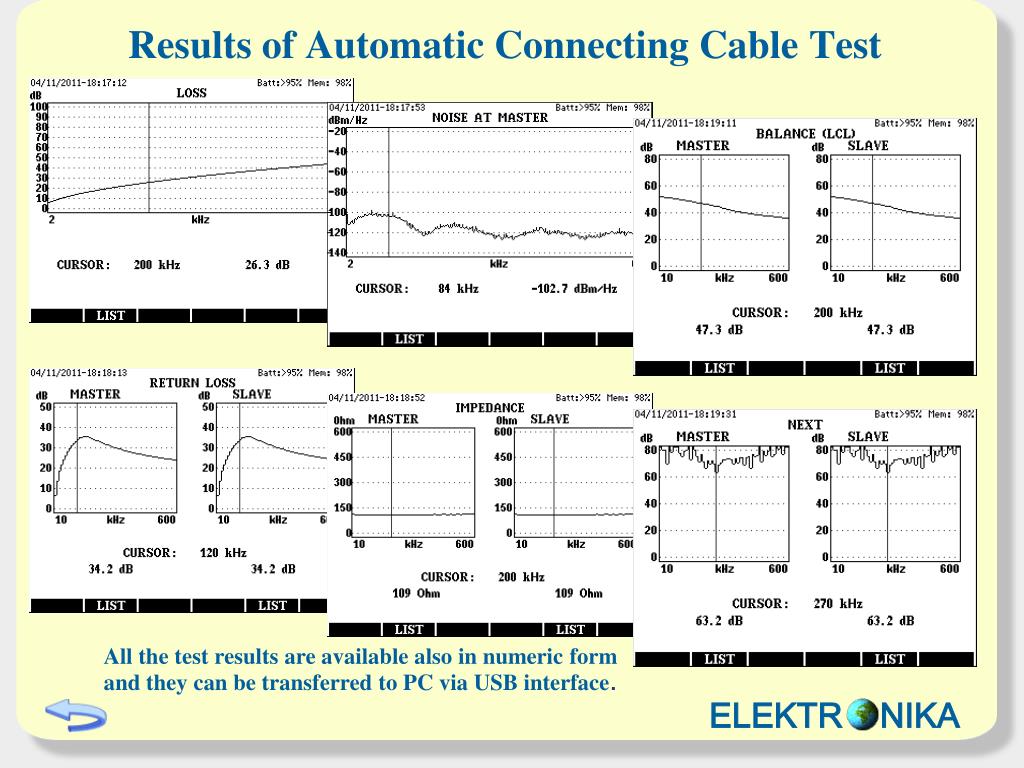

  9. Results of Automatic Connecting Cable Test All the test results are available also in numeric formand they can be transferred to PC via USB interface. ELEKTR NIKA

  10. THANK YOU FOR YOUR ATTENTION!
