davy van deursen wim van lancker
Requirements for

automatic evaluation ofMF TCs

Davy Van Deursen, Wim Van Lancker

testing a mf aware ua

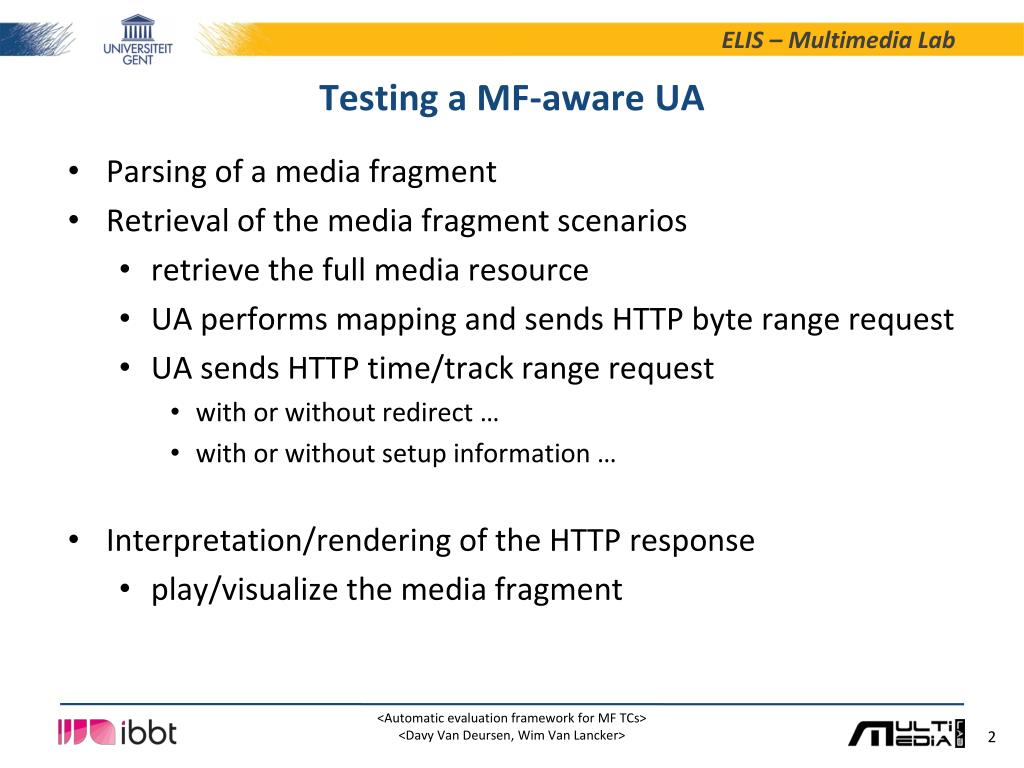

Testing a MF-aware UA
  • Parsing of a media fragment
  • Retrieval of the media fragment scenarios
    • retrieve the full media resource
    • UA performs mapping and sends HTTP byte range request
    • UA sends HTTP time/track range request
      • with or without redirect …
      • with or without setup information …
  • Interpretation/rendering of the HTTP response
    • play/visualize the media fragment
testing a mf aware ua1

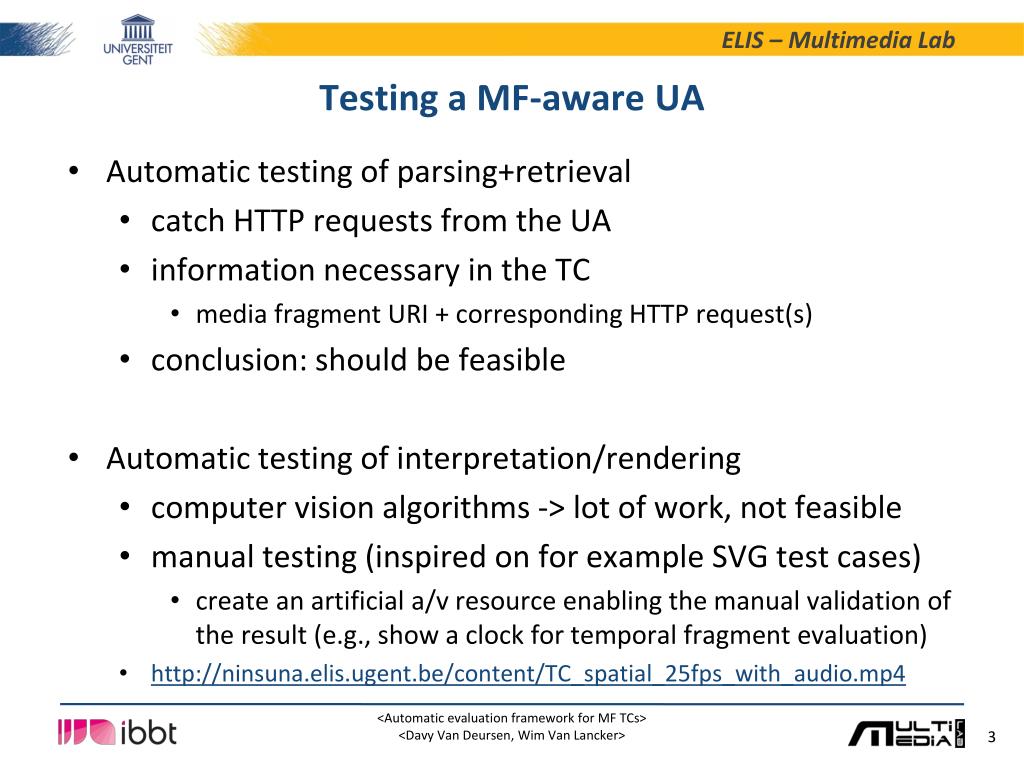

Testing a MF-aware UA
  • Automatic testing of parsing+retrieval
    • catch HTTP requests from the UA
    • information necessary in the TC
      • media fragment URI + corresponding HTTP request(s)
    • conclusion: should be feasible
  • Automatic testing of interpretation/rendering
    • computer vision algorithms -> lot of work, not feasible
    • manual testing (inspired on for example SVG test cases)
      • create an artificial a/v resource enabling the manual validation of the result (e.g., show a clock for temporal fragment evaluation)
    • http://ninsuna.elis.ugent.be/content/TC_spatial_25fps_with_audio.mp4
testing a mf aware server
Testing a MF-aware server
  • Parsing of HTTP Range header
  • Extraction of the requested media fragment
    • server-triggered redirect (e.g., for tracks)
    • calculate byte-time/track mapping and return bytes corresponding to the found byte range
  • Automatic testing of parsing and extraction
    • catch response
    • information necessary in the TC
      • Range header and corresponding response headers
        • we assume that the server is able to provide the correct bytes according to its calculated byte ranges
conclusions
Conclusions
  • Automatic evaluation of the TCs demands detailed TC inputs
    • existing media resource
    • media fragment (e.g., t=10,20)
    • possible MF-specific HTTP request headers (i.e., Range and Accept-Range-Redirect) combinations
    • possible MF-specific HTTP response headers (i.e., Content-Range-Mapping)

UA validation

Server validation

slide6
End2End examples

incompliant behavior

compliant behavior, should be specified in the TC

not sure if compliant or not

misuse of MF-specific headers

valid temporal example

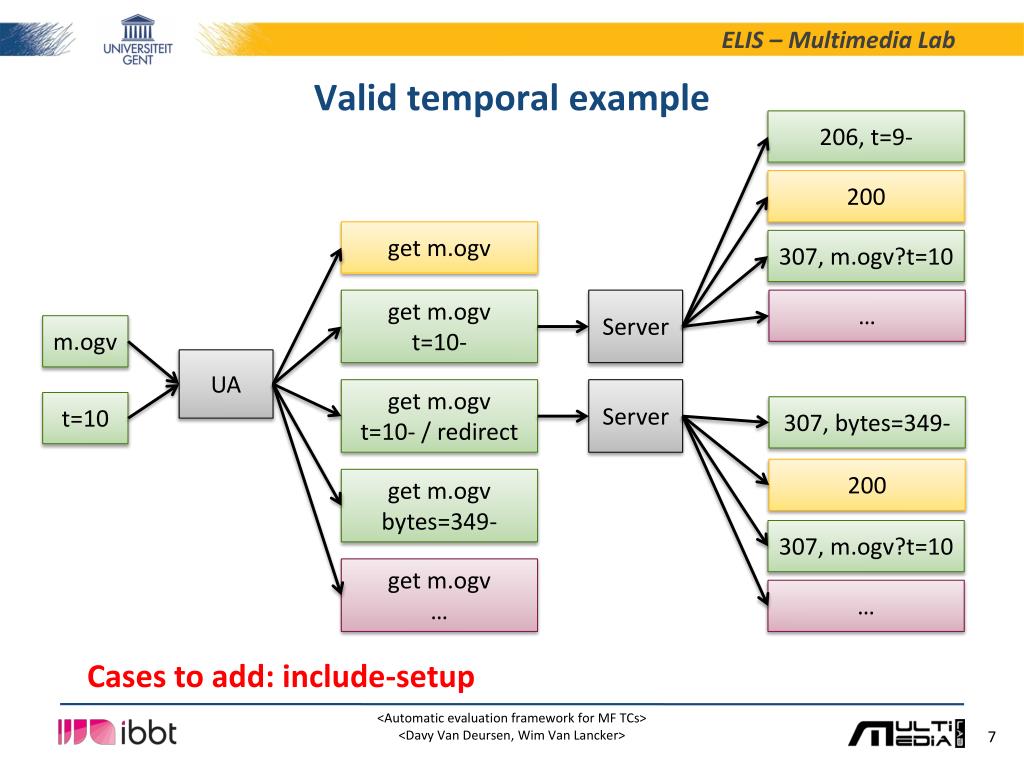

Valid temporal example

206, t=9-

200

get m.ogv

307, m.ogv?t=10

get m.ogv

t=10-

Server

m.ogv

UA

get m.ogv

t=10- / redirect

Server

t=10

307, bytes=349-

200

get m.ogv

bytes=349-

307, m.ogv?t=10

get m.ogv

Cases to add: include-setup

ua detectable invalid temporal example
UA-detectable ‘invalid’ temporal example

get m.ogv

206, include-setup

get m.ogv

include-setup

Server

200

m.ogv

UA

t=foo

get m.ogv

bytes=0-22

get m.ogv

Cases to add: redirect

ua undetectable invalid temporal example
UA-undetectable ‘invalid’ temporal example

get m.ogv

get m.ogv

t=20-

???

get m.ogv

t=20-;incl-setup

Server

m.ogv

get m.ogv

incl-setup

Server

UA

206, include-setup

t=20

200

length of m.ogv is 15s

get m.ogv

Cases to add: redirect

spatial example

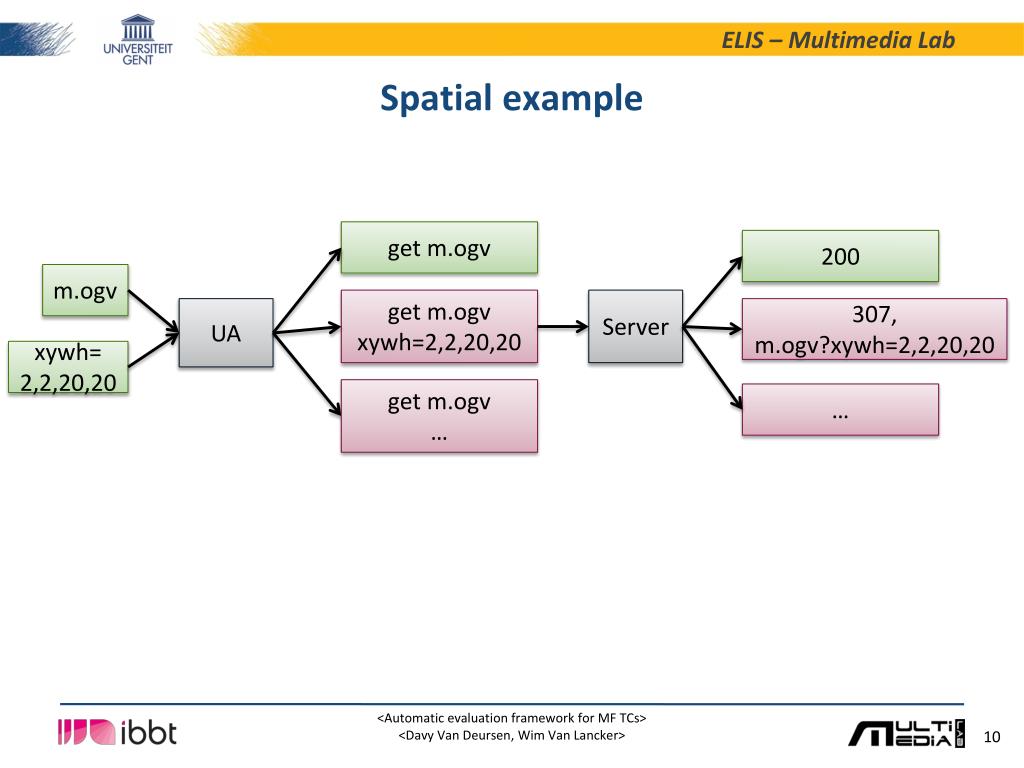

Spatial example

get m.ogv

200

m.ogv

get m.ogv

xywh=2,2,20,20

Server

307, m.ogv?xywh=2,2,20,20

UA

xywh=

2,2,20,20

get m.ogv

valid track example

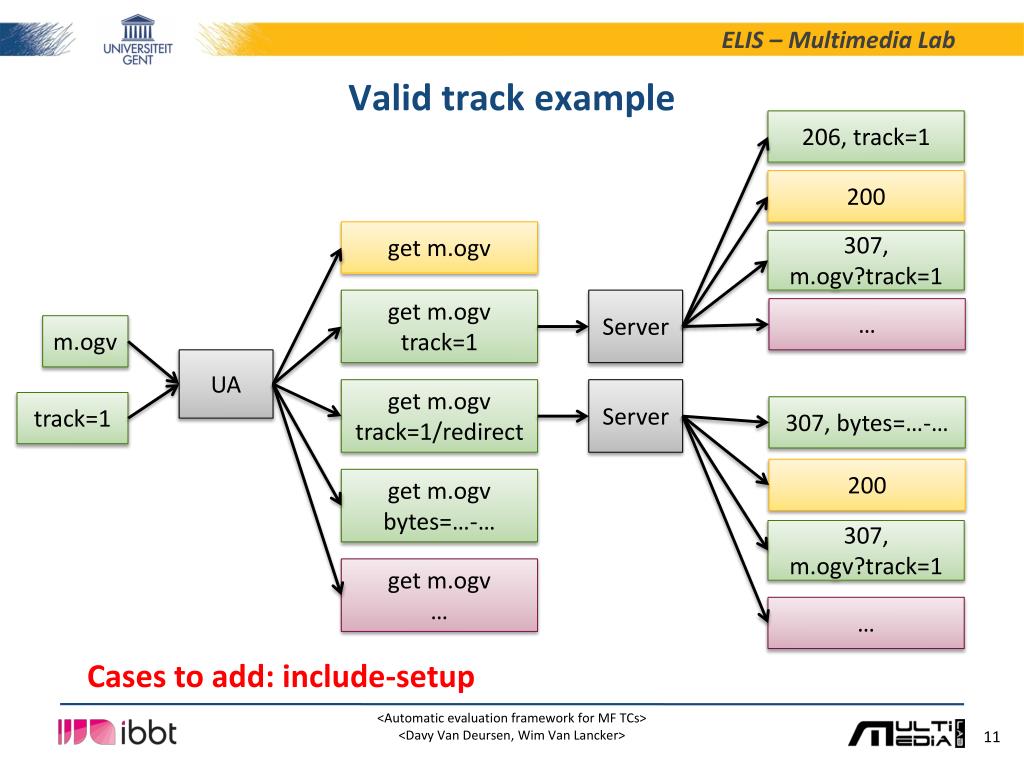

Valid track example

206, track=1

200

get m.ogv

307, m.ogv?track=1

get m.ogv

track=1

Server

m.ogv

UA

get m.ogv

track=1/redirect

Server

track=1

307, bytes=…-…

200

get m.ogv

bytes=…-…

307, m.ogv?track=1

get m.ogv

Cases to add: include-setup

ua undetectable invalid track example
UA-undetectable ‘invalid’ track example

206, include-setup

get m.ogv

200

get m.ogv

include-setup

Server

get m.ogv

bytes=0-22

m.ogv

UA

???

get m.ogv

track=54

Server

track=54

get m.ogv

track=54;

incl-setup

Server

206, include-setup

Cases to add: redirect

todos questions issues

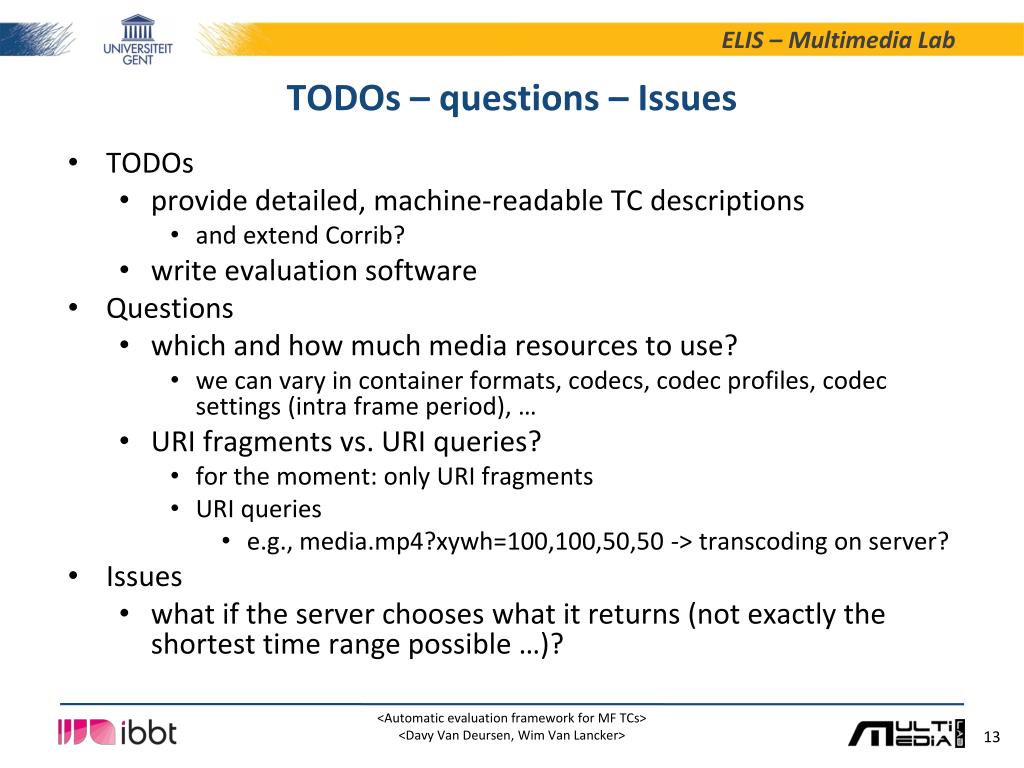

TODOs – questions – Issues
  • TODOs
    • provide detailed, machine-readable TC descriptions
      • and extend Corrib?
    • write evaluation software
  • Questions
    • which and how much media resources to use?
      • we can vary in container formats, codecs, codec profiles, codec settings (intra frame period), …
    • URI fragments vs. URI queries?
      • for the moment: only URI fragments
      • URI queries
        • e.g., media.mp4?xywh=100,100,50,50 -> transcoding on server?
  • Issues
    • what if the server chooses what it returns (not exactly the shortest time range possible …)?
