  1. Chapter 4: Processes • Process Concept • Process Scheduling • Operations on Processes • Cooperating Processes • Interprocess Communication • Communication in Client-Server Systems Operating System Concepts

  2. Process Concept • An operating system executes a variety of programs: • Batch system – jobs • Time-shared systems – user programs or tasks • Textbook uses the terms job and process almost interchangeably. • Process – a program in execution; process execution must progress in sequential fashion. • A process includes: • program counter • stack • data section Operating System Concepts

  3. Process State • As a process executes, it changes state • new: The process is being created. • running: Instructions are being executed. • waiting: The process is waiting for some event to occur. • ready: The process is waiting to be assigned to a process. • terminated: The process has finished execution. Operating System Concepts

  4. Diagram of Process State Operating System Concepts

  5. Process Control Block (PCB) Information associated with each process. • Process state • Program counter • CPU registers • CPU scheduling information • Memory-management information • Accounting information • I/O status information Operating System Concepts

  6. Process Control Block (PCB) Operating System Concepts

  7. CPU Switch From Process to Process Operating System Concepts

  8. Process Scheduling Queues • Job queue – set of all processes in the system. • Ready queue – set of all processes residing in main memory, ready and waiting to execute. • Device queues – set of processes waiting for an I/O device. • Process migration between the various queues. Operating System Concepts

  9. Ready Queue And Various I/O Device Queues Operating System Concepts

  10. Representation of Process Scheduling Operating System Concepts

  11. Schedulers • Long-term scheduler (or job scheduler) – selects which processes should be brought into the ready queue. • Short-term scheduler (or CPU scheduler) – selects which process should be executed next and allocates CPU. Operating System Concepts

  12. Addition of Medium Term Scheduling Operating System Concepts

  13. Schedulers (Cont.) • Short-term scheduler is invoked very frequently (milliseconds)  (must be fast). • Long-term scheduler is invoked very infrequently (seconds, minutes)  (may be slow). • The long-term scheduler controls the degree of multiprogramming. • Processes can be described as either: • I/O-bound process – spends more time doing I/O than computations, many short CPU bursts. • CPU-bound process – spends more time doing computations; few very long CPU bursts. Operating System Concepts

  14. Context Switch • When CPU switches to another process, the system must save the state of the old process and load the saved state for the new process. • Context-switch time is overhead; the system does no useful work while switching. • Time dependent on hardware support. Operating System Concepts

  15. Process Creation • Parent process create children processes, which, in turn create other processes, forming a tree of processes. • Resource sharing • Parent and children share all resources. • Children share subset of parent’s resources. • Parent and child share no resources. • Execution • Parent and children execute concurrently. • Parent waits until children terminate. Operating System Concepts

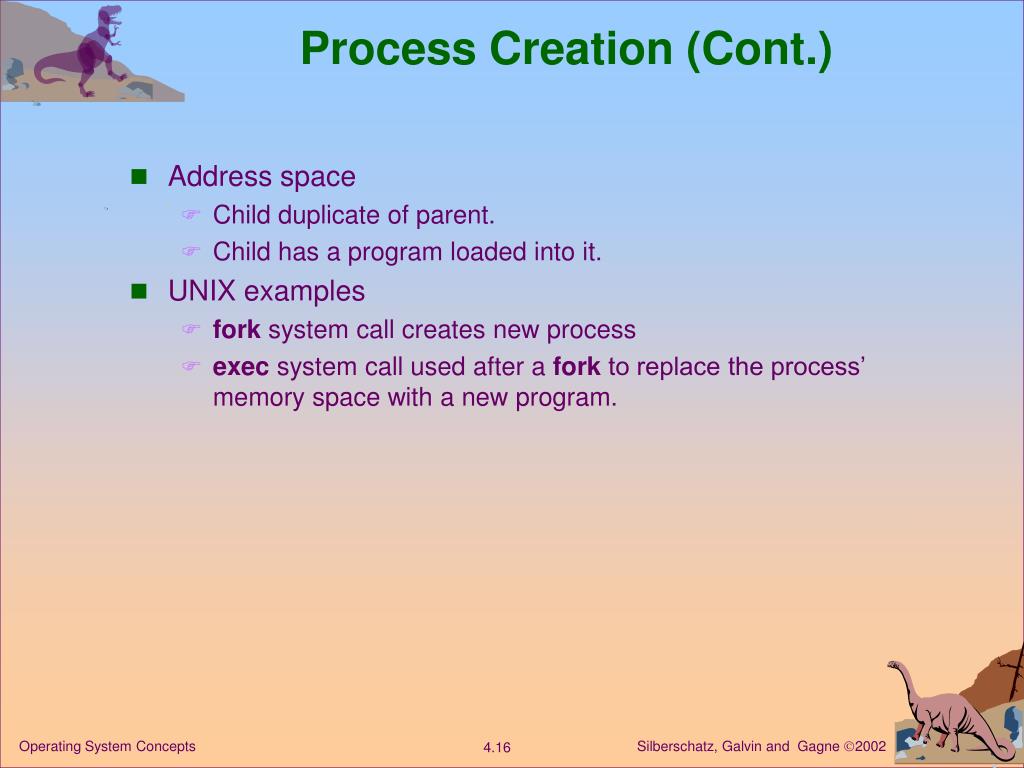

  16. Process Creation (Cont.) • Address space • Child duplicate of parent. • Child has a program loaded into it. • UNIX examples • fork system call creates new process • exec system call used after a fork to replace the process’ memory space with a new program. Operating System Concepts

  17. Processes Tree on a UNIX System Operating System Concepts

  18. Process Termination • Process executes last statement and asks the operating system to decide it (exit). • Output data from child to parent (via wait). • Process’ resources are deallocated by operating system. • Parent may terminate execution of children processes (abort). • Child has exceeded allocated resources. • Task assigned to child is no longer required. • Parent is exiting. • Operating system does not allow child to continue if its parent terminates. • Cascading termination. Operating System Concepts

  19. Cooperating Processes • Independent process cannot affect or be affected by the execution of another process. • Cooperating process can affect or be affected by the execution of another process • Advantages of process cooperation • Information sharing • Computation speed-up • Modularity • Convenience Operating System Concepts

  20. Producer-Consumer Problem • Paradigm for cooperating processes, producer process produces information that is consumed by a consumer process. • unbounded-buffer places no practical limit on the size of the buffer. • bounded-buffer assumes that there is a fixed buffer size. Operating System Concepts

  21. Bounded-Buffer – Shared-Memory Solution • Shared data #define BUFFER_SIZE 10 Typedef struct { . . . } item; item buffer[BUFFER_SIZE]; int in = 0; int out = 0; • Solution is correct, but can only use BUFFER_SIZE-1 elements Operating System Concepts

  22. Bounded-Buffer – Producer Process item nextProduced; while (1) { while (((in + 1) % BUFFER_SIZE) == out) ; /* do nothing */ buffer[in] = nextProduced; in = (in + 1) % BUFFER_SIZE; } Operating System Concepts

  23. Bounded-Buffer – Consumer Process item nextConsumed; while (1) { while (in == out) ; /* do nothing */ nextConsumed = buffer[out]; out = (out + 1) % BUFFER_SIZE; } Operating System Concepts

  24. Interprocess Communication (IPC) • Mechanism for processes to communicate and to synchronize their actions. • Message system – processes communicate with each other without resorting to shared variables. • IPC facility provides two operations: • send(message) – message size fixed or variable • receive(message) • If P and Q wish to communicate, they need to: • establish a communicationlink between them • exchange messages via send/receive • Implementation of communication link • physical (e.g., shared memory, hardware bus) • logical (e.g., logical properties) Operating System Concepts

  25. Implementation Questions • How are links established? • Can a link be associated with more than two processes? • How many links can there be between every pair of communicating processes? • What is the capacity of a link? • Is the size of a message that the link can accommodate fixed or variable? • Is a link unidirectional or bi-directional? Operating System Concepts

  26. Direct Communication • Processes must name each other explicitly: • send (P, message) – send a message to process P • receive(Q, message) – receive a message from process Q • Properties of communication link • Links are established automatically. • A link is associated with exactly one pair of communicating processes. • Between each pair there exists exactly one link. • The link may be unidirectional, but is usually bi-directional. Operating System Concepts

  27. Indirect Communication • Messages are directed and received from mailboxes (also referred to as ports). • Each mailbox has a unique id. • Processes can communicate only if they share a mailbox. • Properties of communication link • Link established only if processes share a common mailbox • A link may be associated with many processes. • Each pair of processes may share several communication links. • Link may be unidirectional or bi-directional. Operating System Concepts

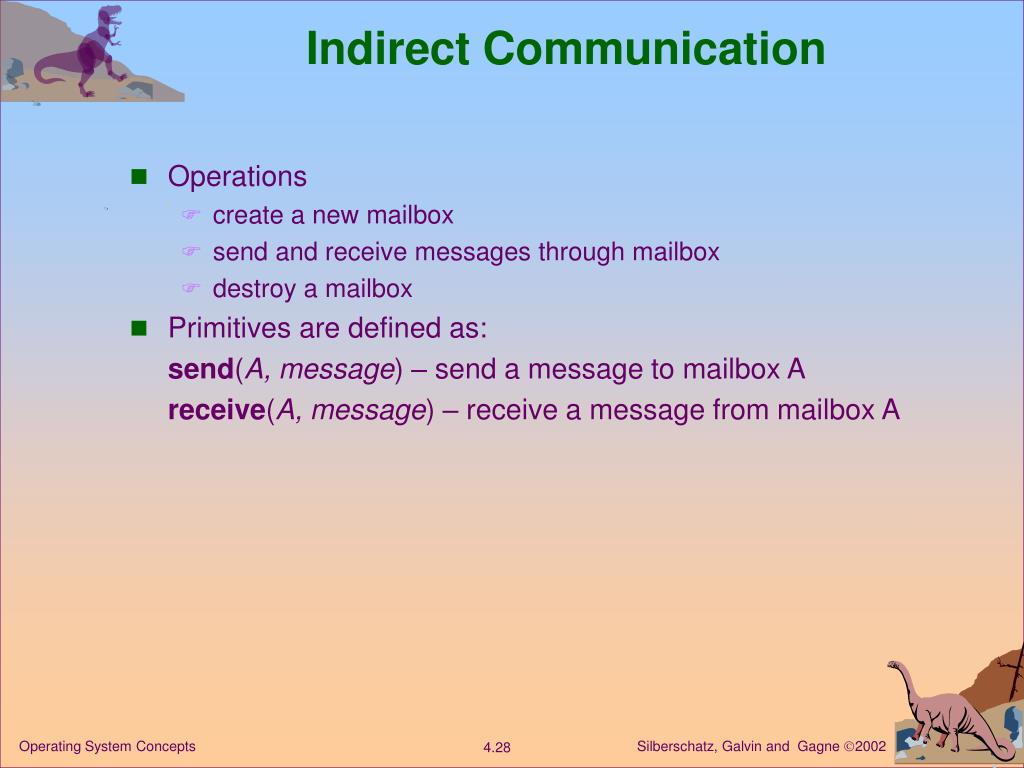

  28. Indirect Communication • Operations • create a new mailbox • send and receive messages through mailbox • destroy a mailbox • Primitives are defined as: send(A, message) – send a message to mailbox A receive(A, message) – receive a message from mailbox A Operating System Concepts

  29. Indirect Communication • Mailbox sharing • P1, P2, and P3 share mailbox A. • P1, sends; P2and P3 receive. • Who gets the message? • Solutions • Allow a link to be associated with at most two processes. • Allow only one process at a time to execute a receive operation. • Allow the system to select arbitrarily the receiver. Sender is notified who the receiver was. Operating System Concepts

  30. Synchronization • Message passing may be either blocking or non-blocking. • Blocking is considered synchronous • Non-blocking is considered asynchronous • send and receive primitives may be either blocking or non-blocking. Operating System Concepts

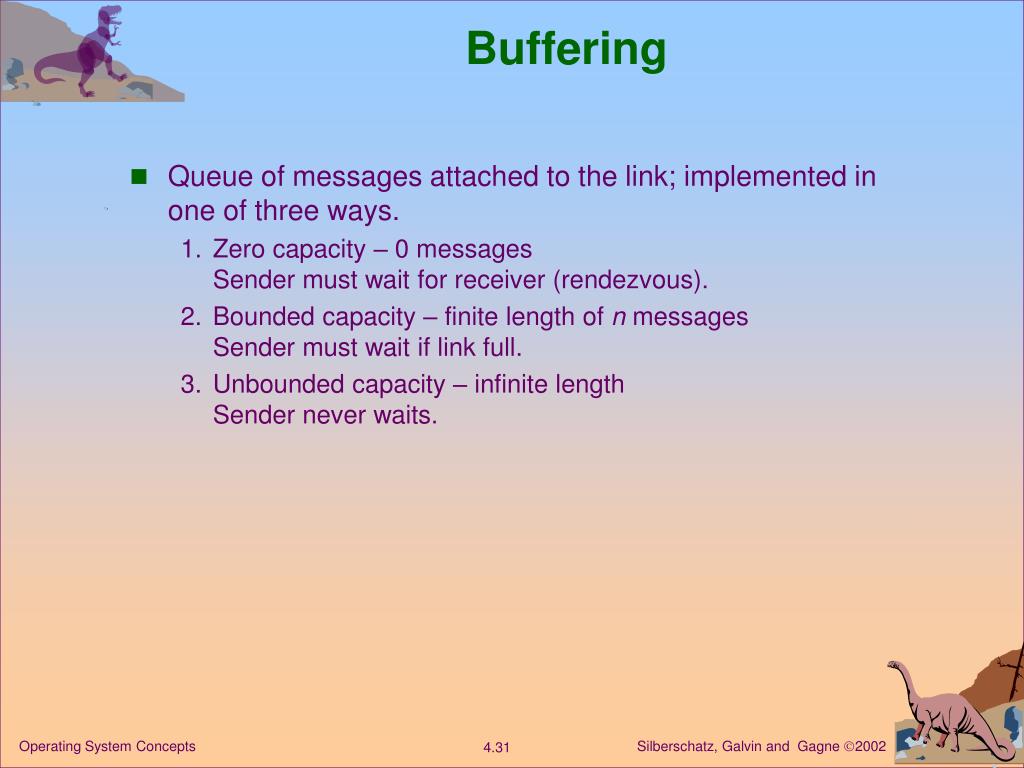

  31. Buffering • Queue of messages attached to the link; implemented in one of three ways. 1. Zero capacity – 0 messagesSender must wait for receiver (rendezvous). 2. Bounded capacity – finite length of n messagesSender must wait if link full. 3. Unbounded capacity – infinite length Sender never waits. Operating System Concepts

  32. Client-Server Communication • Sockets • Remote Procedure Calls • Remote Method Invocation (Java) Operating System Concepts

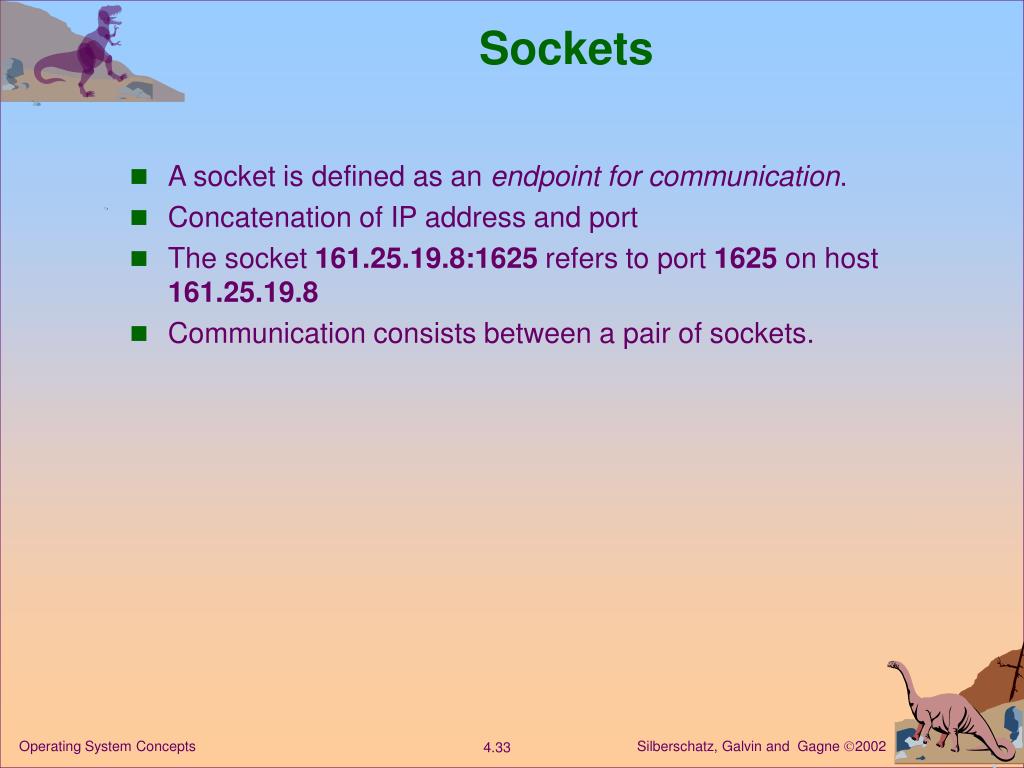

  33. Sockets • A socket is defined as an endpoint for communication. • Concatenation of IP address and port • The socket 161.25.19.8:1625 refers to port 1625 on host 161.25.19.8 • Communication consists between a pair of sockets. Operating System Concepts

  34. Socket Communication Operating System Concepts

  35. Remote Procedure Calls • Remote procedure call (RPC) abstracts procedure calls between processes on networked systems. • Stubs – client-side proxy for the actual procedure on the server. • The client-side stub locates the server and marshalls the parameters. • The server-side stub receives this message, unpacks the marshalled parameters, and peforms the procedure on the server. Operating System Concepts

  36. Execution of RPC Operating System Concepts

  37. Remote Method Invocation • Remote Method Invocation (RMI) is a Java mechanism similar to RPCs. • RMI allows a Java program on one machine to invoke a method on a remote object. Operating System Concepts

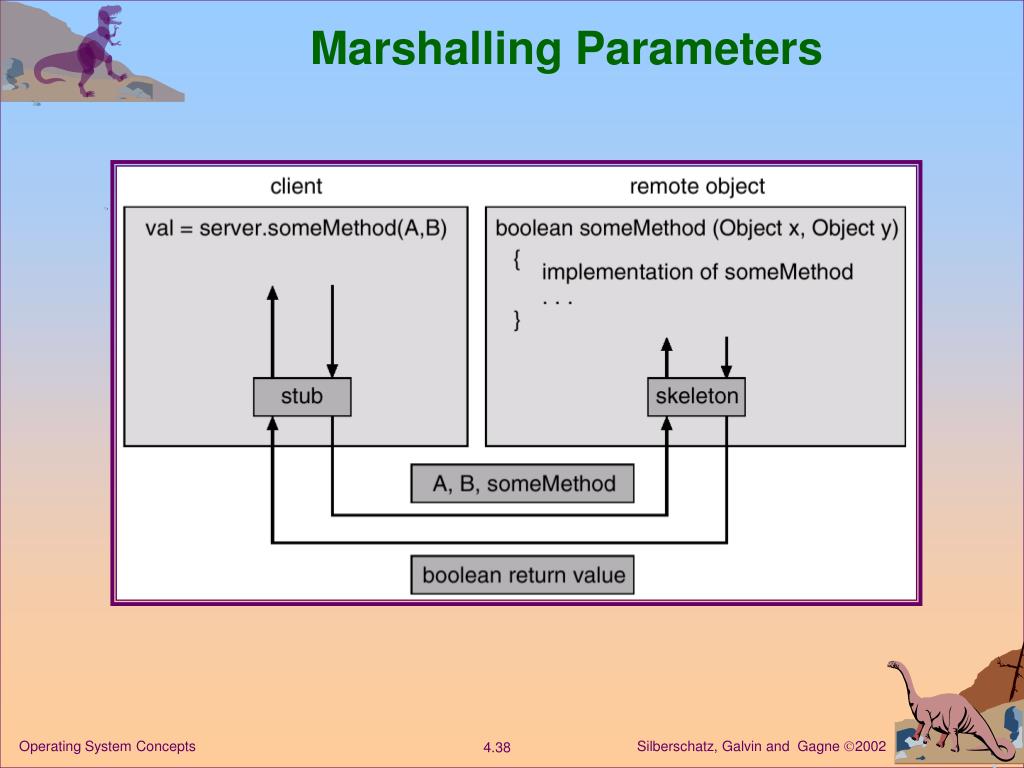

  38. Marshalling Parameters Operating System Concepts
