Presentation Transcript
Slide1 l.jpg

Welcome to

Sunrise Acute Care

Getting Started

This CBL provides introductory information on how to navigate through the Acute Care System.


Slide2 l.jpg

Upon successful completion of this course you will be able to:

  • Use password security

  • View the results tab

  • View how Orders are entered

  • Enter vitals on a flowsheet

  • Enter documents on the Patient Profile

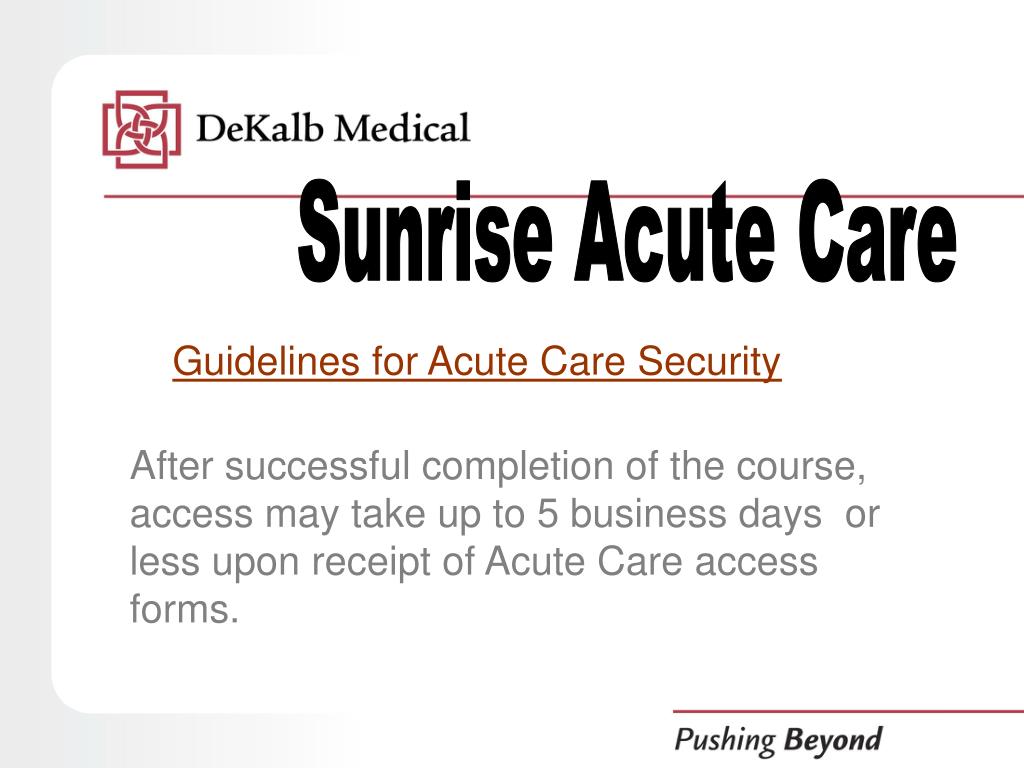

Slide3 l.jpg

Sunrise Acute Care

Guidelines for Acute Care Security

After successful completion of the course,

access may take up to 5 business days or less upon receipt of Acute Care access forms.


Slide4 l.jpg

Sunrise Acute Care

Guidelines for Acute Care Security

  • Your username & password are the same:

  • xfirstnamelastname

  • Example: John Doe (xjohndoe)

  • 2. On first login, you will be prompted to create your own unique password.


Slide5 l.jpg

Sunrise Acute Care

Guidelines for Acute Care Security

  • Your unique passwords should include:

  • 6 or more characters

  • At least one uppercase letter

  • One number

    *Remember to write it down in a secure place


Slide6 l.jpg

Sunrise Acute Care

  • Steps for login on your unit

  • Input your username and password:

    xfirstnamelastname

    (No spaces/no caps)

  • Create your own unique password


Slide7 l.jpg

Sunrise Acute Care

Once you are on your unit and you are experiencing difficulty logging in please contact help desk at:

ext. 15757


Slide8 l.jpg

Sunrise Acute Care

Xfirstnamelastname

Xfirstnamelastname

  • Acute Care Security is based on:

  • Campus

  • Department

  • Job Role

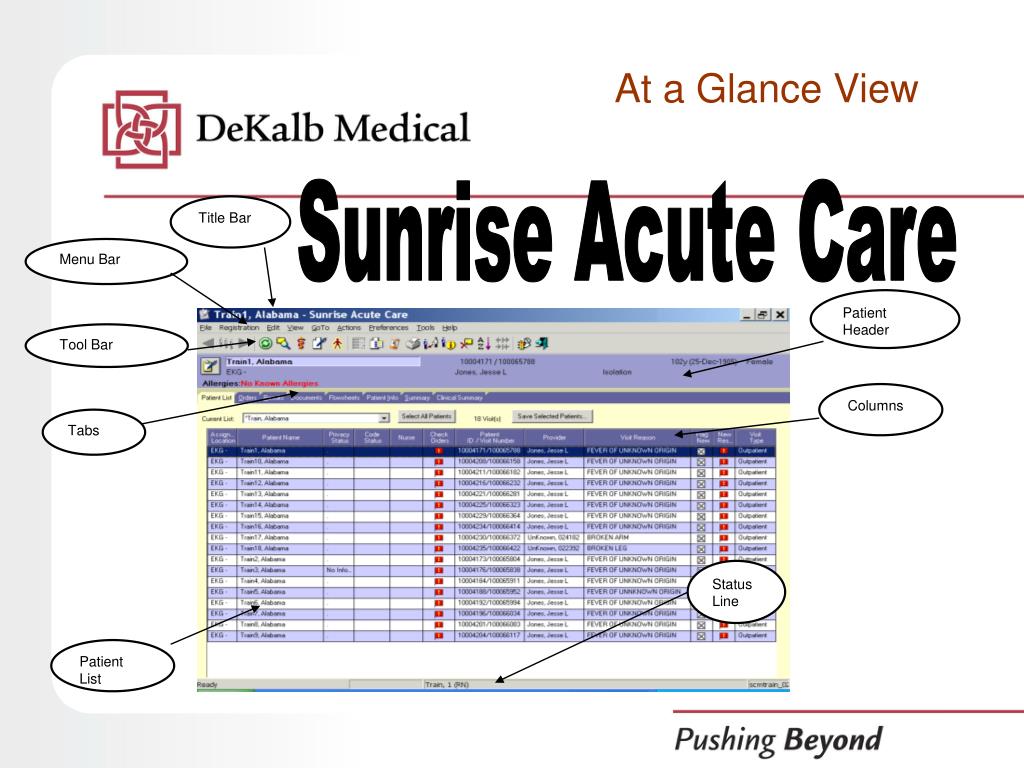

Slide9 l.jpg

At a Glance View

Sunrise Acute Care

Title Bar

MenuBar

Patient

Header

Tool Bar

Columns

Tabs

Status

Line

Patient List

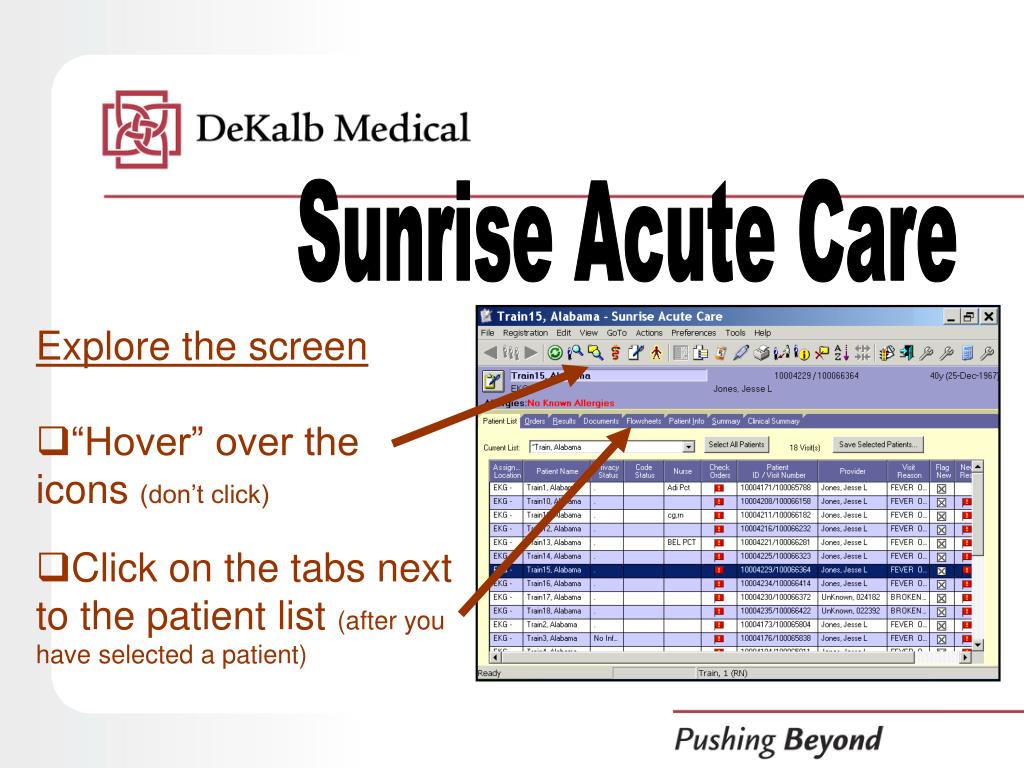

Slide10 l.jpg

Sunrise Acute Care

Explore the screen

  • “Hover” over the icons (don’t click)

  • Click on the tabs next to the patient list (after you have selected a patient)


Slide11 l.jpg

Sunrise Acute Care

  • Use the “logoff” icon with the arrow pointing out the door when exiting the system

  • One of the most frequent causes of errors is not from hackers. Staff will sometimes forget to log out. Remember your login is like an electronic signature.

    *Remember: Do not use someone else’s password


Slide12 l.jpg

Sunrise Acute Care

  • Always use the “suspend session” icon with the stoplight when stepping away from the computer for a break of about 10 minutes.


Slide13 l.jpg

PATIENT LISTS

Once you login to the system, the default view is the Patient List tab.

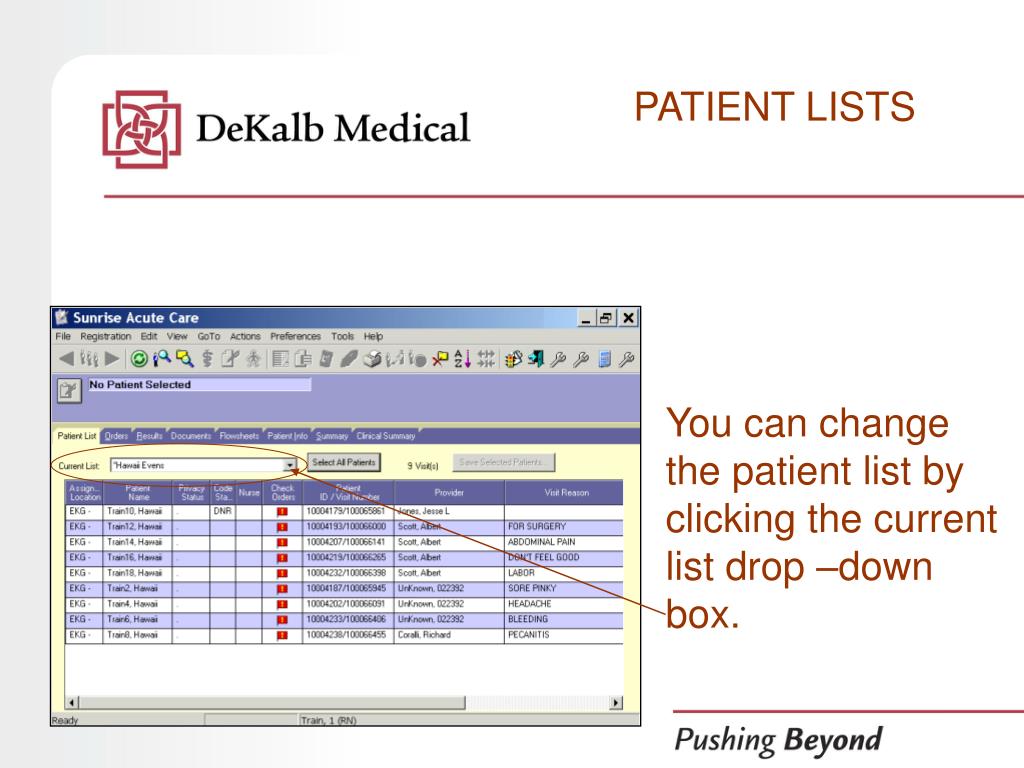

Slide14 l.jpg

PATIENT LISTS

You can change the patient list by clicking the current list drop –down box.


Slide15 l.jpg

PATIENT LISTS

Click on a patient


Slide16 l.jpg

PATIENT LISTS

A list called “My Assigned Patients” is automatically added in the Current List drop down box.


Slide17 l.jpg

PATIENT LISTS

“My Assigned Patients” is available for you to save your patients that have been assigned to you.


Slide18 l.jpg

To Save Patients to My Assigned Patients:

  • Select the patients you would like to save, you can select patients sequentially or randomly

  • To select patients sequentially from the patient list, click the first patient name and continue to depress and drag the mouse to highlight as many patients down the list as you want to select.


Slide19 l.jpg

To Save Patients to My Assigned Patients:

  • Once patients are selected, click the Save Selected Patients button.

  • The Save Selected Patients dialog box appears.

  • Select My Assigned Patients.


Find visit l.jpg
Find Visit

Use the Find Visit function when you want to find one or more visits for a patient.

  • From the main screen, Click the Find Visit icon on the toolbar. The Find Visit window opens as shown above.

  • From the Patient Tab enter search information.

  • Click Search. A list of patients appears in the Search Results area.

  • Select the desired patient/visit and click OK.


Slide21 l.jpg

Code Status

No Info

Column Displays

Note: When viewing the Patient List screen, notice the column marked Privacy Status. The words “No Info” identifies that this patient’s demographic and medical information will not be released

(See Policy: Classification of patient as No information PRB-1120.1 and High Profile individuals (PRB-4164). Also note the column labeled Code Status, this columnwill display DNR for those patients you have a Do Not Resuscitate order.


Slide22 l.jpg

RESULTS FLAGS

  • Flags display from the patient list to indicate that new information is on a patient’s chart.

  • Double Click on the Flag to display the Results since the users last login or refresh screen.



Slide24 l.jpg

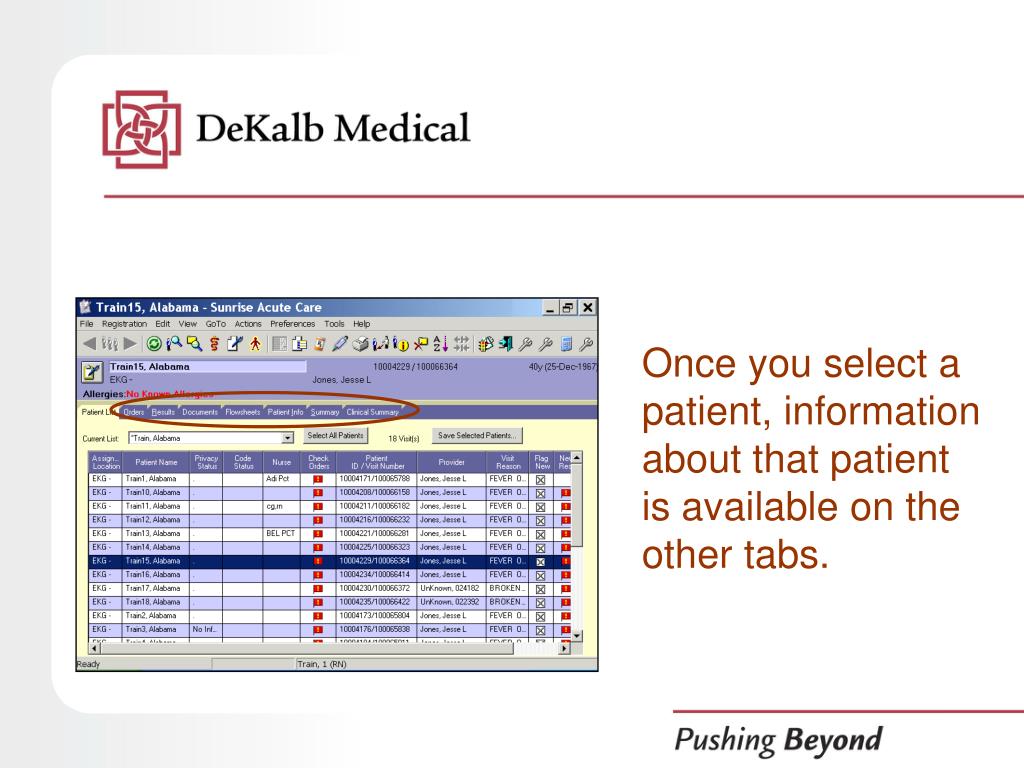

Tabs are similar to the sections of a paper chart that contains orders, results, documentation, etc.

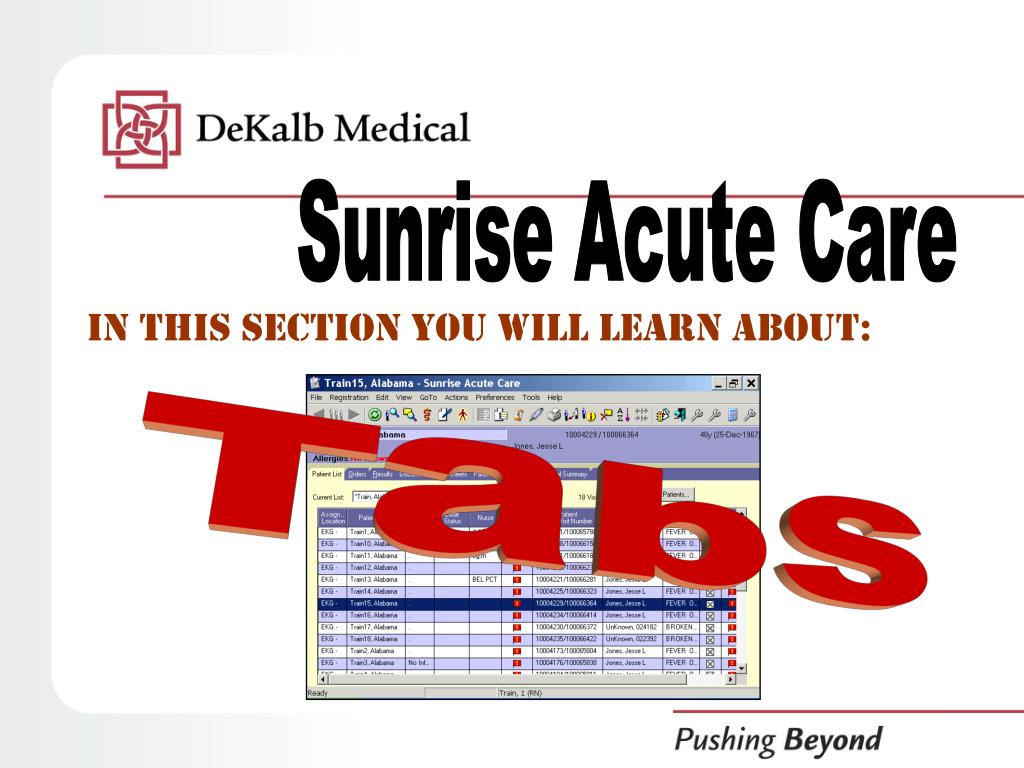

Slide25 l.jpg

Sunrise Acute Care contains orders, results, documentation, etc.

In this section you will learn about:

Tabs


Slide26 l.jpg

TABS contains orders, results, documentation, etc.

  • This section provides information

  • to help you:

  • Understand how TABS work

  • Understand and view RESULTS and ORDERS

This item is on your quiz. Know it.

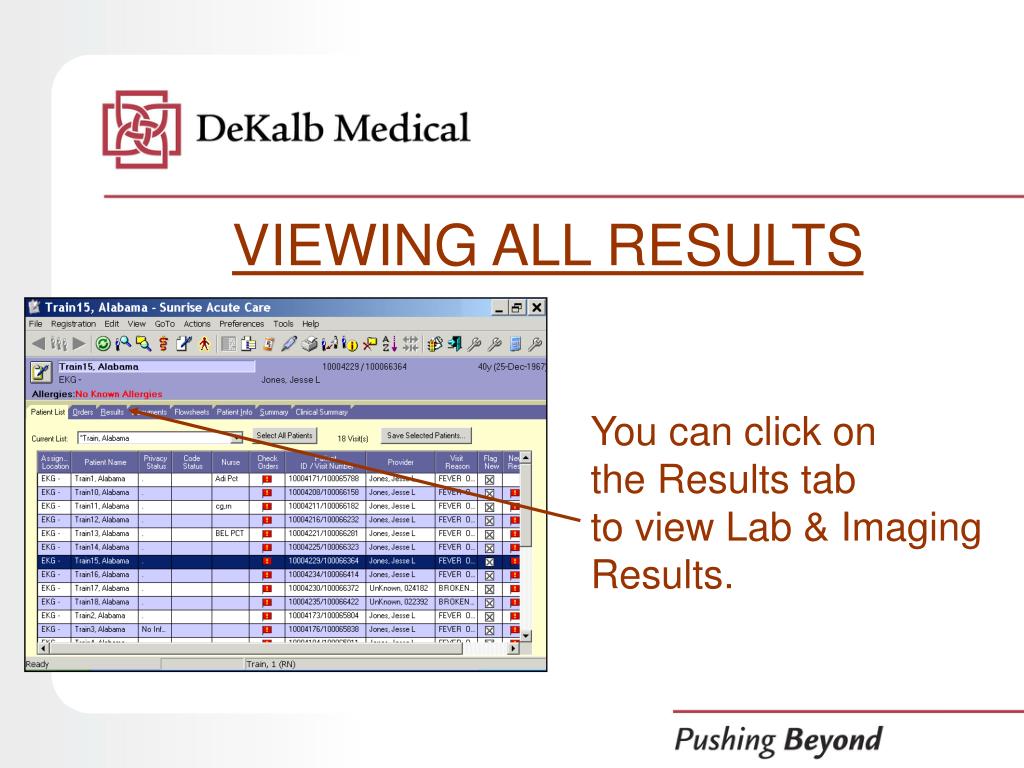

Slide27 l.jpg

VIEWING ALL RESULTS contains orders, results, documentation, etc.

You can click on

the Results tab

to view Lab & Imaging

Results.


Slide28 l.jpg

VIEWING ALL RESULTS contains orders, results, documentation, etc.

Once your patient

is selected from

the patient list,

click on

the Results Tab


Slide29 l.jpg

VIEWING ALL RESULTS contains orders, results, documentation, etc.

The left side of the screen allows the user to filter information based on the RESULTS they want to view on the right side of the screen.


Slide30 l.jpg

VIEWING RESULTS contains orders, results, documentation, etc.

CHART – ALLOWS THE USER TO FILTER ORDERS BY A SPECIFIC USER, RELATED VISITS, OR ALL VISITS

SINCE – ALLOWS THE USER TO FILTER ORDERS BY TIME PERIOD

DISPLAY – RIGHTMOST SECTION OF THE SCREEN WHERE RESULTS APPEAR


Slide31 l.jpg

VIEWING RESULTS contains orders, results, documentation, etc.

WHEN YOU SEE THE ICON ABOVE NEXT TO A RESULT, THERE IS UNDISPLAYED TEXTUAL DATA.

CLICK ON THE ICON TO VIEW THE COMPLETE TEXTED RESULT.


Slide32 l.jpg

VIEWING ORDERS contains orders, results, documentation, etc.

  • The Orders Tab has some of the same functionality as the Results Tab.

  • The Orders Tab presents orders for one or more patients names selected from the patient list.

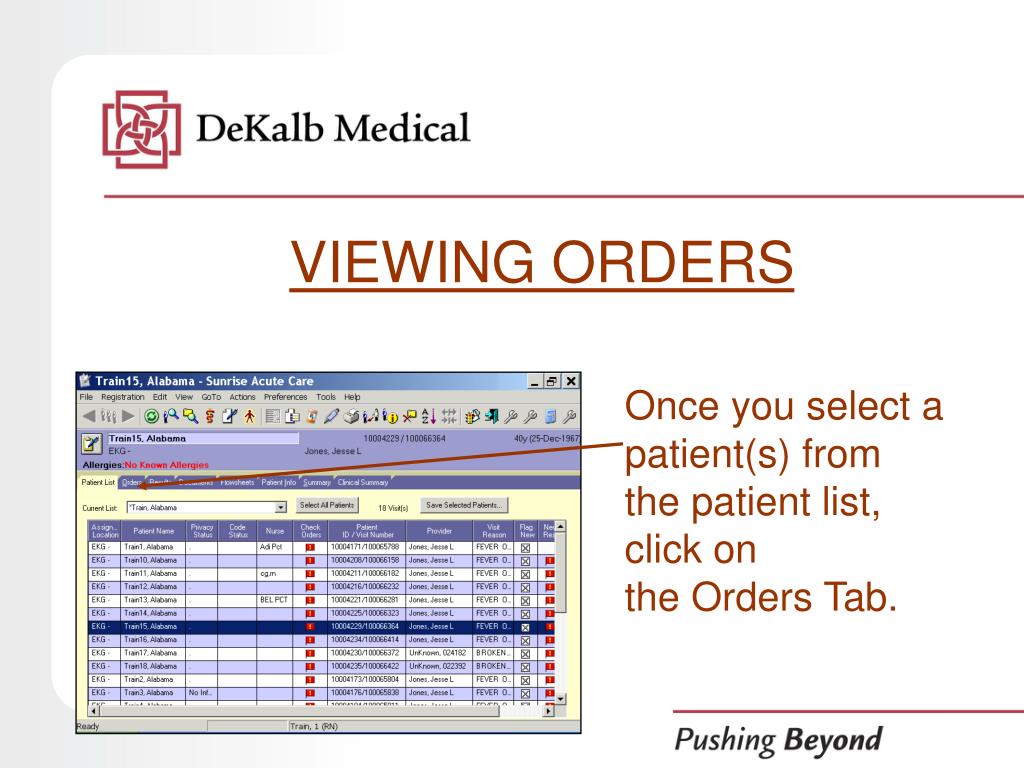

Slide33 l.jpg

VIEWING ORDERS contains orders, results, documentation, etc.

Once you select a patient(s) from

the patient list,

click on

the Orders Tab.


Slide34 l.jpg

VIEWING ORDERS contains orders, results, documentation, etc.

Control Panel

Control Panel – The Control Panel is where you set criteria for the orders you wish to display.

Display Window – The Display window section displays orders based on the type of filters and the display format you select in the Control Panel.

Display Window


Slide35 l.jpg

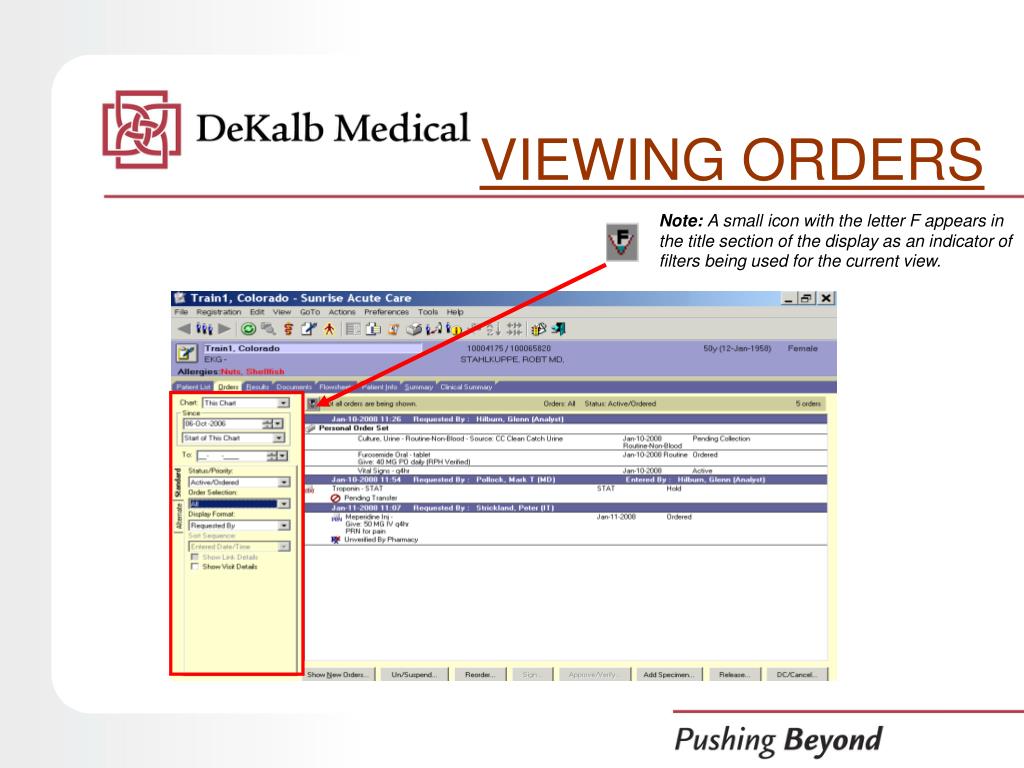

VIEWING ORDERS contains orders, results, documentation, etc.

Note: A small icon with the letter F appears in the title section of the display as an indicator of filters being used for the current view.

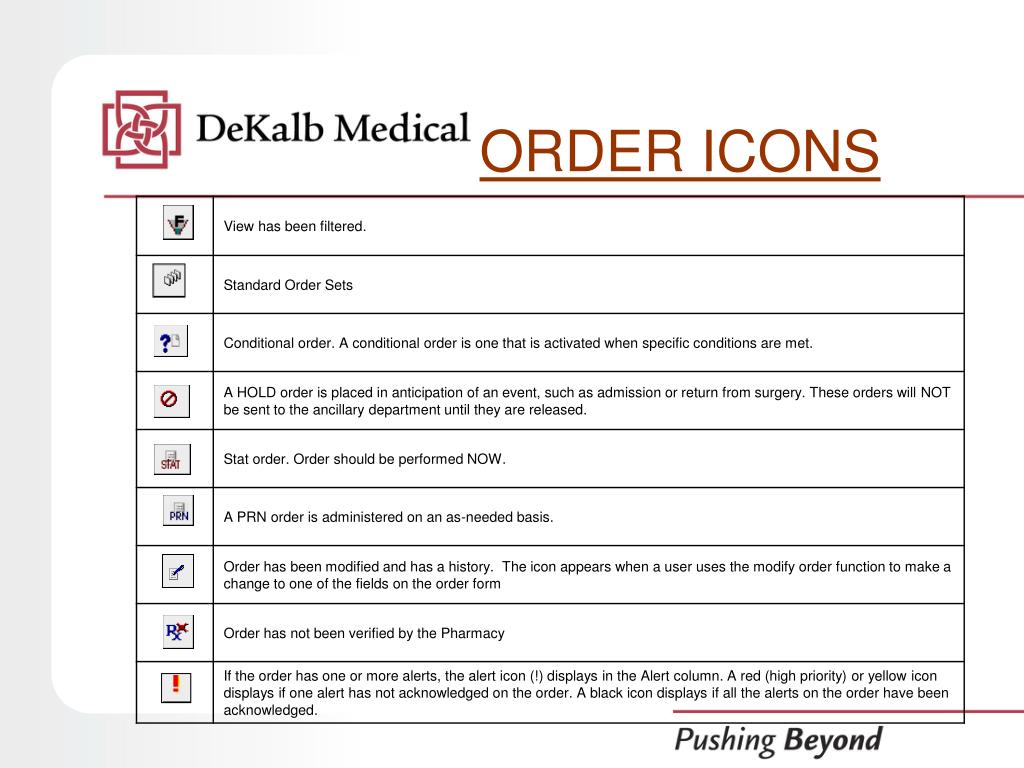

Slide36 l.jpg

ORDER ICONS contains orders, results, documentation, etc.

This item is on your quiz. Know it.


Slide37 l.jpg

Sunrise Acute Care contains orders, results, documentation, etc.

In this section you will learn about:

FLOWSHEETS


Slide38 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

  • This section provides information

  • to help you:

  • Understand the Flowsheet chart section

  • Understand and work with a flowsheet columns, rows & cells

This item is on your quiz. Know it.


Slide39 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

To access Flowsheets,

Click on the Flowsheets Tab.

This can only be done when you highlight a patient(s).


Slide40 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

You will learn the basic functionality of using

a Flowsheet by viewing how Vitals are entered on the Vital Sign

Flowsheet.


Slide41 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

  • The Flowsheet list is found on the left side of the screen, towards the bottom.

  • Highlight the Flowsheet that you want to enter data in, and that Flowsheet will appear on the right display of the screen.

*Note-The Flowsheet list is defaulted to the most used flowsheets per unit.


Slide42 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

  • Once you have selected your Flowsheet, select the cell for the corresponding Time Column and Row to enter data.


Slide43 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

Example:

You need to enter in your patient’s blood pressure of 150/90 taken at 12:00 today.

How do you enter the data on the flowsheet?


Slide44 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

  • Example:

  • Find Patient

  • Click on the Flowsheet Tab, find the Vital Signs Flowsheet. (The system automatically populates the current time and date.)

  • Find the row that list BP, then find the column that list the current date and time.

  • Click into the cell that connects the row and column and enter your data.

  • Press Enter to move to the cell below.


Adding a new time column to a flowsheet l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

ADDING A NEW TIME COLUMN TO A FLOWSHEET


Adding new time columns l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

Adding New Time Columns

  • While on the Flowsheets tab view, right-click a row or time column, select ADD SINGLE TIME COLUMN.

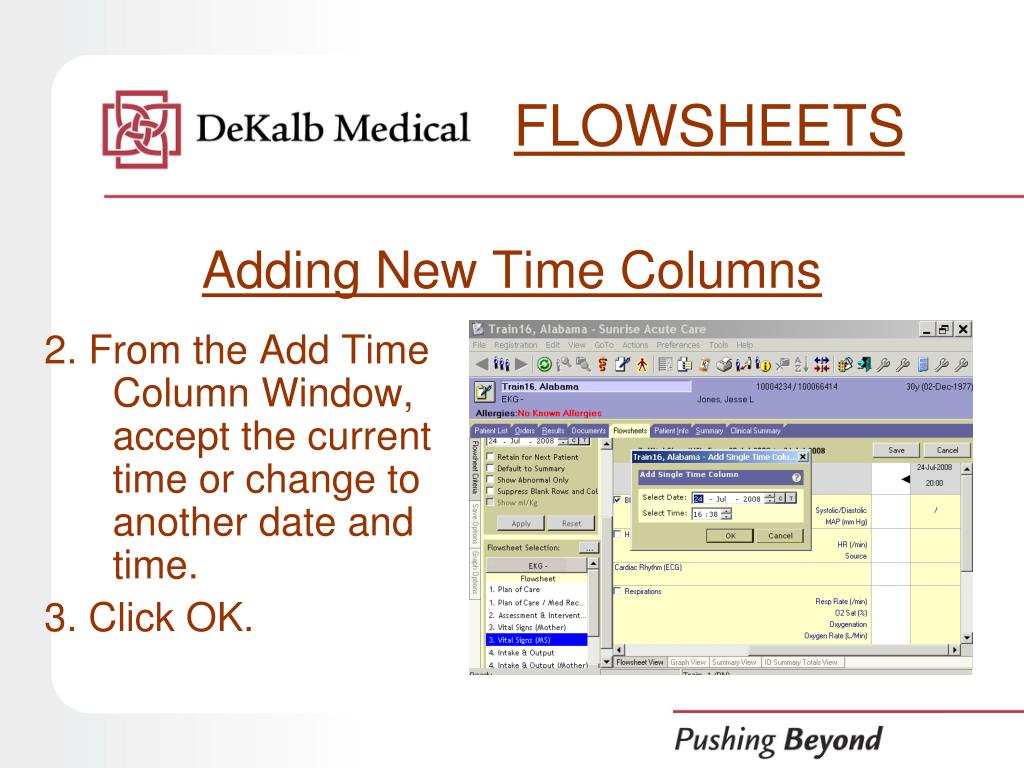

Adding new time columns47 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

Adding New Time Columns

2. From the Add Time Column Window, accept the current time or change to another date and time.

3. Click OK.

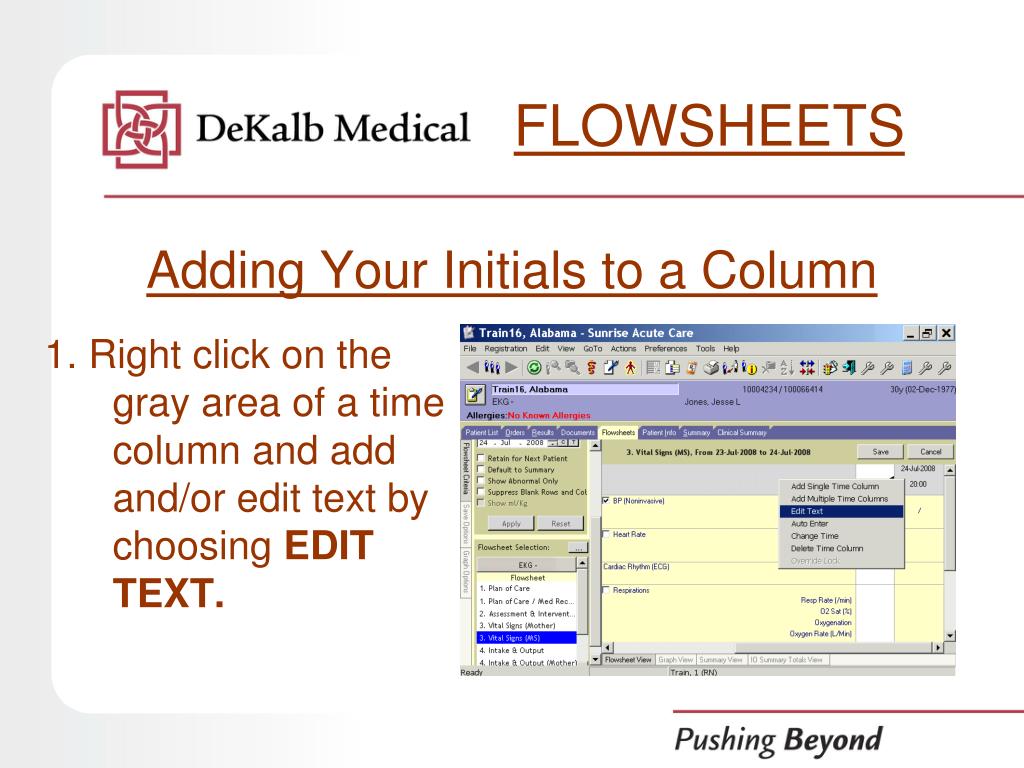

Adding your initials to a column l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

Adding Your Initials to a Column

1. Right click on the gray area of a time column and add and/or edit text by choosing EDIT TEXT.

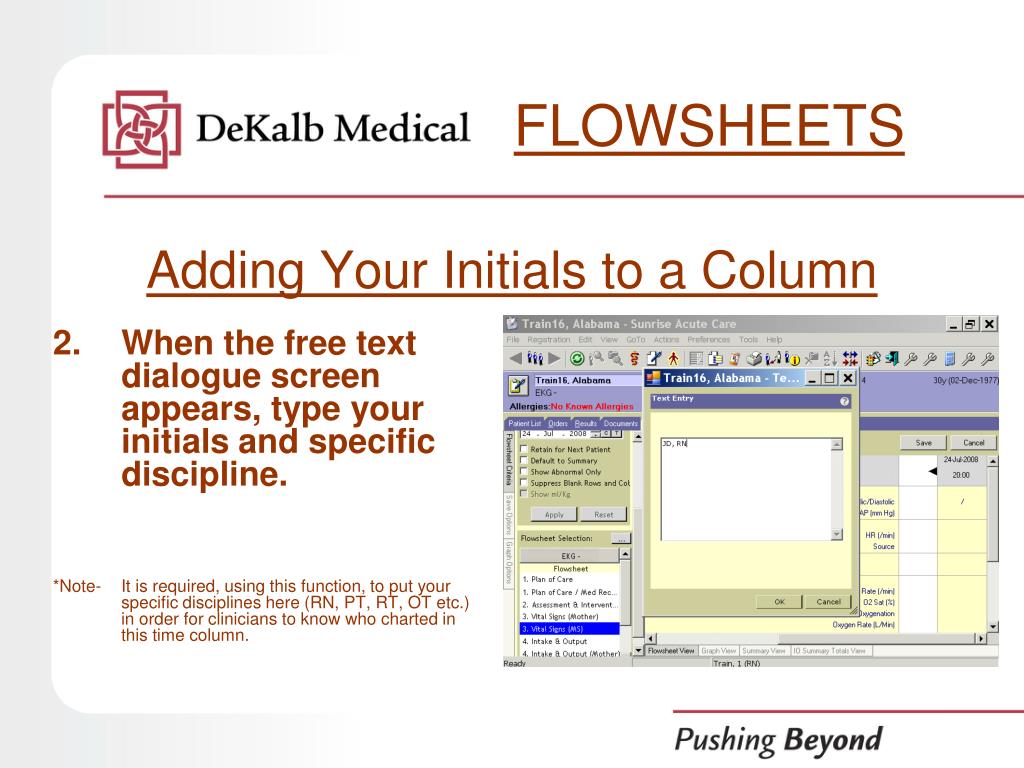

Adding your initials to a column49 l.jpg

FLOWSHEETS contains orders, results, documentation, etc.

Adding Your Initials to a Column

  • When the free text dialogue screen appears, type your initials and specific discipline.

    *Note- It is required, using this function, to put your specific disciplines here (RN, PT, RT, OT etc.) in order for clinicians to know who charted in this time column.


Slide50 l.jpg

All Flowsheets work in a very similar way. The functionality of entering data, adding rows & columns, and initials is the same.


Slide51 l.jpg

Sunrise Acute Care functionality of entering data, adding rows & columns, and initials is the same.

In this section you will learn about:

Patient Profile


Introduction to the patient profile l.jpg

Introduction to the Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

Use the Patient Profile to record

Allergies

Height and Weight

All required patient information


Slide53 l.jpg

Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

1. To change patients or view other patient’s information, Click on the Patient Lists Tab.


Slide54 l.jpg

Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

2. Click on the ENTER DOCUMENT icon.


Slide55 l.jpg

Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

3. Patient Profile is defaulted on the left side, double-click on Patient Profile in the Display Window on the right.


Slide56 l.jpg

Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

4. Point and Click on the “expandable” Sections on the left and enter data on the right of the screen.


Slide57 l.jpg

Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

Example-

You need to enter a patient’s height and weight.


Slide58 l.jpg

Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

Click on height and weight on the left side of the screen.


Slide59 l.jpg

Patient Profile functionality of entering data, adding rows & columns, and initials is the same.

  • Click into each corresponding field to enter date.

  • Notice that as you enter data, the data is transferred to the bottom pane of the screen.


Very important l.jpg
Very Important! functionality of entering data, adding rows & columns, and initials is the same.

You have learned to start a new Patient Profile. However most of the time on the floor you will be opening up an existing Patient Profile document. To access existing documents, click the Document Tab. Then right click for more options.


Slide61 l.jpg

ENTERING ALLERGIES functionality of entering data, adding rows & columns, and initials is the same.

The patient’s allergies must be entered by the

Nurse during completion of the Patient Profile

and can be updated at any time in the Acute Care System.


Slide62 l.jpg

ENTERING ALLERGIES functionality of entering data, adding rows & columns, and initials is the same.

  • To enter allergies on the patient, the user should click on the Allergies Icon in the Patient Profile or on the tool bar.


Slide63 l.jpg

ENTERING ALLERGIES functionality of entering data, adding rows & columns, and initials is the same.

2. If the patient has no allergies documented then the user will be prompted to choose either “No Known Allergies”, “Allergy Status Unknown” or “New Allergy” as noted in the next screen shot:

2


Slide64 l.jpg

ENTERING ALLERGIES functionality of entering data, adding rows & columns, and initials is the same.

3. Enter the Type of allergy (environment, drug, latex, other, etc.).

4. Identify the specific Allergen or select other and enter a note in the description explaining the allergy.


Slide65 l.jpg

ENTERING ALLERGIES functionality of entering data, adding rows & columns, and initials is the same.

  • 5. Enter the Reaction if known by clicking Add Reaction (multiple reactions can be listed by selecting from the list).

3

5

4

After selecting “Add Reaction” in step 5 above, the user will select either ‘unknown’ or ‘select all reactions that apply’ and check the items in the scroll window as appropriate.


Slide66 l.jpg

ENTERING ALLERGIES functionality of entering data, adding rows & columns, and initials is the same.

After selecting “Add Reaction” in step 5 above, the user will select either ‘unknown’ or ‘select all reactions that apply’ and check the items in the scroll window as appropriate.


Slide67 l.jpg

ENTERING ALLERGIES functionality of entering data, adding rows & columns, and initials is the same.

  • To complete ‘adding allergies’ simply click OK to close the Reaction Details window and click OK again on the Allergy window.

    Note: Allergies can be viewed / entered directly from the main screen by selecting the Allergy icon from the toolbar.


Slide68 l.jpg

SAVE PATIENT PROFILE functionality of entering data, adding rows & columns, and initials is the same.

  • Click Save at the bottom right of the screen

  • If the required information has NOT been completed, an Acute Care notice will appear outlining the areas that still need to be completed. Click OK after reviewing the necessary information.

  • You must enter your password to “Sign off” on the documentation that you completed.


Slide69 l.jpg

You have just completed the Sunrise Acute Care training module.

Please contact your coordinator if have not already done so to complete your assessment.


Slide70 l.jpg

Summary module.

In this class you have been instructed on how to:

  • Login into Acute Care

  • Navigate using general concepts and terms

  • Understand the concept of electronic signature

  • Locate the electronic chart

  • Interpret the columns & flags on the patient list screen

  • Review Results

  • Review Orders

  • Enter Patient Admission Information (Patient Profile)

  • Enter and review Flowsheet information


Thank you for choosing dekalb medical l.jpg

Thank you for choosing DeKalb Medical module.

We appreciate your service to our patients, family members and staff.


ad
