What is the Origin of Transformer Monitoring

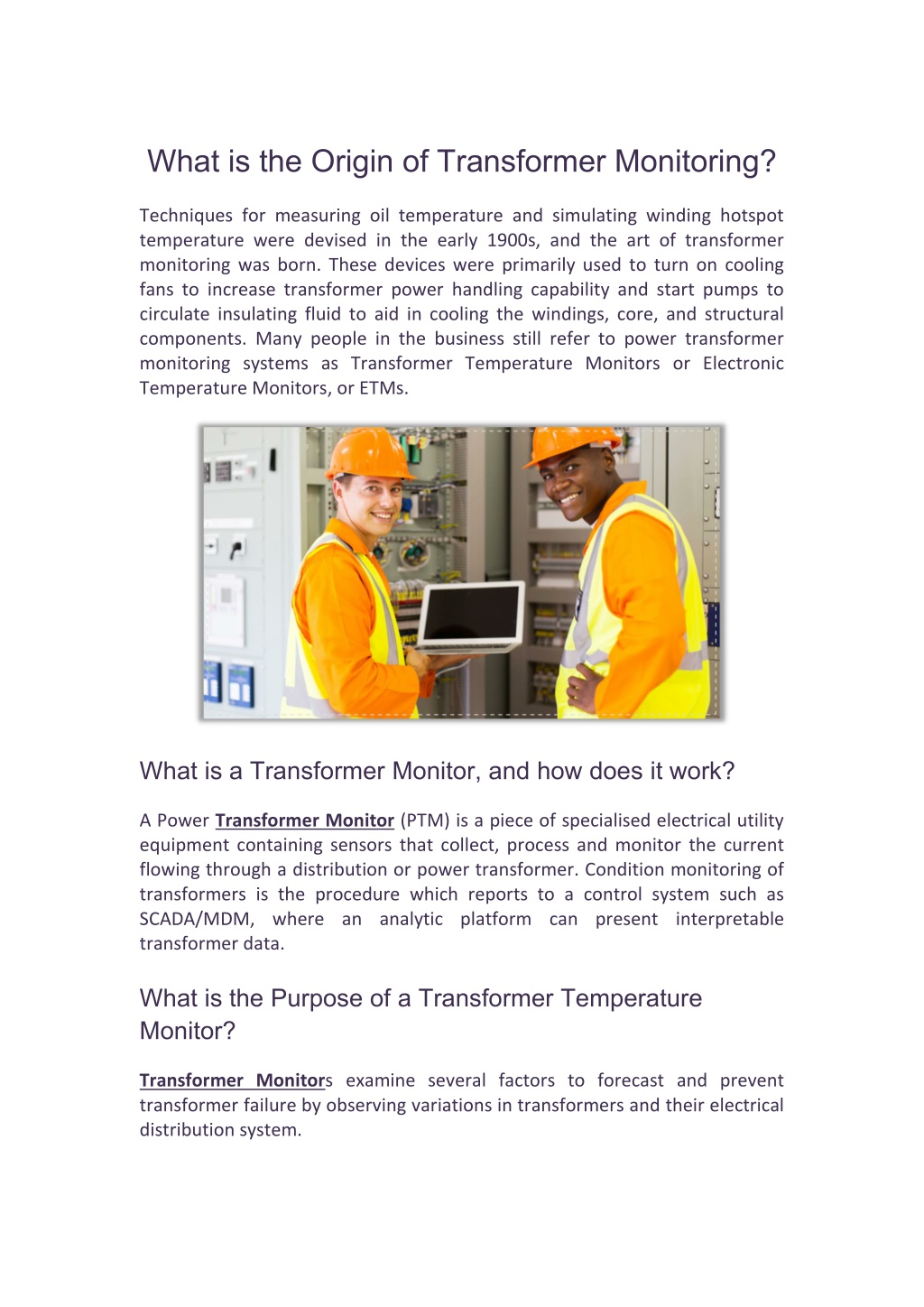

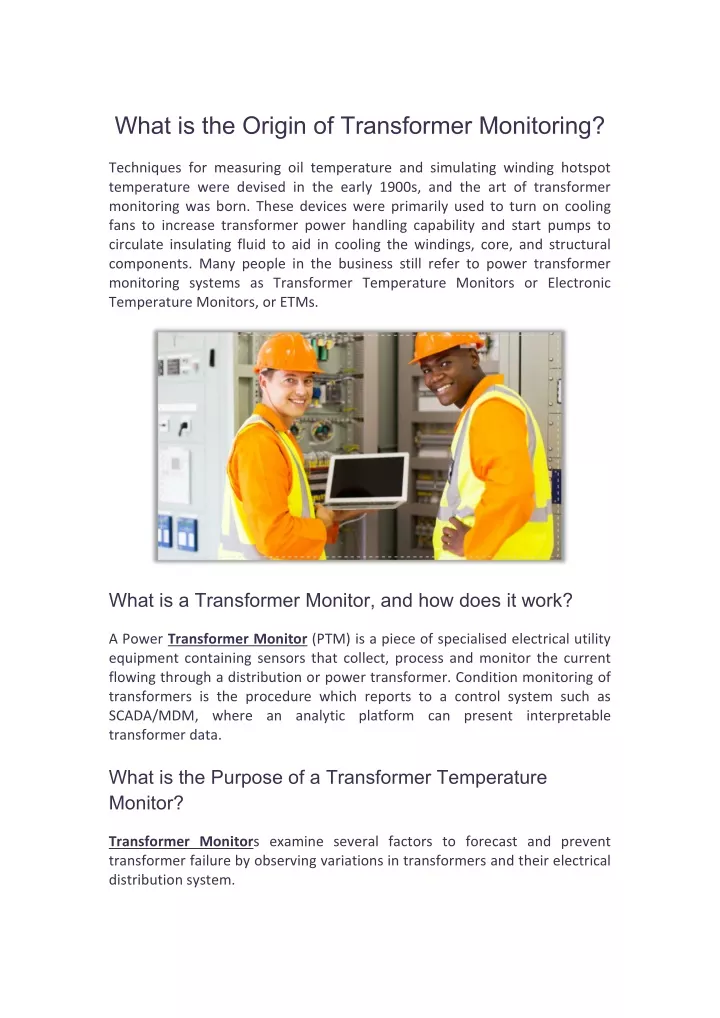

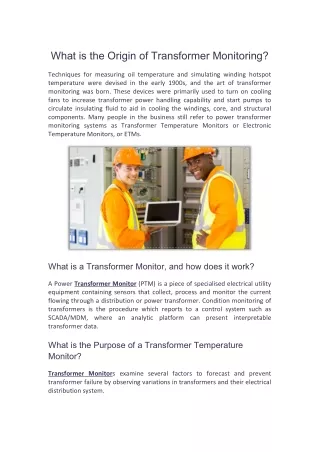

1. What is the Origin of Transformer Monitoring? Techniques for measuring oil temperature and simulating winding hotspot temperature were devised in the early 1900s, and the art of transformer monitoring was born. These devices were primarily used to turn on cooling fans to increase transformer power handling capability and start pumps to circulate insulating fluid to aid in cooling the windings, core, and structural components. Many people in the business still refer to power transformer monitoring systems as Transformer Temperature Monitors or Electronic Temperature Monitors, or ETMs. What is a Transformer Monitor, and how does it work? A Power Transformer Monitor (PTM) is a piece of specialised electrical utility equipment containing sensors that collect, process and monitor the current flowing through a distribution or power transformer. Condition monitoring of transformers is the procedure which reports to a control system such as SCADA/MDM, where an analytic platform can present interpretable transformer data. What is the Purpose of a Transformer Temperature Monitor? Transformer Monitors examine several factors to forecast and prevent transformer failure by observing variations in transformers and their electrical distribution system.

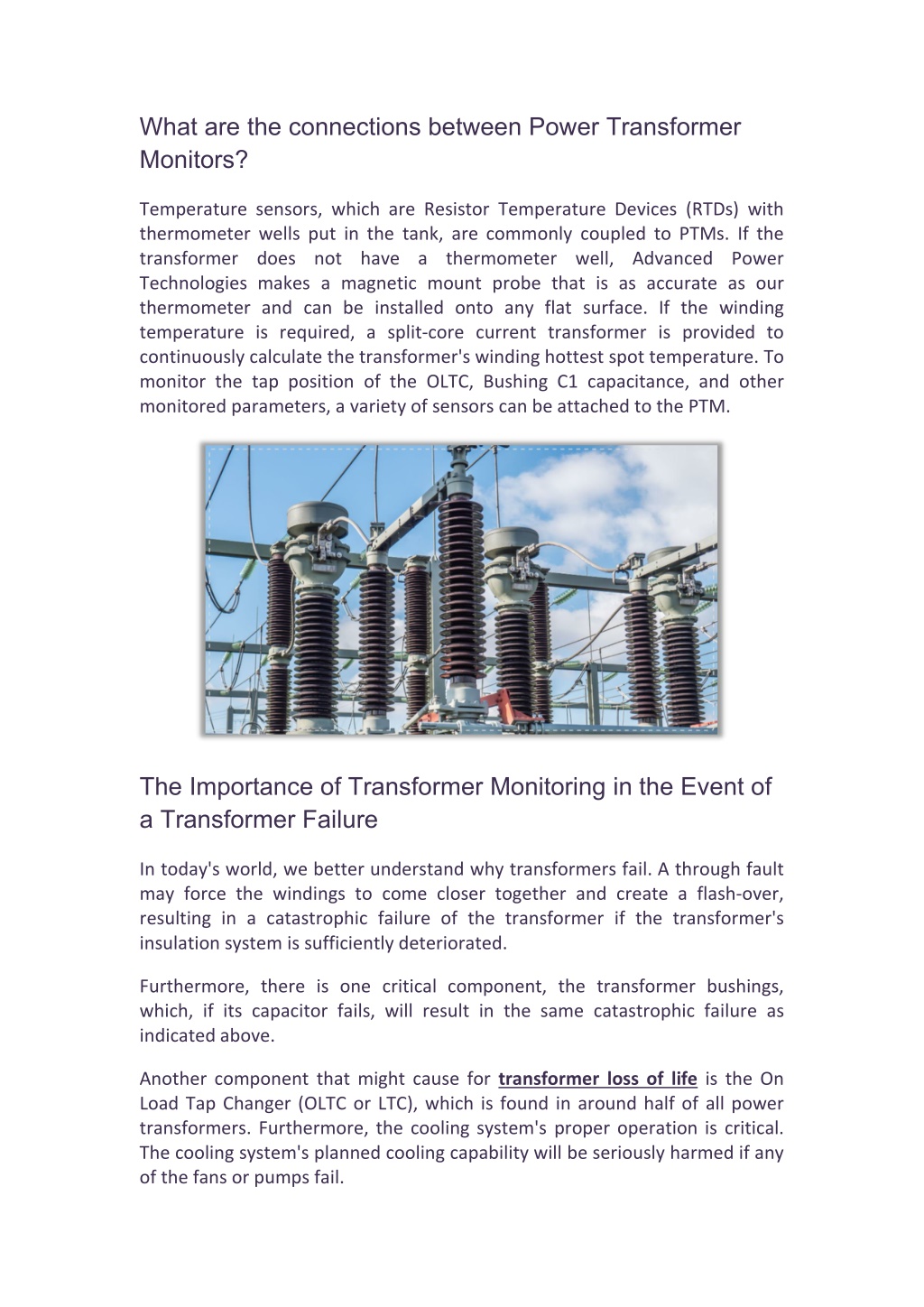

2. What are the connections between Power Transformer Monitors? Temperature sensors, which are Resistor Temperature Devices (RTDs) with thermometer wells put in the tank, are commonly coupled to PTMs. If the transformer does not have a thermometer Technologies makes a magnetic mount probe that is as accurate as our thermometer and can be installed onto any flat surface. If the winding temperature is required, a split-core current transformer is provided to continuously calculate the transformer's winding hottest spot temperature. To monitor the tap position of the OLTC, Bushing C1 capacitance, and other monitored parameters, a variety of sensors can be attached to the PTM. well, Advanced Power The Importance of Transformer Monitoring in the Event of a Transformer Failure In today's world, we better understand why transformers fail. A through fault may force the windings to come closer together and create a flash-over, resulting in a catastrophic failure of the transformer if the transformer's insulation system is sufficiently deteriorated. Furthermore, there is one critical component, the transformer bushings, which, if its capacitor fails, will result in the same catastrophic failure as indicated above. Another component that might cause for transformer loss of life is the On Load Tap Changer (OLTC or LTC), which is found in around half of all power transformers. Furthermore, the cooling system's proper operation is critical. The cooling system's planned cooling capability will be seriously harmed if any of the fans or pumps fail.
