A Feeler Gauge is a precision measuring tool used to measure gap widths or clearances between two parts. It consists of a series of thin metal blades of varying thicknesses, usually made from hardened and polished steel, each marked with its thickness value. These blades are hinged or connected together for convenient use and storage.
E N D

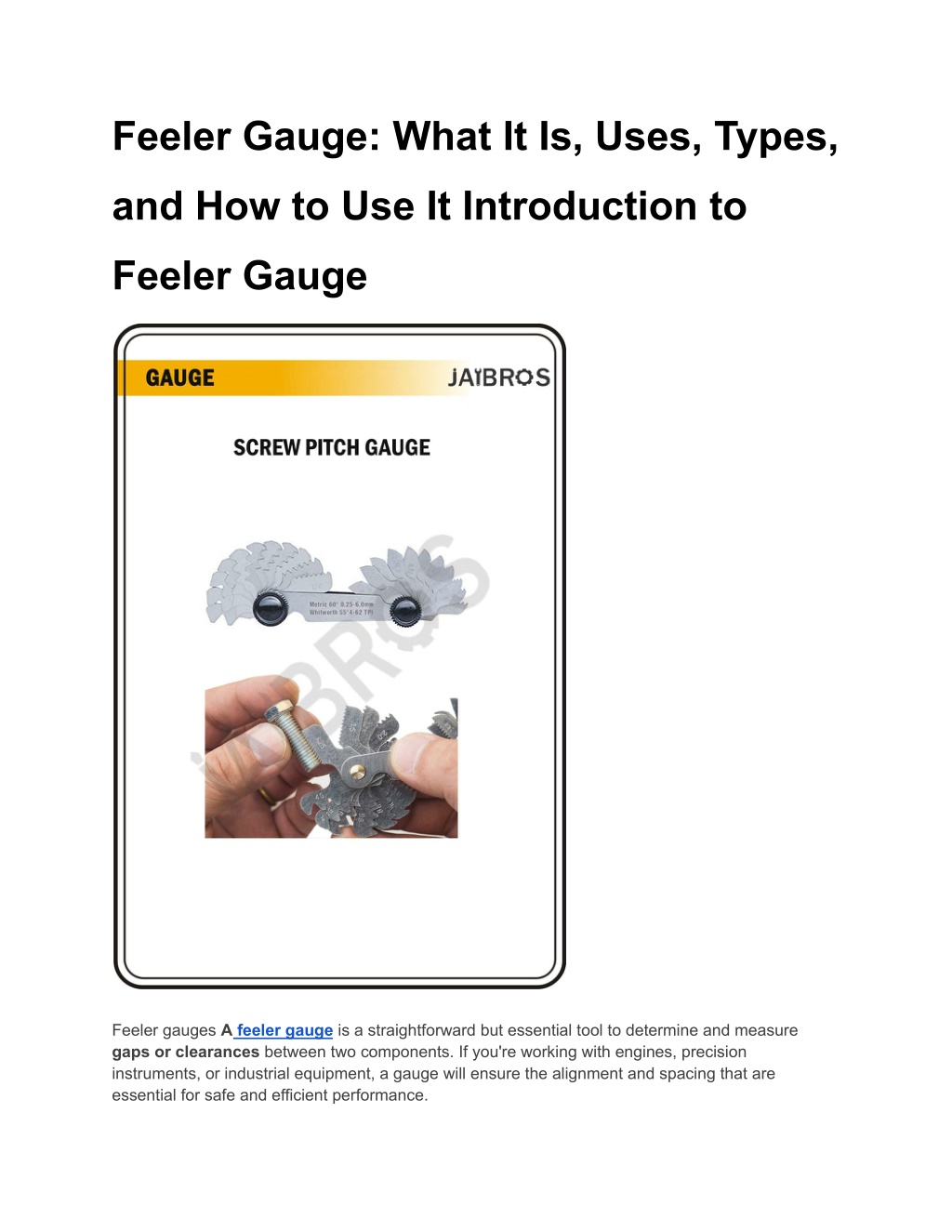

Feeler Gauge: What It Is, Uses, Types, and How to Use It Introduction to Feeler Gauge Feeler gauges A feeler gauge is a straightforward but essential tool to determine and measure gaps or clearances between two components. If you're working with engines, precision instruments, or industrial equipment, a gauge will ensure the alignment and spacing that are essential for safe and efficient performance.

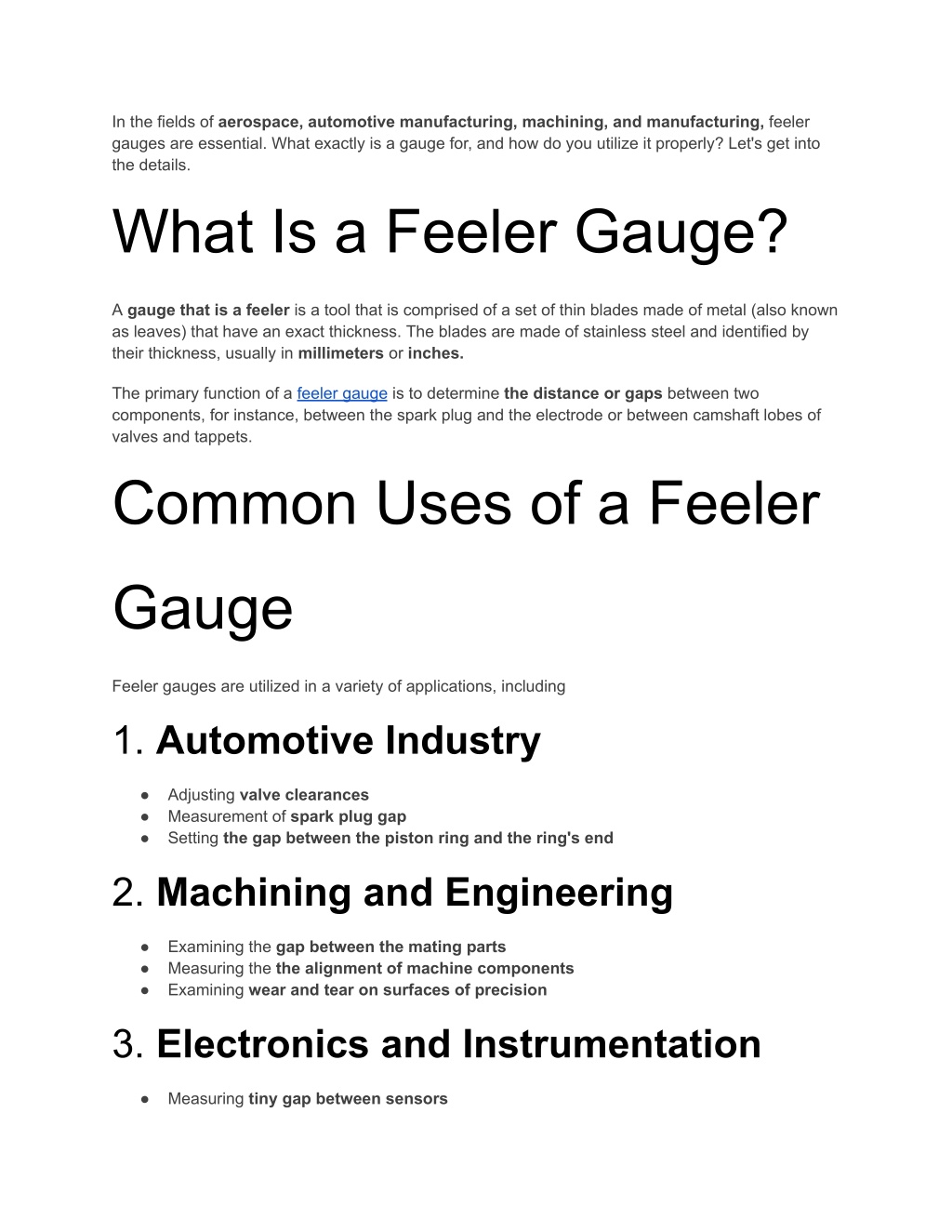

In the fields of aerospace, automotive manufacturing, machining, and manufacturing, feeler gauges are essential. What exactly is a gauge for, and how do you utilize it properly? Let's get into the details. What Is a Feeler Gauge? A gauge that is a feeler is a tool that is comprised of a set of thin blades made of metal (also known as leaves) that have an exact thickness. The blades are made of stainless steel and identified by their thickness, usually in millimeters or inches. The primary function of a feeler gauge is to determine the distance or gaps between two components, for instance, between the spark plug and the electrode or between camshaft lobes of valves and tappets. Common Uses of a Feeler Gauge Feeler gauges are utilized in a variety of applications, including 1. Automotive Industry ● Adjusting valve clearances ● Measurement of spark plug gap ● Setting the gap between the piston ring and the ring's end 2. Machining and Engineering ● Examining the gap between the mating parts ● Measuring the the alignment of machine components ● Examining wear and tear on surfaces of precision 3. Electronics and Instrumentation ● Measuring tiny gap between sensors

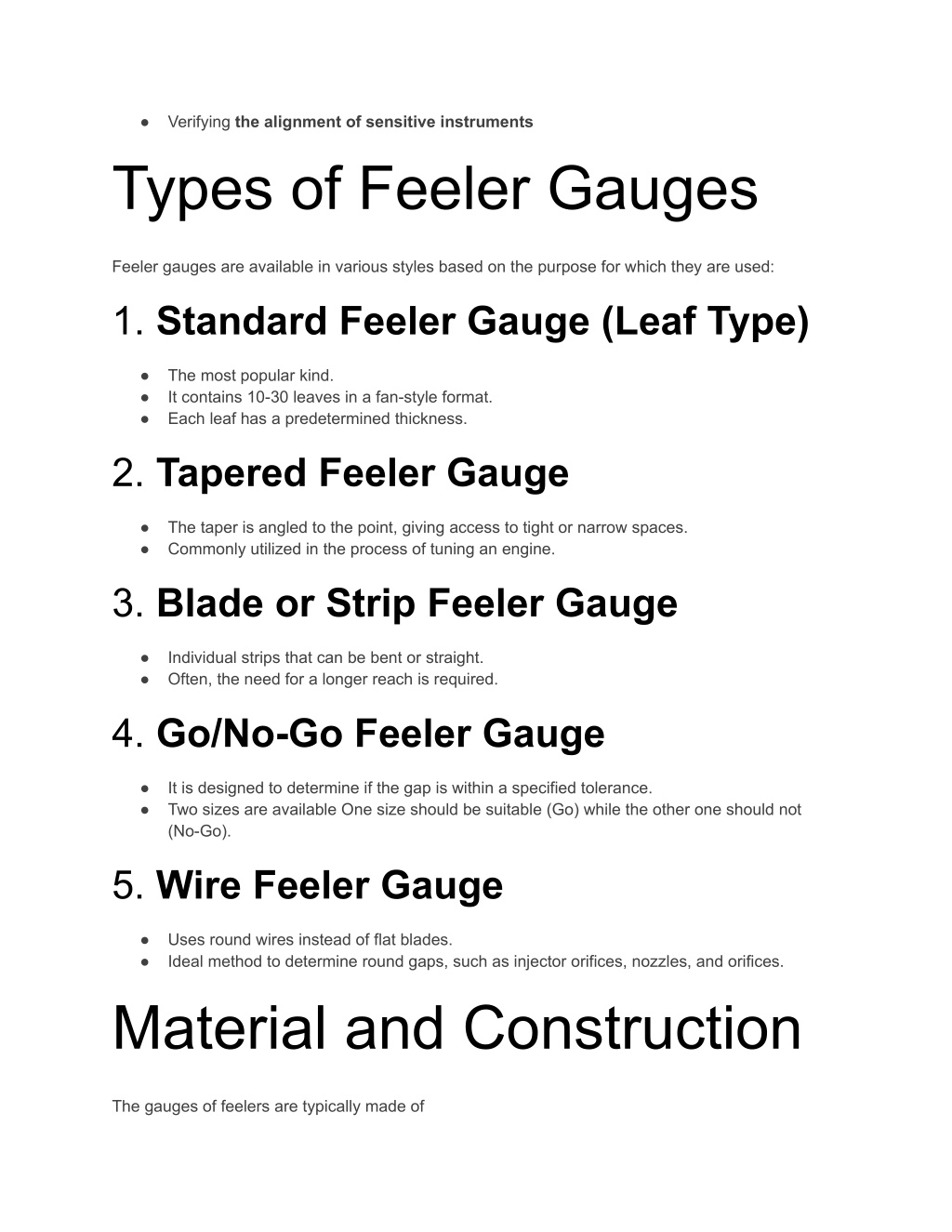

● Verifying the alignment of sensitive instruments Types of Feeler Gauges Feeler gauges are available in various styles based on the purpose for which they are used: 1. Standard Feeler Gauge (Leaf Type) ● The most popular kind. ● It contains 10-30 leaves in a fan-style format. ● Each leaf has a predetermined thickness. 2. Tapered Feeler Gauge ● The taper is angled to the point, giving access to tight or narrow spaces. ● Commonly utilized in the process of tuning an engine. 3. Blade or Strip Feeler Gauge ● Individual strips that can be bent or straight. ● Often, the need for a longer reach is required. 4. Go/No-Go Feeler Gauge ● It is designed to determine if the gap is within a specified tolerance. ● Two sizes are available One size should be suitable (Go) while the other one should not (No-Go). 5. Wire Feeler Gauge ● Uses round wires instead of flat blades. ● Ideal method to determine round gaps, such as injector orifices, nozzles, and orifices. Material and Construction The gauges of feelers are typically made of

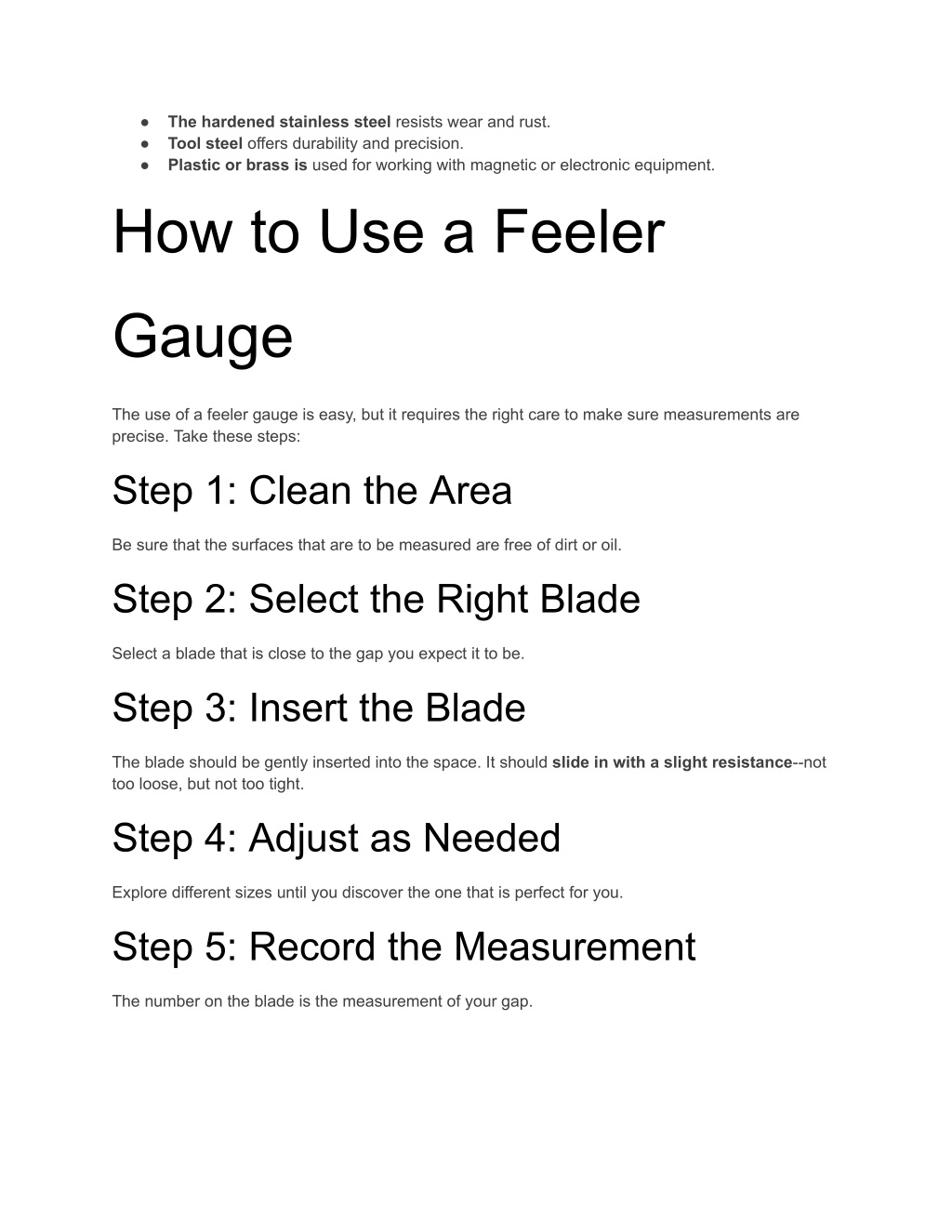

● The hardened stainless steel resists wear and rust. ● Tool steel offers durability and precision. ● Plastic or brass is used for working with magnetic or electronic equipment. How to Use a Feeler Gauge The use of a feeler gauge is easy, but it requires the right care to make sure measurements are precise. Take these steps: Step 1: Clean the Area Be sure that the surfaces that are to be measured are free of dirt or oil. Step 2: Select the Right Blade Select a blade that is close to the gap you expect it to be. Step 3: Insert the Blade The blade should be gently inserted into the space. It should slide in with a slight resistance--not too loose, but not too tight. Step 4: Adjust as Needed Explore different sizes until you discover the one that is perfect for you. Step 5: Record the Measurement The number on the blade is the measurement of your gap.

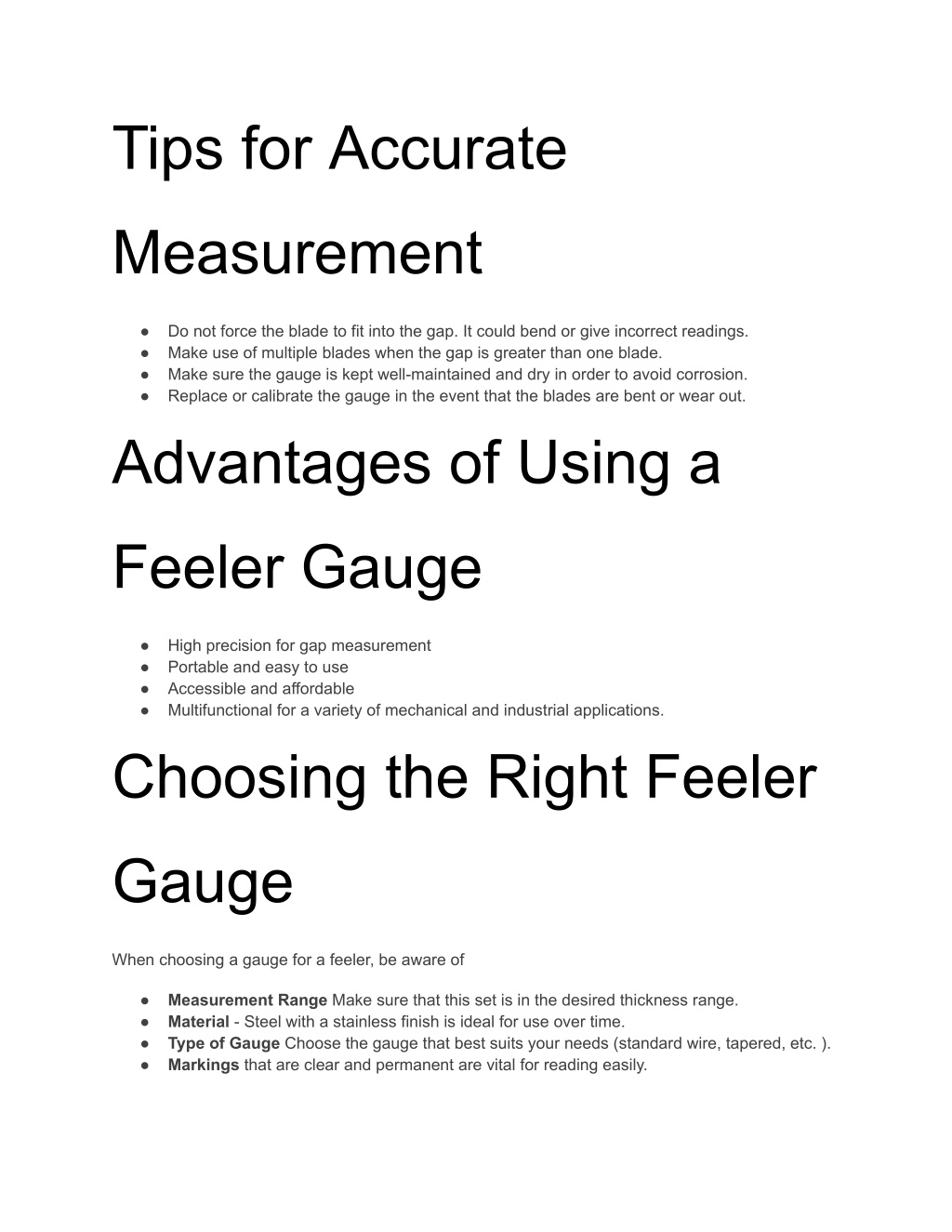

Tips for Accurate Measurement ● Do not force the blade to fit into the gap. It could bend or give incorrect readings. ● Make use of multiple blades when the gap is greater than one blade. ● Make sure the gauge is kept well-maintained and dry in order to avoid corrosion. ● Replace or calibrate the gauge in the event that the blades are bent or wear out. Advantages of Using a Feeler Gauge ● High precision for gap measurement ● Portable and easy to use ● Accessible and affordable ● Multifunctional for a variety of mechanical and industrial applications. Choosing the Right Feeler Gauge When choosing a gauge for a feeler, be aware of ● Measurement Range Make sure that this set is in the desired thickness range. ● Material - Steel with a stainless finish is ideal for use over time. ● Type of Gauge Choose the gauge that best suits your needs (standard wire, tapered, etc. ). ● Markings that are clear and permanent are vital for reading easily.

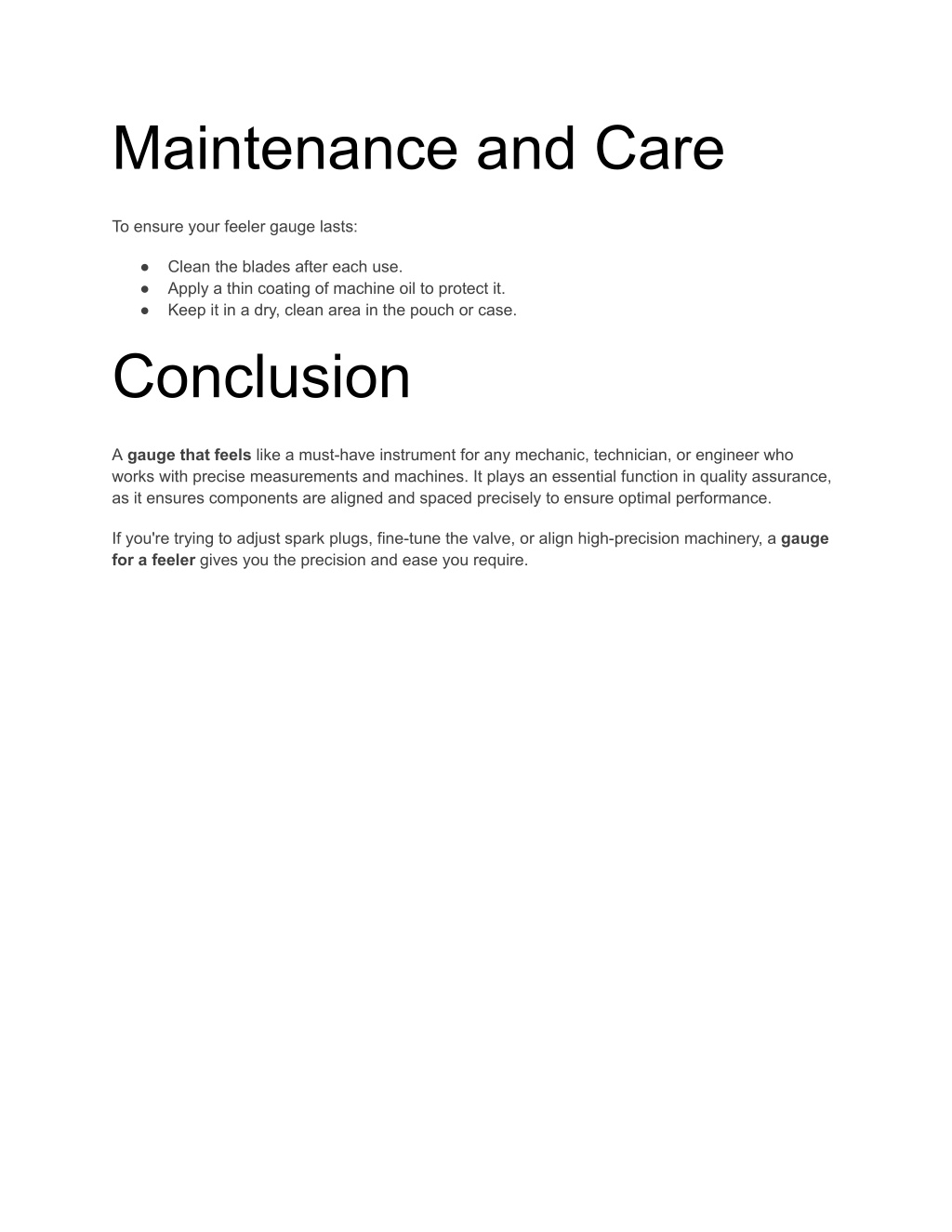

Maintenance and Care To ensure your feeler gauge lasts: ● Clean the blades after each use. ● Apply a thin coating of machine oil to protect it. ● Keep it in a dry, clean area in the pouch or case. Conclusion A gauge that feels like a must-have instrument for any mechanic, technician, or engineer who works with precise measurements and machines. It plays an essential function in quality assurance, as it ensures components are aligned and spaced precisely to ensure optimal performance. If you're trying to adjust spark plugs, fine-tune the valve, or align high-precision machinery, a gauge for a feeler gives you the precision and ease you require.
