Endmill cutter - The precision tool for perfect milling

An endmill cutter is a versatile cutting tool used in CNC and manual milling machines for precision operations like slotting, contouring, and profiling. Designed with multiple cutting edges, it allows for both axial and radial material removal. Available in various types and materialsu2014such as carbide and HSSu2014endmill cutters offer high performance, durability, and clean finishes across a wide range of industrial applications.<br><br>

chirag50
Download Presentation

Endmill cutter - The precision tool for perfect milling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

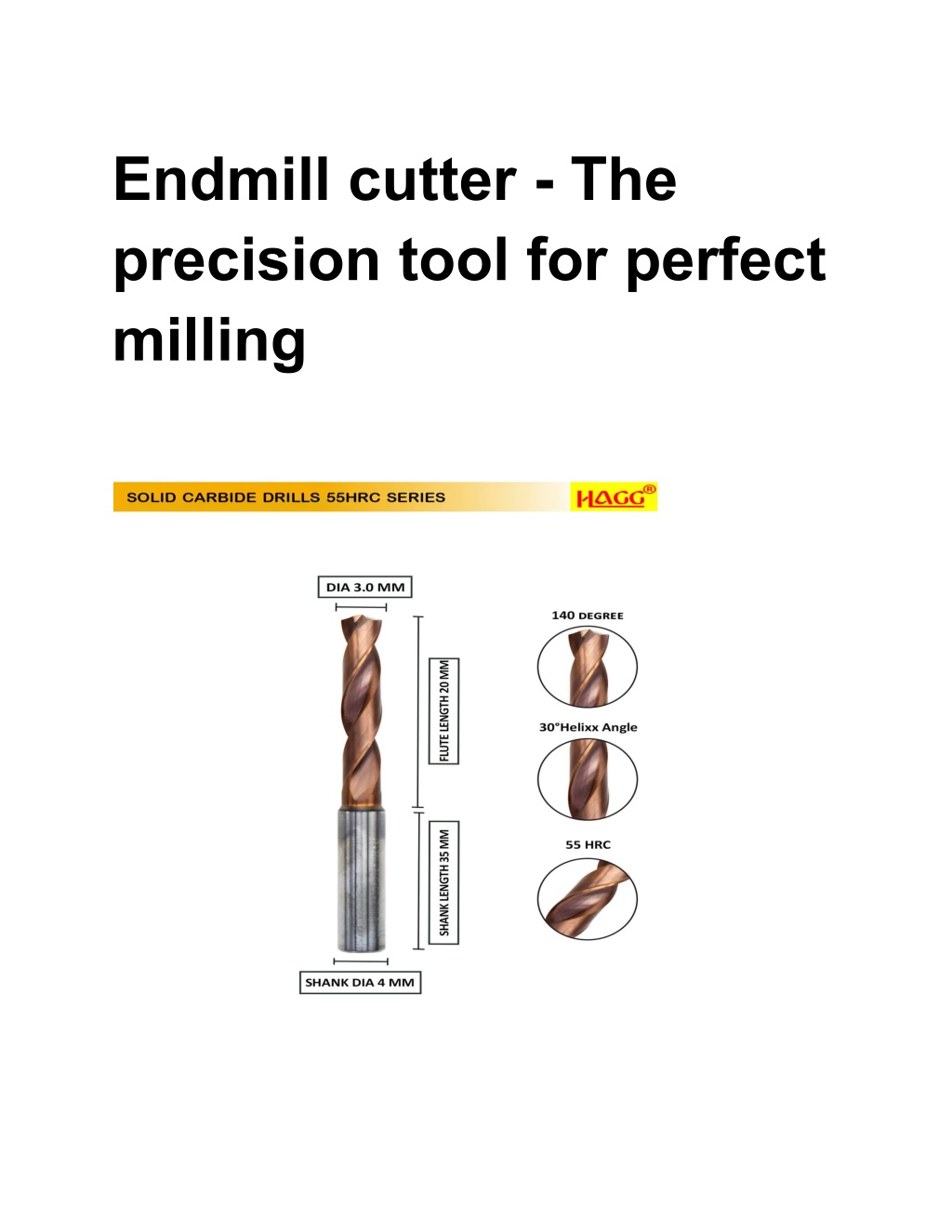

  1. Endmill cutter - The precision tool for perfect milling

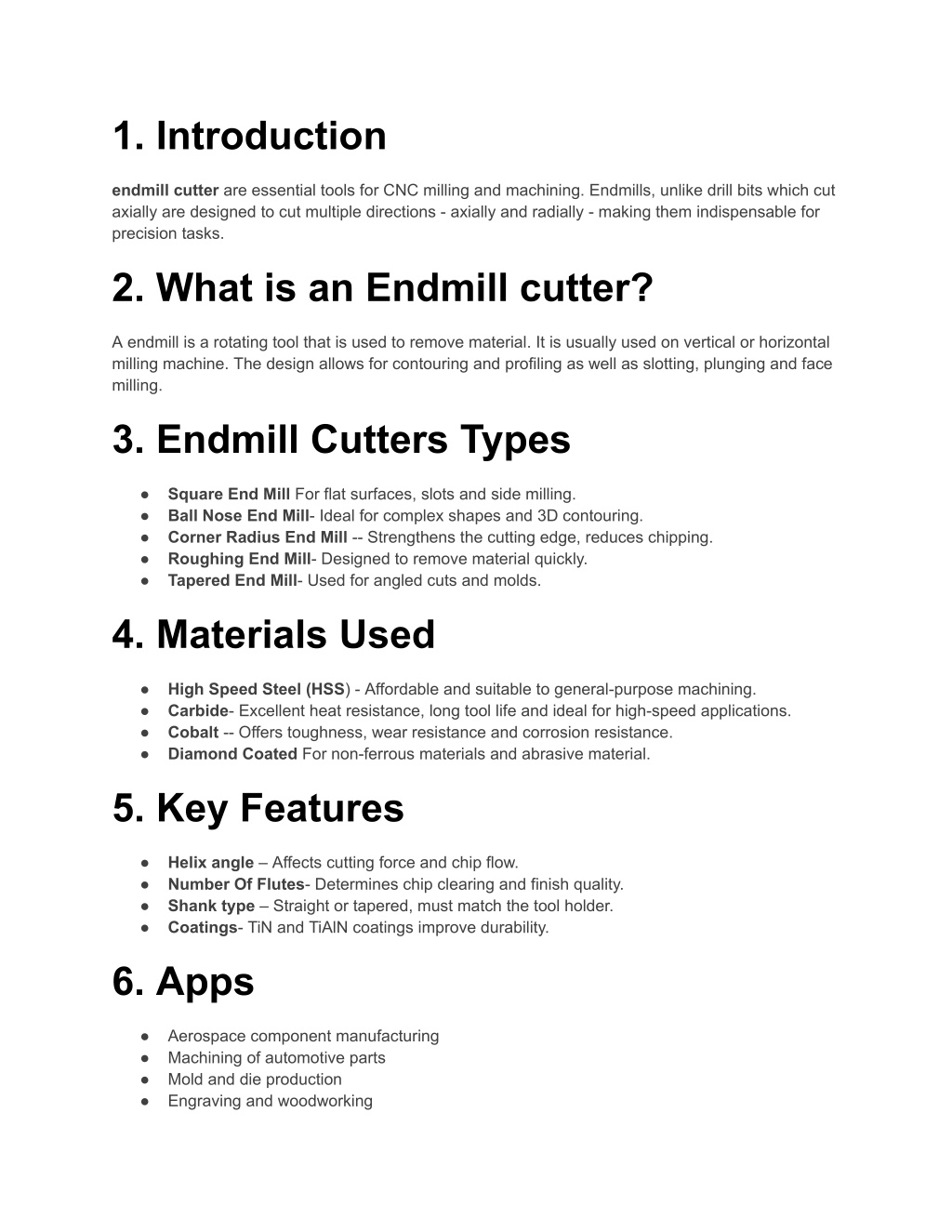

  2. 1. Introduction endmill cutter are essential tools for CNC milling and machining. Endmills, unlike drill bits which cut axially are designed to cut multiple directions - axially and radially - making them indispensable for precision tasks. 2. What is an Endmill cutter? A endmill is a rotating tool that is used to remove material. It is usually used on vertical or horizontal milling machine. The design allows for contouring and profiling as well as slotting, plunging and face milling. 3. Endmill Cutters Types ● Square End Mill For flat surfaces, slots and side milling. ● Ball Nose End Mill- Ideal for complex shapes and 3D contouring. ● Corner Radius End Mill -- Strengthens the cutting edge, reduces chipping. ● Roughing End Mill- Designed to remove material quickly. ● Tapered End Mill- Used for angled cuts and molds. 4. Materials Used ● High Speed Steel (HSS) - Affordable and suitable to general-purpose machining. ● Carbide- Excellent heat resistance, long tool life and ideal for high-speed applications. ● Cobalt -- Offers toughness, wear resistance and corrosion resistance. ● Diamond Coated For non-ferrous materials and abrasive material. 5. Key Features ● Helix angle – Affects cutting force and chip flow. ● Number Of Flutes- Determines chip clearing and finish quality. ● Shank type – Straight or tapered, must match the tool holder. ● Coatings- TiN and TiAlN coatings improve durability. 6. Apps ● Aerospace component manufacturing ● Machining of automotive parts ● Mold and die production ● Engraving and woodworking

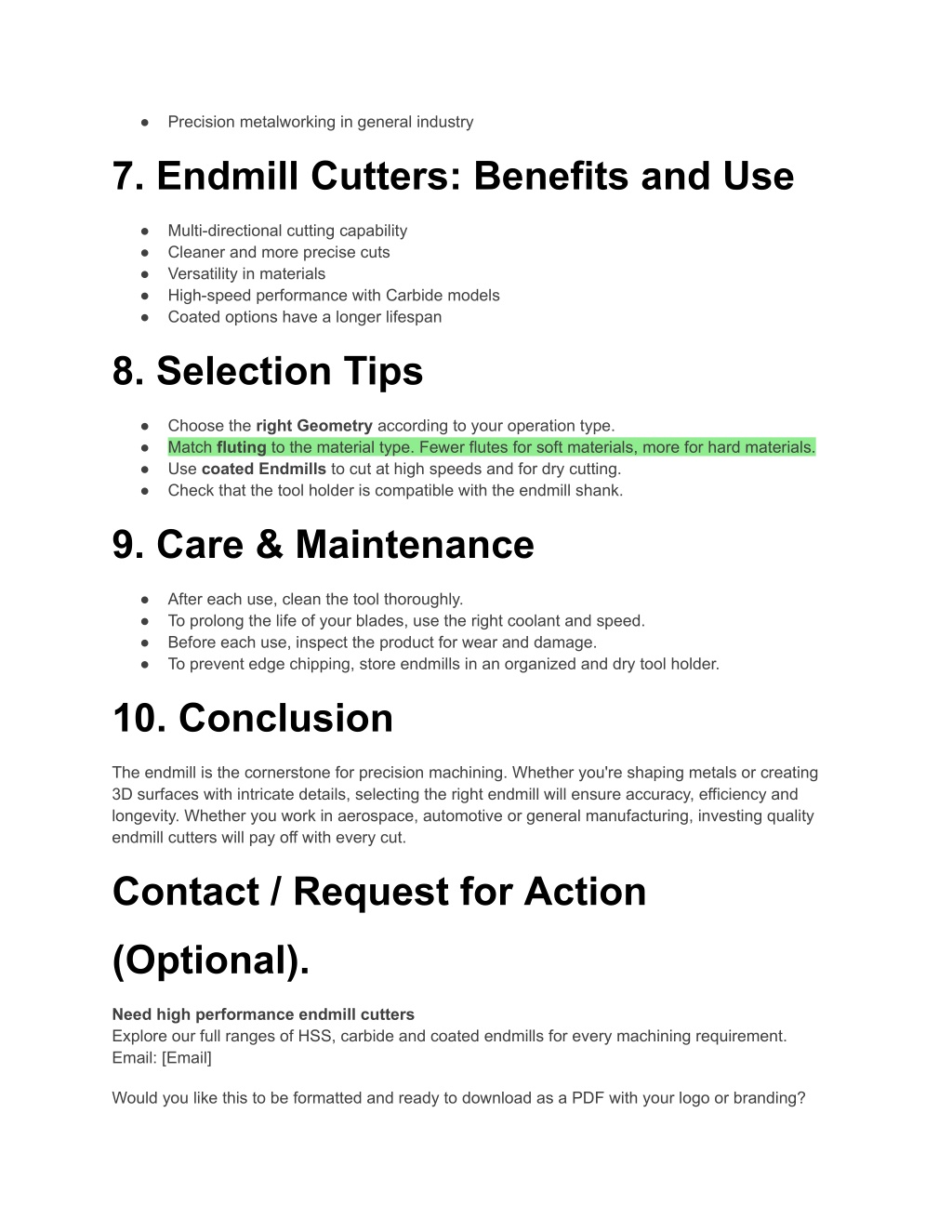

  3. ● Precision metalworking in general industry 7. Endmill Cutters: Benefits and Use ● Multi-directional cutting capability ● Cleaner and more precise cuts ● Versatility in materials ● High-speed performance with Carbide models ● Coated options have a longer lifespan 8. Selection Tips ● Choose the right Geometry according to your operation type. ● Match fluting to the material type. Fewer flutes for soft materials, more for hard materials. ● Use coated Endmills to cut at high speeds and for dry cutting. ● Check that the tool holder is compatible with the endmill shank. 9. Care & Maintenance ● After each use, clean the tool thoroughly. ● To prolong the life of your blades, use the right coolant and speed. ● Before each use, inspect the product for wear and damage. ● To prevent edge chipping, store endmills in an organized and dry tool holder. 10. Conclusion The endmill is the cornerstone for precision machining. Whether you're shaping metals or creating 3D surfaces with intricate details, selecting the right endmill will ensure accuracy, efficiency and longevity. Whether you work in aerospace, automotive or general manufacturing, investing quality endmill cutters will pay off with every cut. Contact / Request for Action (Optional). Need high performance endmill cutters Explore our full ranges of HSS, carbide and coated endmills for every machining requirement. Email: [Email] Would you like this to be formatted and ready to download as a PDF with your logo or branding?
