Carbide Insert: The Backbone of Modern Cutting Tools

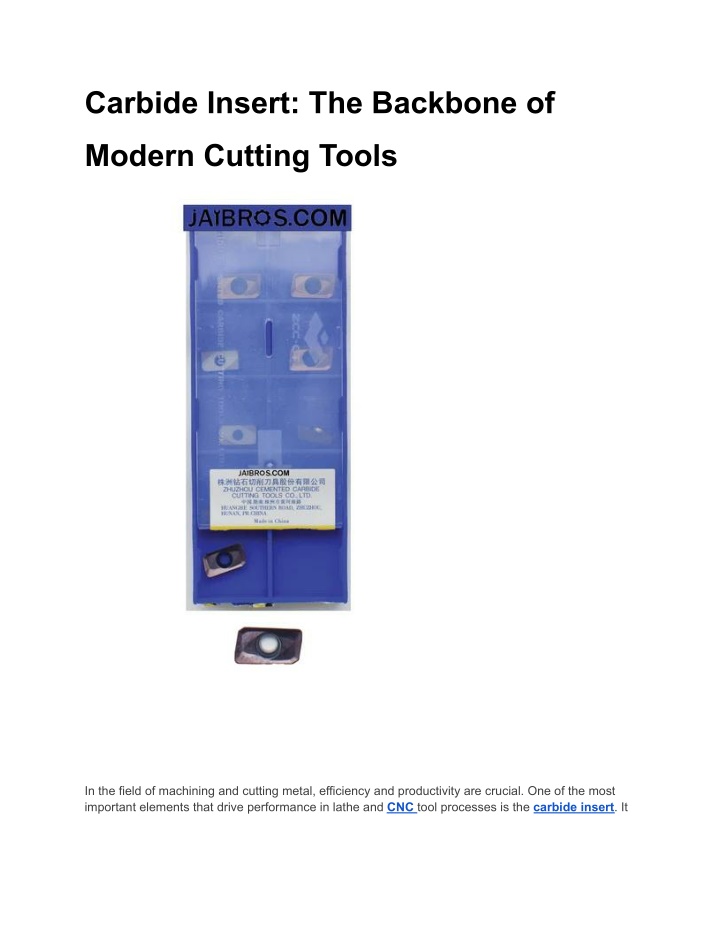

1. Carbide Insert: The Backbone of Modern Cutting Tools In the field of machining and cutting metal, efficiency and productivity are crucial. One of the most important elements that drive performance in lathe and CNC tool processes is the carbide insert. It

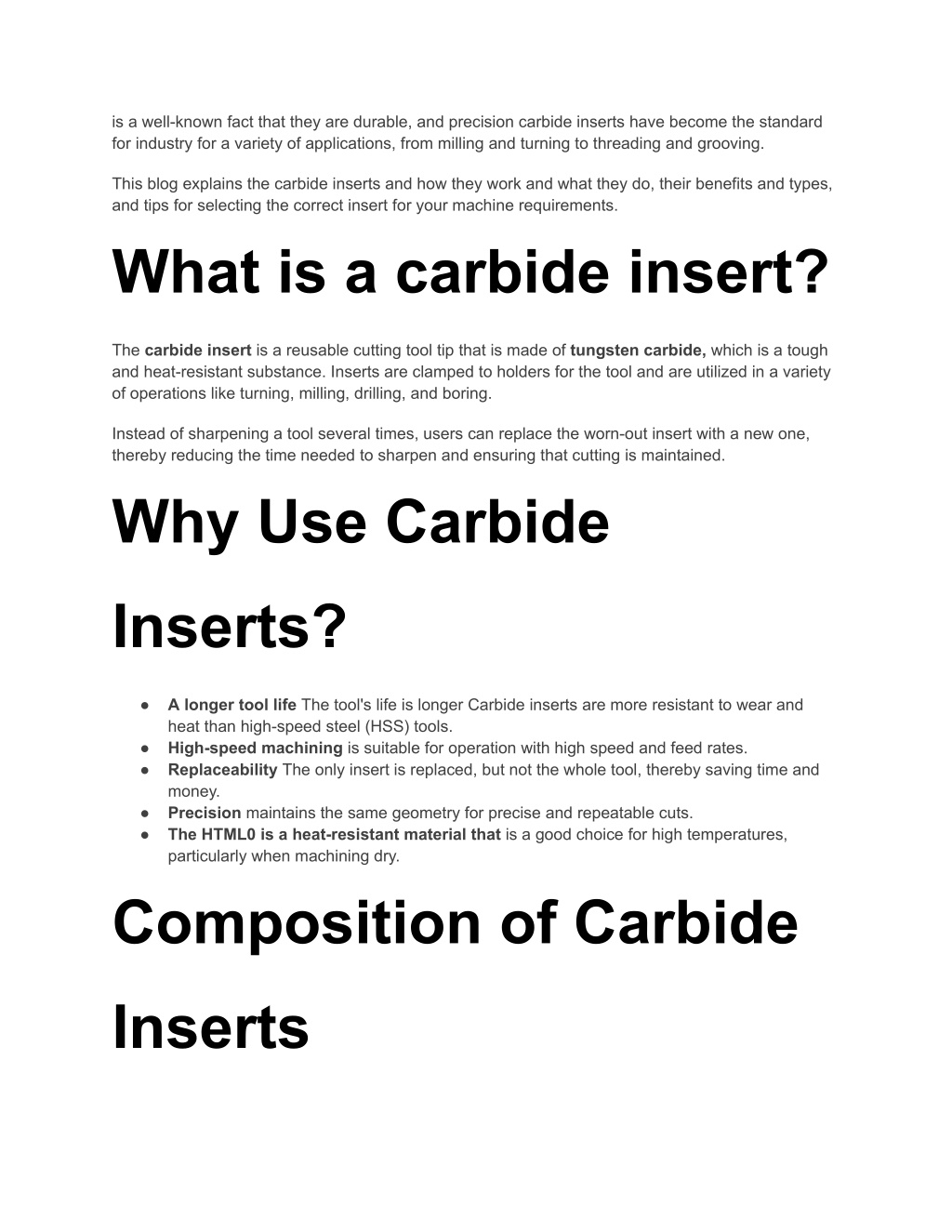

2. is a well-known fact that they are durable, and precision carbide inserts have become the standard for industry for a variety of applications, from milling and turning to threading and grooving. This blog explains the carbide inserts and how they work and what they do, their benefits and types, and tips for selecting the correct insert for your machine requirements. What is a carbide insert? The carbide insert is a reusable cutting tool tip that is made of tungsten carbide, which is a tough and heat-resistant substance. Inserts are clamped to holders for the tool and are utilized in a variety of operations like turning, milling, drilling, and boring. Instead of sharpening a tool several times, users can replace the worn-out insert with a new one, thereby reducing the time needed to sharpen and ensuring that cutting is maintained. Why Use Carbide Inserts? ● A longer tool life The tool's life is longer Carbide inserts are more resistant to wear and heat than high-speed steel (HSS) tools. ● High-speed machining is suitable for operation with high speed and feed rates. ● Replaceability The only insert is replaced, but not the whole tool, thereby saving time and money. ● Precision maintains the same geometry for precise and repeatable cuts. ● The HTML0 is a heat-resistant material that is a good choice for high temperatures, particularly when machining dry. Composition of Carbide Inserts

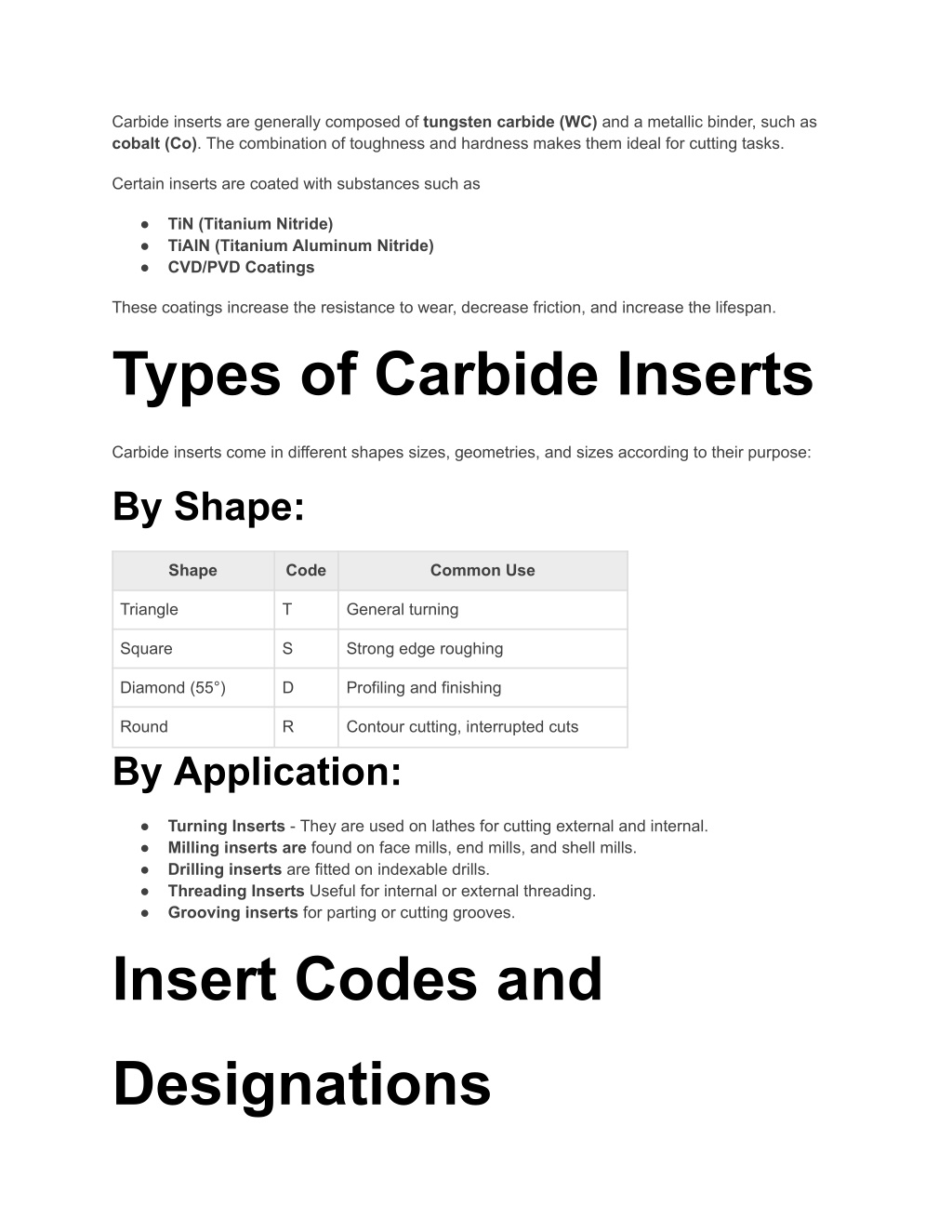

3. Carbide inserts are generally composed of tungsten carbide (WC) and a metallic binder, such as cobalt (Co). The combination of toughness and hardness makes them ideal for cutting tasks. Certain inserts are coated with substances such as ● TiN (Titanium Nitride) ● TiAlN (Titanium Aluminum Nitride) ● CVD/PVD Coatings These coatings increase the resistance to wear, decrease friction, and increase the lifespan. Types of Carbide Inserts Carbide inserts come in different shapes sizes, geometries, and sizes according to their purpose: By Shape: Shape Code Common Use Triangle T General turning Square S Strong edge roughing Diamond (55°) D Profiling and finishing Round By Application: R Contour cutting, interrupted cuts ● Turning Inserts - They are used on lathes for cutting external and internal. ● Milling inserts are found on face mills, end mills, and shell mills. ● Drilling inserts are fitted on indexable drills. ● Threading Inserts Useful for internal or external threading. ● Grooving inserts for parting or cutting grooves. Insert Codes and Designations

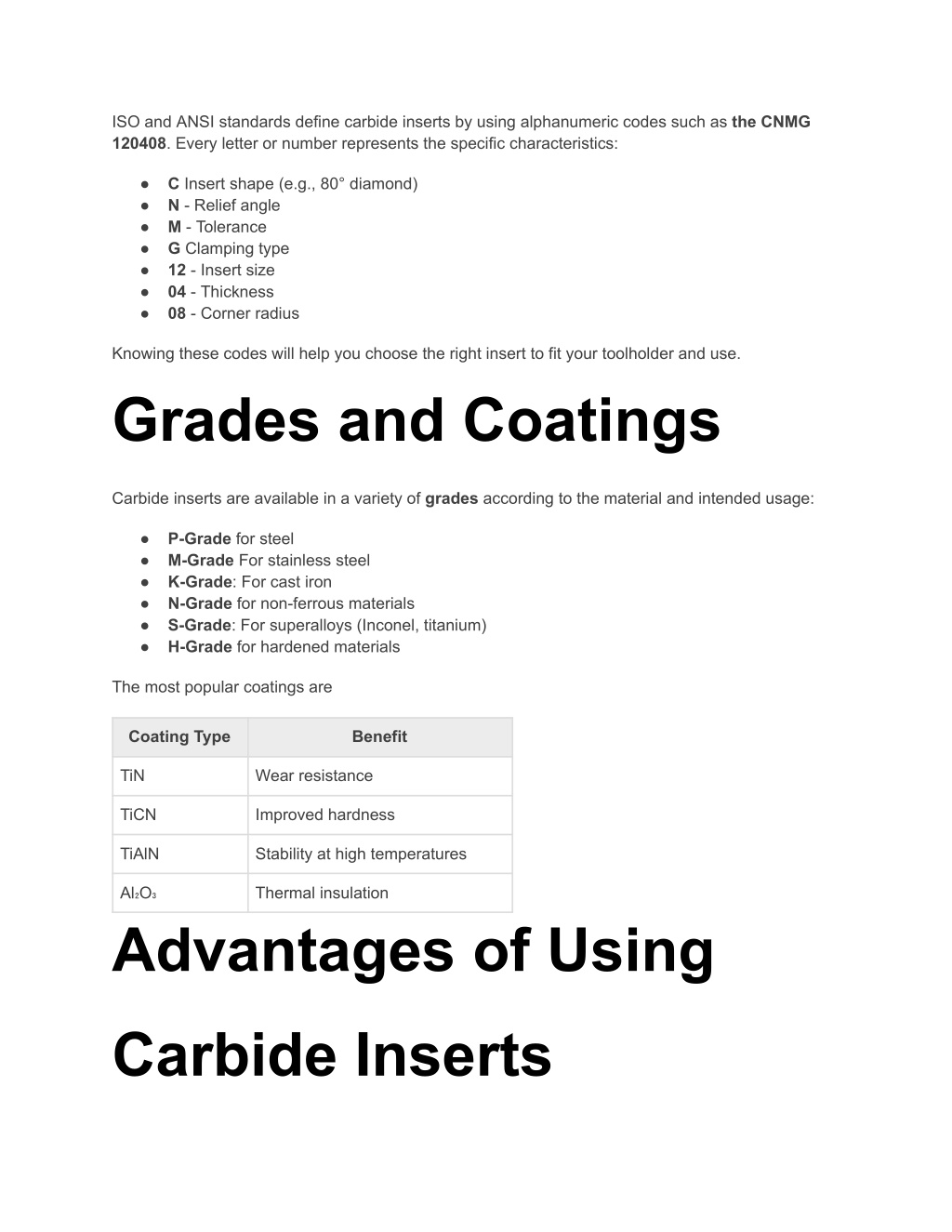

4. ISO and ANSI standards define carbide inserts by using alphanumeric codes such as the CNMG 120408. Every letter or number represents the specific characteristics: ● C Insert shape (e.g., 80° diamond) ● N - Relief angle ● M - Tolerance ● G Clamping type ● 12 - Insert size ● 04 - Thickness ● 08 - Corner radius Knowing these codes will help you choose the right insert to fit your toolholder and use. Grades and Coatings Carbide inserts are available in a variety of grades according to the material and intended usage: ● P-Grade for steel ● M-Grade For stainless steel ● K-Grade: For cast iron ● N-Grade for non-ferrous materials ● S-Grade: For superalloys (Inconel, titanium) ● H-Grade for hardened materials The most popular coatings are Coating Type Benefit TiN Wear resistance TiCN Improved hardness TiAlN Stability at high temperatures Al₂O₃ Advantages of Using Thermal insulation Carbide Inserts

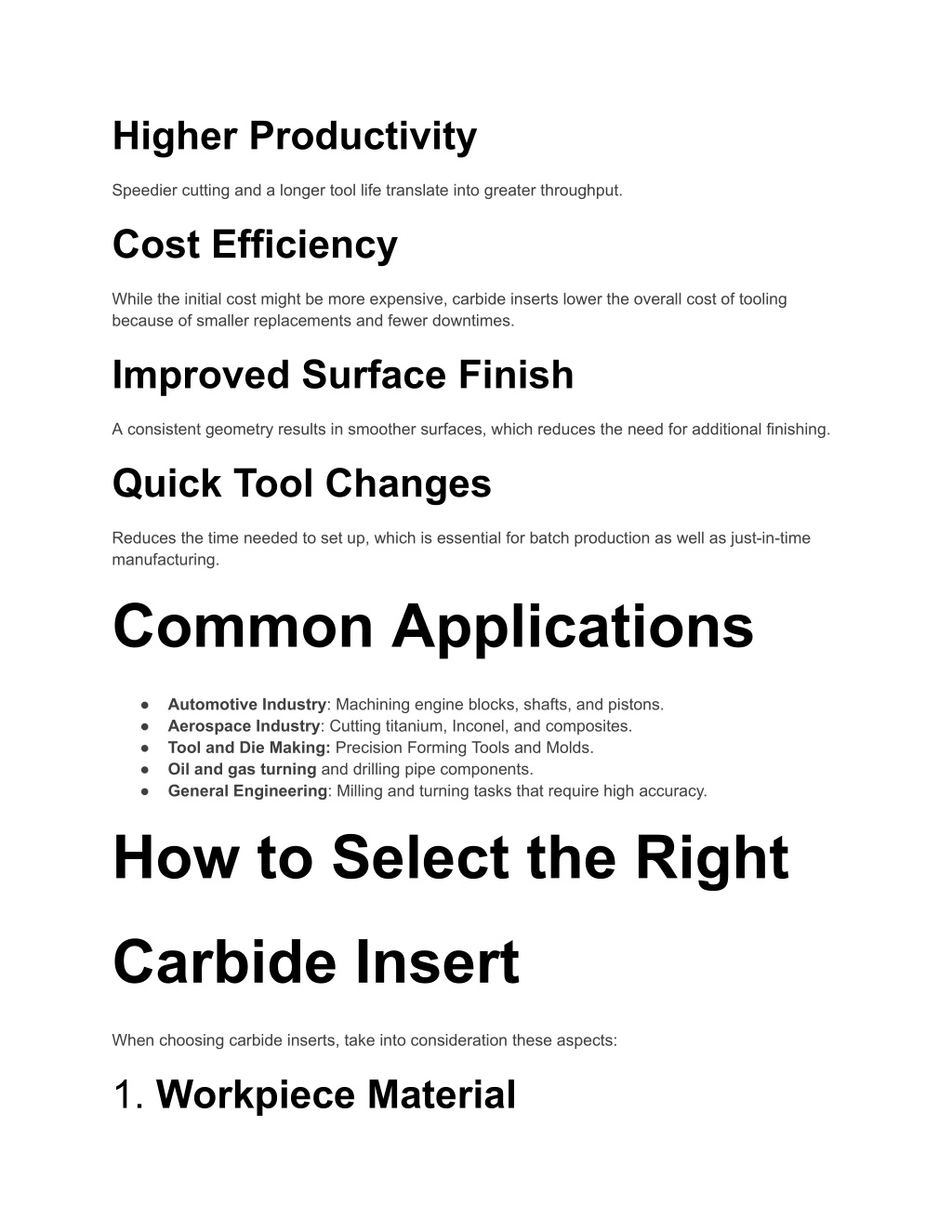

5. Higher Productivity Speedier cutting and a longer tool life translate into greater throughput. Cost Efficiency While the initial cost might be more expensive, carbide inserts lower the overall cost of tooling because of smaller replacements and fewer downtimes. Improved Surface Finish A consistent geometry results in smoother surfaces, which reduces the need for additional finishing. Quick Tool Changes Reduces the time needed to set up, which is essential for batch production as well as just-in-time manufacturing. Common Applications ● Automotive Industry: Machining engine blocks, shafts, and pistons. ● Aerospace Industry: Cutting titanium, Inconel, and composites. ● Tool and Die Making: Precision Forming Tools and Molds. ● Oil and gas turning and drilling pipe components. ● General Engineering: Milling and turning tasks that require high accuracy. How to Select the Right Carbide Insert When choosing carbide inserts, take into consideration these aspects: 1. Workpiece Material

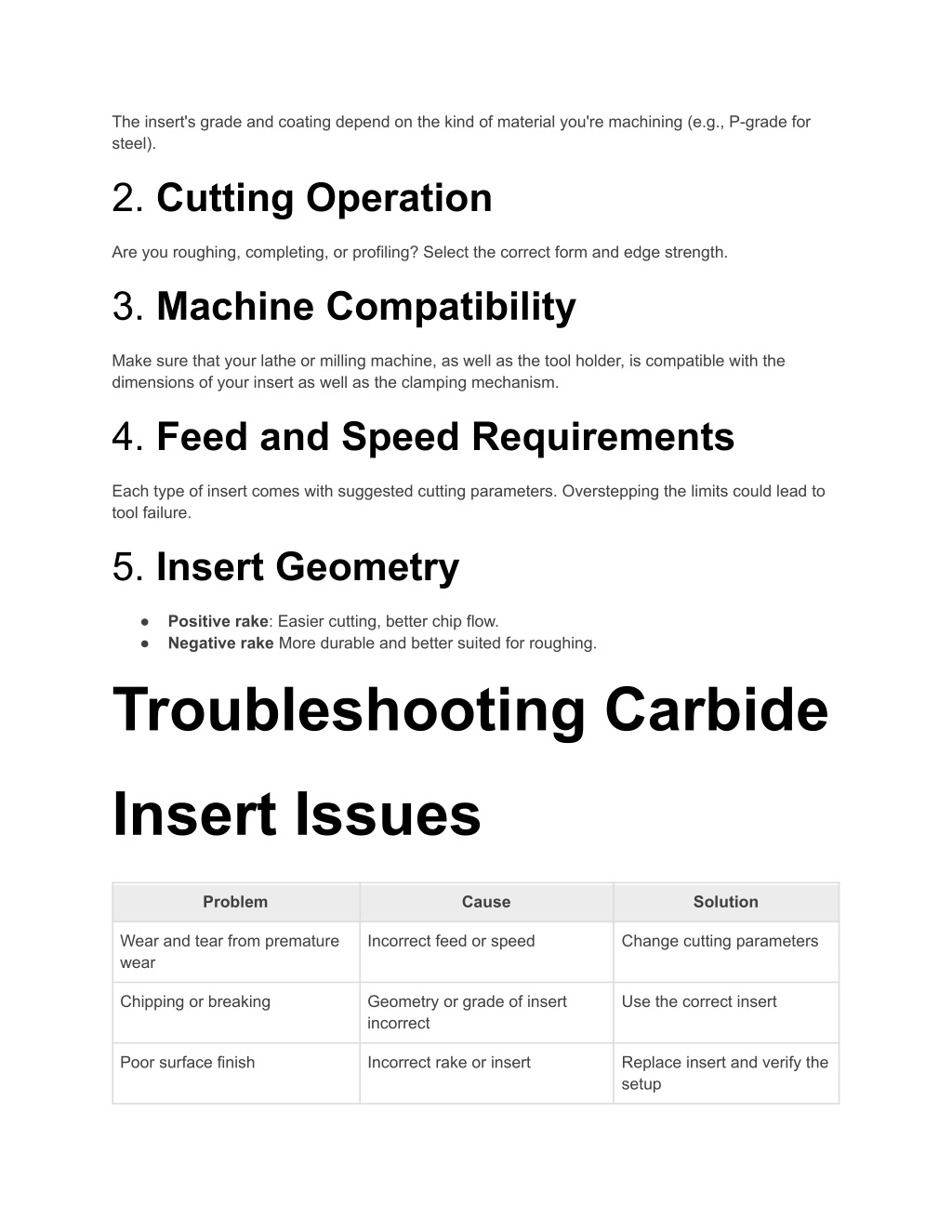

6. The insert's grade and coating depend on the kind of material you're machining (e.g., P-grade for steel). 2. Cutting Operation Are you roughing, completing, or profiling? Select the correct form and edge strength. 3. Machine Compatibility Make sure that your lathe or milling machine, as well as the tool holder, is compatible with the dimensions of your insert as well as the clamping mechanism. 4. Feed and Speed Requirements Each type of insert comes with suggested cutting parameters. Overstepping the limits could lead to tool failure. 5. Insert Geometry ● Positive rake: Easier cutting, better chip flow. ● Negative rake More durable and better suited for roughing. Troubleshooting Carbide Insert Issues Problem Cause Solution Wear and tear from premature wear Incorrect feed or speed Change cutting parameters Chipping or breaking Geometry or grade of insert incorrect Use the correct insert Poor surface finish Incorrect rake or insert Replace insert and verify the setup

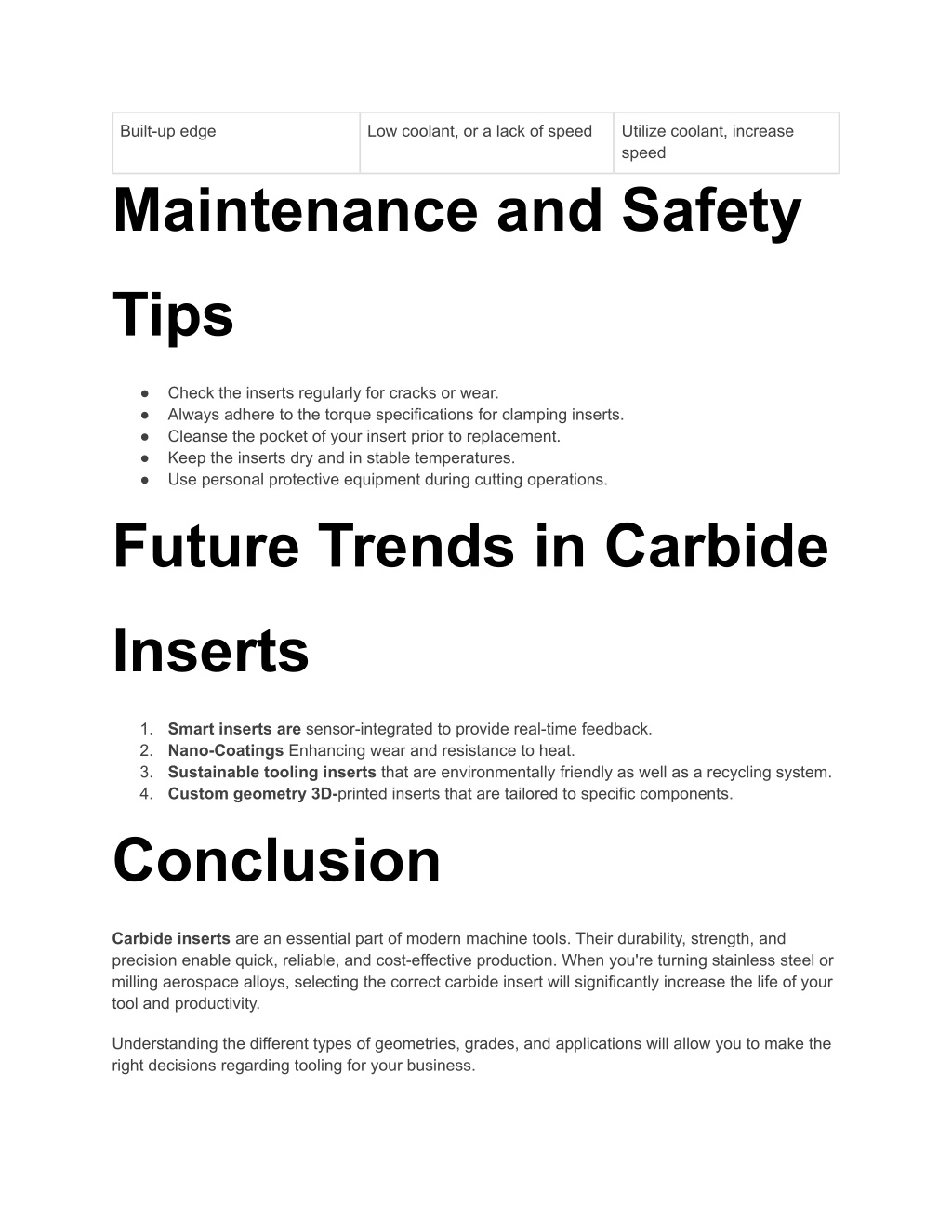

7. Built-up edge Low coolant, or a lack of speed Utilize coolant, increase speed Maintenance and Safety Tips ● Check the inserts regularly for cracks or wear. ● Always adhere to the torque specifications for clamping inserts. ● Cleanse the pocket of your insert prior to replacement. ● Keep the inserts dry and in stable temperatures. ● Use personal protective equipment during cutting operations. Future Trends in Carbide Inserts 1. Smart inserts are sensor-integrated to provide real-time feedback. 2. Nano-Coatings Enhancing wear and resistance to heat. 3. Sustainable tooling inserts that are environmentally friendly as well as a recycling system. 4. Custom geometry 3D-printed inserts that are tailored to specific components. Conclusion Carbide inserts are an essential part of modern machine tools. Their durability, strength, and precision enable quick, reliable, and cost-effective production. When you're turning stainless steel or milling aerospace alloys, selecting the correct carbide insert will significantly increase the life of your tool and productivity. Understanding the different types of geometries, grades, and applications will allow you to make the right decisions regarding tooling for your business.

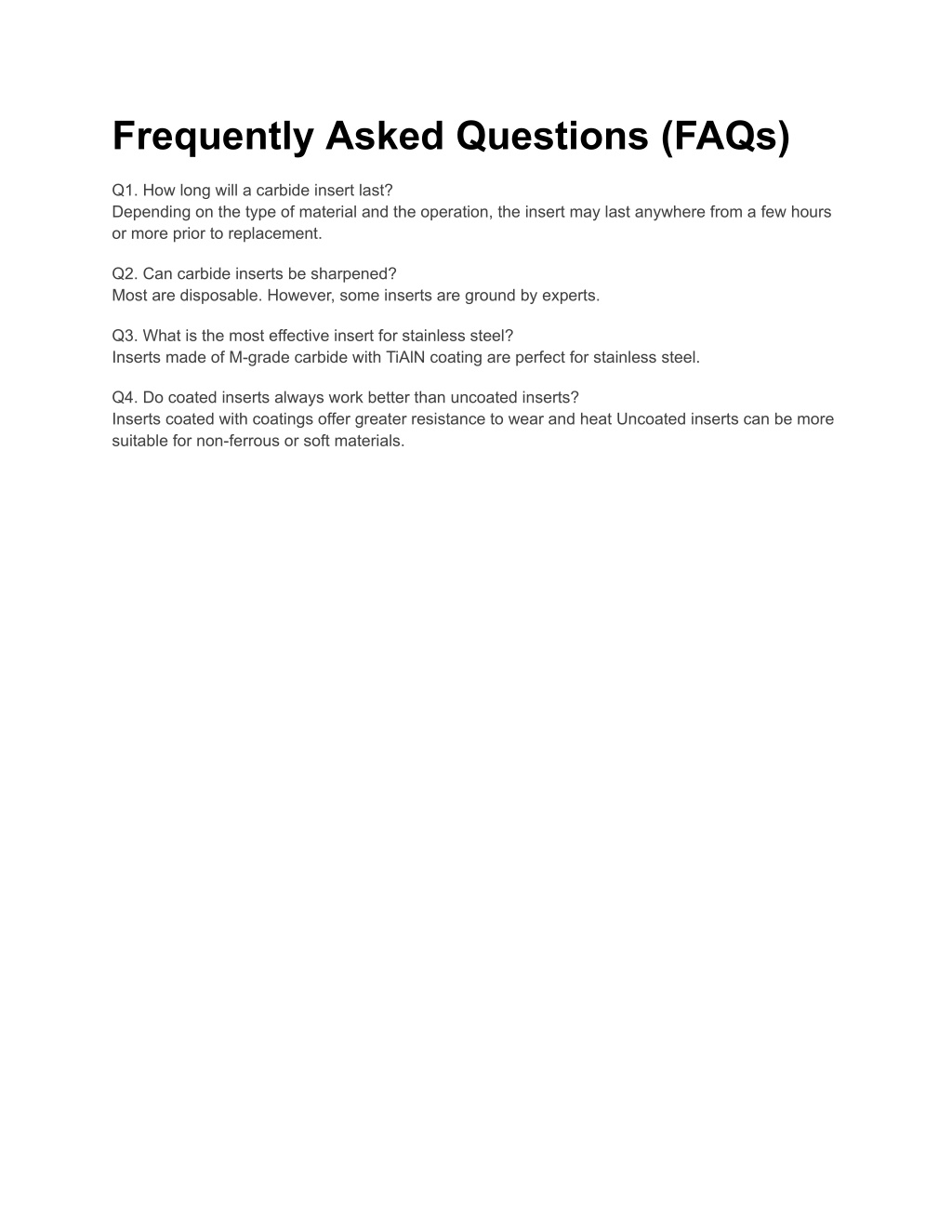

8. Frequently Asked Questions (FAQs) Q1. How long will a carbide insert last? Depending on the type of material and the operation, the insert may last anywhere from a few hours or more prior to replacement. Q2. Can carbide inserts be sharpened? Most are disposable. However, some inserts are ground by experts. Q3. What is the most effective insert for stainless steel? Inserts made of M-grade carbide with TiAlN coating are perfect for stainless steel. Q4. Do coated inserts always work better than uncoated inserts? Inserts coated with coatings offer greater resistance to wear and heat Uncoated inserts can be more suitable for non-ferrous or soft materials.
