mdot actt workshop
MDOT ACTT Workshop

Structures

I-94 From I-96 to East of Connor

Participants

  • Steve Stroh, URS Corp
  • Vijay Chandra, Parson Brinckerhoff
  • Raj Ailaney, FHWA
  • Gary Jakovich, FHWA
  • Jon Nekritz, FHWA
  • Phil Grotenhuis, MDOT
  • Matt Chynoweth, MDOT
  • Terry Lavoy, MDOT
  • Wesley King, MDOT
slide2
Shallow Structure Types
  • Channel Bridge
  • Cable-Stayed Bridge with slab superstructure
  • Tied-Arch Bridge with slab superstructure
  • “Conventional beam bridge with integral supports”
  • Segmental voided slab
slide6

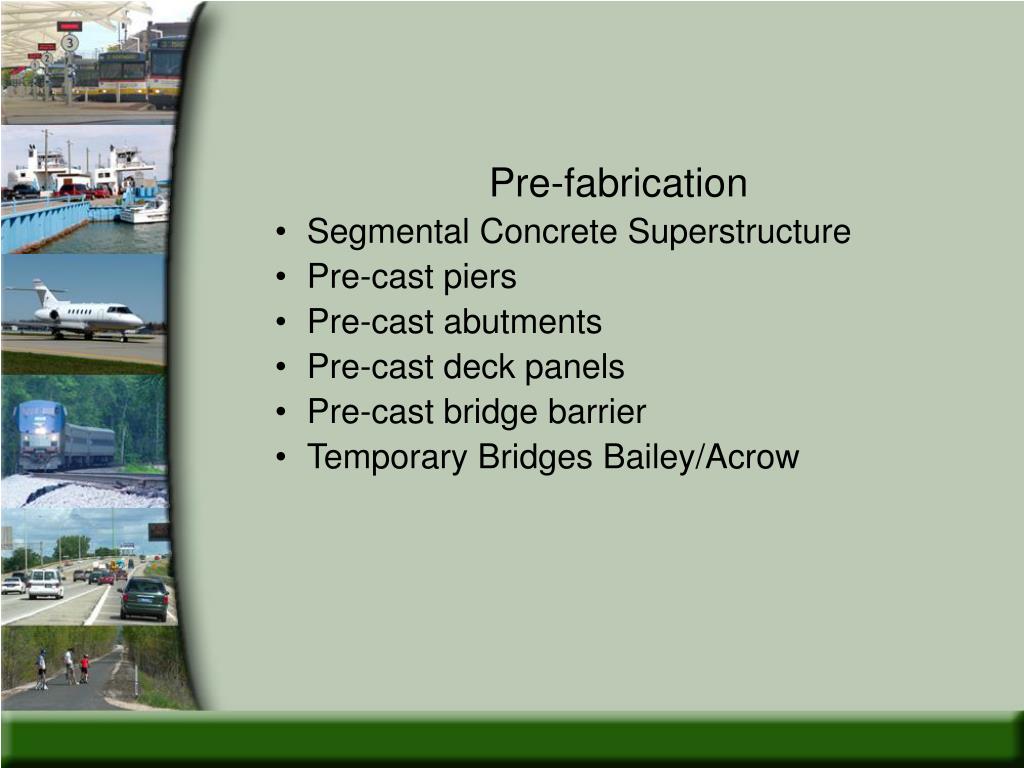

Pre-fabrication
  • Segmental Concrete Superstructure
  • Pre-cast piers
  • Pre-cast abutments
  • Pre-cast deck panels
  • Pre-cast bridge barrier
  • Temporary Bridges Bailey/Acrow
slide10
High Performance Materials
  • Polymer Asphalt
  • High Performance concrete
  • High Performance steel
  • Self-Consolidating Concrete
  • High Strength Concrete
  • Initial Overlays
slide13
Retaining Walls
  • Remove retaining walls, purchase additional Right of Way (ROW), Lay slope back at 3:1
  • Soldier Pile, Soil Nailed or Secant Walls
slide14
Service Drive Expansion
  • Near Wayne State University (WSU) parking garage expand service drive over slope.
slide15
Foundations for Interchanges
  • Single/mono shaft
  • Large diameter closed in steel pipe pile
  • Post grouted shaft
slide16
Railway Crossings
  • Construct temporary railroad bridges as necessary
  • Diverge rail traffic onto one bridge in areas with multiple tracks
  • Roll in pre-fabricated bridge over short closure period
  • Edge girder floor beam system
slide17

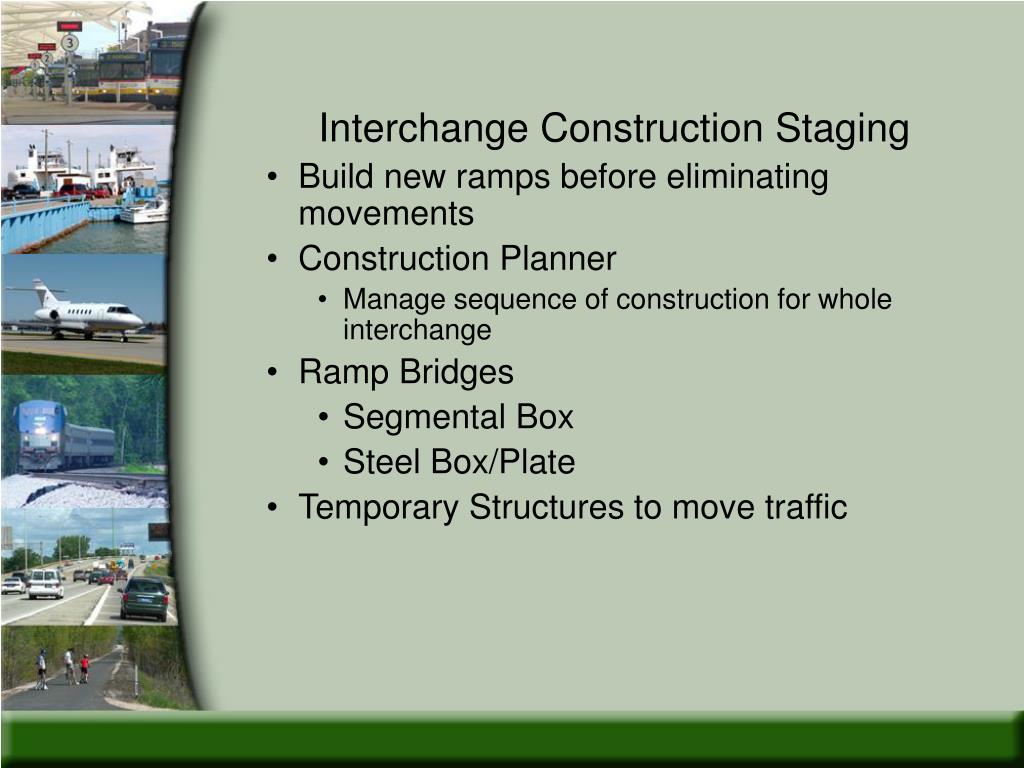

Interchange Construction Staging
  • Build new ramps before eliminating movements
  • Construction Planner
    • Manage sequence of construction for whole interchange
  • Ramp Bridges
    • Segmental Box
    • Steel Box/Plate
  • Temporary Structures to move traffic
slide19
Advanced Contracting
  • Identify bridges for early construction/replacement due to poor condition
  • Advanced relocation of utilities

Design to Minimize Future Maintenance

  • Eliminating expansion joints, design for continuity
  • Minimize number of bearings
slide20

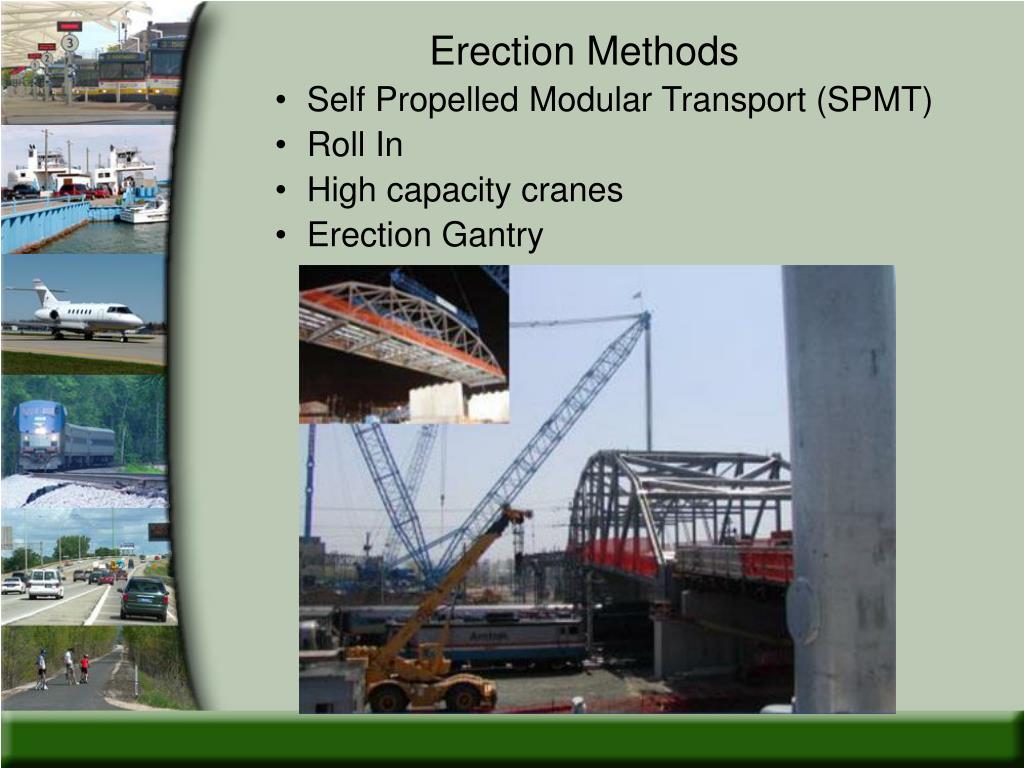

Erection Methods
  • Self Propelled Modular Transport (SPMT)
  • Roll In
  • High capacity cranes
  • Erection Gantry
