Steps to determining v vs. t curve from s vs. t curve

Steps to determining v vs. t curve from s vs. t curve. (1) draw a set of axes ( v vs t ) directly under the s vs. t curve (2) locate all minimums, maximums, asymptotes, and inflection points (3) plot zero value points for each corresponding min, max or asym

chinara
Download Presentation

Steps to determining v vs. t curve from s vs. t curve

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

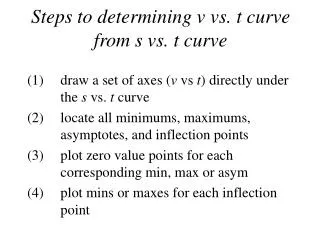

  1. Steps to determining v vs. t curve from s vs. t curve (1) draw a set of axes (v vs t) directly under the s vs. t curve (2) locate all minimums, maximums, asymptotes, and inflection points (3) plot zero value points for each corresponding min, max or asym (4) plot mins or maxes for each inflection point

  2. negative slope but flattening out start negative but get closer to zero

  3. minimum = zero slope must cross time axis (i.e. v=0)

  4. positive slope but becoming steeper Start at zero and increase

  5. positive slope start out flat but becoming steeper slope stays + just not as steep slope stops becoming steeper and begins to flatten out This is known as an inflection point and corresponds to a local maximum on velocity vs. time curve

  6. positive slope start out steep but becoming flatter slope flattens out as much as it is going to corresponds to a relative minimum then slope becomes steeper another inflection point

  7. positive slope start out steep continues to become steeper

  8. Region 1 – negative slope so negative velocity Region 2 – positive slope so positive velocity but inflection point where slope maxes out Region 3 – positive slope so positive velocity but inflection point where slope is minimized Region 4 – positive slope so positive velocity, no special points so velocity continues to rise

  9. s v a max inf inf
