  1. Foundations The National Association of Certified Home Inspectors

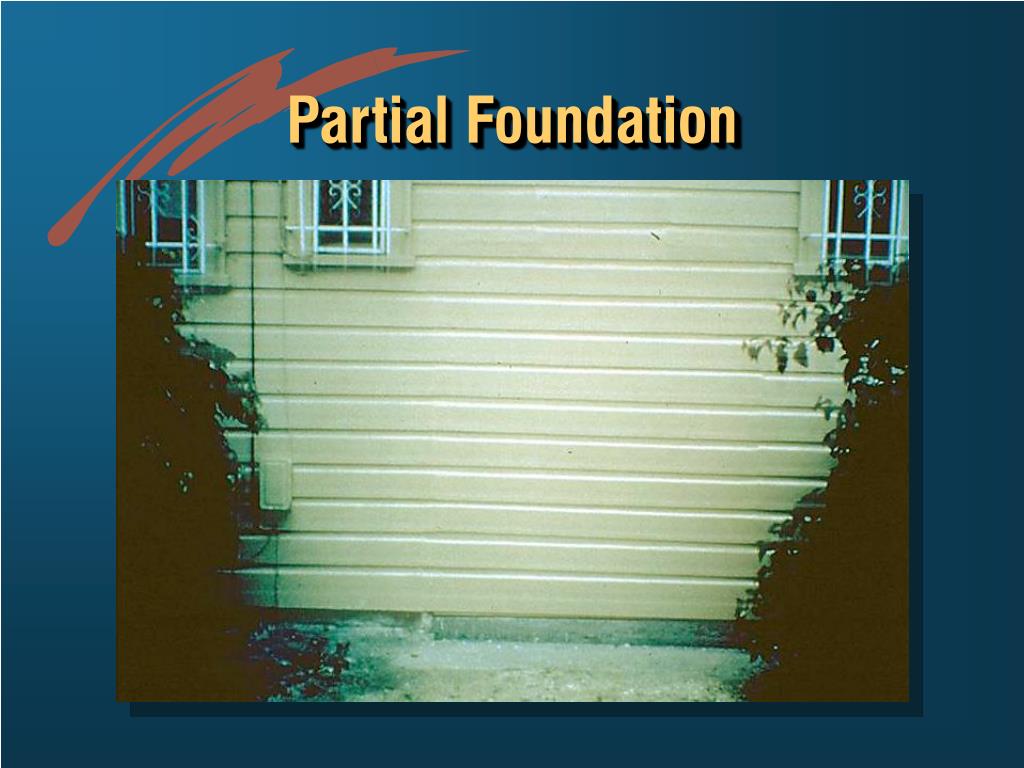

  2. Partial Foundation

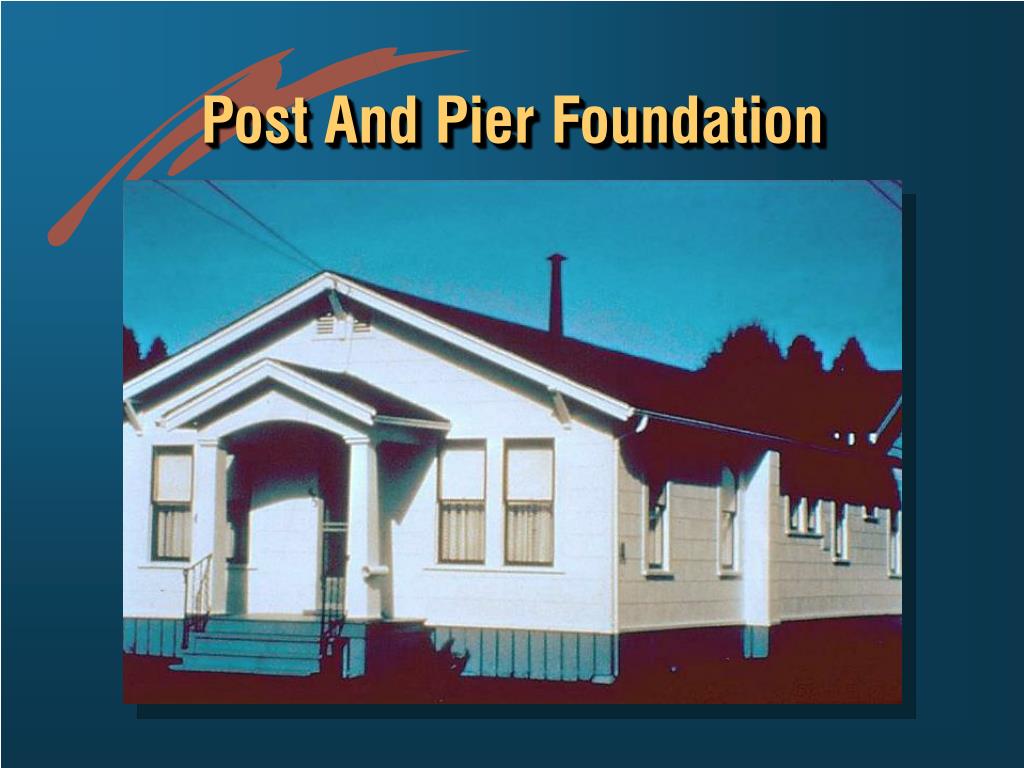

  3. Post And Pier Foundation

  4. Interior Posts and Girders

  5. Continuous Interior Footing

  6. Two Pour System Pour #2 Pour #1

  7. Failure of Two-Pour Joint

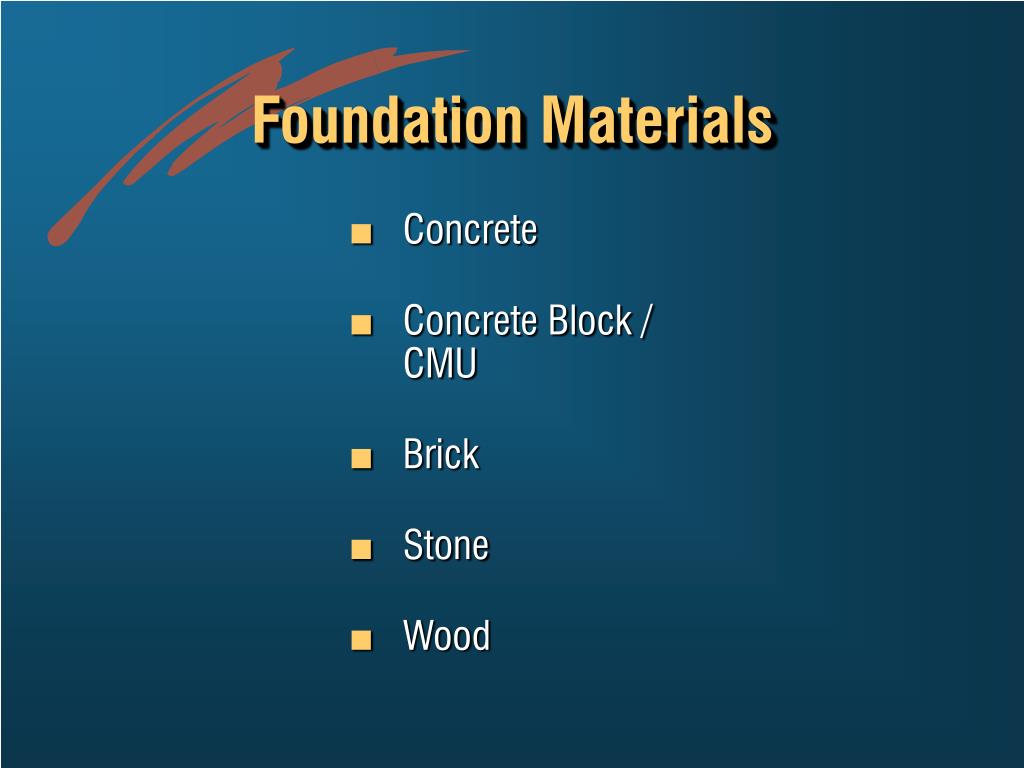

  8. Foundation Materials • Concrete • Concrete Block / CMU • Brick • Stone • Wood

  9. Un-reinforced Brick Foundation Wall

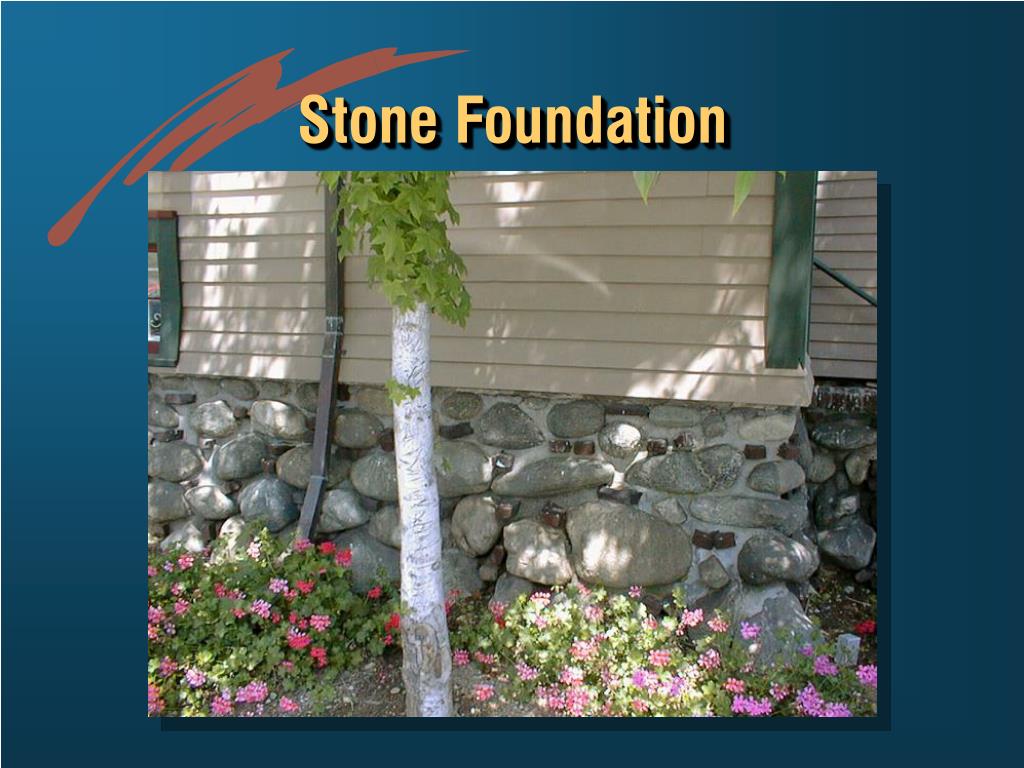

  10. Stone Foundation

  11. Check Foundation Condition • Deterioration • Cracking • Spalling

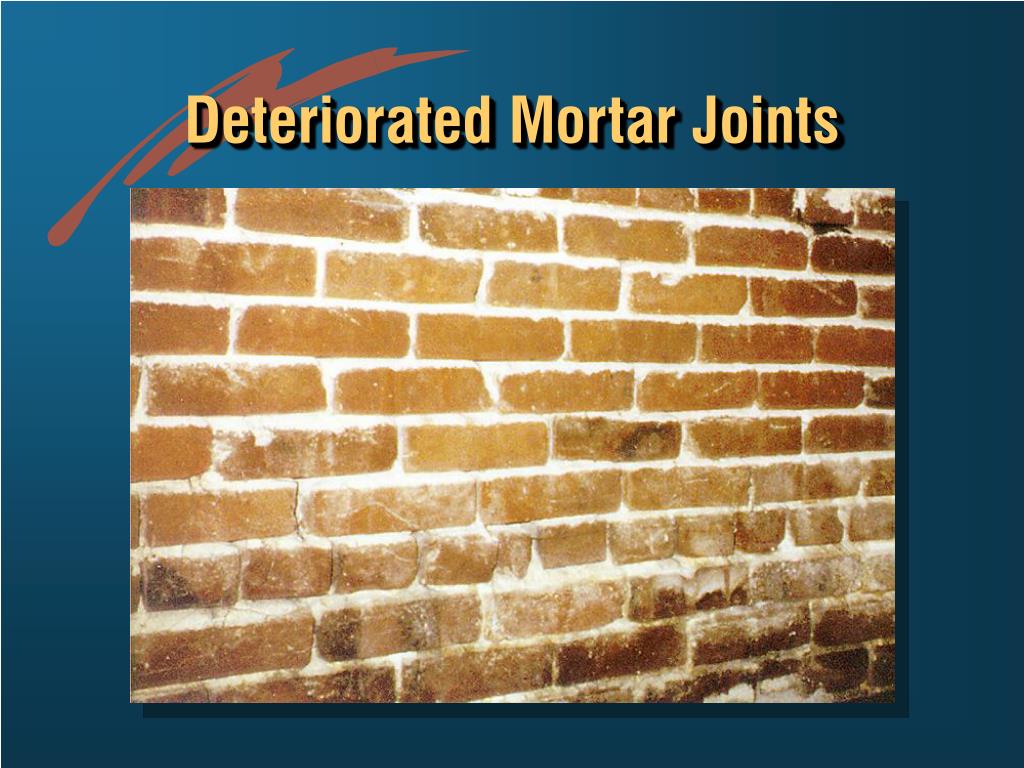

  12. Deteriorated Mortar Joints

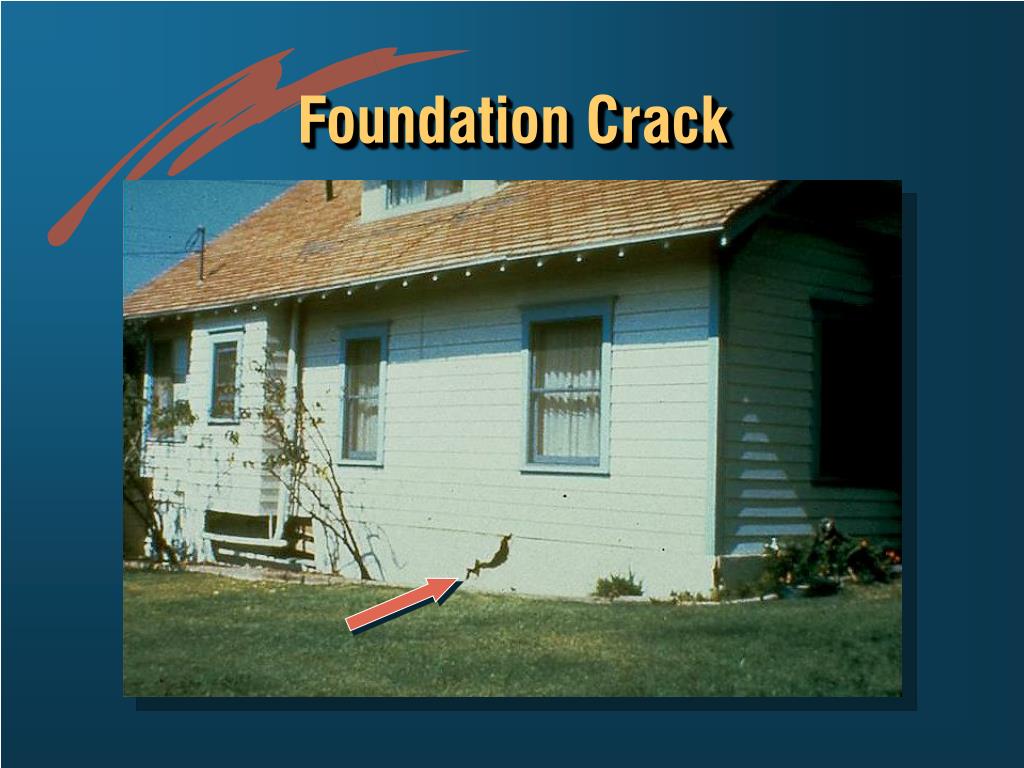

  13. Foundation Crack

  14. N SION EXPA EMENT SETTL What Causes Cracking?

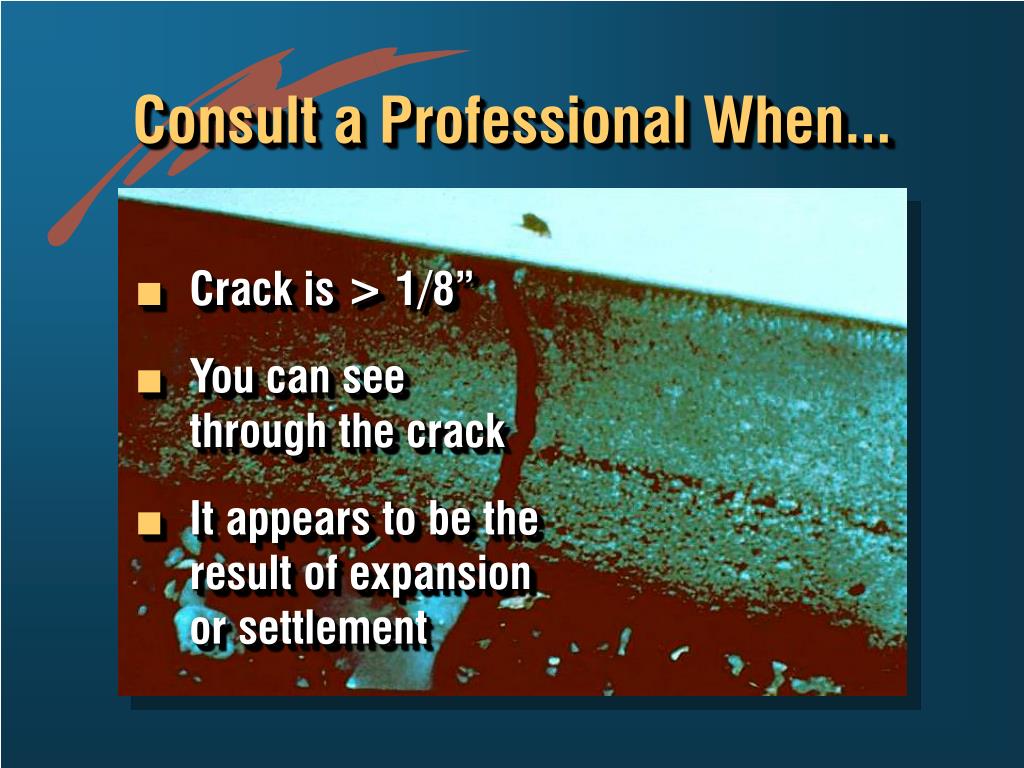

  15. Consult a Professional When... • Crack is > 1/8” • You can see through the crack • It appears to be the result of expansion or settlement

  16. Foundation Embedment POOR GOOD

  17. Capping Existing Foundations

  18. Foundation Replacement

  19. Parallel System
