  1. Designing Semantic Web Process: The WSDL-S Approach Presented by Ke Li LSDIS Lab, University of Georgia (Under the Direction of John A. Miller)

  2. Acknowledgment • Dr. John A. Miller • Dr. Amit P. Sheth • Dr. Eileen T. Kraemer • Kunal, Meena • Doug, Zixin • Cary, Scott

  3. Outline • Introduction • Background • Contribution • The METEOR-S Semantic Discovery Tool – Lumina • Design Semantic Web Process Using WSDL-S • Sample Use Case • Evaluation • Related Work • Conclusion • Future Work

  4. Outline • Introduction • Background • The METEOR-S Semantic Discovery Tool – Lumina • Design Semantic Web Process Using WSDL-S • Sample Use Case • Evaluation • Related Work • Conclusion • Future Work

  5. Introduction • Web Service • Concept • Web Services are self-contained modular business applications that have open, internet-oriented and standards-based interface. • Web Service Standards • SOAP (Simple Object Access Protocol) • WSDL (Web Service Description Language) • UDDI (Universal Description, Discovery and Integration) • WS-BPEL (Web Service Business Process Execution Language)

  6. Introduction • Web Process • Combine individual services to achieve a more complex goal • Advantage • enables modular design • Implements the control and data flow between services • For example, Service A, B and C. B is dependent on A’s output message. A and C can be invoked at the same time

  7. Introduction • Semantic Web Service • Adding semantics to Web service standards • Bring “meaning” to the services • Removes ambiguity in the description of Web service elements. • Enables automation of tasks like discovery, invocation, composition

  8. Introduction • WSDL-S Based Tool Suite for Designing Semantic Web Process • Radiant – Web Service Semantic Annotation and Semantic Publish • Lumina – Semantic Web Service Discovery • Saros – Web Services Composition

  9. Outline • Introduction • Background • The METEOR-S Semantic Discovery Tool – Lumina • Design Semantic Web Process Using WSDL-S • Sample Use Case • Evaluation • Related Work • Conclusion • Future Work

  10. Background • Problems with current Web Service publishing, discovery and composition • No unified WSDL to UDDI mapping structure • Syntactic search mechanism for service discovery

  11. Background • Mapping Structure from WSDL to UDDI

  12. Background • Modified Mapping Structure from WSDL-S to UDDI

  13. Background • Four Semantic Web Service Standard Proposals (Brief Overview) • OWL-S • WSMO (Web Service Modeling Ontology) • SWSO (Semantic Web Service Ontology) • WSDL-S

  14. Background (OWL-S and WSMO) • OWL-S • WSMO

  15. Background (WSDL-S) • WSDL-S • Built on existing Web Service standard - WSDL • Enables semantic annotation of Web Services by using extensibility elements and attributes • Annotation on message types: modelReference, and schemaMapping • Annotation on operation: modelReference, category, precondition and effect • Uses external domain models to provide the semantics

  16. Outline • Introduction • Background • Contribution • The METEOR-S Semantic Discovery Tool – Lumina • Design Semantic Web Process Using WSDL-S • Sample Use Case • Evaluation • Related Work • Conclusion • Future Work

  17. Contribution • Design and develop the WSDL-S based semantic discovery tool called Lumina. • Develop the API for publishing WSDL / WSDL-S files to our enhanced UDDI registry. • Design the Semantic Template generator which can be used within Saros.

  18. Outline • Introduction • Background • The METEOR-S Semantic Discovery Tool – Lumina • Design Semantic Web Process Using WSDL-S • Sample Use Case • Evaluation • Related Work • Conclusion • Future Work

  19. The METEOR-S Semantic Discovery Tool - Lumina • Motivation • Support semantic discovery (WSDL-S approach) • Enable semi-automatic design of Web Processes (using Saros) • Supply a unified discovery style to discover from different Universal Business Registries

  20. The METEOR-S Semantic Discovery Tool - Lumina • Setting Environment • Web Server: Tomcat 5.0.30 • UDDI Registry Implementation: JUDDI 0.9 • Registry Database: MySQL-4.1.12-win32 • JDK 1.5 • Model Dependency • METEOR-S Discovery API • WSDLS4J • UDDI4J

  21. The METEOR-S Semantic Discovery Tool - Lumina • Discovery Modes – UDDI structure based discovery 1.General UDDI Discovery (Basic UDDI Discovery Panel) • Unified search style for all the UBRs • Provide discovery of “Business Entity”, “Business Service” and “Technical Model” • Business Entity: Business Name, Discovery URL, Categories, TModel Keys • Business Service: Service Name, Categories, Business Key, TModel Keys • TModel: TModel Name

  22. The METEOR-S Semantic Discovery Tool – Lumina – UDDI Structure Based Discovery

  23. The METEOR-S Semantic Discovery Tool – Lumina –UDDI Structure Based Discovery

  24. The METEOR-S Semantic Discovery Tool - Lumina • Discovery Modes – WSDL-S based Semantic Discovery 2. WSDL-S Discovery (WSDL-S Discovery Panel & Semantic Template View) • Input to the discovery module • Ontology URL • Operation functional concepts, semantic inputs and semantic outputs Input modes • Typed in by the user • Dragged and dropped from the Ontology Navigator in Radiant • Output from the discovery module • Service information (service name, WSDL location) • Service provider information (link to the business entity) • Detailed discovered operation information (operation name, input / output variables, ontological concepts about these parameters, input / output types, portType)

  25. The METEOR-S Semantic Discovery Tool – Lumina:Semantic Discovery Panel + Partner Service Viewer

  26. The METEOR-S Semantic Discovery Tool – Lumina:Semantic Template View

  27. The METEOR-S Semantic Discovery Tool - Lumina • Discovery Modes – WSDL based Syntactic discovery 3. WSDL Discovery (WSDL Discovery Panel) • Input to discovery module: • Exact operation name, input and output variables • Same as WSDL-S Discovery except the semantic information

  28. The METEOR-S Semantic Discovery Tool – Lumina – METEOR-S Discovery Class Diagram

  29. The METEOR-S Semantic Discovery Tool - Lumina • Architecture of Lumina • Adopts Eclipse Plugin Techniques: • Action: Lumina start button in tool bar • Editor: UDDI Editor (Basic UDDI Discovery, WSDL-S Discovery and WSDL Discovery) • View: (Semantic Template Viewer and Partner Service Viewer) • Perspective: Lumina Perspective

  30. The METEOR-S Semantic Discovery Tool – Lumina Model Class diagram

  31. The METEOR-S Semantic Discovery Tool – Lumina View Class diagram

  32. Outline • Introduction • Background • The METEOR-S Semantic Discovery Tool – Lumina • Design Semantic Web Process Using WSDL-S • Sample Use Case • Evaluation • Related Work • Conclusion • Future Work

  33. Design Semantic Web Process Using WSDL-S • Semantic Annotation and Publish – Radiant • WSDL-S to UDDI Mapping Structure

  34. Design Semantic Web Process Using WSDL-S: WSDL-S to UDDI Mapping Structure

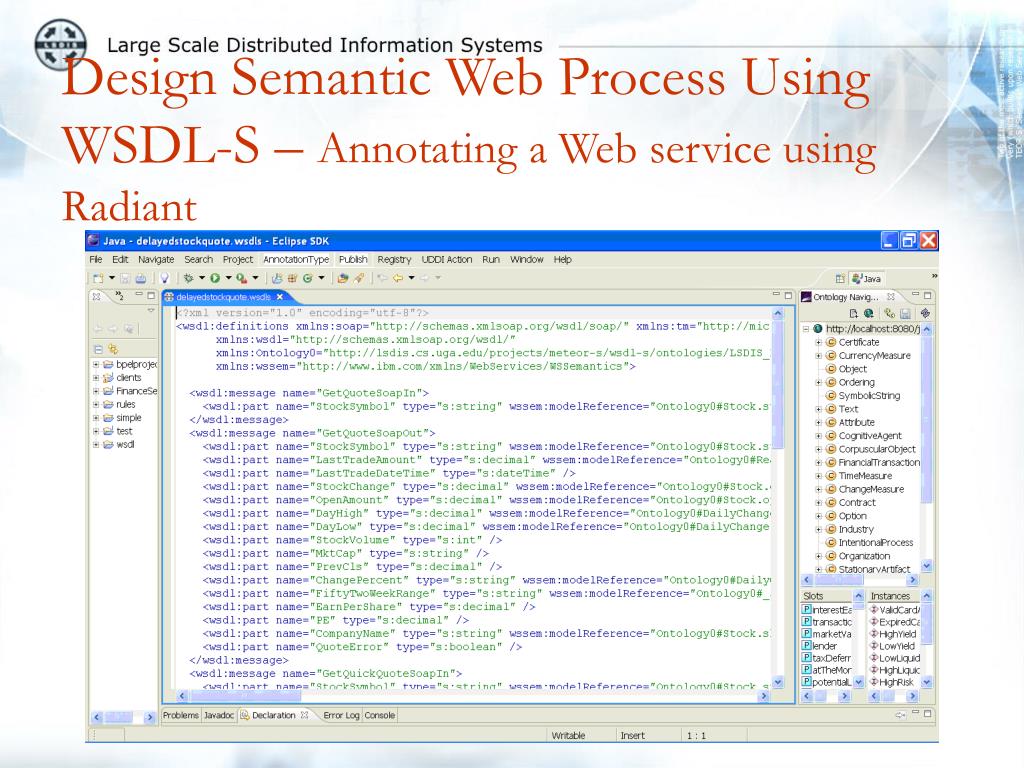

  35. Design Semantic Web Process Using WSDL-S – Annotating a Web service using Radiant

  36. Design Semantic Web Process Using WSDL-S • Semantic Discovery – Lumina • WSDL-S Discovery Panel (UDDI Editor) and Partner Service Viewer • Store the candidate partner services to partner service viewer (convenient) • Semantic Template Viewer • Save the semantic template to files • Load a exist semantic file • Enable discovery of multiple operations • Dependence • Economic • Efficient

  37. Design Semantic Web Process Using WSDL-S: WSDL-S Discovery Panel

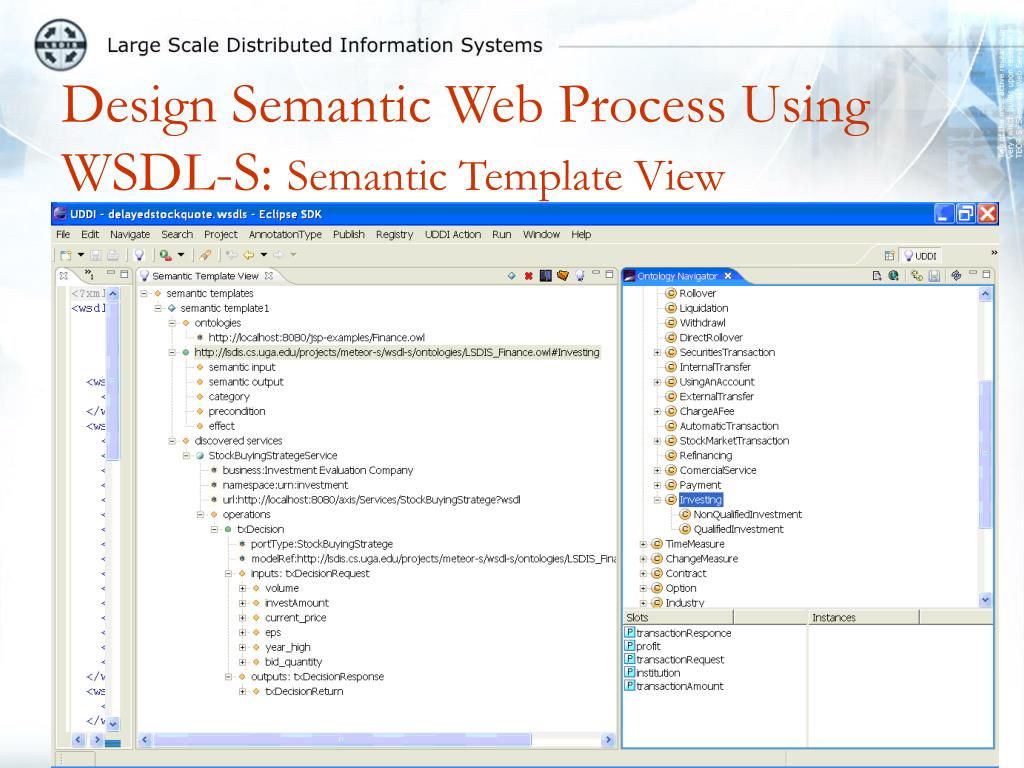

  38. Design Semantic Web Process Using WSDL-S: Semantic Template View

  39. Design Semantic Web Process Using WSDL-S • Semantic Web Process Design - Saros • Dynamic partner selection using the Semantic Templates that describe virtual partners • Two phase design • Generate new semantic template(s) or load the exist semantic template(s) using Semantic Template Viewer (Lumina) • Discover the partner services using the semantic templates and bind the discovered services to the process

  40. WSDL-S Semantic Template BPEL Process Process Designer Search Results Semantic Publication and Discovery UDDI Registry Design Semantic Web Process Using WSDL-S • Semantic Web Process Design - Saros

  41. Design Semantic Web Process Using WSDL-S: Saros Design Panel

  42. Outline • Introduction • Background • The METEOR-S Semantic Discovery Tool – Lumina • Design Semantic Web Process Using WSDL-S • Sample Use Case • Evaluation • Related Work • Conclusion • Future Work

  43. Sample Use Case • Sample Scenario • Goal: investment strategy for buying stock • Input: stock ticker, possible investment amount • Output: value analysis for proceeding with the investment

  44. Sample Use Case • Analyze the business requirement and build a UML diagram

  45. Sample Use Case • Fill in the process skeleton

  46. Sample Use Case 3. Fill in the nested constructs / structured activities

  47. Sample Use Case 4. Identify partners • Binding the real partners: using concrete service information • Binding the virtual partners: filling a semantic template • Discovery based on: • Operation • Input and output

  48. Sample Use Case: Search for “investment” service

  49. Sample Use Case: Search for the other two services

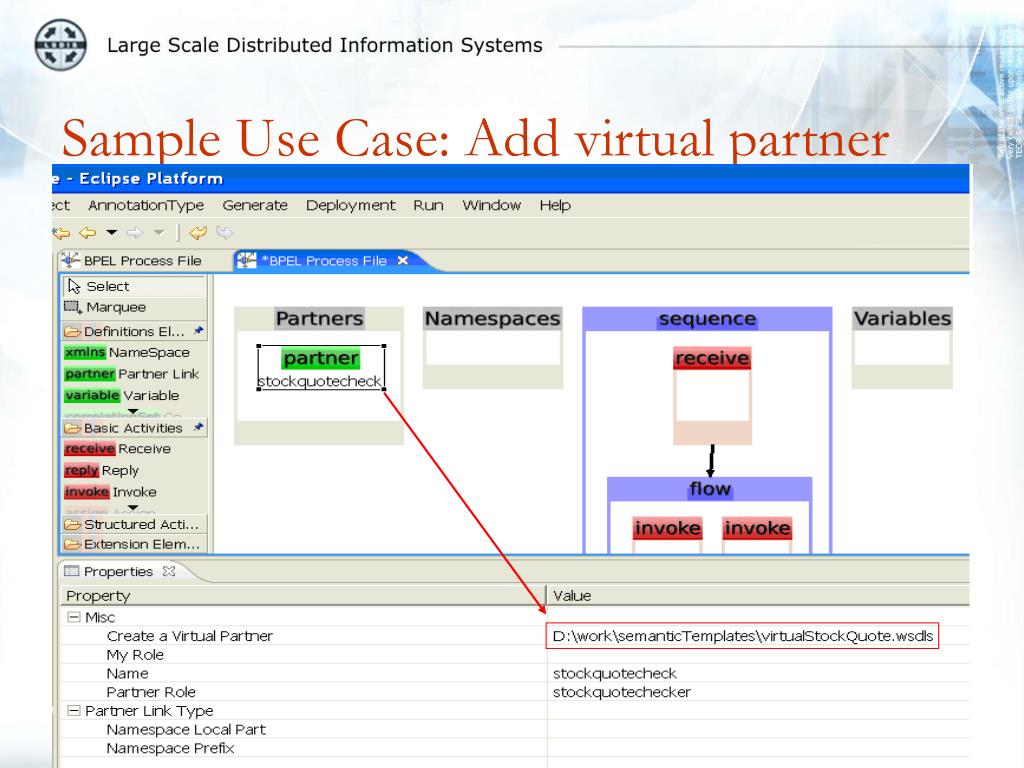

  50. Sample Use Case: Add virtual partner
