  1. KnoteBox Joe Kramer, Leo Ovanesyan, Jimmy Thompson

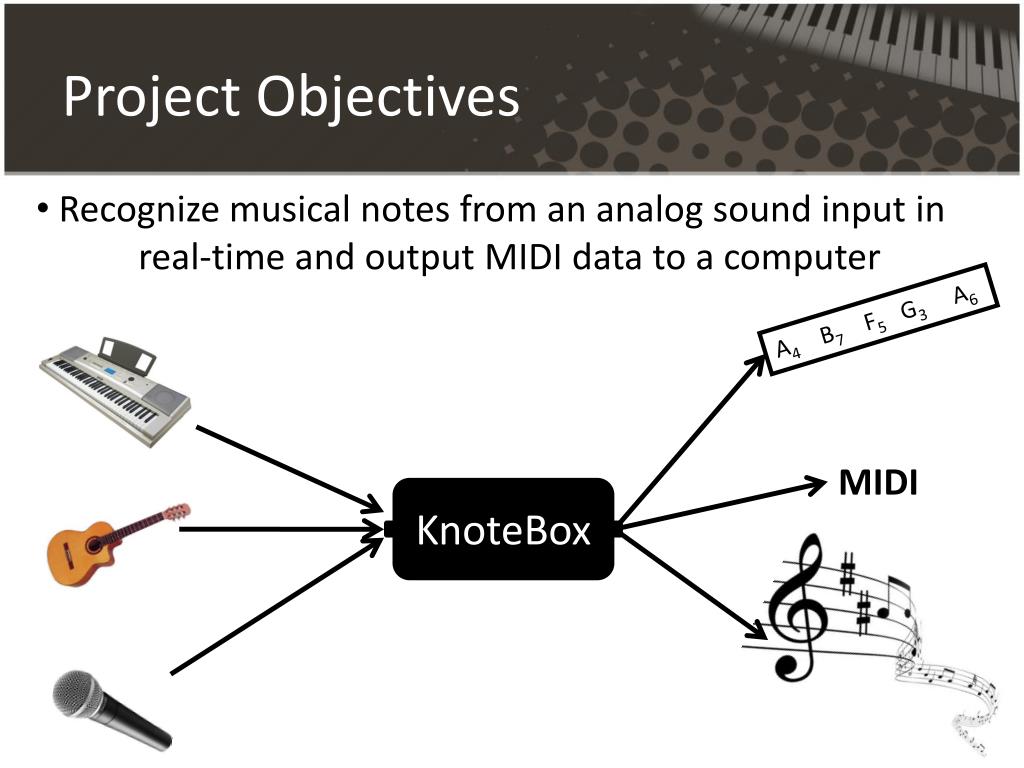

  2. Project Objectives • Recognize musical notes from an analog sound input in real-time and output MIDI data to a computer A4 B7 F5 G3 A6 MIDI KnoteBox

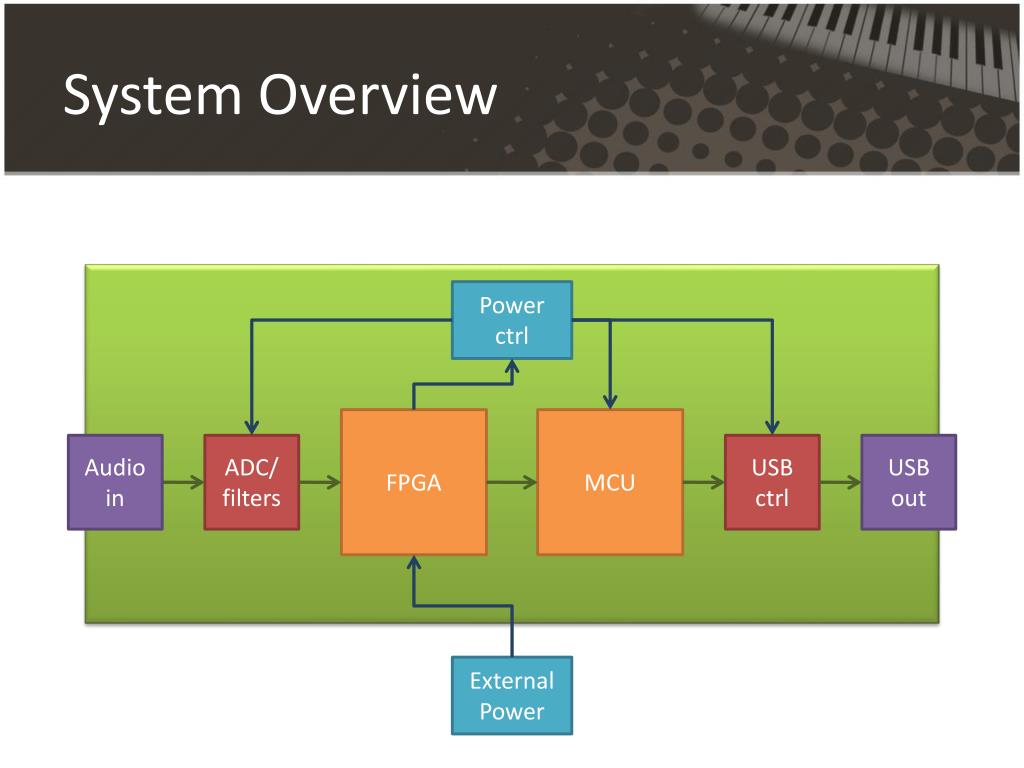

  3. System Overview Power ctrl FPGA MCU Audio in ADC/ filters USB ctrl USB out External Power

  4. Algorithm Overview FPGA MCU

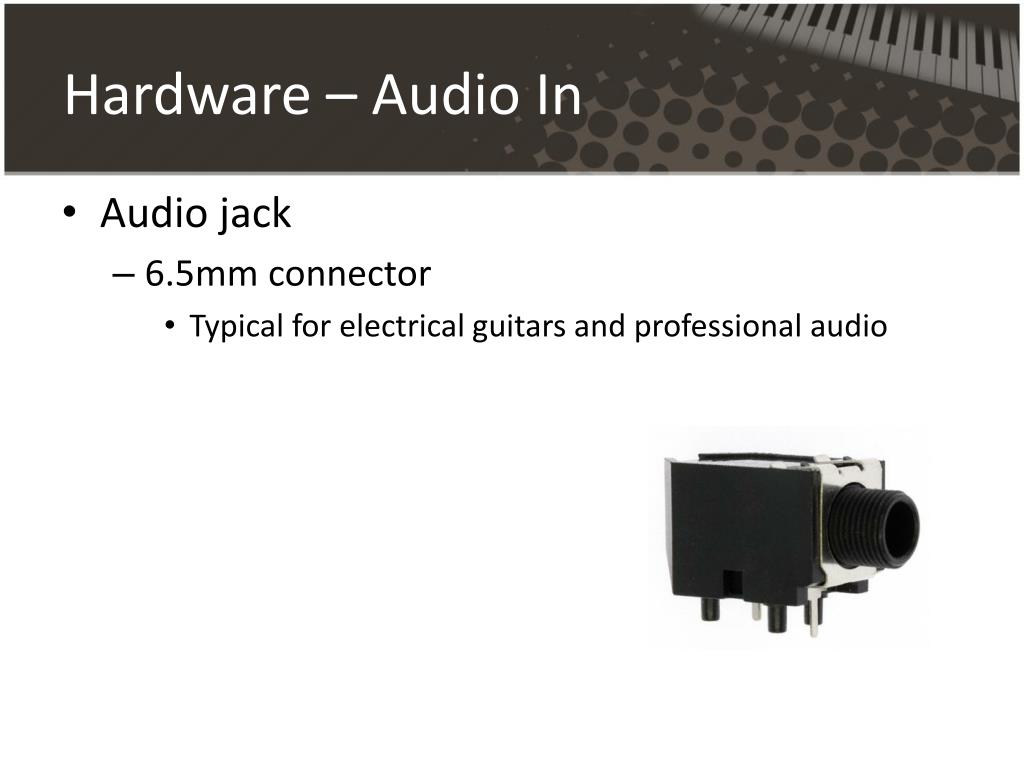

  5. Hardware – Audio In • Audio jack • 6.5mm connector • Typical for electrical guitars and professional audio

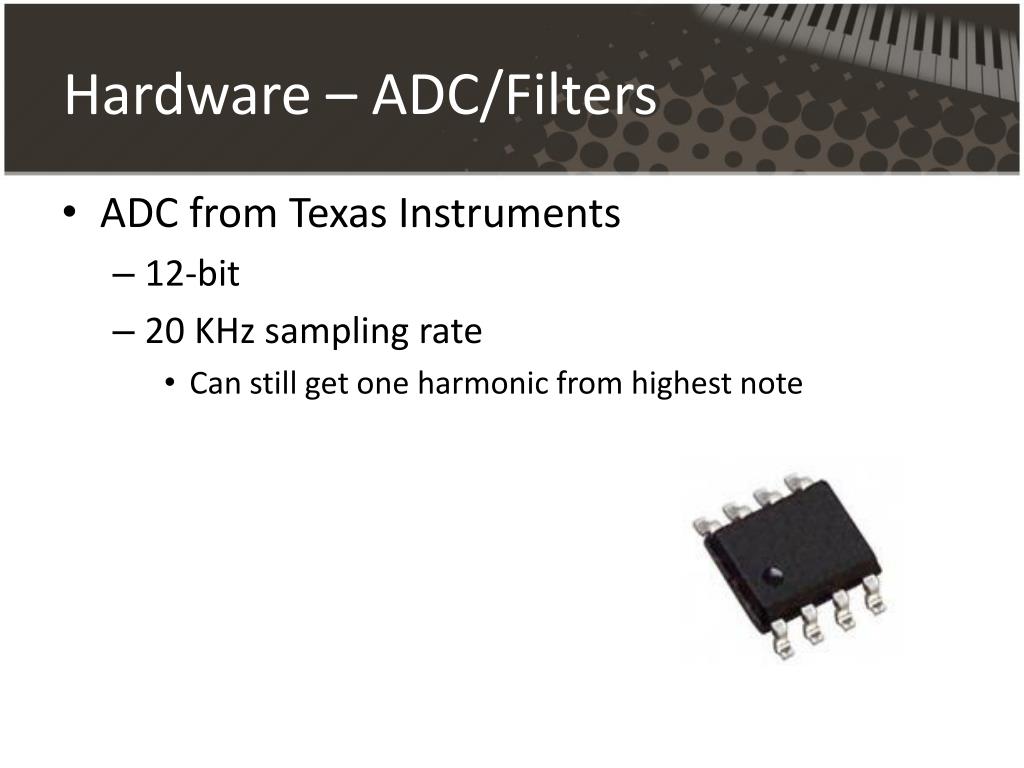

  6. Hardware – ADC/Filters • ADC from Texas Instruments • 12-bit • 20 KHz sampling rate • Can still get one harmonic from highest note

  7. Hardware – FPGA • FPGA breakout board from Dallas Logic • Altera Cyclone III • 24,624 logic elements • 594 Kbits of memory • Programmer and power included

  8. Hardware – Microcontroller • ARM M3-Cortex from STMicroelectronics • 32-bit • 72 MHz • 37 I/O pins • Single-cycle multiplication and division

  9. Hardware – USB Controller • FTDI Chip • Serial to USB • Output seen as MIDI using: • Virtual COM Port driver • Roland MIDI driver

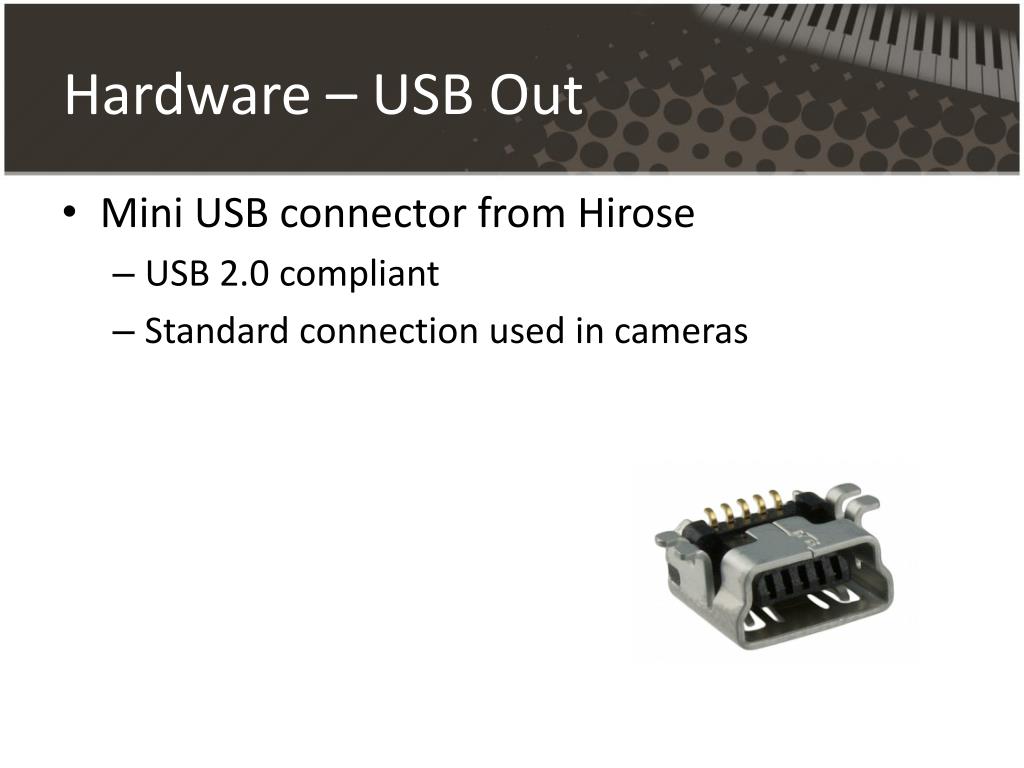

  10. Hardware – USB Out • Mini USB connector from Hirose • USB 2.0 compliant • Standard connection used in cameras

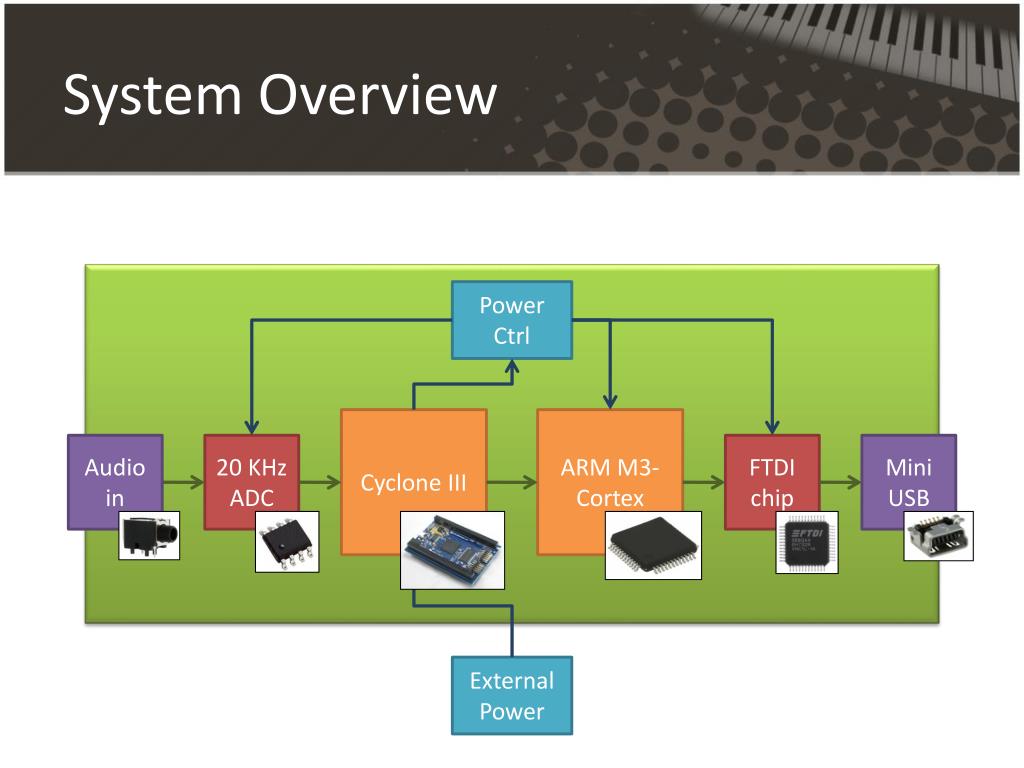

  11. System Overview Power Ctrl Cyclone III ARM M3-Cortex Audio in 20 KHz ADC FTDI chip Mini USB External Power

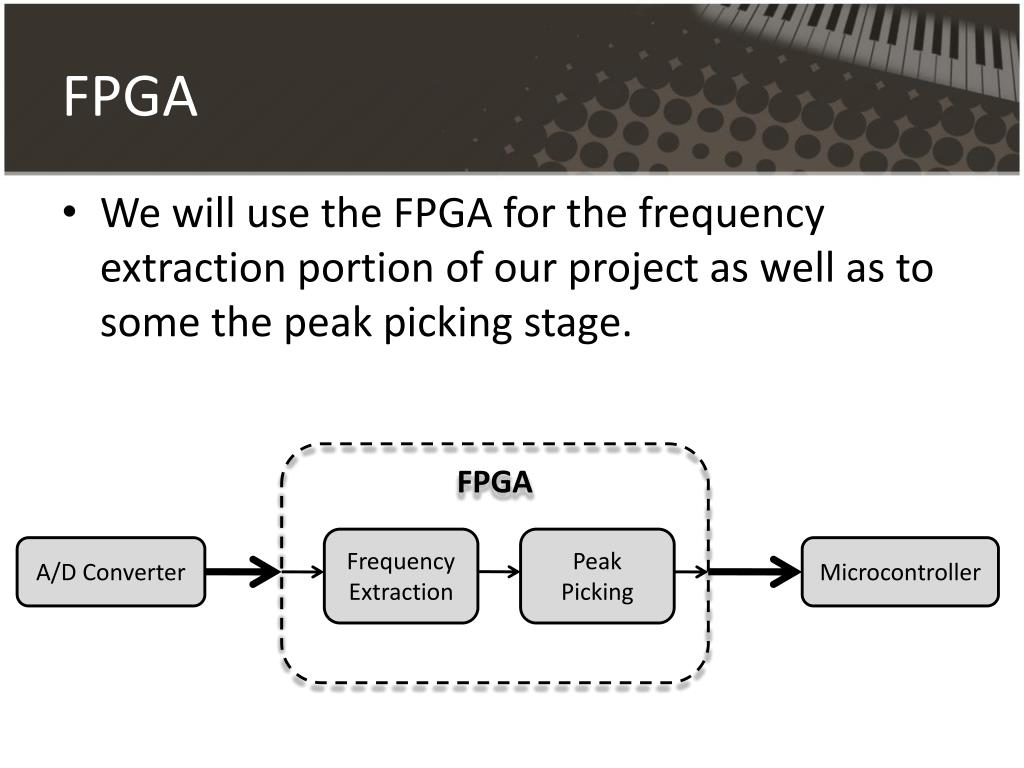

  12. FPGA • We will use the FPGA for the frequency extraction portion of our project as well as to some the peak picking stage. FPGA Frequency Extraction Peak Picking A/D Converter Microcontroller

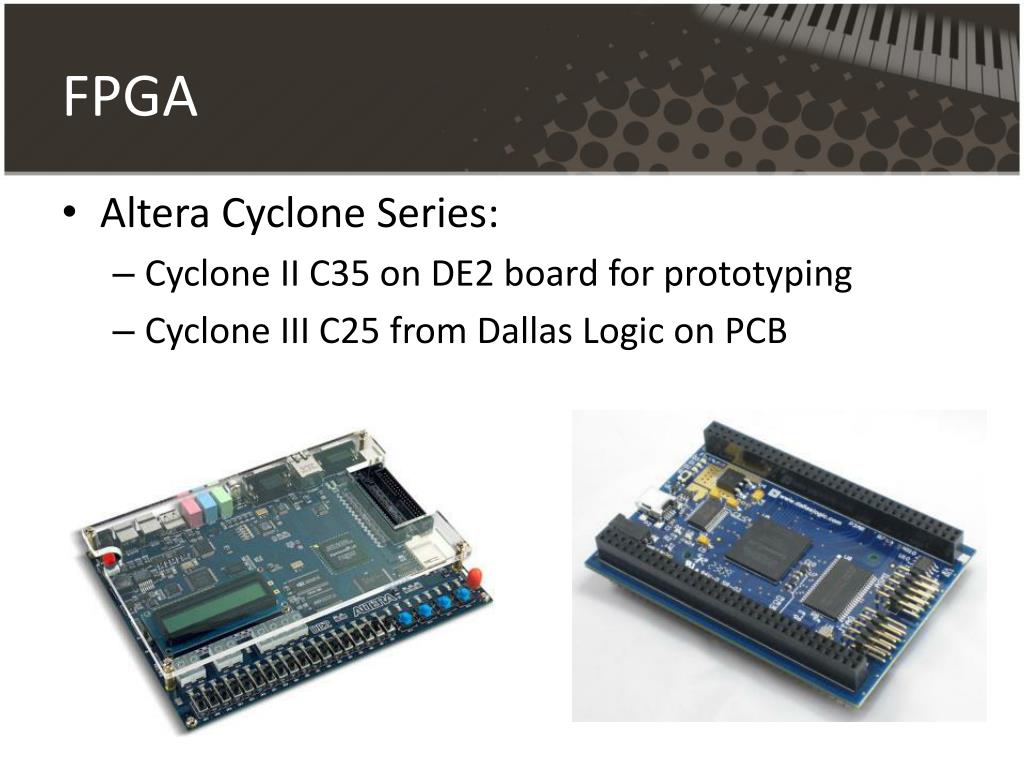

  13. FPGA • Altera Cyclone Series: • Cyclone II C35 on DE2 board for prototyping • Cyclone III C25 from Dallas Logic on PCB

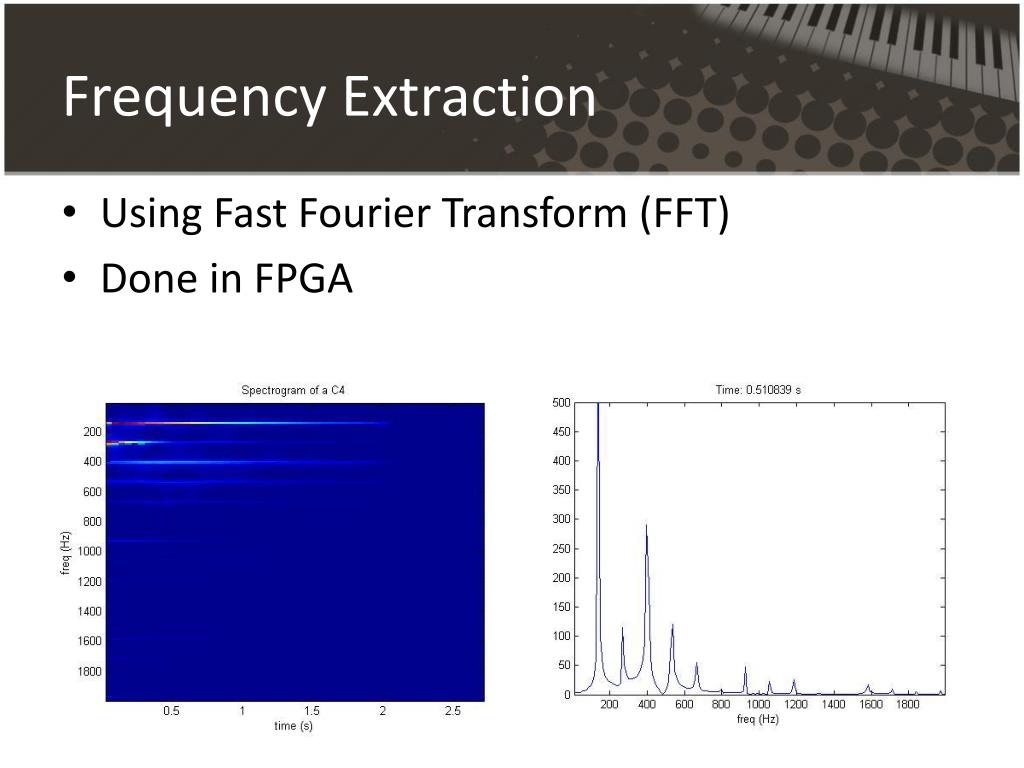

  14. Frequency Extraction • Using Fast Fourier Transform (FFT) • Done in FPGA

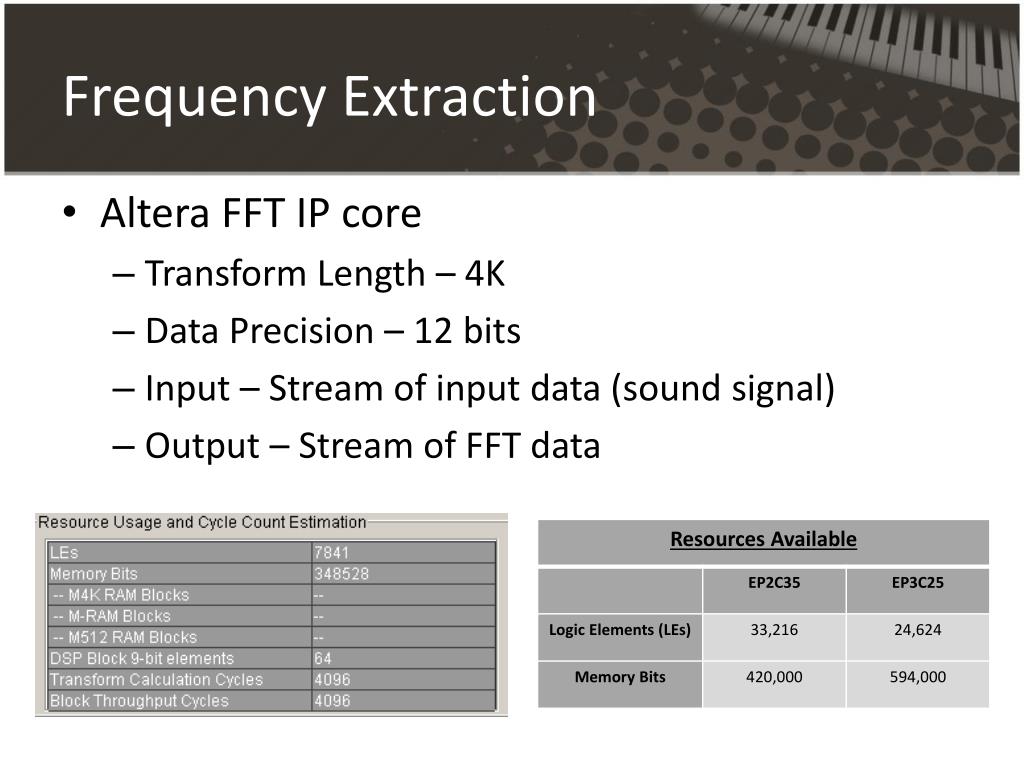

  15. Frequency Extraction • Altera FFT IP core • Transform Length – 4K • Data Precision – 12 bits • Input – Stream of input data (sound signal) • Output – Stream of FFT data

  16. Testing FFT IP Core • FFT IP Core test being done in Simulink

  17. Peak Picking • We will be picking peaks using the “Neighbor Method” • Neighbor Method - focuses on a sample and then compares it to the samples around it (its “neighbors”) • For each bin or collection of points we will find the slope of the line in the bin relative to its neighbors and the max power in the bin.

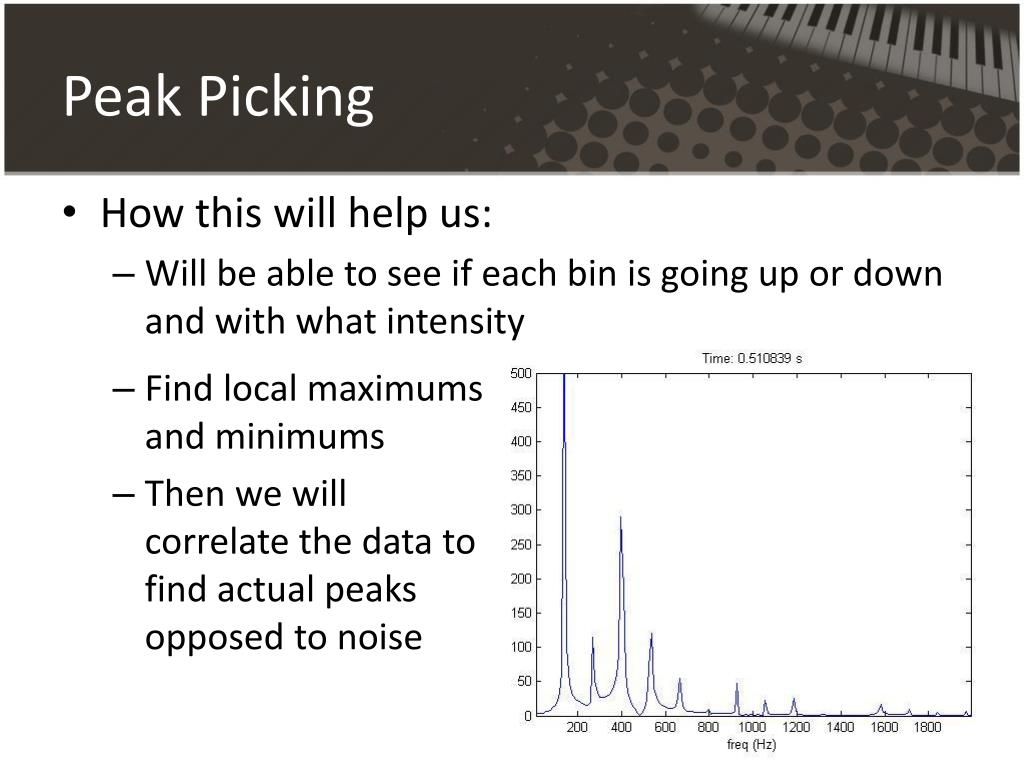

  18. Peak Picking • How this will help us: • Will be able to see if each bin is going up or down and with what intensity • Find local maximums and minimums • Then we will correlate the data to find actual peaks opposed to noise

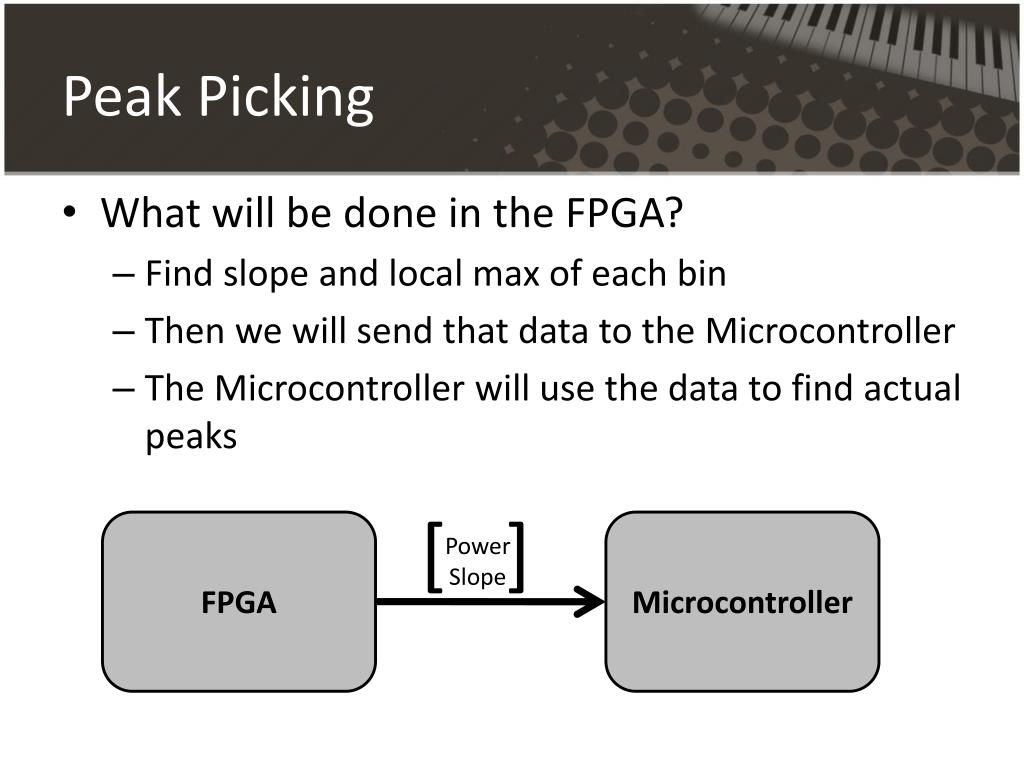

  19. Peak Picking • What will be done in the FPGA? • Find slope and local max of each bin • Then we will send that data to the Microcontroller • The Microcontroller will use the data to find actual peaks [ ] FPGA Microcontroller Power Slope

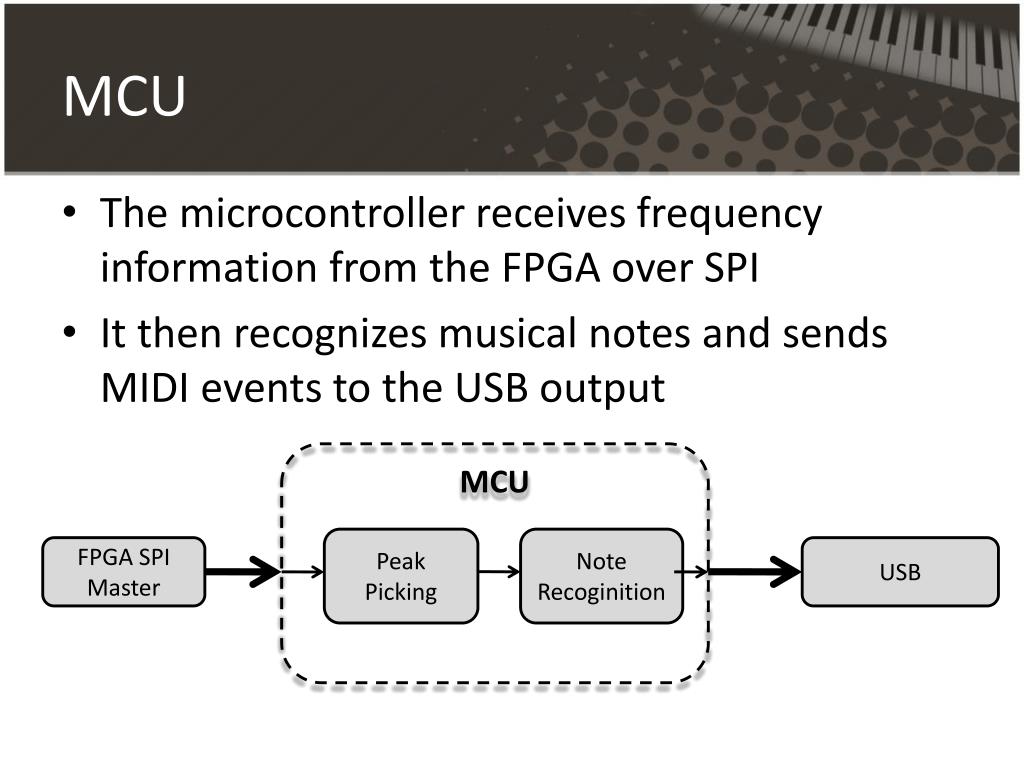

  20. MCU • The microcontroller receives frequency information from the FPGA over SPI • It then recognizes musical notes and sends MIDI events to the USB output MCU Peak Picking Note Recoginition FPGA SPI Master USB

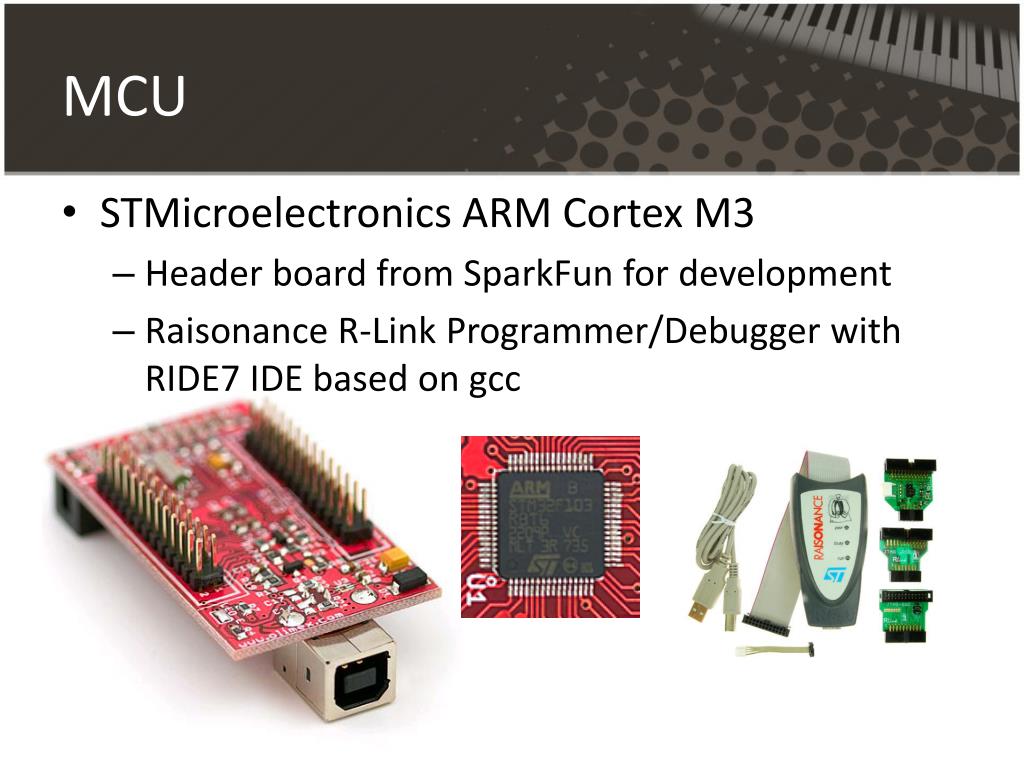

  21. MCU • STMicroelectronics ARM Cortex M3 • Header board from SparkFun for development • Raisonance R-Link Programmer/Debugger with RIDE7 IDE based on gcc

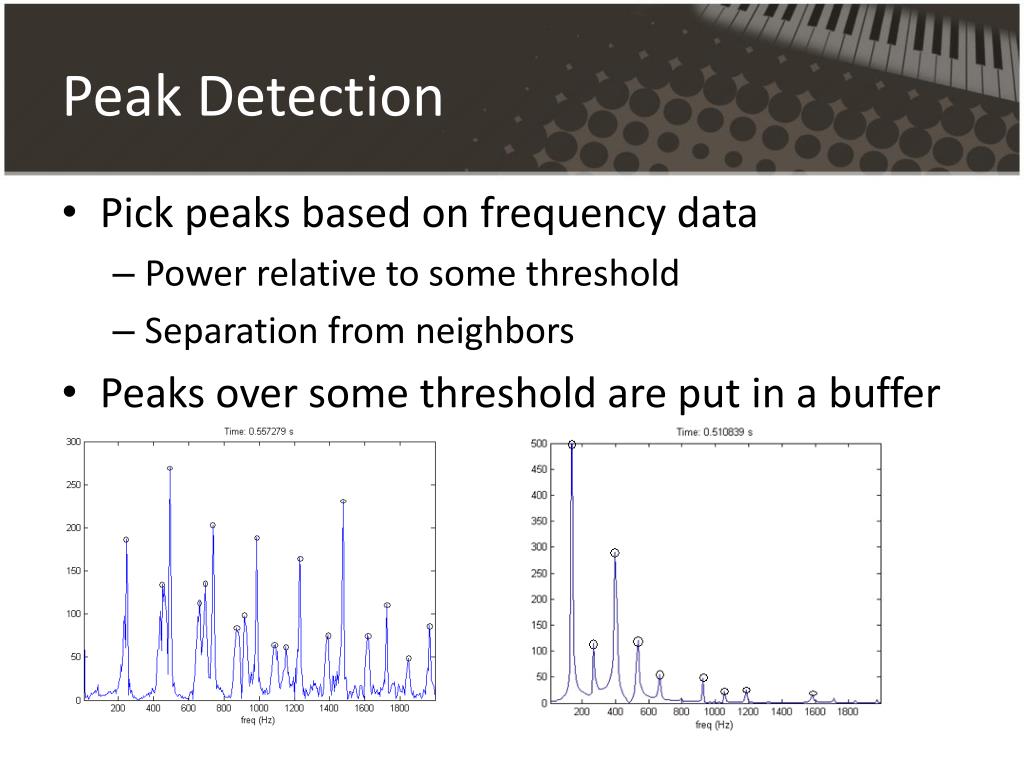

  22. Peak Detection • Pick peaks based on frequency data • Power relative to some threshold • Separation from neighbors • Peaks over some threshold are put in a buffer

  23. Note Detection • State of notes being played • Frequency and harmonic content • State changes trigger MIDI events • State updated for each time slice Get peak info Update current notes Find new notes Send MIDI events for note on/off

  24. Note Detection- Update Notes • From the frequency data, possible notes are given a score based on peaks near ~10 harmonics • First, the notes in the on state are checked to make sure their score is high enough • If a note is still on, its peak content is subtracted from the peak data • If a note is no longer on, it’s state changes to off and a MIDI note off event gets sent

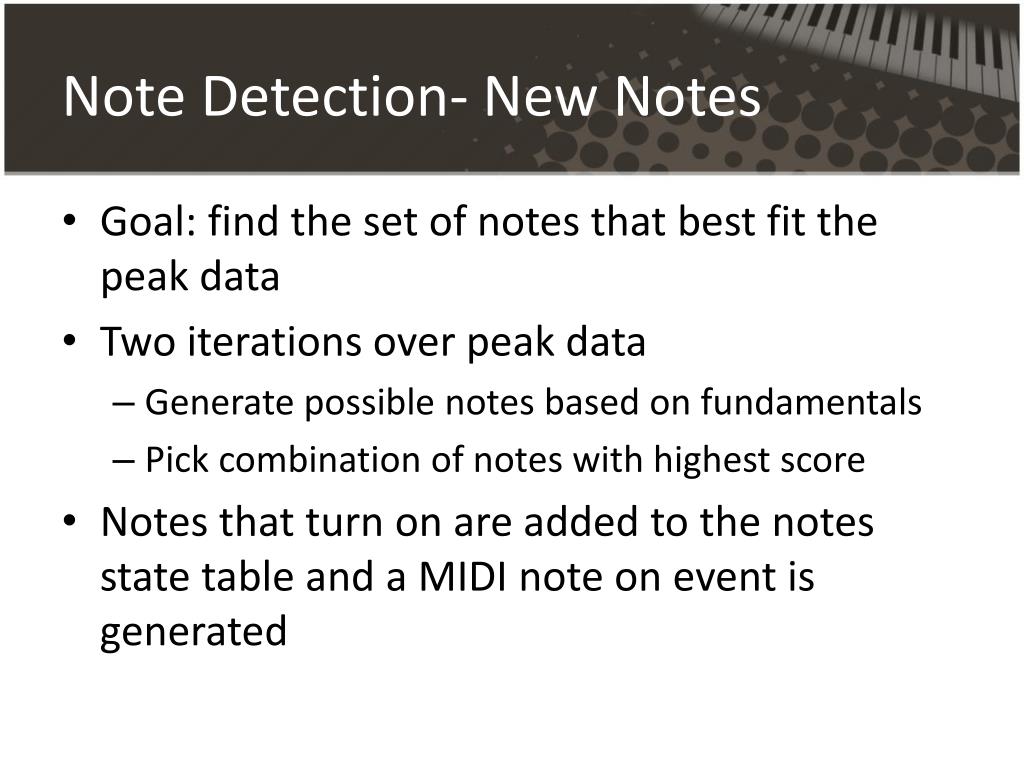

  25. Note Detection- New Notes • Goal: find the set of notes that best fit the peak data • Two iterations over peak data • Generate possible notes based on fundamentals • Pick combination of notes with highest score • Notes that turn on are added to the notes state table and a MIDI note on event is generated

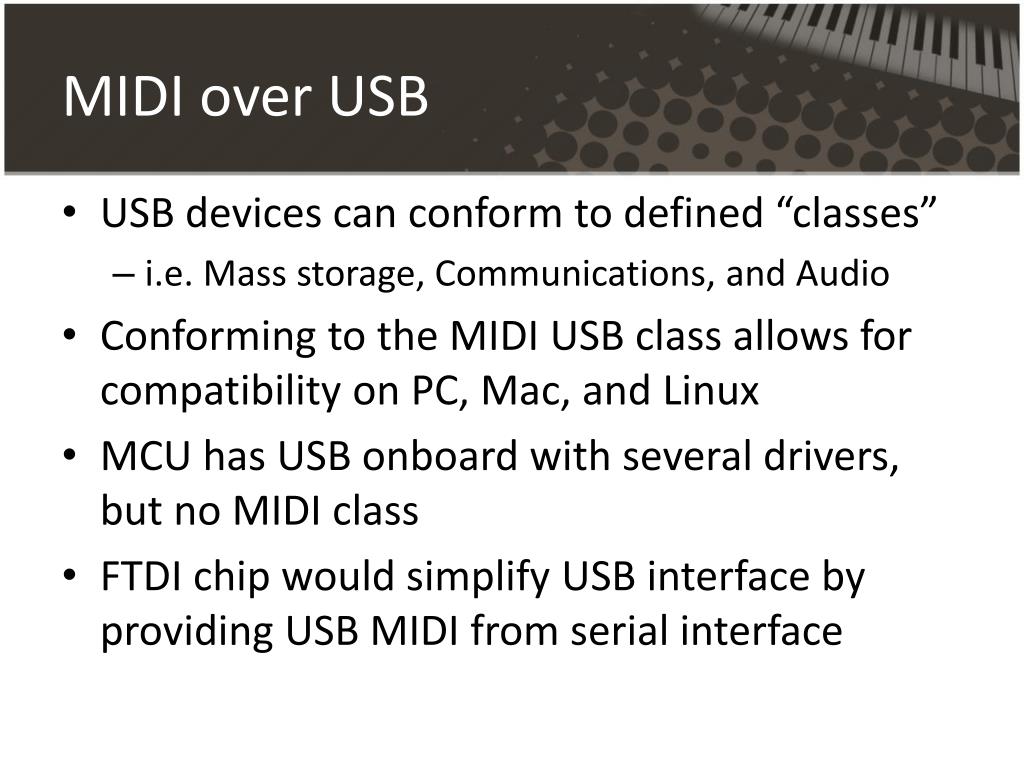

  26. MIDI over USB • USB devices can conform to defined “classes” • i.e. Mass storage, Communications, and Audio • Conforming to the MIDI USB class allows for compatibility on PC, Mac, and Linux • MCU has USB onboard with several drivers, but no MIDI class • FTDI chip would simplify USB interface by providing USB MIDI from serial interface

  27. Budget

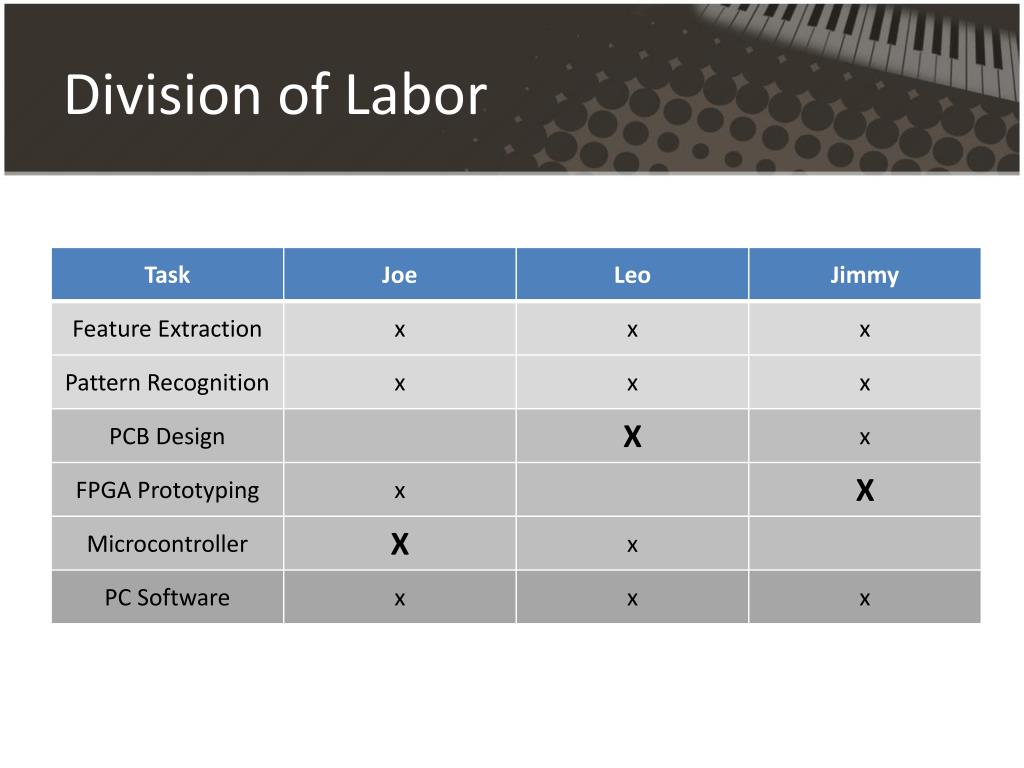

  28. Division of Labor

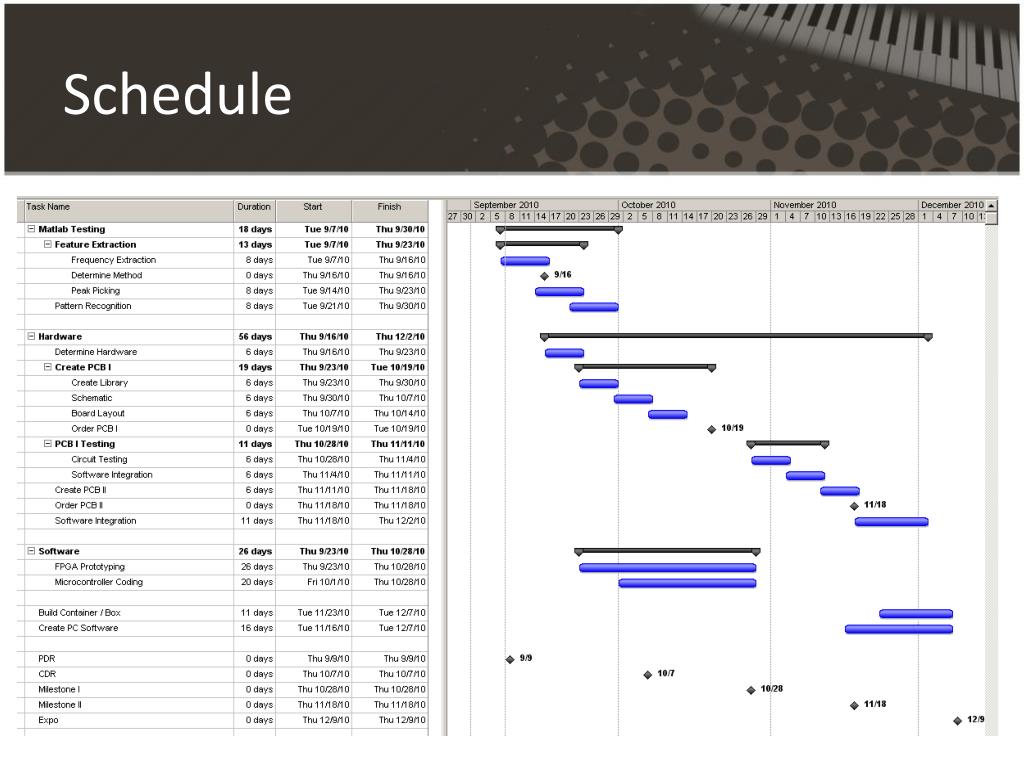

  29. Schedule

  30. Milestones • Milestone I • Have 1st iteration of PCB ordered • FPGA – Demonstrate the FFT core working on the DE2 Board • Microcontroller – Be able to send USB data • Milestone II • Interface between FPGA and Microcontroller working • Have 2nd iteration of PCB ordered • Expo • Full System Operating Correctly

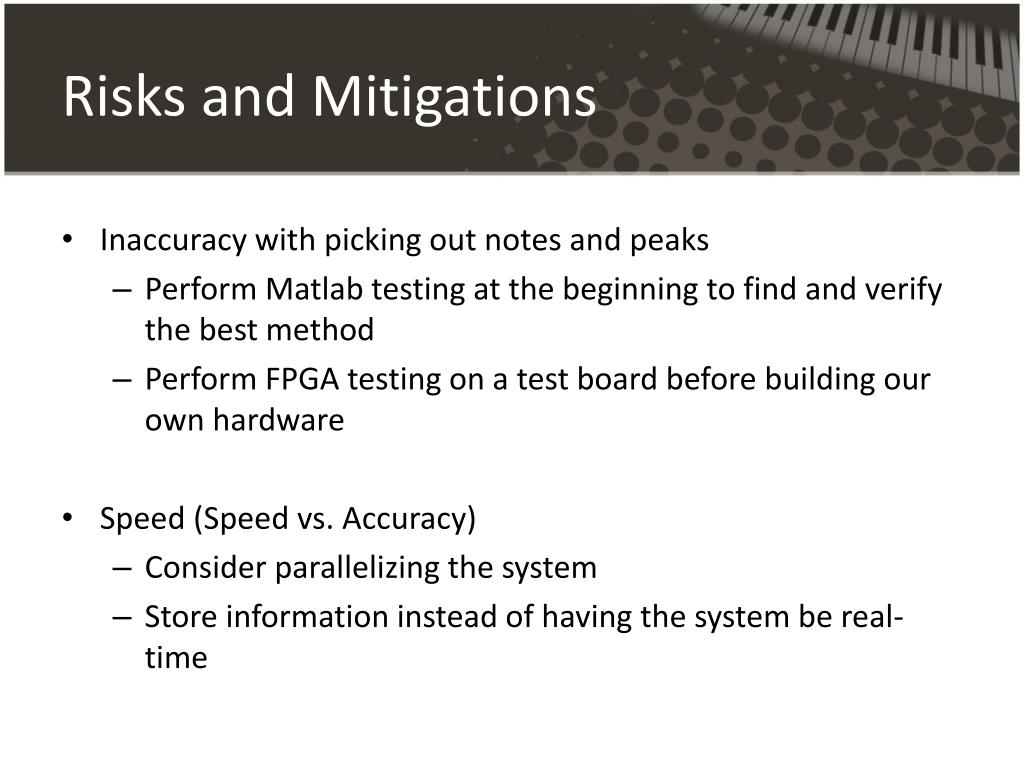

  31. Risks and Mitigations • Inaccuracy with picking out notes and peaks • Perform Matlab testing at the beginning to find and verify the best method • Perform FPGA testing on a test board before building our own hardware • Speed (Speed vs. Accuracy) • Consider parallelizing the system • Store information instead of having the system be real-time

  32. Risks and Mitigations • Noisy signal (especially at Expo) • Have filters in place to remove the noise • Consider having several microphones to create a noise array for noise cancellation • Different instruments have different sound signatures • Have different algorithms in place that can be used depending on the instrument • Have a switch on the box to select what sound type the signal is

  33. Risks and Mitigations • Time Constraint • Plan time accordingly • Stick to the schedule • Shipping delay / error • Order parts early • Ensure the part is available

  34. Risks and Mitigations • Problems or errors with PCB design and population • Fix mistakes and order new iteration • Make room for an error in our timeline • Do it right the first time • Problems with project working on PCB • Get everything working on development boards first • Someone has an emergency • Triangle of stability • Have at least two people working on all the different parts

  35. Questions • In Order of Appearance: • Leo Ovanesyan • Jimmy Thompson • Joe Kramer
