  1. ECE 453 – CS 447 – SE 465 Software Testing & Quality AssuranceInstructorKostas Kontogiannis

  2. Overview • Discrete Mathematics for Testers • Set Theory • Functions • Relations • Probability • Graphs • Representation • Paths • Directed Graphs • Graphs for Testing

  3. Set Definition Format • Explicit enumeration: • Example: Y = {10, 20, 30, 40} • Using decision rules: • Examples: • Y = {item_number | 80 < item_number < 100} • Y = {item_number : 80 < item_number <100} • Y = {x | x is positive integer} • Y = {x | PI(x)} • Empty set: A set with no elements • Y = {year : 2012 < year < 1812} = {} = O

  4. + + Venn Diagrams • Diagrams that illustrate diferent set relationships or illustrate a set with respect to the domain (U) • Set operations: • Union : A U B = { x : x in A or x in B} • Intersection: A ∩ B = {x : x in A and x in B} • Complement: A* = {x : x not in A} • Relative complement: A – B = {x : x in A and x not in B} • Symmetric difference: A B = {x: x in A x in B} = = (A U B) – (A ∩ B)

  5. Set Relations and Partitions • A Subset B: a in A  a in B • A Proper Subset B: A subset B and (B – A) ≠ O • Equal sets: A = B iff A subset B and B subset A • Given a set B and a set of subsets A1, A2, An of B, the subsets are a partition of B iff • A1U A2U .. An = B • For i ≠ j Ai ∩Aj = O

  6. Functions, Domains, Ranges • Given two sets A and B, a functionf :A  B is a subset of the product A X B such that for any of ai, aj in A, there exist bi, bj in B such that f(ai) = bi, and f(aj) = bj. • The set A is called the domain of f and B is called the range of f. • The function f can be represented as a set of pairs.

  7. Function Types • Functions are further described by the particulars of the mapping e.g. f(A) = {bi in B : bi = f(ai) for some ai in A} • This set is sometimes called the image of A under f • Types of functions that relate the image and the range are: • Function f is a function of A onto B iff f(A) = B • Function f is a function of A into B iff f(A) proper subset B • Function f is a one-to-one function from A to B iff for all ai, aj in A, s.t. ai≠aj implies that f(ai) ≠ f(aj)

  8. Function Composition • Suppose we have sets and functions such that the range of one is the domain of the next: • f: A  B • g: B  C • h: C  D • We can define a new function w:A  D such that w(a) = (hogof) (a) = h(g(f(a))) • So, if f(a) = b, and g(b) = c, and h(c) = d then w(a) = h(g(f(a))) = h(g(b)) = h(c) = d

  9. Application Snapshot • Causal Flow • Non-Causal Flow a f b g c a fg c b b b B

  10. Relations • Given two sets A, B a relation R is a subset of the Cartesian product A X B • Functions are a special case of a relation: • Both are subsets of some Cartesian product • Functions have the additional requirement that a domain element can not be associated with more than one range element. • When a relation is not a function then is also called a mapping. • A relation has a property called cardinality

  11. Relations among Sets • Given two sets A, B, and a relation R among these sets, the cardinality of R is: • one-to-one iff R is a one-to-one function from A to B • many-to-one: iff R is a many-to-one function from A to B • one-to-many: iff at least one element a in A is in two ordered pairs in R, that is (a, bi) in R and (a, bj) in R. • many-to-many: iff at least one element a in A is in two ordered pairs in R, that is (a, bi) in R and (a, bj) in R and one element b in B is in two ordered pairs in R, that is (ak, b) in R and (an, b) in R

  12. Participation of a Relation • Let R be a relation s.t. R is a subset of A X B • The participation of the relation R can be: • total participation: iff every element of A is in some ordered pair in R • partial participation: iff some element of A is not in any ordered pair in R • onto participation: iff every element of B is in some ordered pair in R • into participation: iff some element of B is not in some element in R

  13. Relations on a Single Set • Let R be a relation defined in the same set A X A • A relation R is: • reflexive: iff for all a in A <a, a> in R • symmetric: iff <a,b> in R then <b,a> in R • anti-symmetric: if <a,b> in R and <b,a> in R then it implies that a=b • transitive: iff <a,b> in R and <b,c> in R then <a,c> in R • Such a relation R is an ordering relation if it is reflexive, anti-symmetric and, transitive. • Similarly, R is an equivalence relation if it is reflexive, symmetric, and transitive.

  14. Propositional Logic • Propositions are sentences specified in propositional logic notation that can be evaluated to True or False. • A simple proposition (e.g. p, q, r) is a valid sentence • Valid sentences can be constructed by other sentences using logical operators (and, or, not, implies, exclusive_or) • Two proposition logic sentences are equivalent iff their truth tables are identical (e.g. S= p  q) is equivalent with the sentence W = ~p or q) • A proposition is a tautology if it is always true (e.g. S = a or ~a) • A proposition is a contradiction if it is always false (e.g. S = a and ~a)

  15. Probability Theory • Events: things that happen • Universe of Discourse: all events that can possibly happen, and is denoted by U. • Let p is a proposition about elements in U: • The truth set of a proposition p, written T(p), is the set of all elements in U for which p is true (note T(p) U T(~p) = U) • The probability that a proposition p is true is defined as Pr(p) = |T(p)| / |U| • The definition of U is crucial on determining the value of Pr(p) • Facts: • Pr(~p) = 1 – P(p) • Pr(p and q) = Pr(p) * Pr(q) • Pr(p or q) = Pr(p) + Pr(q) – Pr(p and q)

  16. Graph Theory for Testers • A graph G = (V, E) is composed of a finite and non empty set V = {n1, n2, nm) of nodes and a set E = {e1, e2, ep} of edges, where each edge ek = {ni, nj}, for some nodes ni, nj in V.

  17. Example e1 V = {n1, n2, n3, n4, n5, n6, n7} E = {e1, 2, e3, e4, e5} = {{n1, n2}, {n1, n4}, {n3, n4}, {n2, n5}, {n4, n6}} n2 n1 e2 e4 e3 n3 n5 n4 e5 n6 n7 Degree of a node: the number of edges that have the node as an endpoint. Example: deg(n1) = 2, deg(n7) = 0, deg(n4) = 3.

  18. Incidence Matrices • An incidence matrix of a graph G = (V, E) with m nodes and n edges is an m X n matrix where the elements in row i, and column j is 1 iff node i is an endpoint of edge j, otherwise is 0.

  19. Adjacency matrix • The adjacency matrix of a graph G = (V, E) with m nodes, and n edges, is an m X m matrix, where the elements in row i and column j is 1 iff there is an edge between node i and node j, otherwise is 0.

  20. Paths • A path is a sequence of edges such that, for any adjacent pair of edges ei, ej in the sequence, the edges share a common node as an endpoint. • Paths can be described either as a sequence of edges, or as a sequence of nodes. • Paths are defined between a source node and a target node.

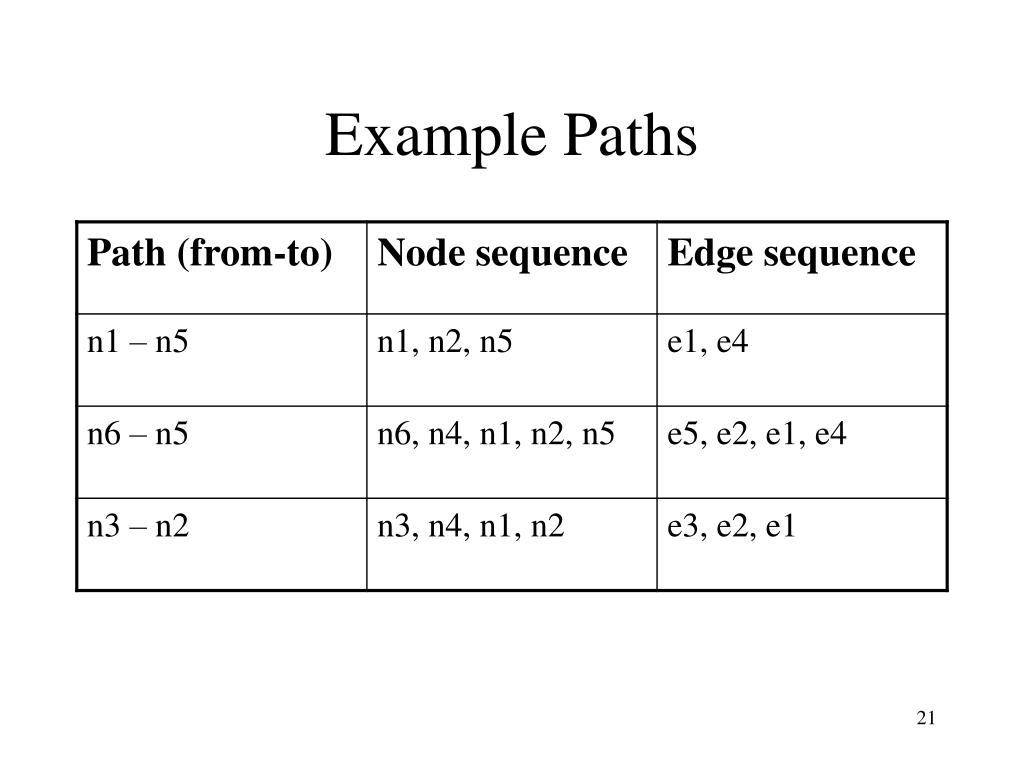

  21. Example Paths

  22. Connectedness • Nodes ni, nj are connected iff there is a path from node ni to node nj • “Connectedness” is an equivalence relation on the node set of a graph • “Connectedness” defines a partition on the node set of a graph. • A component of a graph is a maximal set of connected nodes • Example: Two components in the sample graph C1 = {n1, n2, n3, n4, n5, n6}, and C2 = :n7}

  23. Condensation Graphs • Given a graph G = (V, E), its condensation graph is formed by replacing each component by a condensing node. n7 C1

  24. Complexity of a Graph • A measure of the complexity of a graph is its cyclomatic complexity measure. • The cyclomatic complexity of a graph G, is a number V(G) = e – n + 2, where e is the number of edges in the graph, and n is the number of vertices (nodes) in the graph.

  25. Directed Graphs • A directed graph (or digraph) D = (V, E), consists of a finite set of vertices V = {n1, n2, … nm}, and a set of edges E = {e1, e2, ep}, where each edge ek = <ni, nj> is an ordered pair of nodes in V.

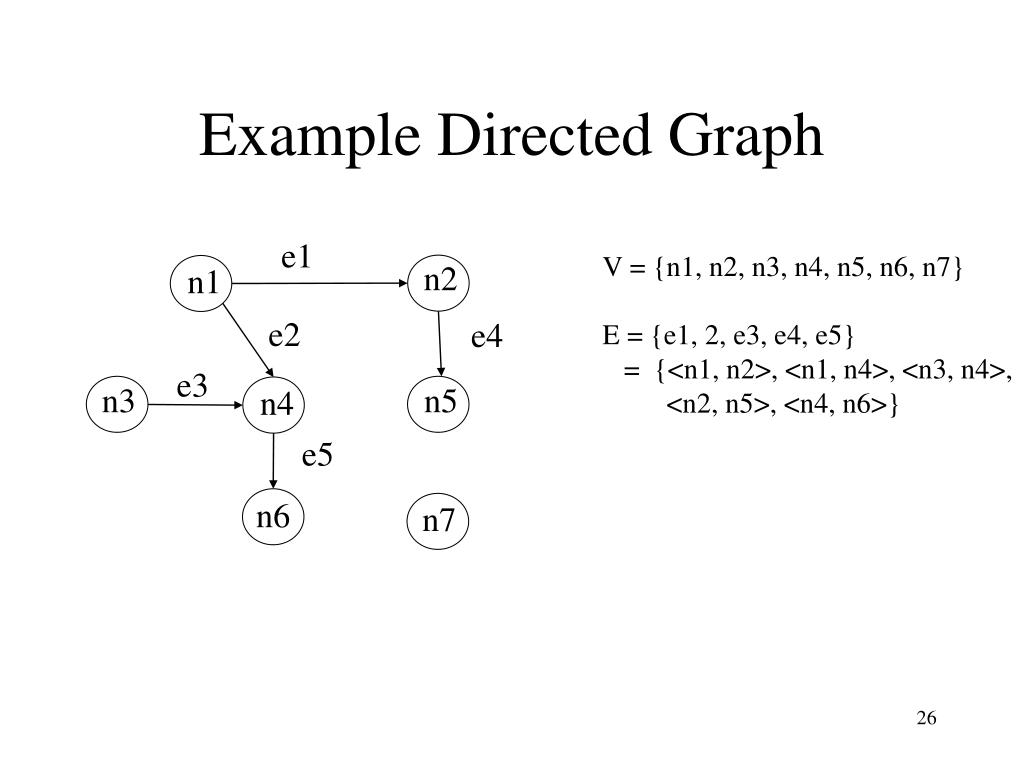

  26. Example Directed Graph e1 V = {n1, n2, n3, n4, n5, n6, n7} E = {e1, 2, e3, e4, e5} = {<n1, n2>, <n1, n4>, <n3, n4>, <n2, n5>, <n4, n6>} n2 n1 e2 e4 e3 n3 n5 n4 e5 n6 n7

  27. Properties of Directed Graphs • The indegree (or fan-in) of a node in a directed graph is the number of distinct edges that have the node as a terminal node (target node). Example: indeg(n1) = 0, indeg(n4) = 2 • The outdegree (or fan-out) of a node in a directed graph is the number of distinct edges that have the node as a start node (source node). Example: outdeg(n1) = 2, outdeg(n6) = 0 • A node with in indegree = 0 is called a source node (n1, n3, n7) • A node with outdegree = 0 is called a sink node (n5, n6, n7) • A node with indegree ≠ 0 and outdeg ≠ 0 is called a transfer node (n2, n4) • A node that is both a source and a sink is an isolated node • The source and sink nodes in a graph constitute the external boundary of the graph

  28. Adjacency Matrix of a Directed Graph • The adjacency matrix of a directed graph D = (V, E) with m nodes is an mXm matrix which in row i and column j there is an entry equal to 1 iff there is an edge from node i to node j, otherwise the entry is equal to 0 • The sum of a row is the outdegree of a node • The sum of a column is the indegree of a node

  29. Paths and Semi-Paths • A directed path is a sequence of edges such that, for any adjacent set of edges ei, ej in the sequence, the terminal node of ei is the initial node of ej • A cycle is a directed path that begins and ends in the same node • A directed semi-path is a sequence of edges such that, for at least one adjacent pair of edges ei, ej in the sequence, the initial node of the first edge is the initial node of the second edge or the terminal node of the first edge is the terminal node of the second edge • Directed paths are also called chains • Example: There is a path from n1 to n6, There is a semi-path between n1 and n3 There is a semi-path between n2 and n4 There is a semi-path between n5 and n6

  30. Reachability Matrix • The reachability matrix of a directed graph D = (V, E) with m nodes is an mXm matrix R = (r(i, j)), where the entry r(i, j) = 1 iff there is a path from node i to node j, otherwise the entry is equal to 0 • The reachability matrix R can be computed as R= I + A + A2 + … + Ak where k is the length of the longest path in D

  31. N-Connectedness • Two nodes ni and nj in a directed graph are: • 0-connected: iff there is no path from ni to nj • 1-connected: iff there is a semi-path but no path between ni, nj • 2-connected: iff there is a path between ni, nj • 3-connected: iff there is a path from ni to nj and a path from nj to ni • A strong component of a directed graph is the maximal set of 3-connected nodes

  32. Example n1 and n7 are 0-connected n2 and n6 are 1-connected n1 and n6 are 2-connected n3 and n6 are 3-connected e1 n2 n1 e2 e4 e3 n3 n5 n4 e5 e6 n6 n7

  33. Condensation Graph of a DiGraph • A condensation graph is a a graph D'=(V',E') based on the directed graph D=(V,E) where each vertex in V' corresponds to a strongly connected component in D and edge (u,v) is in E' if and only if there exists an edge in E connecting any of the vertices in the component of u to any of the vertices in the component of v.

  34. Example Condensation DiGraph e1 n2 n1 e2 e4 n5 C1 n7

  35. Example Condensation Graph Condensation Graph

  36. Program Graphs • Given a program written in an imperative programming language, its program graph is a directed graph in which: • Nodes are program statements (or statement fragments), and edges represent flow of control • Control flow of imperative programs is defined by sequencing, iteration, and choice constructs

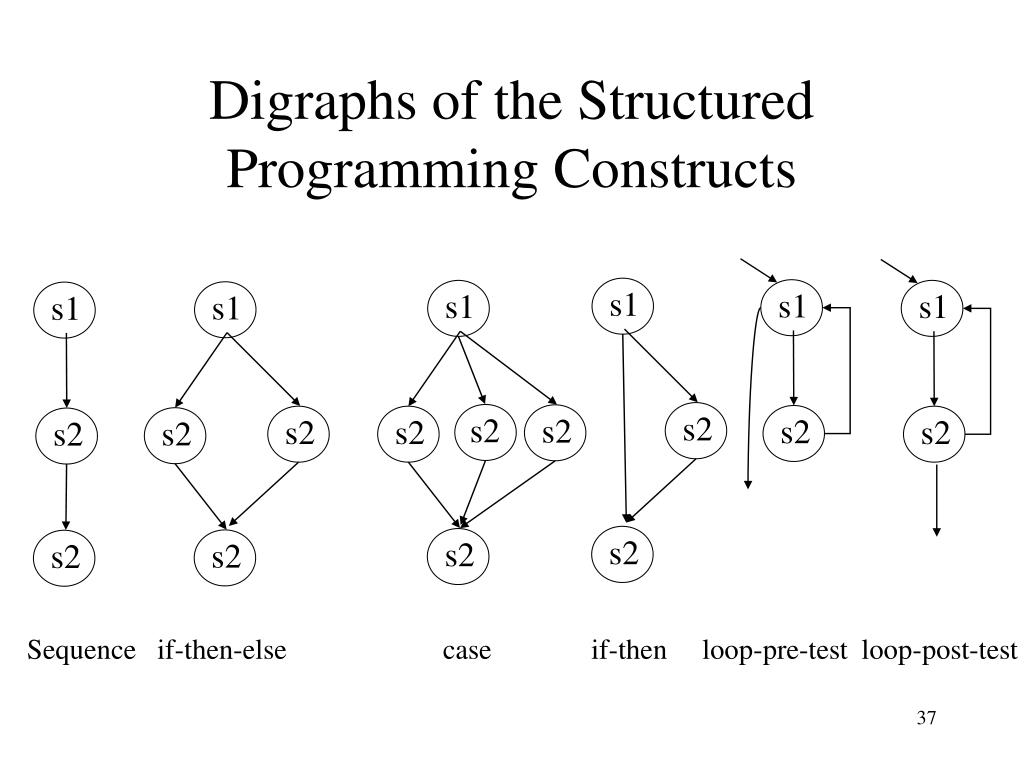

  37. Digraphs of the Structured Programming Constructs s1 s1 s1 s1 s1 s1 s2 s2 s2 s2 s2 s2 s2 s2 s2 s2 s2 s2 s2 Sequence if-then-else case if-then loop-pre-test loop-post-test

  38. Finite State Machines • A Finite State Machine (FSM) is a directed graph (S, T, Ev, Act, Guard), in which S is a set of nodes, T is a set of edges, and Ev, Act, Guard are sets of events, actions, and guards associated with the transitions in T.

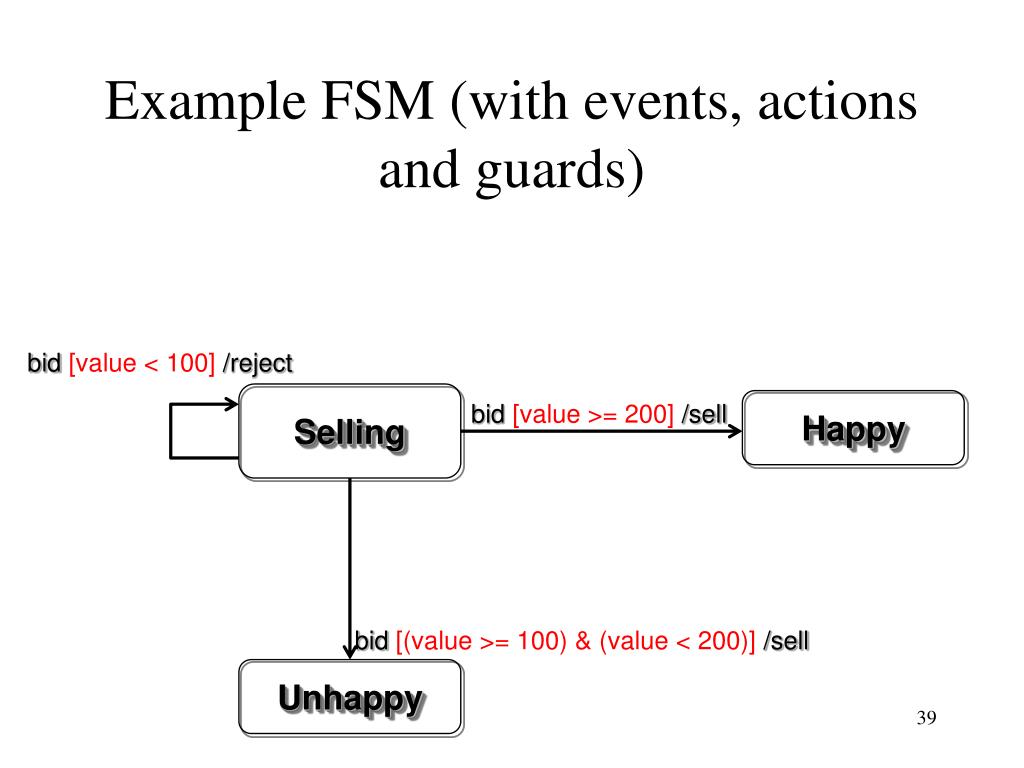

  39. bid [value < 100] /reject Selling bid [value >= 200] /sell Happy bid [(value >= 100) & (value < 200)] /sell Unhappy Example FSM (with events, actions and guards)

  40. Petri-Nets • A Petri-Net is a bipartite graph (P, T, In, Out), in which P, T are disjoint sets of nodes and In and Out are sets of edges, where In is a subset of P X T, and out is a subset of T X P • A marked Petri-Net is a 5-tuple (P, T, In, Out, M) in which (P, T, In, Out) is a Petri-Net and M is a set of mappings of places to positive integers (number of tokens in a Place) • A transition in a Petri-Net is enabled when there is at least one token in each input place • When an enabled transition fires one token is removed from each of its input places and is added in each of the output places

  41. Example p1 p5 p2 P = {p1, p2, p3, p4, p5} T = {t1, t2, t3} In = { <p1, t1>, <p5, t1>, <p5, p3>, <p2, p3>, <p3, t2>} Out = {<t1, p3>, <t2, p4>, <t3, p4>} M = <1, 1, 1, 2, 0> t1 t3 p4 p3 t2

  42. Example Petri Net
